Toyota DYNA150

1987-08 → 1995-05 · chassis YY5#,6#,LY6# · catalogue 731350 · General

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

10 part groups · 3 illustrations

Illustrations

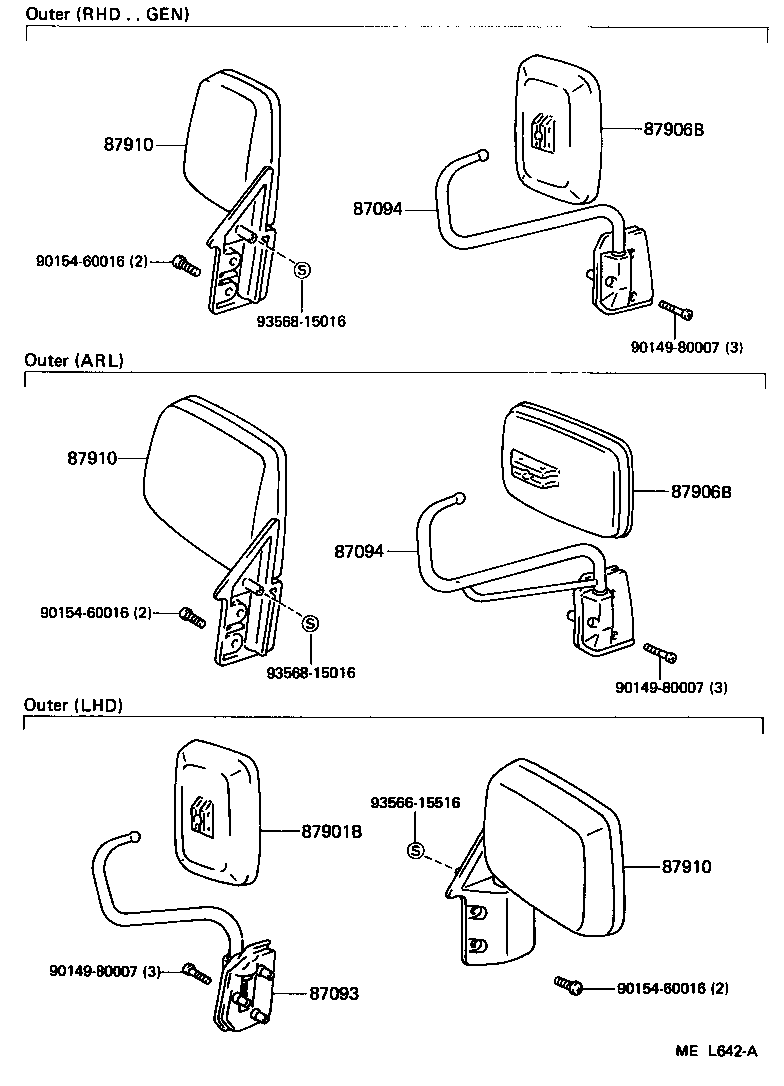

Figure MEK021B MEK021B 1987-08 → — Figure MEL641 MEL641 1987-08 → 1988-08 Figure MEL642A MEL642A 1988-08 → —

Part groups

PNCDescription
87093 Stay Sub-assy, Outer Rear View Mirror, Upper RH
87094 Stay Sub-assy, Outer Rear View Mirror, Upper LH
87810 Mirror Assy, Inner Rear View
87810B Bulb, Inner Rear View Mirror Lamp
87827 Absorber, Inner Rear View Mirror
87834 Cover, Inner Rear View Mirror Stay Holder
87901B Mirror Sub-assy, Outer Rear View, RH
87906B Mirror Sub-assy, Outer Rear View, LH
87910 Mirror Assy, Outer Rear View, RH
87940 Mirror Assy, Outer Rear View, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
