Toyota DYNA150

1987-08 → 1995-05 · chassis YY5#,6#,LY6# · catalogue 731350 · General

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

16 part groups · 4 illustrations

Illustrations

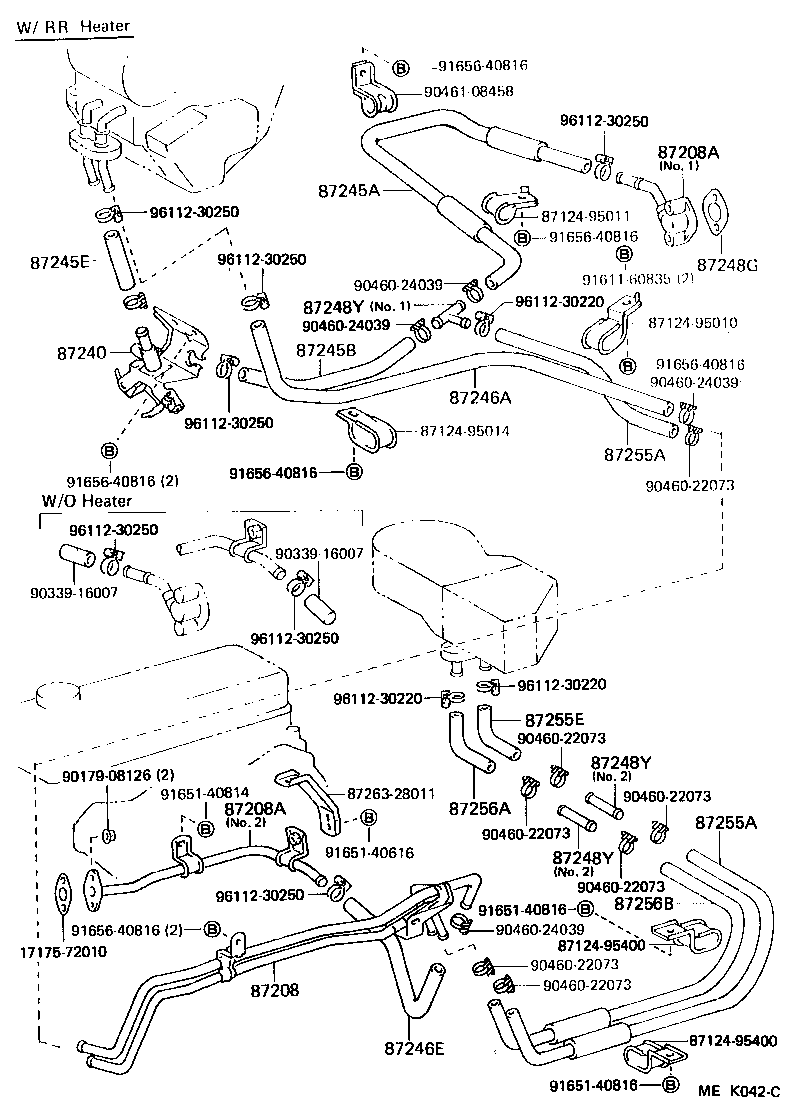

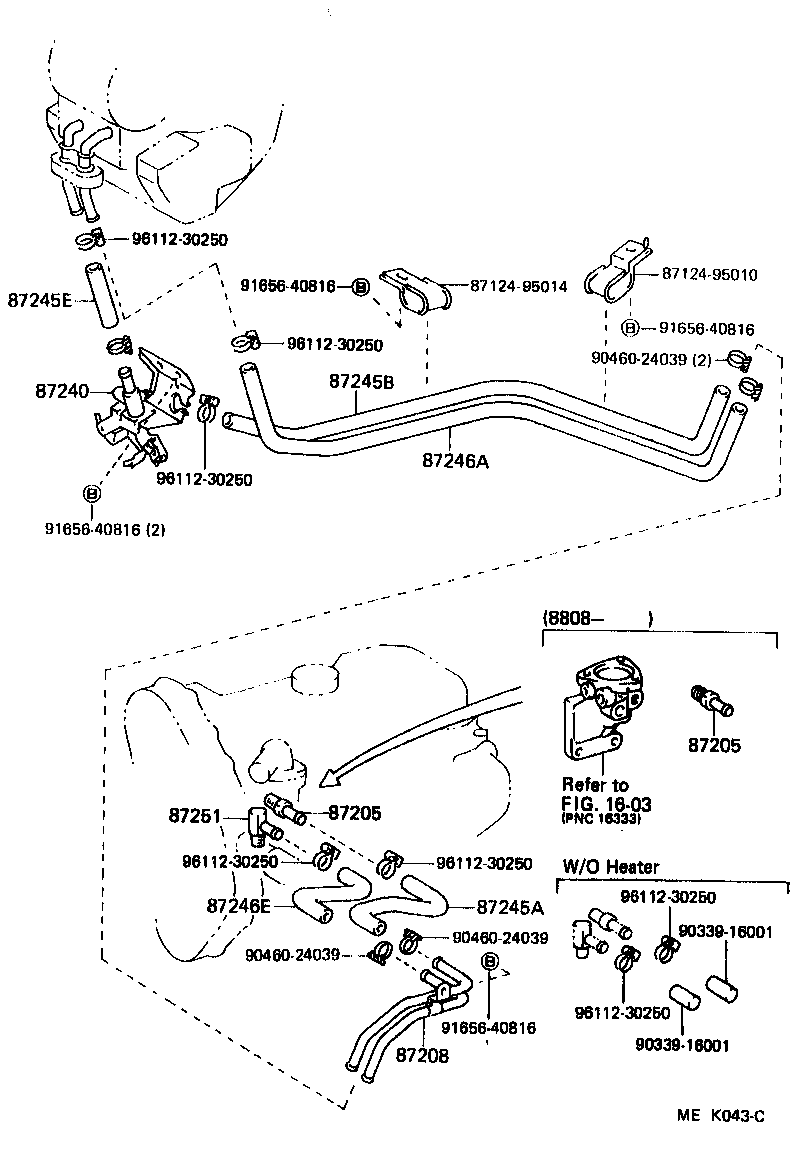

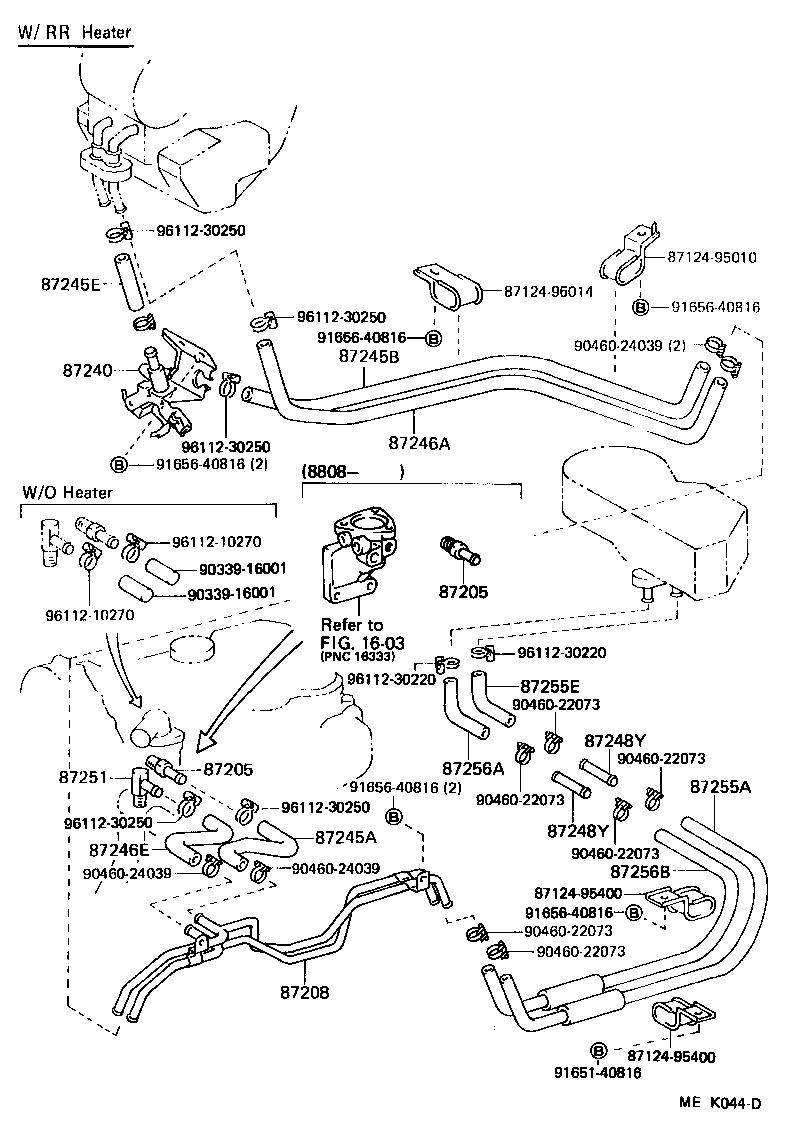

Figure MEK041B MEK041B 1987-08 → — Figure MEK042C MEK042C 1987-08 → — Figure MEK043C MEK043C 1987-08 → — Figure MEK044D MEK044D 1987-08 → —

Part groups

PNCDescription
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87208 Pipe Sub-assy, Heater Water
87208A Pipe Sub-assy, Heater Water, A
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87248G Gasket, Water Inlet Pipe
87248Y Pipe, Heater Water, NO.2
87251 Joint OR Union, Water Hose Through
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
