Toyota DYNA150

1987-08 → 1995-05 · chassis YY5#,6#,LY6# · catalogue 731350 · General

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

6 part groups · 3 illustrations

Illustrations

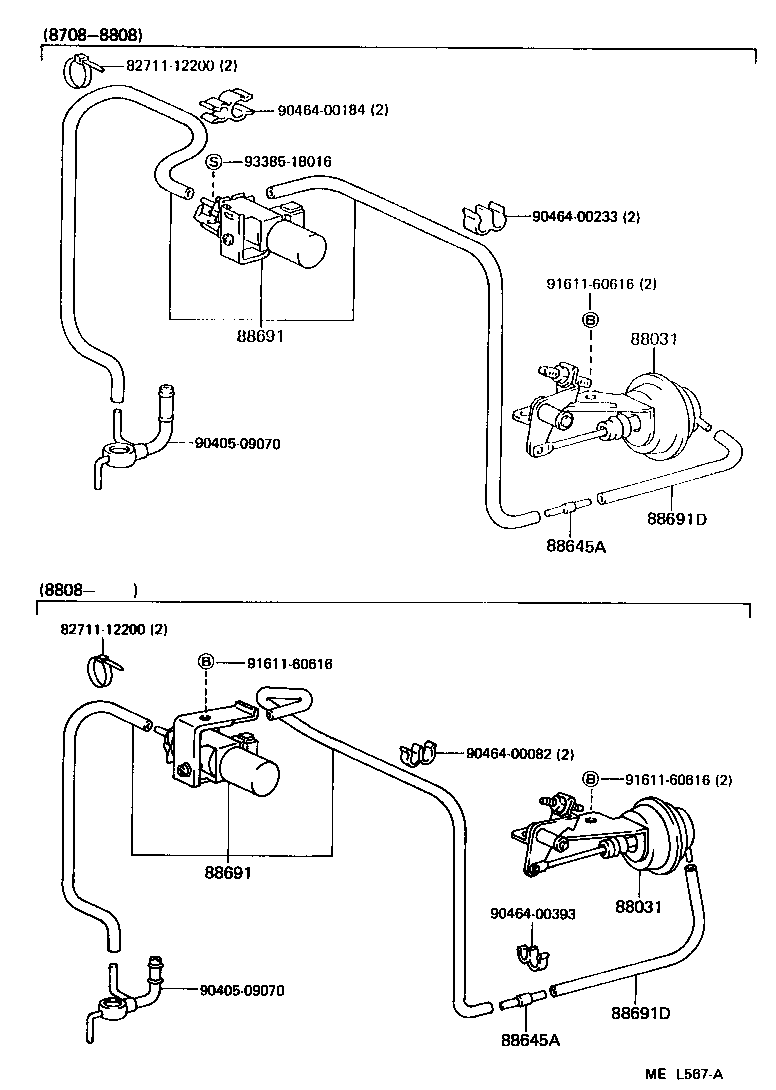

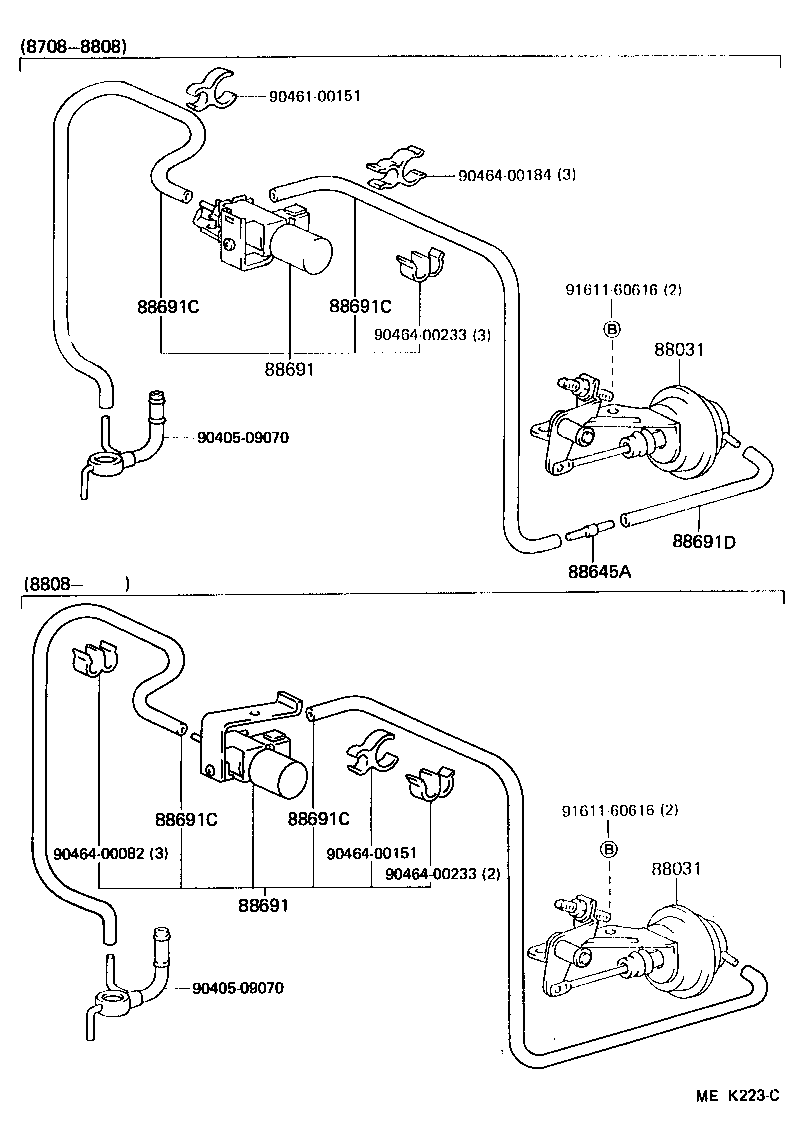

Figure MEK046C MEK046C 1987-08 → — Figure MEK223C MEK223C 1987-08 → — Figure MEL567A MEL567A 1987-08 → —

Part groups

PNCDescription
88031 Actuator Set, Idle-up
88645A Union (FOR IDLE UP DEVICE)
88645B Joint, NO.1 (FOR IDLE UP DIVICE)
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
88691D Hose, Vacuum (FOR IDLE UP DIVICE), NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
