Toyota DYNA200

1995-05 → 2003-12 · chassis BU10#,11#,14#,21#,22#,YU210,RZU100 · catalogue 751260 · General

Discontinued model Data version 2004-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Master Cylinder

9 part groups · 3 illustrations

Illustrations

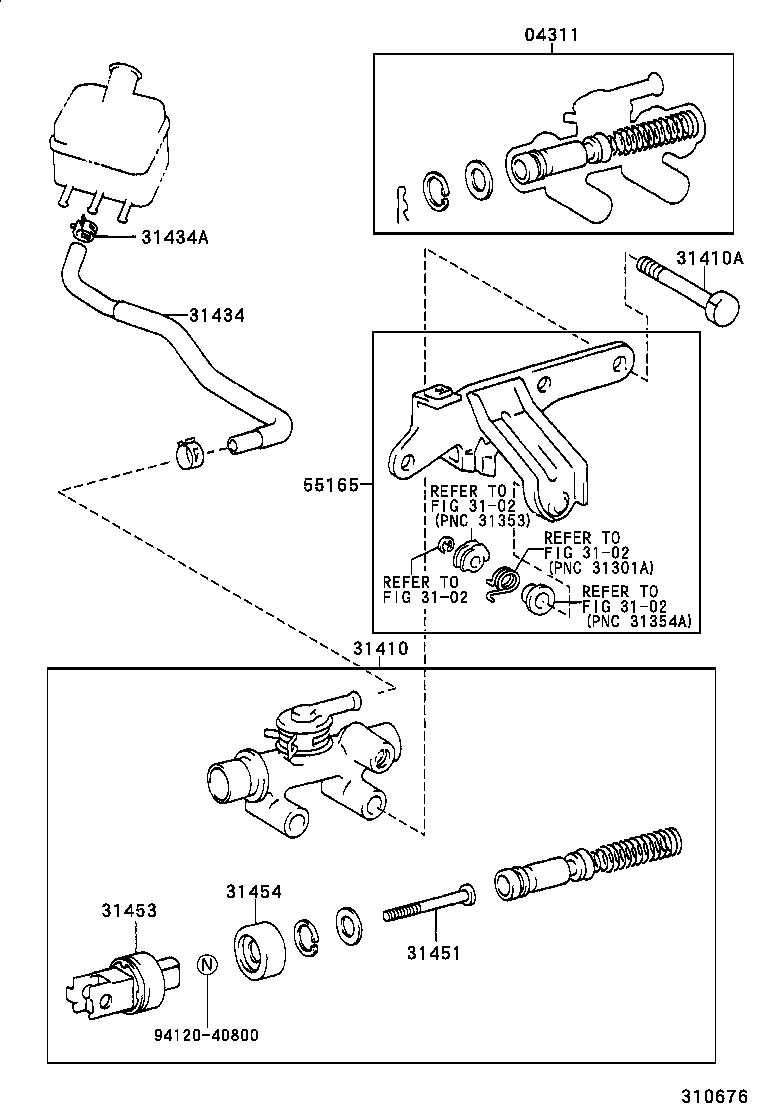

Figure 310677 310677 1995-05 → — Figure 310676 310676 1995-05 → — Figure MCS771 MCS771 1995-05 → —

Part groups

PNCDescription
04311 Cylinder Kit, Clutch Master
31410 Cylinder Assy, Clutch Master
31410A Bolt(FOR CLUTCH MASTER CYLINDER SETTING)
31434 Tube, Clutch Reservoir
31434A Clip(FOR CLUTCH RESERVOIR TUBE)
31451 Rod, Clutch Master Cylinder Push
31453 Clevis, Clutch Master Cylinder Push Rod
31454 Boot, Clutch Master Cylinder
55165 Support, Clutch Master Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
