Toyota DYNA200

1995-05 → 2003-12 · chassis BU10#,11#,14#,21#,22#,YU210,RZU100 · catalogue 751260 · General

Discontinued model Data version 2004-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Take-off Lever & Link

17 part groups · 10 illustrations

Illustrations

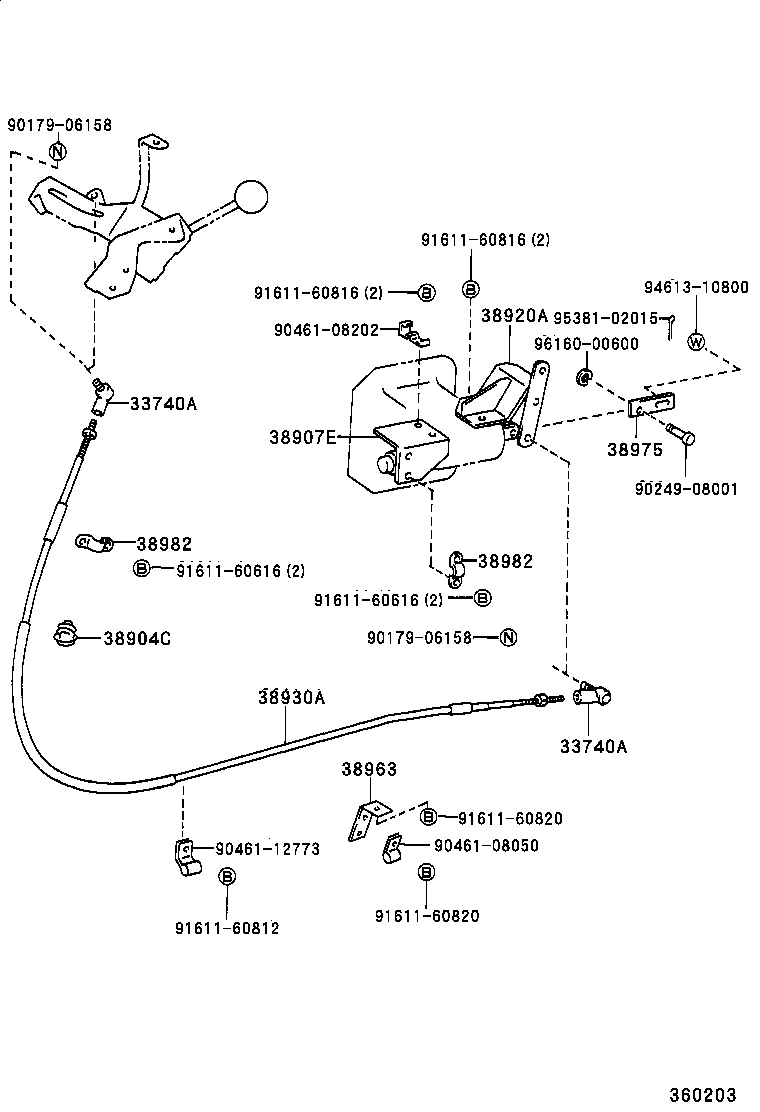

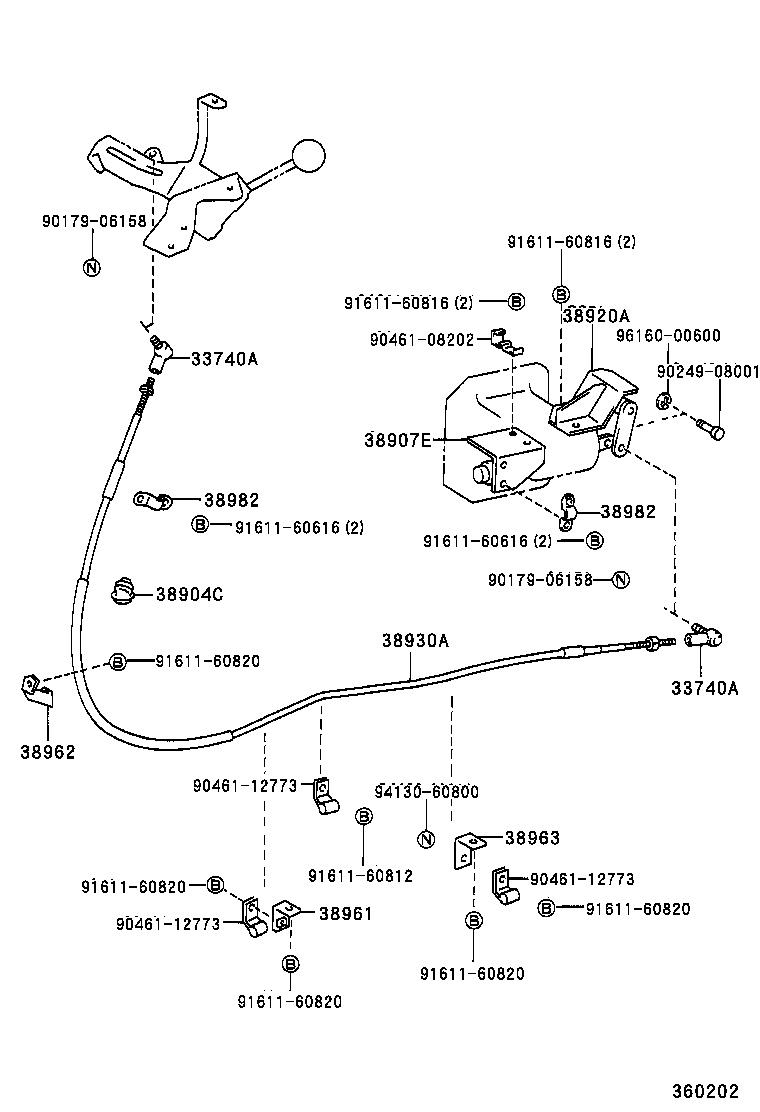

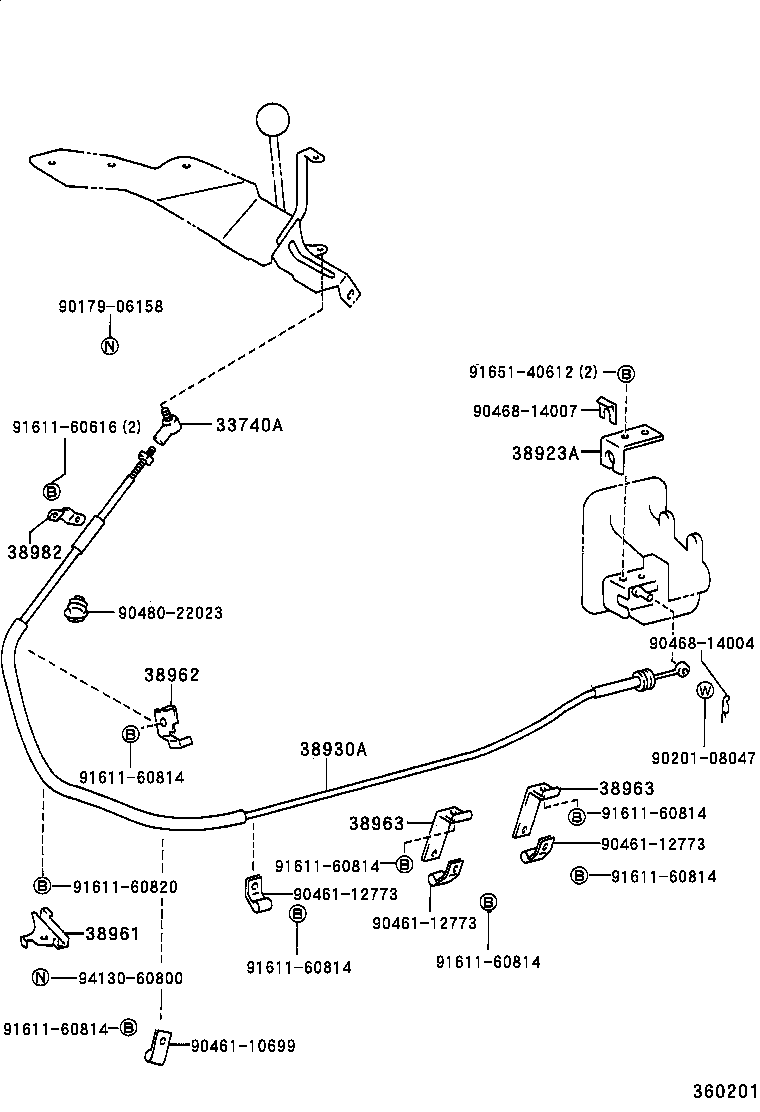

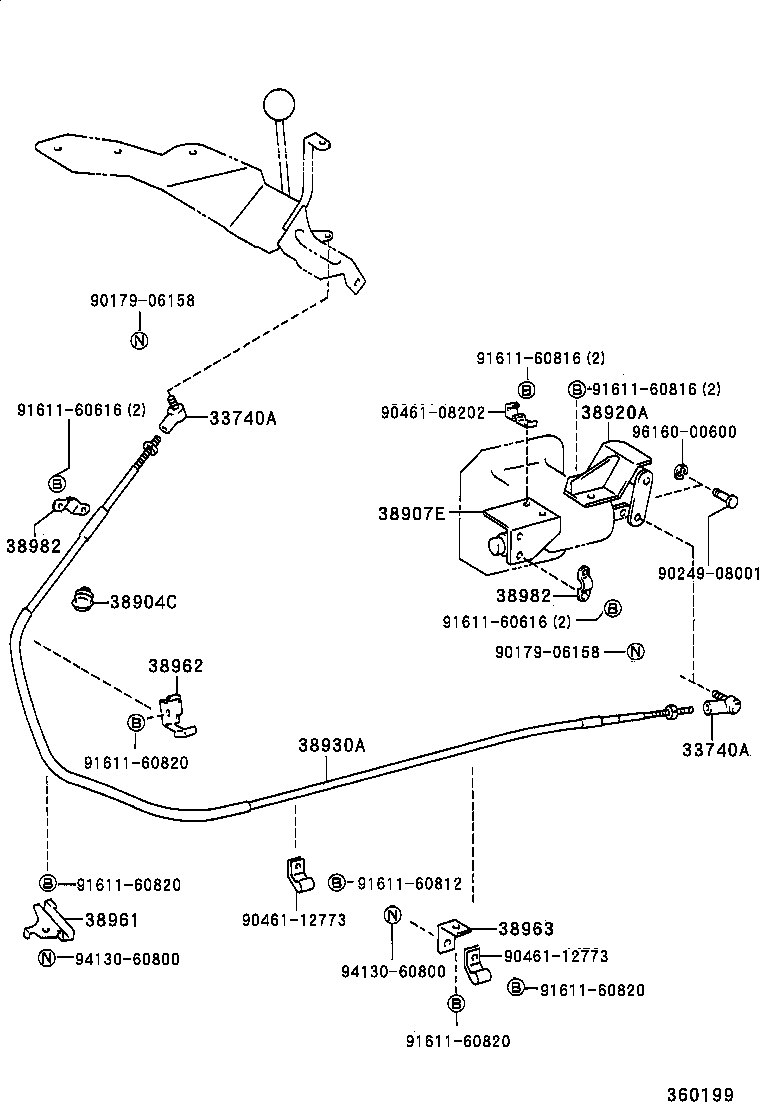

Figure 360198 360198 1995-05 → — Figure 360199 360199 1995-05 → — Figure 360200B 360200B 1995-05 → — Figure 360201 360201 1995-05 → — Figure MCT459A MCT459A 1995-05 → — Figure MCT459A MCT459A 1995-05 → — Figure 360202 360202 1995-05 → — Figure 360203 360203 1995-05 → — Figure 360204 360204 1995-05 → — Figure 360205 360205 1995-05 → —

Part groups

PNCDescription
33740A End Assy, Push-pull Control Cable
38901D Lever Sub-assy, Valve Control
38902B Bracket Sub-assy, Valve Control Lever
38902C Bush (FOR VALVE CONTROL LEVER)
38904C Grommet, Push Pull Cable
38907E Stay Sub-assy, Power Teke-off Control
38908A Knob Sub-assy, Control Lever
38909A Lock Sub-assy, Valve Control
38920A Lever Assy, Power Take-off Control, NO.1
38923A Protector, Power Take-off Control
38930A Cable Assy, Push Pull
38946A Knob, Valve Lock Lever
38961 Bracket, Cable Clamp, NO.1
38962 Bracket, Cable Clamp, NO.2
38963 Bracket, Cable Clamp, NO.3
38975 End, Power Take-off Control
38982 Clamp, Push Pull Cable, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
