Toyota DYNA200
1995-05 → 2003-12 · chassis BU10#,11#,14#,21#,22#,YU210,RZU100 · catalogue 751260 · General
Discontinued model
Data version 2004-06

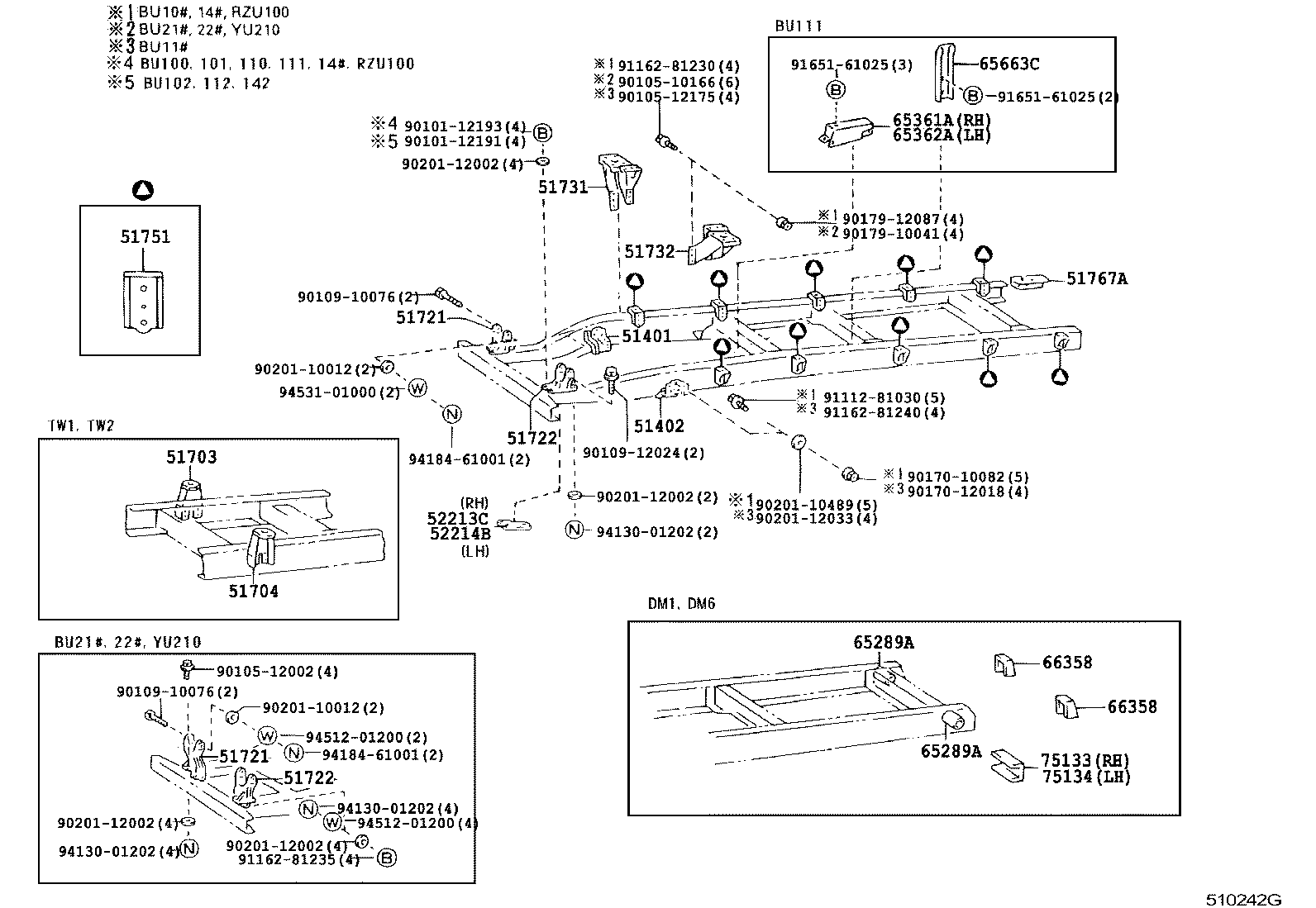

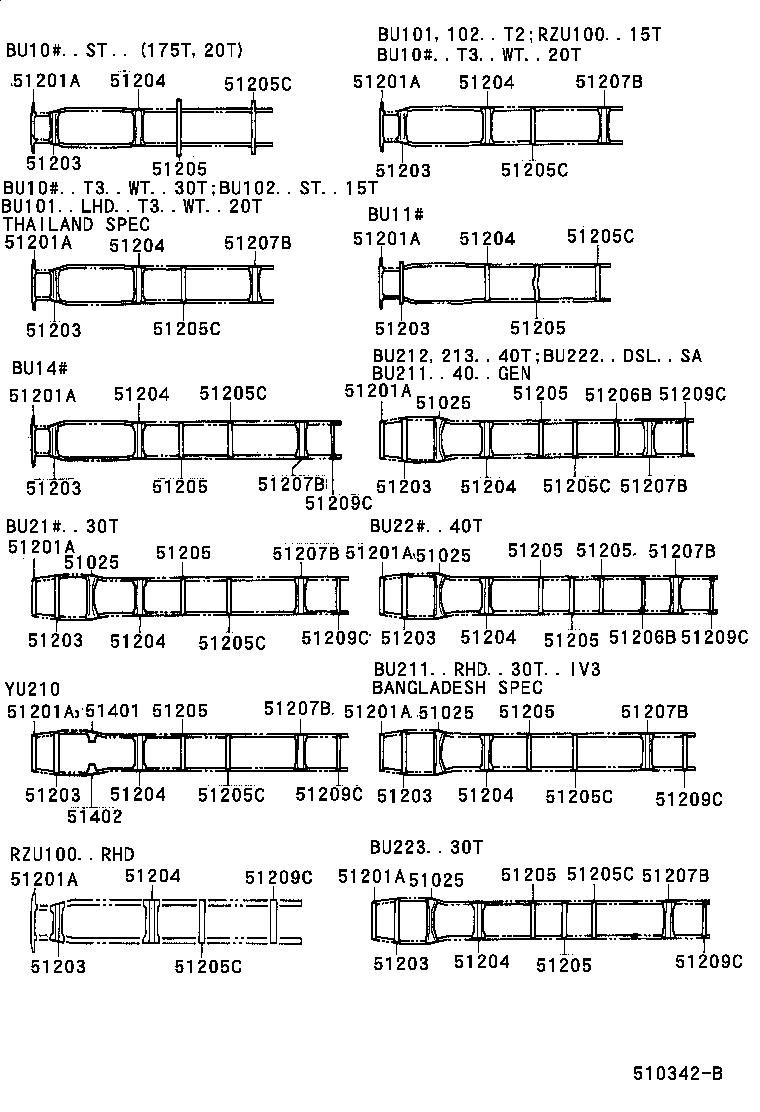

Frame
29 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 51025 | Member Sub-assy, Engine Front Mounting |
| 51100F | Frame Sub-assy |
| 51201A | Crossmember Sub-assy, Frame, Front |
| 51203 | Crossmember Sub-assy, Frame, NO.2 |
| 51204 | Crossmember Sub-assy, Frame, NO.3 |
| 51205 | Crossmember Sub-assy, Frame, NO.4 |
| 51205C | Crossmember Sub-assy, Frame, NO.5 |
| 51206B | Crossmember Sub-assy, Frame, NO.6 |
| 51207B | Crossmember Sub-assy, Frame, NO.7 |
| 51209C | Crossmember Sub-assy, Frame, Rear |
| 51401 | Bracket Sub-assy, Engine Front Mounting, RH |
| 51402 | Bracket Sub-assy, Engine Front Mounting, LH |
| 51703 | Bracket Sub-assy, Cab Mounting, NO.2, RH |
| 51704 | Bracket Sub-assy, Cab Mounting, NO.2 LH |
| 51721 | Bracket, Cab Front Mounting, RH |
| 51722 | Bracket, Cab Front Mounting, LH |
| 51731 | Bracket, Cab Rear Mounting, RH |
| 51732 | Bracket, Cab Rear Mounting, LH |
| 51751 | Bracket, Body Support, NO.1 |
| 51767A | Bracket, Frame Body Mounting, NO.8 RH |
| 52213C | Spacer, Cab Front Mounting, Upper RH |
| 52214B | Spacer, Cab Front Mounting, Upper LH |
| 65289A | Support, Vessel Hinge |
| 65361A | Stay, Vessel Lock, RH |
| 65362A | Stay, Vessel Lock, LH |
| 65663C | Guide, Vessel |
| 66358 | Plate, Frame End |
| 75133 | Base, Combination Rear Lamp Bracket, RH |
| 75134 | Base, Combination Rear Lamp Bracket, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
