Toyota Dyna
1999-07 → 2002-12 · chassis XZU30#,320,330,34# · catalogue 751270 · General
Discontinued model
Data version 2003-08

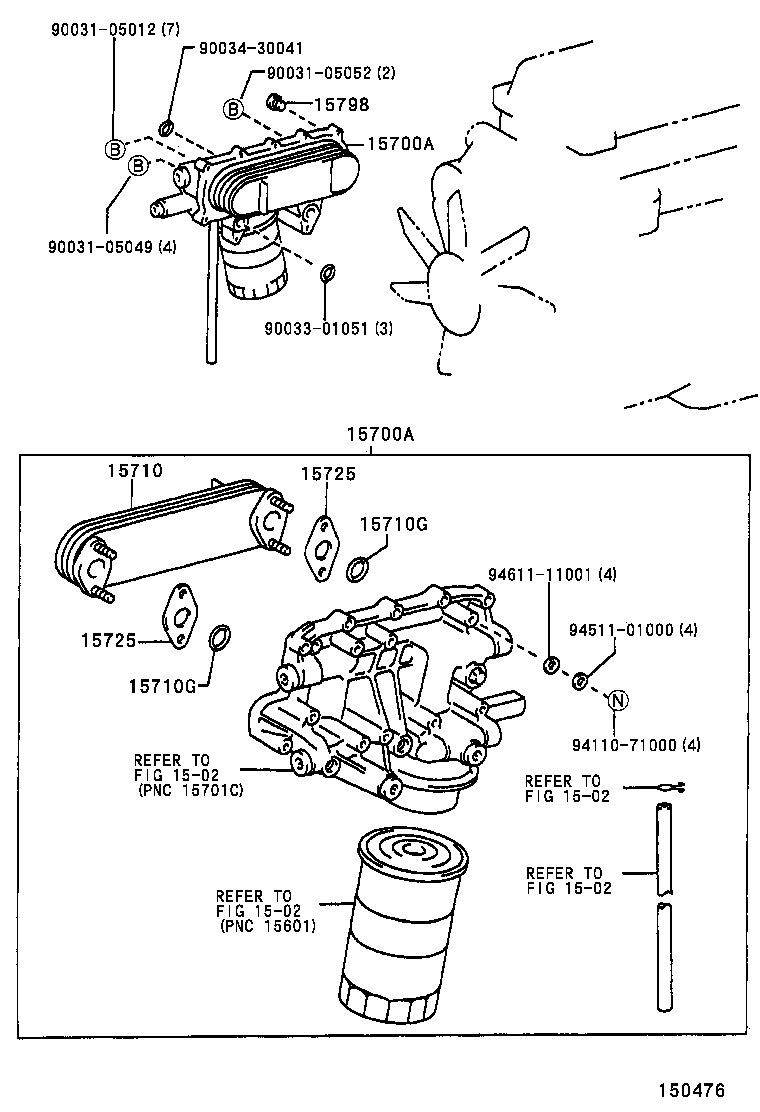

Engine Oil Cooler
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 15529A | Plug |
| 15700A | Cooler Assy, Oil W/Bracket |
| 15710 | Cooler Assy, Oil |
| 15710C | Gasket(FOR OIL COOLER) |
| 15710G | Ring, O, NO.2 |
| 15722 | Gasket, Oil Cooler |
| 15725 | Gasket, Oil Cooler Cover |
| 15791 | Case, Oil Cooler |
| 15798 | Plug, Oil Nozzle Union Bolt |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
