Toyota Dyna

1999-07 → 2002-12 · chassis XZU30#,320,330,34# · catalogue 751270 · General

Discontinued model Data version 2003-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Assembly

24 part groups · 2 illustrations

Illustrations

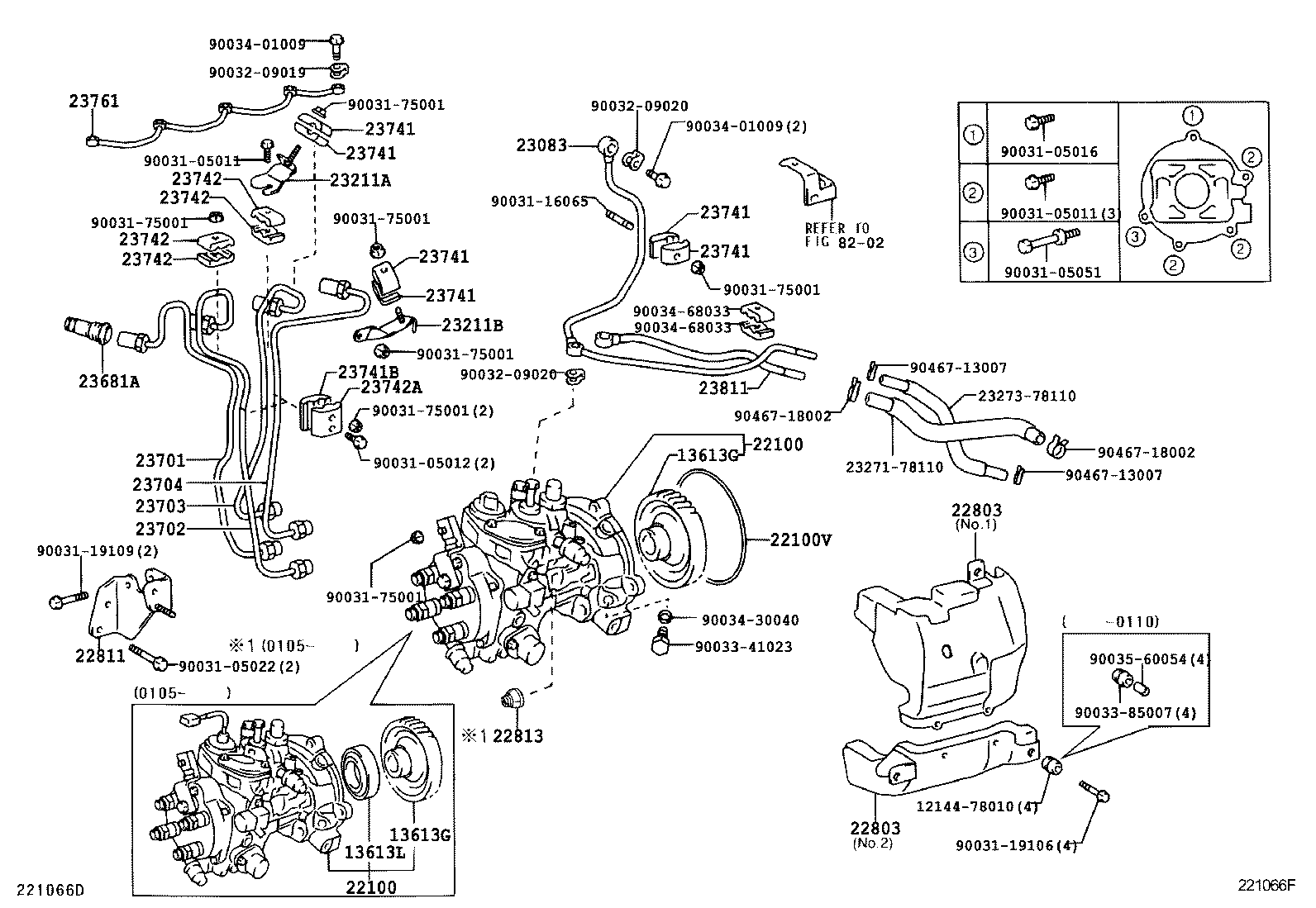

Figure 220831F 220831F 1999-07 → — Figure 221066F 221066F 2000-10 → —

Part groups

PNCDescription
12581B Insulator, Cylinder Block, NO.1
12601A Insulator, Cylinder Block
13613G Gear, Injection Pump Drive
13613L Bearing, Ball(FOR INJECTION PUMP DRIVE GEAR)
22100 Pump Assy, Injection OR Supply
22100V Ring, O(FOR INJECTION PUMP)
22803 Cover Sub-assy, Fuel Injection Pump
22811 Stay, Injection Pump, NO.1
22813 Protector, Injection Pump, NO.1
22821 Gasket, Injection Pump
23083 Pipe Sub-assy, Nozzle Leakage, NO.3
23211A Bracket(FOR INJECTION PIPE NO.3)
23211B Bracket(FOR INJECTION PIPE NO.4)
23681A Seal, Nozzle Holder
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23741 Clamp, Injection Pipe, NO.1
23741B Clamp, Injection Pipe
23742 Clamp, Injection Pipe, NO.2
23742A Clamp, Injection Pipe, NO.3
23761 Pipe, Nozzle Leakage, NO.1
23811 Pipe, Fuel(FOR FUEL FILTER TO INJECTION PUMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
