Toyota Dyna

1999-07 → 2002-12 · chassis XZU30#,320,330,34# · catalogue 751270 · General

Discontinued model Data version 2003-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

20 part groups · 3 illustrations

Illustrations

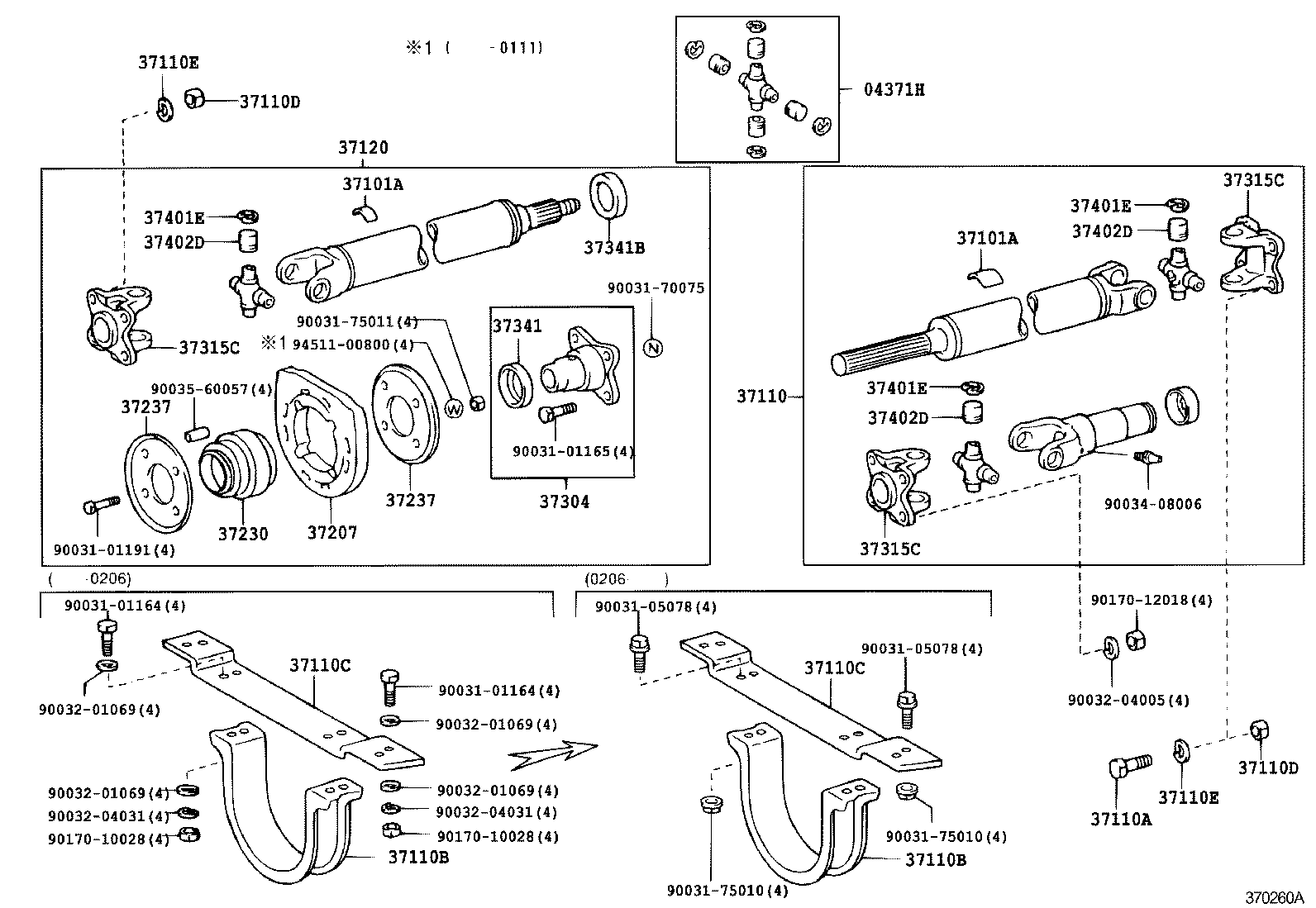

Figure 370126B 370126B 1999-07 → — Figure 370260A 370260A 1999-07 → — Figure 370176 370176 2000-10 → —

Part groups

PNCDescription
04371H Spider Kit, Rear Propeller Shaft Universal Joint
37101A Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
37110 Shaft Assy, Propeller
37110A Bolt (FOR PROPELLER SHAFT)
37110B Guard, Propeller Shaft
37110C Bracket, Propeller Shaft Guard
37110D Nut (FOR PROPELLER SHAFT)
37110E Washer (FOR PROPELLER SHAFT)
37120 Shaft Assy, Propeller Intermediate
37207 Cushion Sub-assy, Center Support Bearing, NO.1
37230 Bearing Assy, Center Support, NO.1
37237 Plate, Center Support Bearing, NO.1
37302B Yoke Sub-assy, RR Propeller Shaft Universal J0INT Sleeve
37304 Flange Sub-assy, Universal Joint
37315C Yoke, NO.1, Rear Propeller Shaft Universal Joint Flange
37331B Cover Sub-assy, Rear Propeller Shaft Sliding Shaft Dust
37341 Deflector, Propeller Shaft Dust, NO.1
37341B Deflector, Propeller Shaft Dust, NO.5
37401E Ring, Snap (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)
37402D Bearing, Rear Propeller Shaft Universal Joint Spider
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
