Toyota Dyna

1999-07 → 2002-12 · chassis XZU30#,320,330,34# · catalogue 751270 · General

Discontinued model Data version 2003-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cab Mounting & Body Mounting

28 part groups · 2 illustrations

Illustrations

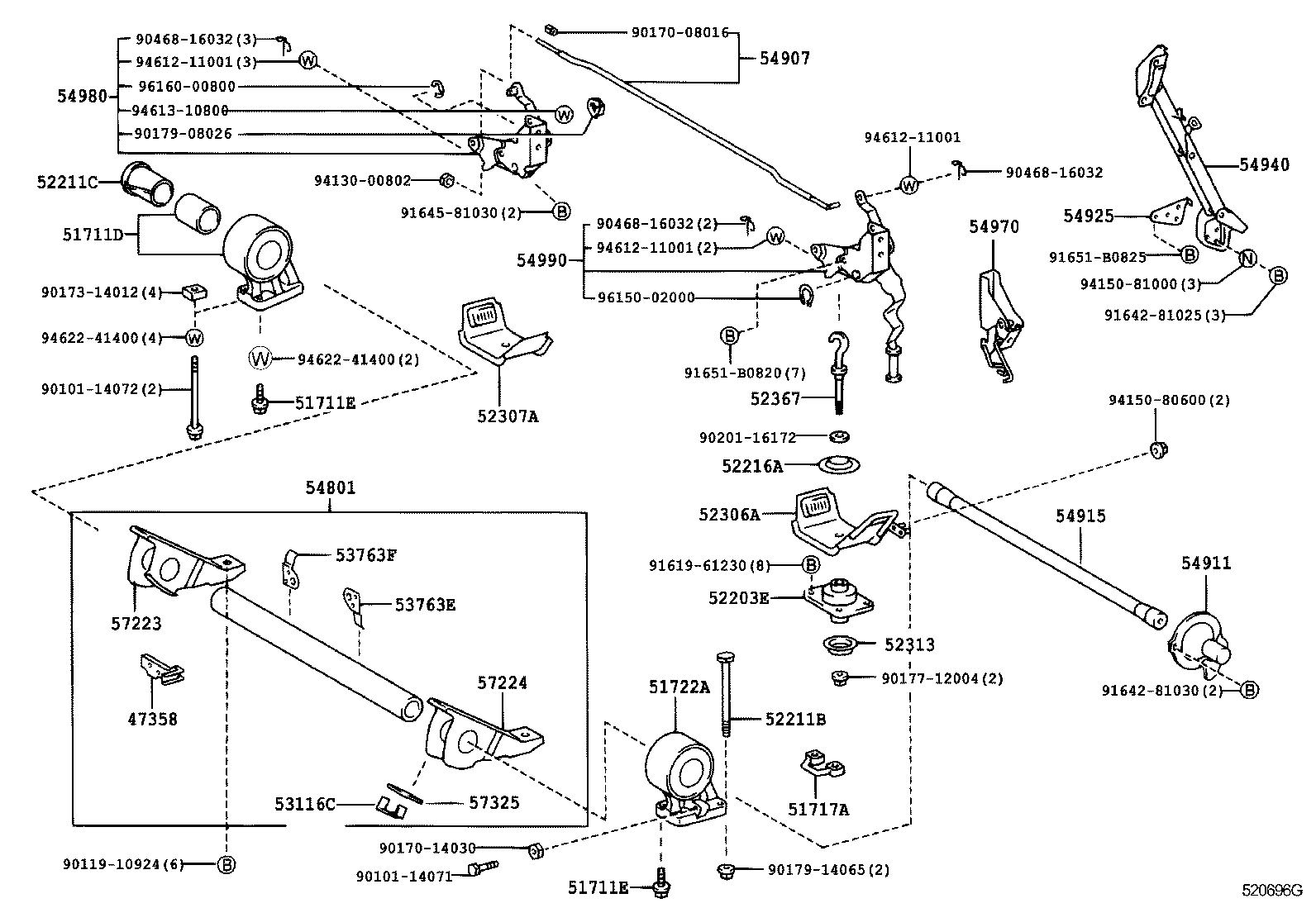

Figure 520541I 520541I 1999-07 → 2002-12 Figure 520696G 520696G 2000-10 → 2002-06

Part groups

PNCDescription
47358 Tube, Booster TO Reservoir, NO.2
51711D Bracket, Cab Front Mounting
51711E Bolt, Hexagon(FOR CAB MOUNTING BARACKET)
51717A Plate, Body Support Bracket
51722A Bracket Sub-assy, Cab Front Mounting, LH
52203E Cushion Sub-assy, Cab Mounting, NO.2
52211B Bolt(FOR BODY MOUNTING NO.1 CUSHION)
52211C Spacer(FOR BODY MOUNTING NO.1 CUSHION)
52216A Stopper, Cab Mounting Cushion
52306A Bracket Sub-assy, Cab Mounting Hook, NO.1
52307A Bracket Sub-assy, Cab Mounting Hook, NO.2
52313 Stopper, Cab Rear Mounting Rebound
52367 Hook, Cab Rear Mounting
53116C Bracket, Radiator Grille, NO.2
53763E Bracket, Air Cleaner Inlet
53763F Bracket, Air Cleaner Inlet Mounting
54801 Tube Sub-assy, Tilt Cab, NO.1
54907 Pipe Sub-assy, Tilt Cab Lock Connecting
54911 Arm, Tilt Cab Spring Support, NO.1
54915 Spring, Tilt Cab, NO.1
54925 Retainer, Tilt Cab Spring
54940 Stay Assy, Tilt Cab
54970 Latch Assy, Tilt Cab Stopper
54980 Lock Assy, Tilt Cab Mounting, RH
54990 Lock Assy, Tilt Cab Mounting, LH
57223 Bracket, Front Mounting, RH
57224 Bracket, Front Mounting, LH
57325 Reinforcement, Front Mounting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
