Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

46 part groups · 17 illustrations

Illustrations

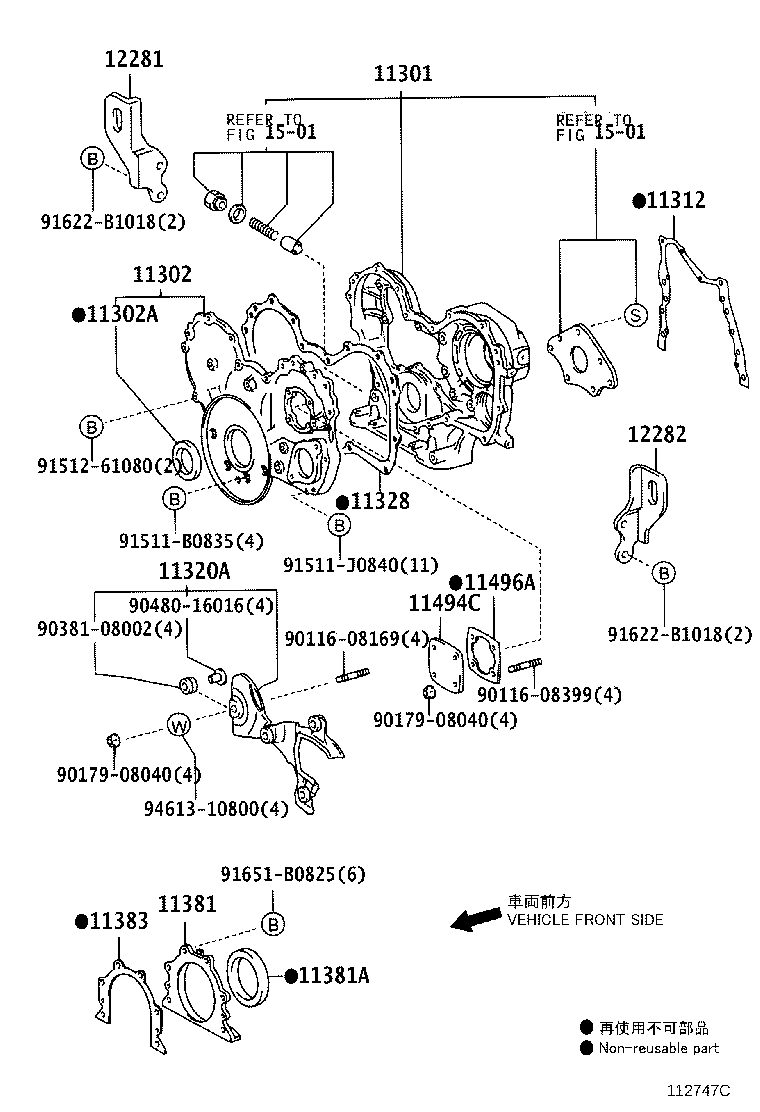

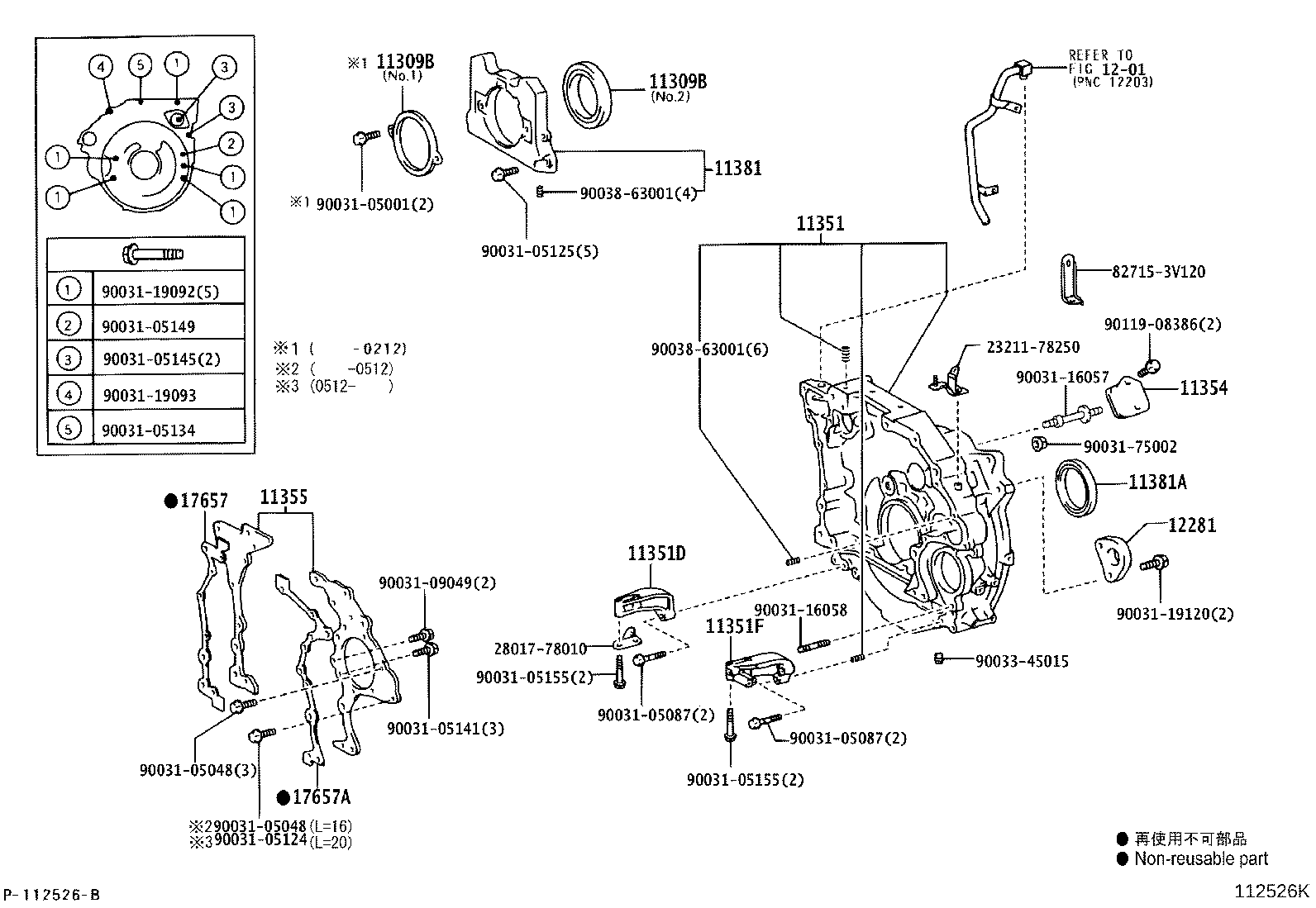

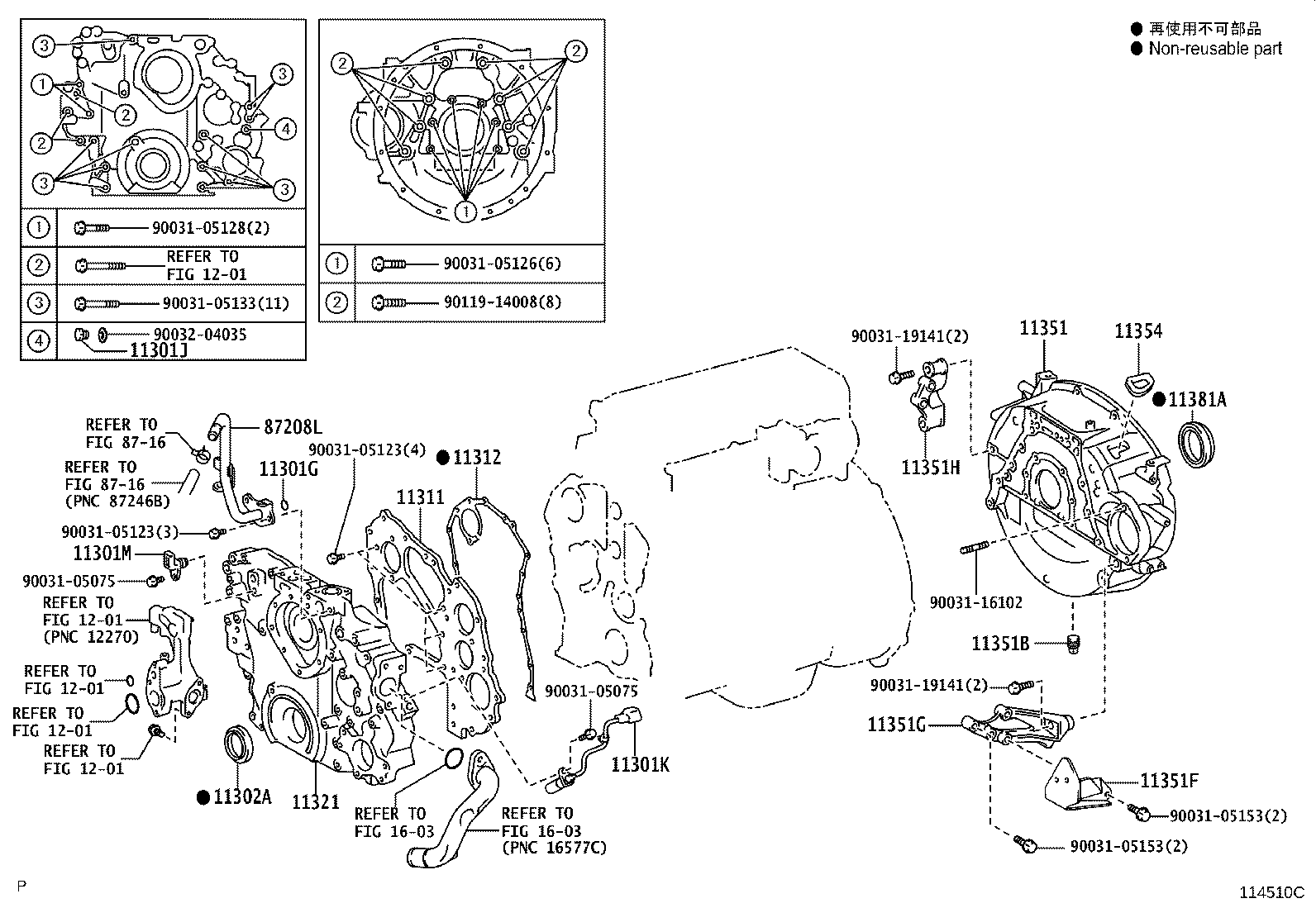

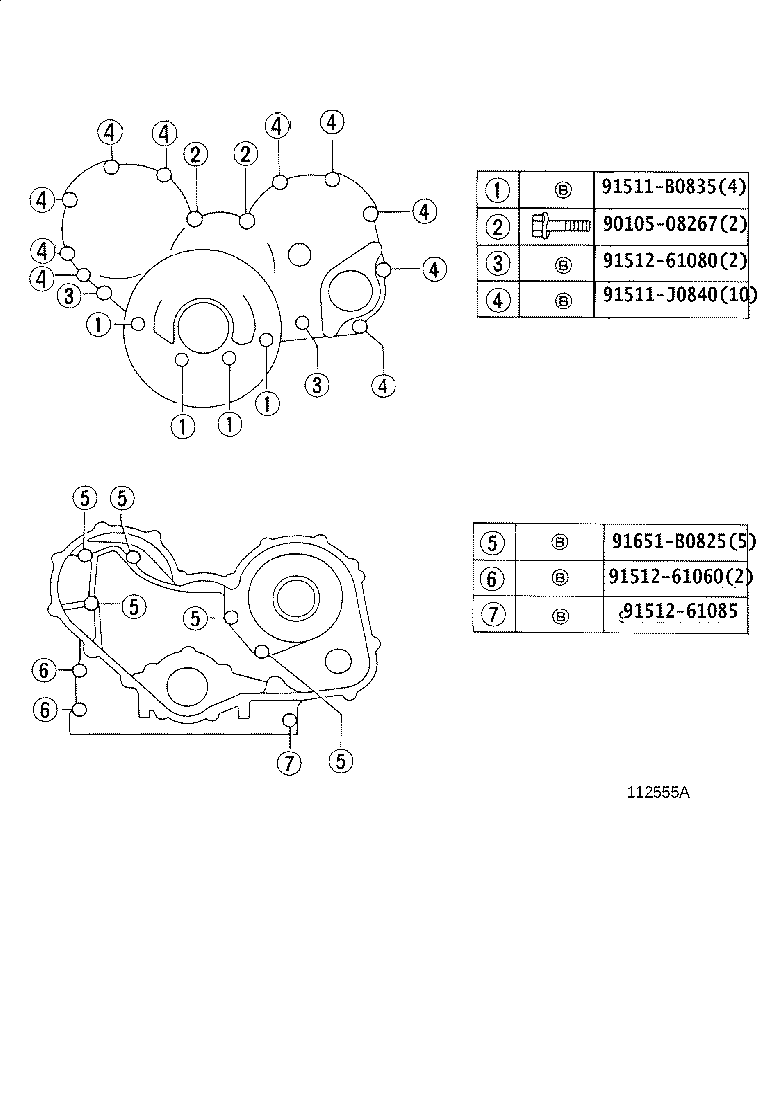

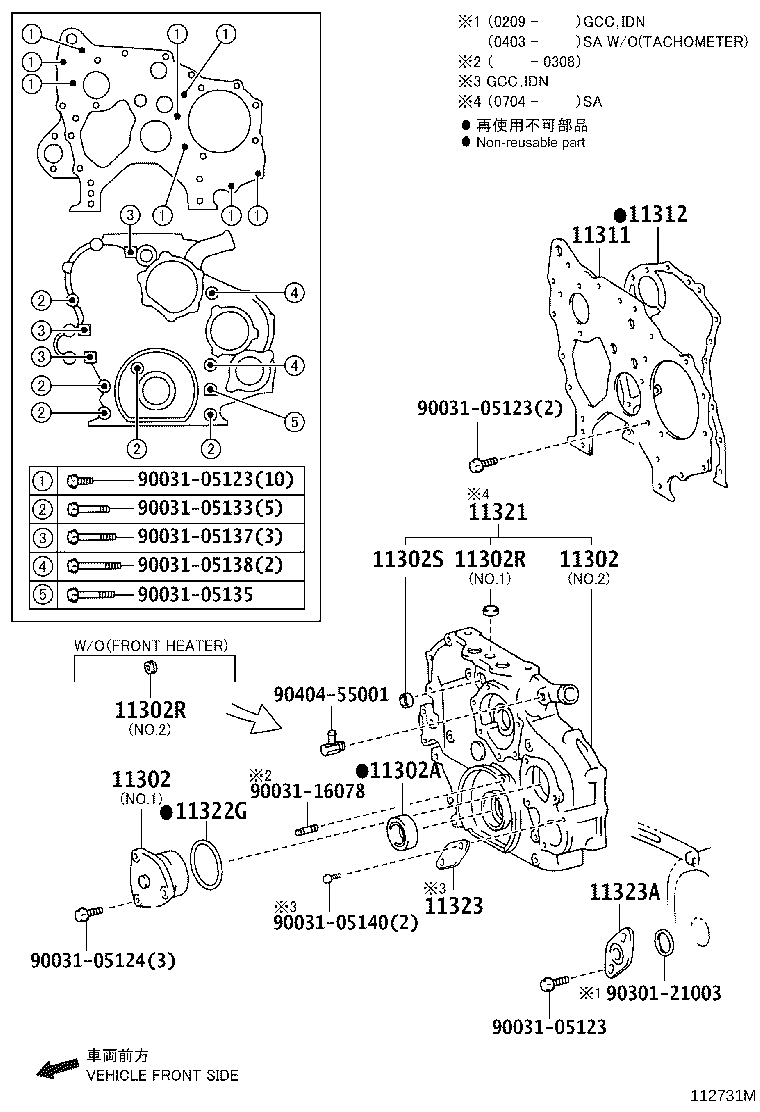

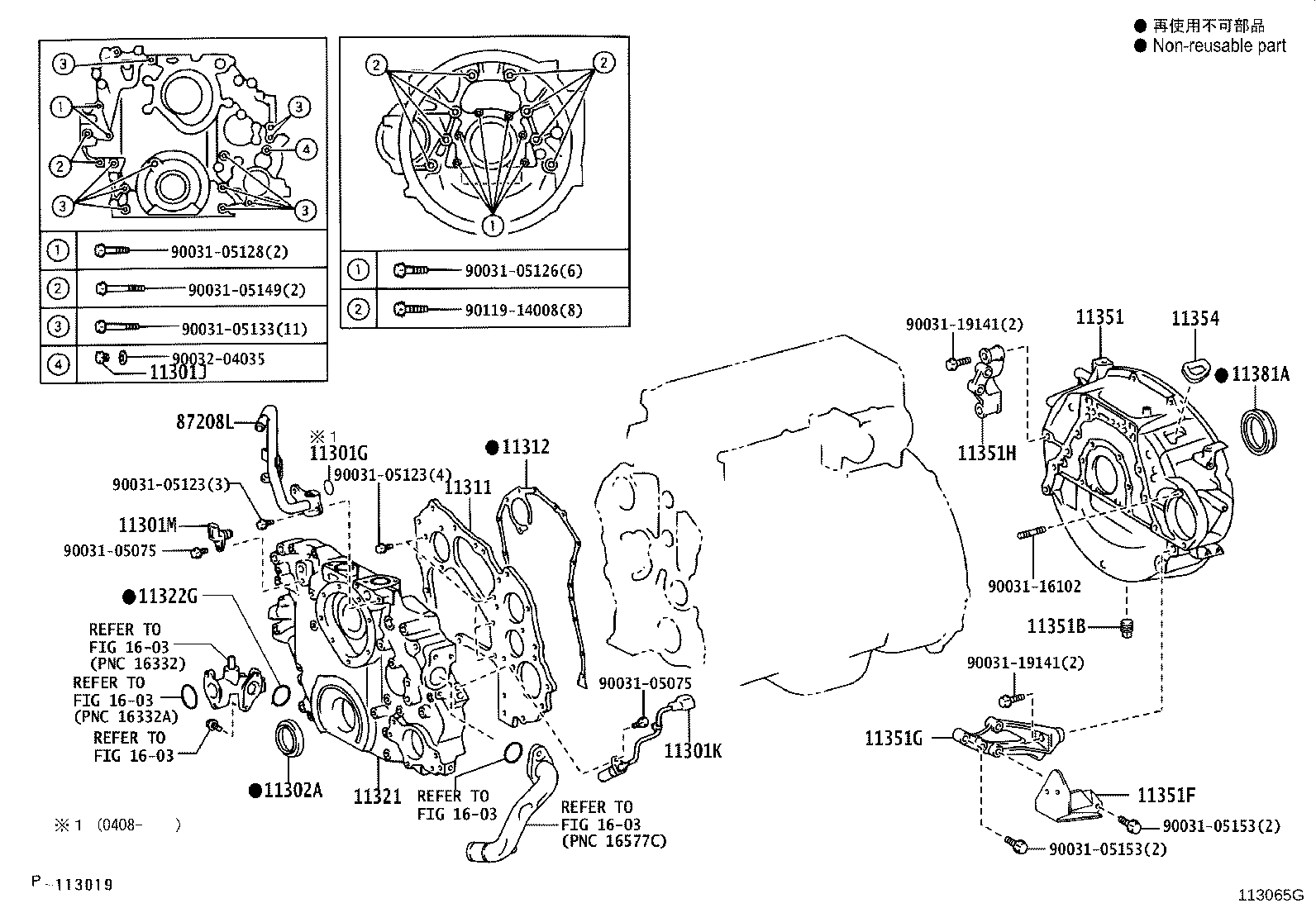

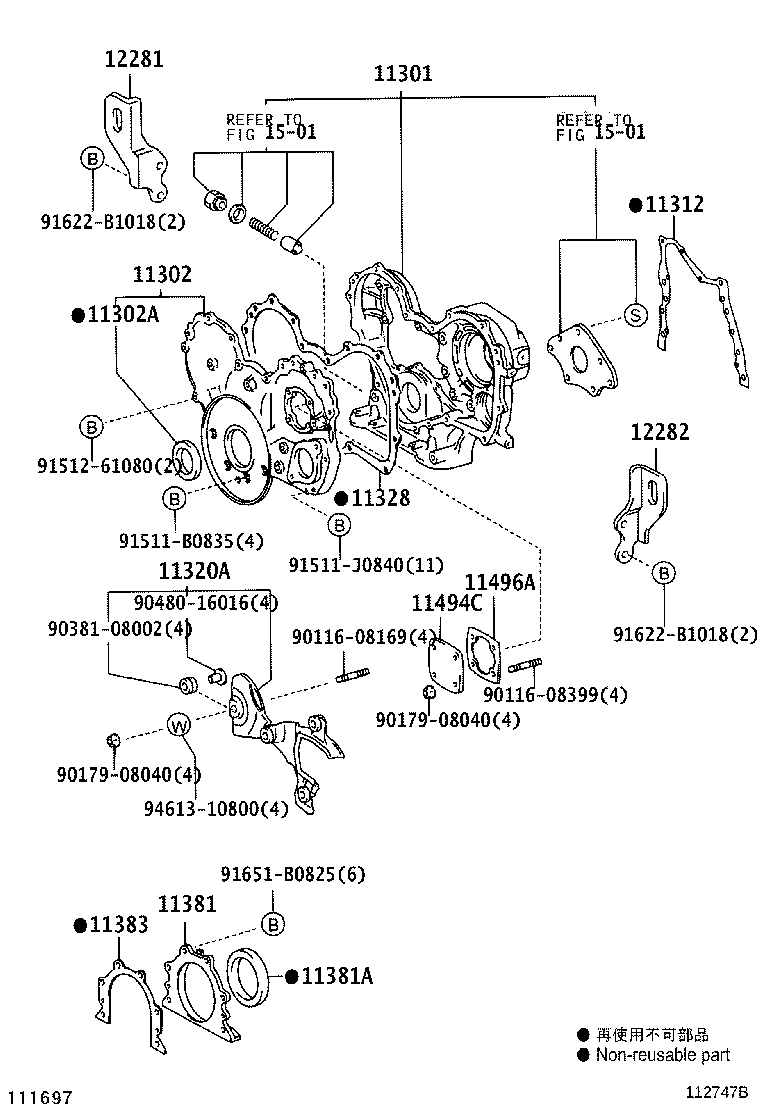

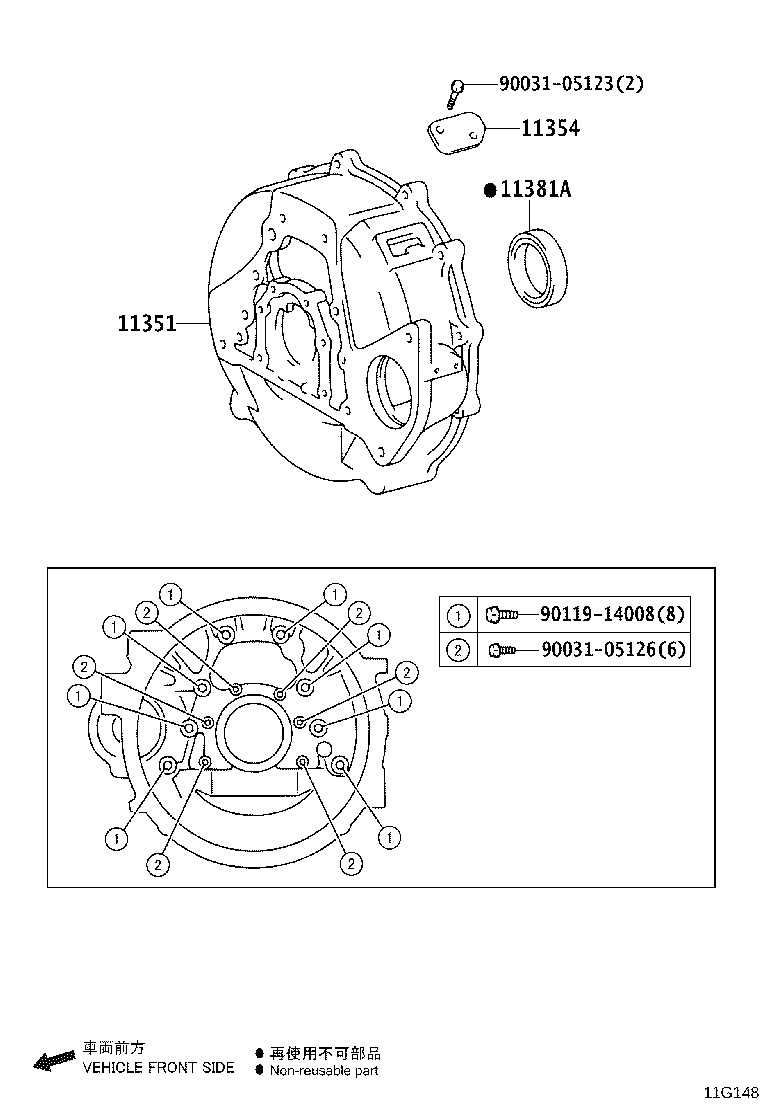

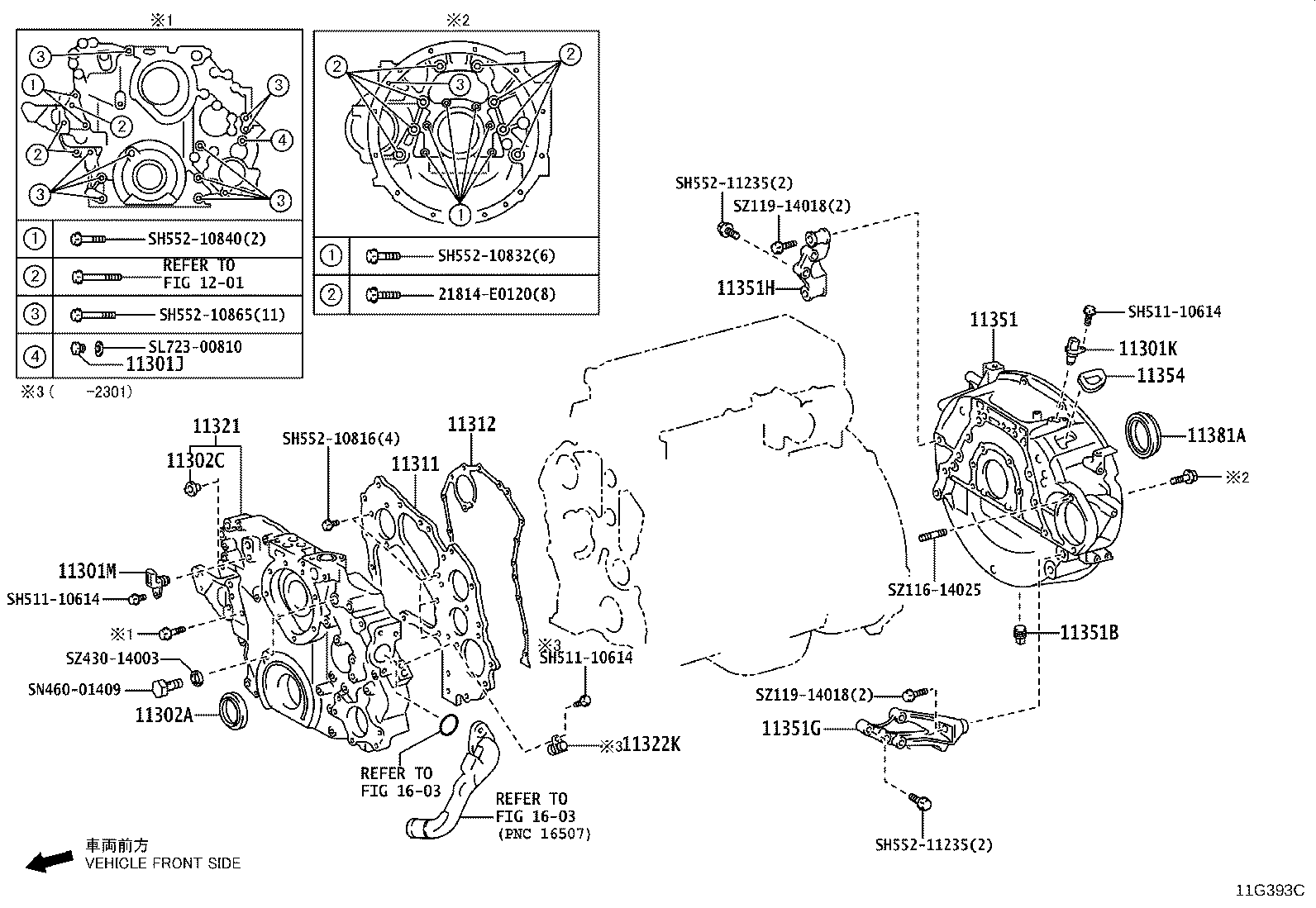

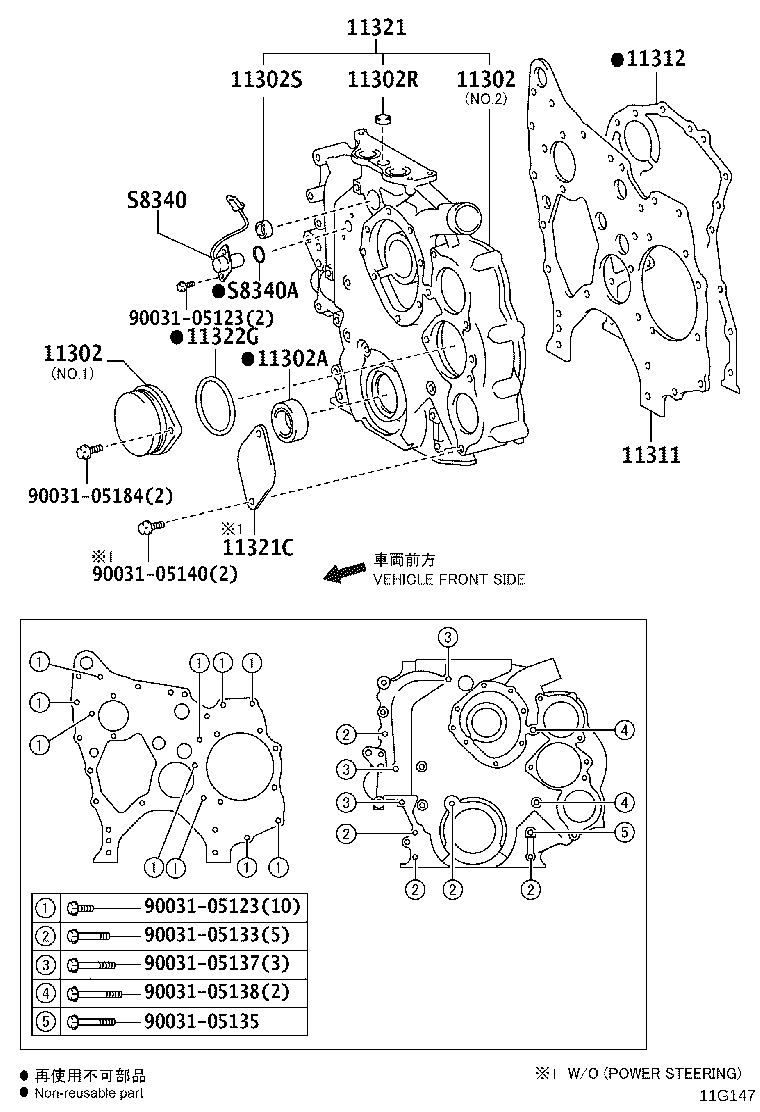

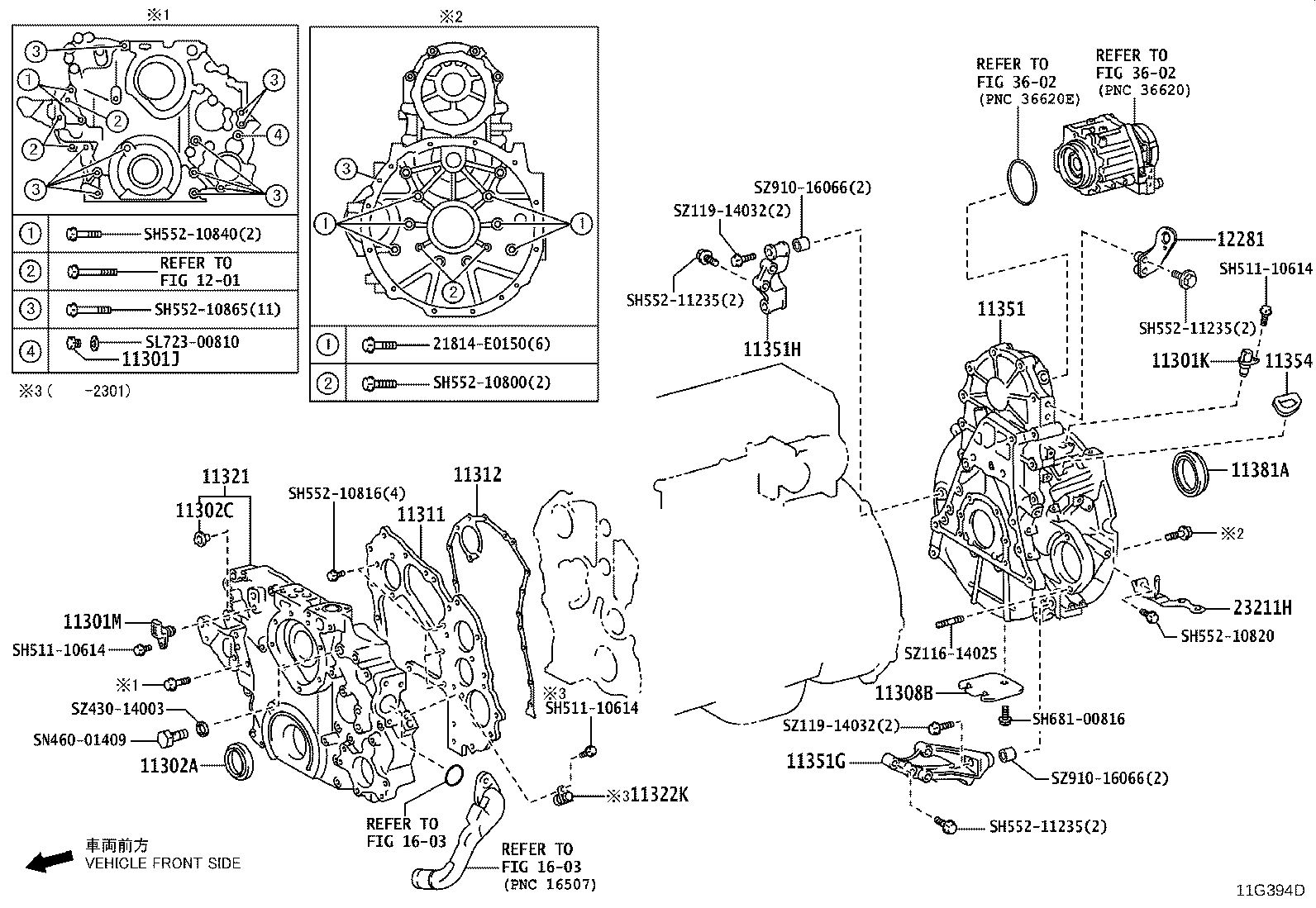

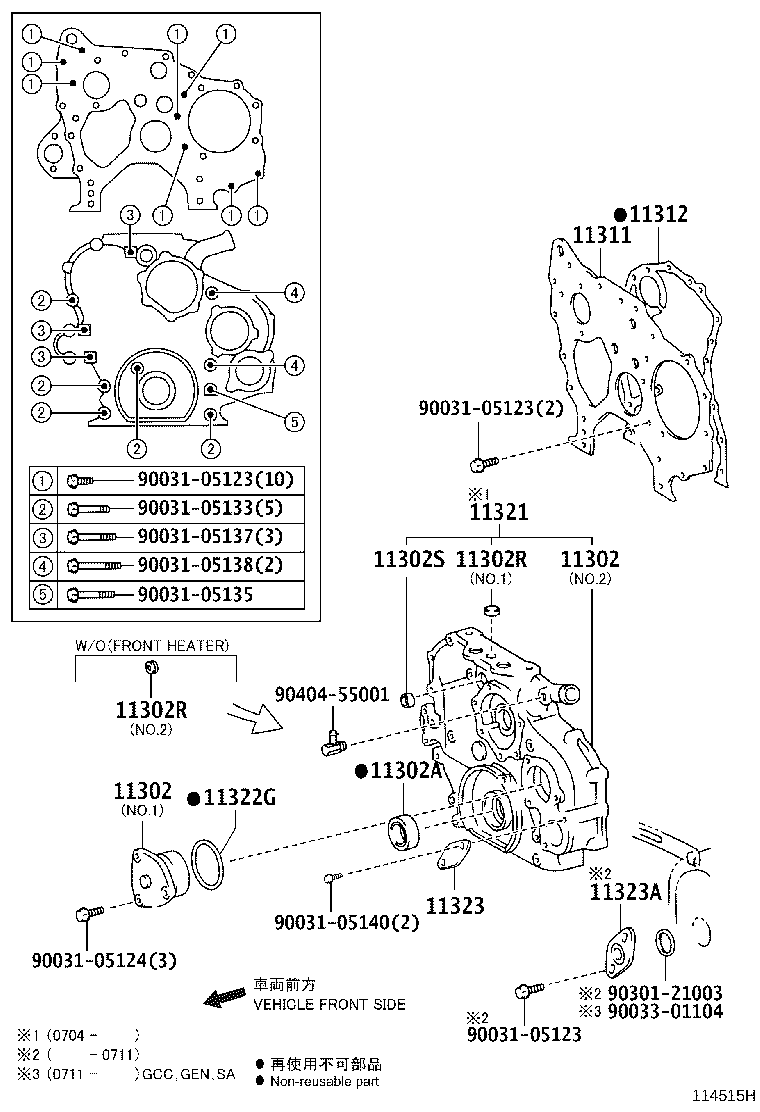

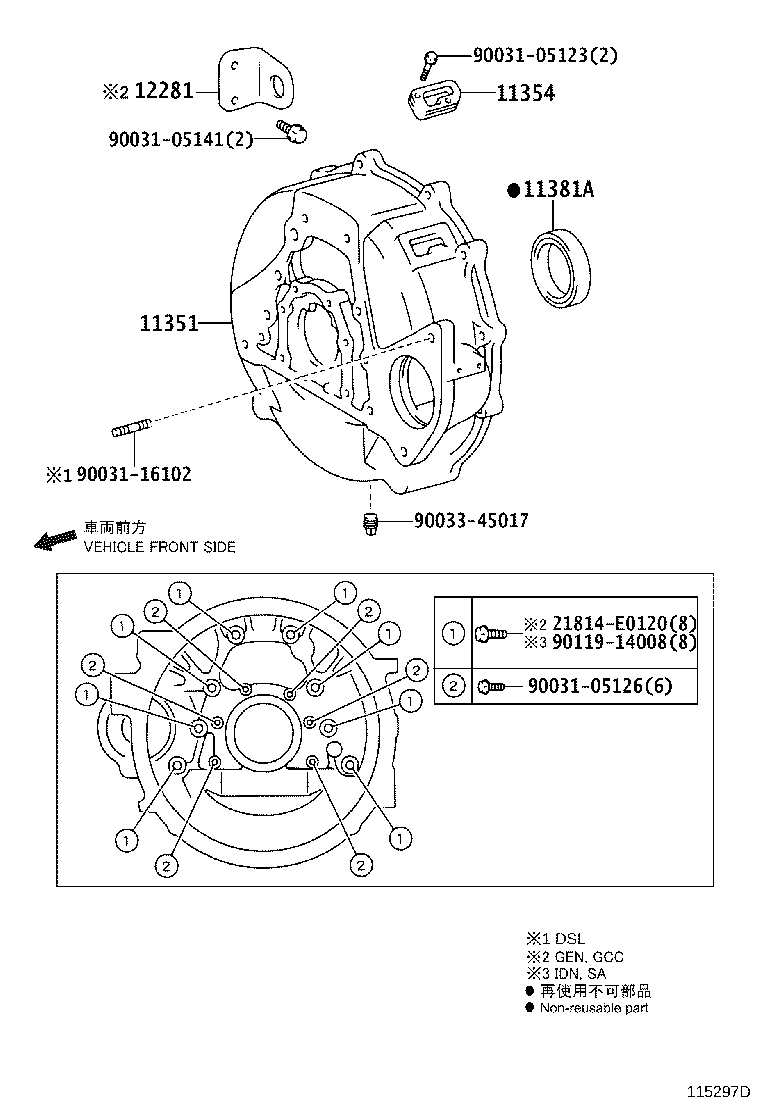

Figure 112554B 112554B 2002-09 → — Figure 112555A 112555A 2002-09 → — Figure 112747C 112747C 2002-12 → — Figure 112748A 112748A 2002-12 → — Figure 112731M 112731M 2002-09 → 2007-12 Figure 115296B 115296B 2002-09 → 2007-12 Figure 114515H 114515H 2006-10 → 2011-06 Figure 115297D 115297D 2006-10 → 2011-06 Figure 11G147 11G147 2009-12 → — Figure 11G148 11G148 2009-12 → — Figure 112526K 112526K 2002-09 → 2006-12 Figure 112747B 112747B 2002-12 → 2006-10 Figure 112748 112748 2002-12 → 2006-10 Figure 113065G 113065G 2003-12 → 2006-10 Figure 114510C 114510C 2006-10 → — Figure 11G393C 11G393C 2022-03 → — Figure 11G394D 11G394D 2022-03 → —

Part groups

PNCDescription
11301 Case Sub-assy, Timing Gear
11301A Pin, Straight(FOR TIMING GEAR CASE)
11301B Bolt,Stud(FOR TIMING GEAR CASE)
11301G Ring, O(FOR TIMING GEAR CASE, UPPER)
11301J Plug, W/Head Straight Screw(FOR TIMING GEAR CASE)
11301K Sensor, Crank Position
11301M Sensor, Cam Position
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302C Spacer(FOR TIMING GEAR COVER)
11302R Plug, Tight, NO.1(FOR TIMING GEAR COVER)
11302S Plug, Tight, NO.2(FOR TIMING GEAR COVER)
11308B Cover(FOR FLYWHEEL HOUSING)
11309B Seal(FOR OIL SEAL RETAINER)
11311 Plate, Front End
11312 Gasket, Front End Plate
11320A Cover Assy, Timing Gear, NO.2
11321 Case, Timing Gear
11321C Cover, Timing Gear
11322G Ring, O(FOR TIMING GEAR COVER)
11322K Plug, Hole
11323 Cover, Timing Gear, NO.3
11323A Retainer, Timing Gear Cover Oil
11328 Gasket, Timing Gear OR Chain Cover
11345 Bearing, Injection Pump Gear Thrust
11351 Housing, Flywheel
11351B Plug, Hole(FOR FLYWHEEL HOUSING)
11351D Plate, Stiffener, RH(FOR FLYWHEEL HOUSING)
11351F Plate, Stiffener, LH(FOR FLYWHEEL HOUSING)
11351G Stay, LH(FOR FLYWHEEL HOUSING)
11351H Stay, RH(FOR FLYWHEEL HOUSING)
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
11494C Plate, Oil Hole Cover
11496A Gasket, Oil Hole Cover
12281 Hanger, Engine, NO.1
12282 Hanger, Engine, NO.2
17657 Gasket, Rear Plate
17657A Gasket, Rear Plate, NO.2
23211H Bracket
87208L Pipe Sub-assy, Water
S8340 Sensor Assy, Revolution
S8340A O-ring, Revolution Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
