Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

19 part groups · 19 illustrations

Illustrations

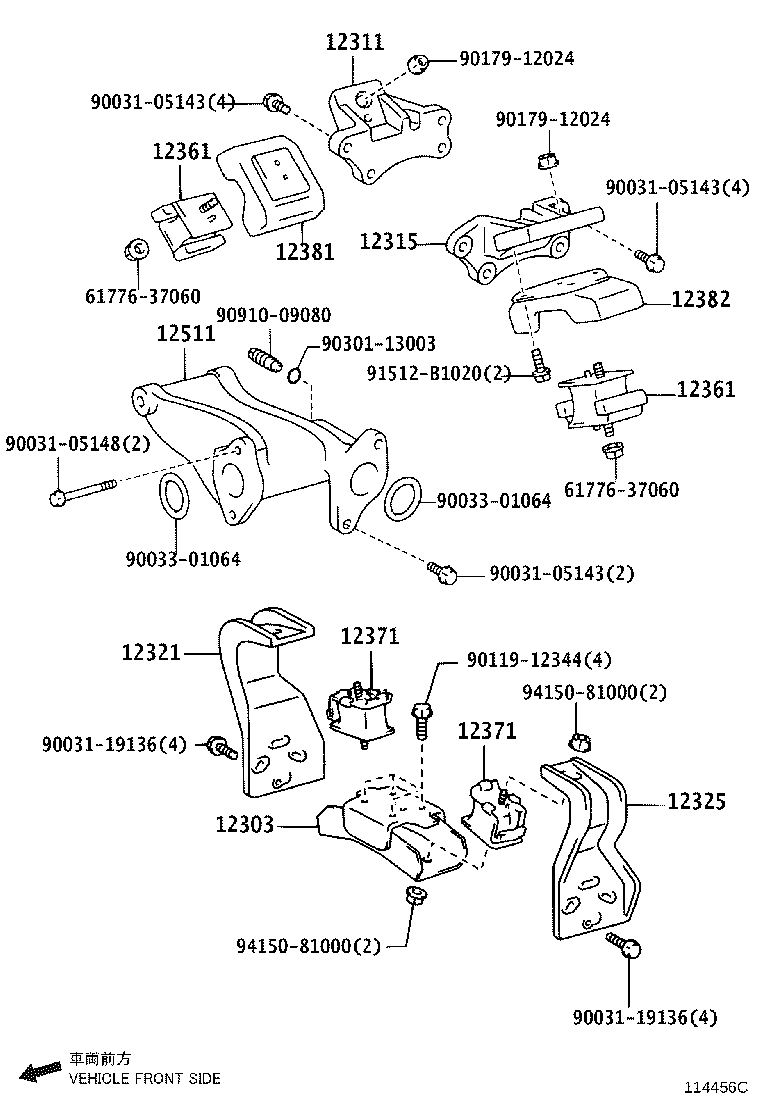

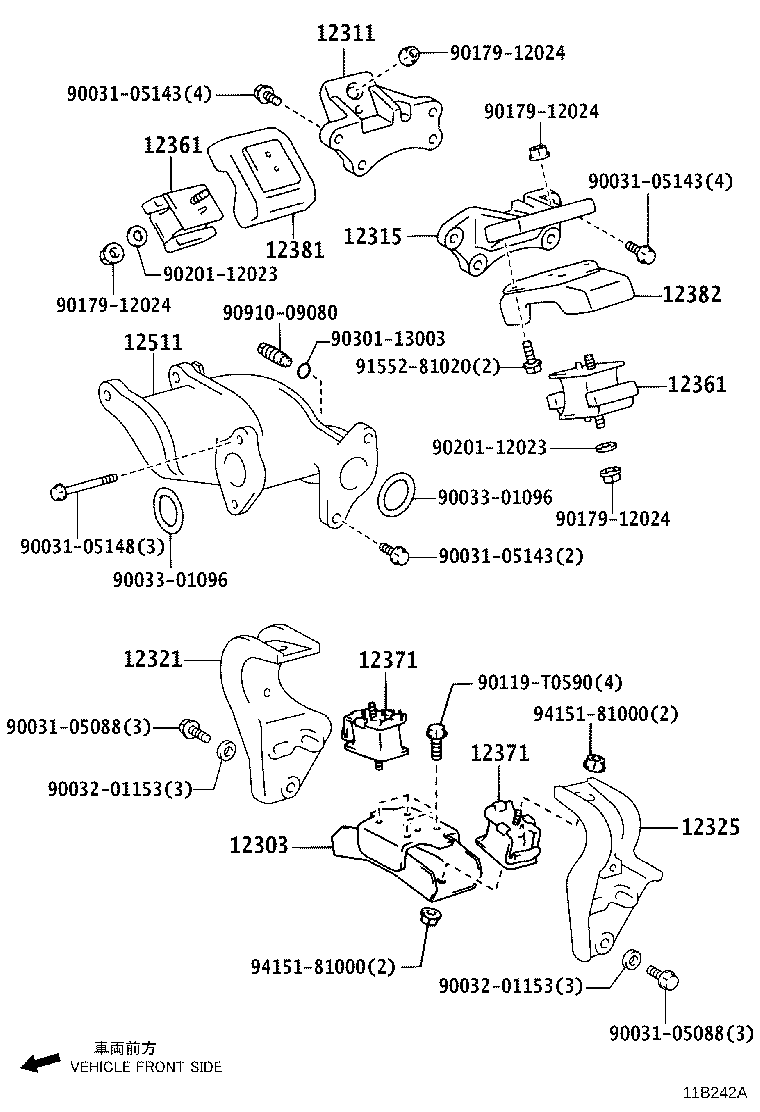

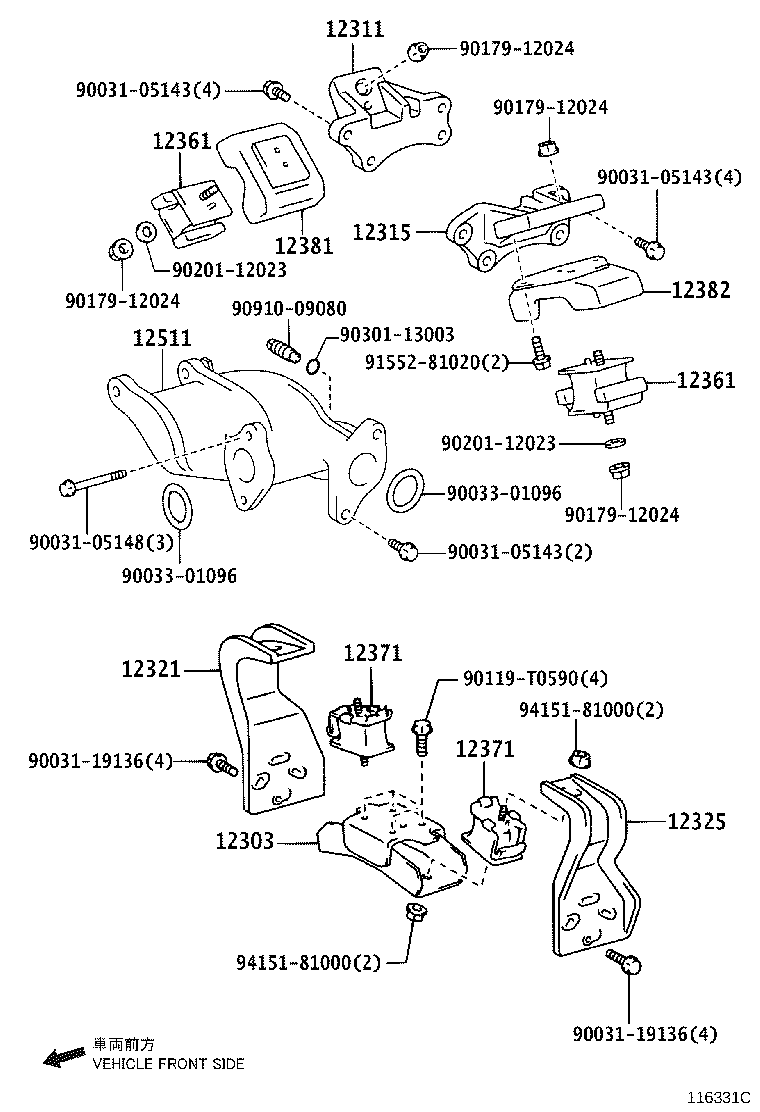

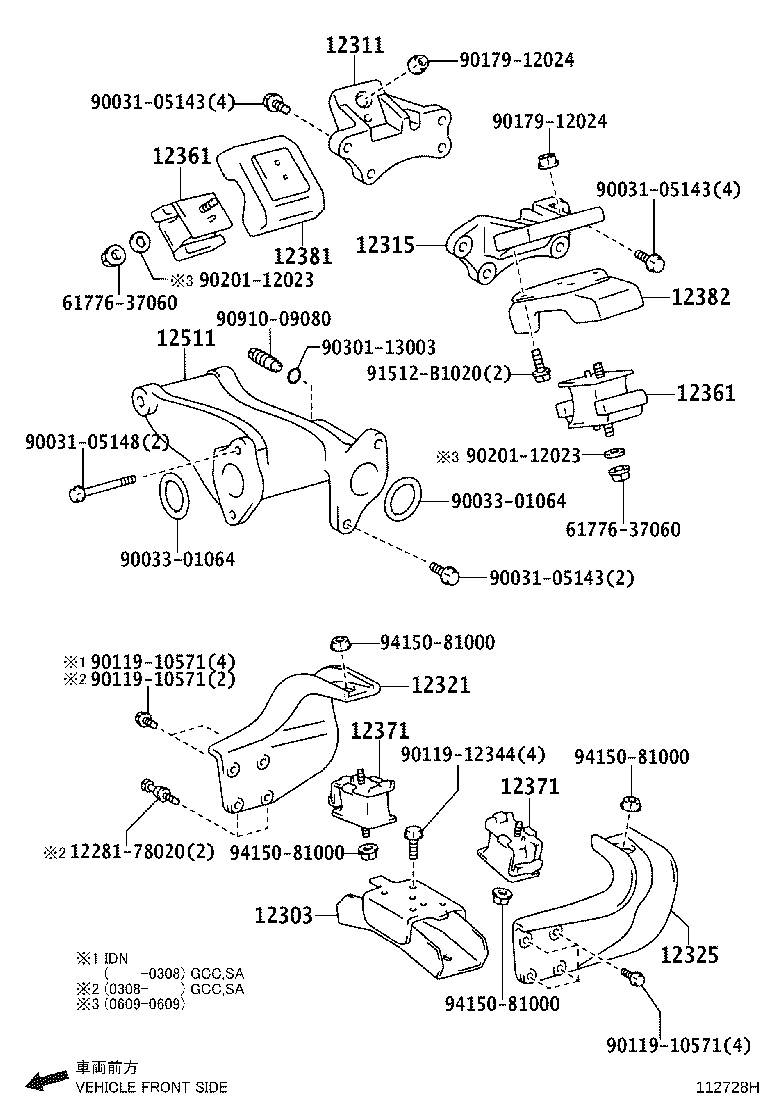

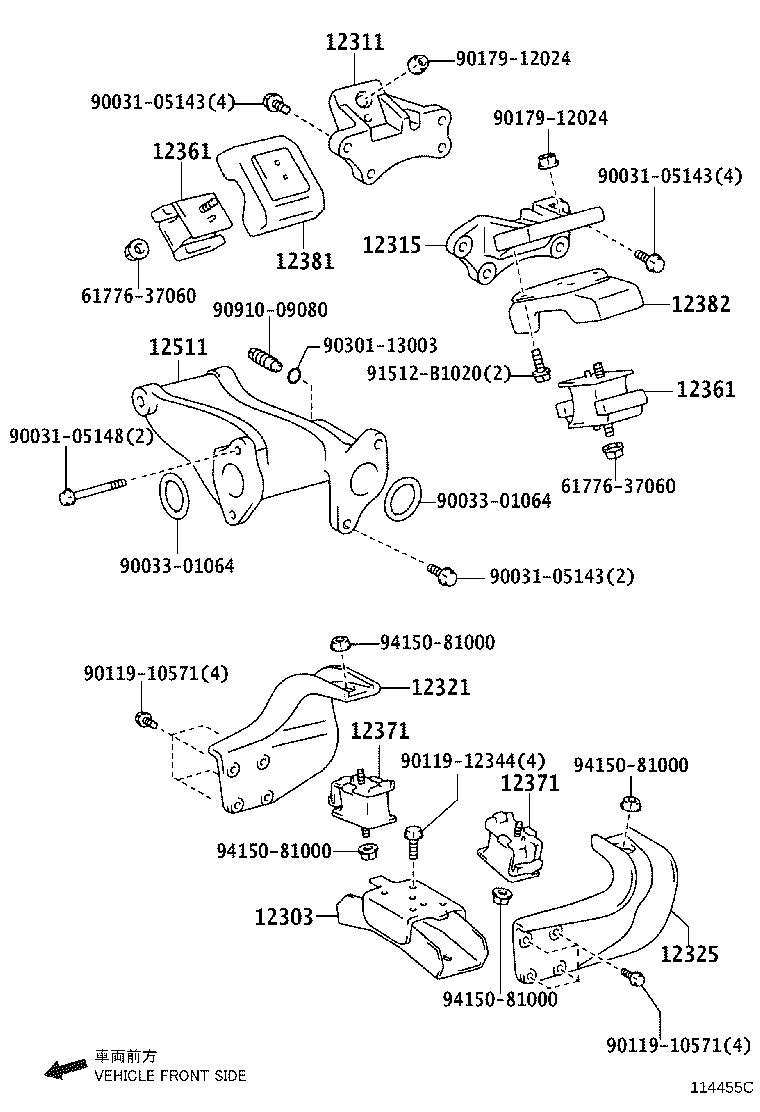

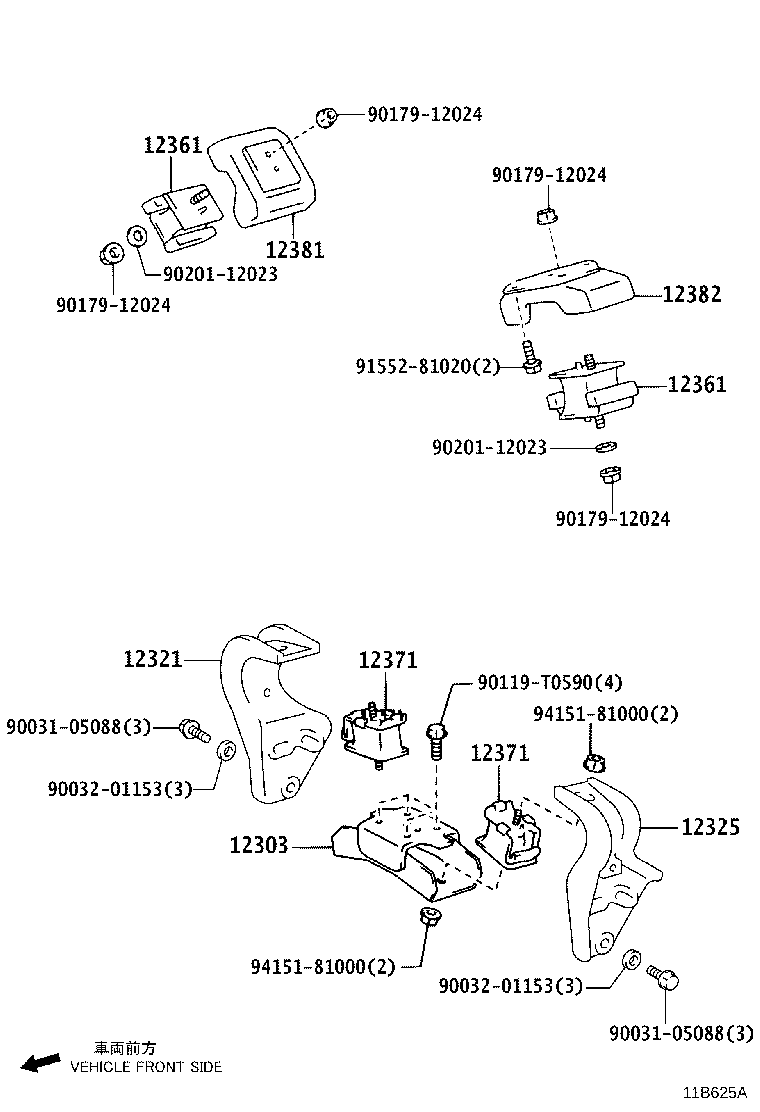

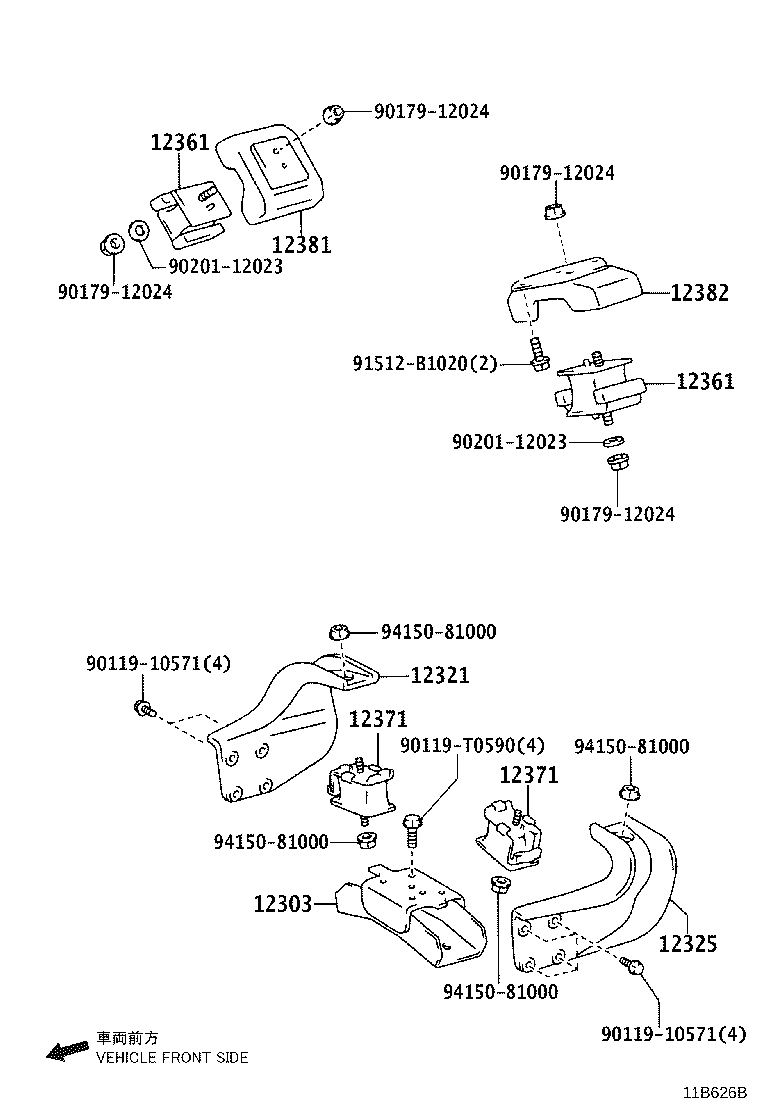

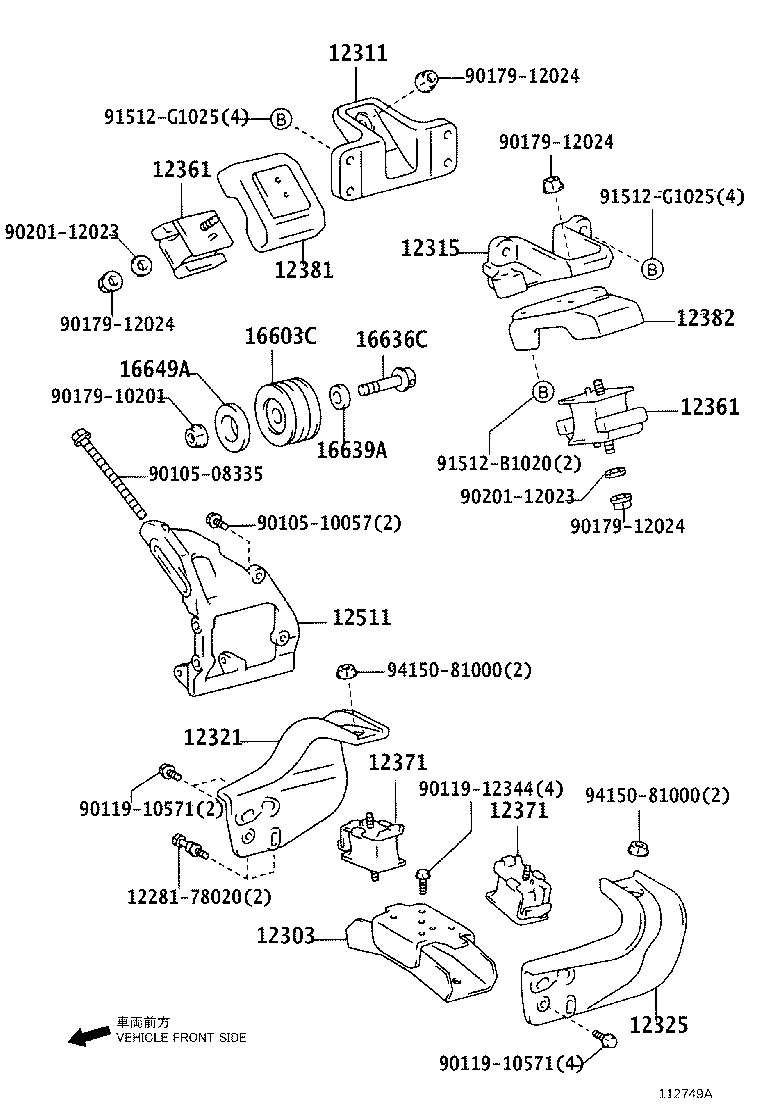

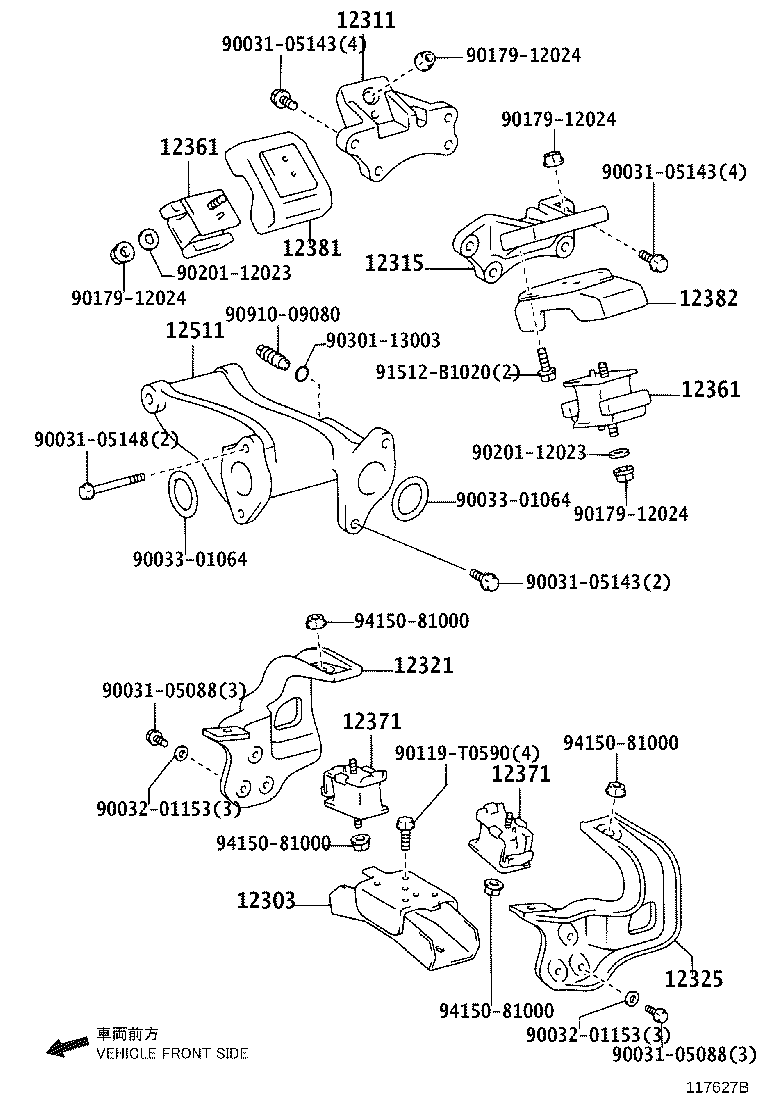

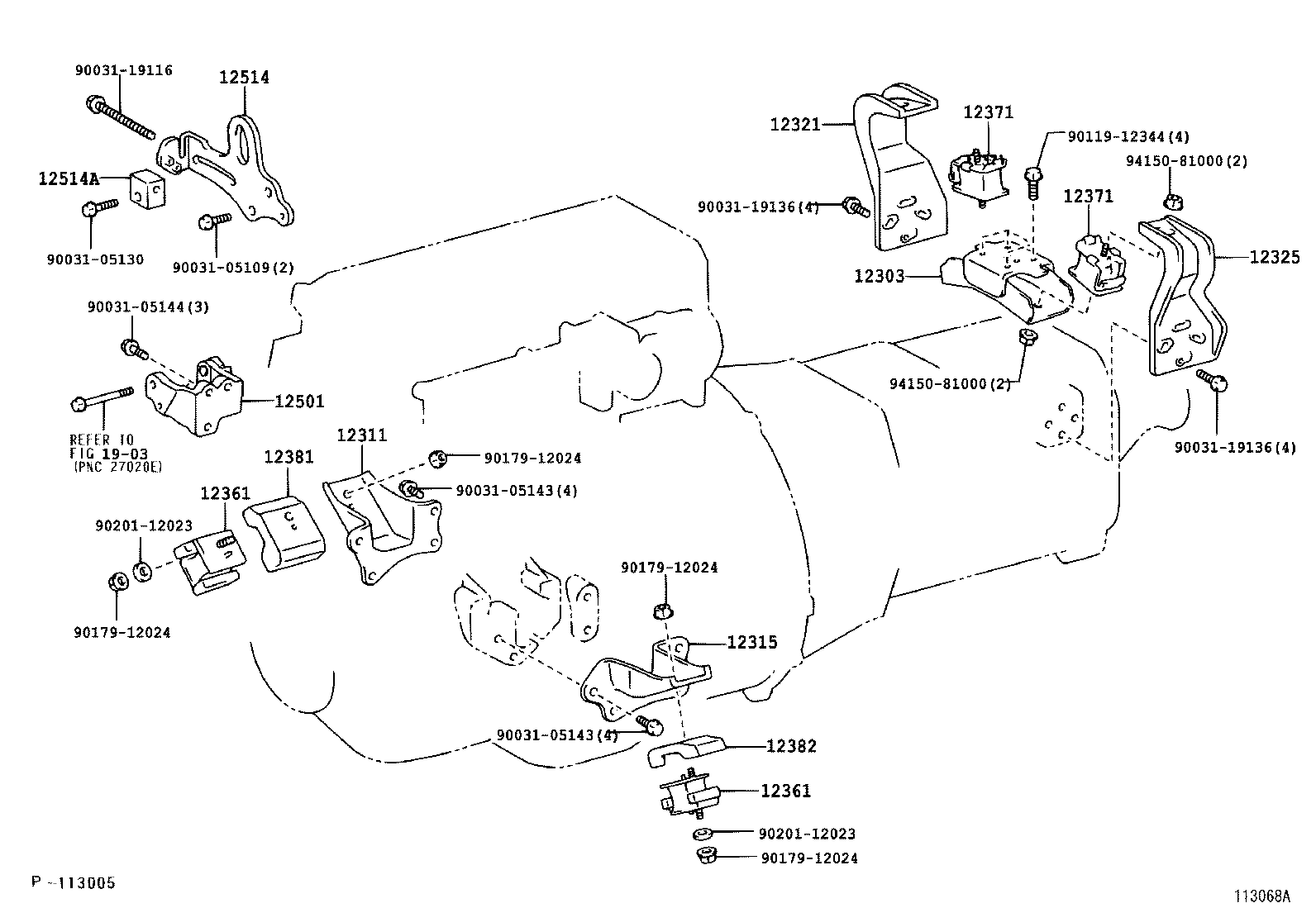

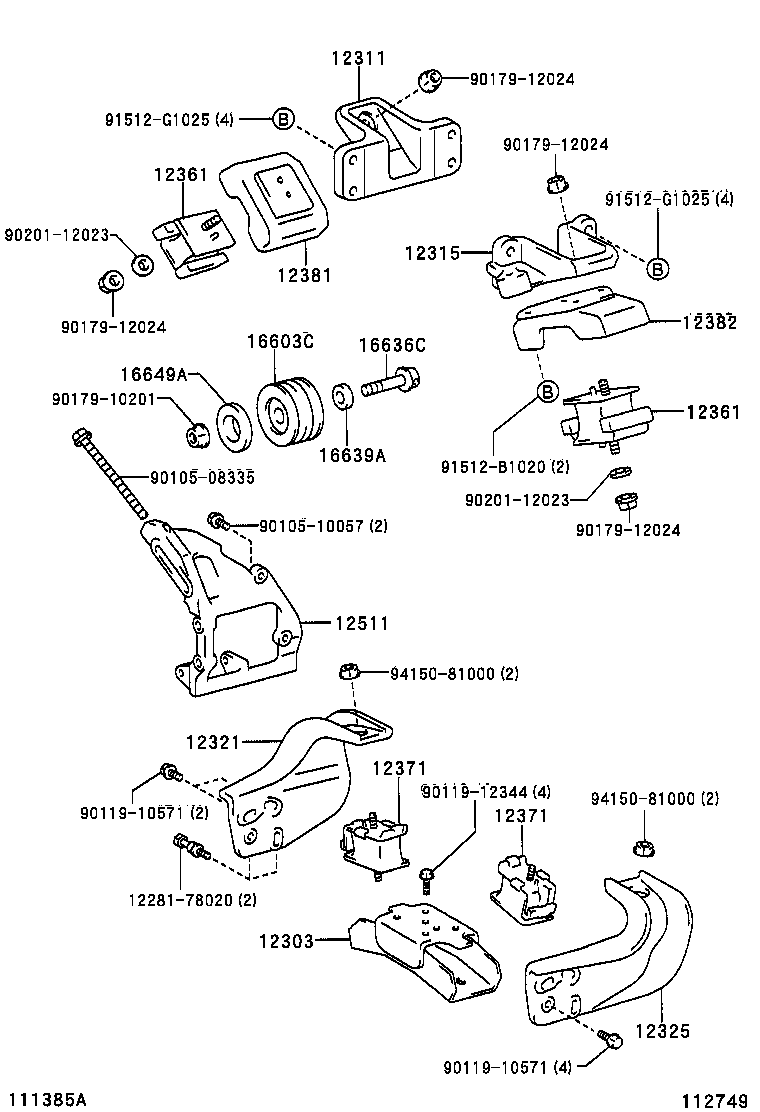

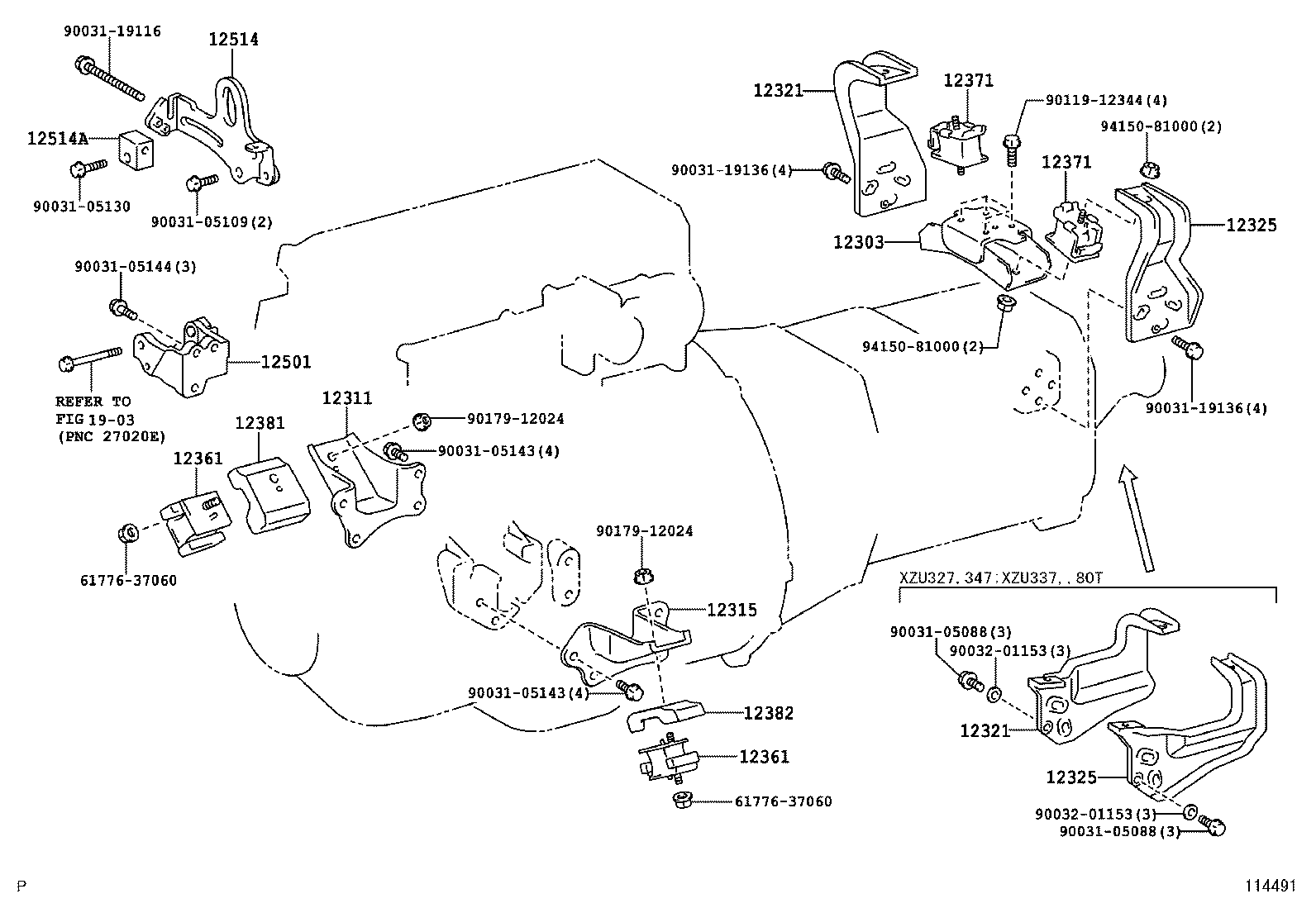

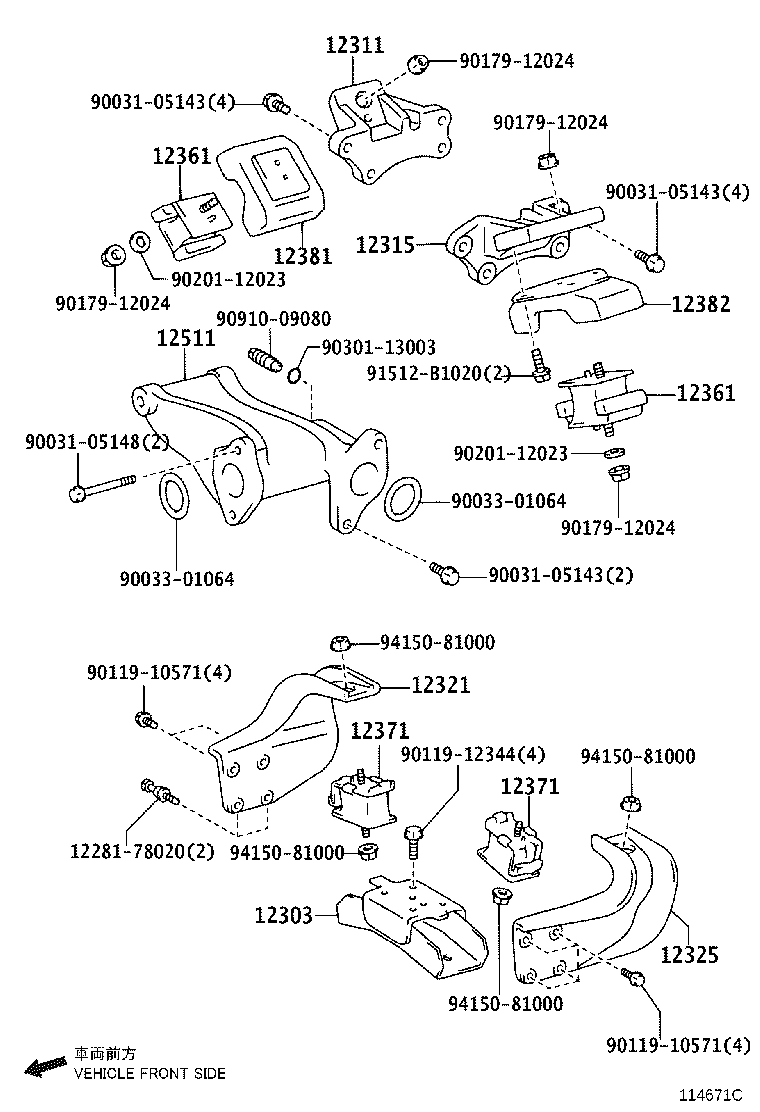

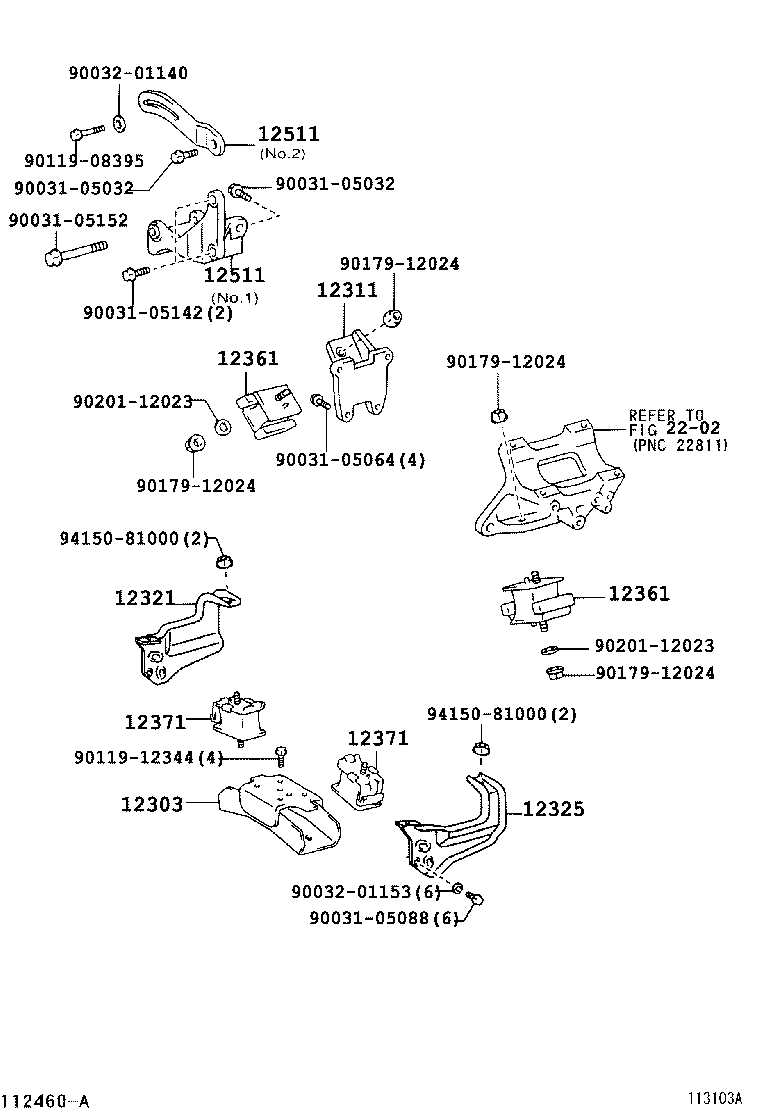

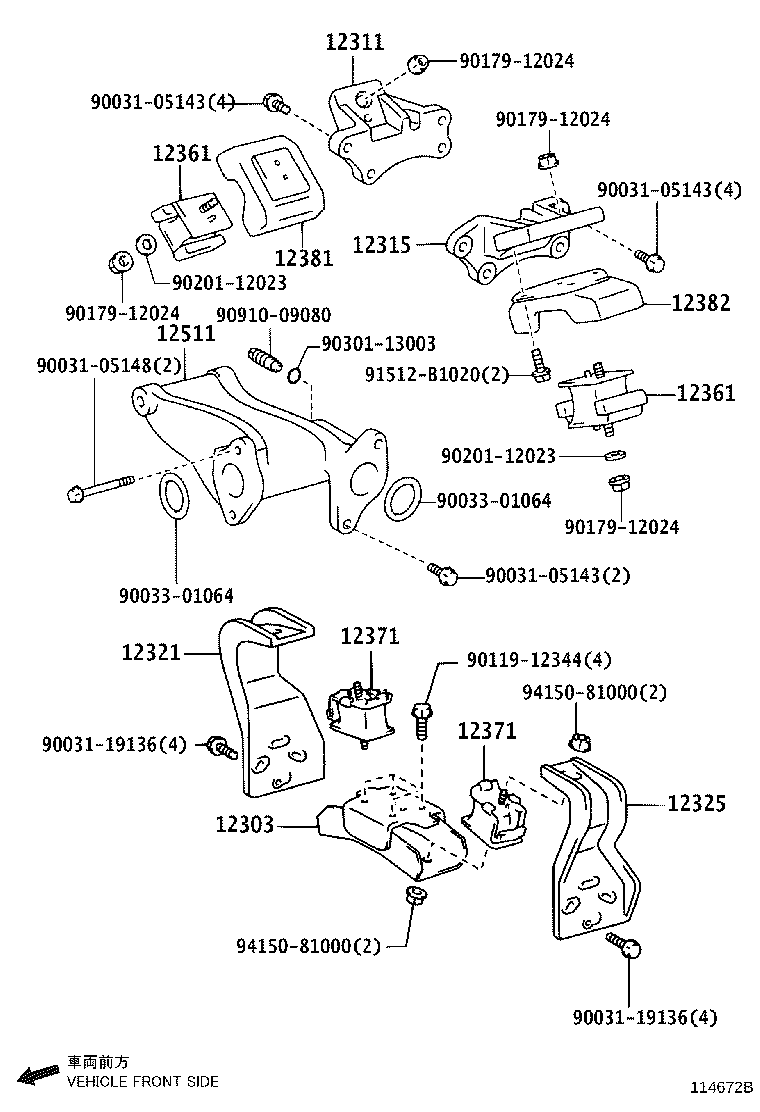

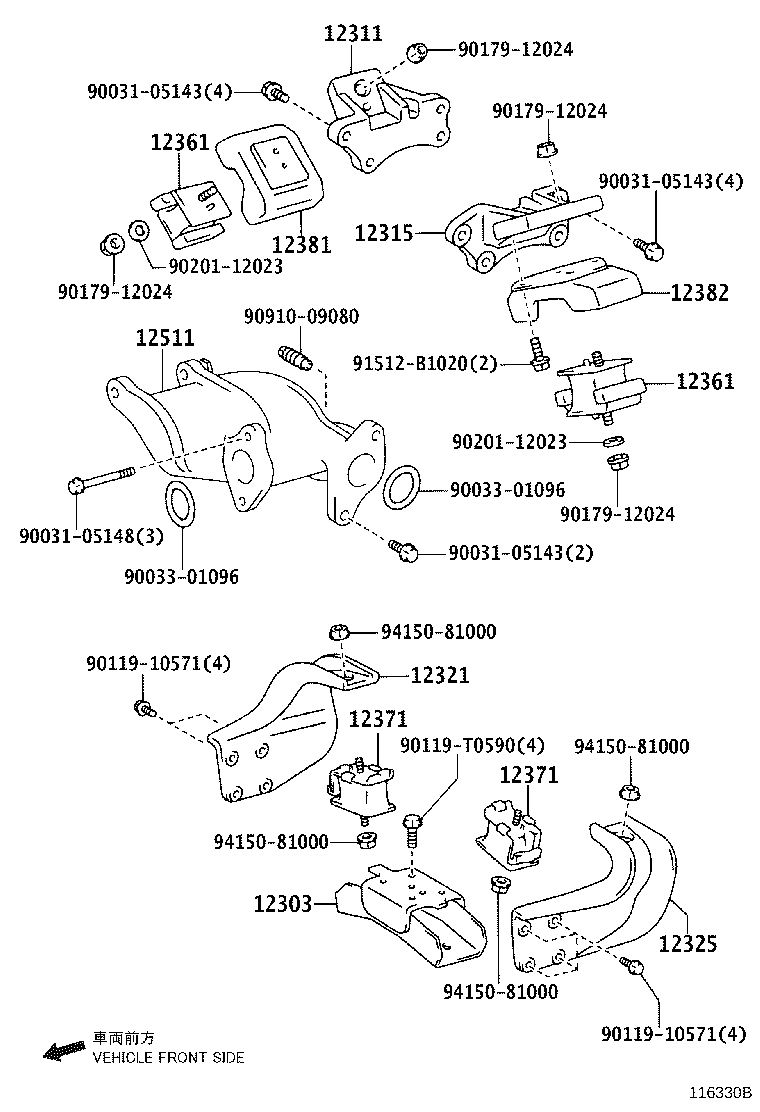

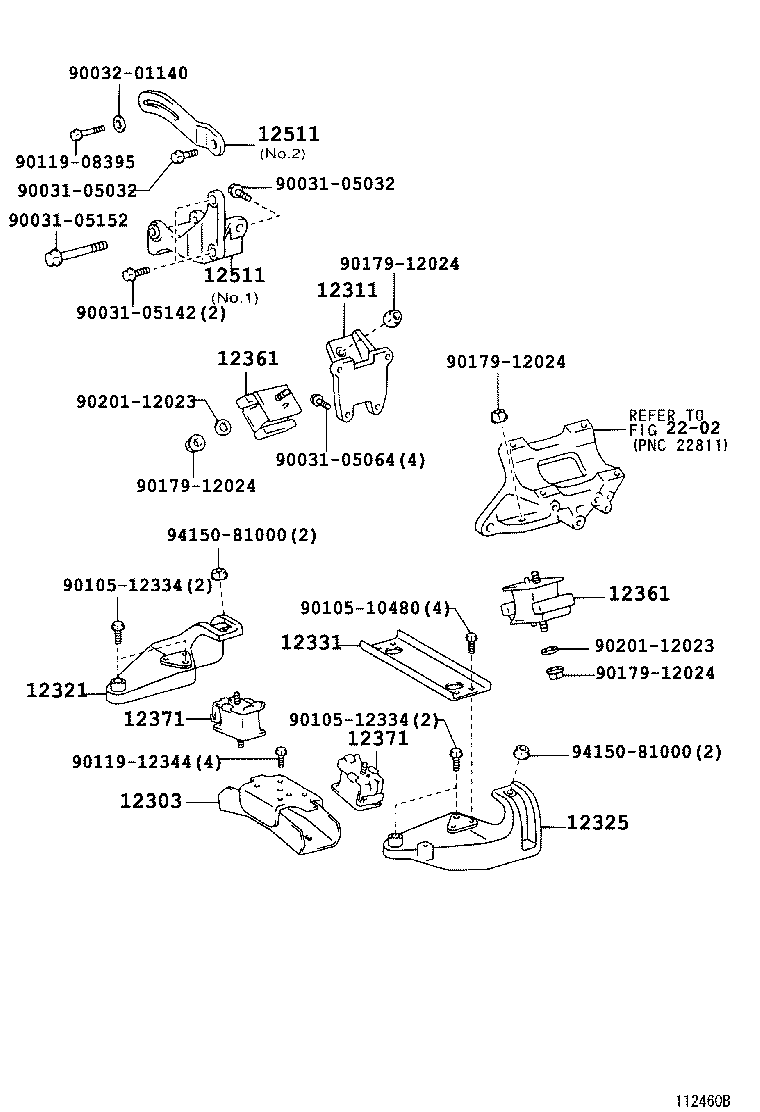

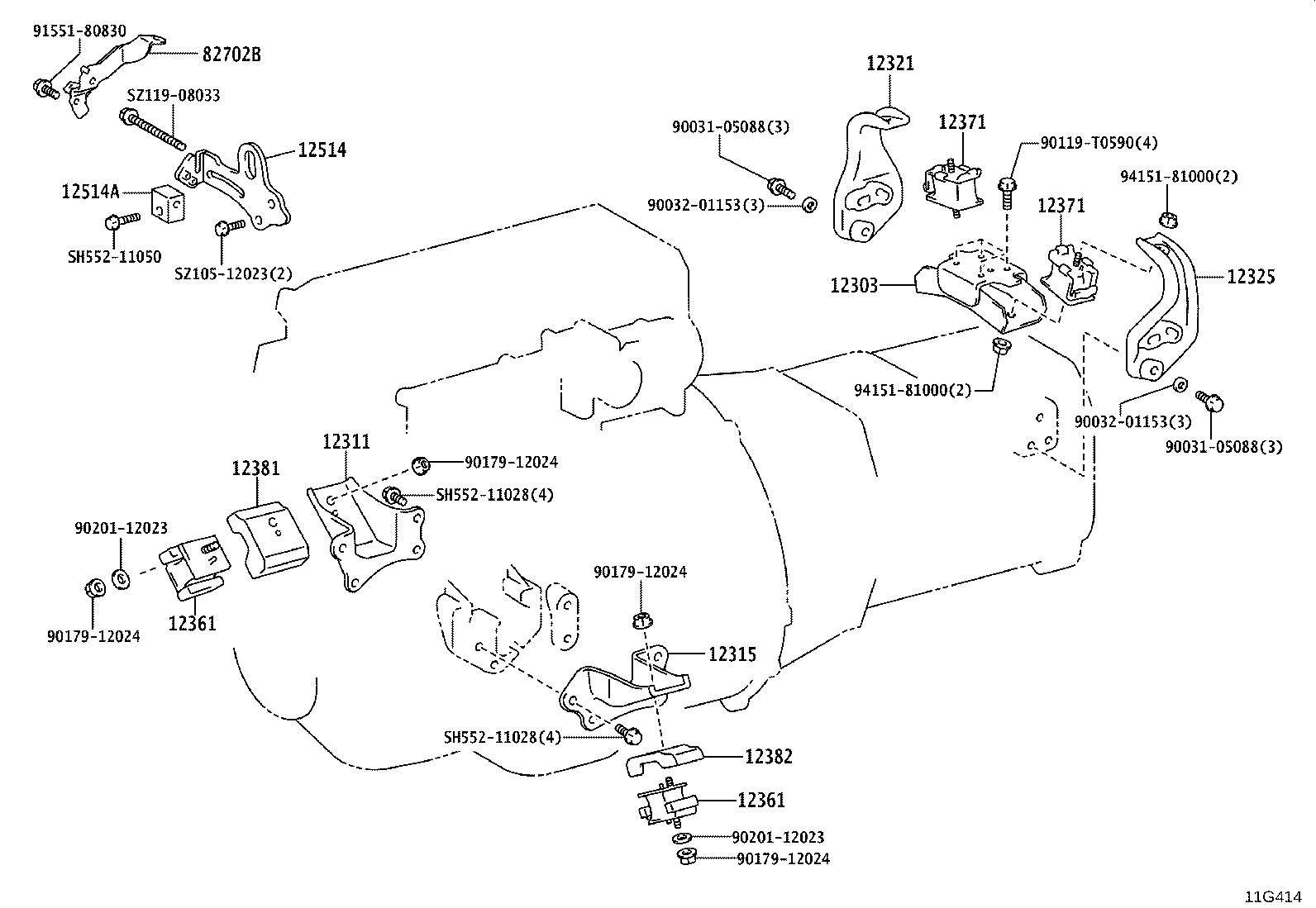

Figure 112527C 112527C 2002-09 → — Figure 112749A 112749A 2002-12 → — Figure 112728H 112728H 2002-09 → 2007-12 Figure 114455C 114455C 2006-10 → — Figure 114456C 114456C 2006-10 → — Figure 114671C 114671C 2006-12 → — Figure 114672B 114672B 2006-12 → — Figure 116330B 116330B 2009-12 → — Figure 116331C 116331C 2009-12 → 2016-12 Figure 11B242A 11B242A 2016-12 → — Figure 11B625A 11B625A 2016-12 → — Figure 11B626B 11B626B 2016-12 → — Figure 117627B 117627B 2012-09 → — Figure 112460B 112460B 2002-09 → 2004-03 Figure 113103A 113103A 2004-03 → 2006-12 Figure 112749 112749 2002-12 → 2006-10 Figure 113068A 113068A 2003-12 → 2006-10 Figure 114491 114491 2006-10 → — Figure 11G414 11G414 2022-03 → —

Part groups

PNCDescription
12303 Bracket Sub-assy, Engine Mounting, Rear
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12325 Bracket, Engine Mounting, NO.3
12331 Stay, Engine Mounting, NO.3 RH
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12382 Stabilizer, Engine Mounting, LH
12501 Bracket Sub-assy, Alternator
12511 Bracket, Alternator, NO.1
12514 Bar, Alternator Belt Adjusting
12514A Slider, Fan Belt Adjusting
16603C Pulley Sub-assy, Idler
16636C Shaft, Idler Pulley, NO.1
16639A Spacer, Idler Pulley
16649A Plate, Idler Pulley Cover
82702B Bracket Sub-assy, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
