Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

21 part groups · 14 illustrations

Illustrations

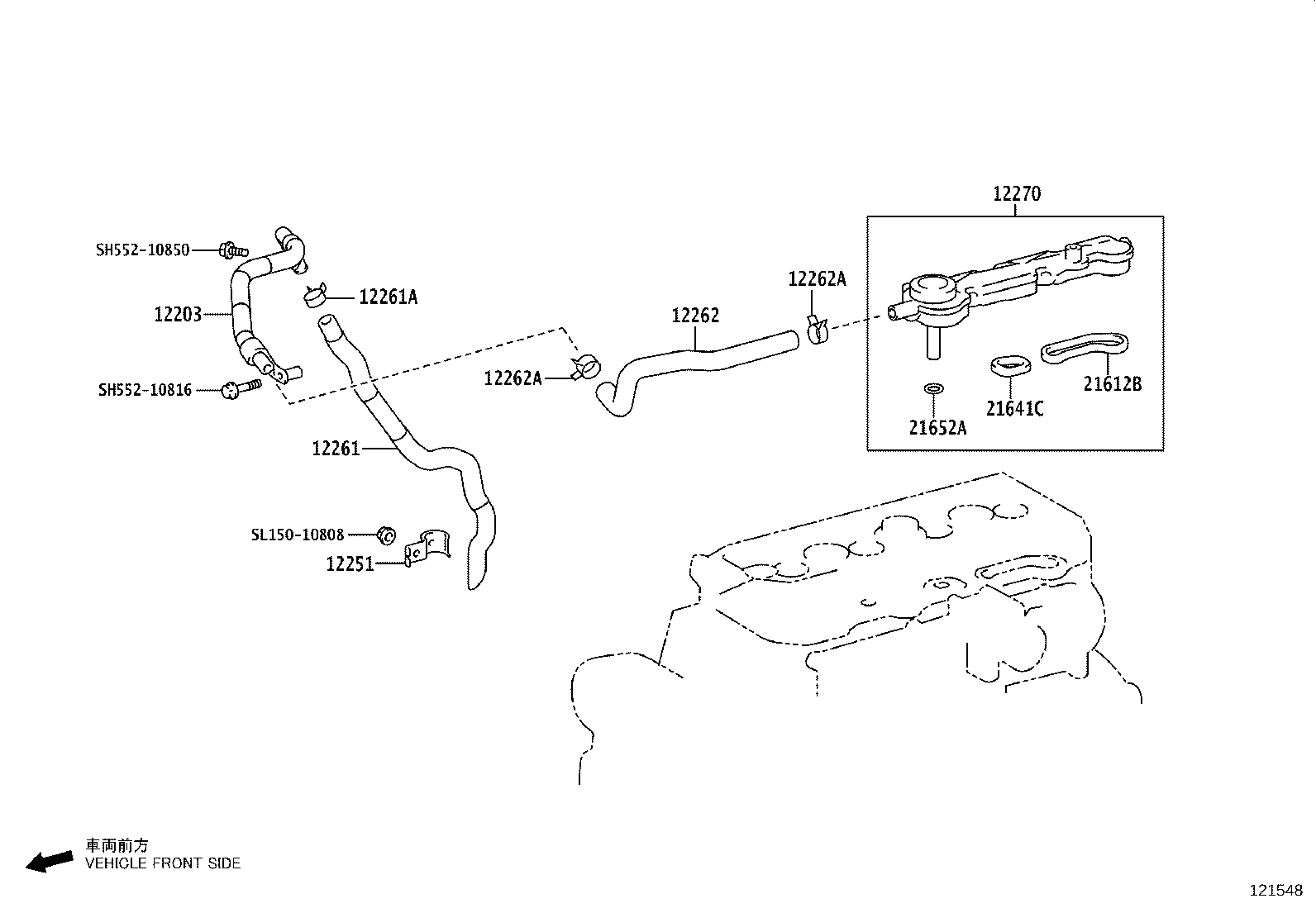

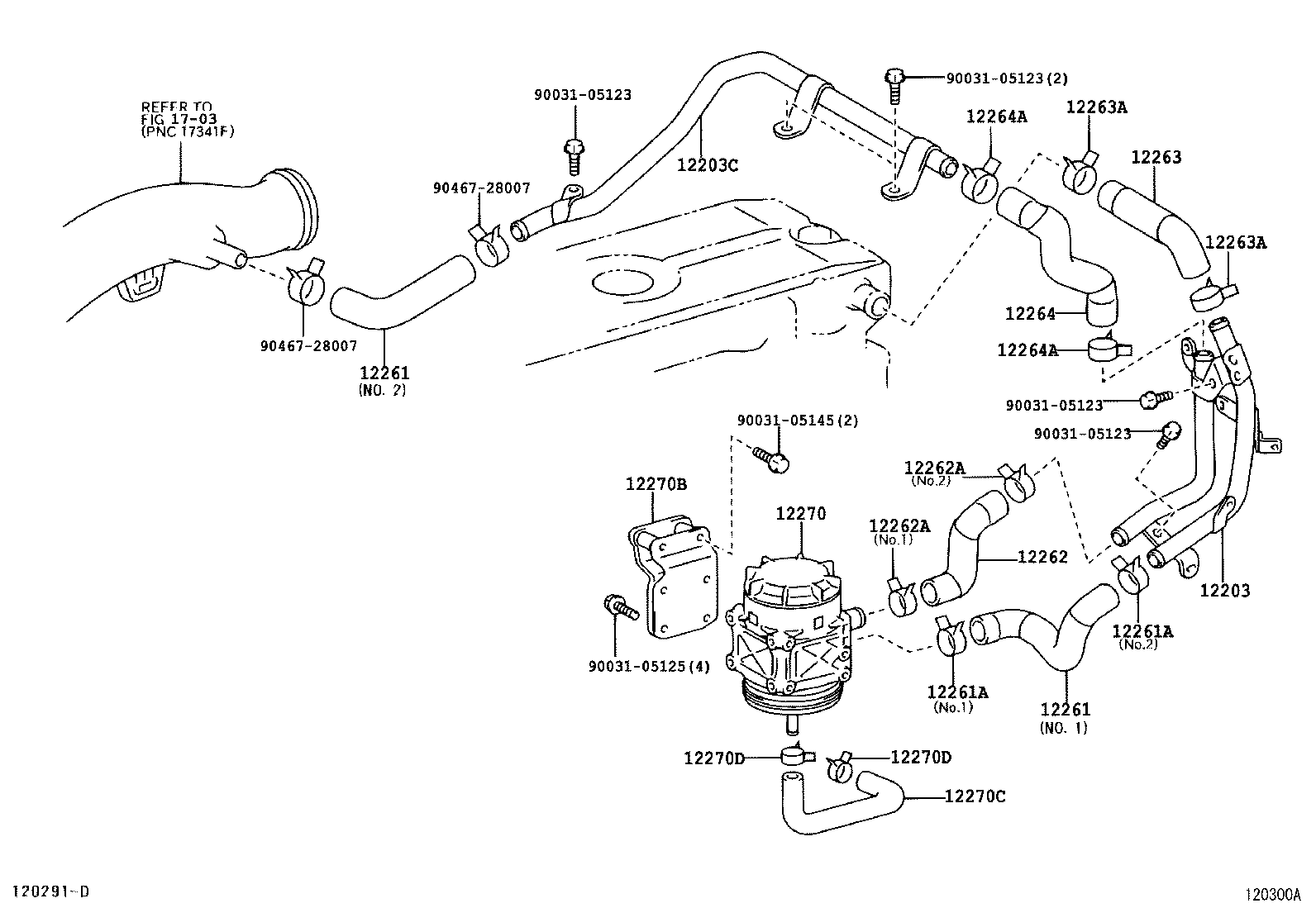

Figure 120100A 120100A 2002-09 → — Figure 120109A 120109A 2002-12 → — Figure 120247D 120247D 2002-09 → 2006-12 Figure 120247D 120247D 2002-12 → 2008-02 Figure 120247D 120247D 2003-04 → 2008-02 Figure 120532D 120532D 2006-10 → — Figure 120532D 120532D 2008-02 → — Figure 120729B 120729B 2006-12 → — Figure 120733A 120733A 2009-12 → — Figure 120294 120294 2002-09 → 2006-12 Figure 120109 120109 2002-12 → 2006-10 Figure 120300A 120300A 2003-12 → 2006-10 Figure 120533C 120533C 2006-10 → — Figure 121548 121548 2022-03 → —

Part groups

PNCDescription
12203 Pipe Sub-assy, Ventilation
12203C Pipe Sub-assy, Ventilation, NO.2
12221 Tube, Ventilation NO.1
12251 Clamp, Ventilation Tube
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12262B Clamp(FOR VENTILATION HOSE)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
12264 Hose, Ventilation, NO.4
12264A Clip(FOR VENTILATION HOSE)
12270 Separator Assy, Oil
12270B Bracket(FOR OIL SEPARATOR)
12270C Hose, Oil(FOR OIL SEPARATOR)
12270D Clip(FOR OIL SEPARATOR HOSE)
12271 Screen, Oil Separator
21612B Gasket
21641C Gasket
21652A Ring, O
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
