Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

15 part groups · 11 illustrations

Illustrations

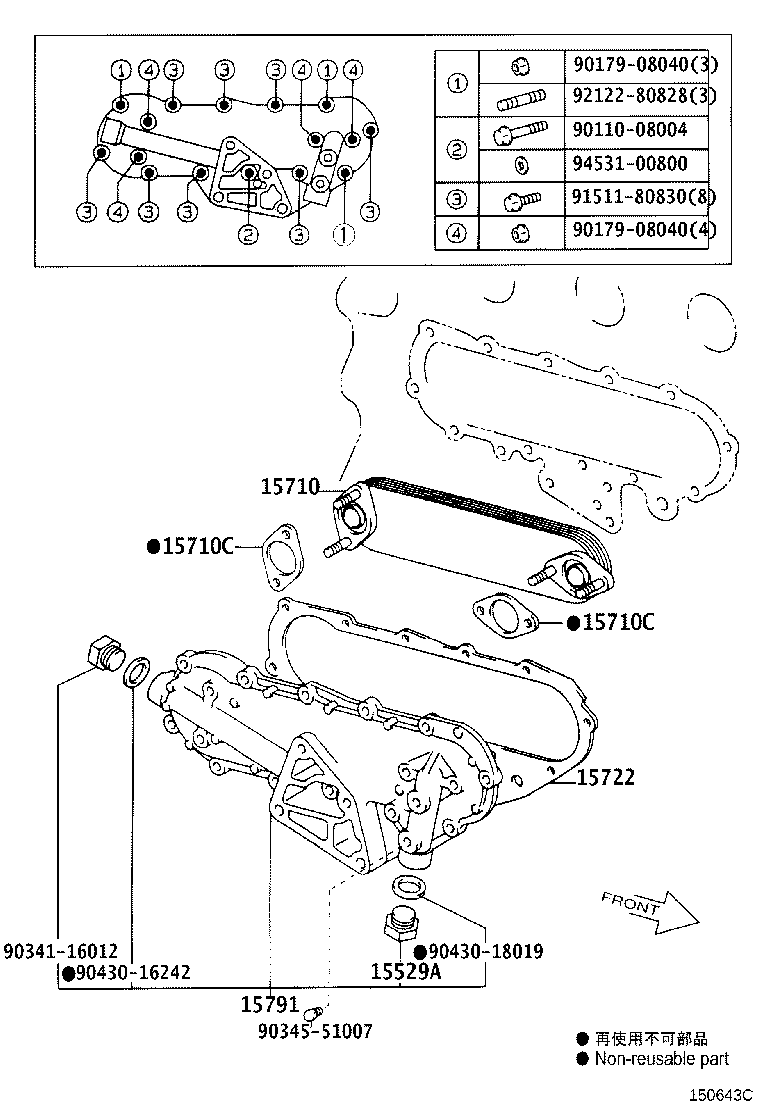

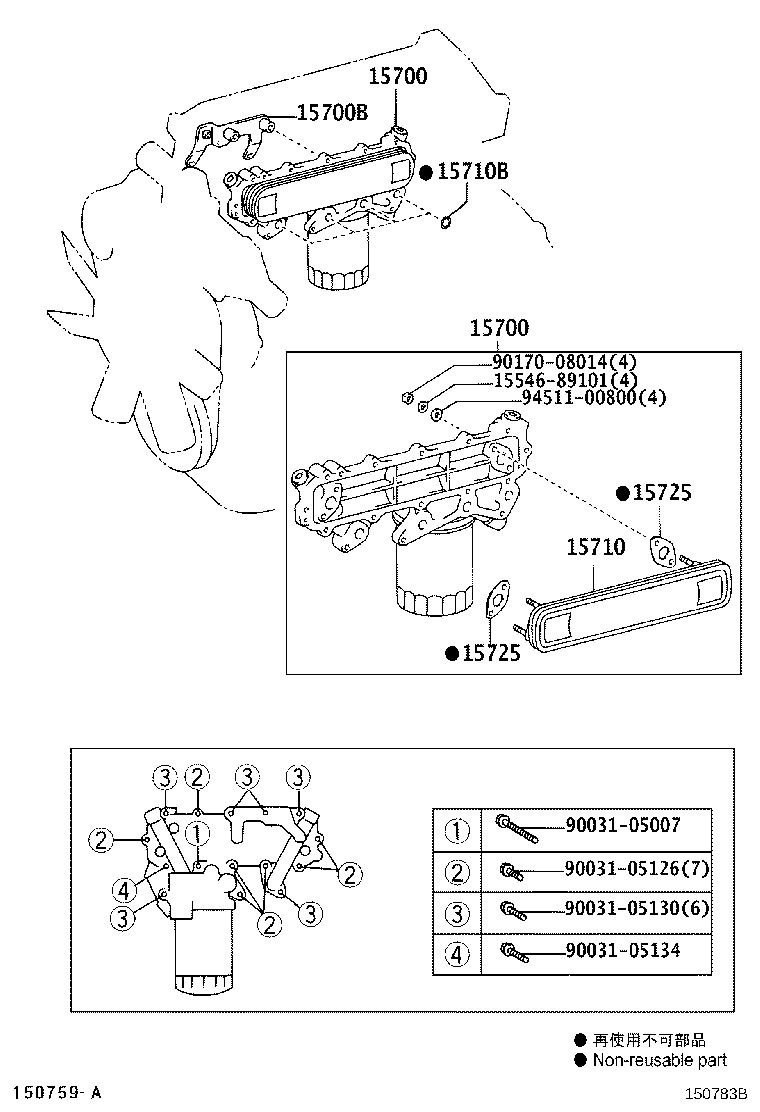

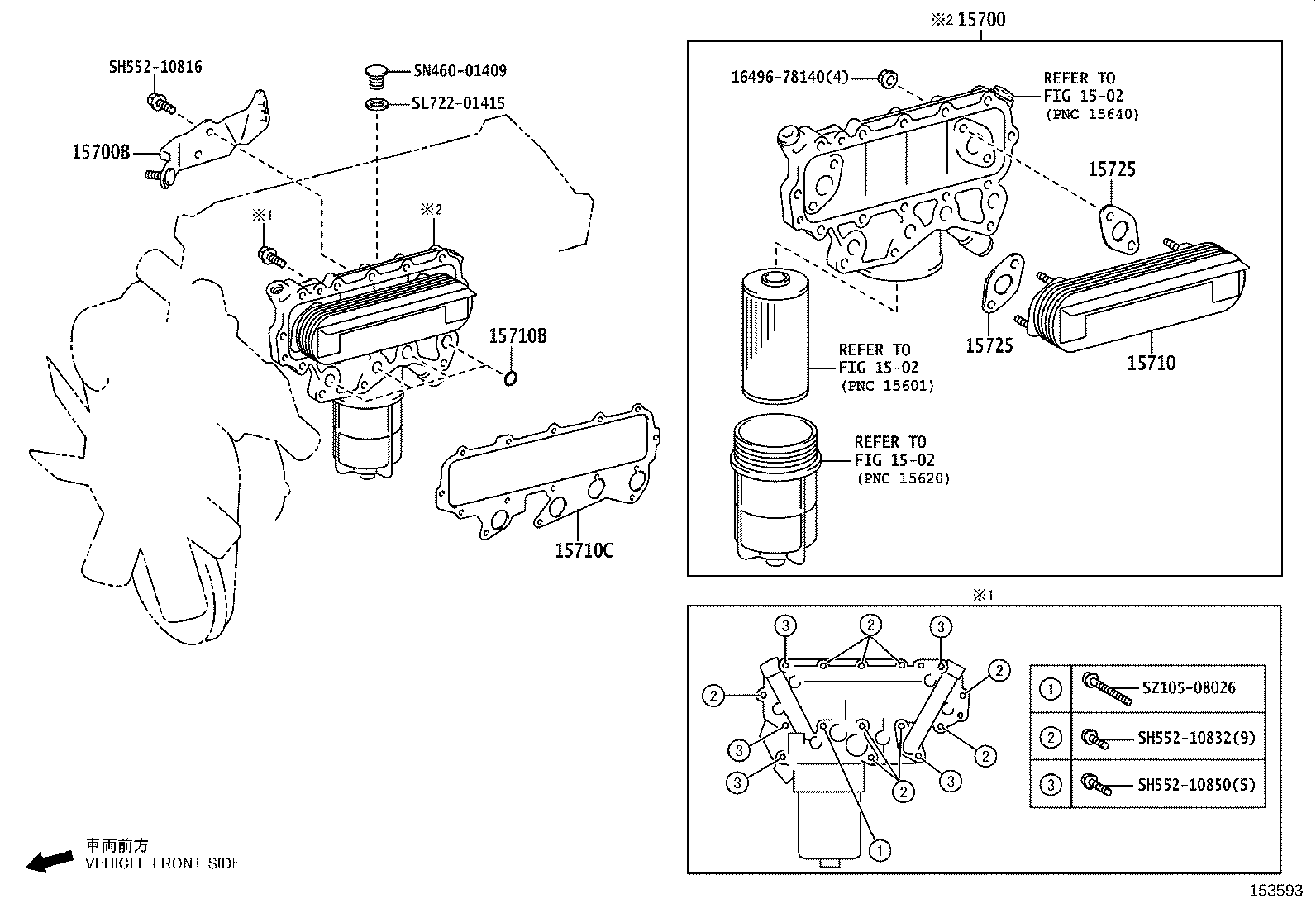

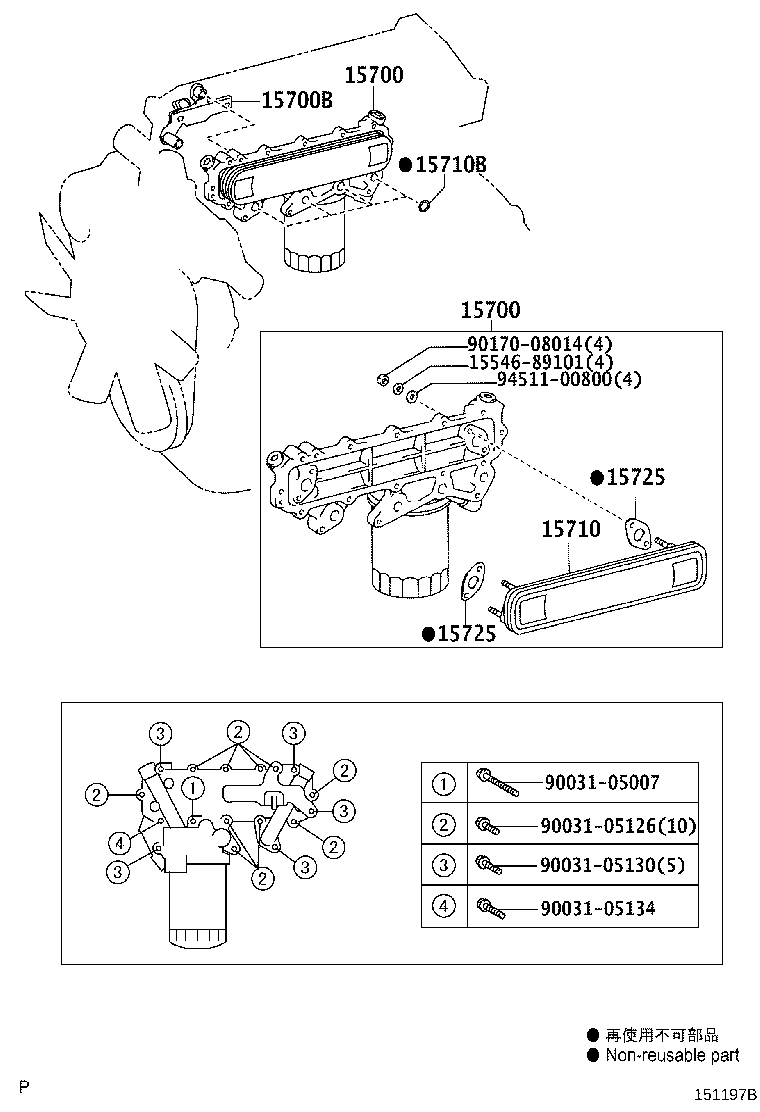

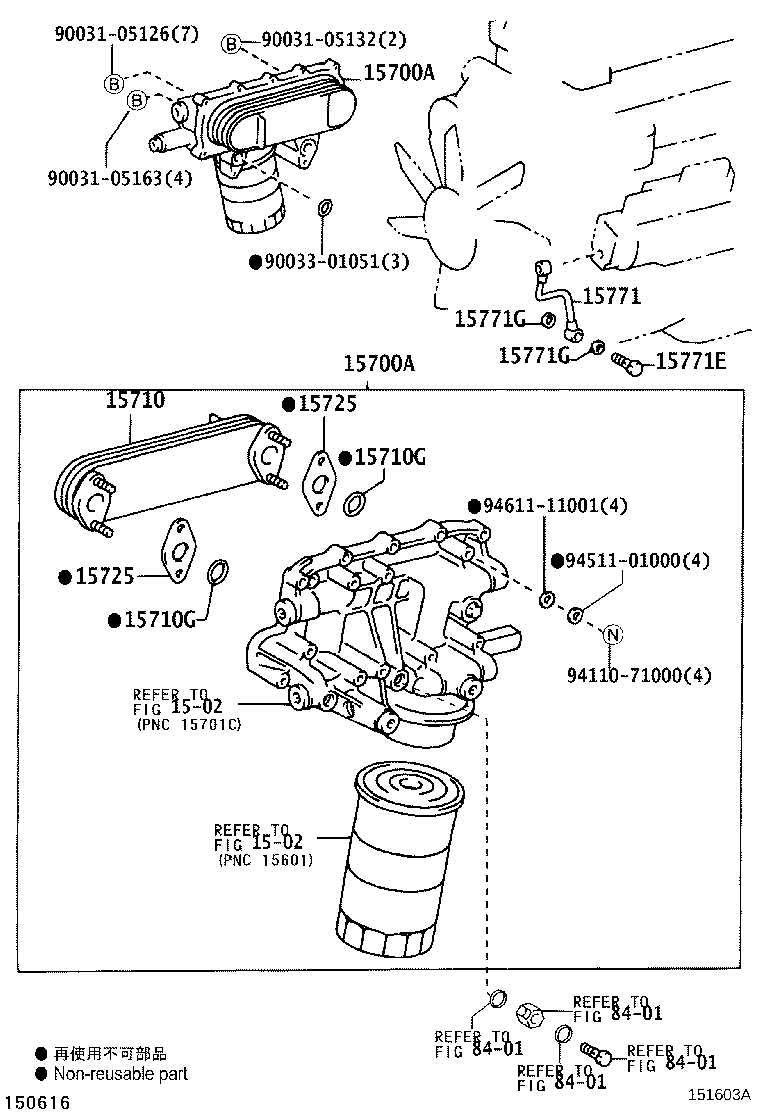

Figure 150643D 150643D 2002-09 → — Figure 150623F 150623F 2002-09 → 2007-12 Figure 153520 153520 2006-10 → — Figure 153520 153520 2006-12 → 2009-07 Figure 153521 153521 2009-07 → — Figure 153522 153522 2009-12 → — Figure 151603A 151603A 2002-09 → 2006-12 Figure 150643C 150643C 2002-12 → 2006-10 Figure 150783B 150783B 2003-12 → 2006-10 Figure 151197B 151197B 2006-10 → — Figure 153593 153593 2022-03 → —

Part groups

PNCDescription
15529A Plug
15700 Cooler Assy, Oil W/Bracket
15700A Cooler Assy, Oil W/Bracket
15700B Bracket(FOR OIL COOLER)
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15710C Gasket(FOR OIL COOLER)
15710G Ring, O, NO.2
15722 Gasket, Oil Cooler
15725 Gasket, Oil Cooler Cover
15726 Connector, Oil Cooler Union Bolt
15771 Pipe, Oil, NO.1
15771E Bolt, Union(FOR OIL PIPE)
15771G Gasket
15791 Case, Oil Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
