Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

11 part groups · 9 illustrations

Illustrations

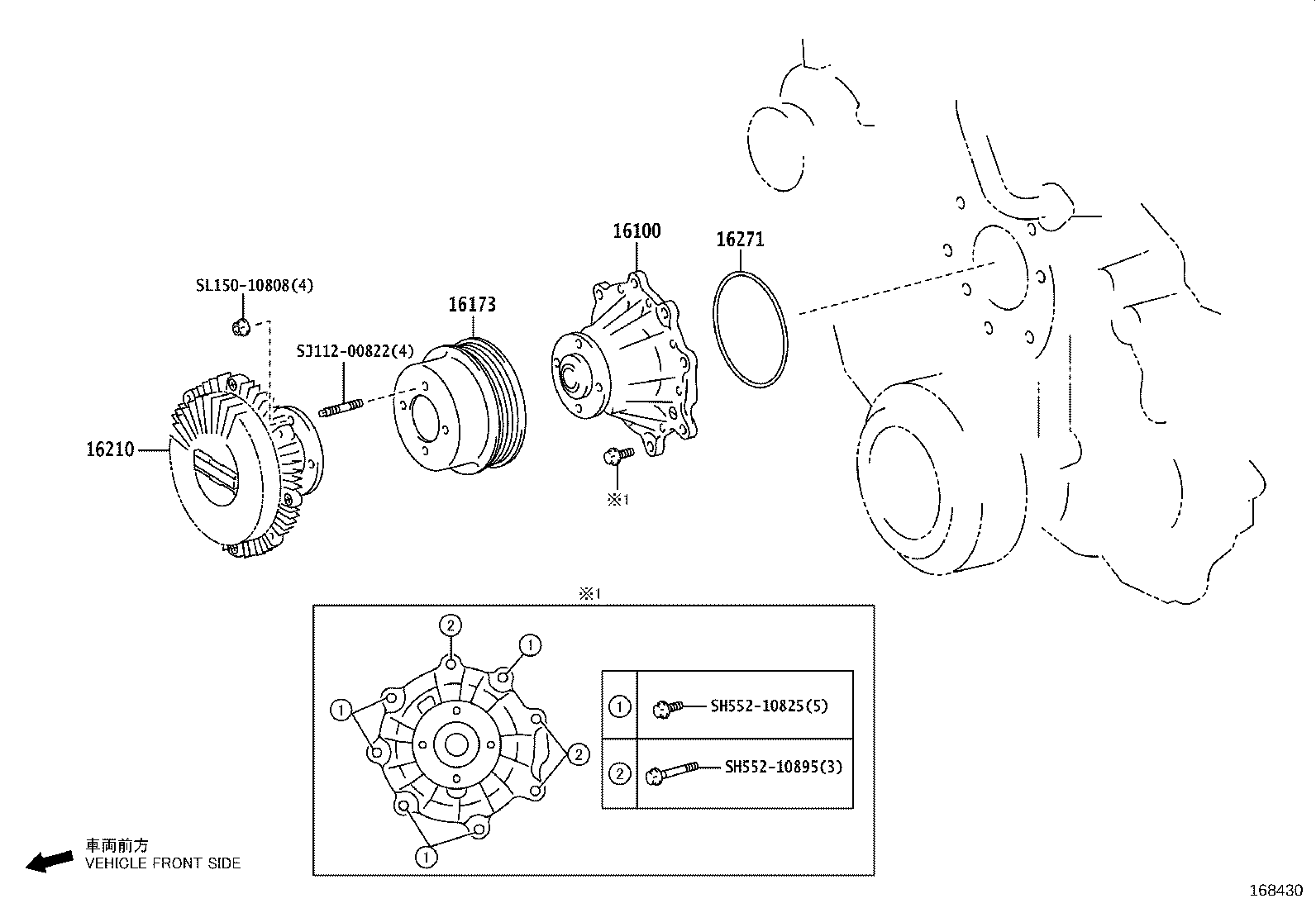

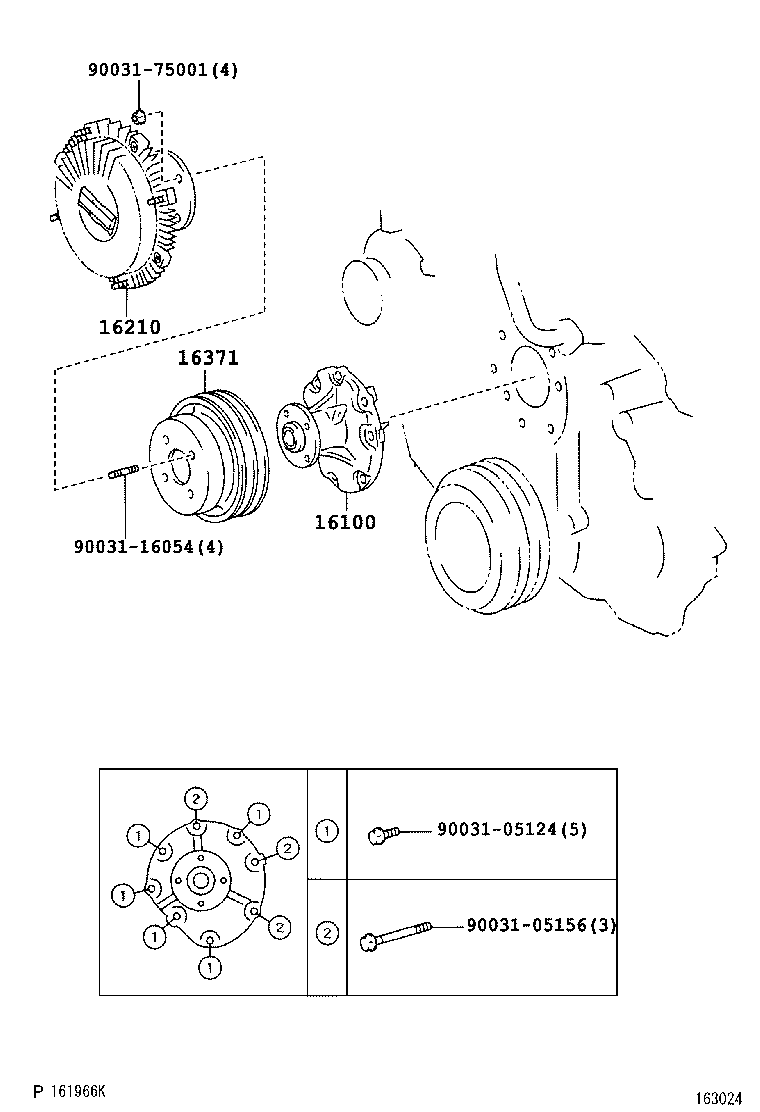

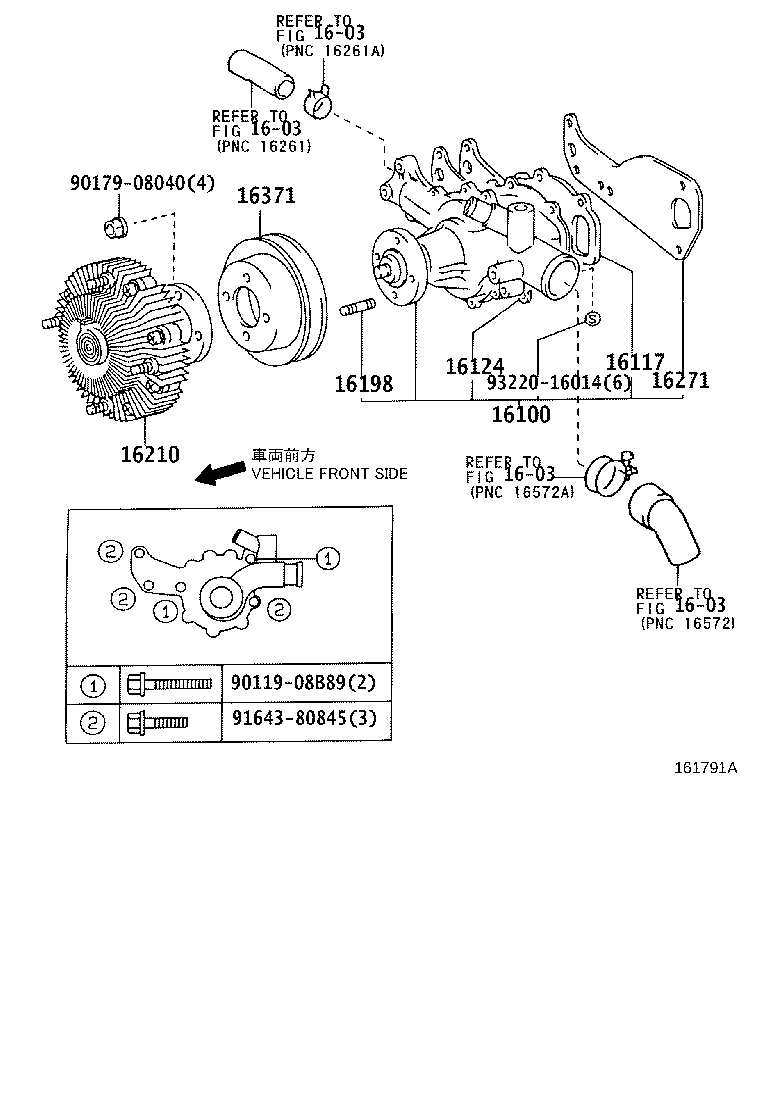

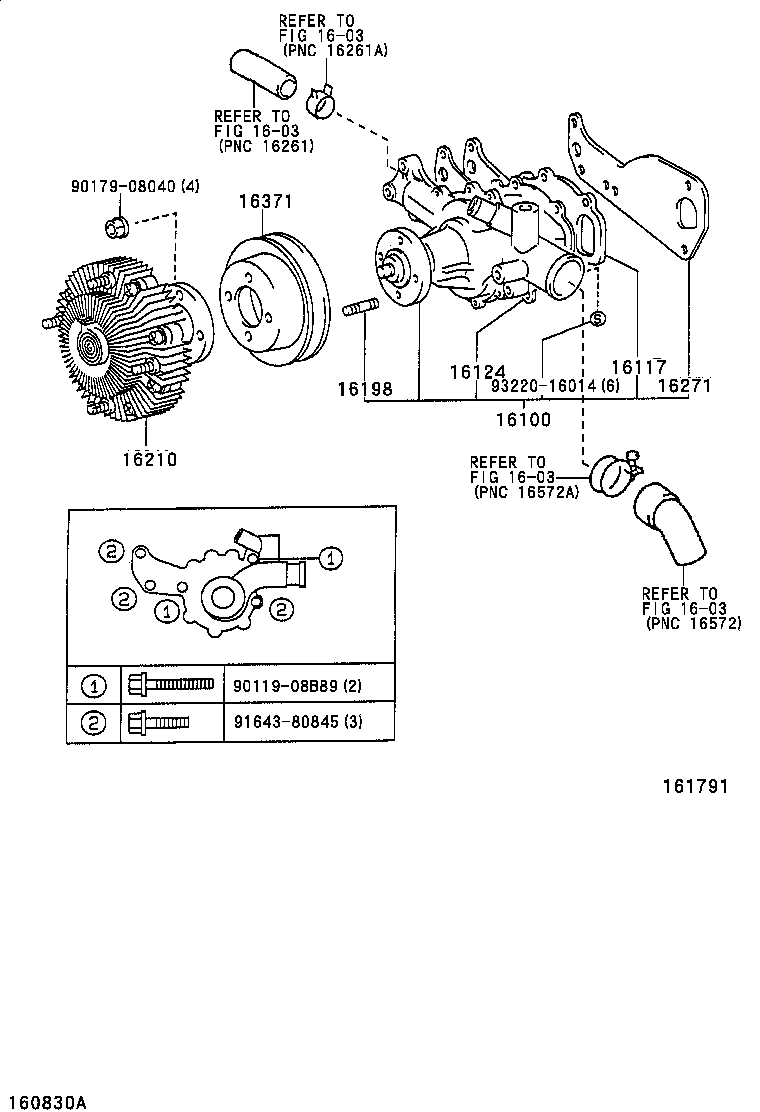

Figure 161667A 161667A 2002-09 → — Figure 161791A 161791A 2002-12 → — Figure 163258B 163258B 2002-09 → 2007-12 Figure 162878D 162878D 2006-10 → — Figure 164094A 164094A 2009-12 → — Figure 161602C 161602C 2002-09 → 2006-12 Figure 161791 161791 2002-12 → 2006-10 Figure 163024 163024 2003-12 → — Figure 168430 168430 2022-03 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100A Plug, Water Pump
16100H Ring, O(FOR WATER PUMP)
16117 Plate, Water Pump
16124 Gasket, Water Pump Cover
16173 Pulley, Water Pump
16198 Bolt, Stud(FOR WATER PUMP PULLEY SEAT)
16210 Coupling Assy, Fluid
16271 Gasket, Water Pump
16365A Spacer, Fan
16371 Pulley, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
