Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

62 part groups · 15 illustrations

Illustrations

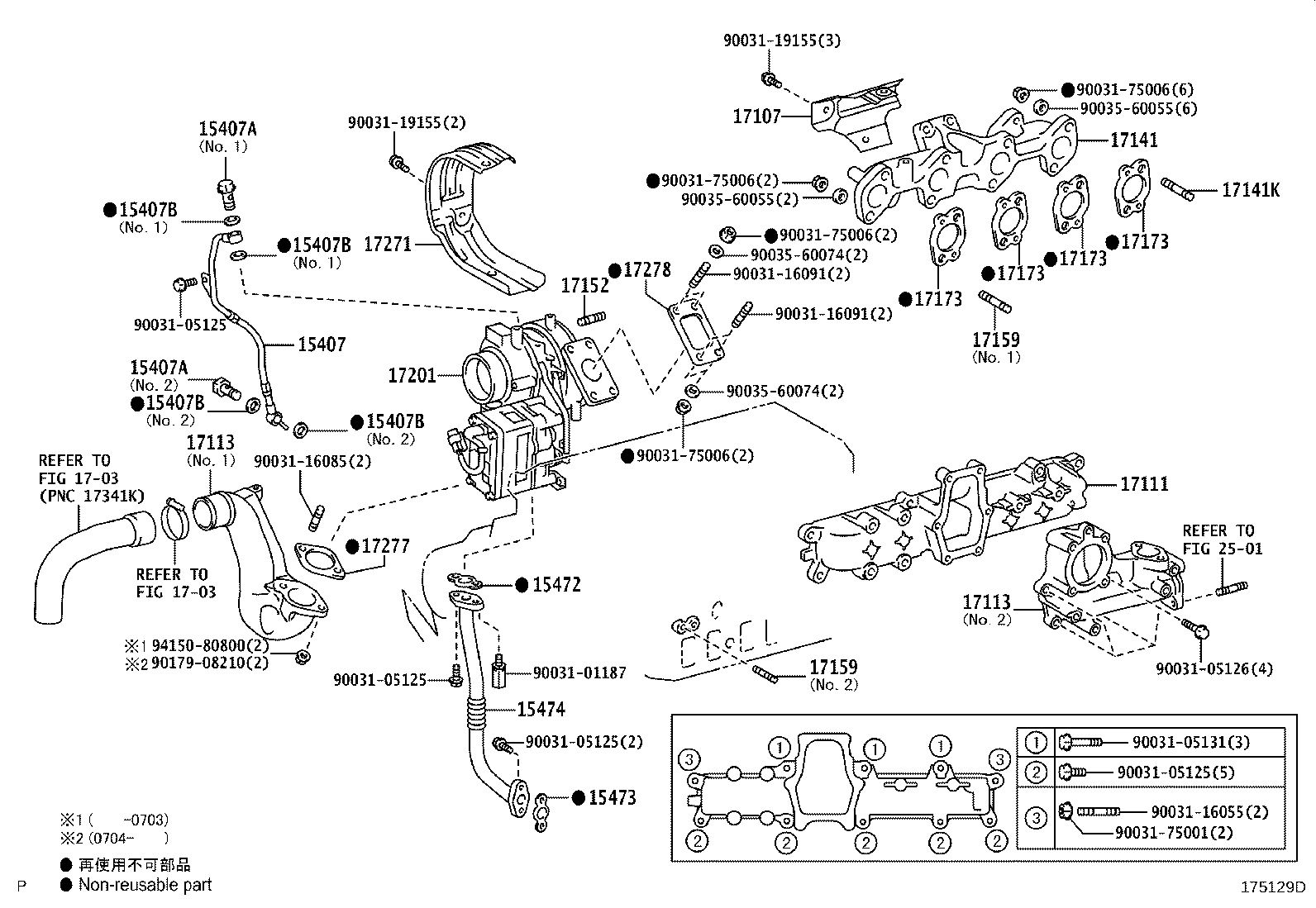

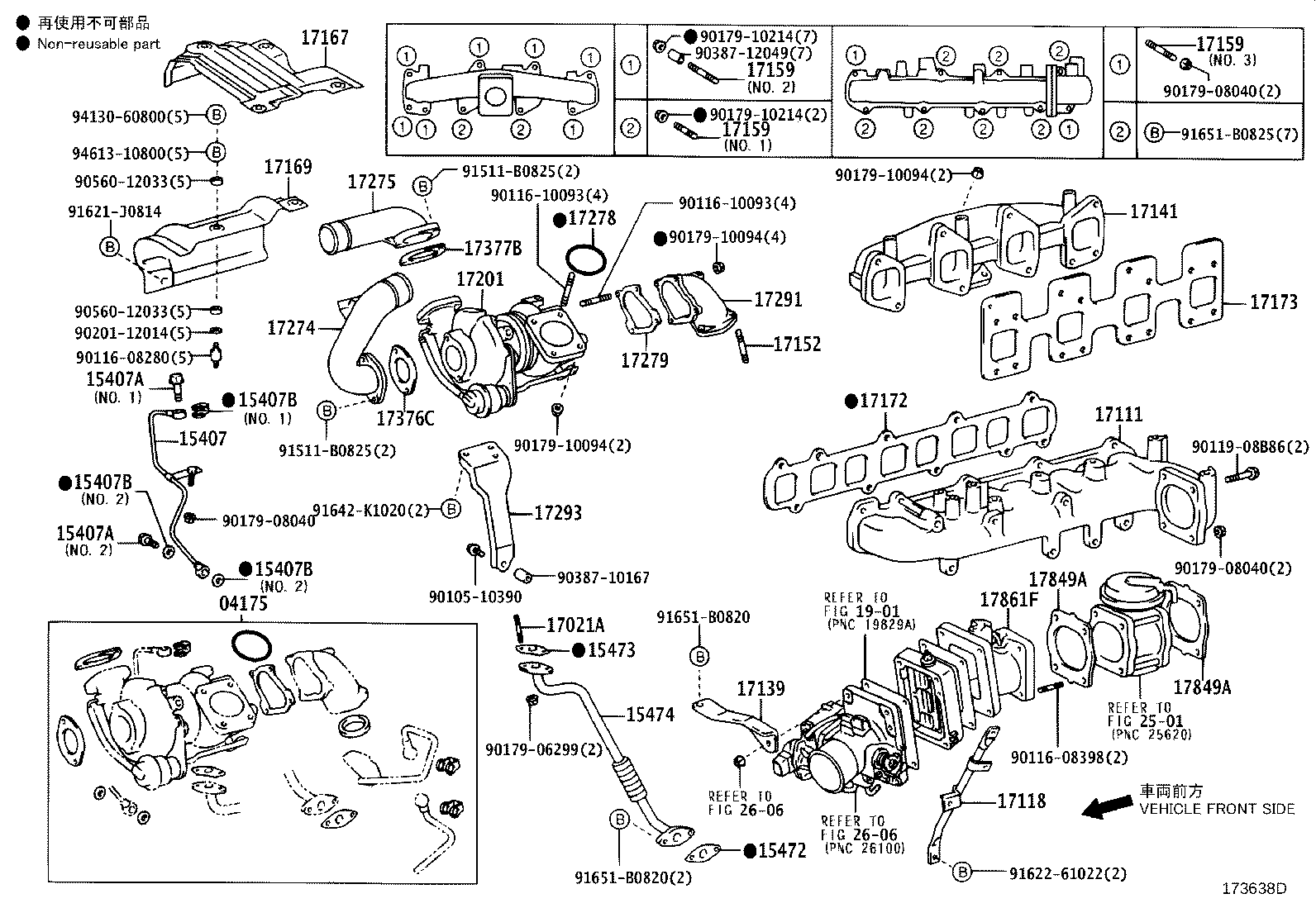

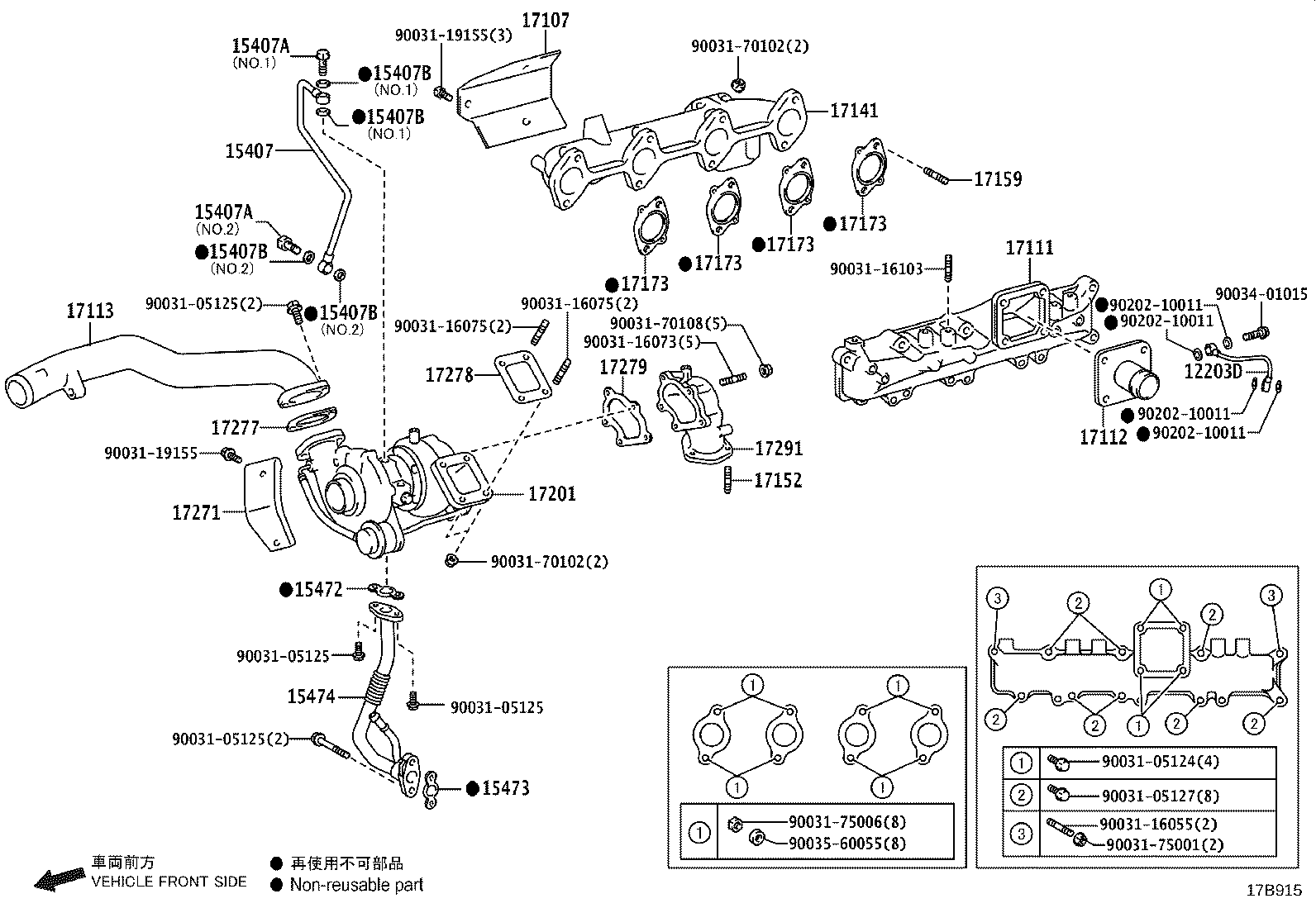

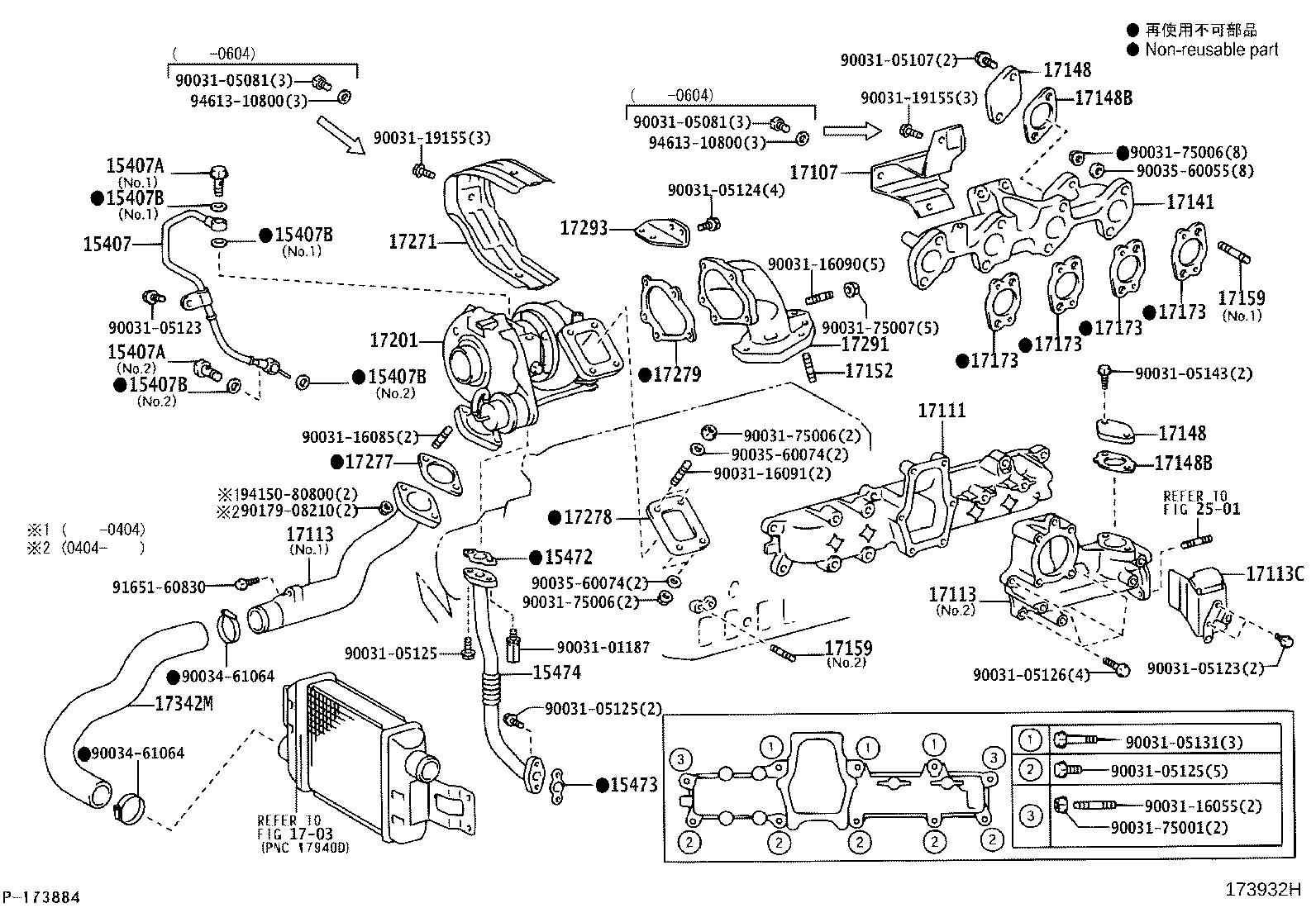

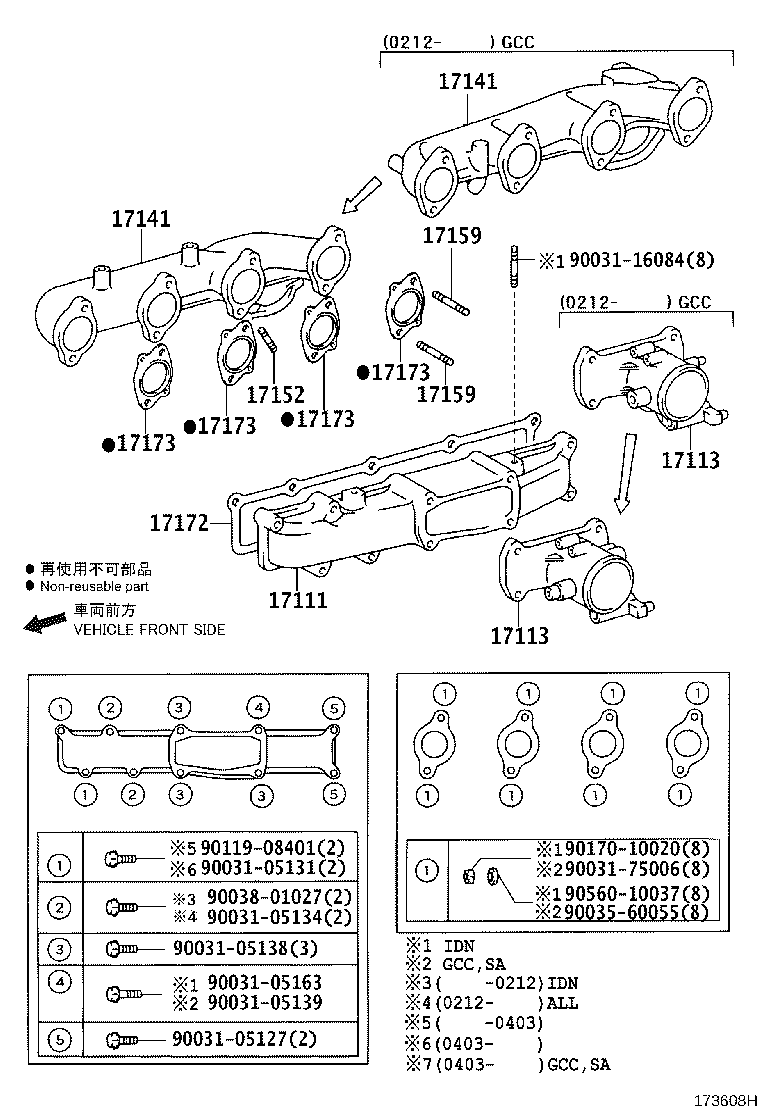

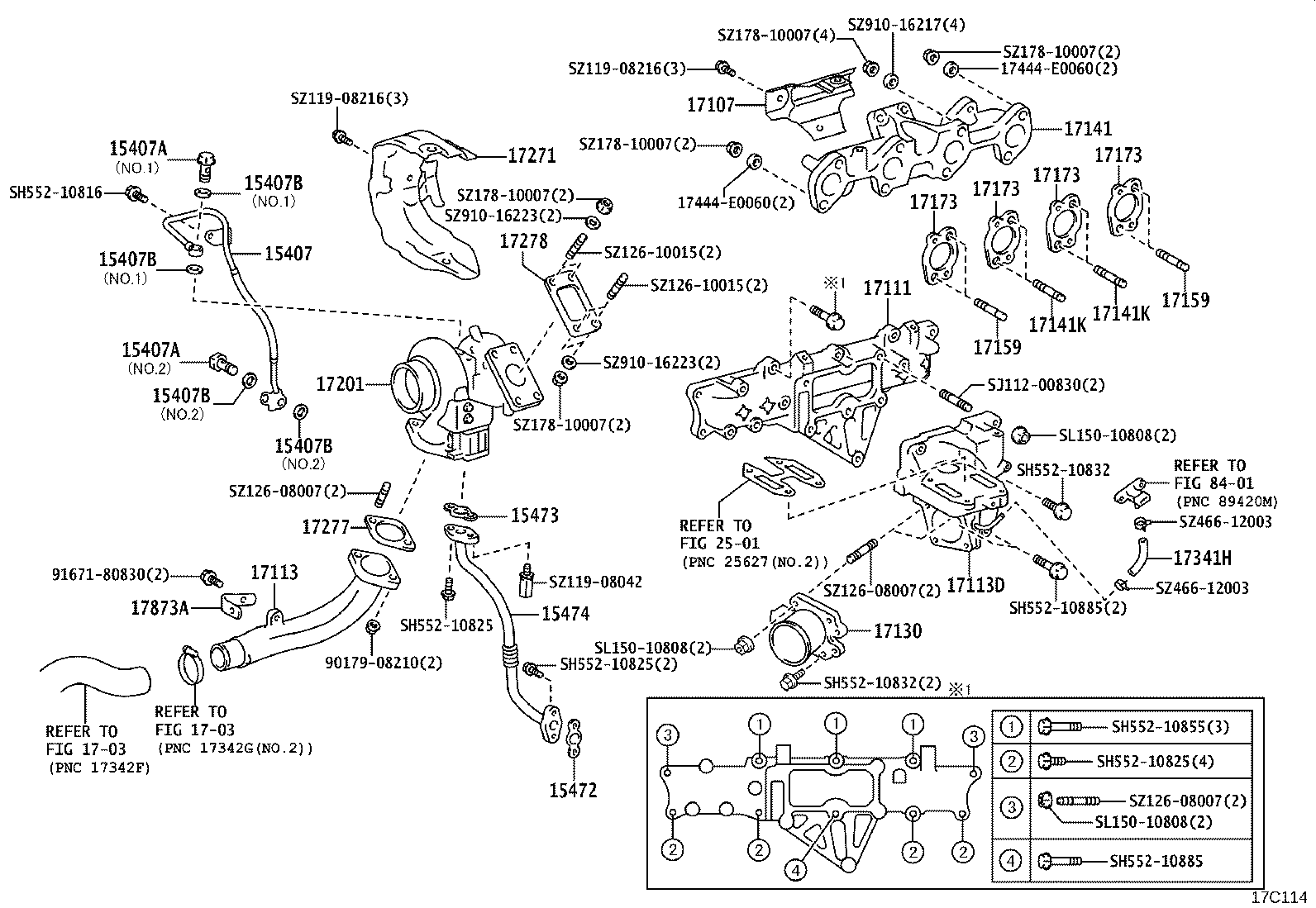

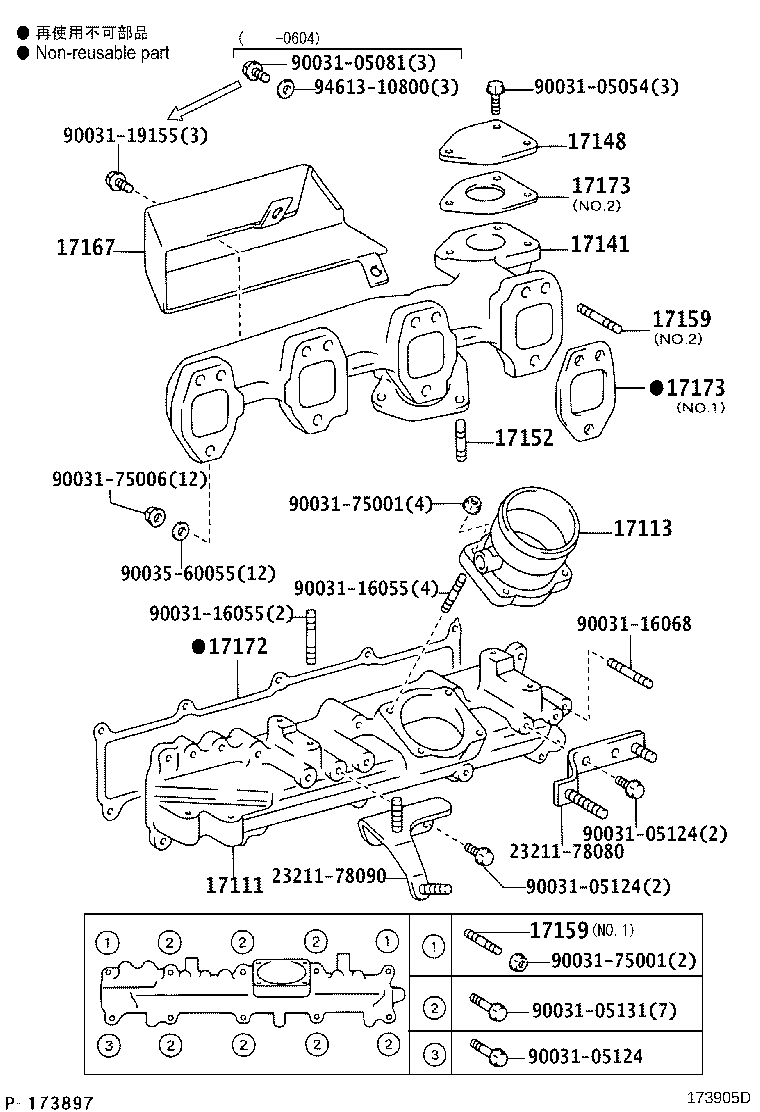

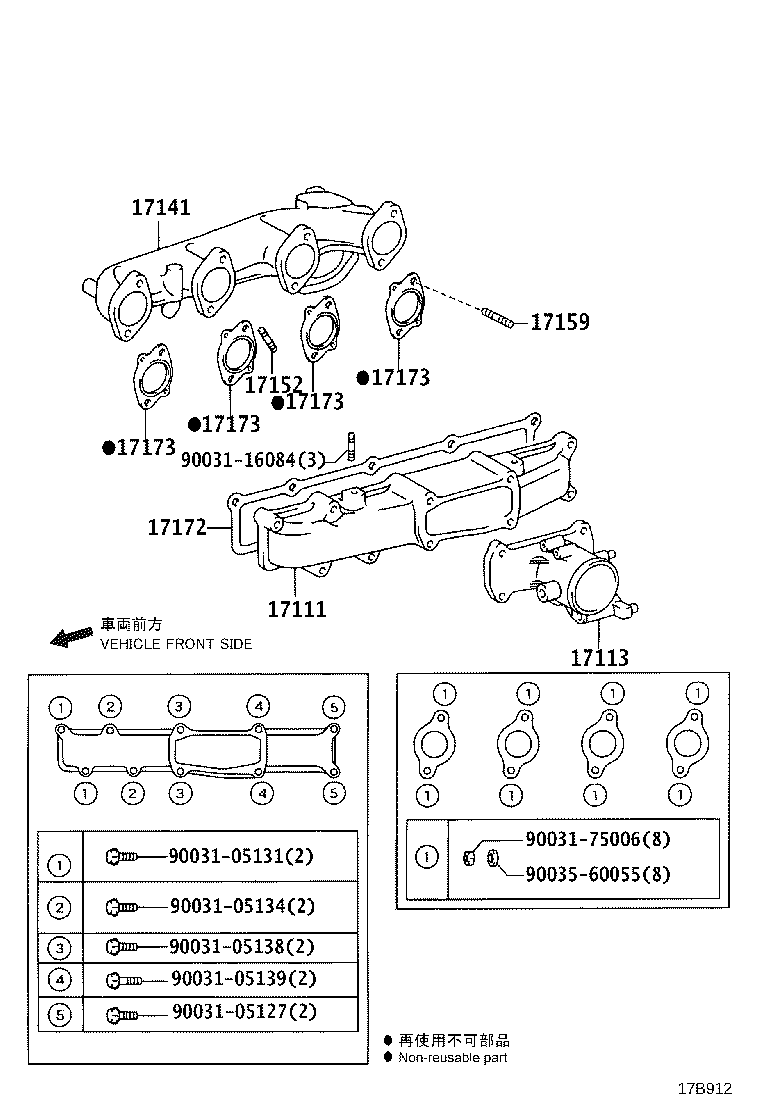

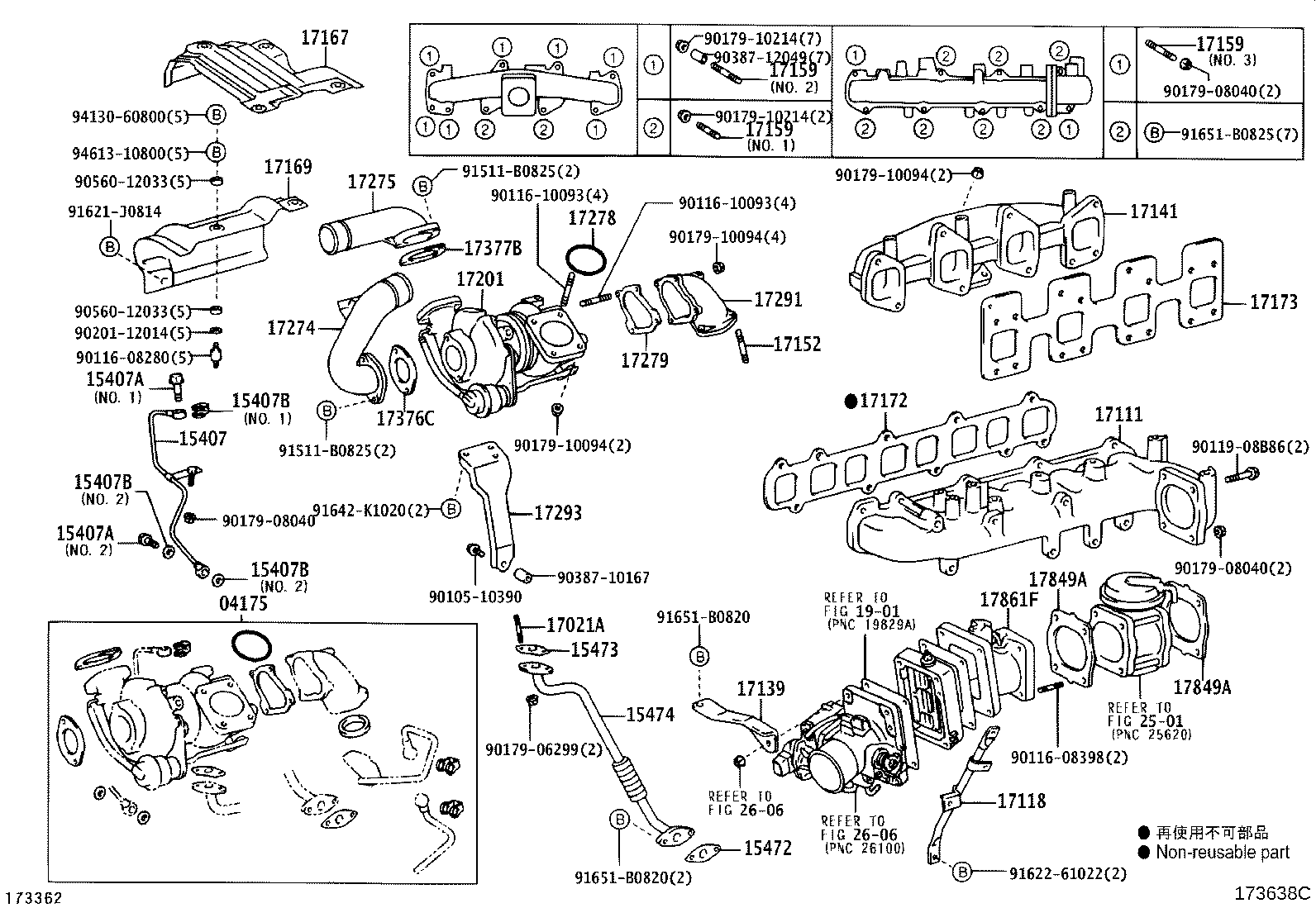

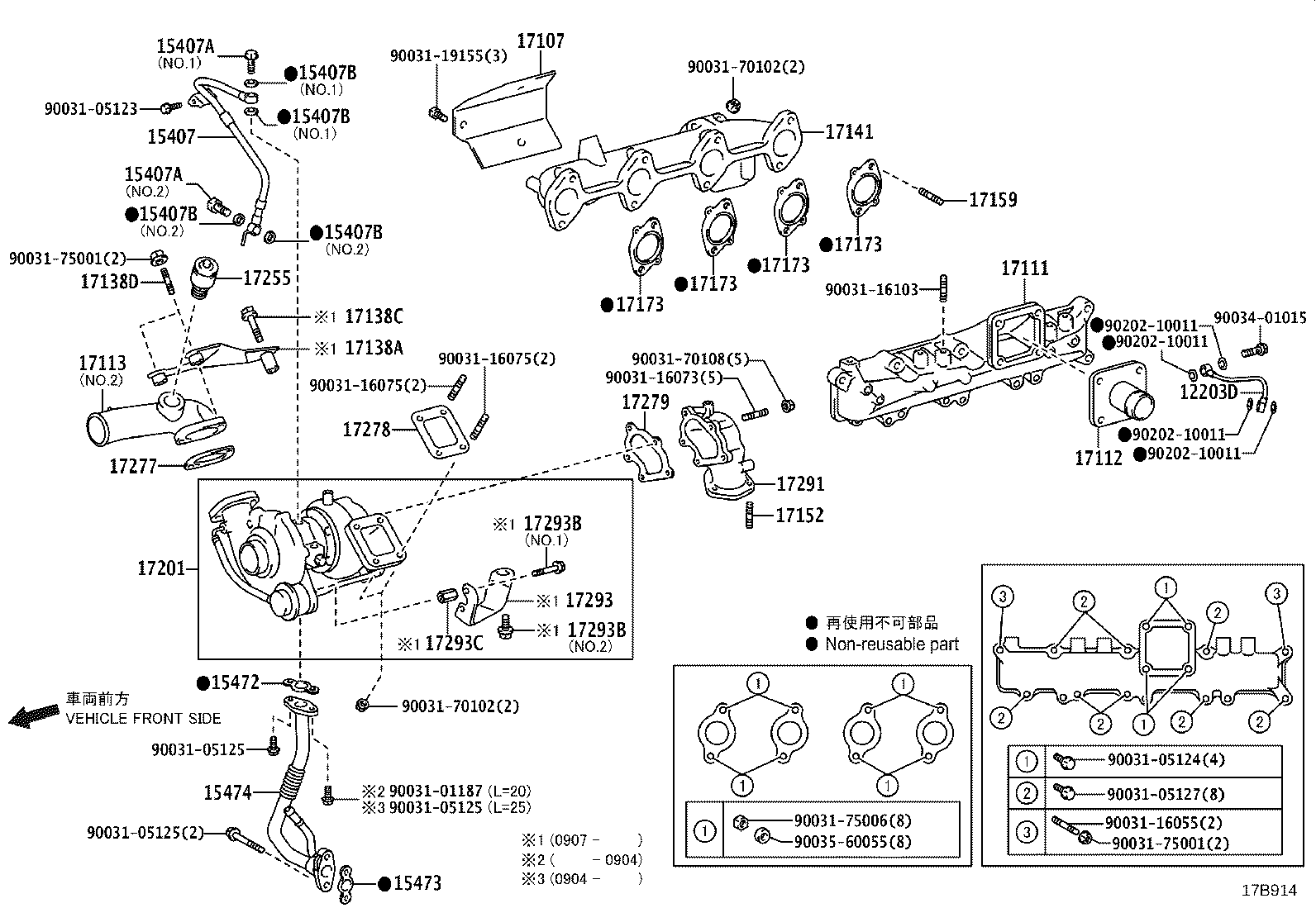

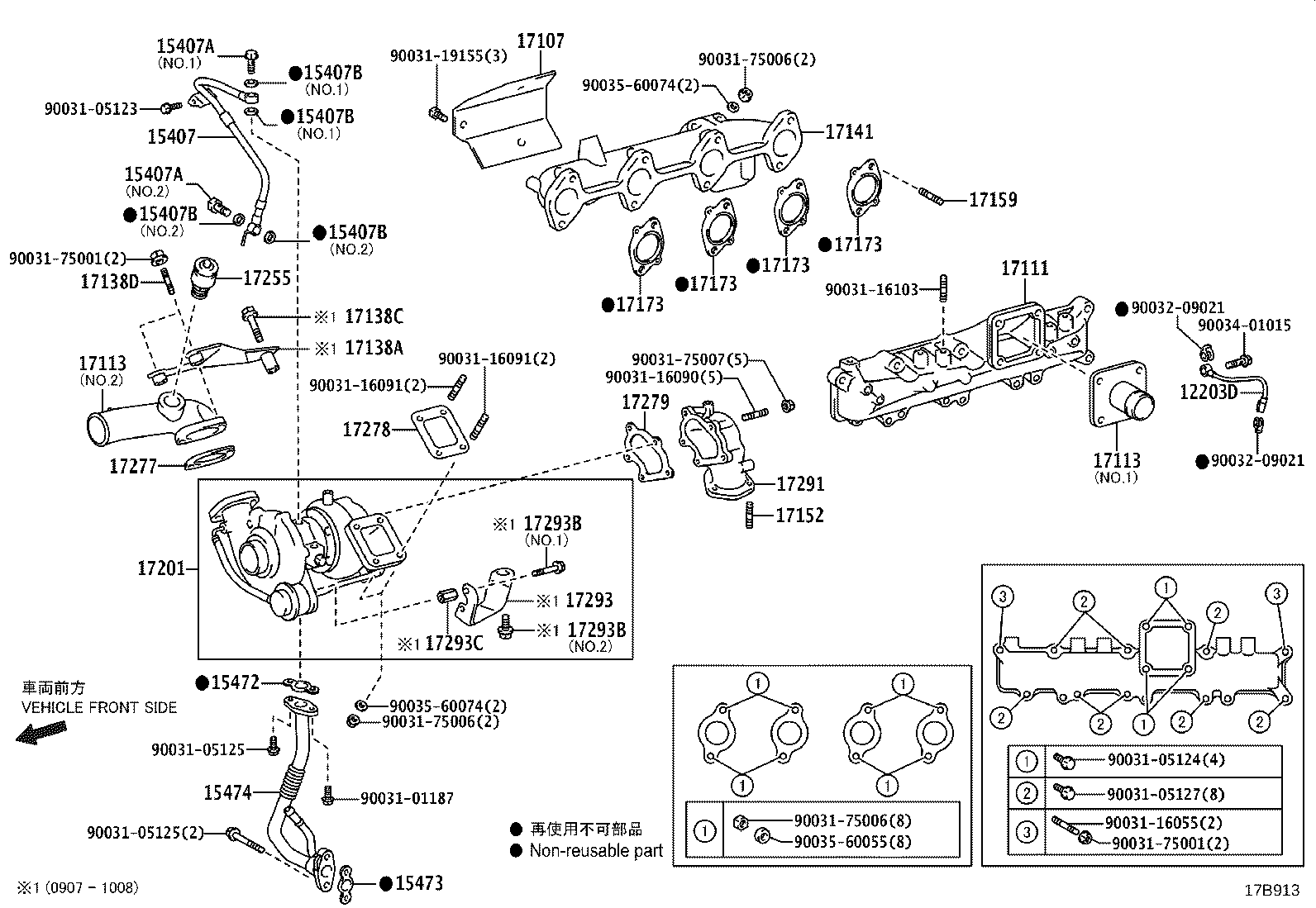

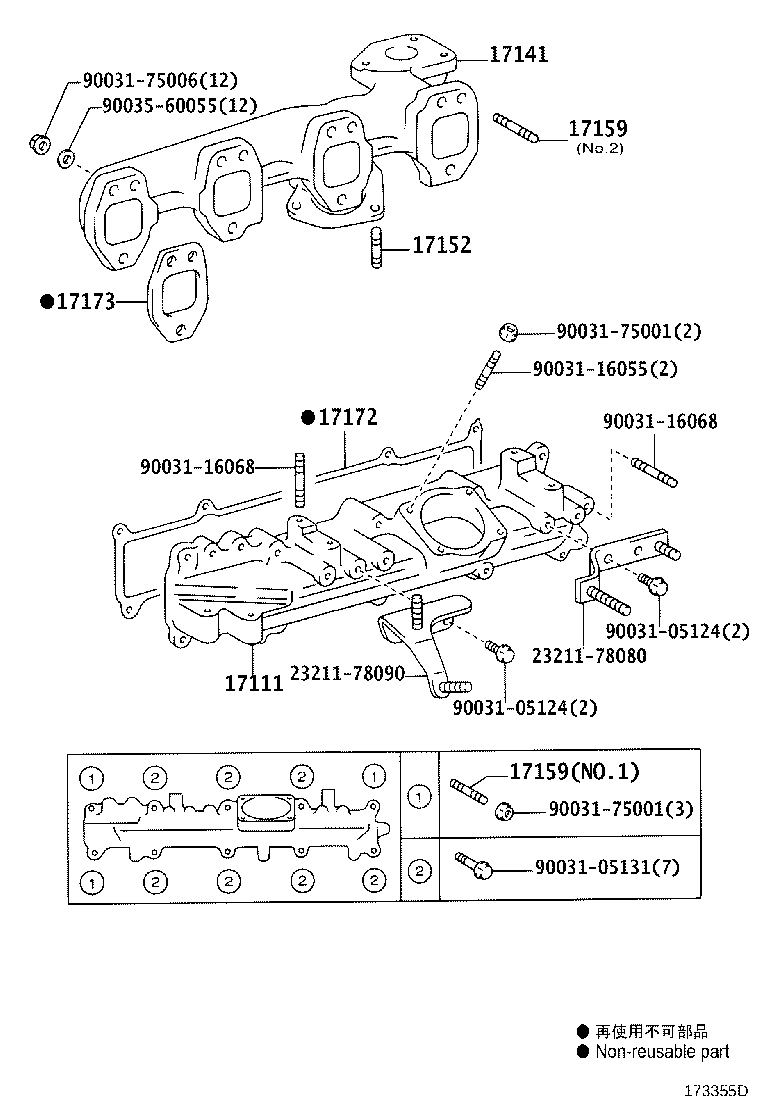

Figure 173428B 173428B 2002-09 → — Figure 173638D 173638D 2002-12 → — Figure 172245A 172245A 2002-12 → — Figure 173608H 173608H 2002-09 → 2007-12 Figure 17B912 17B912 2006-10 → — Figure 17B913 17B913 2006-10 → — Figure 17B914 17B914 2006-12 → 2010-05 Figure 17B915 17B915 2009-12 → — Figure 173355D 173355D 2002-09 → 2002-12 Figure 173905D 173905D 2002-12 → 2006-12 Figure 173638C 173638C 2002-12 → 2006-10 Figure 172245B 172245B 2002-12 → 2006-10 Figure 173932H 173932H 2003-12 → 2006-10 Figure 175129D 175129D 2006-10 → — Figure 17C114 17C114 2022-03 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
12203D Pipe Sub-assy, Ventilation
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15472 Gasket, Turbo Oil Outlet, NO.1
15473 Gasket, Turbo Oil Outlet, NO.2
15474 Pipe, Turbo Oil Outlet
17021 Housing Sub-assy, Bearing
17021A Bolt, Stud(FOR BEARING HOUSING)
17024 Housing Sub-assy, Compressor
17107 Insulator Sub-assy, Exhaust Manifold Heat
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17112 Manifold, Intake, NO.2
17113 Pipe, Intake
17113C Insulator, Intake Pipe
17113D Pipe, Intake, NO.1
17114A Flange, Intake
17118 Stay, Manifold
17130 Pipe, Intake
17138A Stay, Intake Pipe
17138C Bolt(FOR INTAKE PIPE STAY)
17138D Bolt, Stud(FOR INTAKE PIPE STAY)
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17141K Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17148 Plate, Exhaust Manifold(FOR EGR INLET)
17148B Gasket, Egr Inlet
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17169 Insulator, Exhaust Manifold Heat, NO.3
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17201 Turbocharger Sub-assy
17229 Band, V
17230 Actuator Assy, W/Bracket
17246 Plate, Compressor Housing Clamp
17255 Valve, Intake Relief
17271 Insulator, Turbo, NO.1
17274 Elbow, Compressor Inlet
17275 Elbow, Compressor Outlet
17277 Gasket, Compressor Outlet
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17291 Elbow, Turbine Outlet
17293 Stay, Turbocharger
17293B Bolt(FOR TURBOCHARGER STAY)
17293C Nut(FOR TURBOCHARGER STAY)
17294 Hose, Actuator
17294A Clip(FOR ACTUATOR HOSE)
17341H Hose, Air
17342M Hose, Air, NO.2
17376C Gasket, Air Tube
17377B Gasket, Air Tube, NO.2
17849A Gasket, Intake Air Connector
17861F Connector, Intake Air
17873A Bracket, Intake Air Connector, NO.2
19829 Gasket, Intake Heater
21928B Support, Throttle Wire
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
