Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

43 part groups · 17 illustrations

Illustrations

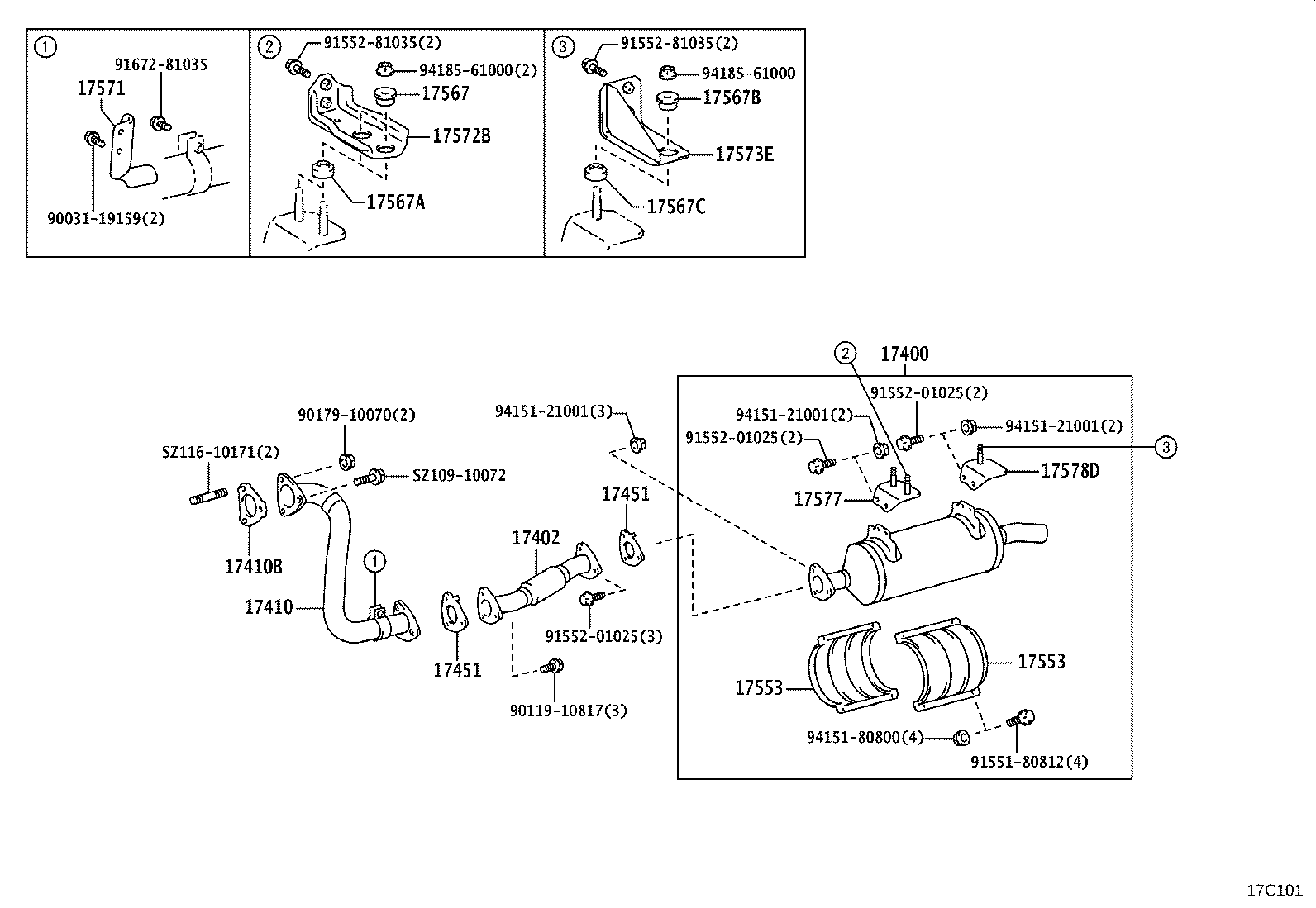

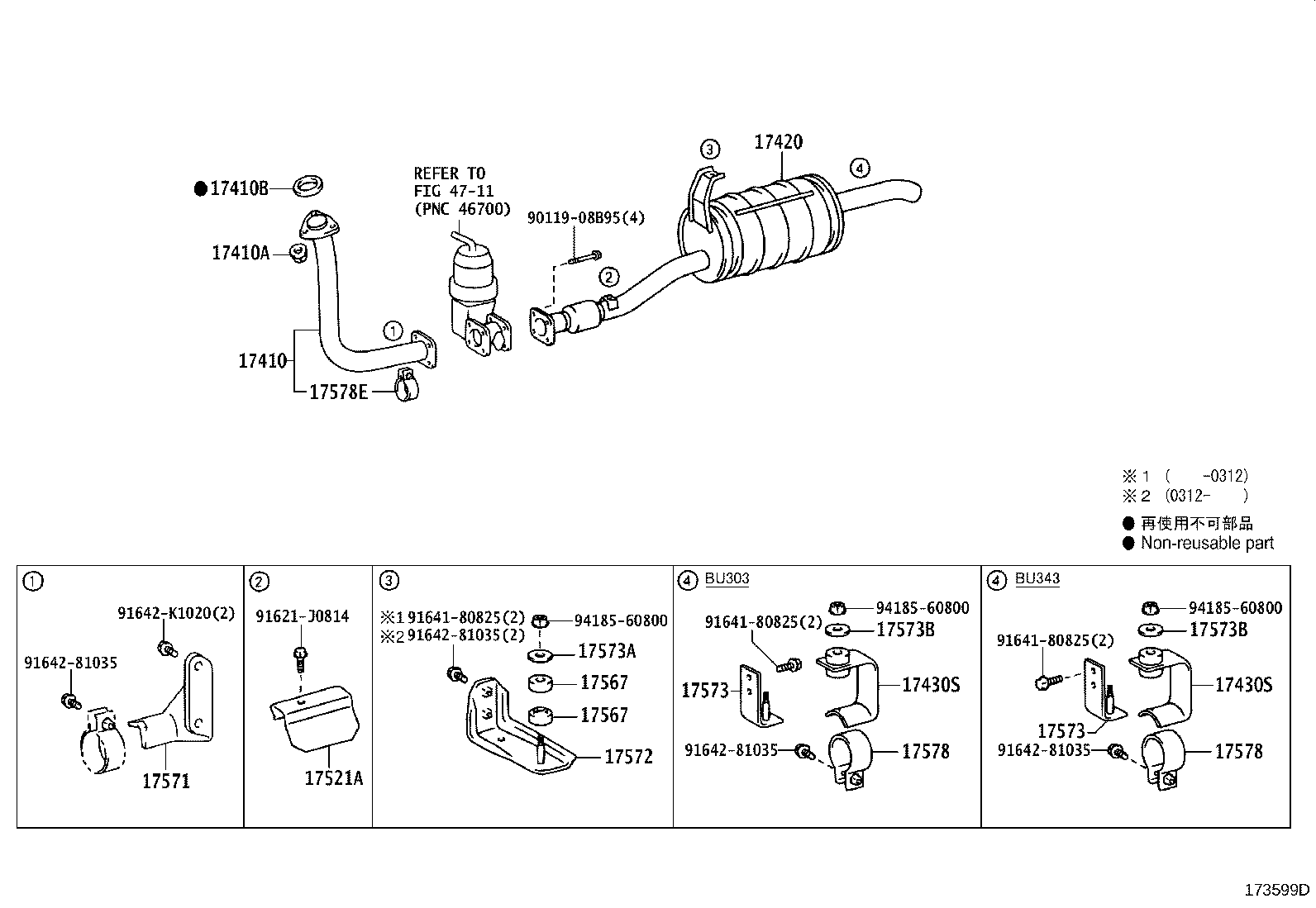

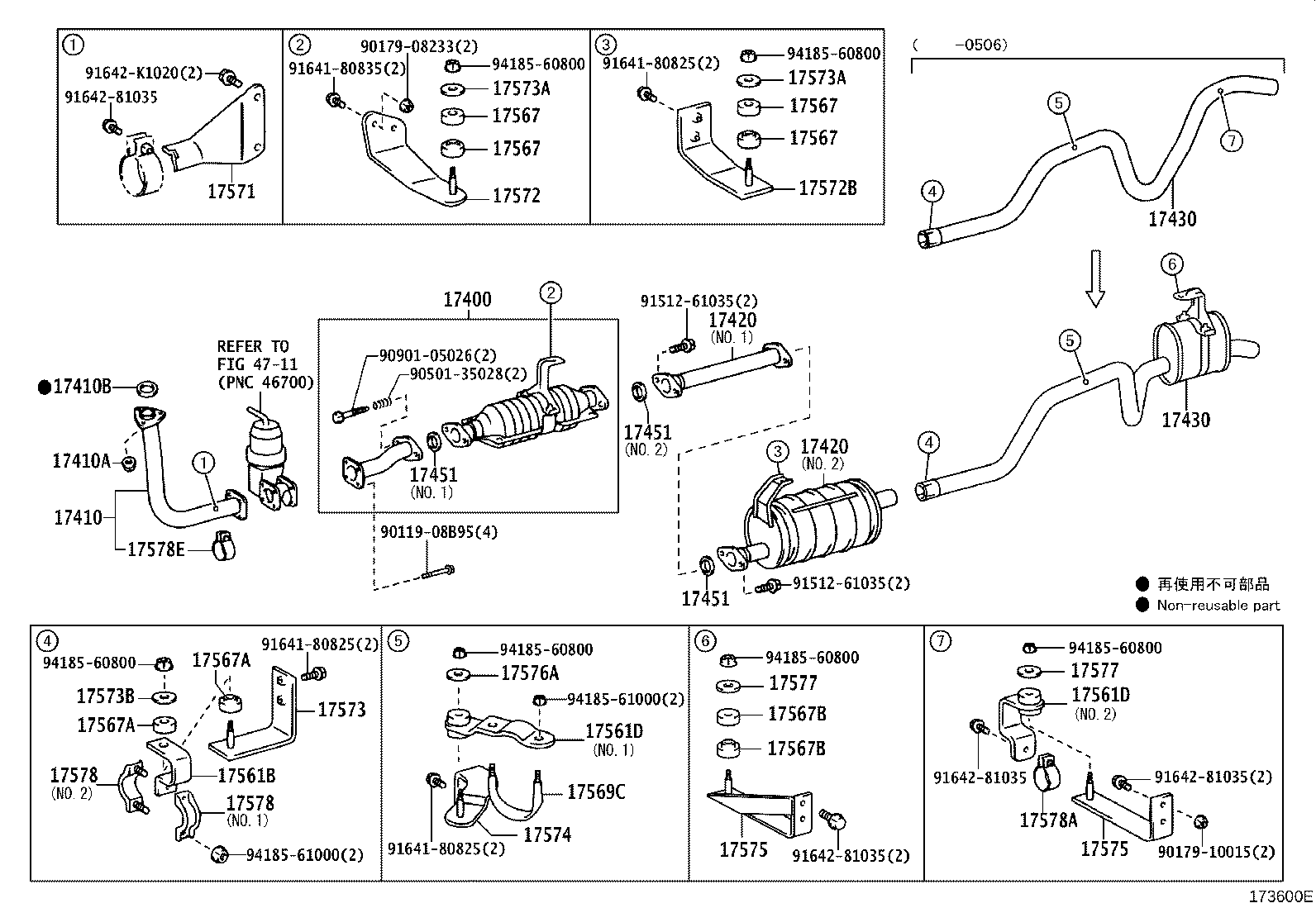

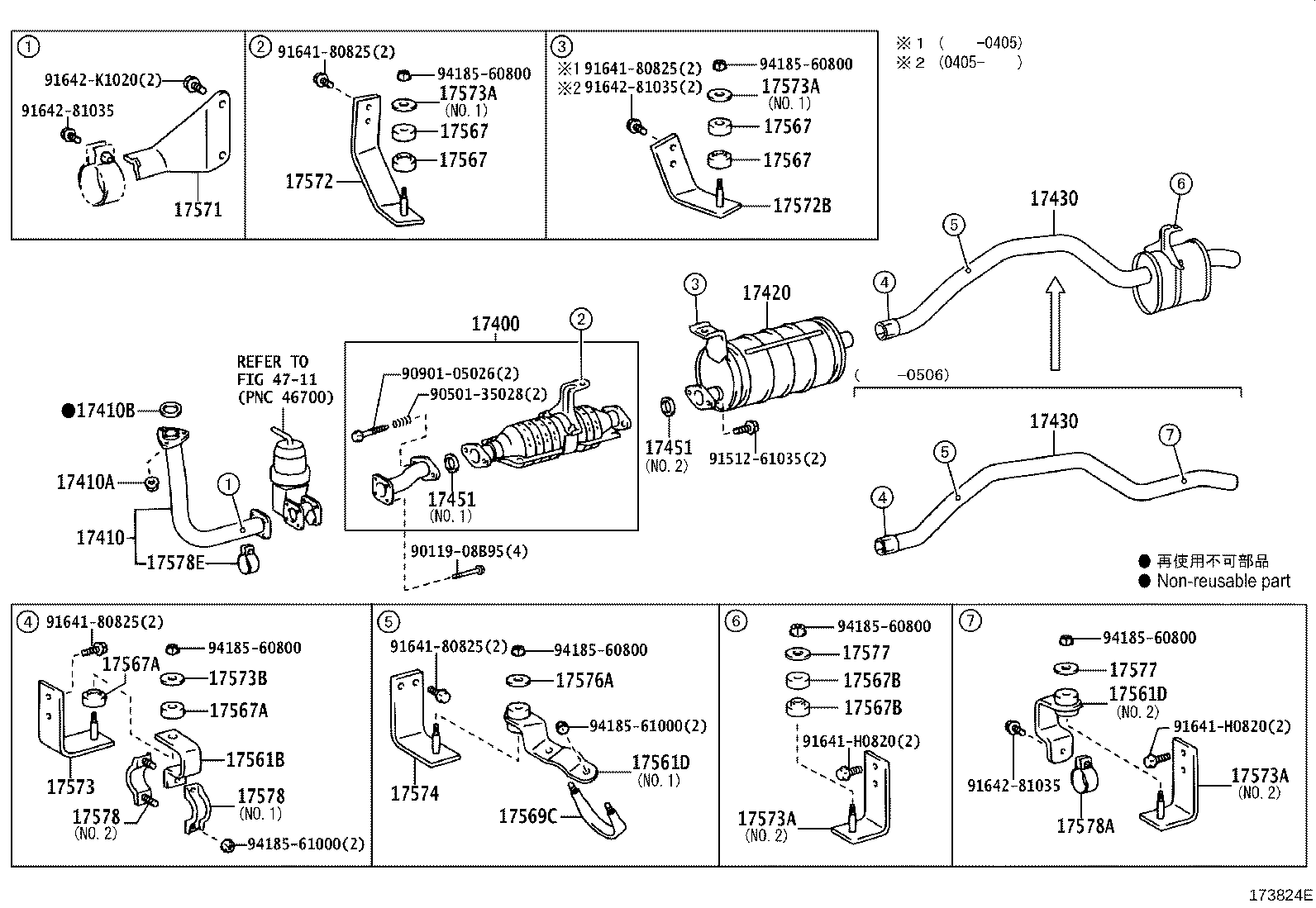

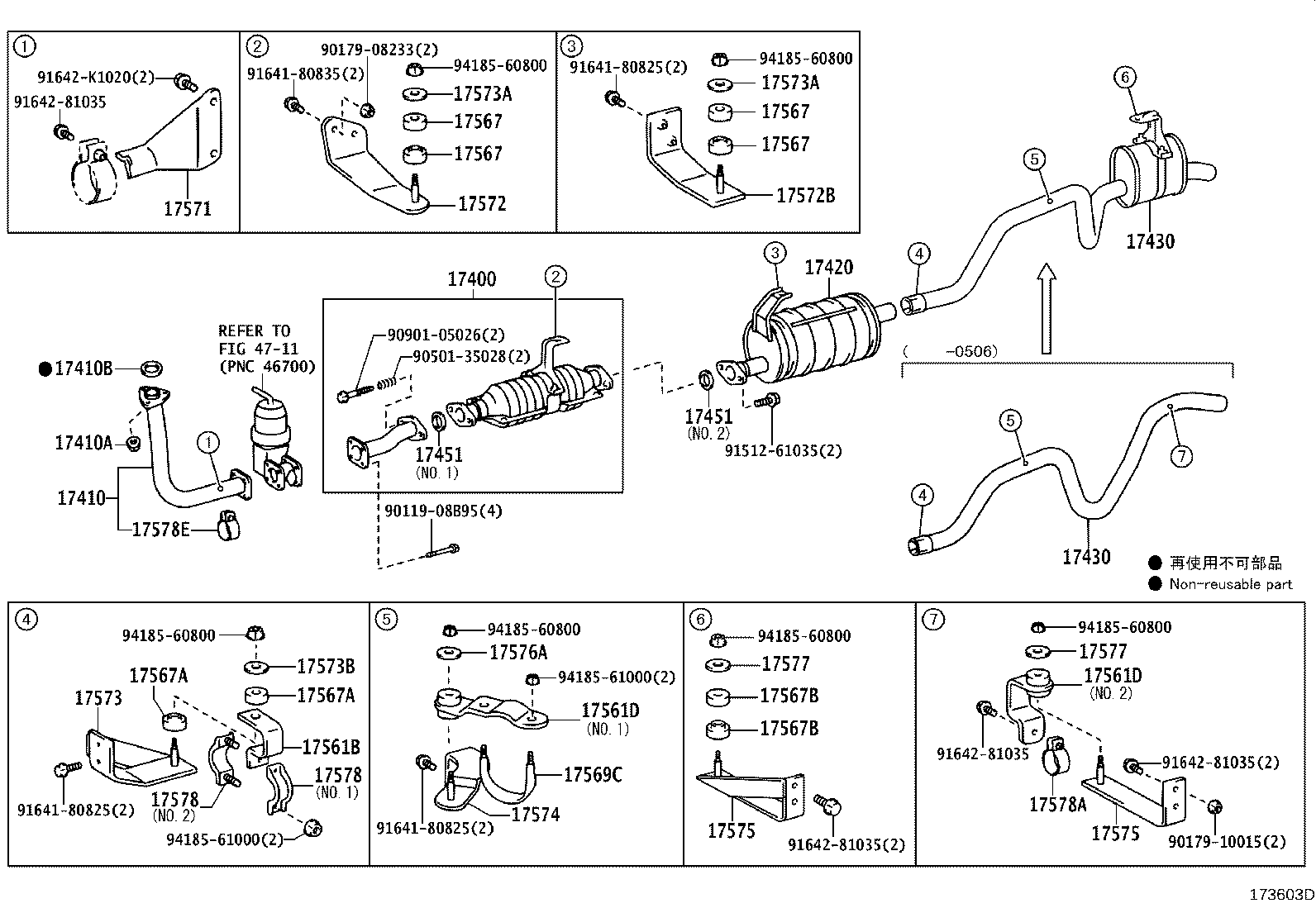

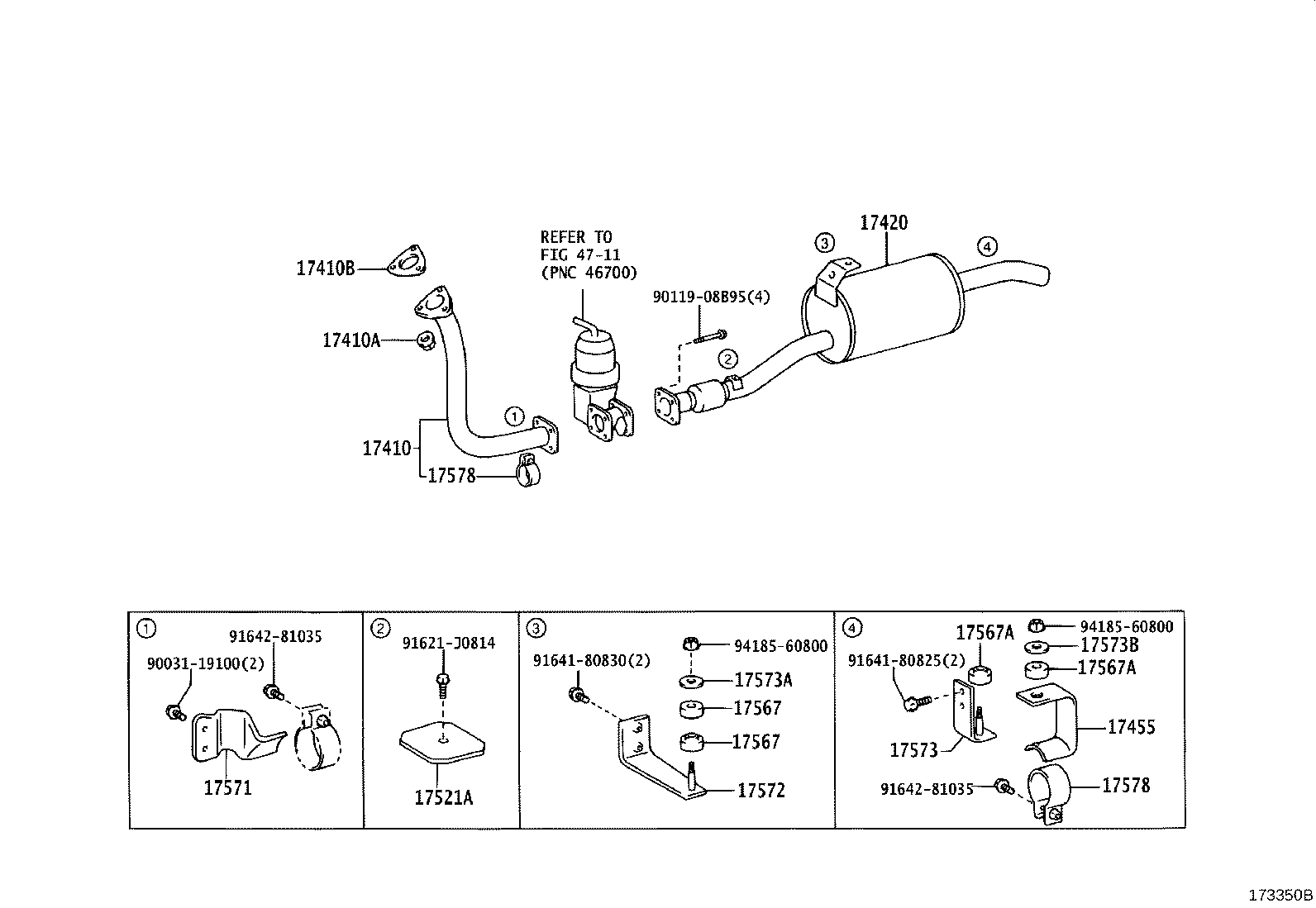

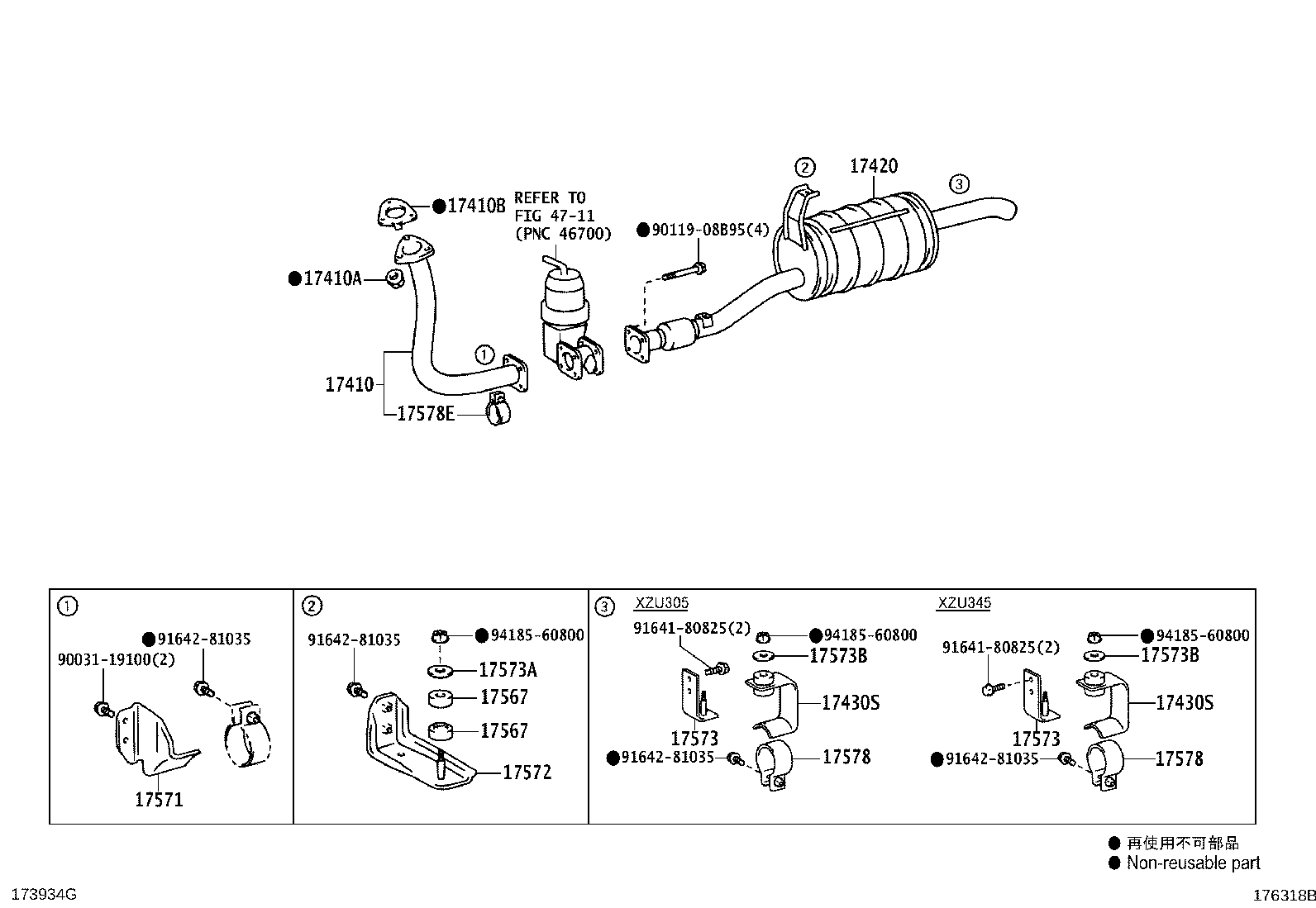

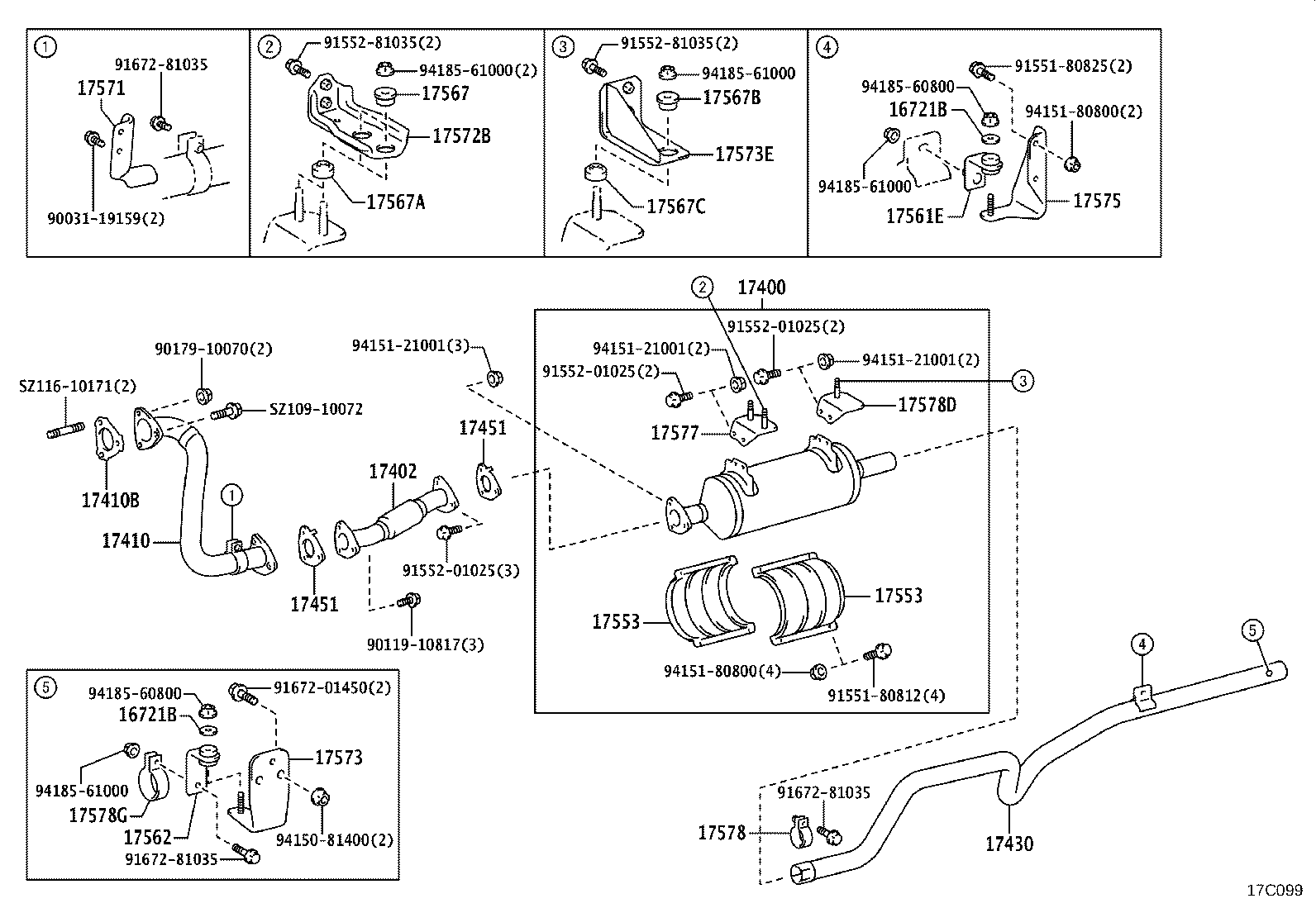

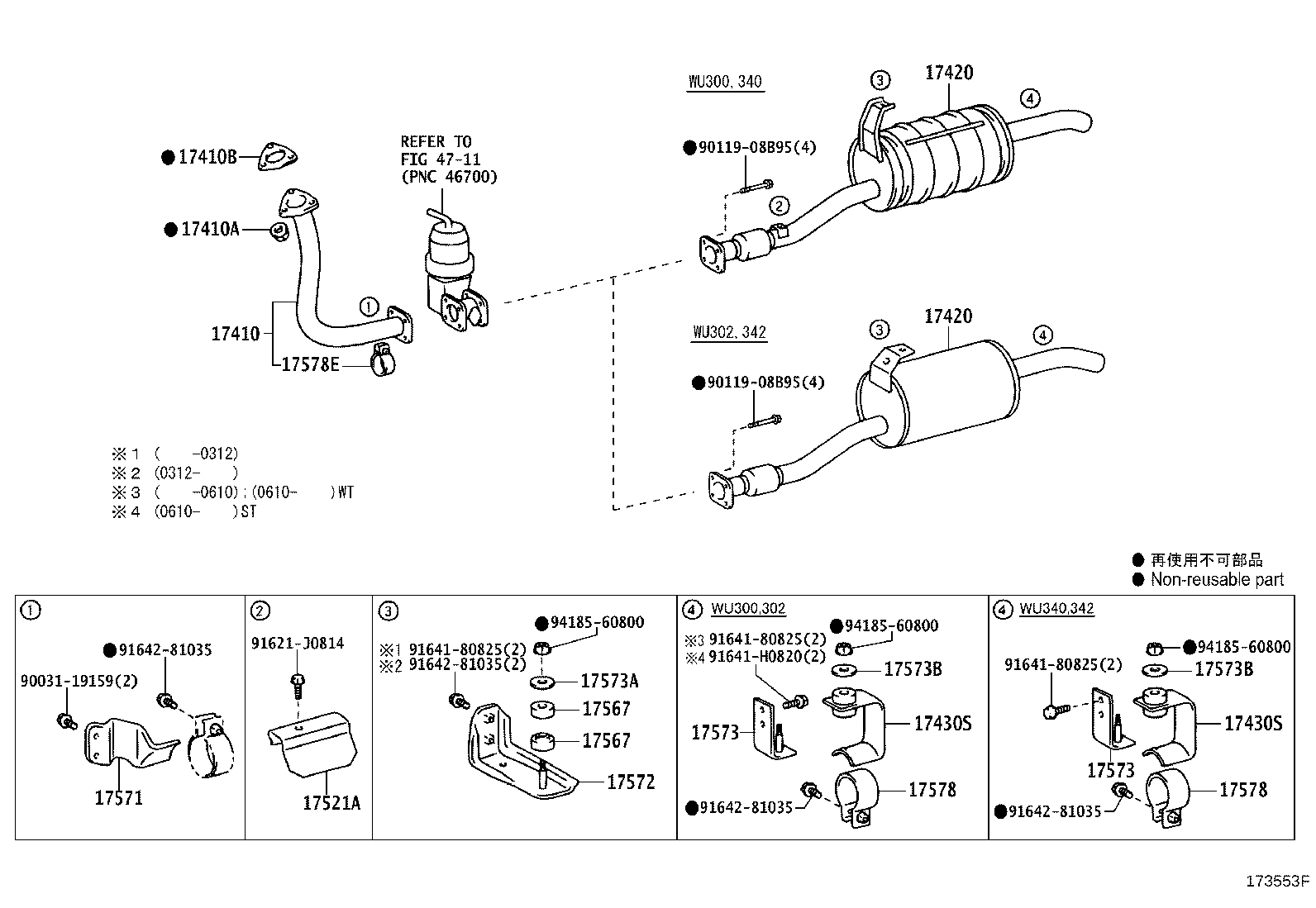

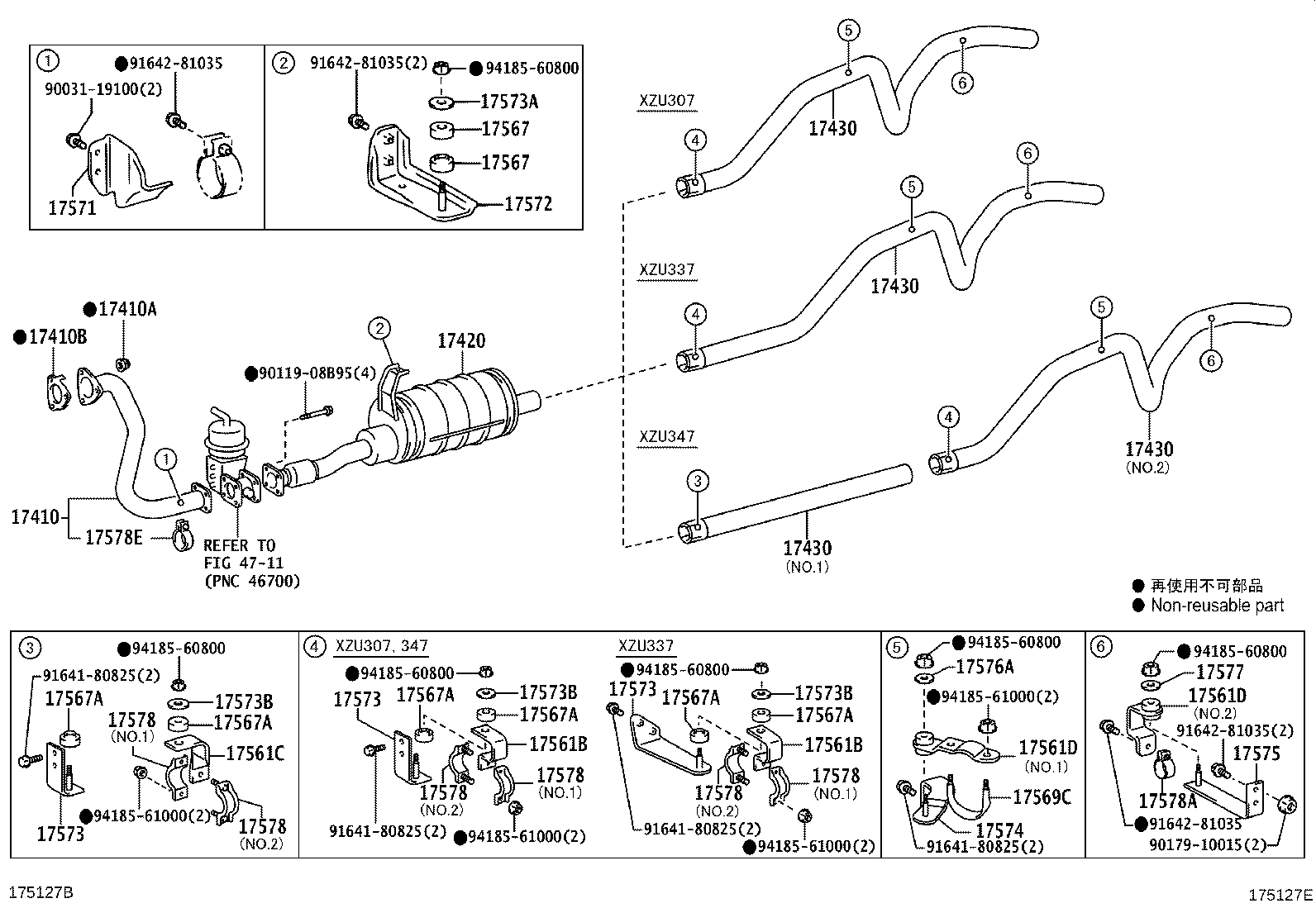

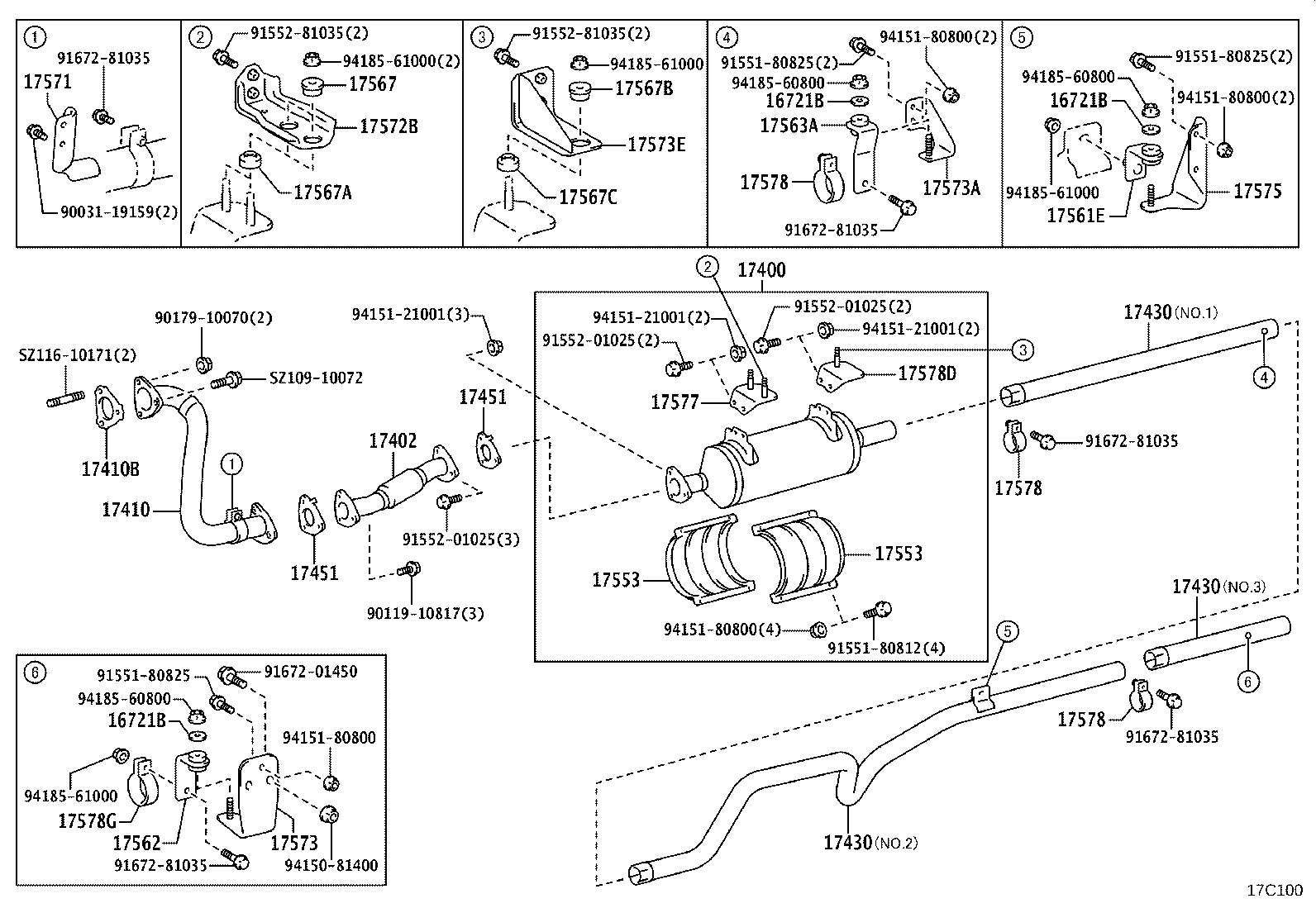

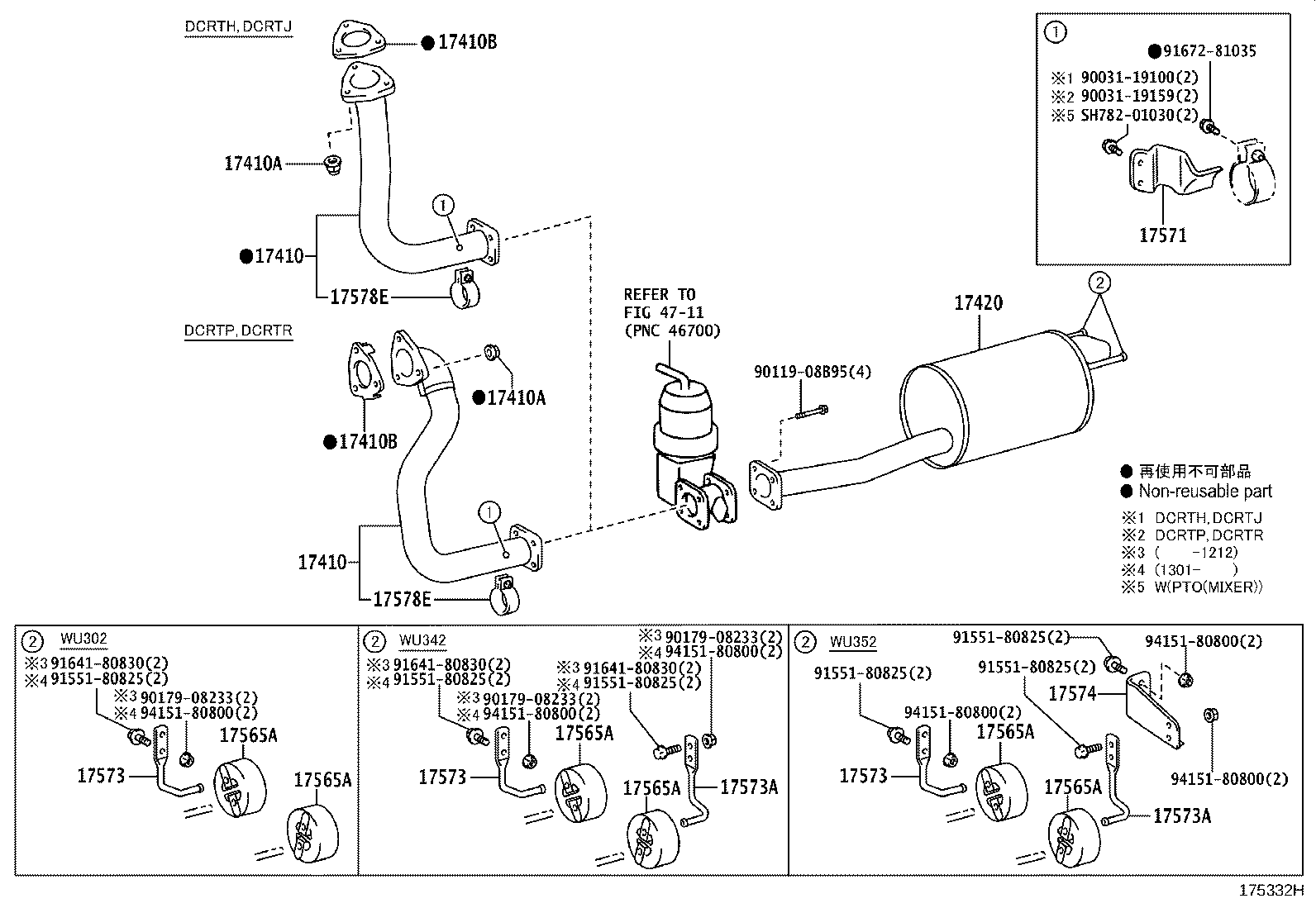

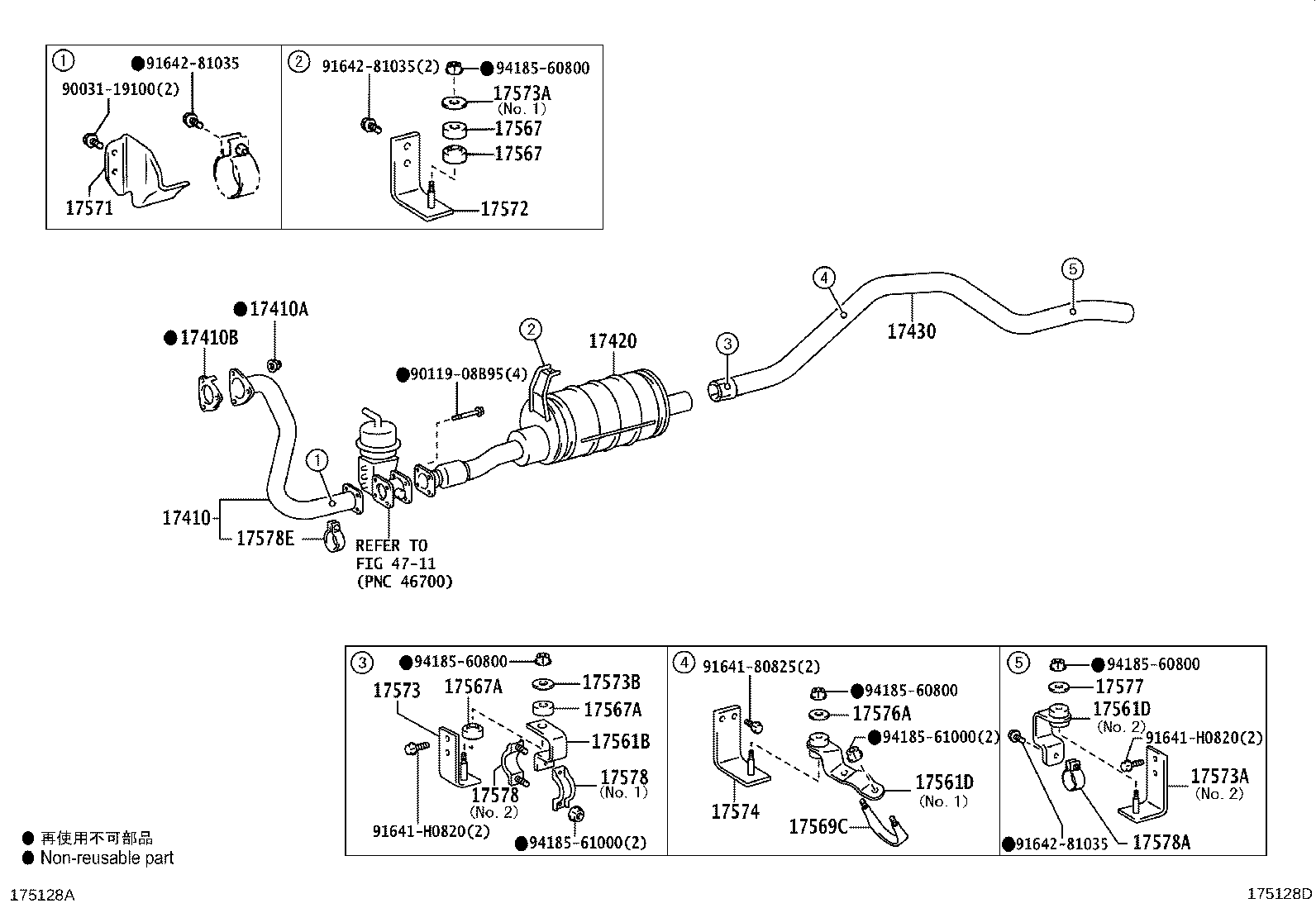

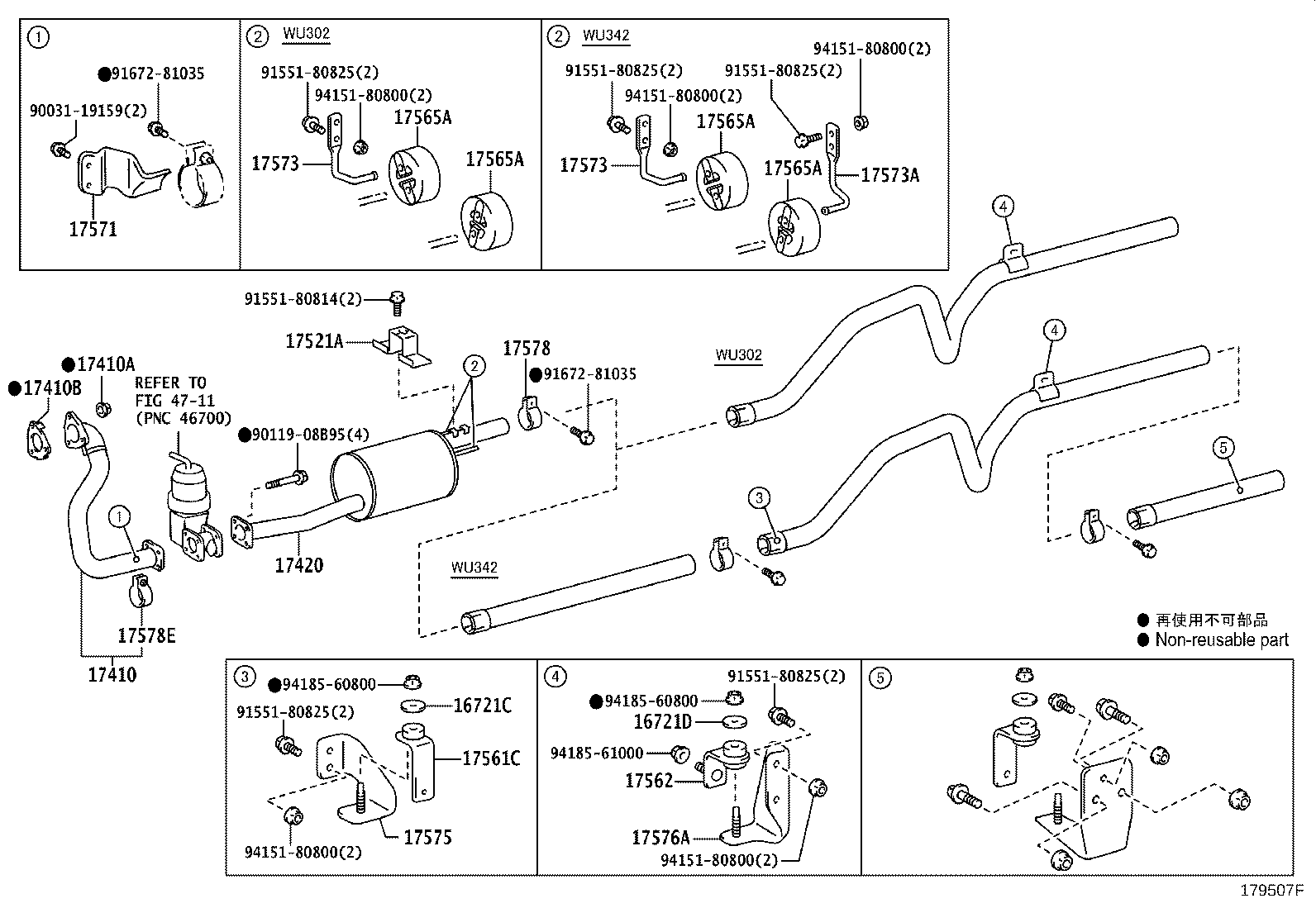

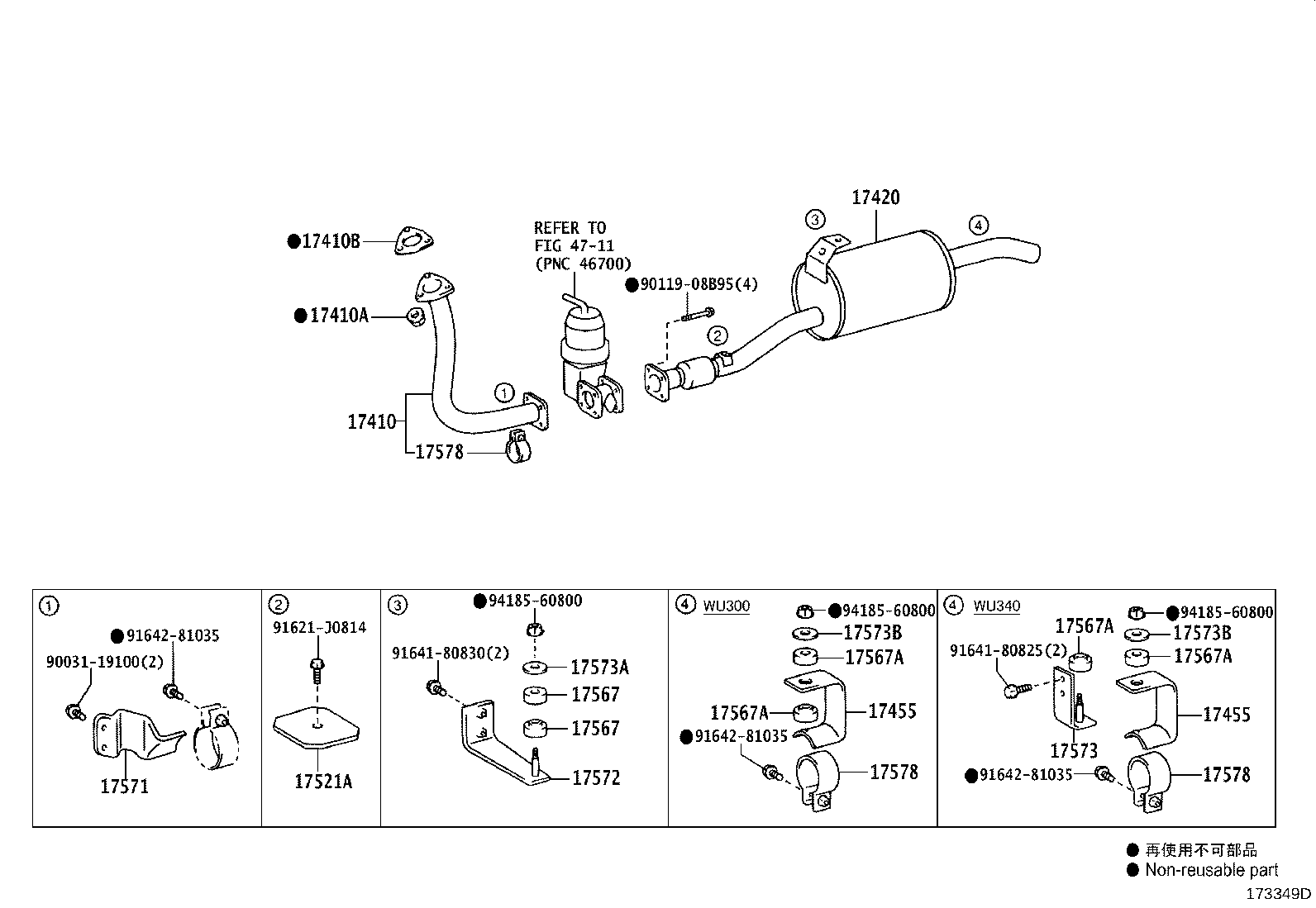

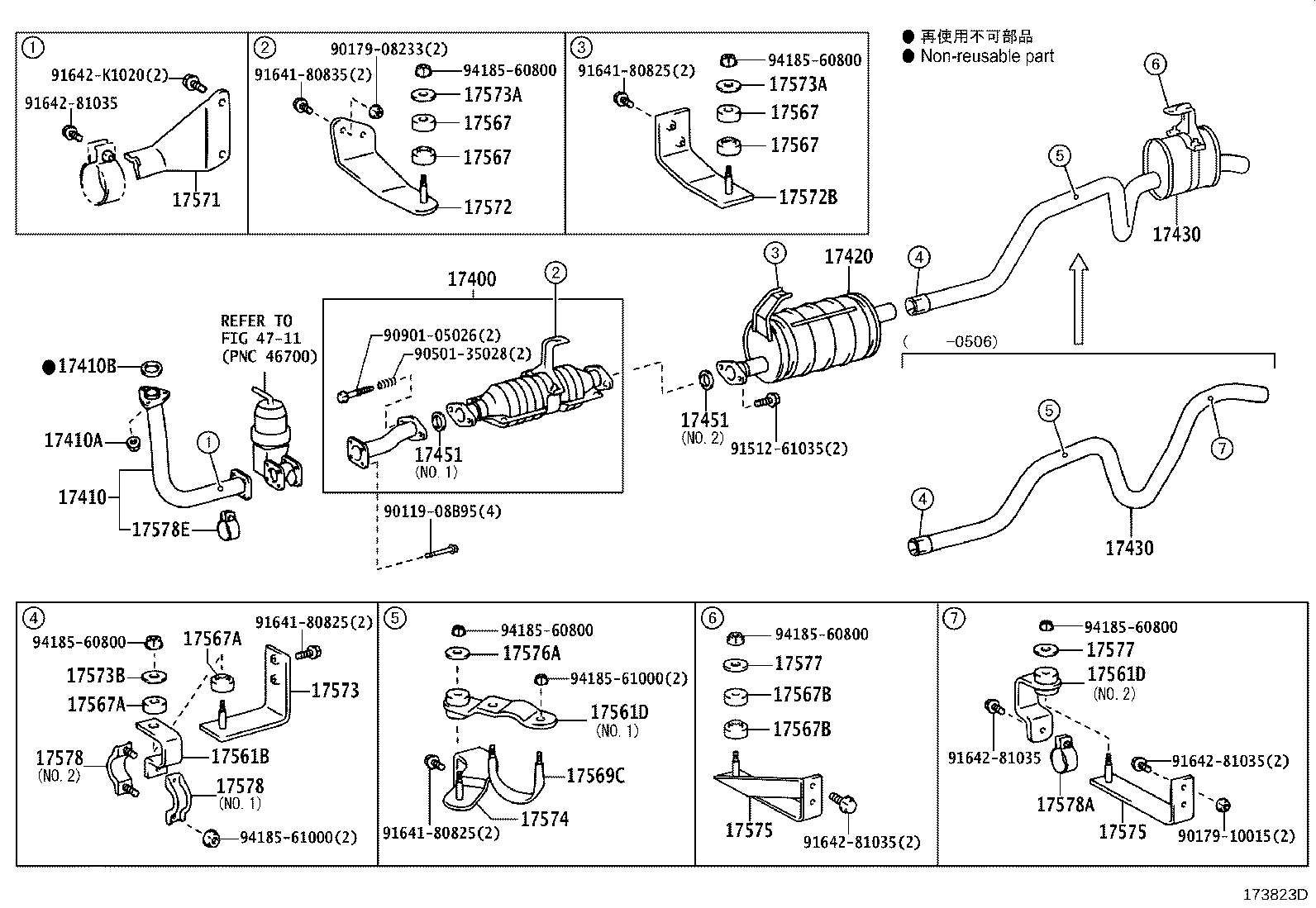

Figure 173400D 173400D 2002-09 → 2006-12 Figure 173349D 173349D 2002-09 → 2006-12 Figure 173350B 173350B 2002-09 → 2006-12 Figure 173599D 173599D 2002-12 → 2006-10 Figure 173600E 173600E 2002-12 → 2006-10 Figure 173603D 173603D 2002-12 → 2006-10 Figure 173823D 173823D 2002-12 → 2006-10 Figure 173824E 173824E 2002-12 → 2006-10 Figure 176318B 176318B 2003-12 → 2006-10 Figure 173553F 173553F 2002-12 → — Figure 175127E 175127E 2006-10 → — Figure 175128D 175128D 2006-10 → — Figure 175332H 175332H 2006-12 → — Figure 179507F 179507F 2017-08 → — Figure 17C099 17C099 2022-03 → — Figure 17C100 17C100 2022-03 → — Figure 17C101 17C101 2022-03 → —

Part groups

PNCDescription
16721B Plate, Holder
16721C Plate, Holder, NO.1
16721D Plate, Holder, NO.2
17400 Converter Assy, W/Catalyst
17402 Pipe Sub-assy, Exhaust, Front NO.2
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17430 Pipe Assy, Exhaust, Tail
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17451 Gasket, Exhaust Pipe
17455 Bracket, Exhaust Pipe
17521A Protector, Exhaust Pipe, Upper NO.1
17553 Insulator, Exhaust Pipe Heat, NO.3
17561B Support, Exhaust Pipe, NO.1
17561C Support, Exhaust Pipe, NO.1
17561D Support, Exhaust Pipe, NO.1
17561E Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17567 Cushion, Exhaust Pipe Support
17567A Cushion, Exhaust Pipe Support, NO.2
17567B Cushion, Exhaust Pipe Support, NO.3
17567C Cushion, Exhaust Pipe Support, NO.4
17569C Bolt, Exhaust Pipe Support
17571 Bracket, Exhaust Pipe Support, NO.1
17572 Bracket, Exhaust Pipe NO.1 Support
17572B Bracket, Exhaust Pipe Support, NO.2
17573 Bracket, Exhaust Pipe NO.1 Support, Lower
17573A Bracket, Exhaust Pipe Support, NO.3
17573B Bracket, Exhaust Pipe Support, NO.5
17573E Bracket, Exhaust Pipe Support, NO.3
17574 Bracket, Exhaust Pipe Support, NO.4
17575 Bracket, Exhaust Pipe Support, NO.5
17576A Bracket, Exhaust Pipe Support, NO.6
17577 Bracket, Exhaust Pipe Support, NO.7
17578 Clamp, Pipe
17578A Clamp, Muffler
17578D Bracket, Exhaust Pipe Support, NO.8
17578E Clamp, Pipe(FOR FRONT EXHAUST PIPE)
17578G Clamp, Pipe(FOR TAILPIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
