Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

58 part groups · 18 illustrations

Illustrations

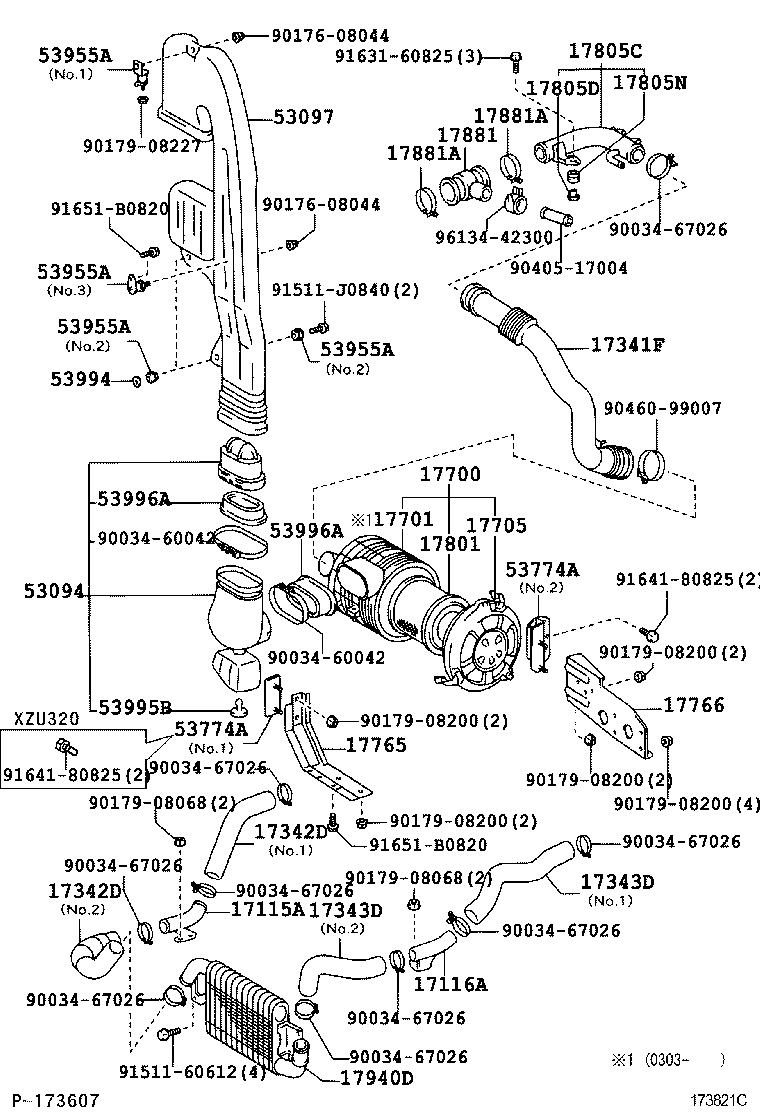

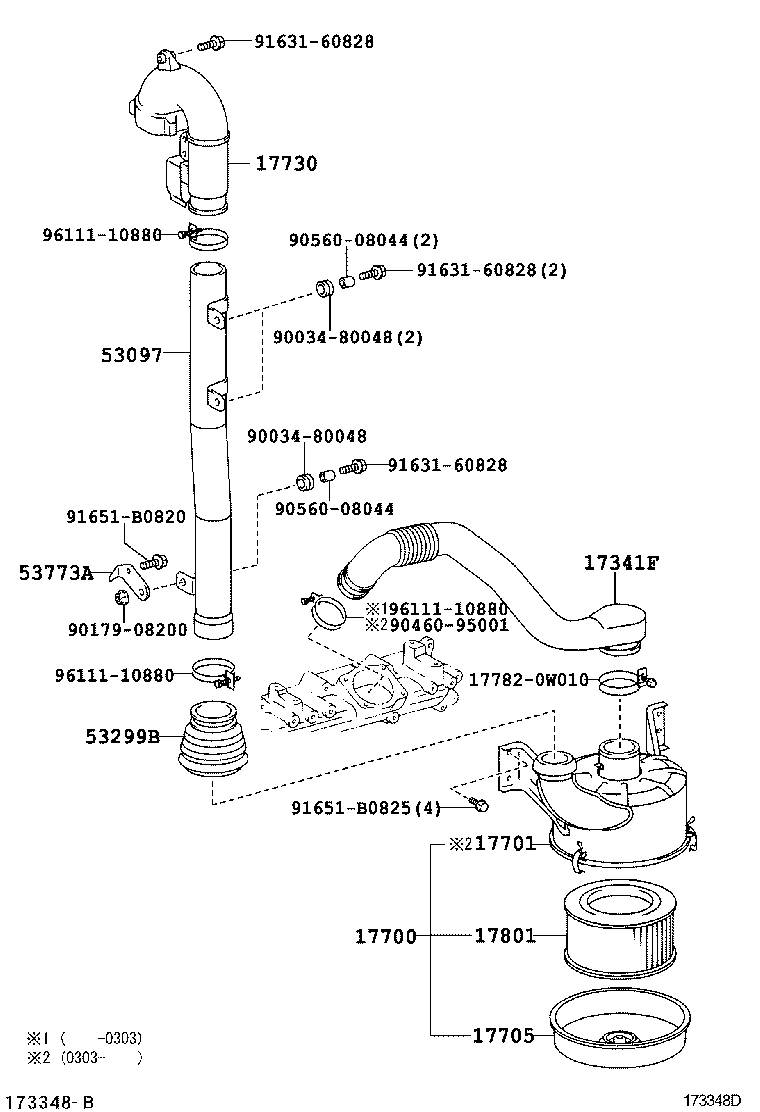

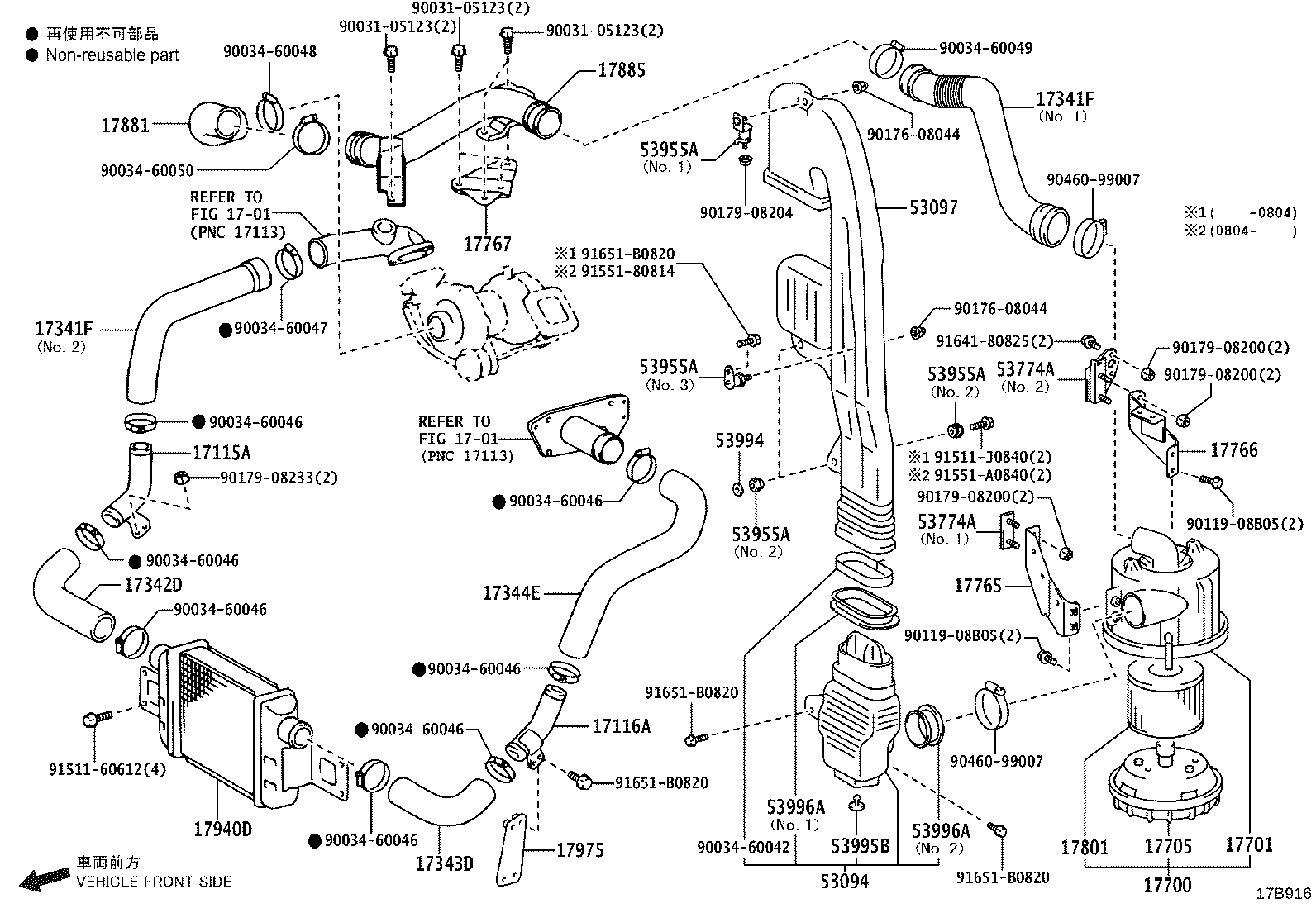

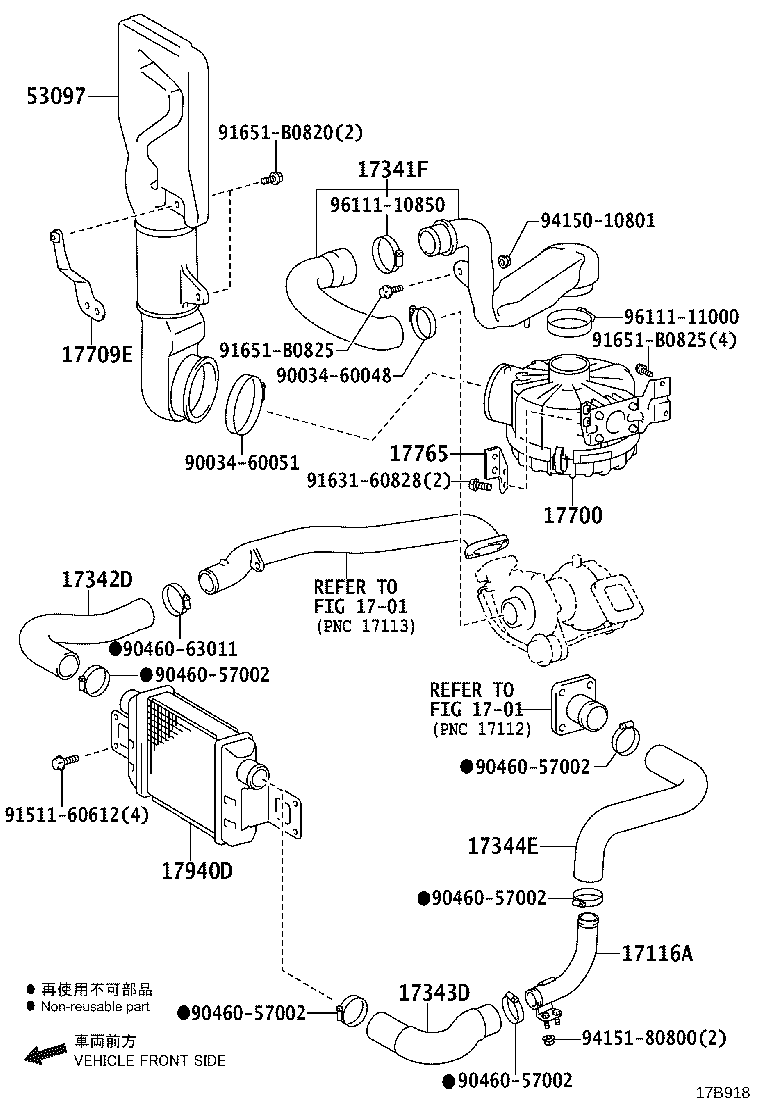

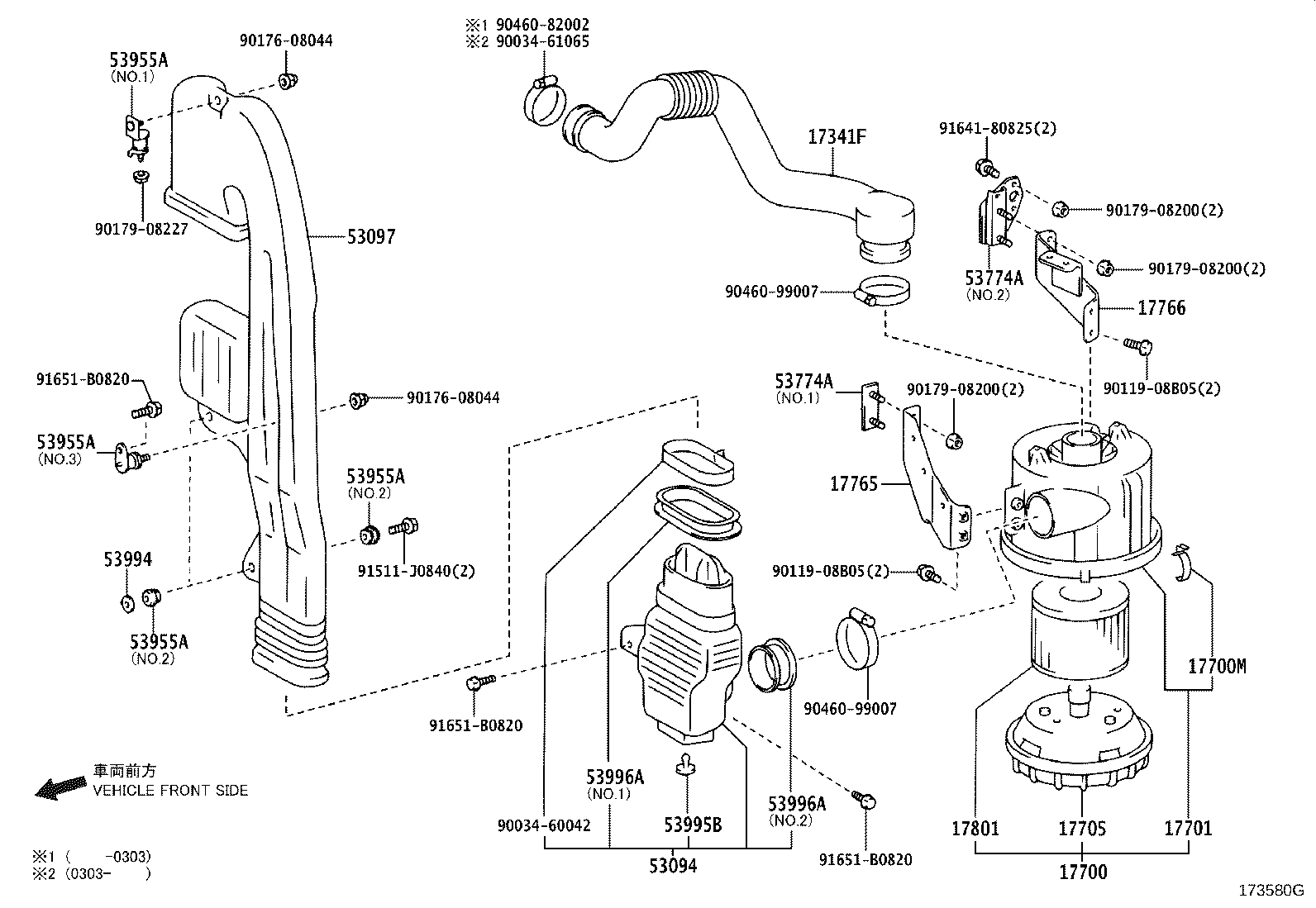

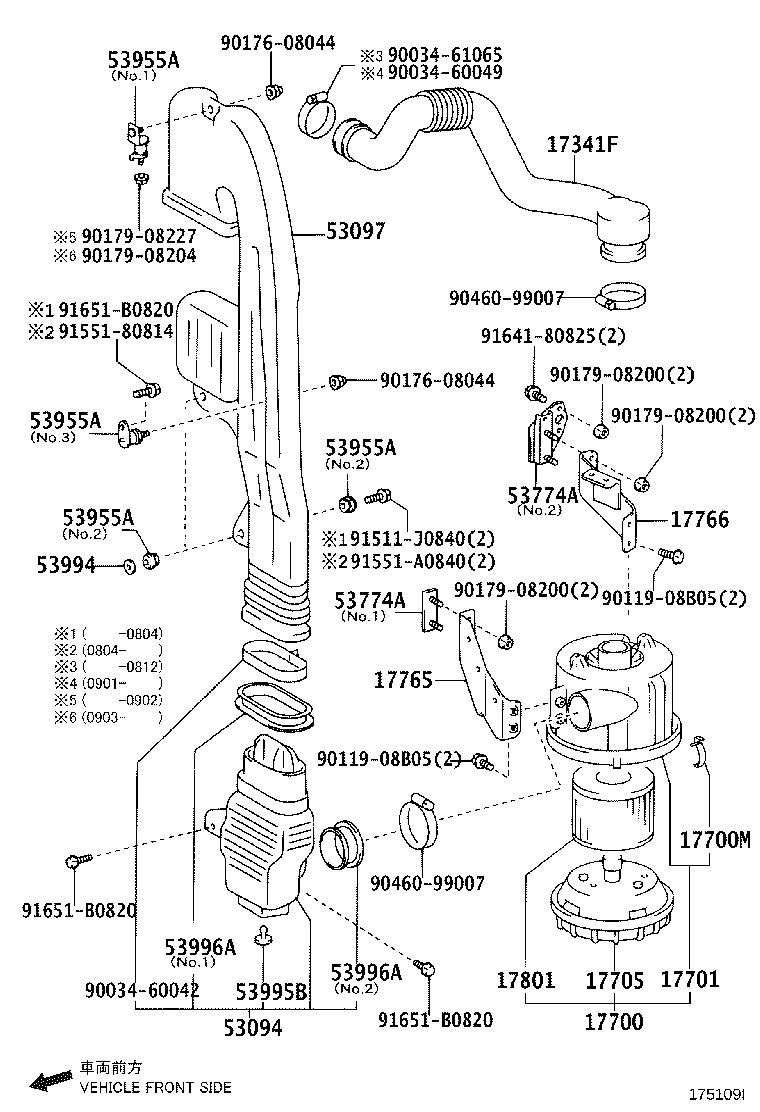

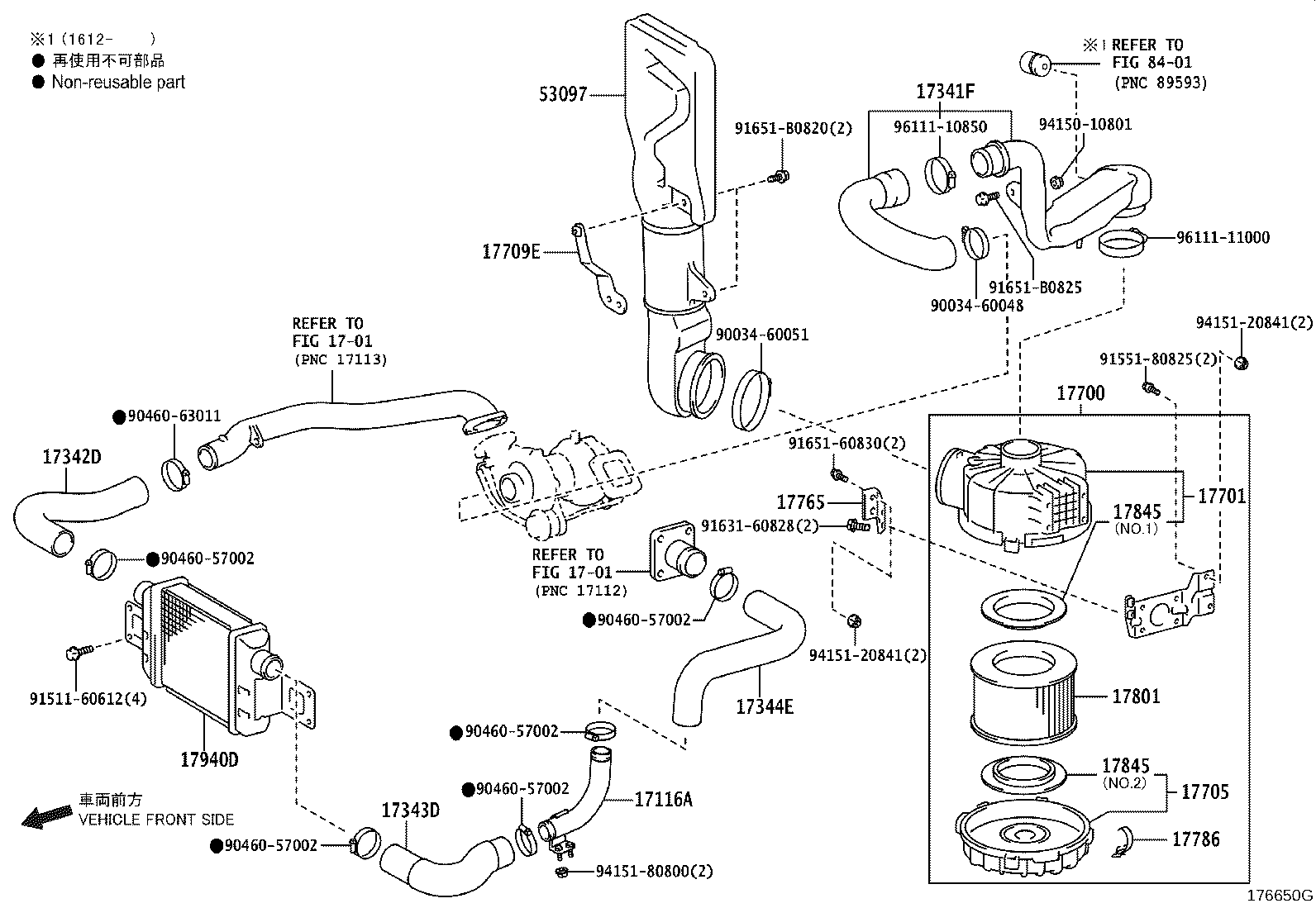

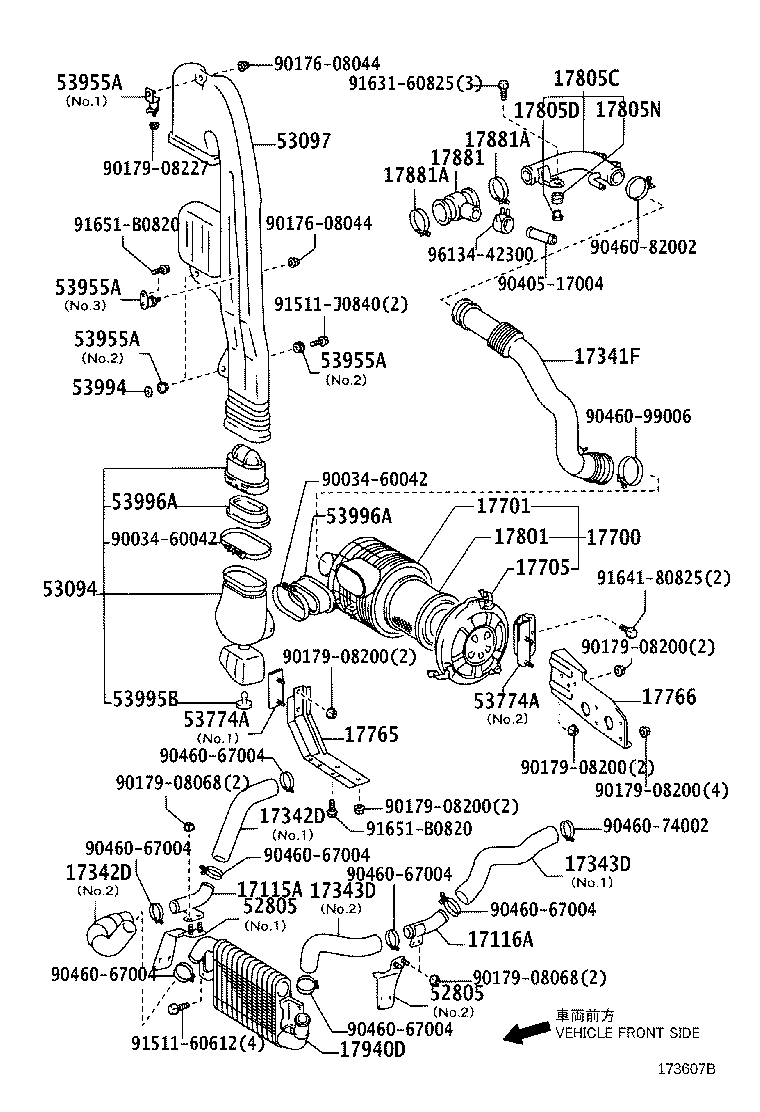

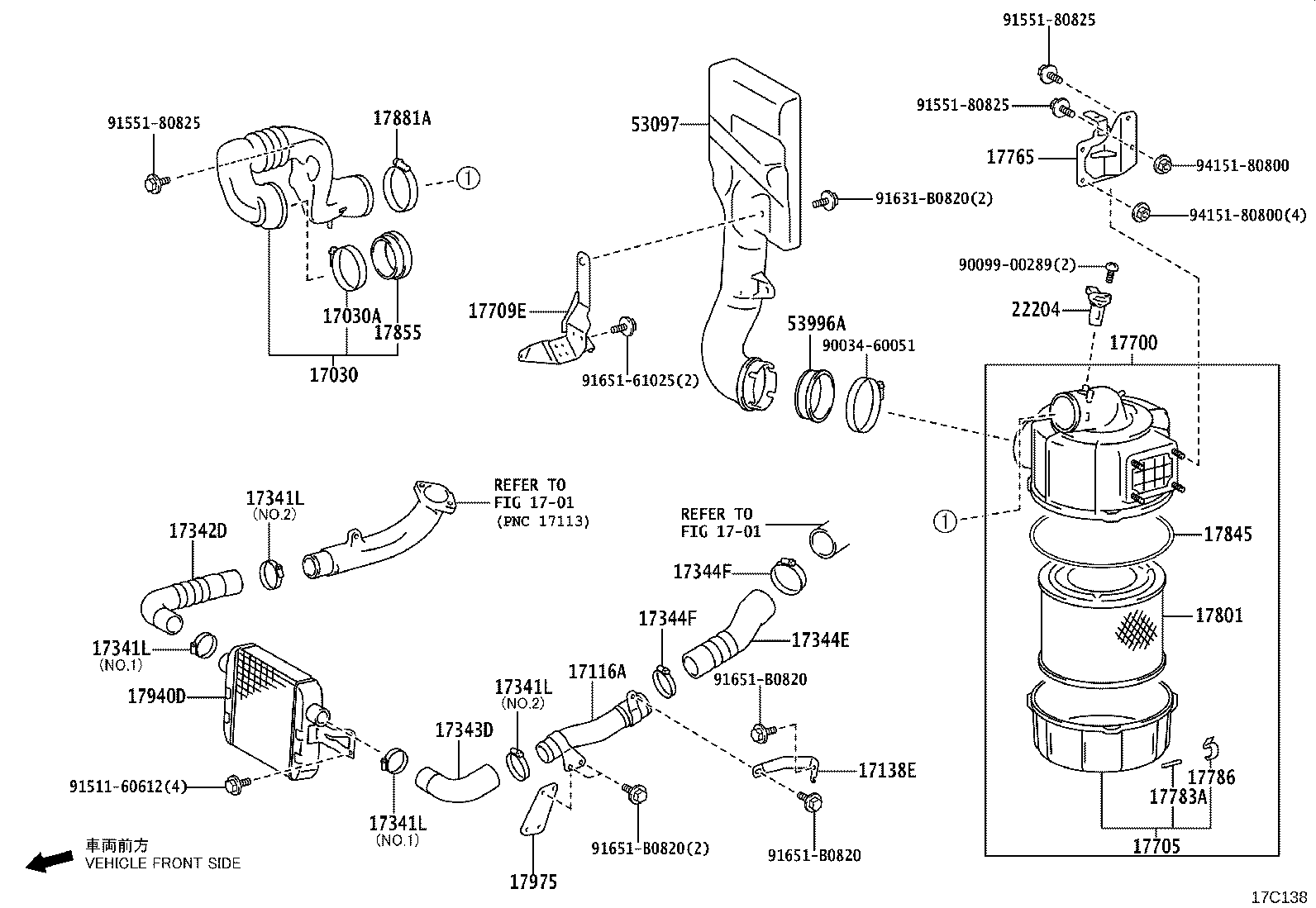

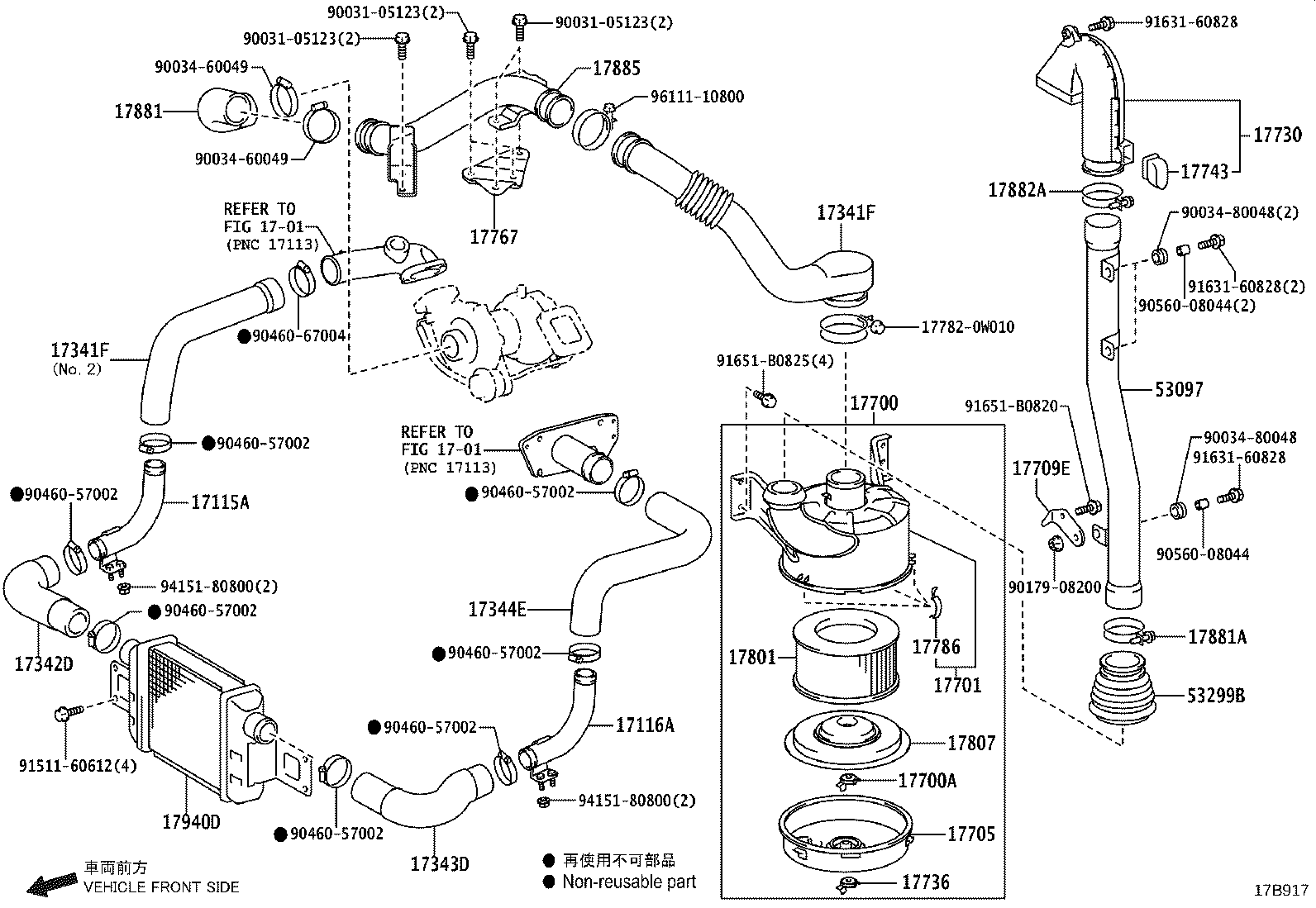

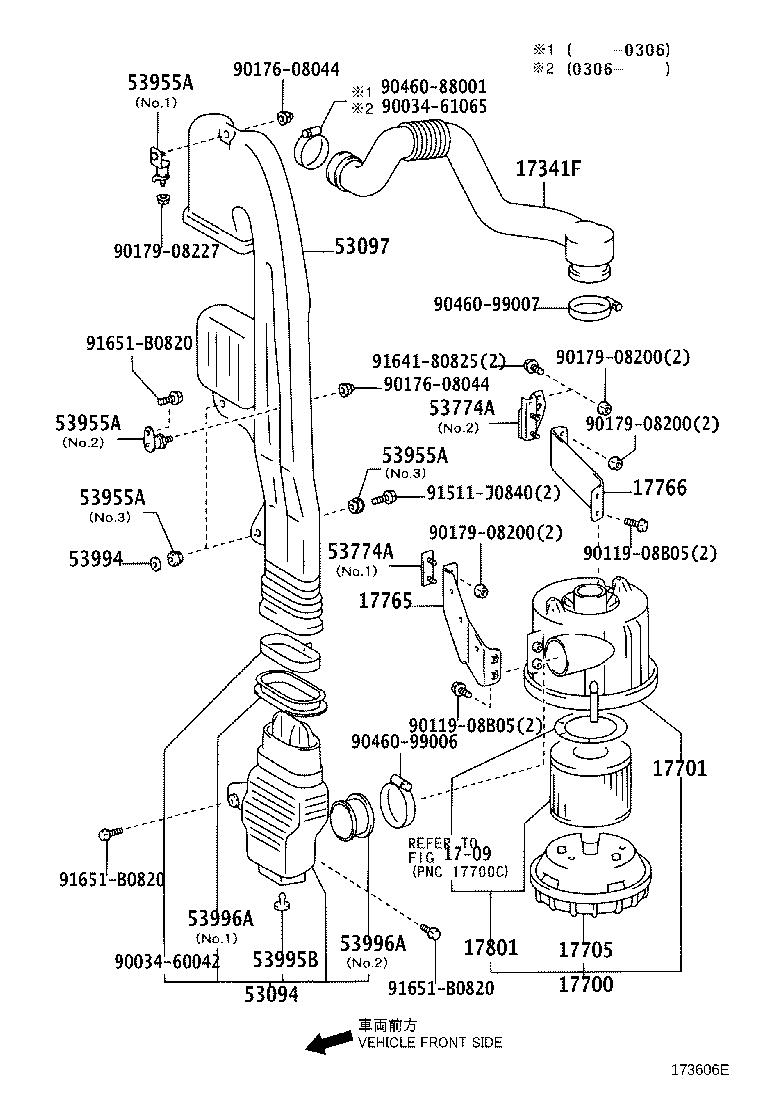

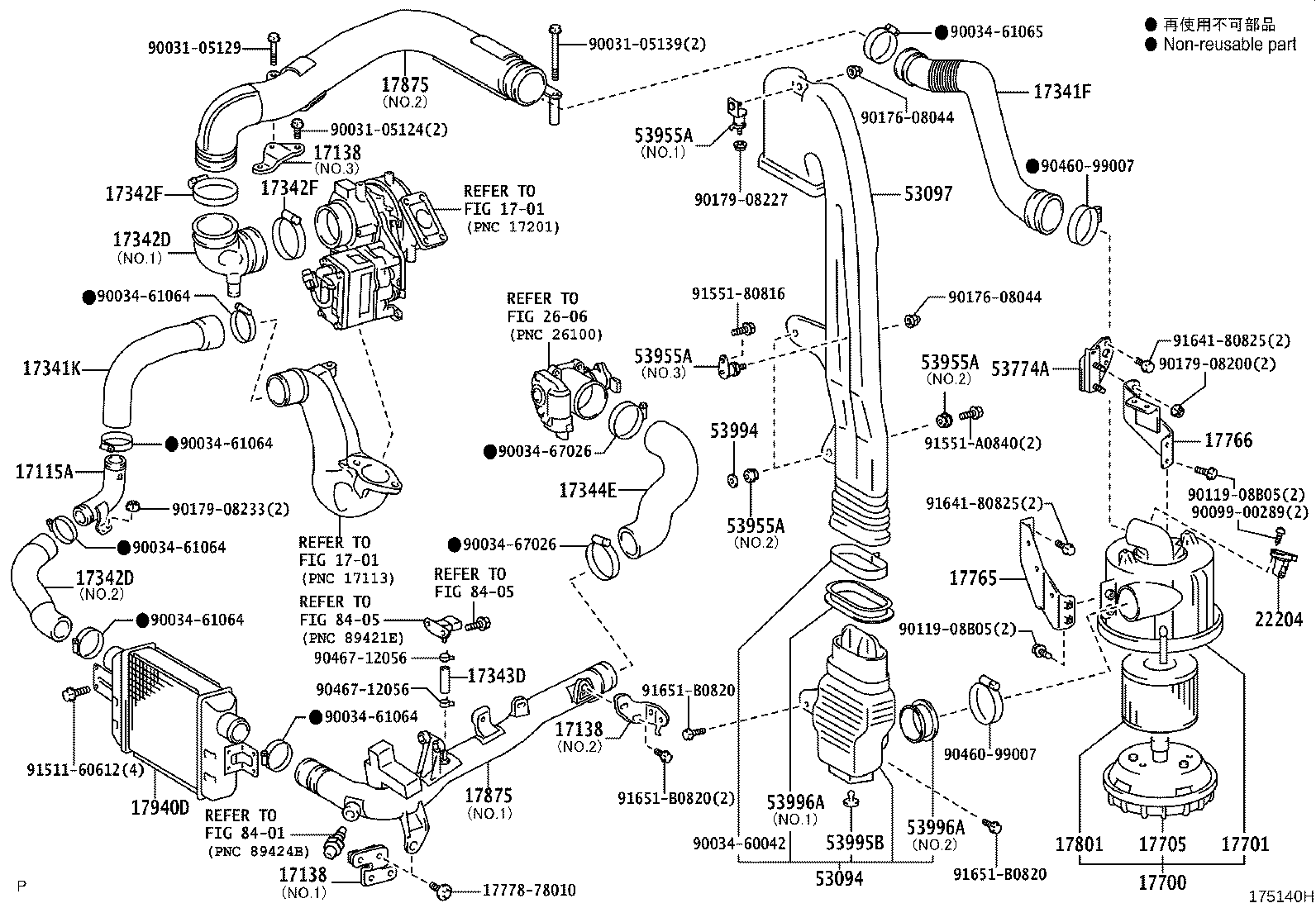

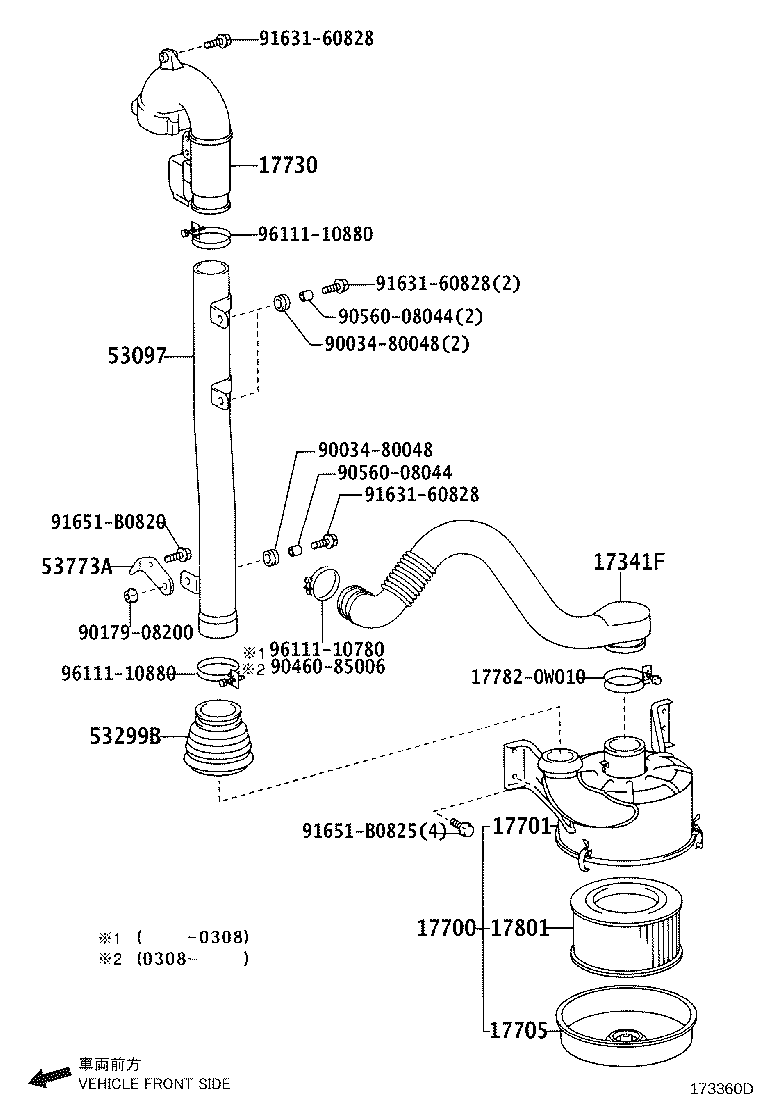

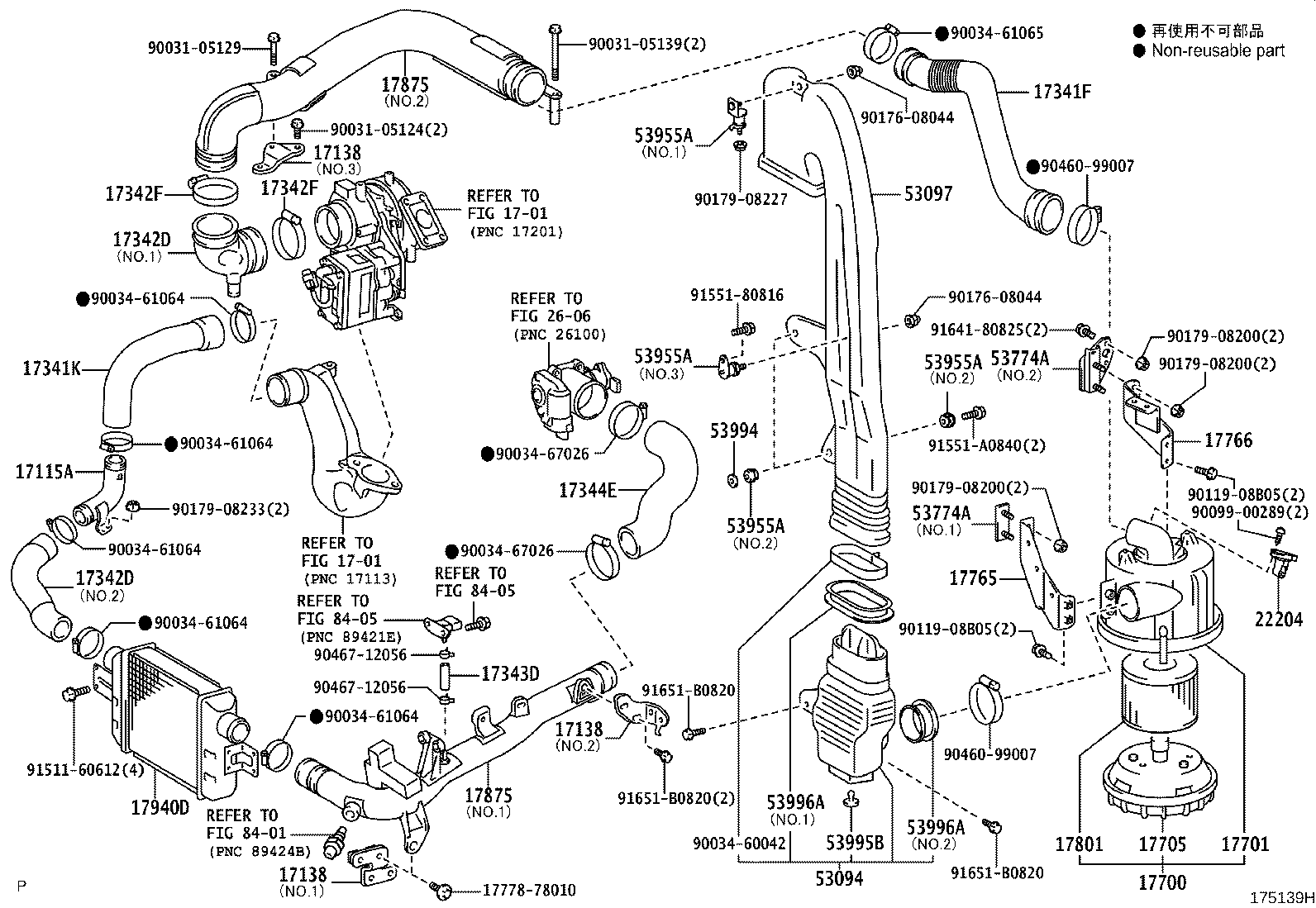

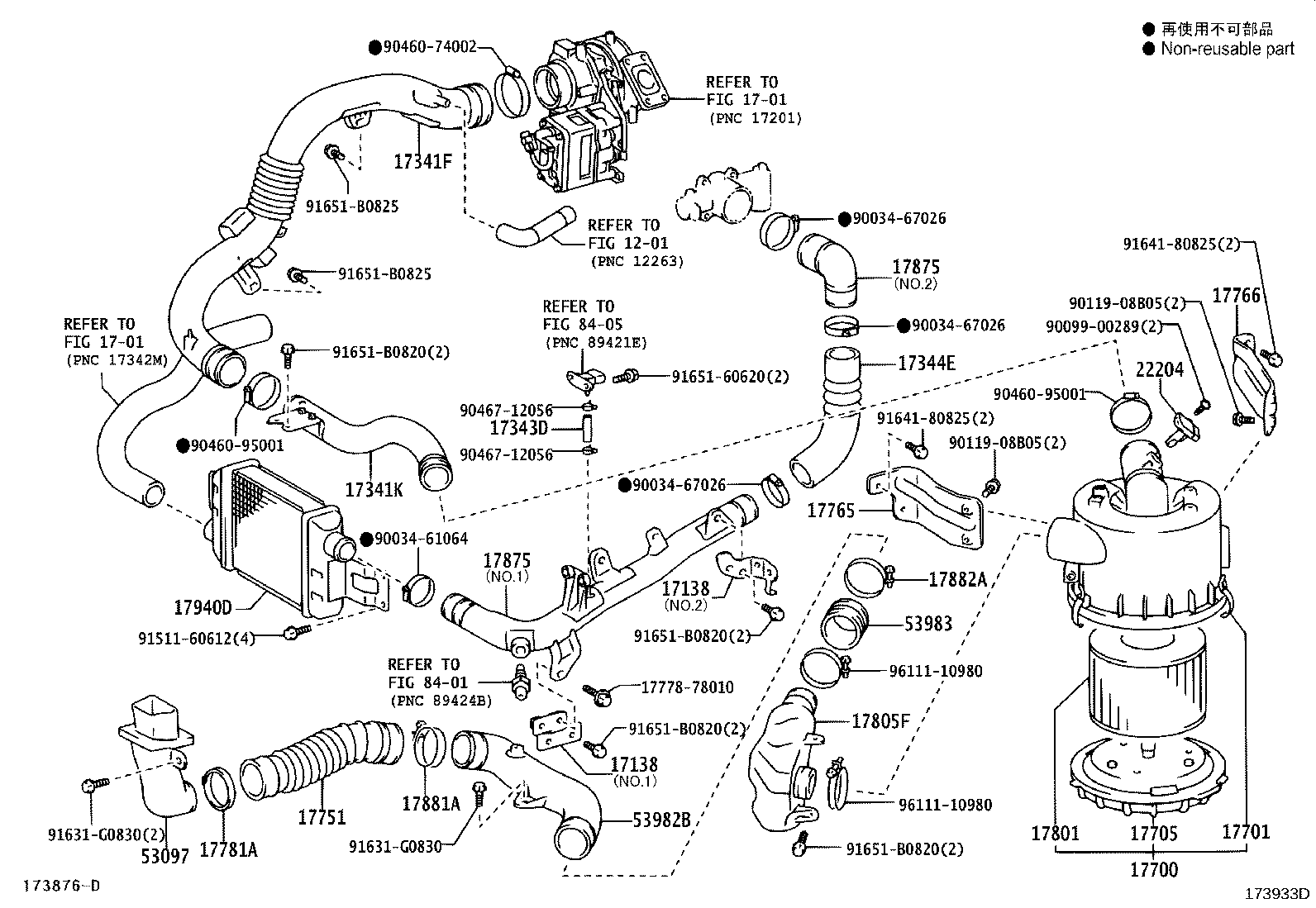

Figure 173423D 173423D 2002-09 → — Figure 173606E 173606E 2002-12 → — Figure 173607B 173607B 2002-12 → 2003-12 Figure 173360D 173360D 2002-09 → 2006-12 Figure 173580G 173580G 2002-12 → 2006-10 Figure 173580G 173580G 2003-04 → 2008-02 Figure 175109I 175109I 2006-10 → — Figure 175109I 175109I 2008-02 → — Figure 17B916 17B916 2006-10 → — Figure 17B917 17B917 2006-12 → — Figure 17B918 17B918 2009-12 → 2010-12 Figure 176650G 176650G 2011-01 → — Figure 173348D 173348D 2002-09 → 2006-12 Figure 173821C 173821C 2002-12 → 2006-10 Figure 173933D 173933D 2003-12 → 2006-10 Figure 175139H 175139H 2006-10 → — Figure 175140H 175140H 2006-10 → — Figure 17C138 17C138 2022-03 → —

Part groups

PNCDescription
17030 Hose Assy, Air
17030A Clamp, Hose
17115A Pipe, Intake, NO.2
17116A Pipe, Intake, NO.3
17138 Stay, Intake Pipe OR Hose
17138E Stay, Intake Pipe
17341F Hose, Air, NO.1
17341K Hose, Air, NO.1(FOR INTERCOOLER)
17341L Clamp, Hose
17342D Hose, Air, NO.2
17342F Hose, Air, NO.2(FOR INTERCOOLER)
17343D Hose, Air, NO.3
17344E Hose, Air, NO.4
17344F Clamp, Hose(FOR AIR HOSE, NO.4)
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700M Clamp(FOR AIR CLEANER)
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17709E Bracket, Air Cleaner Inlet, NO.2
17730 Precleaner Assy, Air W/Hose
17736 Nut, Air Cleaner Case
17743 Valve, Dust Relief
17751 Inlet, Air Cleaner, NO.1
17765 Stay, Air Cleaner, NO.1
17766 Stay, Air Cleaner, NO.2
17767 Bracket, Air Cleaner
17781A Clamp, Hose
17783A Retainer, Air Cleaner Inlet
17786 Clamp, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17805C Pipe Sub-assy, Air Cleaner, NO.1
17805D Grommet(FOR INTAKE AIR CONNECTOR)
17805F Resonator Sub-assy, Intake Air
17805N Bush(FOR AIR CONNECTOR)
17807 Plate Sub-assy, Air Cleaner Filter Set
17845 Gasket, Air Cleaner Cap
17855 Gasket, Air Inlet Duct, NO.1
17875 Pipe, Intake Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17885 Pipe, Air Cleaner
17940D Intercooler Assy
17975 Stay, Cool Air, NO.2
22204 Meter Sub-assy, Intake Air Flow
52805 Bracket Sub-assy, Cool Air Intake Duct
53094 Inlet, Air Cleaner Pipe, NO.3
53097 Inlet Sub-assy
53299B Duct, Cool Air Intake
53773A Bracket, Air Cleaner Mounting
53774A Bracket, Air Cleaner Mounting, NO.2
53955A Cushion, Air Cleaner Inlet NO.1
53982B Inlet, Air Cleaner Pipe, NO.2
53983 Inlet, Air Cleaner Pipe, NO.3
53994 Retainer, Air Cleaner Inlet Pipe
53995B Plug, Air Cleaner Inlet
53996A Packing, Air Cleaner Inlet Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
