Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

11 part groups · 11 illustrations

Illustrations

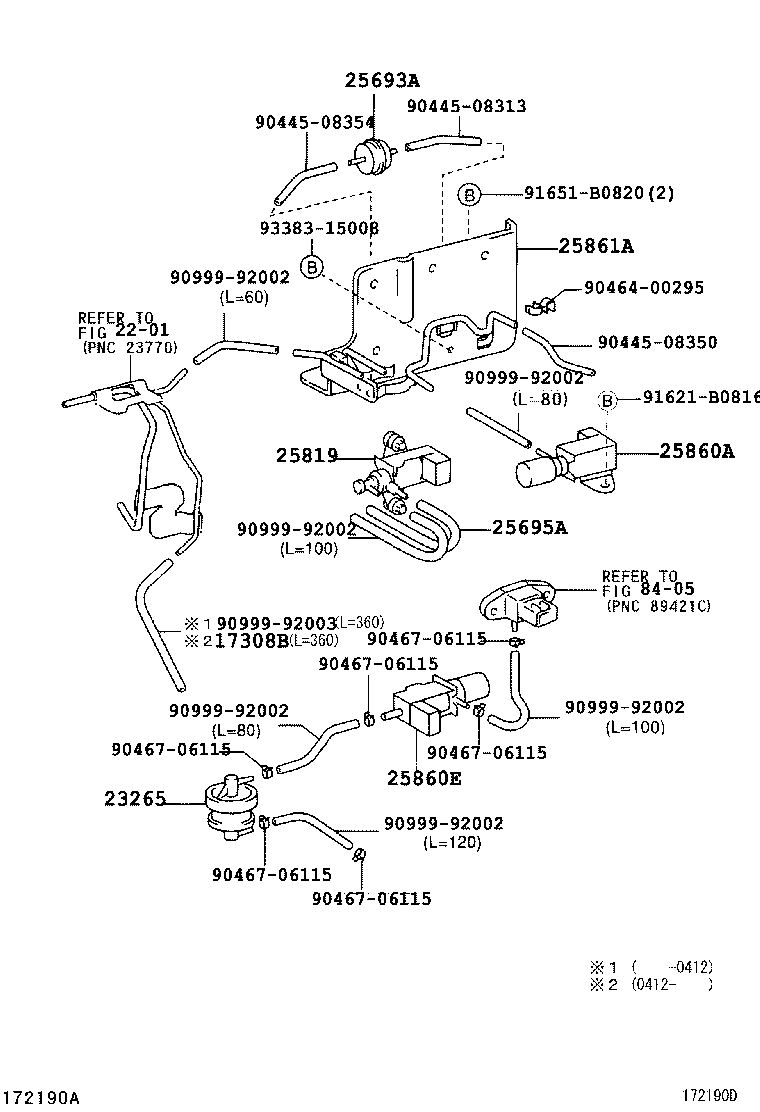

Figure 172190E 172190E 2002-12 → — Figure 173368J 173368J 2002-09 → 2006-12 Figure 175348D 175348D 2002-12 → 2004-03 Figure 175348D 175348D 2003-04 → 2004-03 Figure 175349D 175349D 2004-03 → 2007-12 Figure 175126E 175126E 2006-10 → — Figure 175125D 175125D 2006-10 → — Figure 175342E 175342E 2006-12 → 2010-05 Figure 176651B 176651B 2009-12 → — Figure 173356E 173356E 2002-09 → — Figure 172190D 172190D 2002-12 → —

Part groups

PNCDescription
17308B Hose Sub-assy, Vacuum
17308C Clamp(FOR VACUUM HOSE)
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
23265 Filter, Gas, NO.1
25693A Damper, Egr Vacuum Modulator
25695A Hose, Egr Vacuum Modulator
25819 Valve Assy, Vacuum Regulating
25860A Valve, Vacuum Switching, NO.1
25860E Valve, Vacuum Switching, NO.2
25861A Bracket, Vacuum Switching Valve, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
