Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

41 part groups · 13 illustrations

Illustrations

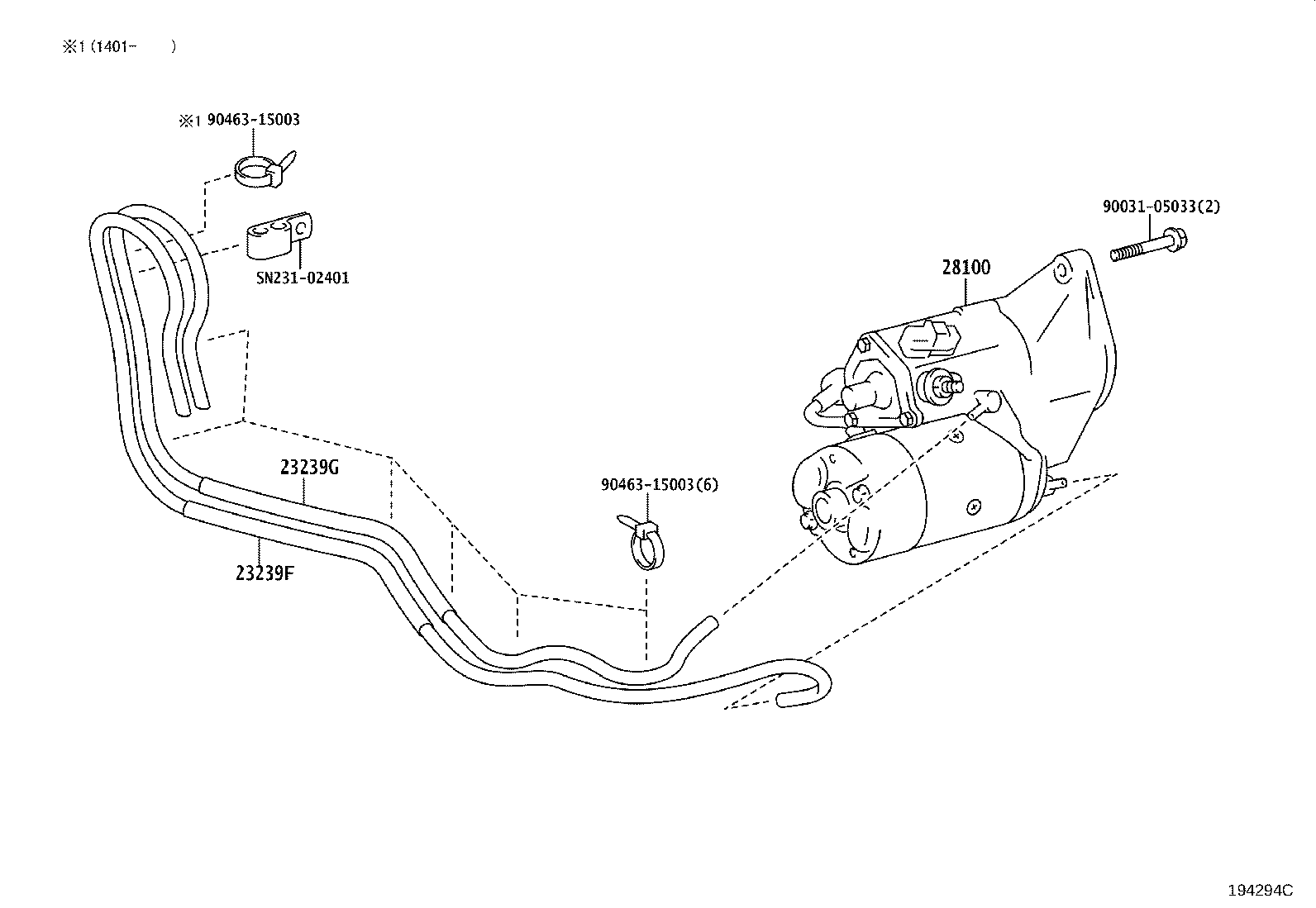

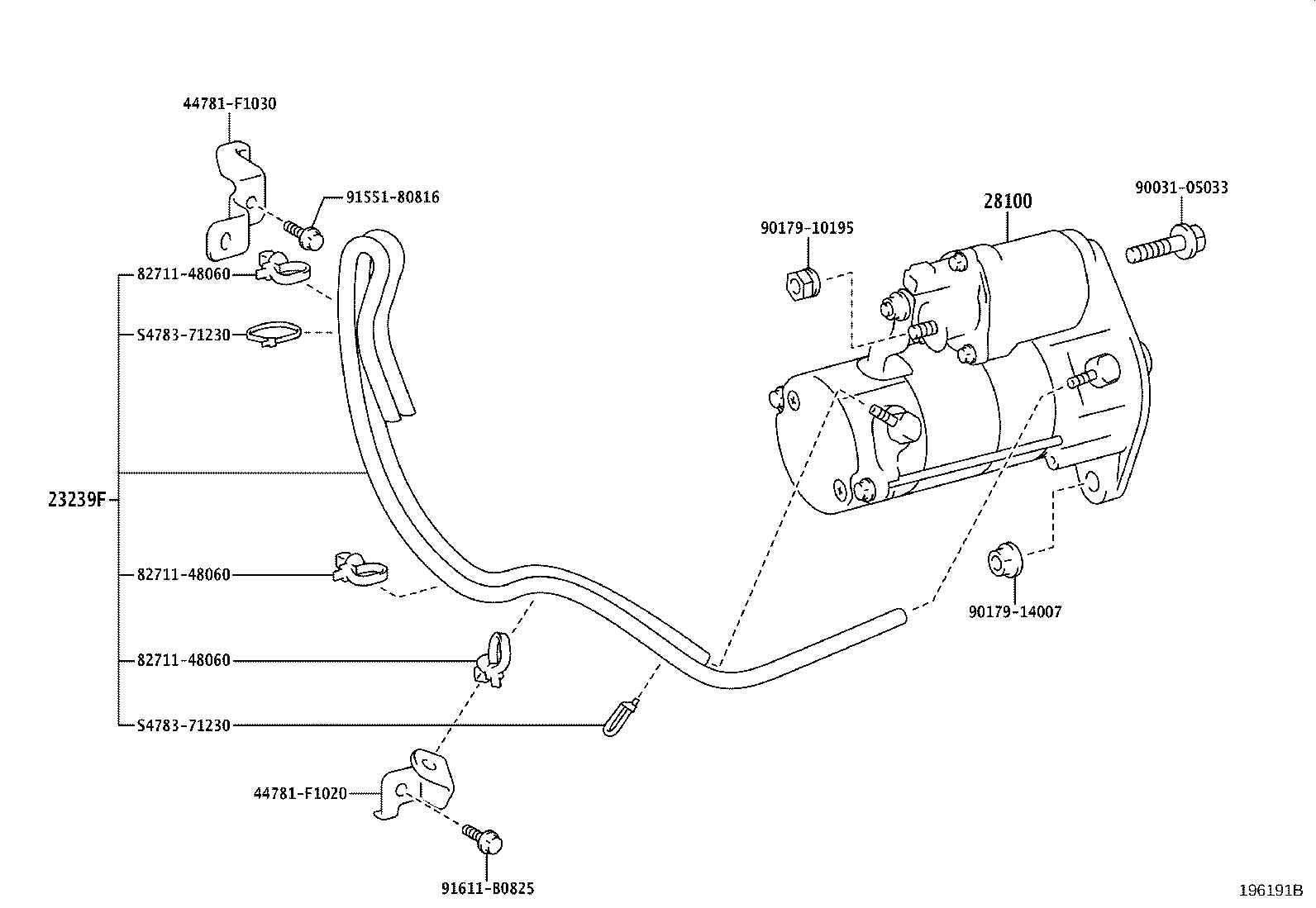

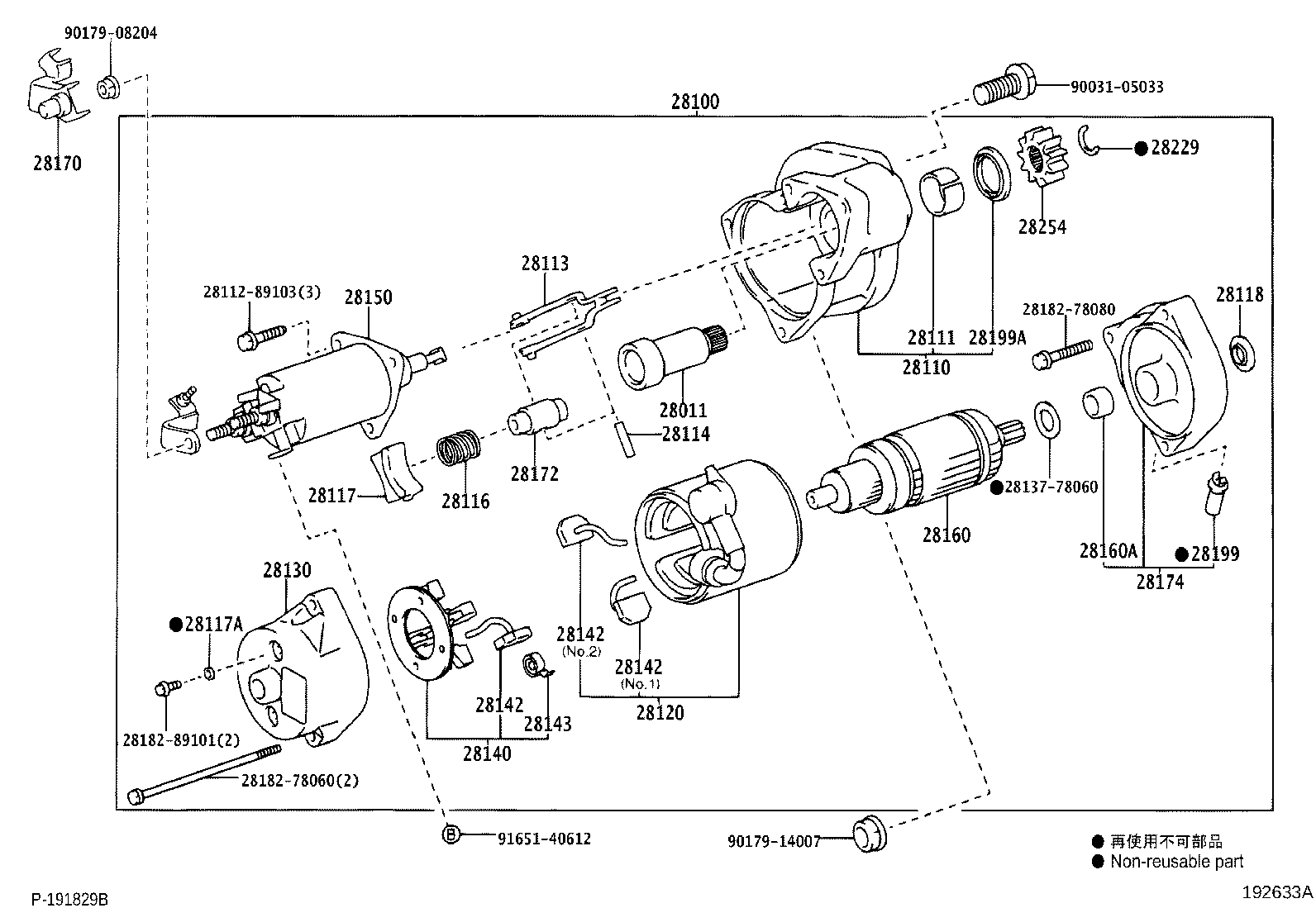

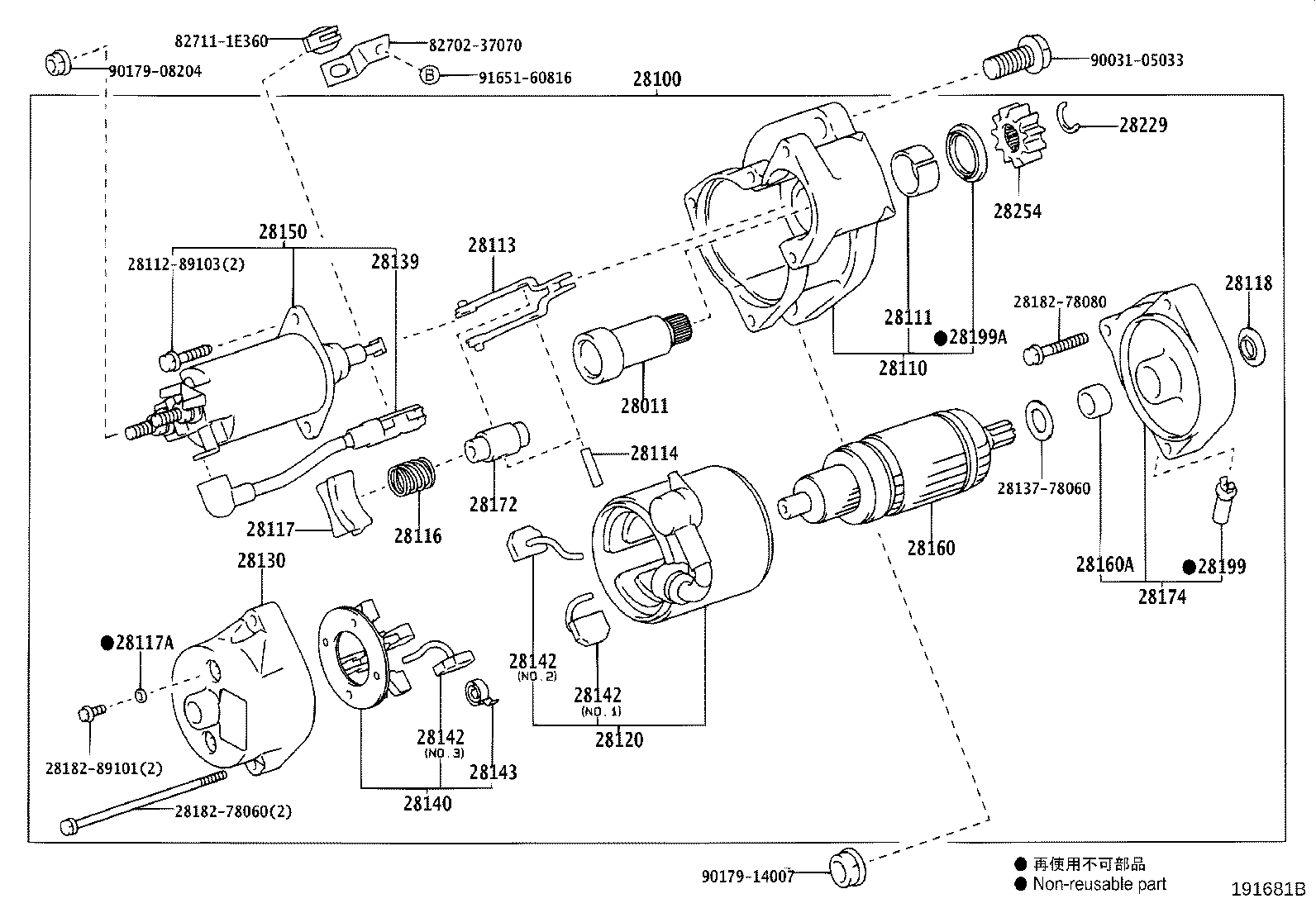

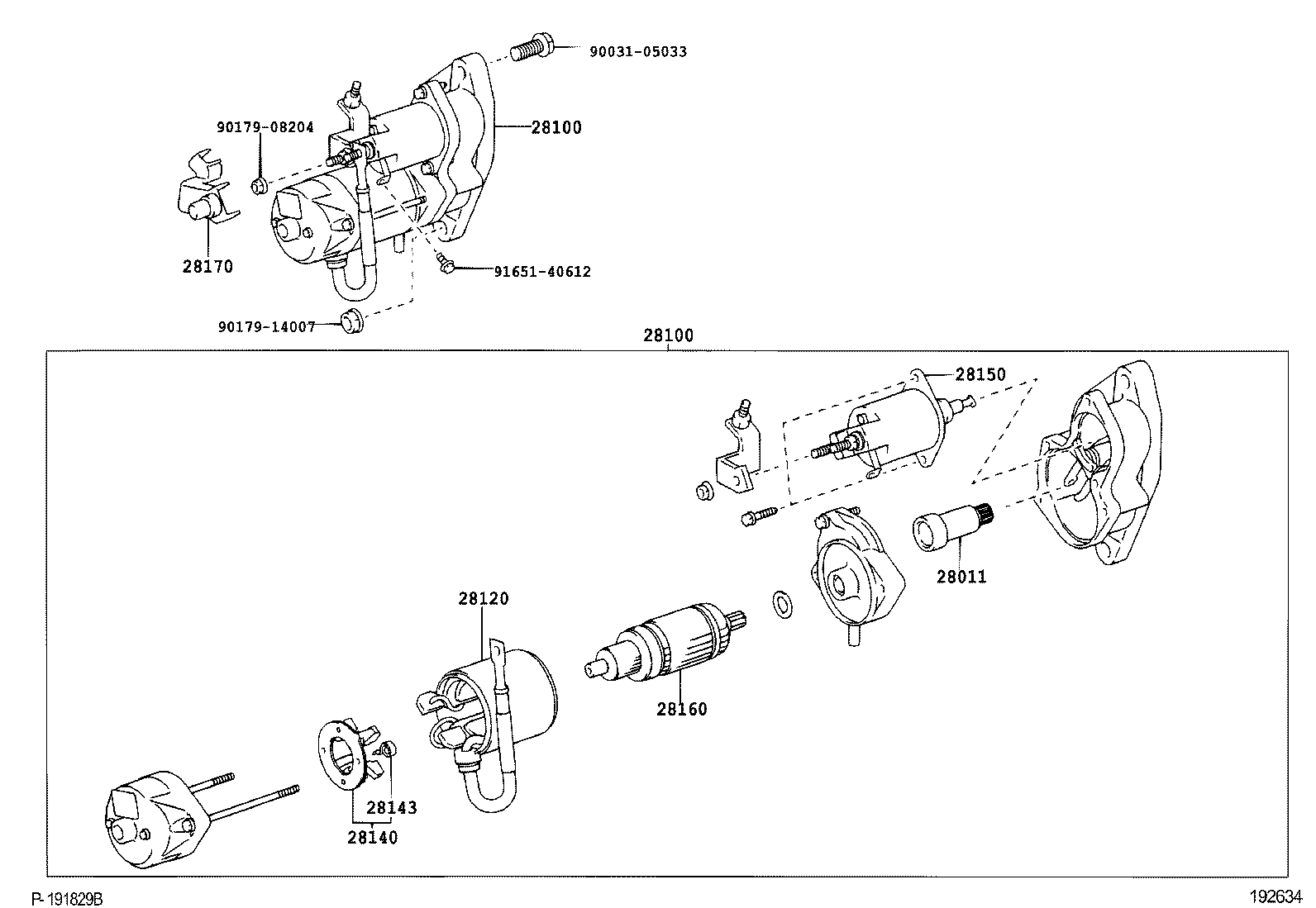

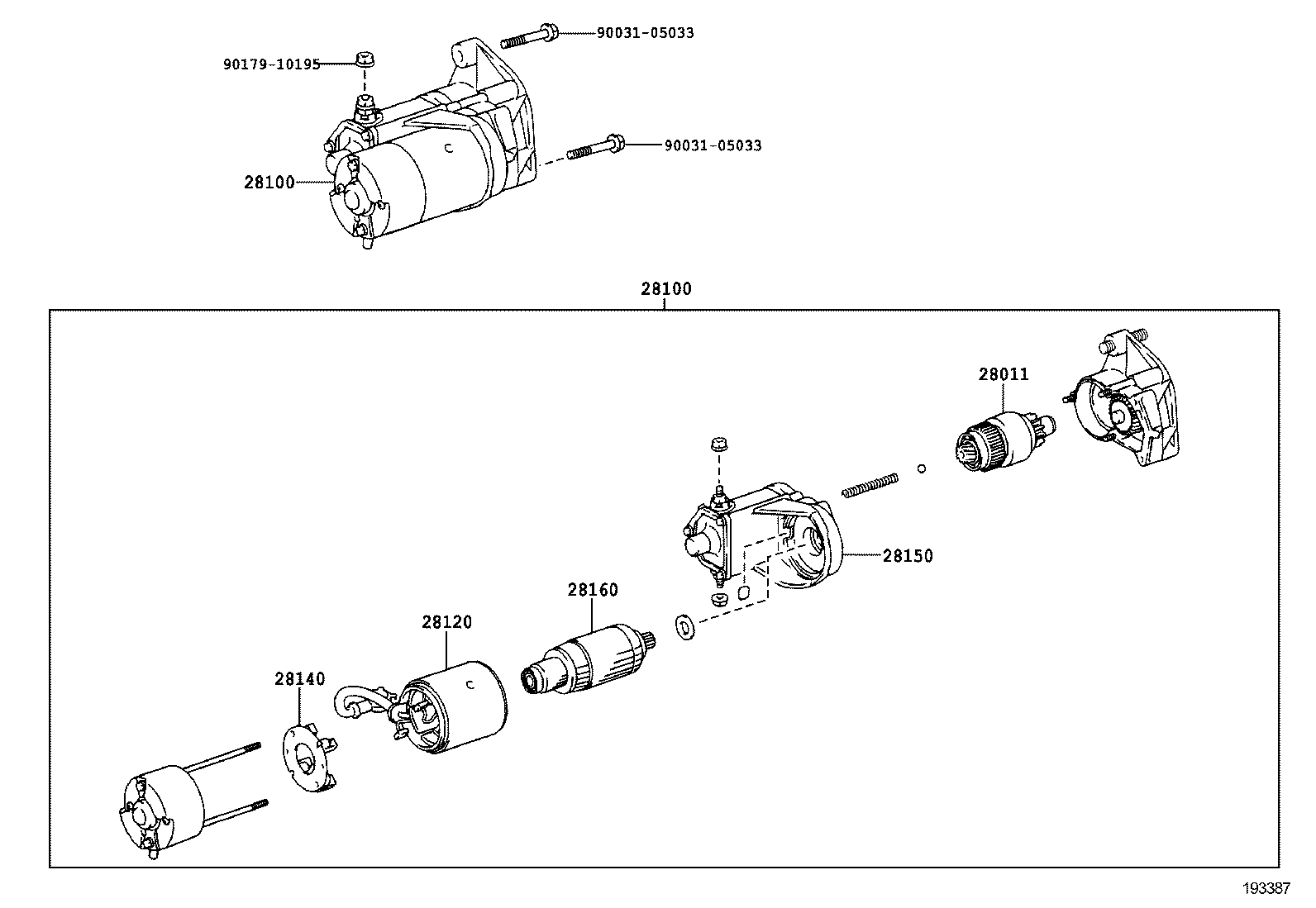

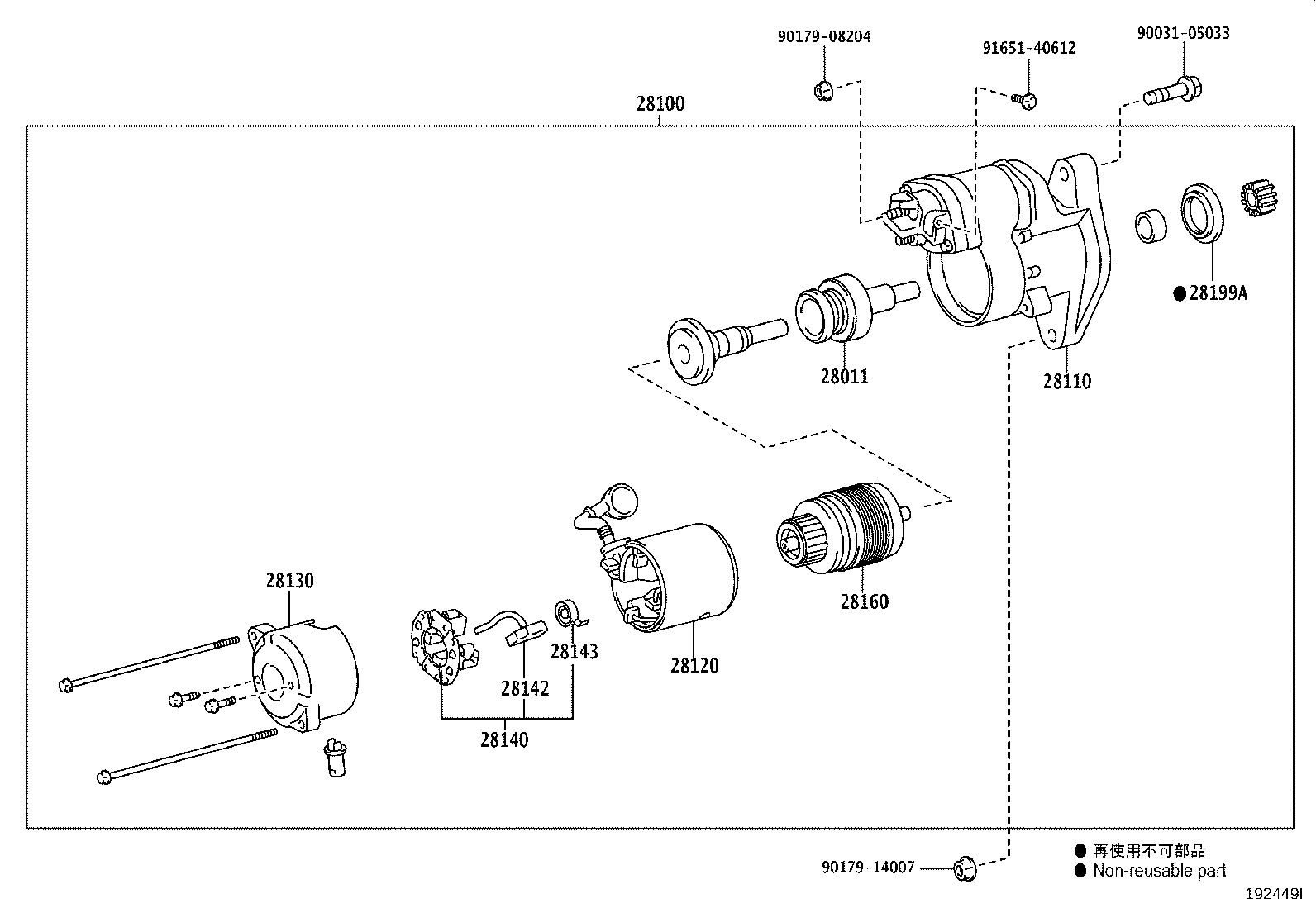

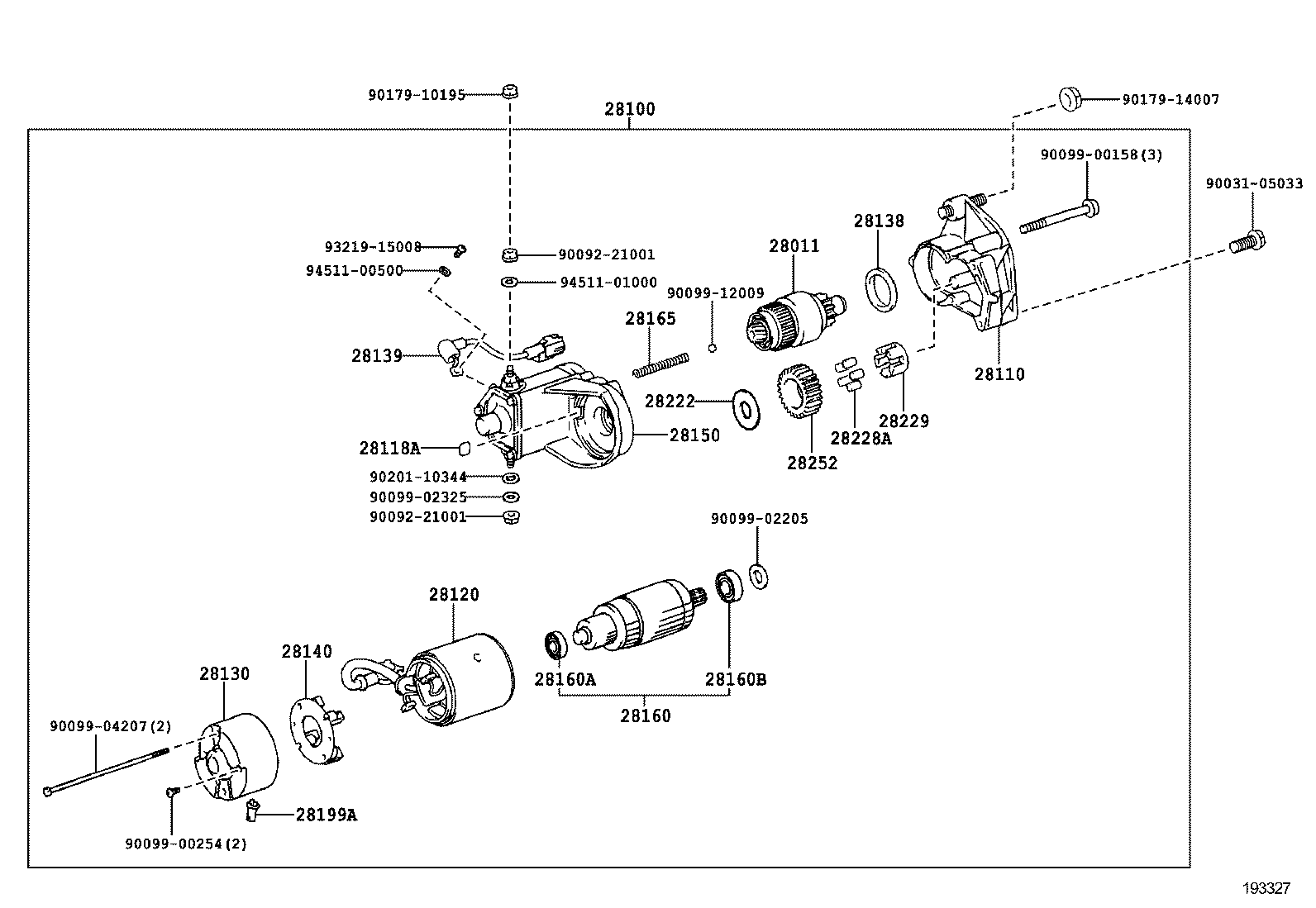

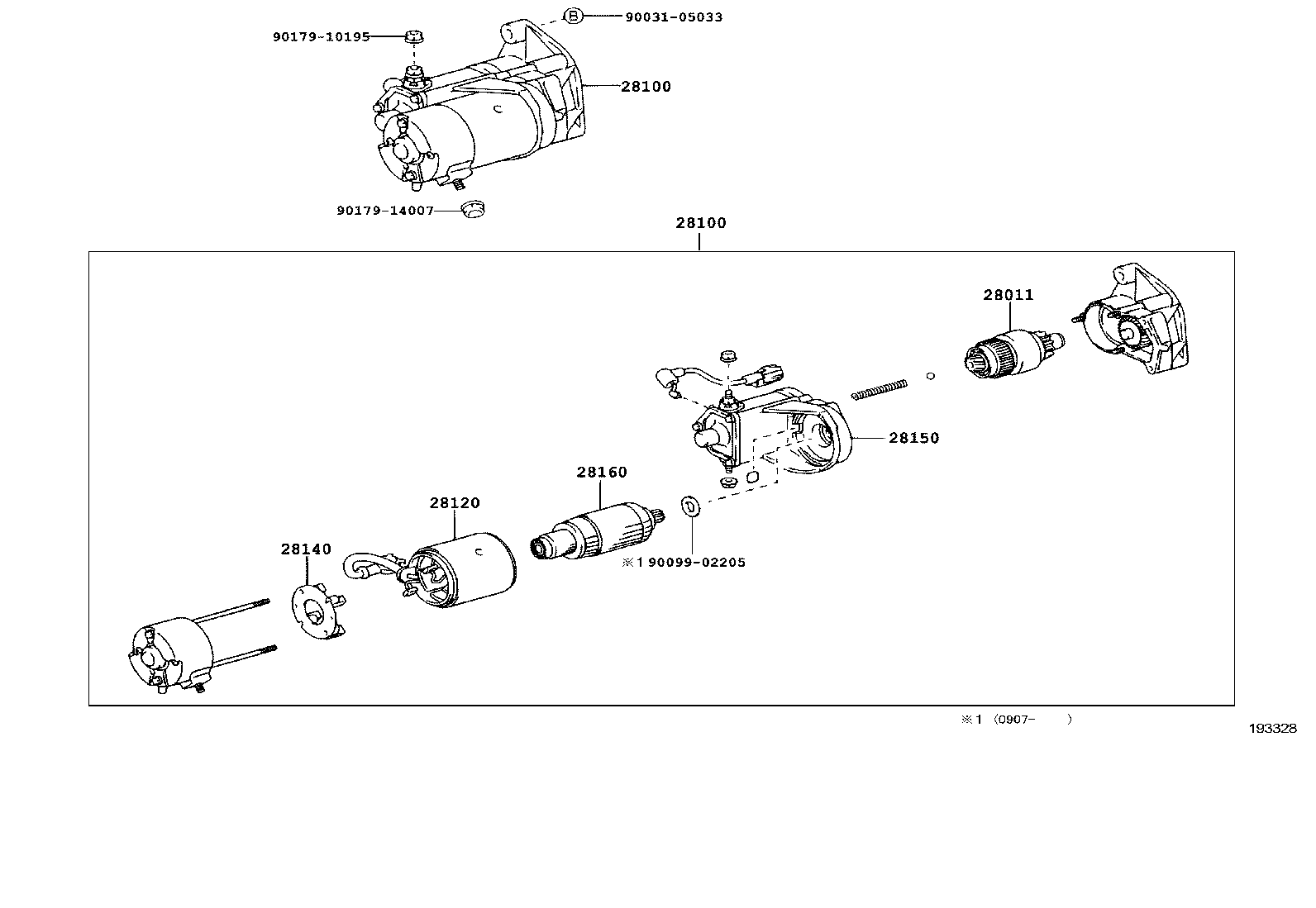

Figure 191762B 191762B 2002-09 → — Figure 191681B 191681B 2002-09 → — Figure 192633A 192633A 2002-09 → 2006-10 Figure 192633A 192633A 2002-09 → 2006-12 Figure 192633A 192633A 2002-09 → 2008-02 Figure 192634 192634 2006-10 → — Figure 192634 192634 2008-02 → — Figure 193328 193328 2009-07 → — Figure 193327 193327 2006-10 → — Figure 192449I 192449I 2003-12 → — Figure 193387 193387 2009-12 → 2013-10 Figure 194294C 194294C 2013-10 → — Figure 196191B 196191B 2022-03 → —

Part groups

PNCDescription
23239F Hose, NO.1
23239G Hose, NO.2
28011 Clutch Sub-assy, Starter
28100 Starter Assy
28110 Housing Assy, Starter Drive
28111 Bush(FOR STARTER HOUSING)
28113 Lever, Starter Pinion Drive
28114 Pin, Starter Drive Lever Set
28116 Spring, Pinion Return
28117 Rubber(FOR STARTER YOKE)
28117A Seal, Rubber
28118 Plate(FOR STARTER YOKE)
28118A Plate(FOR STARTER YOKE)
28120 Yoke Assy, Starter
28130 Frame Assy, Starter Commutator End
28138 Rubber(FOR STARTER BEARING COVER)
28139 Wire, Lead, NO.1(FOR STARTER)
28140 Holder Assy, Starter Brush
28142 Brush, Starter
28143 Spring, Starter Brush
28150 Switch Assy, Magnet Starter
28159B Cover, Magnet Switch
28160 Armature Assy, Starter
28160A Bearing, Starter Armature
28160B Bearing, Starter Armature, NO.2
28165 Spring, Starter Magnet Switch Return
28170 Cover Assy, Starter
28172 Holder, Starter Spring
28174 Housing, Starter Motor
28175A Gasket, Magnet Switch Cover
28199 Cover, Starter
28199A Protector, Dust Starter
28222 Washer, Starter Idle Gear Clutch
28226 Starter Kit, Battery Terminal
28226A Starter Kit, Motor Terminal
28228 Roller, Starter Idle Gear Clutch
28228A Roller, Starter Clutch
28229 Retainer, Starter Idle Gear
28235 Plunger, Magnet Switch
28252 Gear, Starter Idle
28254 Pinion, Starter Idle Gear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
