Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Assembly

64 part groups · 15 illustrations

Illustrations

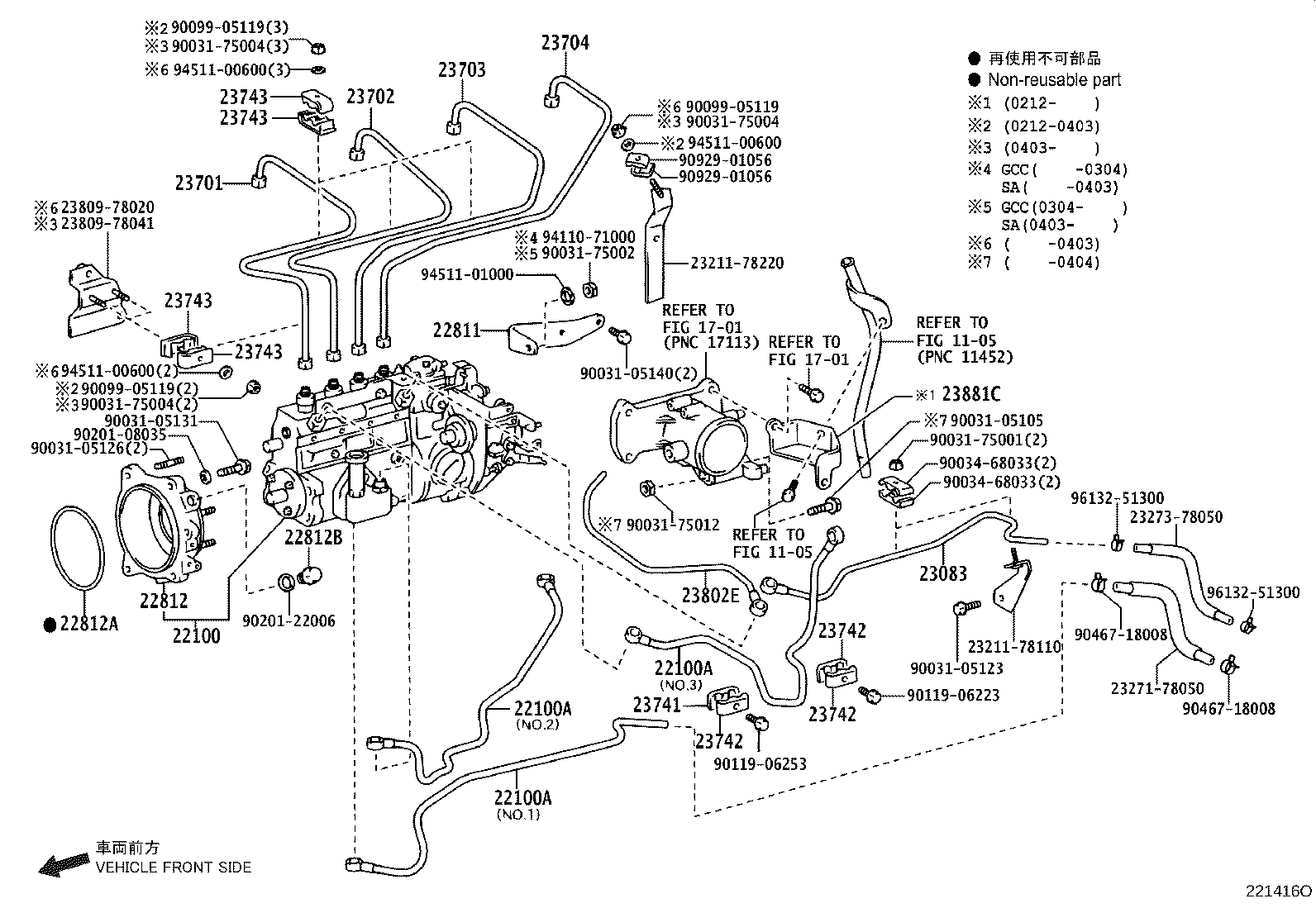

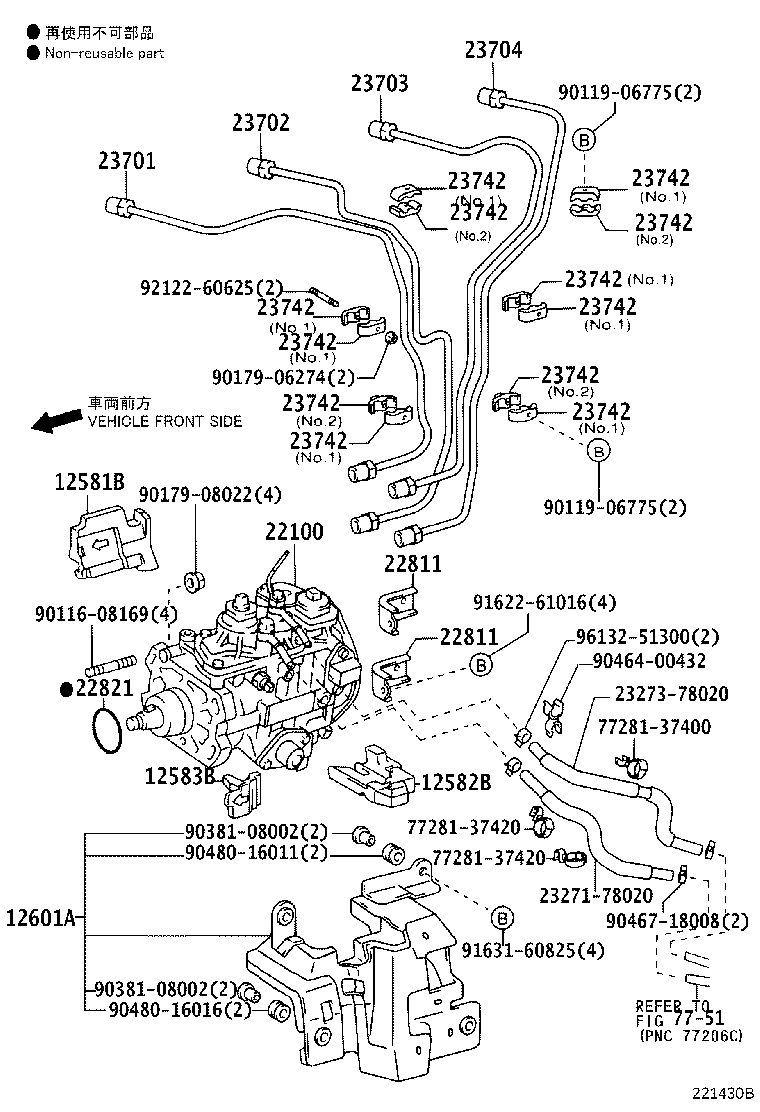

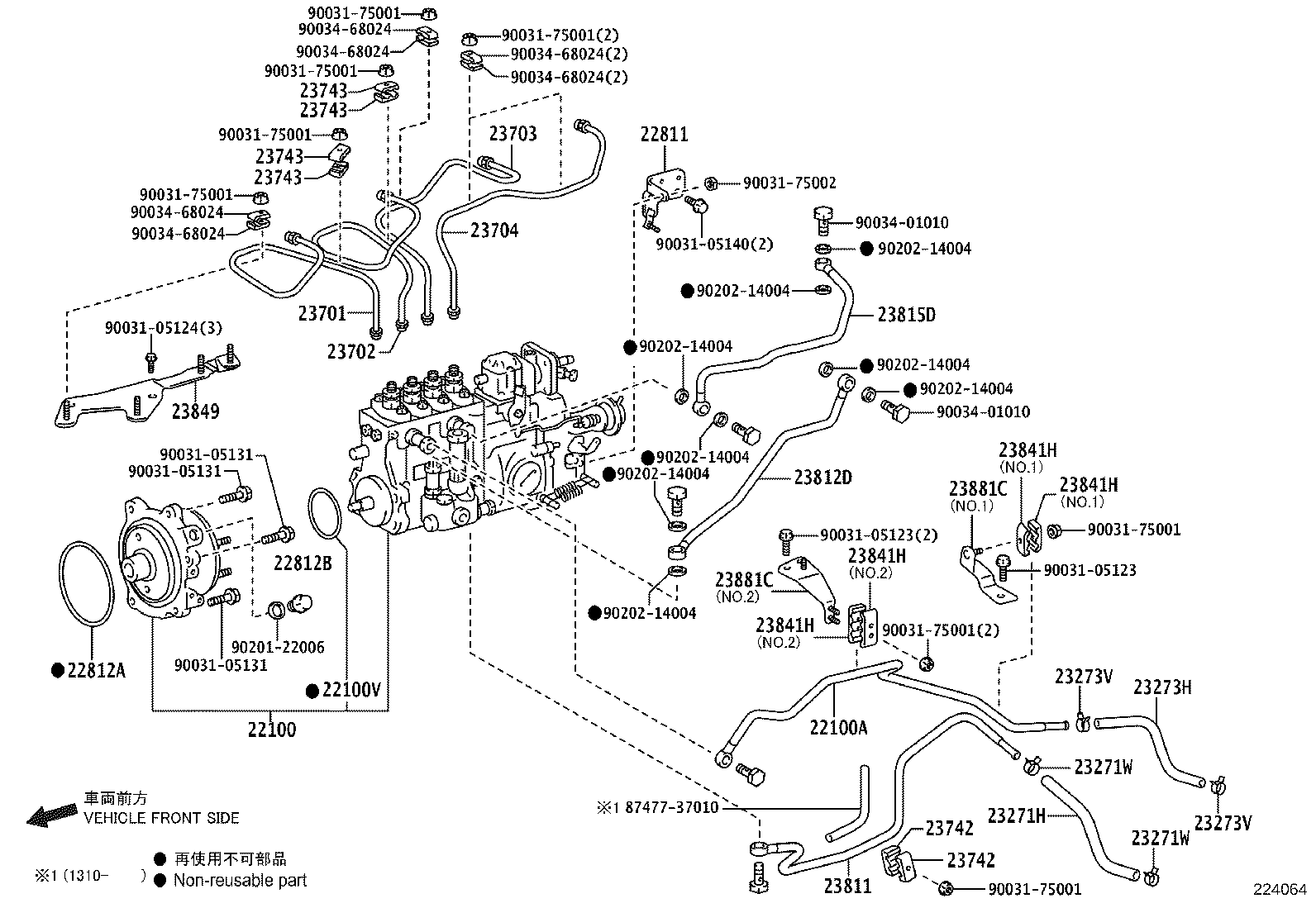

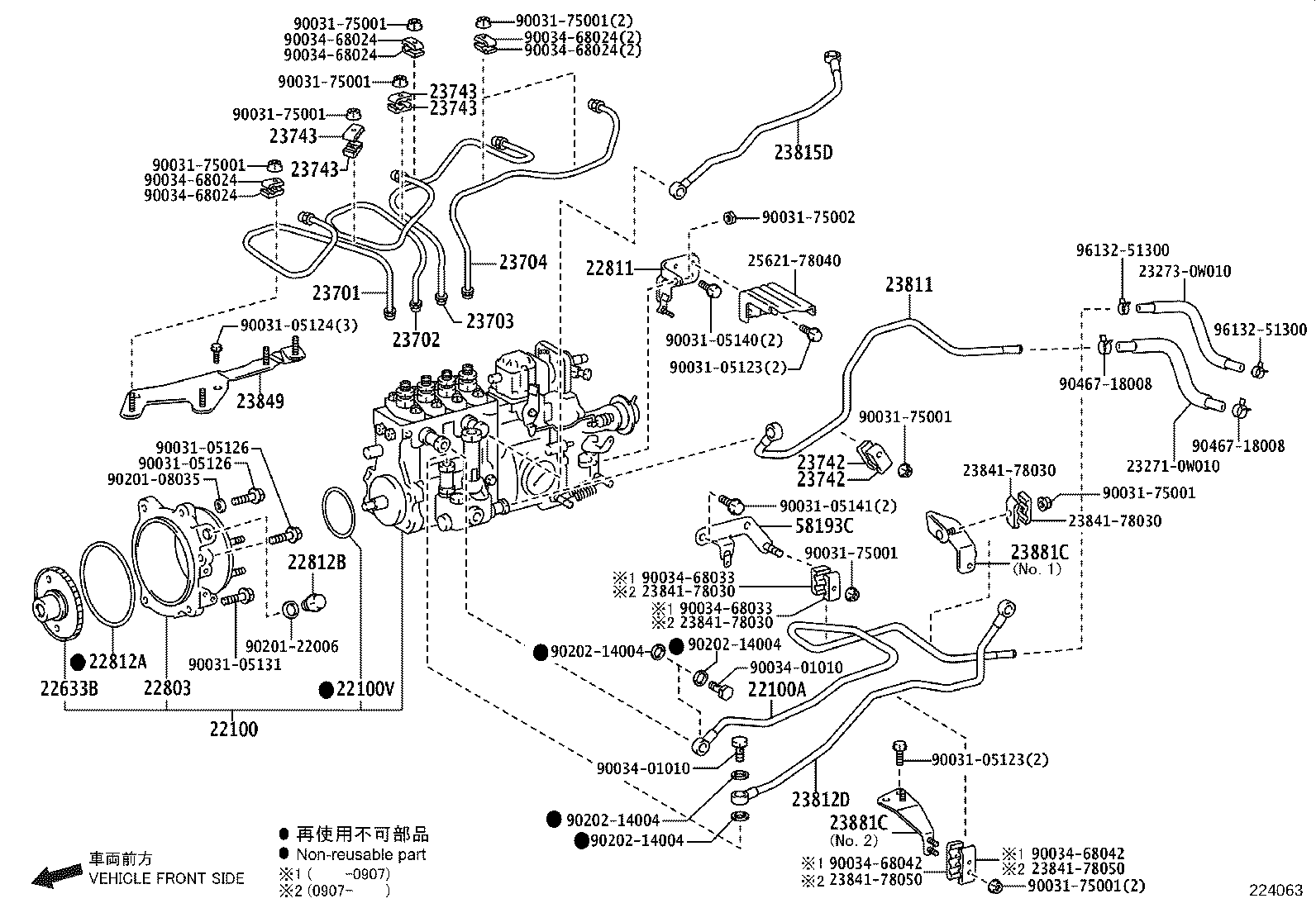

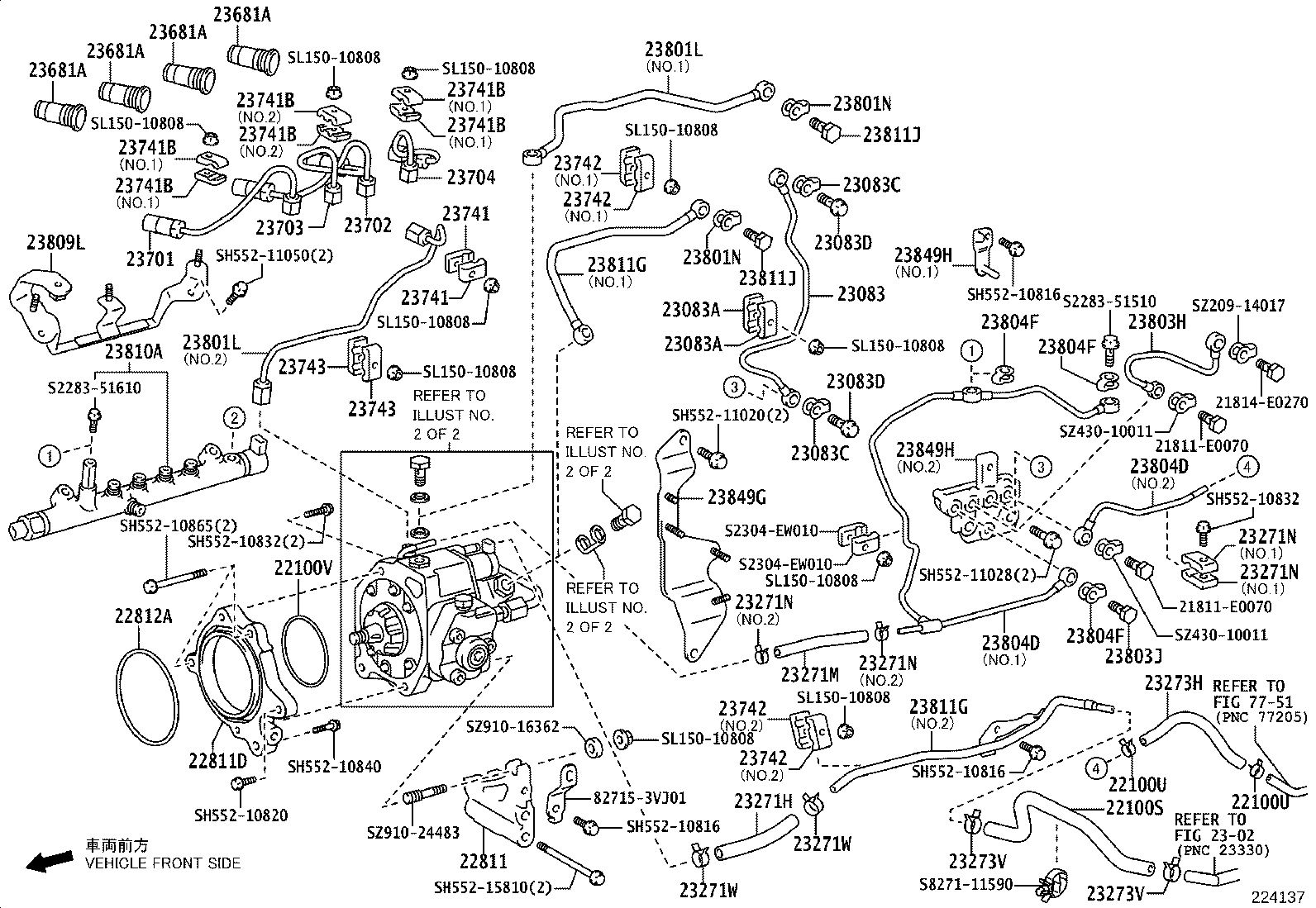

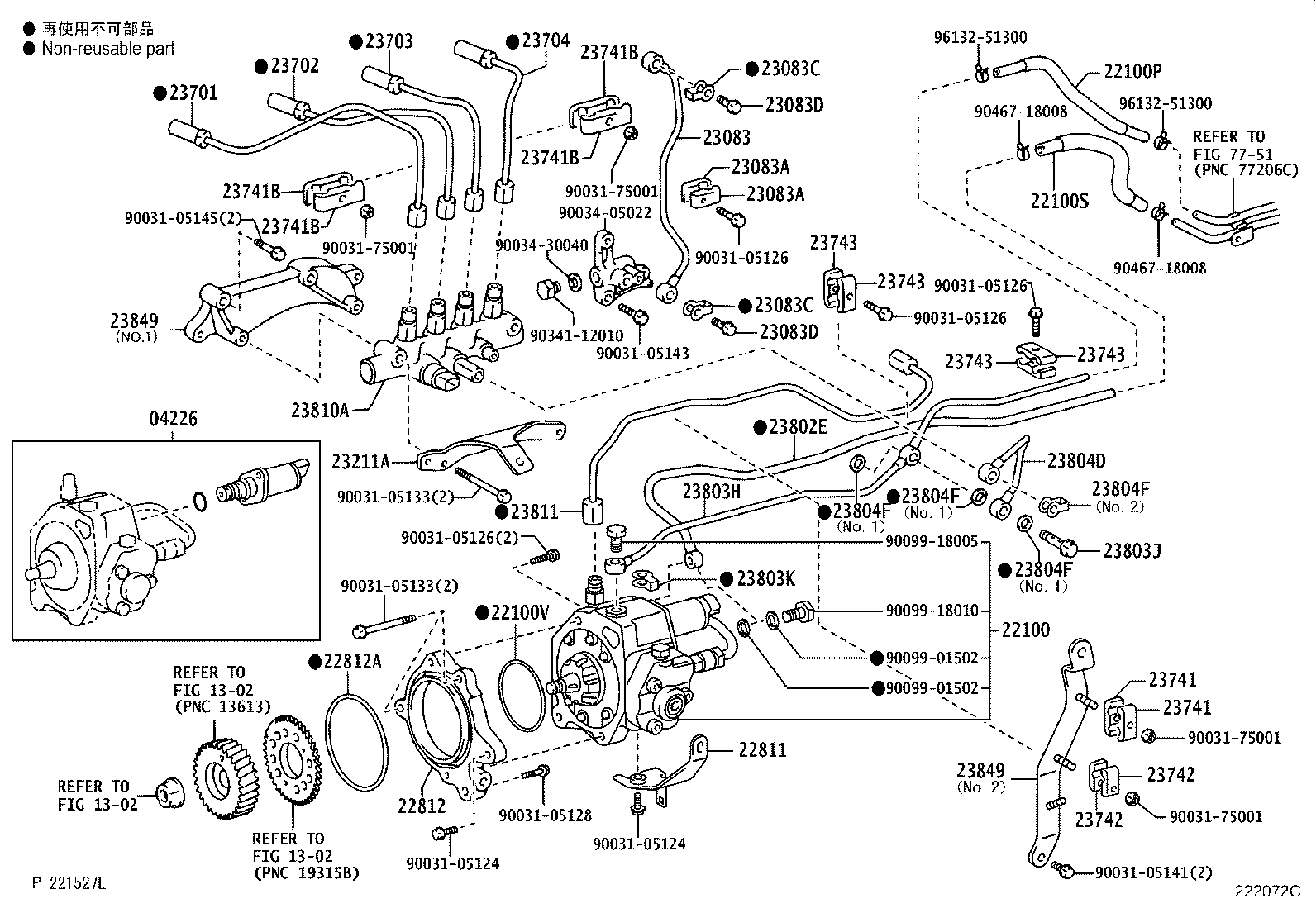

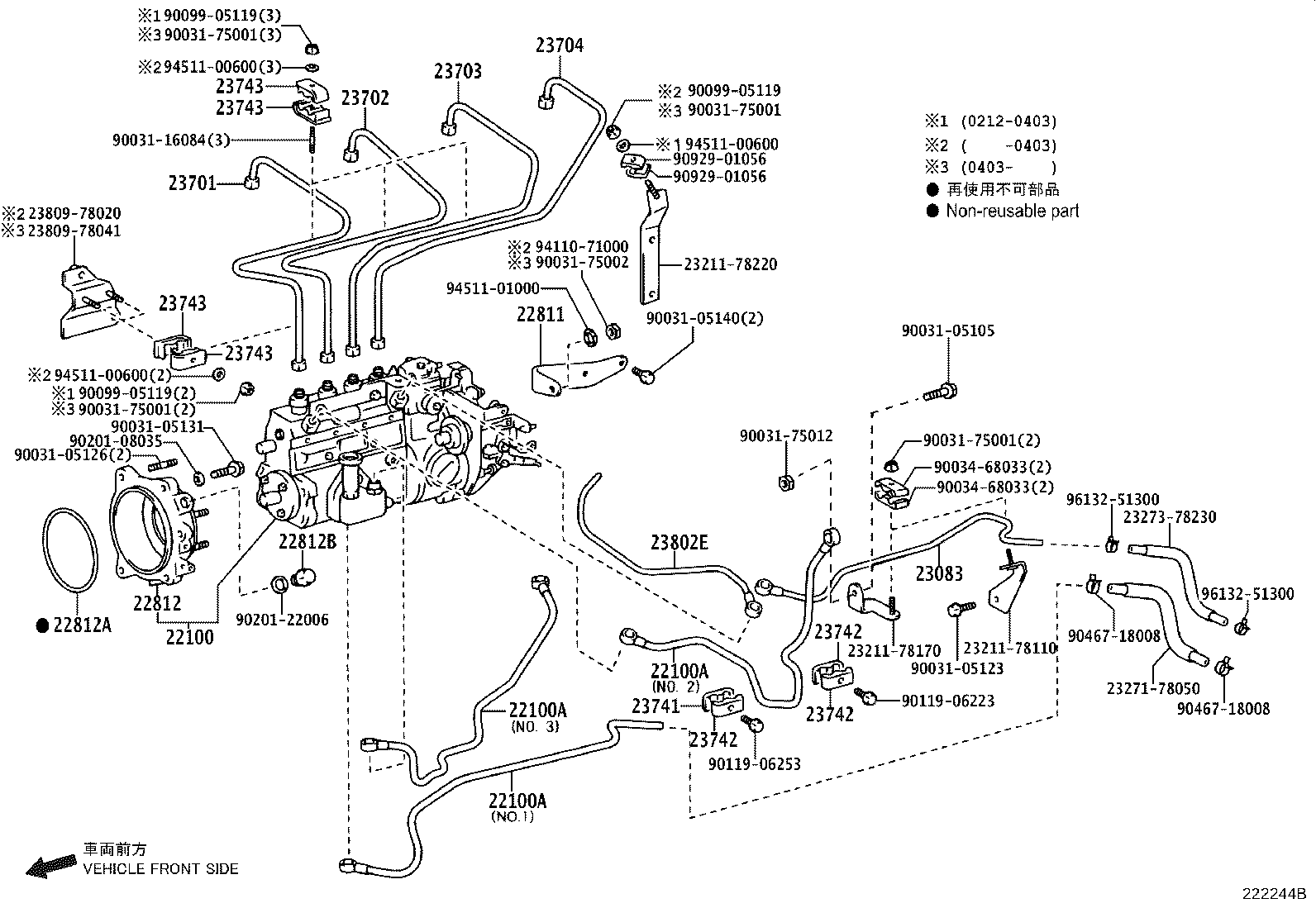

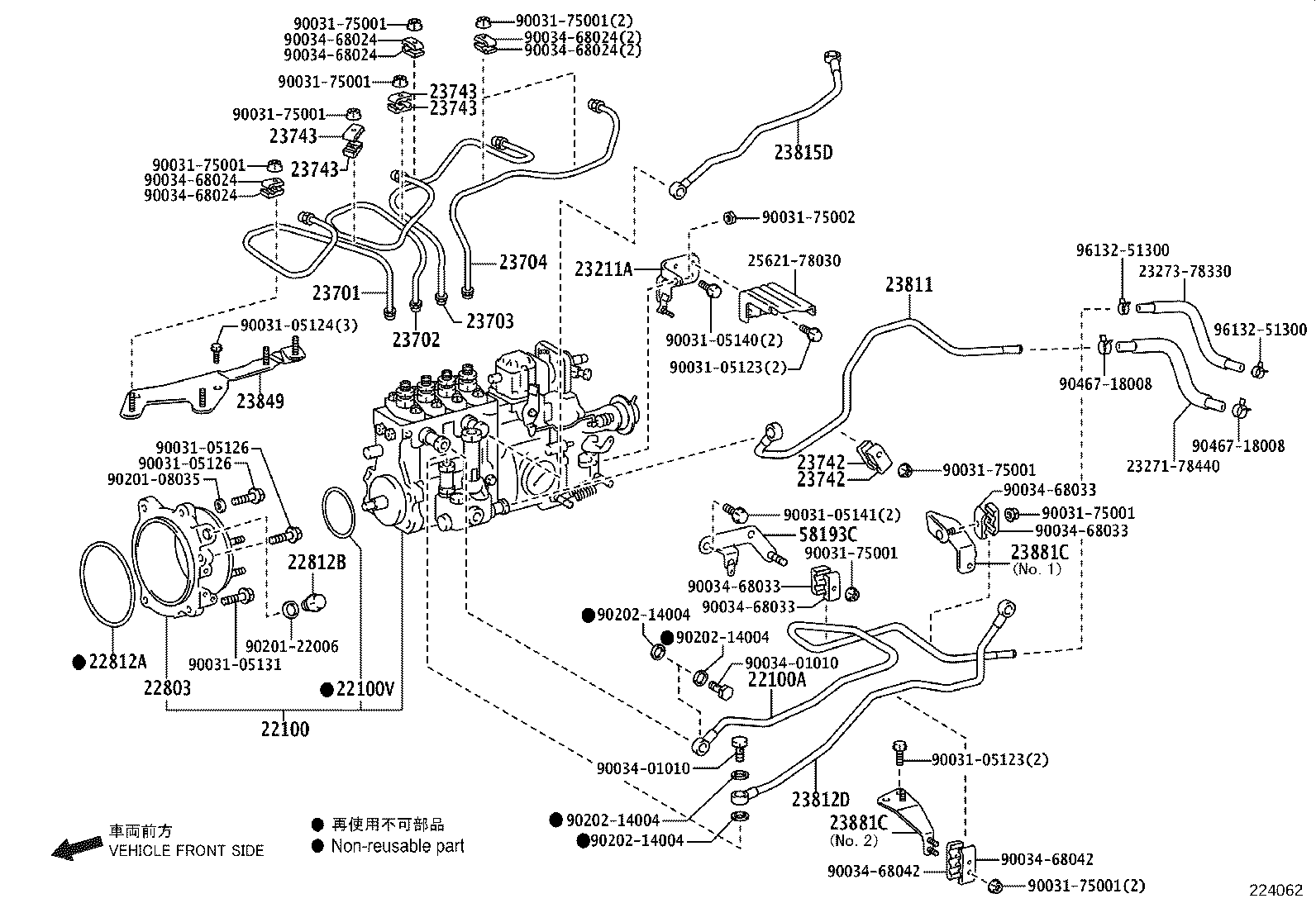

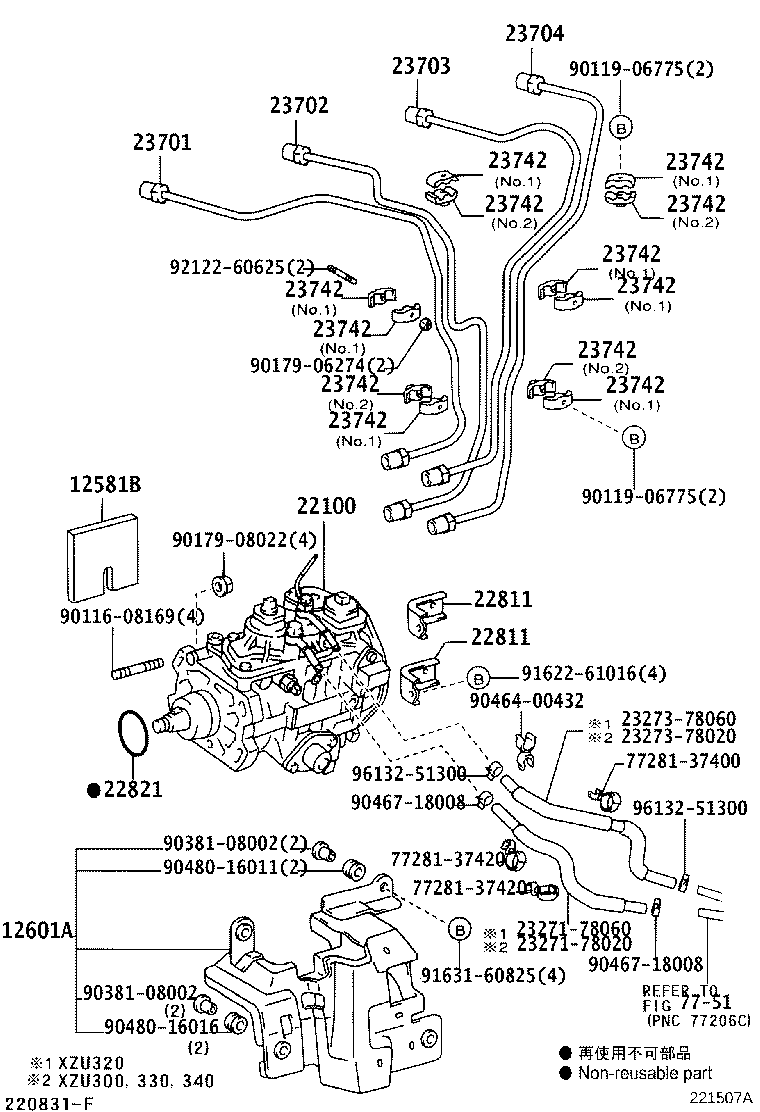

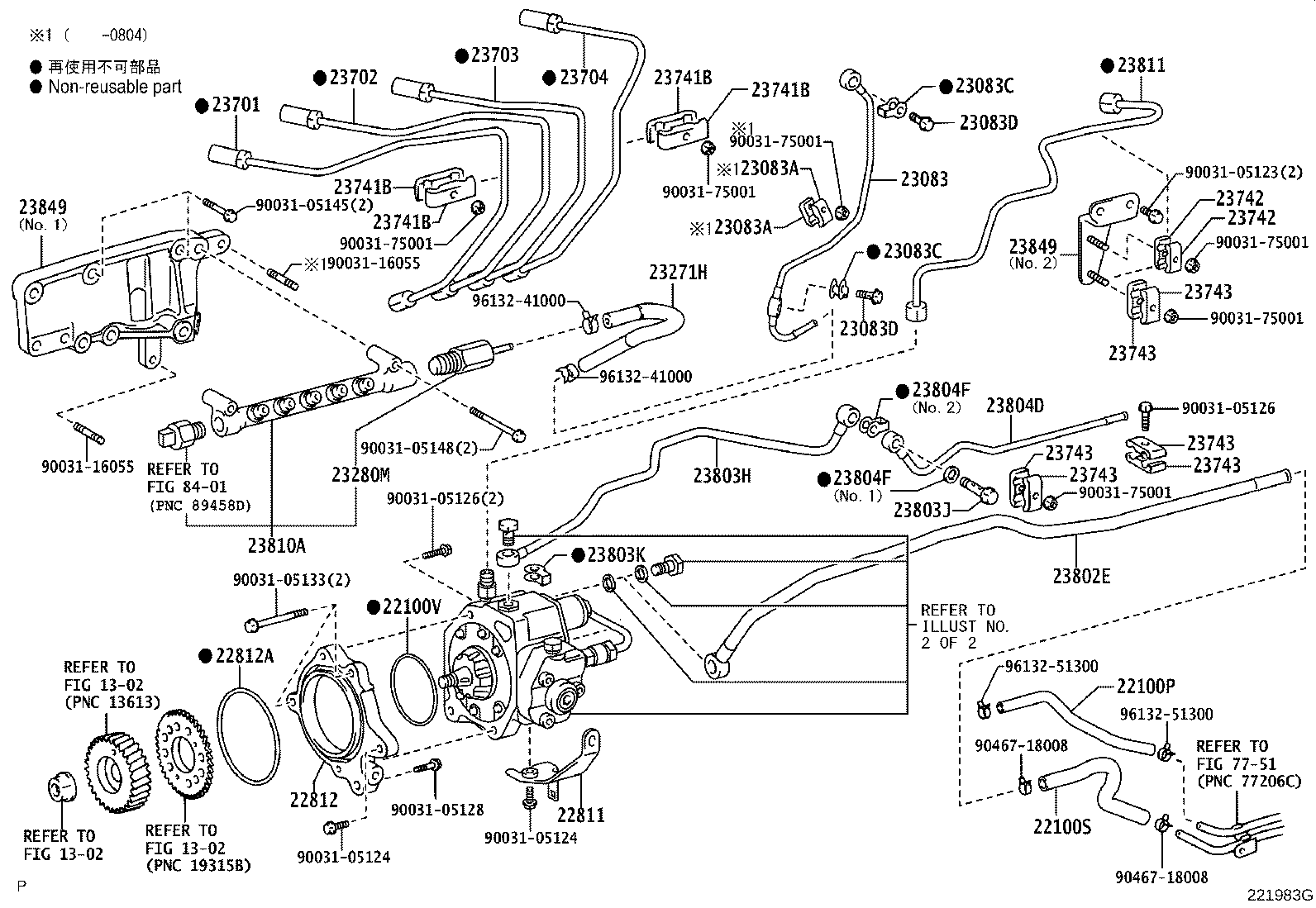

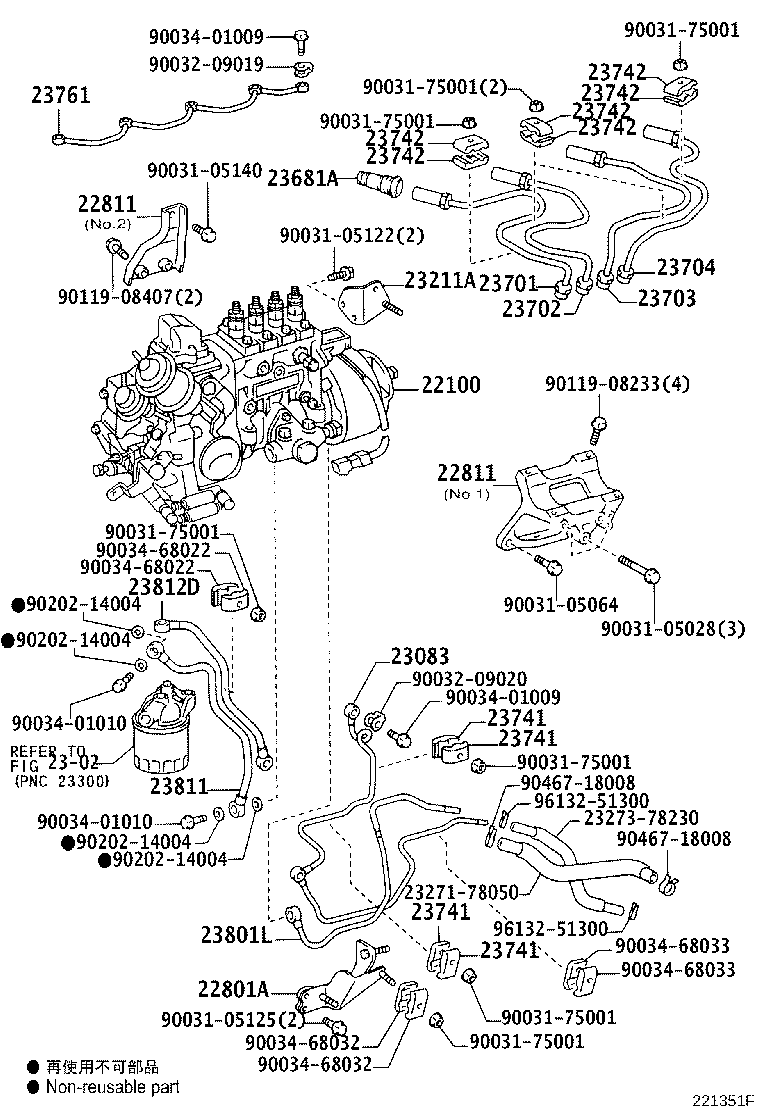

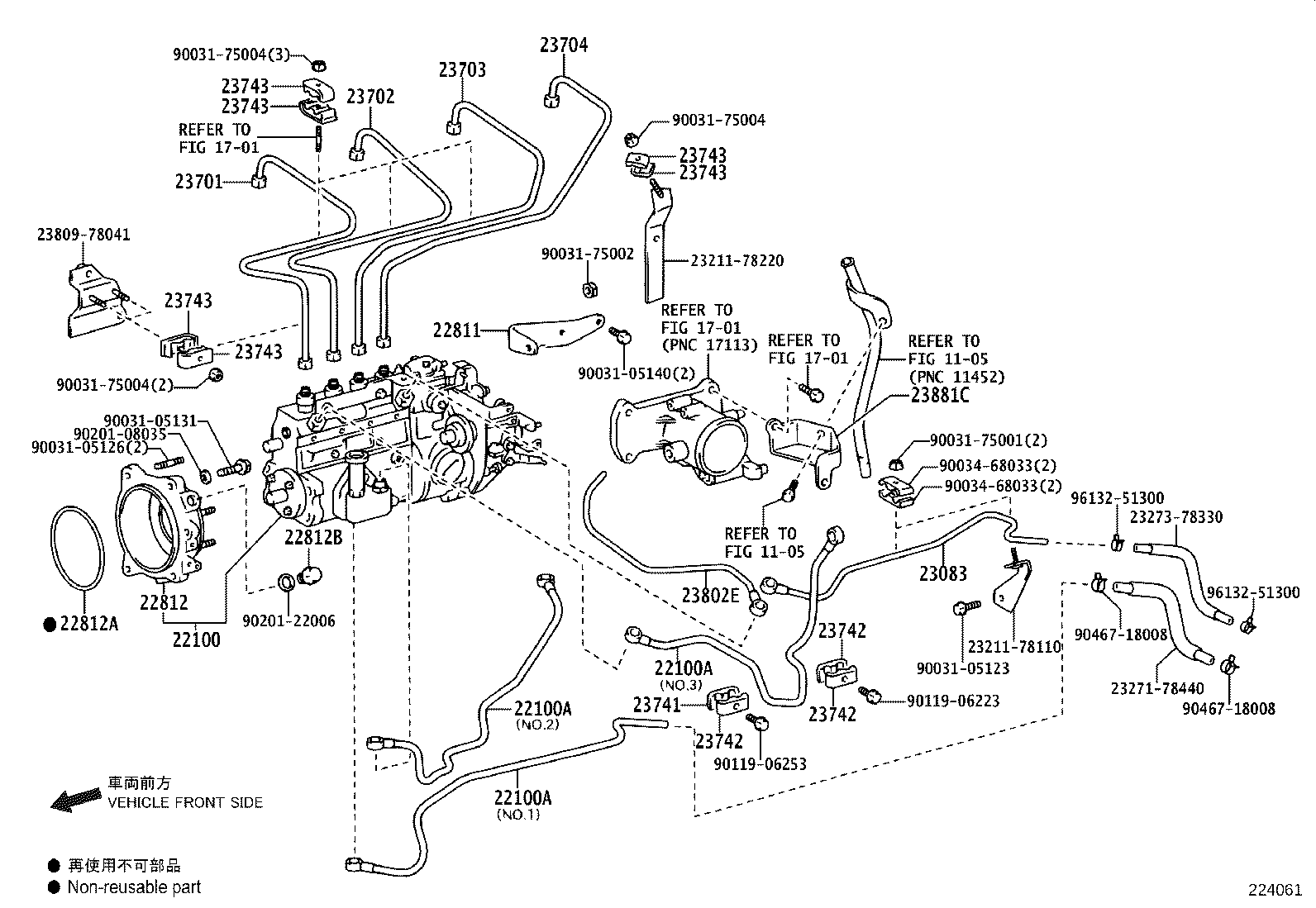

Figure 221355C 221355C 2002-09 → — Figure 221430B 221430B 2002-12 → — Figure 221416O 221416O 2002-12 → 2008-02 Figure 222244B 222244B 2002-09 → 2006-12 Figure 224061 224061 2006-10 → — Figure 224062 224062 2006-10 → — Figure 224063 224063 2006-12 → — Figure 224064 224064 2009-12 → — Figure 221351F 221351F 2002-09 → 2006-12 Figure 221507A 221507A 2002-12 → 2006-10 Figure 222072C 222072C 2003-12 → 2006-10 Figure 221983G 221983G 2006-10 → — Figure 222989B 222989B 2006-10 → — Figure 224137 224137 2022-03 → — Figure 224138 224138 2022-03 → —

Part groups

PNCDescription

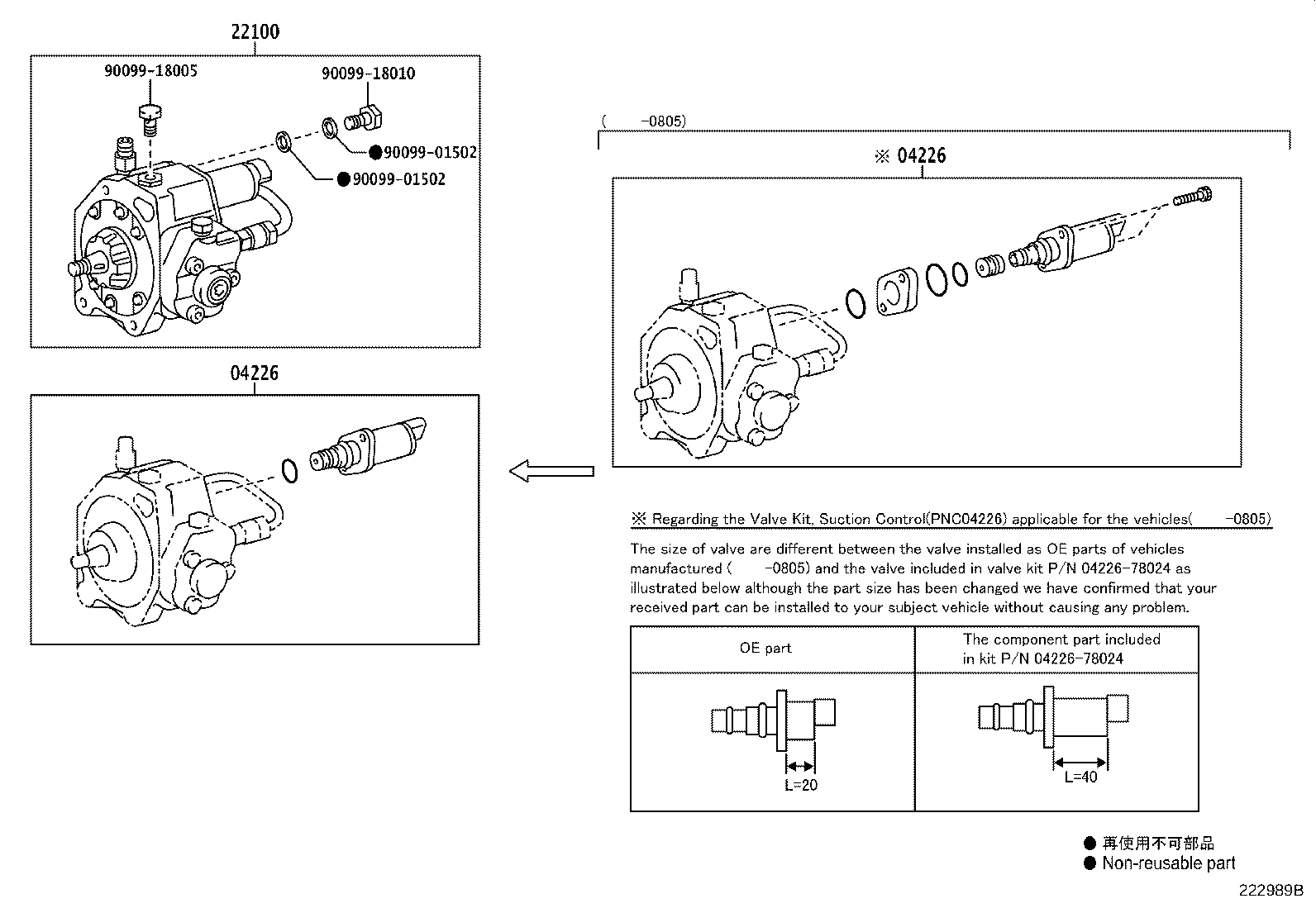

04226 Valve Kit, Suction Control
12581B Insulator, Cylinder Block, NO.1
12582B Insulator, Cylinder Block, NO.2
12583B Insulator, Cylinder Block, NO.3
12601A Insulator, Cylinder Block
22100 Pump Assy, Injection OR Supply
22100A Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
22100P Hose, Fuel(FOR FUEL PIPE TO FUEL TUBE)
22100S Hose, Fuel(FOR INJECTION PUMP TO FUEL PIPE)
22100U Clip, Hose Fuel(FOR INJECTION PUMP)
22100V Ring, O(FOR INJECTION PUMP)
22295 Bracket, Injection Pump Connector
22633B Flange, Coupling
22801A Bracket Sub-assy, Injection Pump
22803 Cover Sub-assy, Fuel Injection Pump
22811 Stay, Injection Pump, NO.1
22811D Stay, Injection Pump, NO.2
22812 Retainer, Injection Pump
22812A Ring, O
22812B Plug, W/Head Straight Screw(FOR INJECTION PUMP RETAINER)
22821 Gasket, Injection Pump
23083 Pipe Sub-assy, Nozzle Leakage, NO.3
23083A Clamp, Nozzle Leakage
23083C Gasket(NOZZLE LEKAGE PIPE NO.3)
23083D Bolt, Union(FOR NOZZLE LEKAGE PIPE NO.3)
23211A Bracket(FOR INJECTION PIPE NO.3)
23271H Hose, Fuel, NO.1
23271M Hose, Fuel
23271N Clip, Hose
23271W Clip(FOR FUEL HOSE NO.1)
23273H Hose, Fuel, NO.2
23273V Clip(FOR FUEL HOSE NO.2)
23280M Limitter Assy, Fuel Pressure
23681A Seal, Nozzle Holder
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23741 Clamp, Injection Pipe, NO.1
23741B Clamp, Injection Pipe
23742 Clamp, Injection Pipe, NO.2
23743 Clamp, Injection Pipe, NO.3
23761 Pipe, Nozzle Leakage, NO.1
23801L Pipe Sub-assy, Fuel(FOR FUEL FILTER TO INJECTION PUMP)
23801N Gasket
23802E Pipe Sub-assy, Fuel
23803H Pipe Sub-assy, Fuel Return
23803J Bolt, Union(FOR FUEL RETURN PIPE)
23803K Gasket(FOR FUEL RETURN PIPE)
23804D Pipe Sub-assy, Fuel, NO.4
23804F Gasket(FOR FUEL PIPE NO.4)
23809L Support Sub-assy, Fuel Pipe
23810A Rail Assy, Common
23811 Pipe, Fuel(FOR FUEL FILTER TO INJECTION PUMP)
23811G Pipe, Fuel, NO.1
23811J Bolt, Union
23812D Pipe, Fuel, NO.2
23815D Pipe, Fuel, NO.3
23841H Clamp, Fuel Hose
23849 Support, Fuel
23849G Support, Fuel Pipe
23849H Support, Fuel Pipe
23881C Bracket, Fuel Hose
58193C Bracket, Fuel Pipe
