Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 12 illustrations

Illustrations

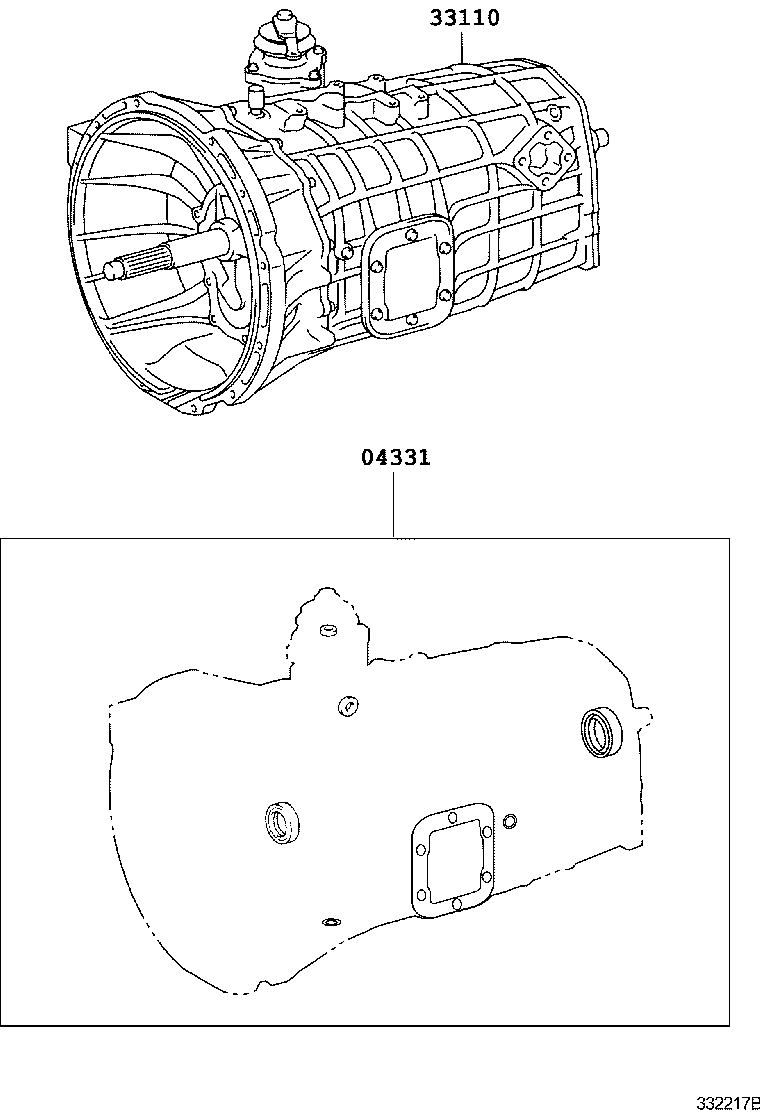

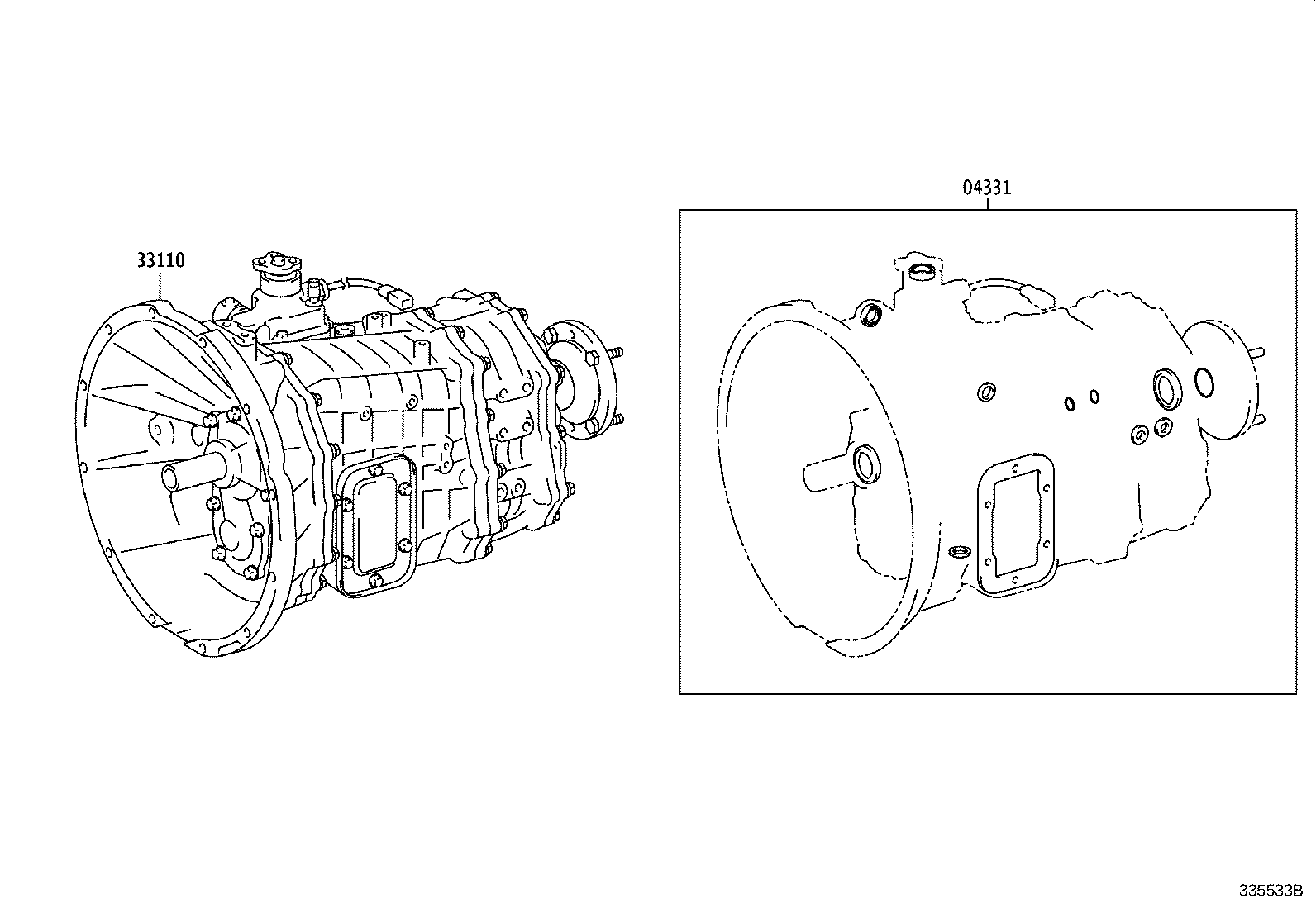

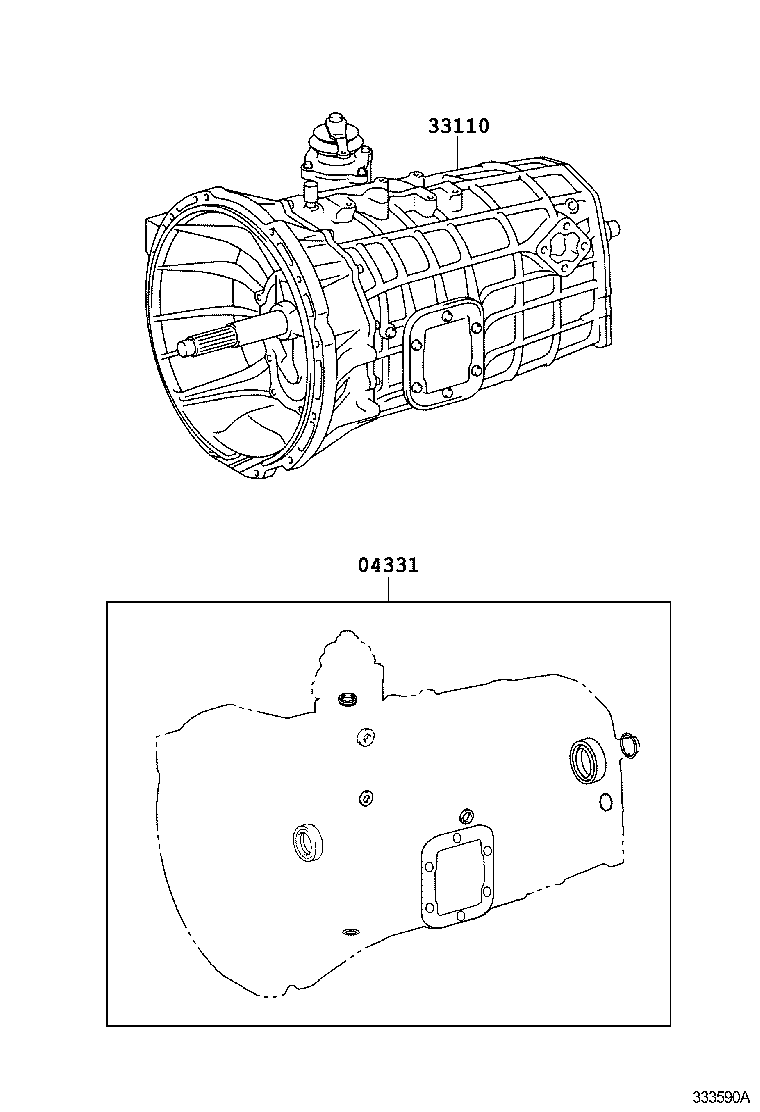

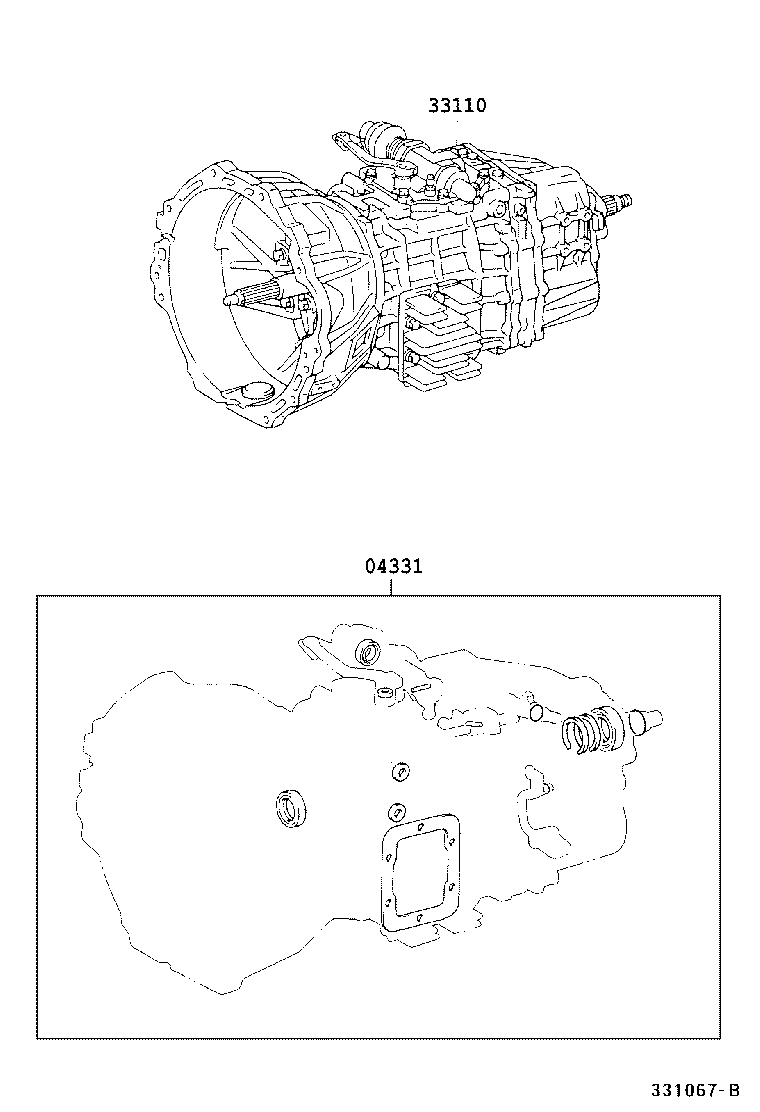

Figure 331887 331887 2002-09 → 2004-04 Figure 331897 331897 2002-09 → 2006-10 Figure 331897 331897 2006-10 → 2006-12 Figure 331897 331897 2006-12 → 2007-12 Figure 331067B 331067B 2002-12 → 2006-10 Figure 332217B 332217B 2003-12 → 2006-10 Figure 332268 332268 2004-04 → 2006-12 Figure 333031A 333031A 2006-10 → — Figure 333031A 333031A 2008-02 → — Figure 333590A 333590A 2006-10 → — Figure 333033 333033 2006-10 → — Figure 335533B 335533B 2017-08 → —

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33110 Transmission Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
