Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speedometer Driven Gear (MTM)

8 part groups · 11 illustrations

Illustrations

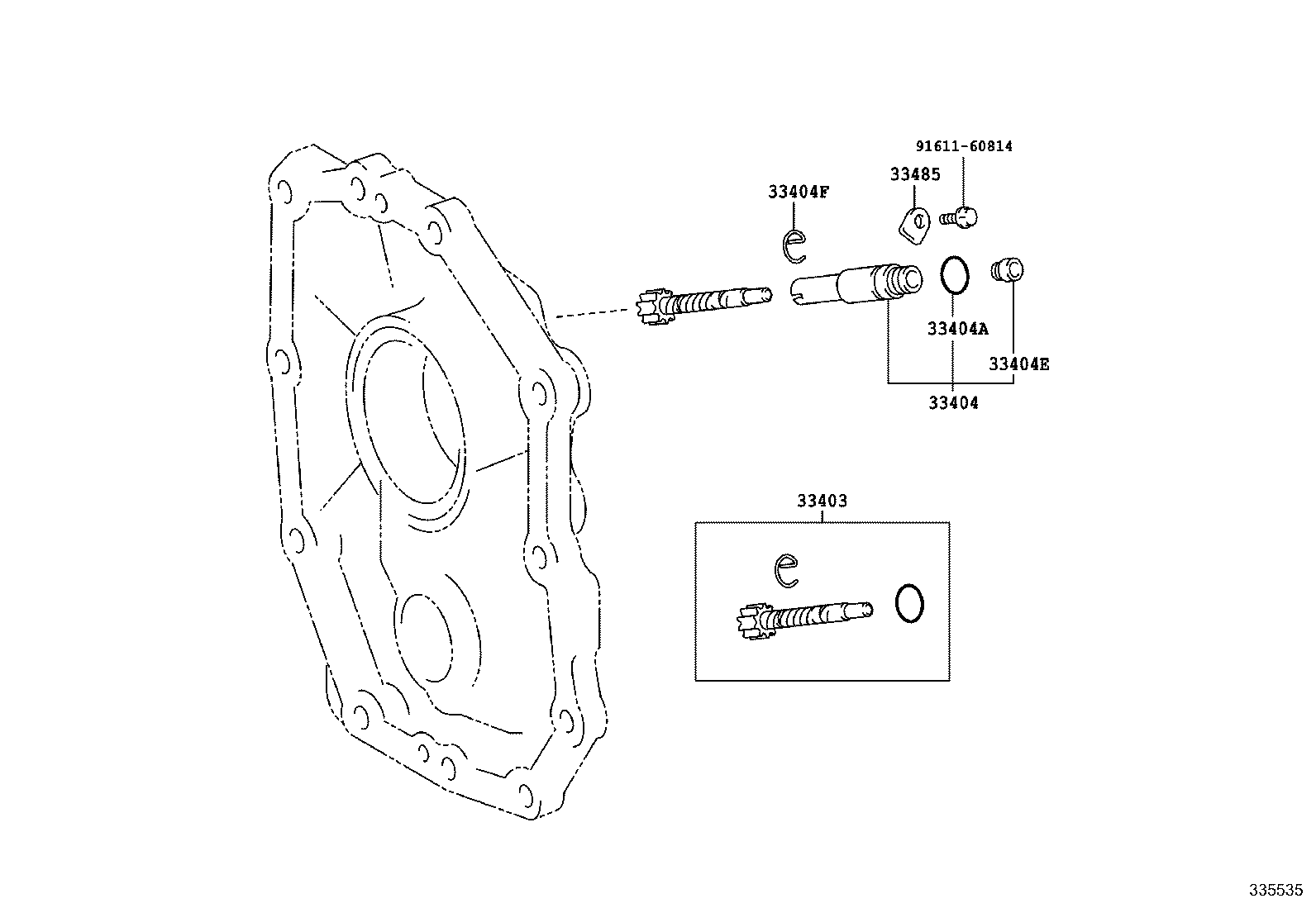

Figure 332267B 332267B 2002-09 → 2004-04 Figure 331038C 331038C 2002-09 → 2006-10 Figure 331038C 331038C 2006-10 → 2006-12 Figure 331038C 331038C 2006-12 → 2007-12 Figure 332246D 332246D 2003-12 → 2006-10 Figure 332178E 332178E 2004-04 → 2006-12 Figure 333040A 333040A 2006-10 → — Figure 333040A 333040A 2008-02 → — Figure 333041G 333041G 2006-10 → — Figure 333042A 333042A 2006-10 → — Figure 335535 335535 2017-08 → —

Part groups

PNCDescription
33403 Gear Sub-assy, Speedometer Driven (MTM)
33403A Bush (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE)
33403C Ring, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)
33404 Sleeve Sub-assy, Speedometer Shaft (MTM)
33404A Ring, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33404E Seal, Oil (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33404F Clip (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33485 Plate, Speedometer Sleeve Lock (MTM)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
