Toyota Dyna
2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General
Discontinued model
Data version 2022-03

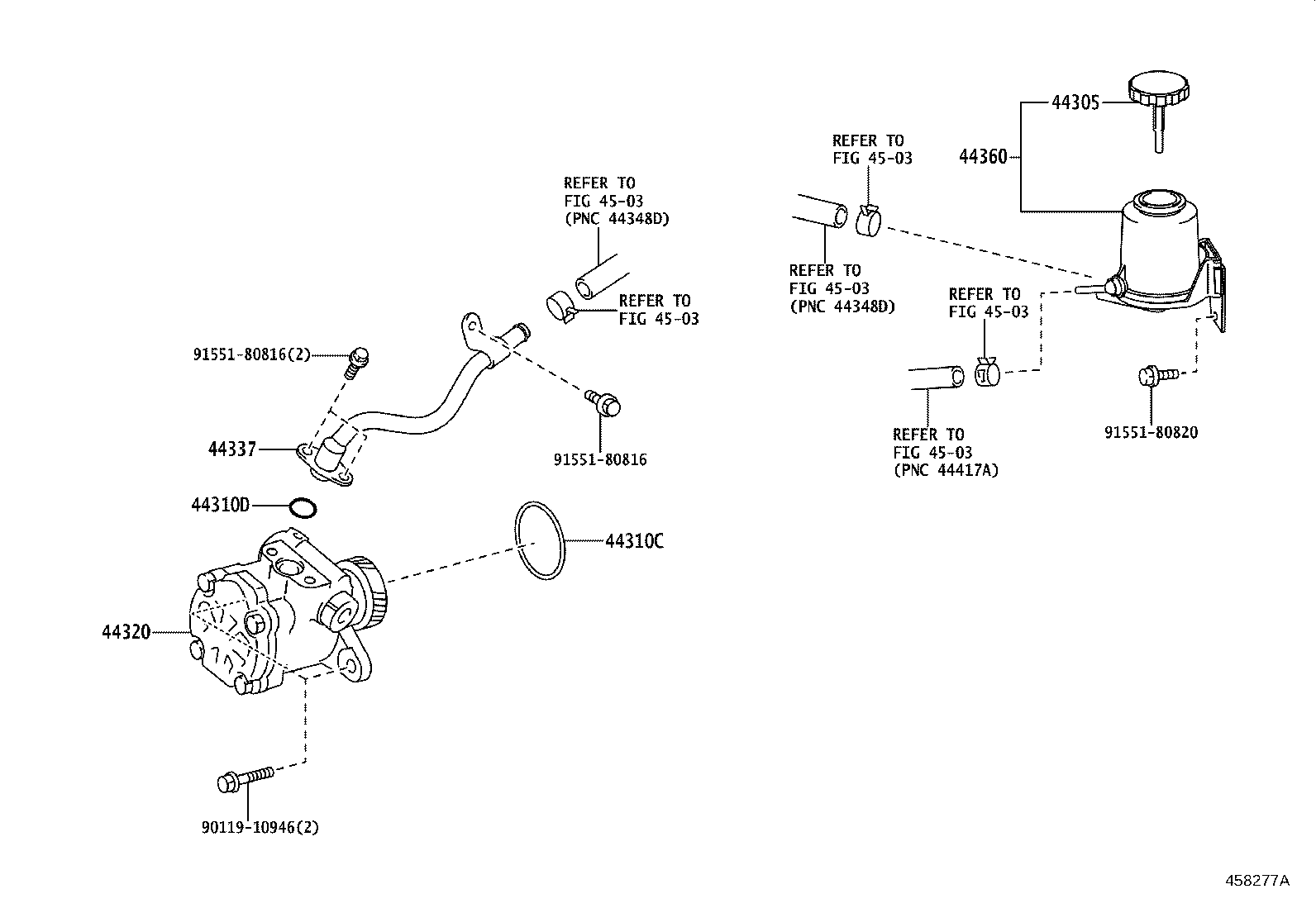

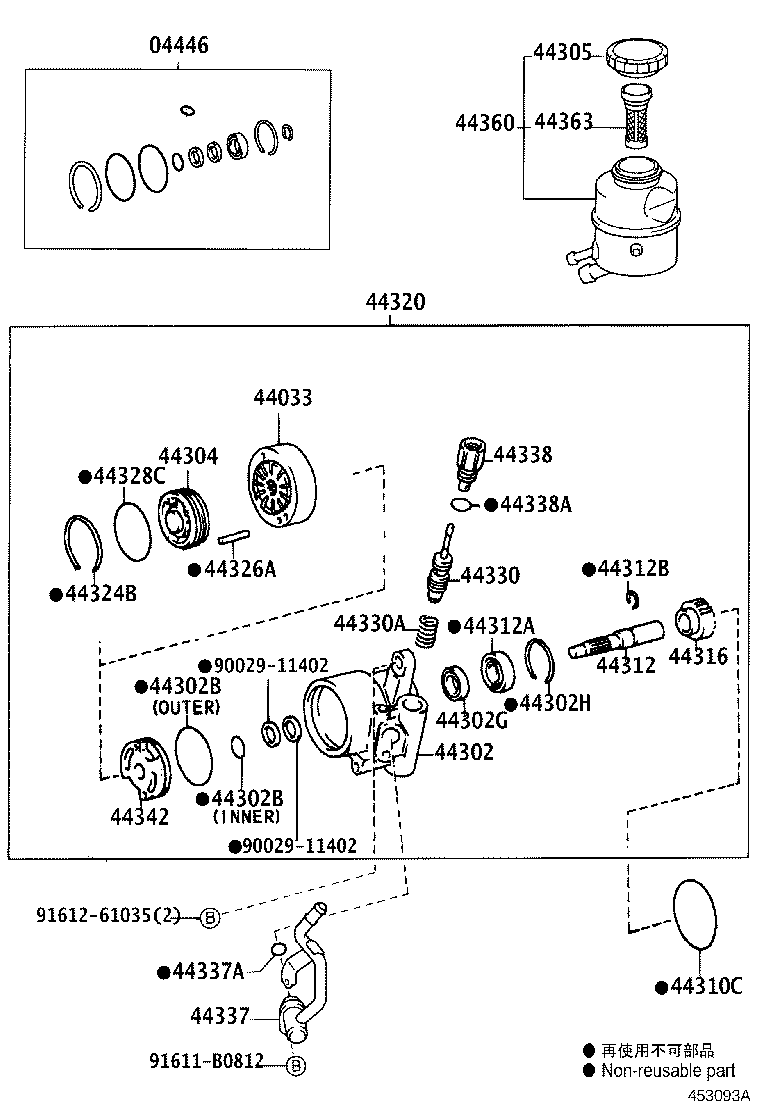

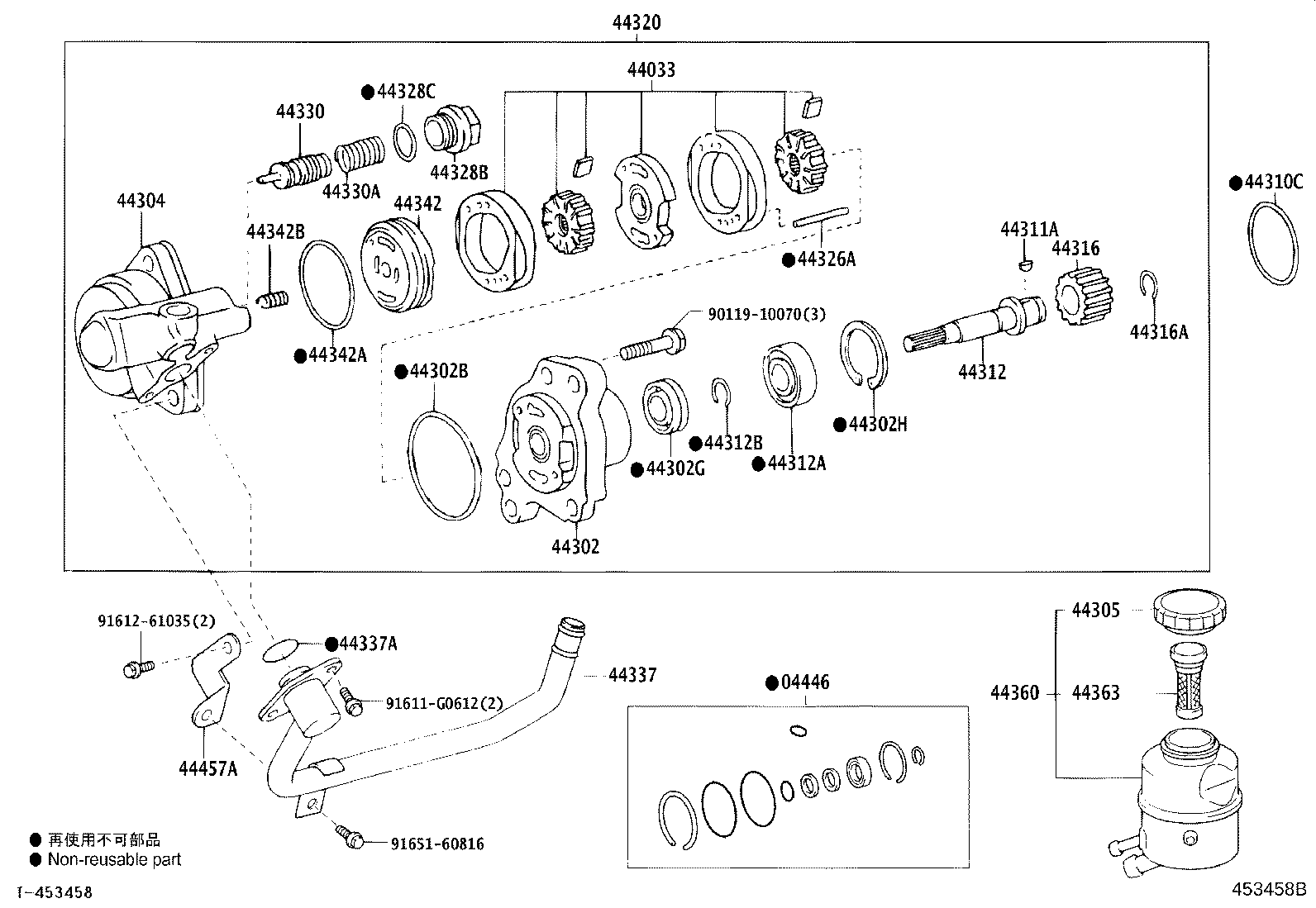

Vane Pump & Reservoir (POWER STEERING)
36 part groups · 11 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 04446 | Gasket Kit, Power Steering Pump |
| 44033 | Rotor Sub-assy, W/Cam & Vane |
| 44302 | Housing Sub-assy, Vane Pump, Front |
| 44302B | Ring, O, NO.1(FOR VANE PUMP HOUSING) |
| 44302G | Seal, Oil, NO.2(FOR VANE PUMP HOUSING) |
| 44302H | Ring, Snap, NO.1(FOR VANE PUMP HOUSING) |
| 44304 | Housing Sub-assy, Vane Pump, Rear |
| 44305 | Cap Sub-assy, Vane Pump Oil Reservoir |
| 44310 | Pump Assy, Vane |
| 44310C | Ring, O(FOR VANE PUMP) |
| 44310D | Ring, O(FOR VANE PUMP UNION) |
| 44311A | Key, Vane Pump Pulley |
| 44312 | Shaft, Vane Pump |
| 44312A | Bearing(FOR VANE PUMP SHAFT) |
| 44312B | Ring, Snap, NO.1(FOR VANE PUMP SHAFT) |
| 44316 | Gear, Vane Pump |
| 44316A | Ring |
| 44320 | Pump Assy, Vane |
| 44324B | Ring, Hole Snap(FOR PUMP HOUSING REAR) |
| 44326A | Pin, Straight(FOR VANE PUMP CAM RING) |
| 44328B | End, Vane Pump Housing |
| 44328C | Ring, O(FOR PUMP HOUSING END) |
| 44330 | Valve Assy, Flow Control |
| 44330A | Spring, Compression(FOR FLOW CONTROL VALVE) |
| 44335A | Orifice, Flow Control Valve |
| 44337 | Union, Power Steering Suction Port |
| 44337A | Ring, O(FOR POWER STEERING SUCTION PORT) |
| 44337C | Ring, O(FOR SUSPENSION CONTROL SUCTION PORT UNION) |
| 44338 | Union, Pressure Port |
| 44338A | Ring, O(FOR PRESSURE PORT UNION) |
| 44342 | Plate, Vane Pump Side, Rear |
| 44342A | Ring, O(FOR VANE PUMP SIDE PLATE REAR) |
| 44342B | Spring, Compression(FOR VANE PUMP SIDE PLATE REAR) |
| 44360 | Reservoir Assy, Vane Pump Oil |
| 44363 | Strainer, Oil(FOR VANE PUMP) |
| 44457A | Bracket, Tube Support, Vane Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
