Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

44 part groups · 22 illustrations

Illustrations

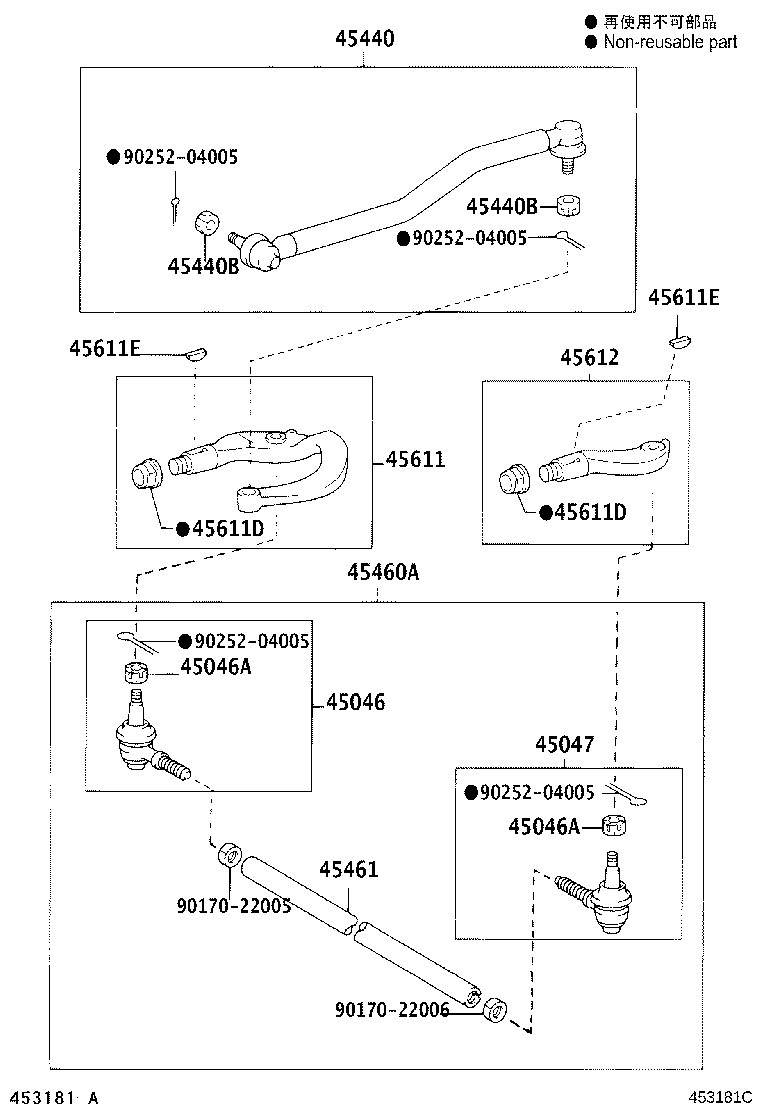

Figure 453187E 453187E 2002-09 → 2006-12 Figure 453187E 453187E 2003-04 → 2007-12 Figure 453651D 453651D 2002-12 → 2006-10 Figure 454277B 454277B 2002-09 → 2006-12 Figure 454278B 454278B 2002-12 → 2006-10 Figure 453179A 453179A 2002-09 → 2006-12 Figure 453179A 453179A 2003-04 → 2007-12 Figure 453652A 453652A 2002-12 → 2006-10 Figure 453181C 453181C 2002-09 → 2006-12 Figure 453181C 453181C 2006-12 → 2007-12 Figure 453461B 453461B 2002-12 → 2006-10 Figure 454685D 454685D 2006-10 → — Figure 454686C 454686C 2006-10 → — Figure 455533A 455533A 2006-10 → — Figure 455533A 455533A 2008-02 → — Figure 454688C 454688C 2006-10 → 2010-09 Figure 457110B 457110B 2010-09 → — Figure 458292 458292 2022-03 → — Figure 454689C 454689C 2006-10 → — Figure 454689C 454689C 2008-02 → — Figure 454690B 454690B 2006-10 → — Figure 458294 458294 2022-03 → —

Part groups

PNCDescription
44011 Piston Sub-assy, Power
44015 Shaft Sub-assy, Sector
44101 Worm Sub-assy, Steering
44101E Ring, O(FOR STEERING WORM)
44101L Seal, Dust(FOR POWER PISTON SUB-ASSY)
44107 Housing Sub-assy, Power Steering Gear
44107B Ring, O(FOR POWER STEERING GEAR HOUSING)
44107E Seal, Oil(FOR POWER STEERING GEAR HOUSING)
44107G Bolt, Stud(FOR POWER STEERING GEAR HOUSING)
44108C Cover Sub-assy, Sector
44108D Ring, O(FOR SECTOR COVER)
44108F Seal, Dust(FOR SECTOR COVER)

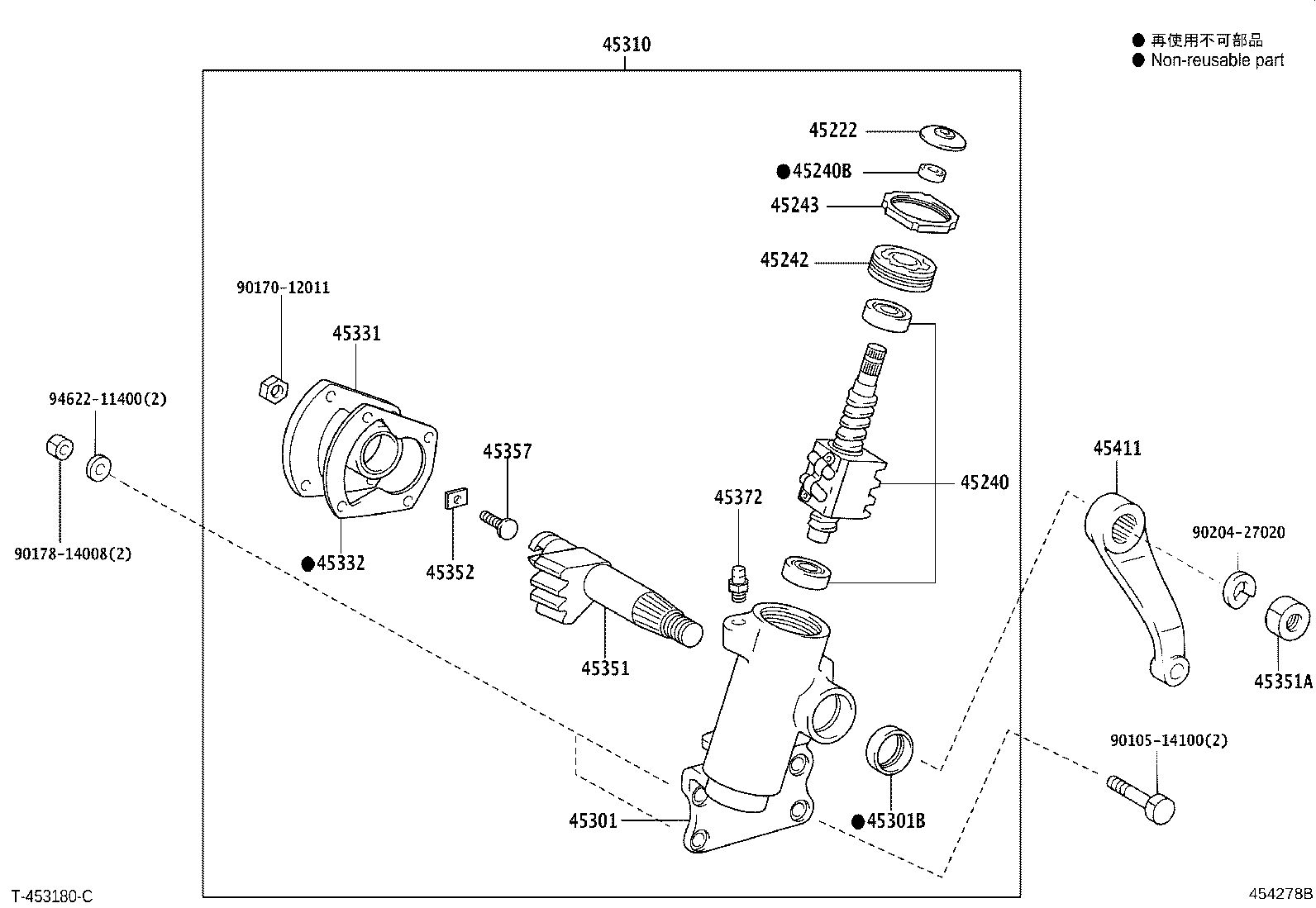

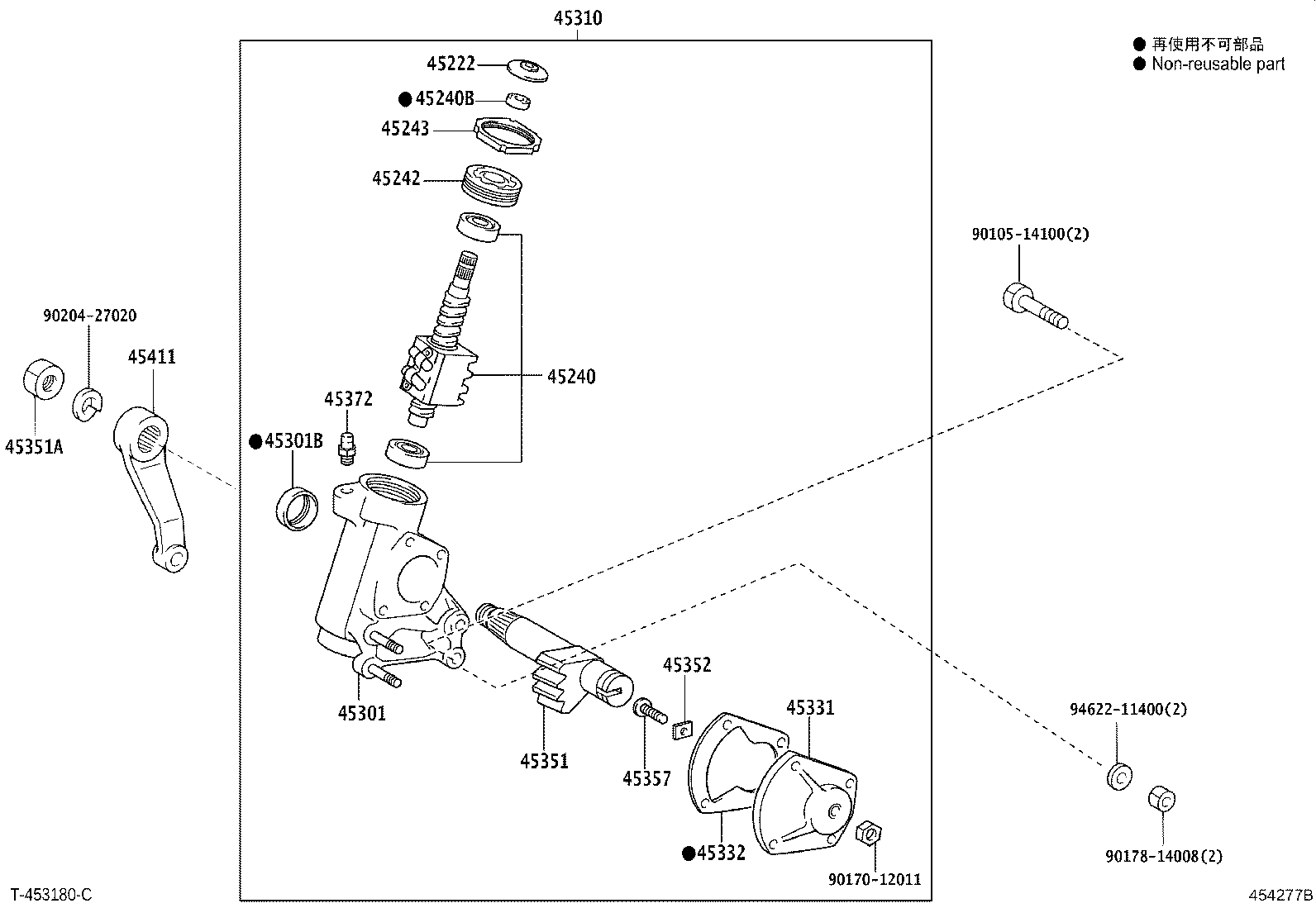

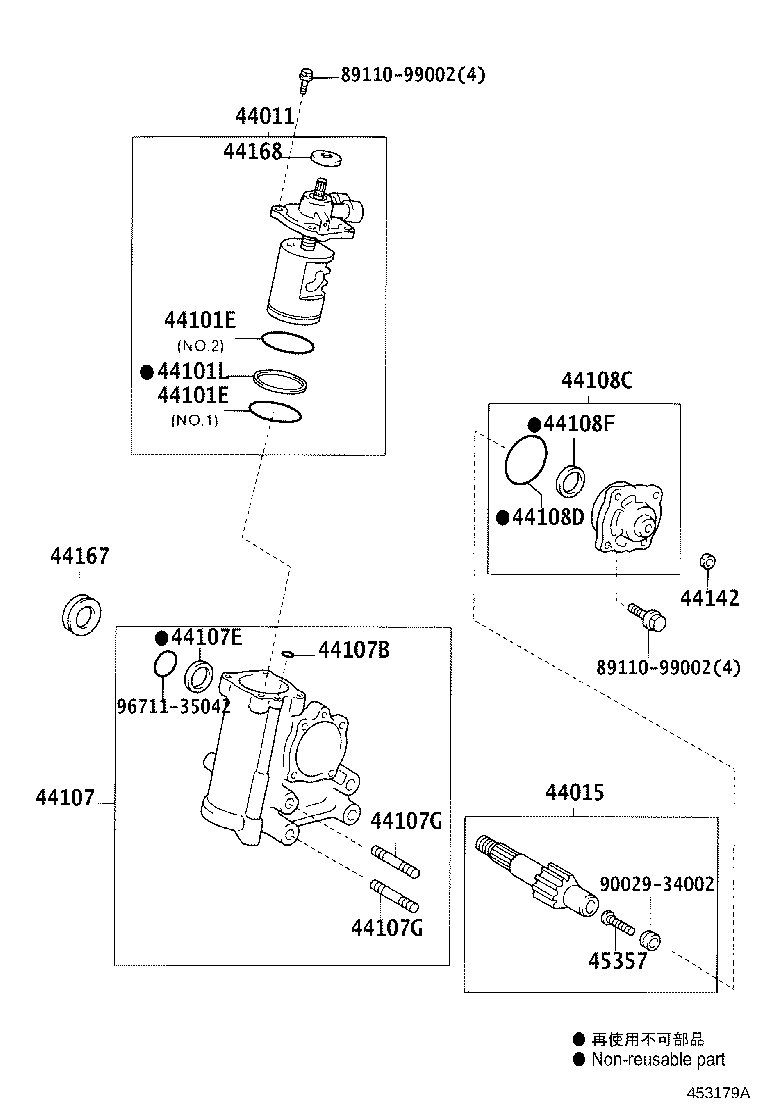

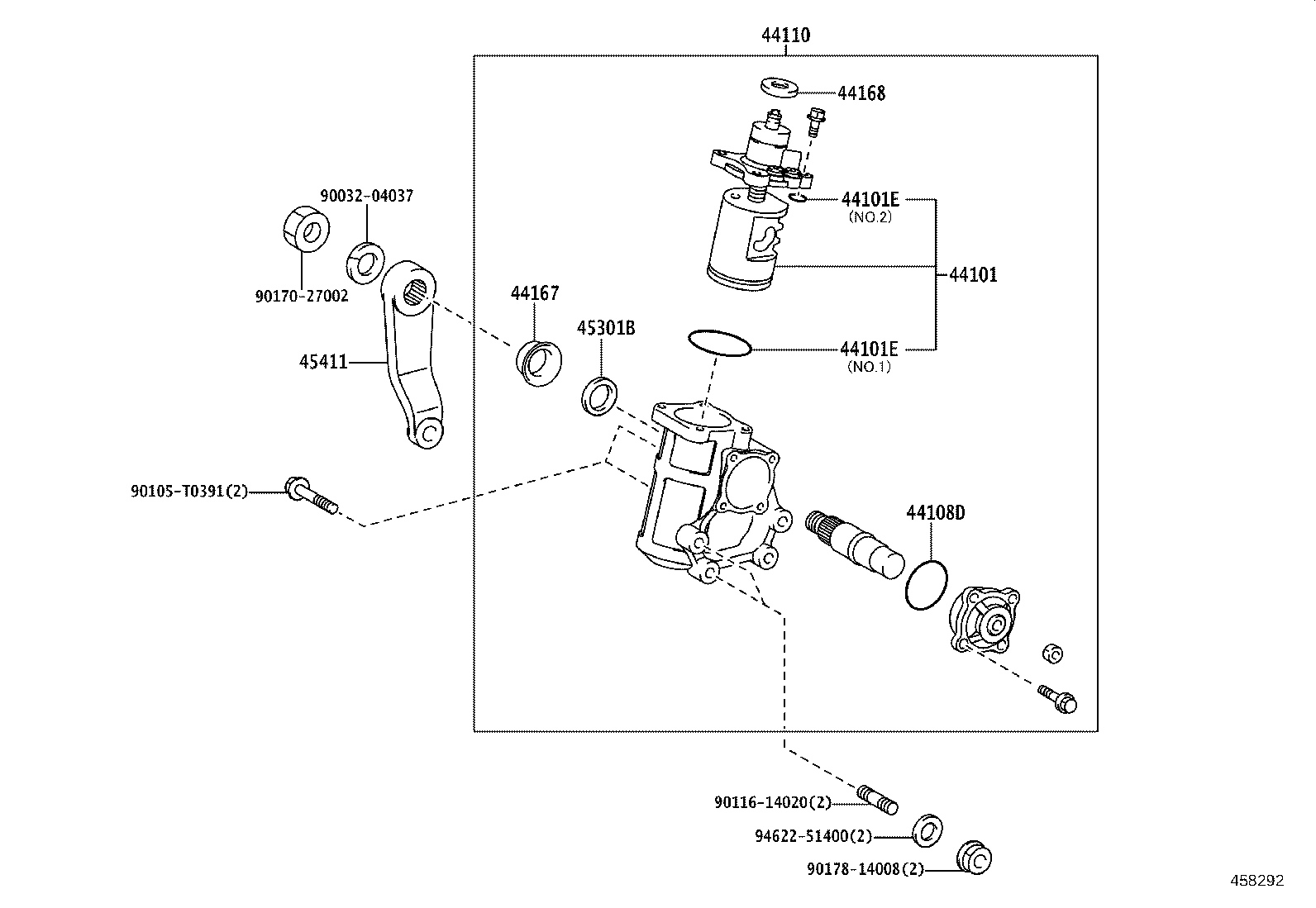

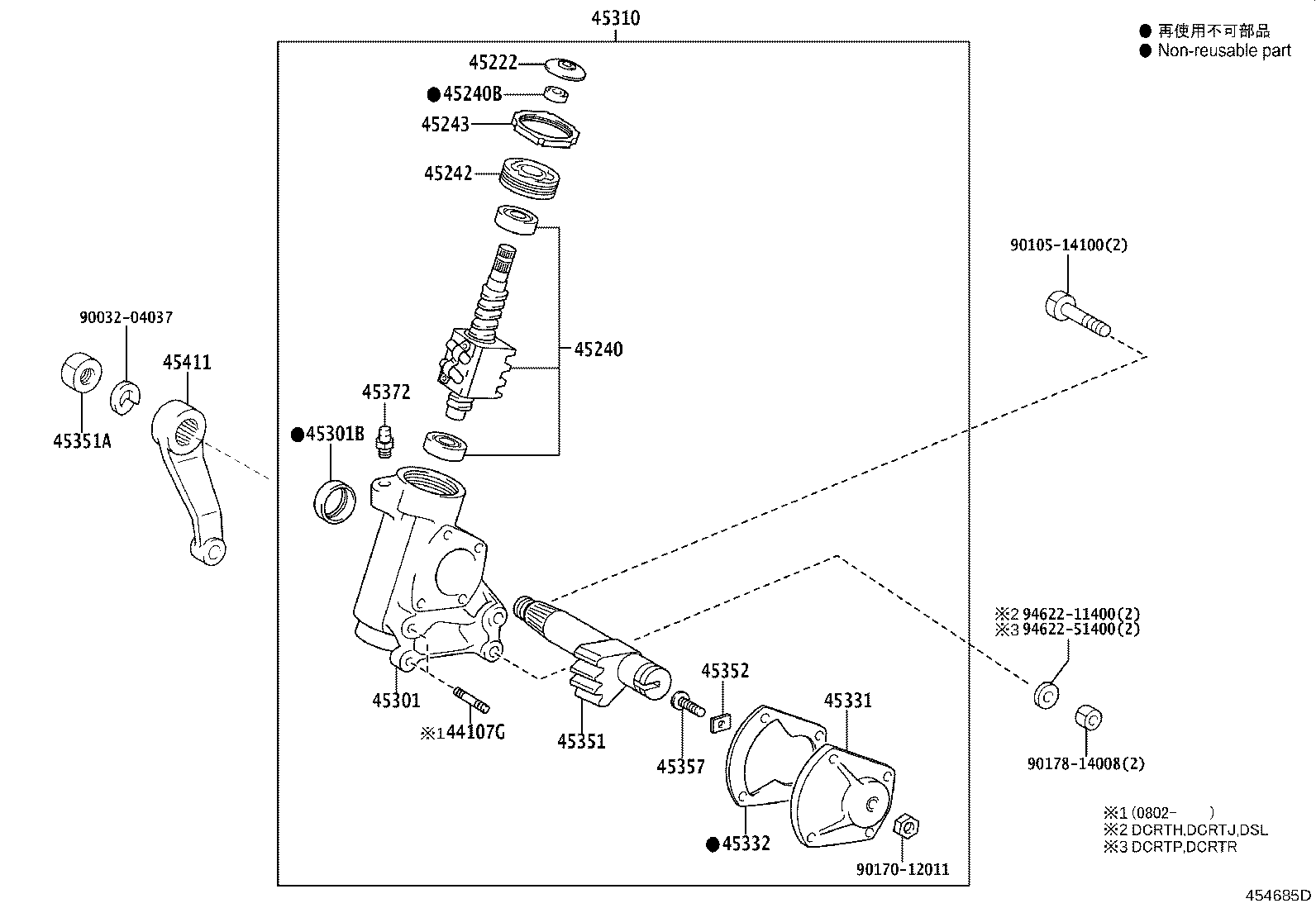

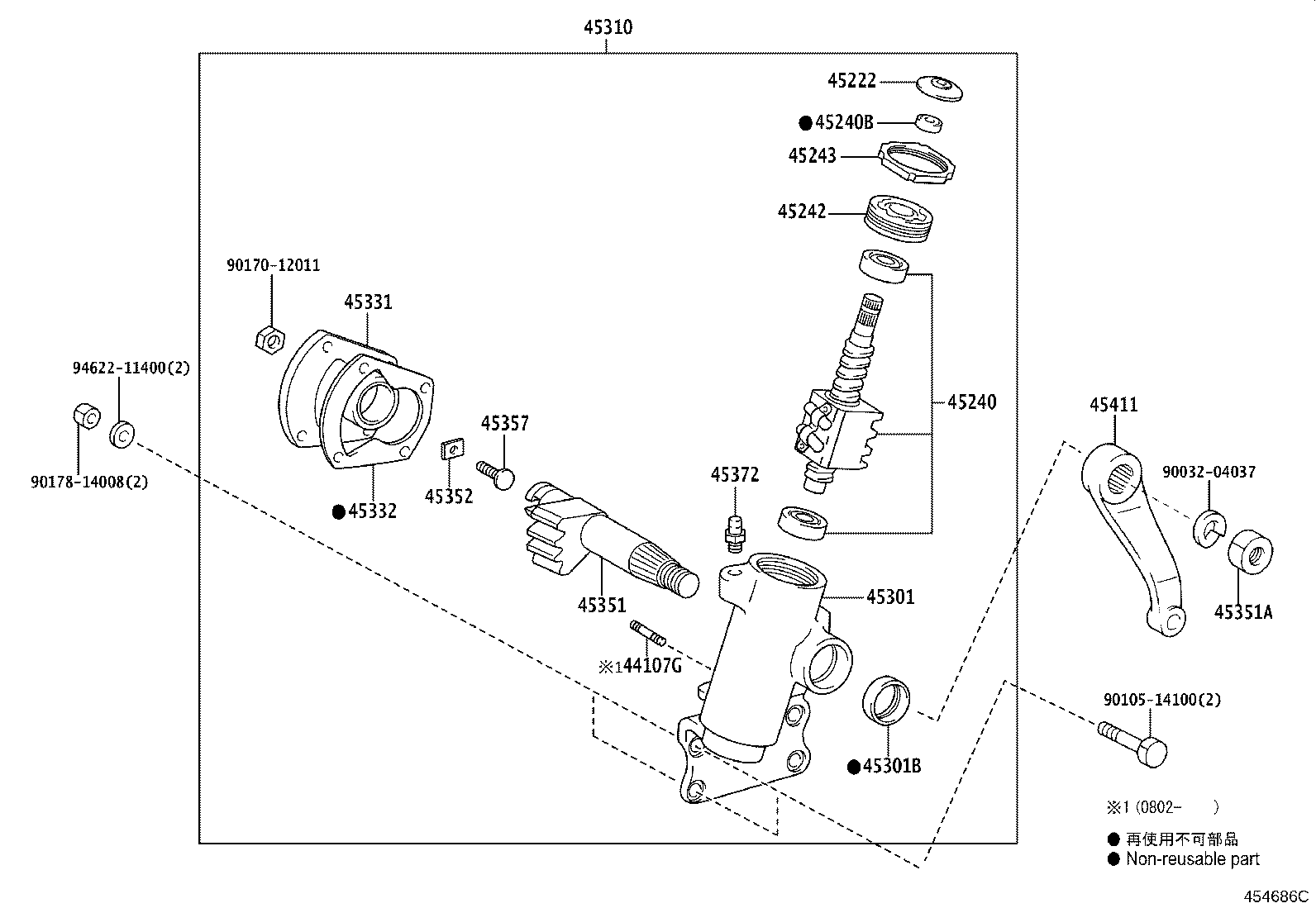

44110 Gear Assy, Power Steering
44142 Nut, Lock
44167 Cover, Sector Shaft Dust
44168 Cover, Worm Shaft Dust
45046 End Sub-assy, Tie Rod, RH
45046A Nut, Castle(FOR TIE ROD END)
45047 End Sub-assy, Tie Rod, LH
45222 Cover, Steering Gear Dust
45240 Worm Assy, Steering
45240B Seal, Oil(FOR STEERING WORM)
45242 Screw, Worm Bearing Adjusting
45243 Nut, Worm Bearing Adjusting Screw Lock
45301 Housing Sub-assy, Steering Gear
45301B Seal, Oil(FOR SECTOR SHAFT)
45310 Housing Assy, Steering Gear
45331 Cover, Sector Shaft End
45332 Gasket, Sector Shaft End Cover
45351 Shaft, Steering Sector
45351A Nut, Hexagon(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
45352 Washer, Sector Shaft Thrust
45357 Screw, Sector Shaft Adjusting
45372 Plug, Steering Gear Housing Oil
45411 Arm, Pitman

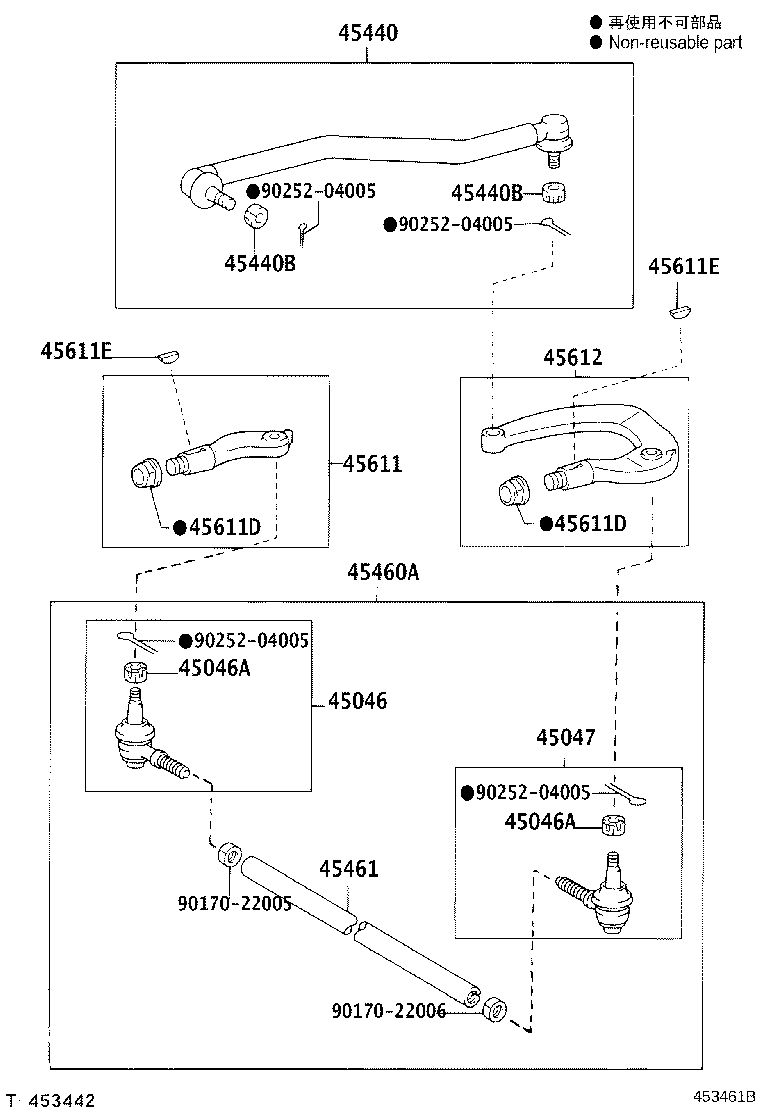

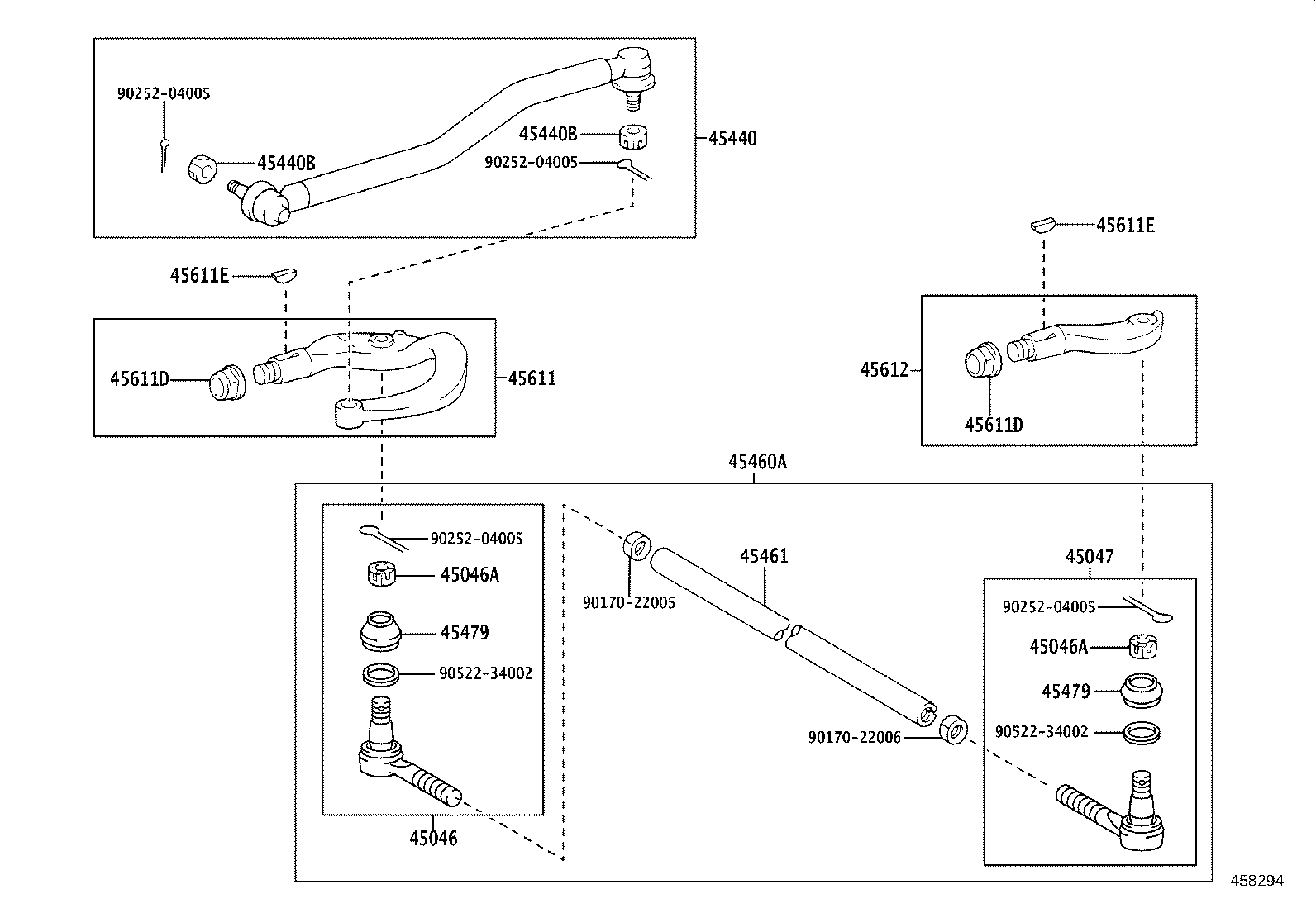

45440 Link Assy, Steering Drag
45440B Nut, Castle(FOR STEERING DRAG LINK)
45460A Rod Assy, Tie
45461 Rod, Steering Tie
45479 Seal, Steering Link Joint Dust
45611 Arm, Steering Knuckle, RH
45611D Nut(FOR STEERING KNUCKLE ARM)
45611E Key, Woodruff(FOR STEERING IDLER ARM)
45612 Arm, Steering Knuckle, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
