Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

35 part groups · 31 illustrations

Illustrations

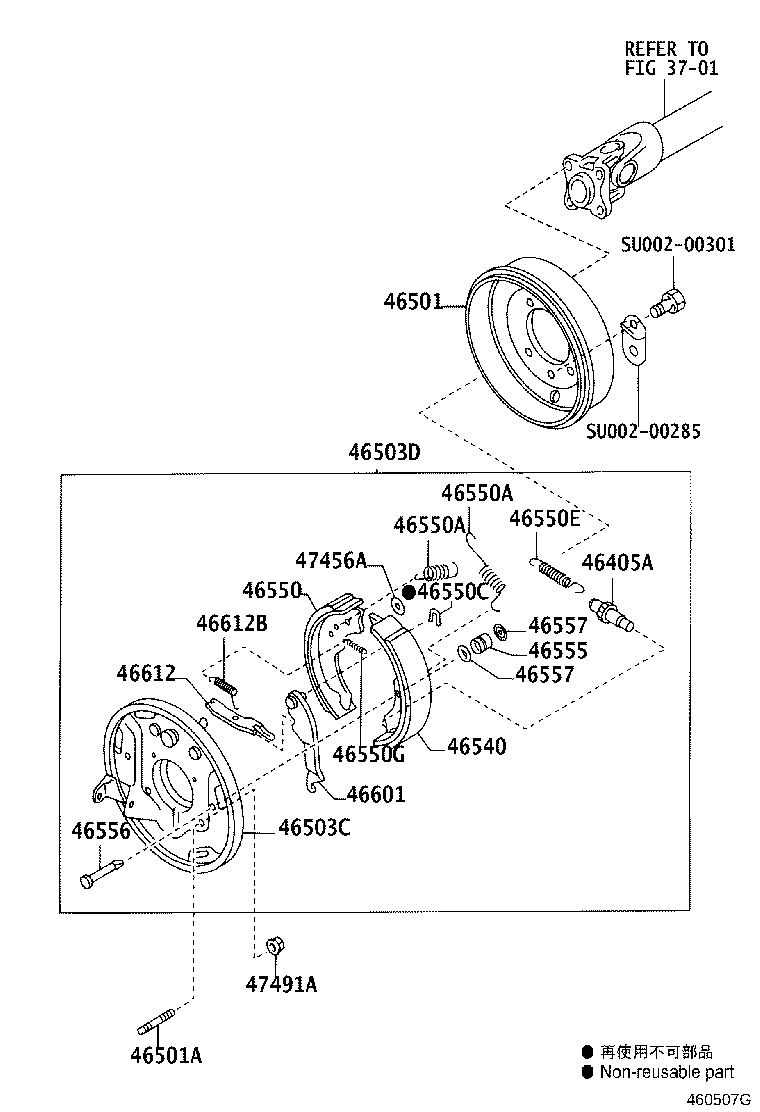

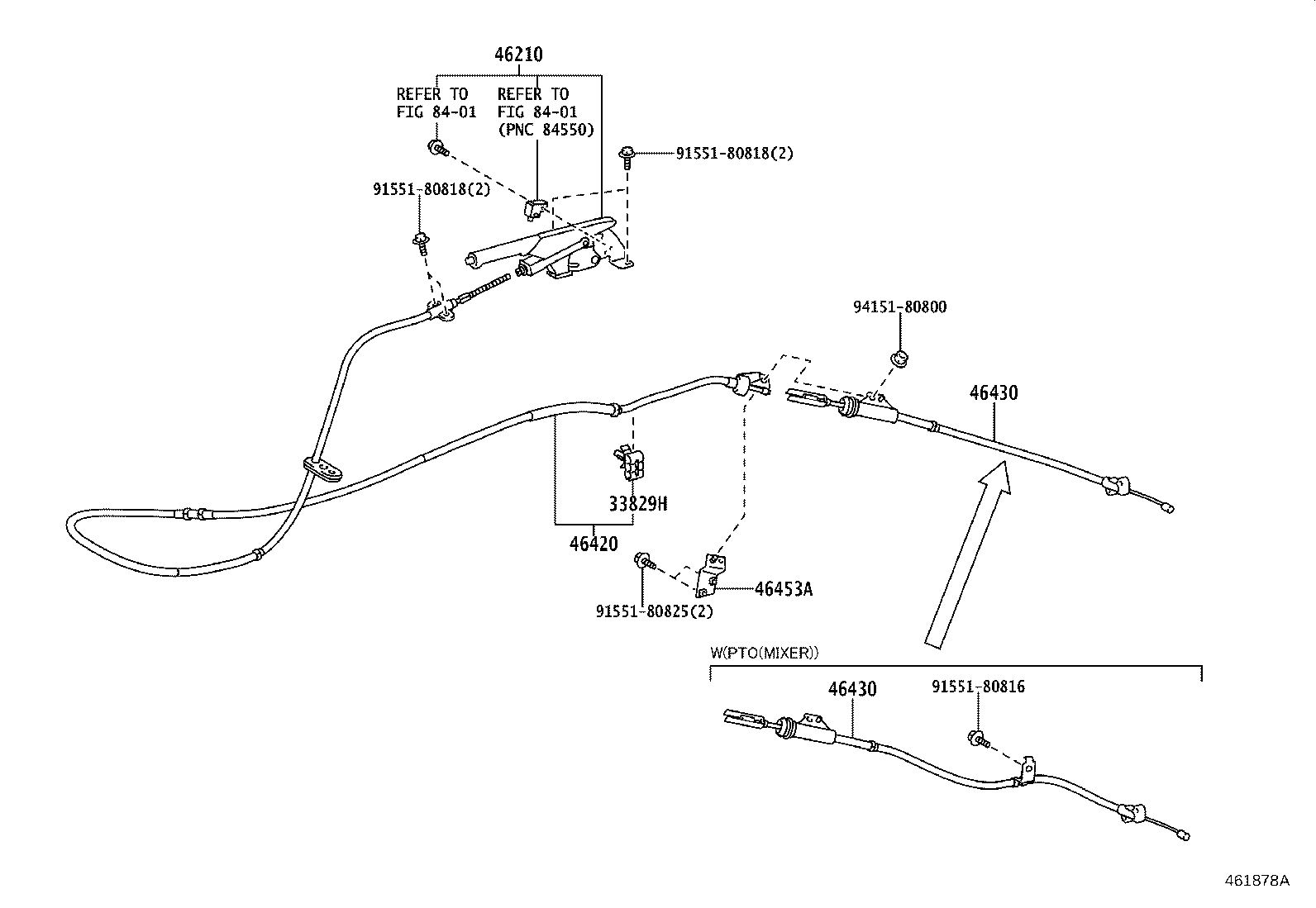

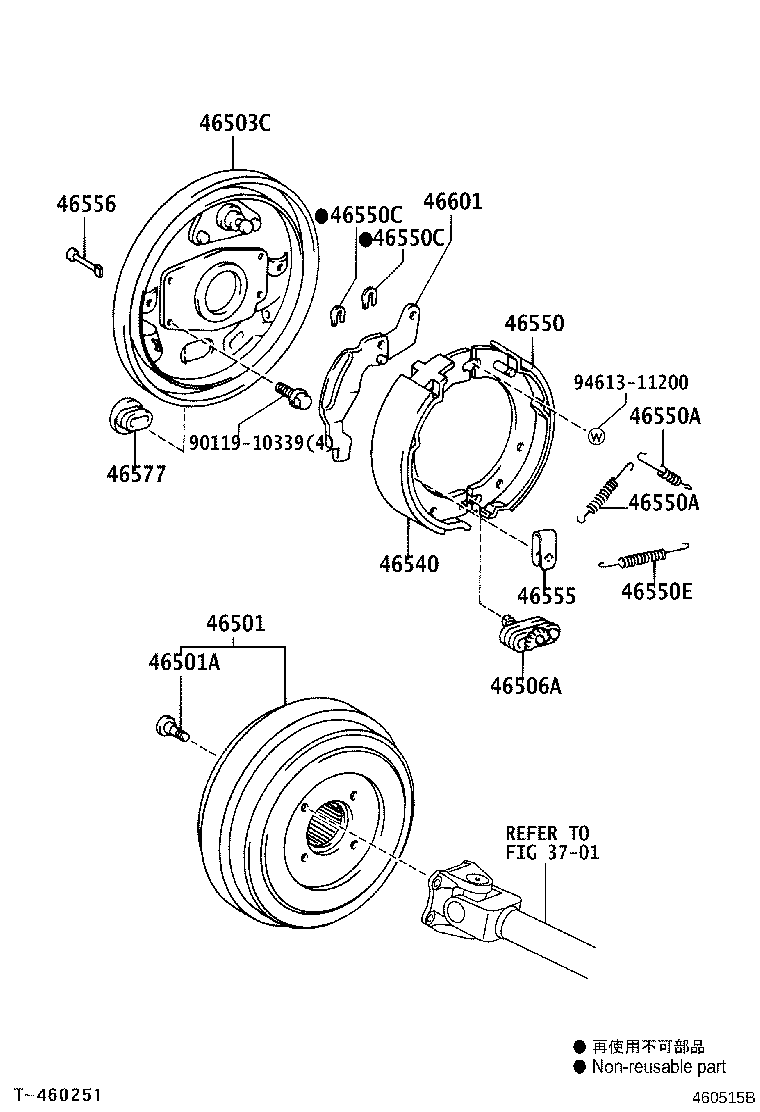

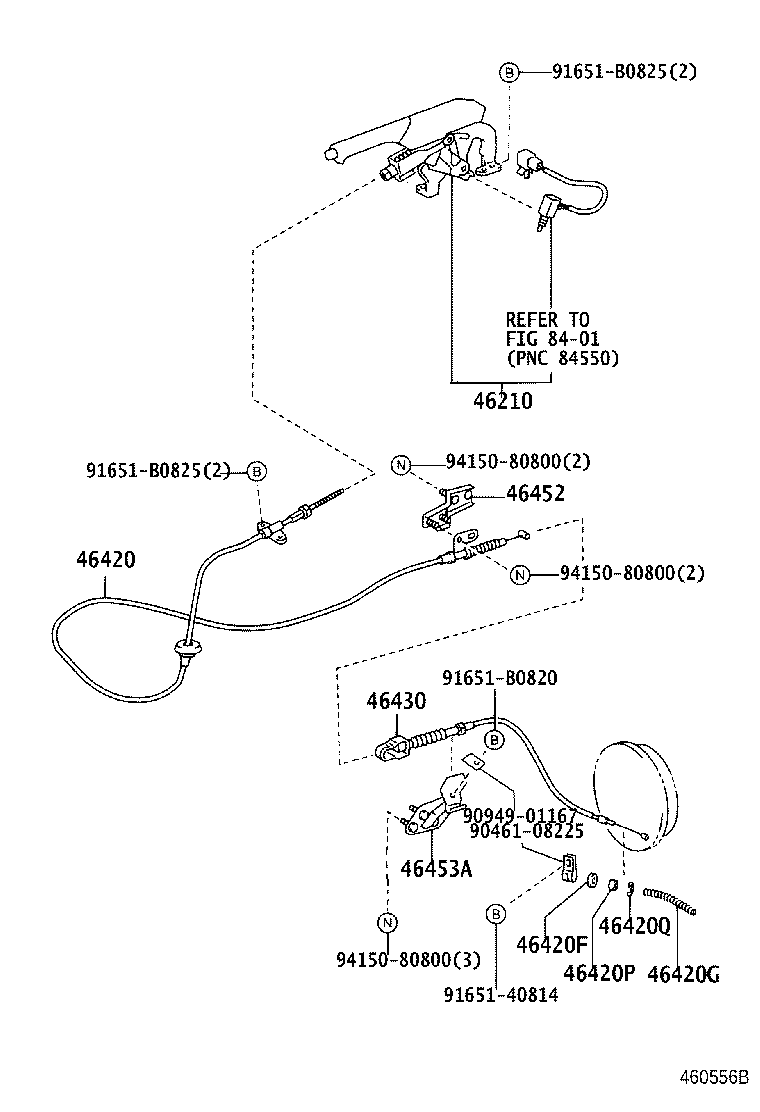

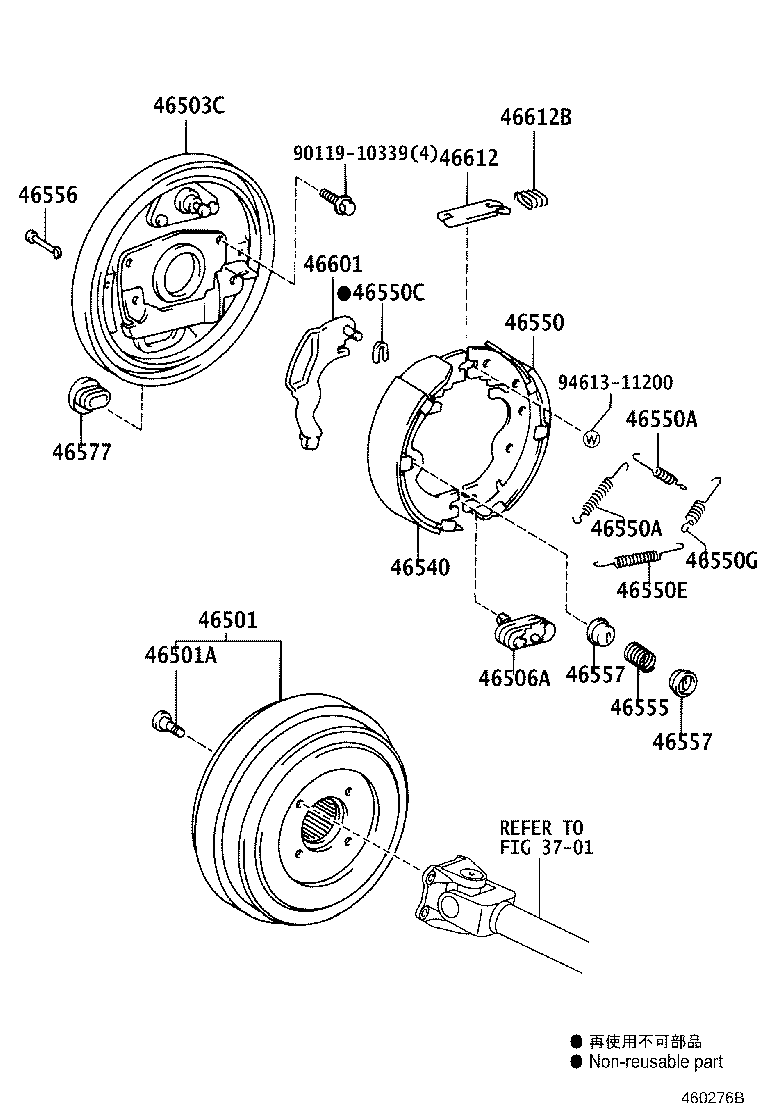

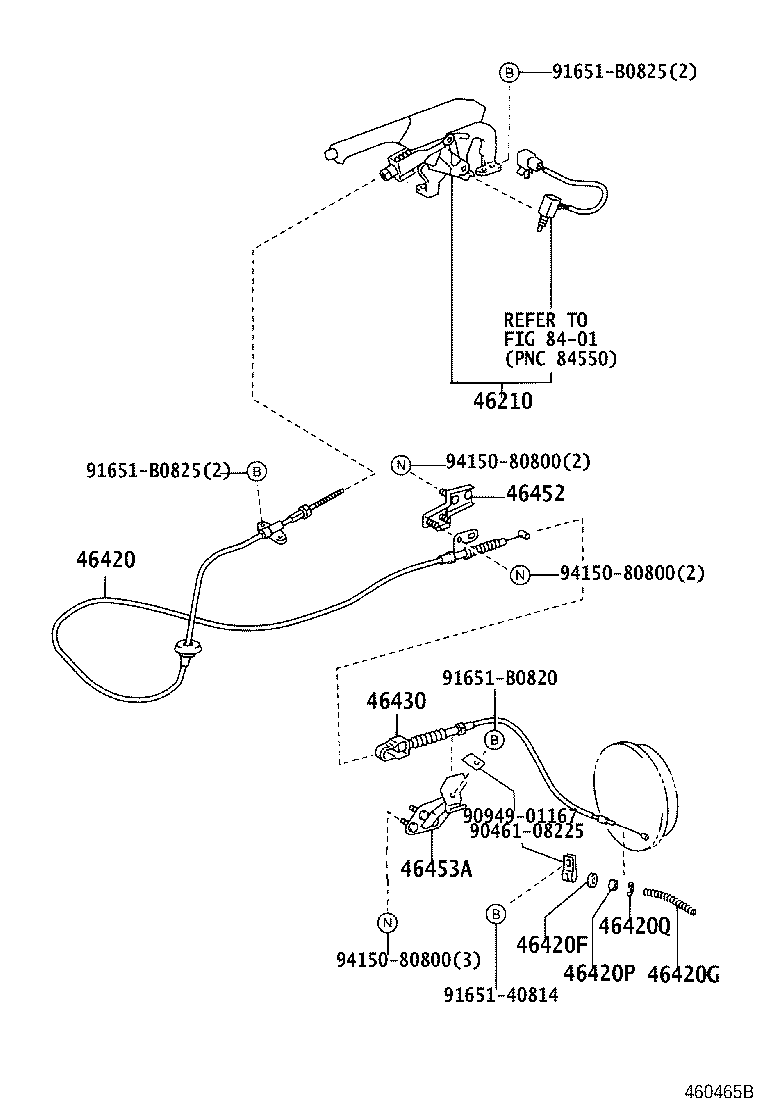

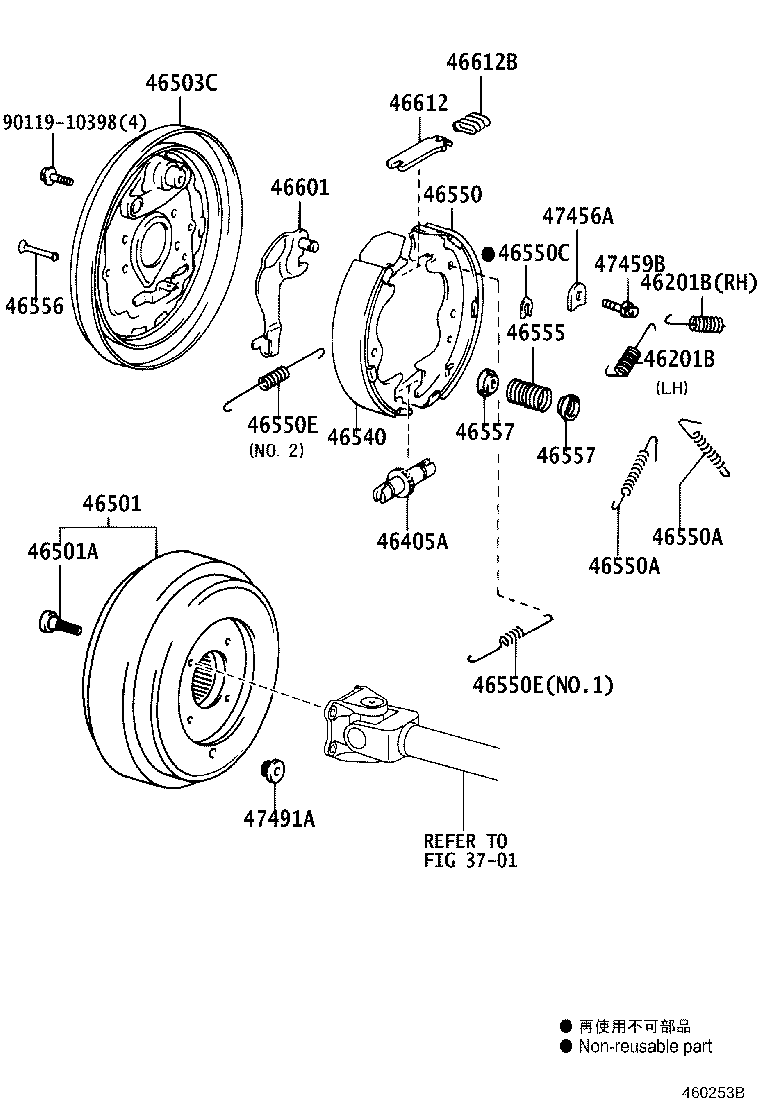

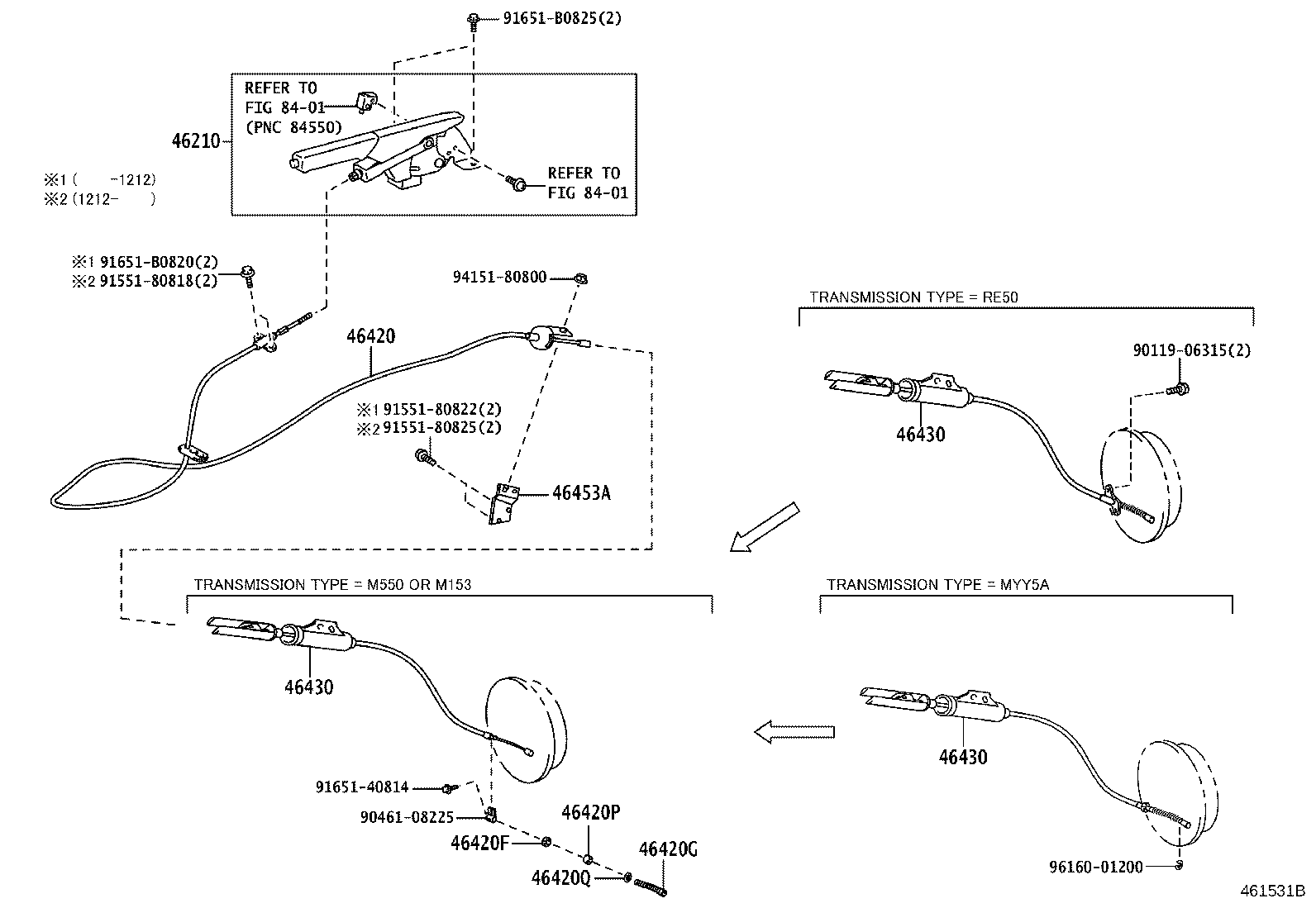

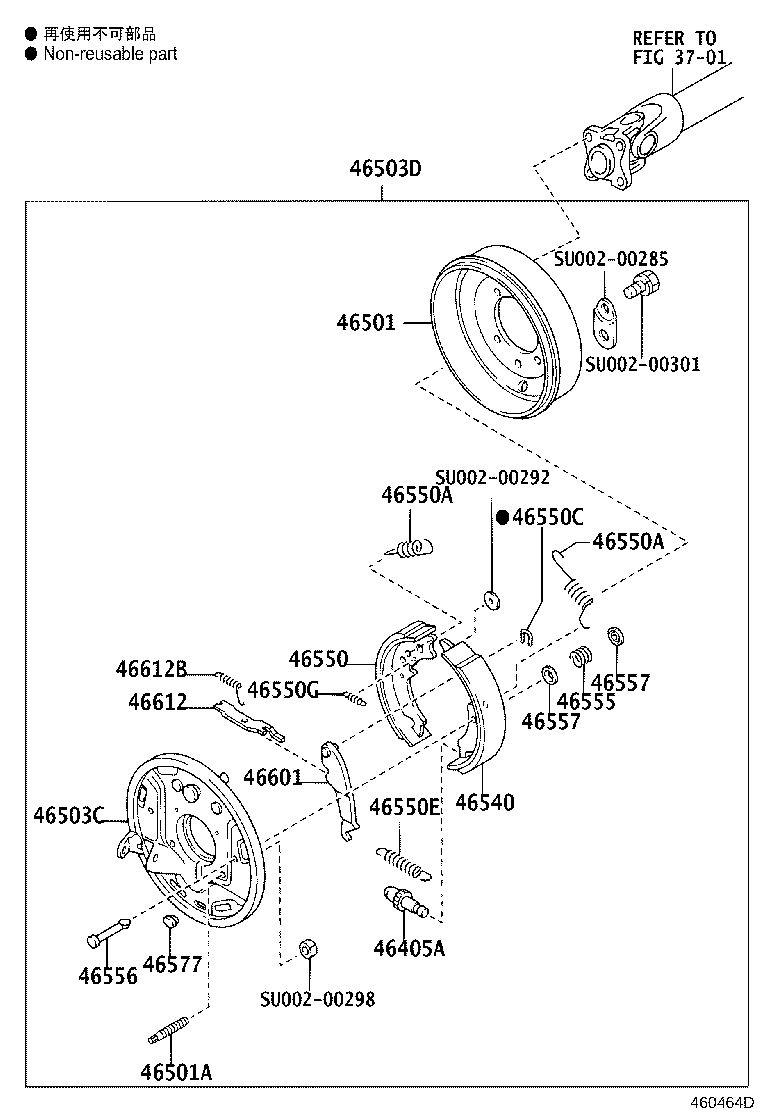

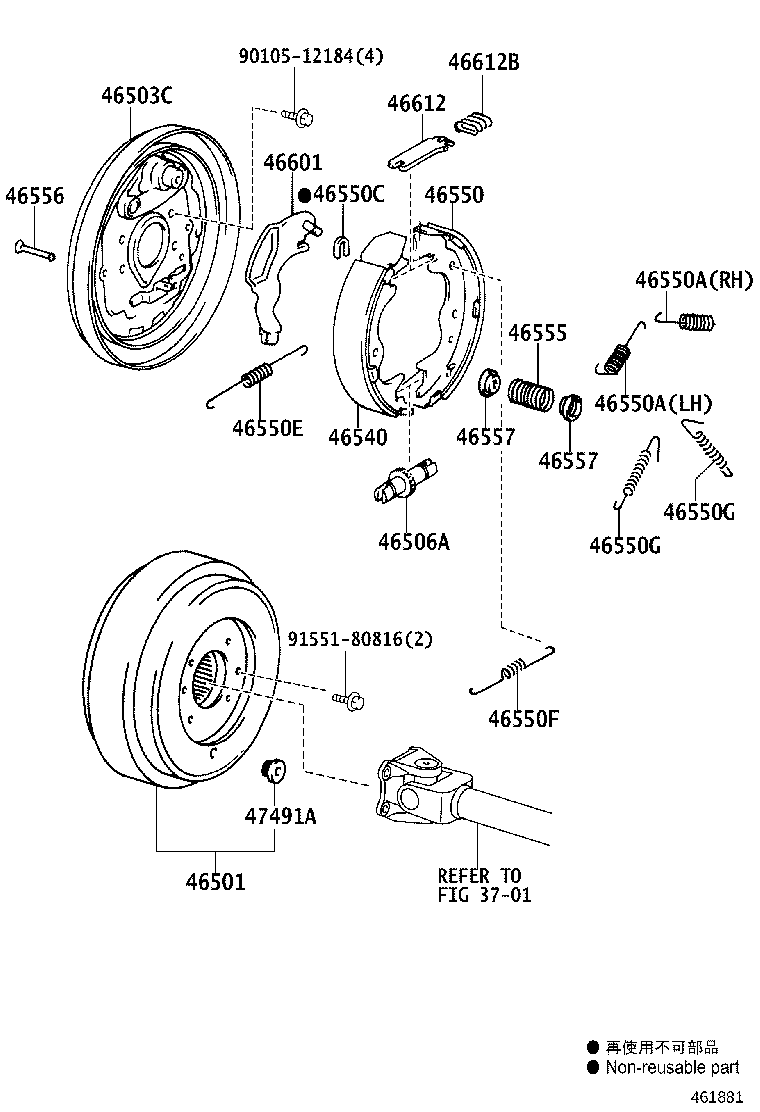

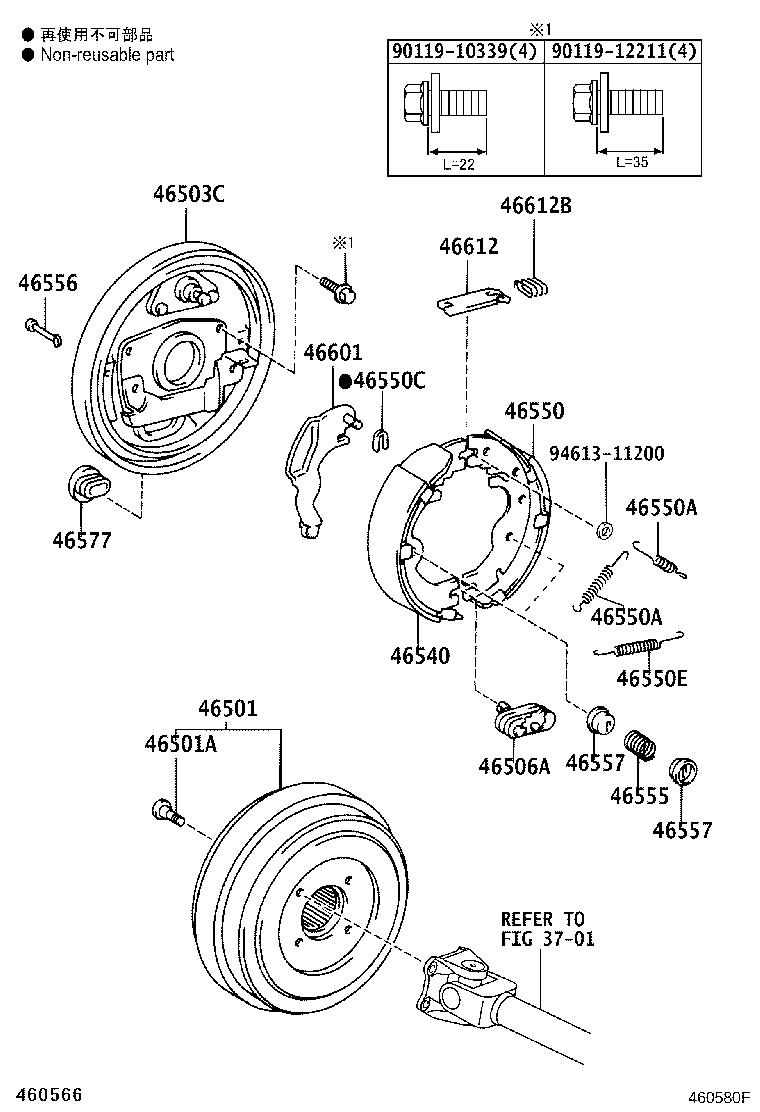

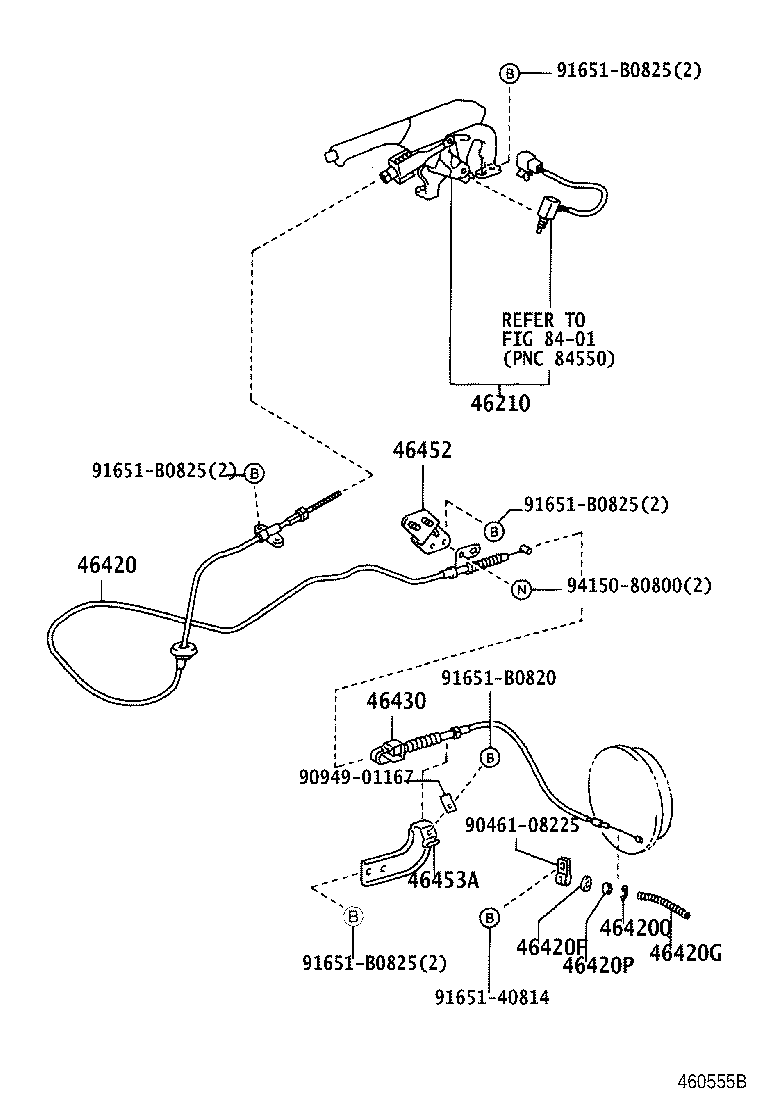

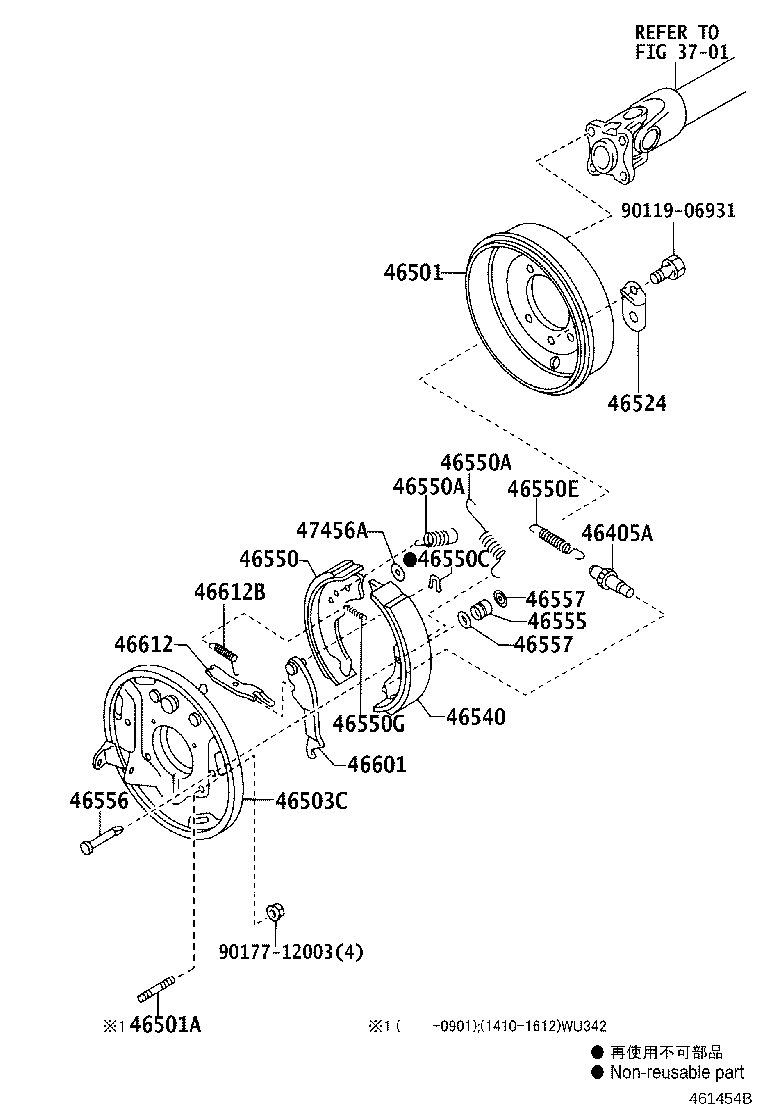

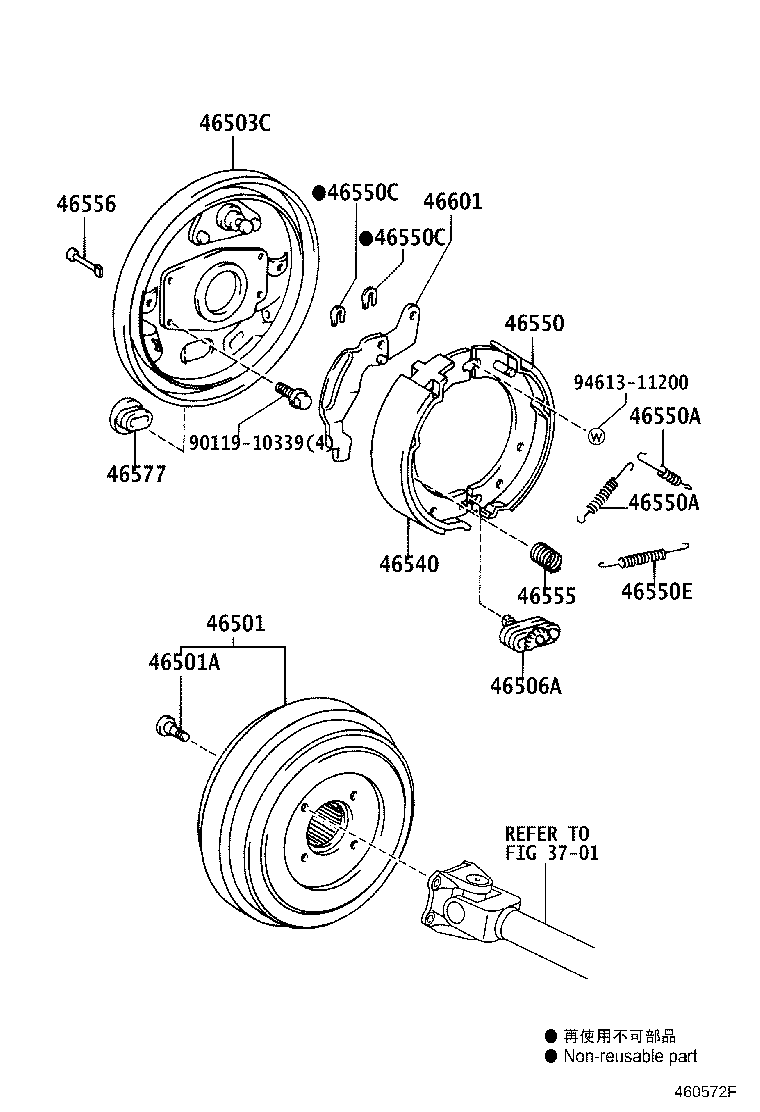

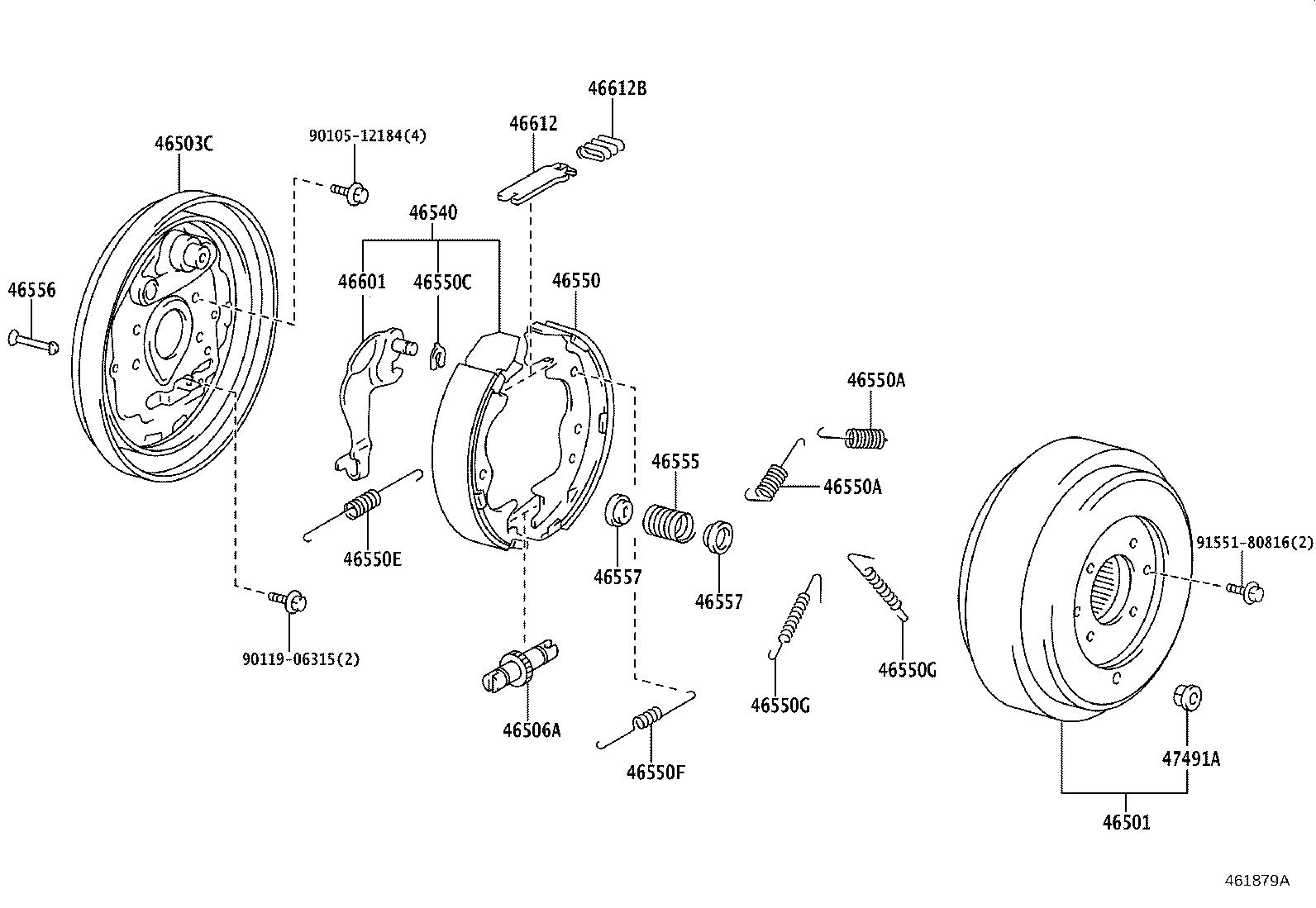

Figure 460466C 460466C 2002-09 → 2006-12 Figure 460465B 460465B 2002-09 → 2006-10 Figure 460465B 460465B 2002-09 → 2007-12 Figure 460556B 460556B 2002-12 → 2006-10 Figure 460555B 460555B 2002-12 → 2006-10 Figure 460554B 460554B 2002-12 → 2006-10 Figure 460892F 460892F 2006-10 → — Figure 460955E 460955E 2006-10 → — Figure 460893F 460893F 2006-10 → — Figure 460893F 460893F 2008-02 → — Figure 460927E 460927E 2006-12 → — Figure 460578A 460578A 2003-12 → 2006-10 Figure 461531B 461531B 2009-12 → — Figure 461878A 461878A 2022-03 → — Figure 460464D 460464D 2002-09 → 2004-04 Figure 460258F 460258F 2002-09 → 2006-12 Figure 460258F 460258F 2002-12 → 2006-10 Figure 460515B 460515B 2002-12 → 2006-10 Figure 460515B 460515B 2002-12 → 2007-12 Figure 460572F 460572F 2002-12 → 2006-10 Figure 460276B 460276B 2002-12 → 2006-10 Figure 460253B 460253B 2002-12 → 2006-10 Figure 460507G 460507G 2004-04 → 2006-12 Figure 460580F 460580F 2003-12 → 2006-10 Figure 460580F 460580F 2006-10 → — Figure 460580F 460580F 2008-02 → — Figure 460580F 460580F 2009-12 → 2017-06 Figure 461454B 461454B 2006-10 → — Figure 461454B 461454B 2012-08 → — Figure 461881 461881 2017-06 → — Figure 461879A 461879A 2022-03 → —

Part groups

PNCDescription
33829H Clamp, Transmission Control Cable
46201B Spring, Tension
46210 Lever Assy, Parking Brake
46405A Screw Set, Shoe Adjusting, RH
46420 Cable Assy, Parking Brake, NO.2
46420F Seal, Dust(FOR PARKING BRAKE CABLE)
46420G Spring(FOR PARKING CABLE INNER WIRE SET)
46420P Spacer, Parking Brake
46420Q Ring, E(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46452 Bracket, Parking Brake Cable Support, NO.2
46453A Bracket, Cable Support, NO.3
46501 Drum Sub-assy, Parking Brake
46501A Bolt, Serration(FOR PARKING BRAKE DRUM)
46503C Plate Sub-assy, Parking Brake
46503D Center Brake Assy
46506A Adjuster Sub-assy, Parking Brake Shoe
46524 Cover, Parking Brake Dust
46540 Shoe Assy, Parking Brake, RH OR Center NO.1
46550 Shoe Assy, Parking Brake, RH OR Center NO.2
46550A Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
46550C Washer, Type C(FOR PARKING BRAKE SHOE)
46550E Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
46550F Spring, Tension(FOR PARKING BRAKE SHOE RETURN, FRONT)
46550G Spring, Tension, NO.3(FOR PARKING BRAKE SHOE RETURN)
46555 Spring, Brake Shoe Hold Down
46556 Pin, Shoe Hold Down Spring
46557 Cup, Brake Shoe Hold Down
46577 Cover, Adjusting Cam Hole
46601 Lever Sub-assy, Parking Brake Shoe
46612 Strut, Parking Brake Shoe Lever
46612B Spring, Compression(FOR PARKING BRAKE SHOE STRUT)
47456A Plate, Shoe Guide(FOR PARKING BRAKE)
47459B Bolt, Shoe Guide Plate Set(FOR PARKING BRAKE)
47491A Plug, Shoe Adjusting Hole(FOR PARKING BRAKE SHOE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
