Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

76 part groups · 49 illustrations

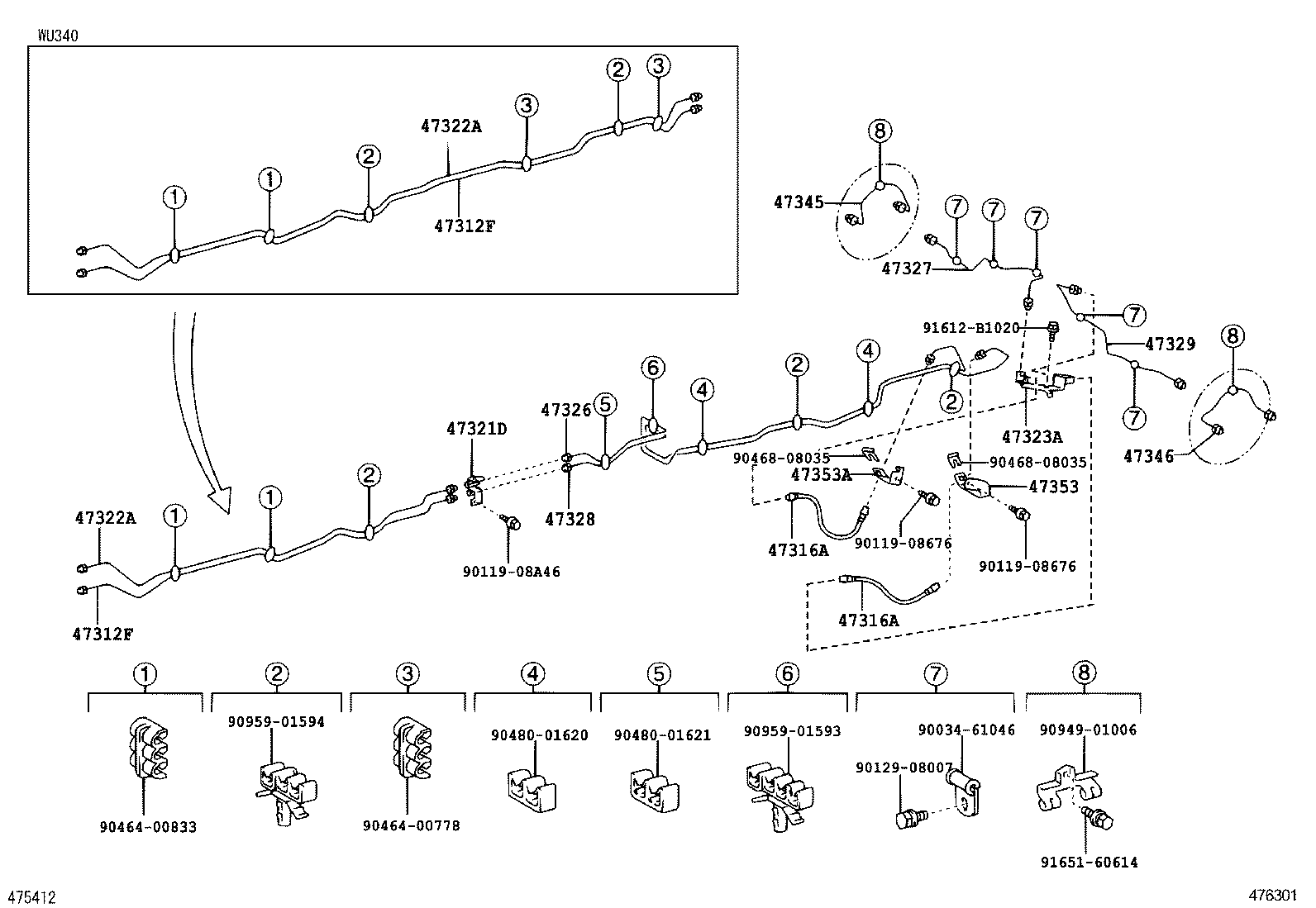

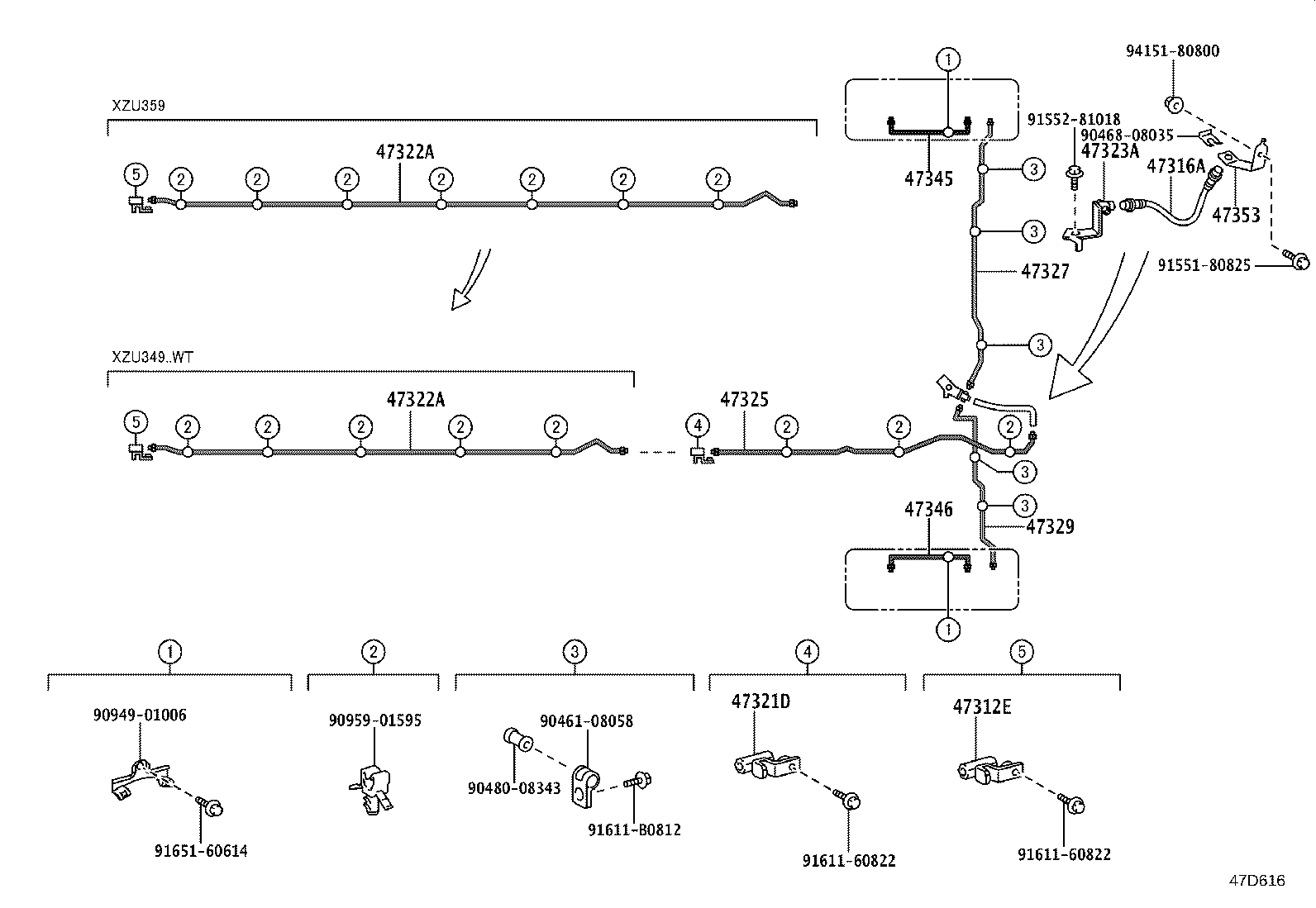

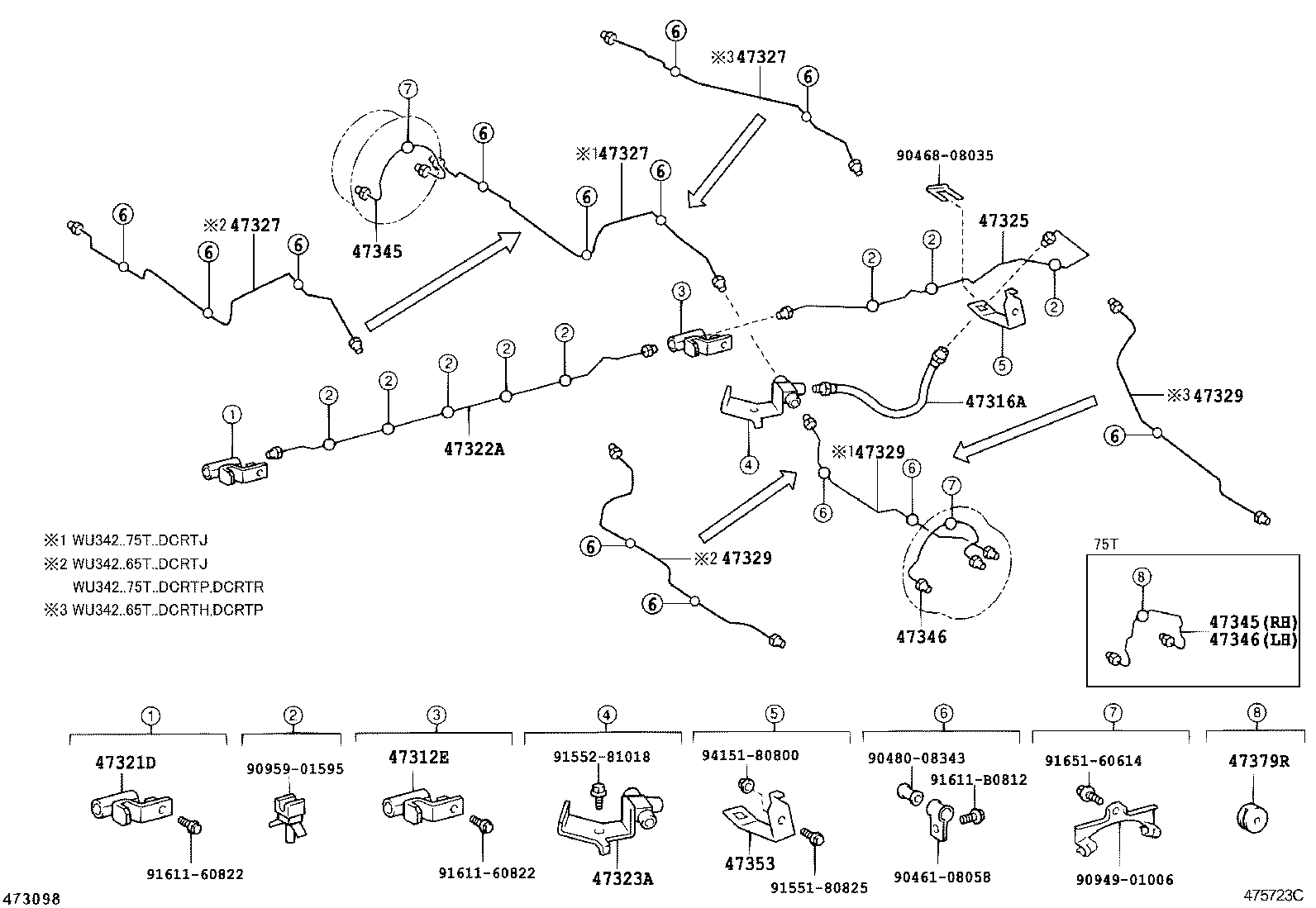

Illustrations

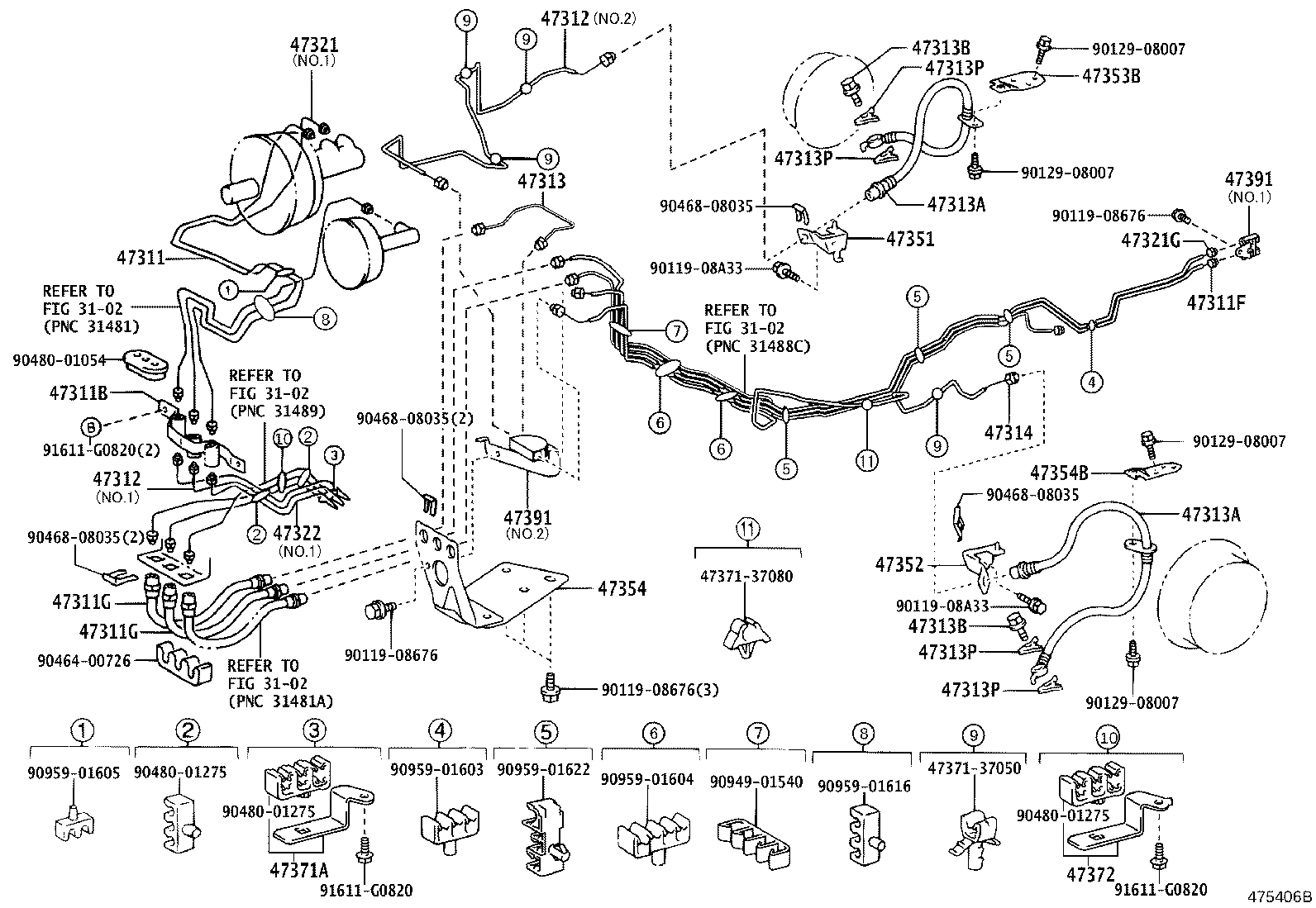

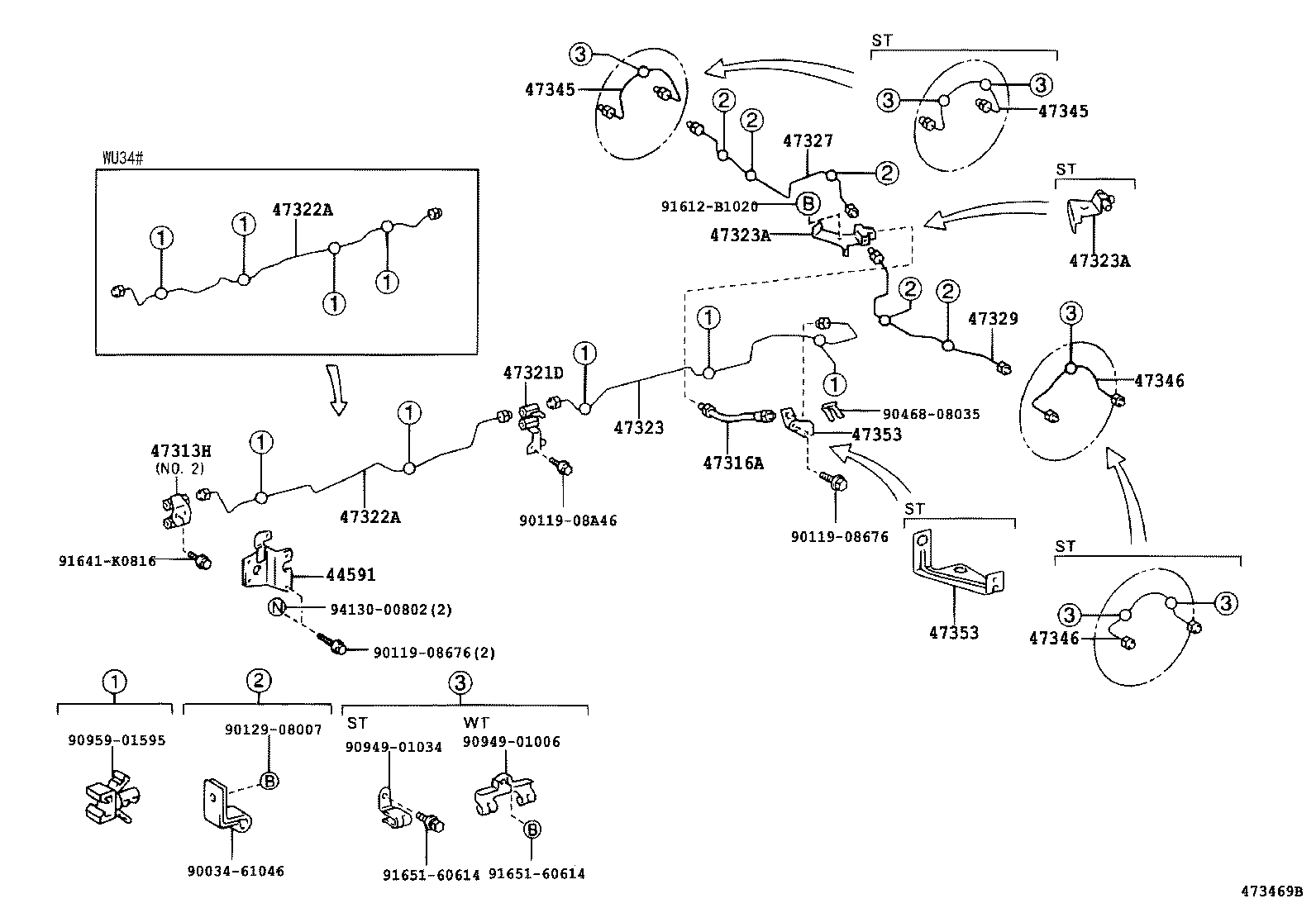

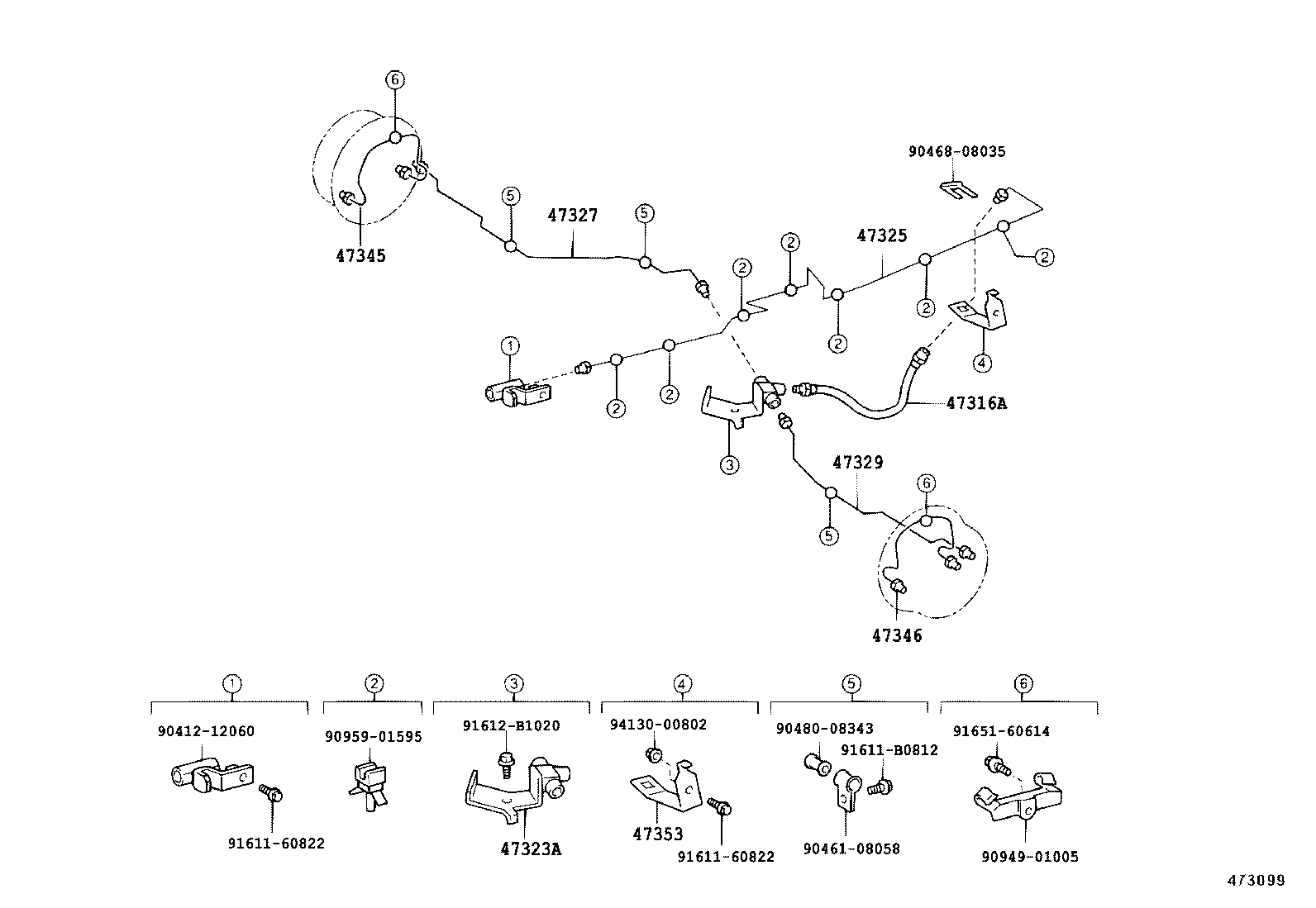

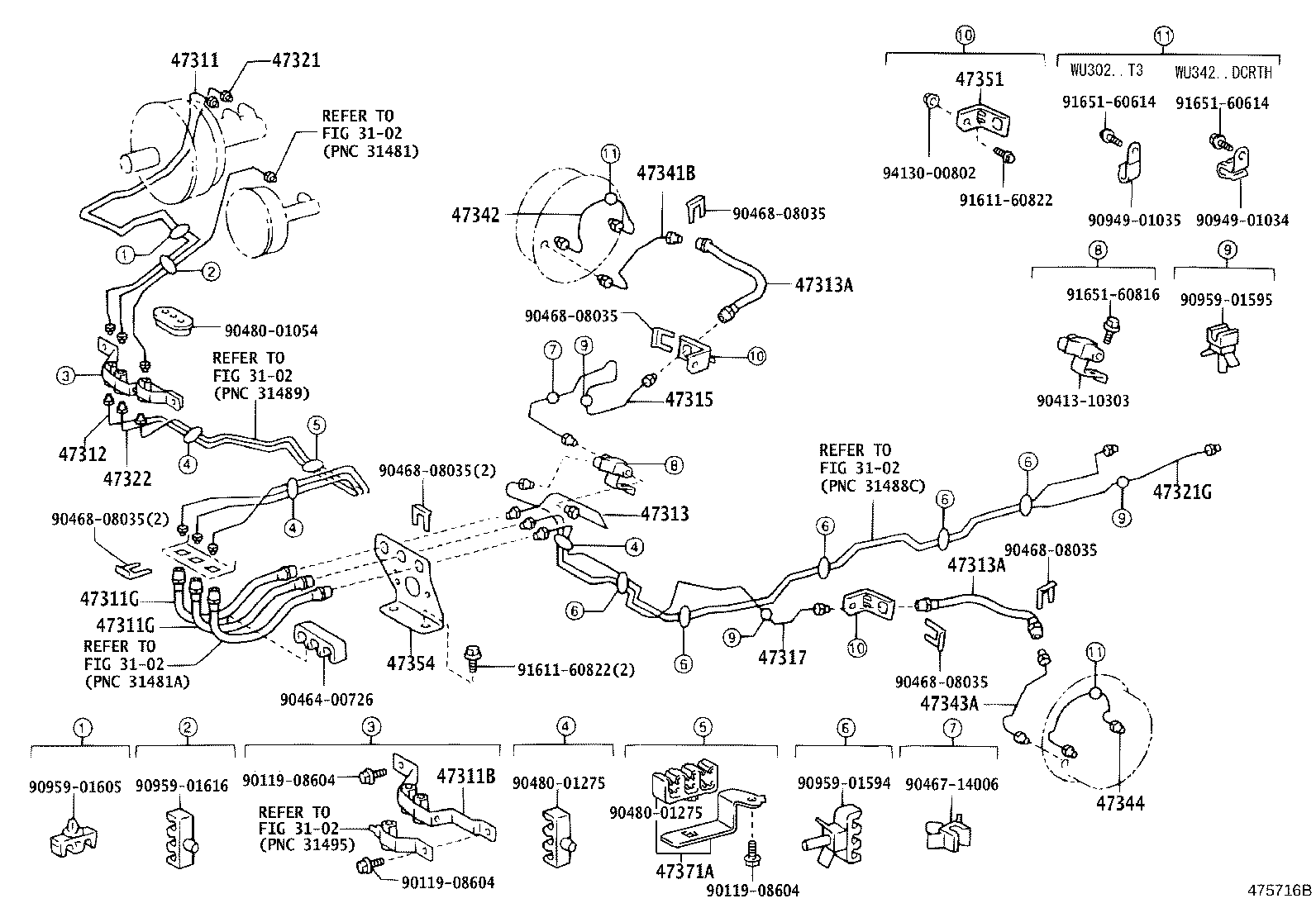

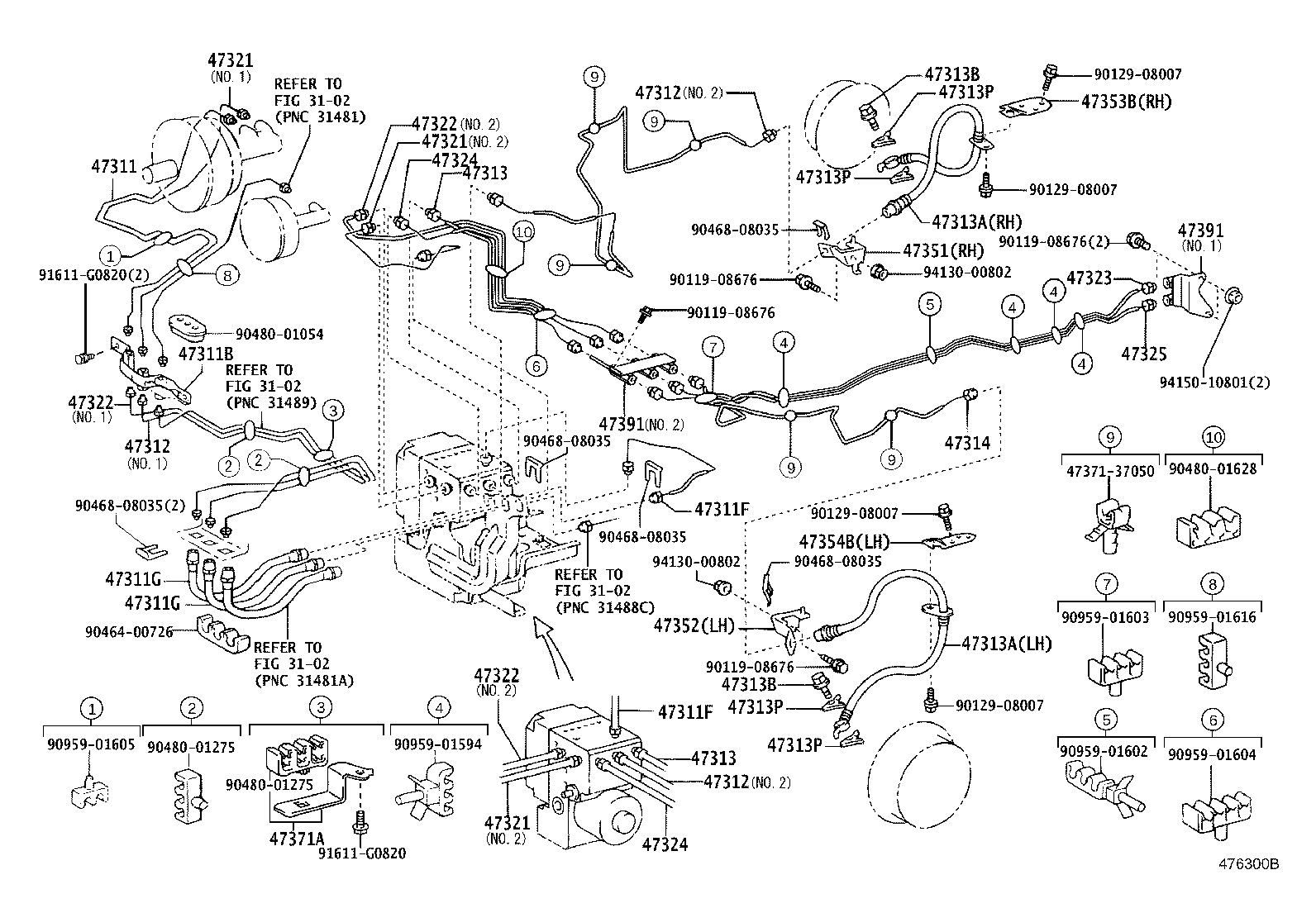

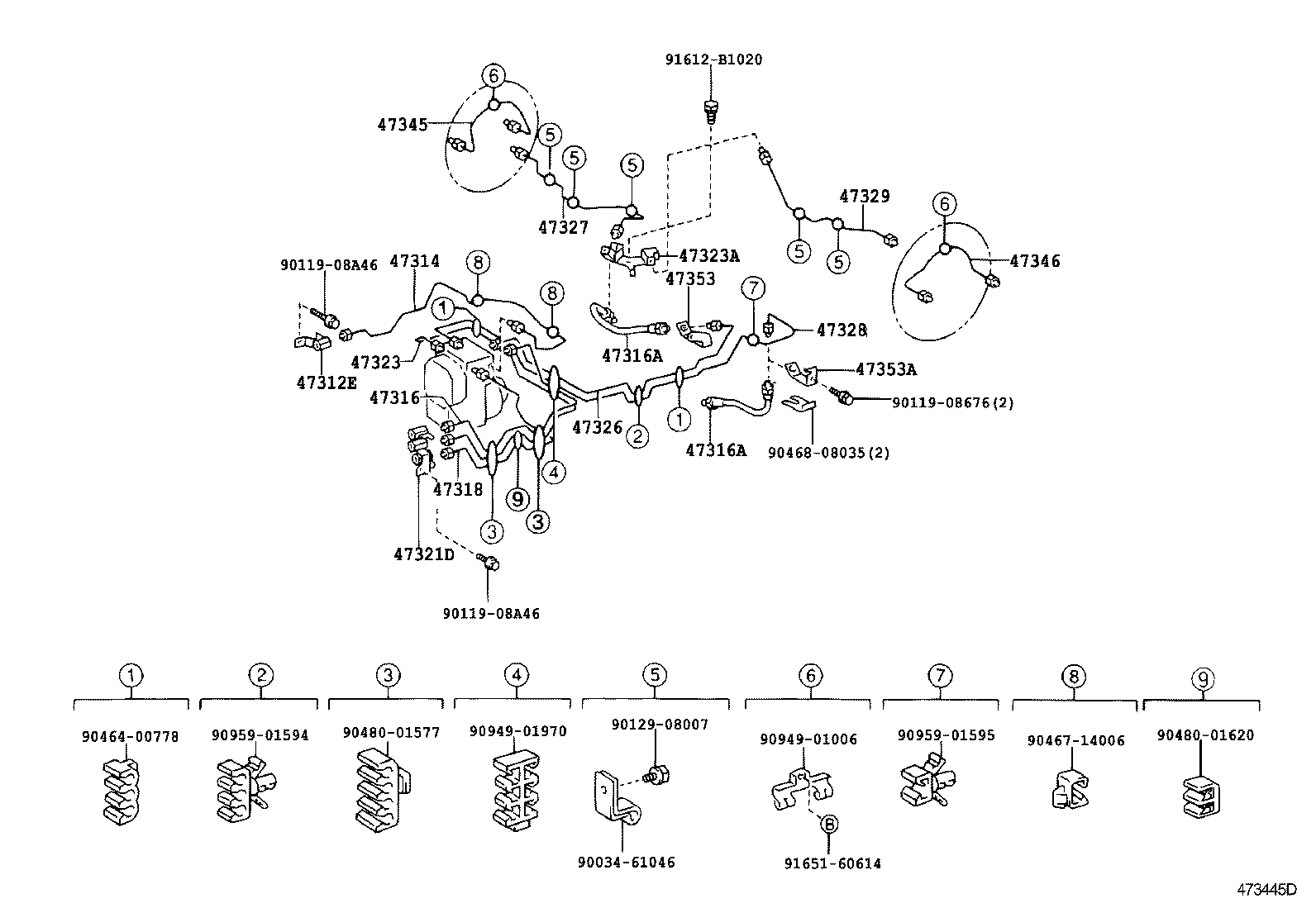

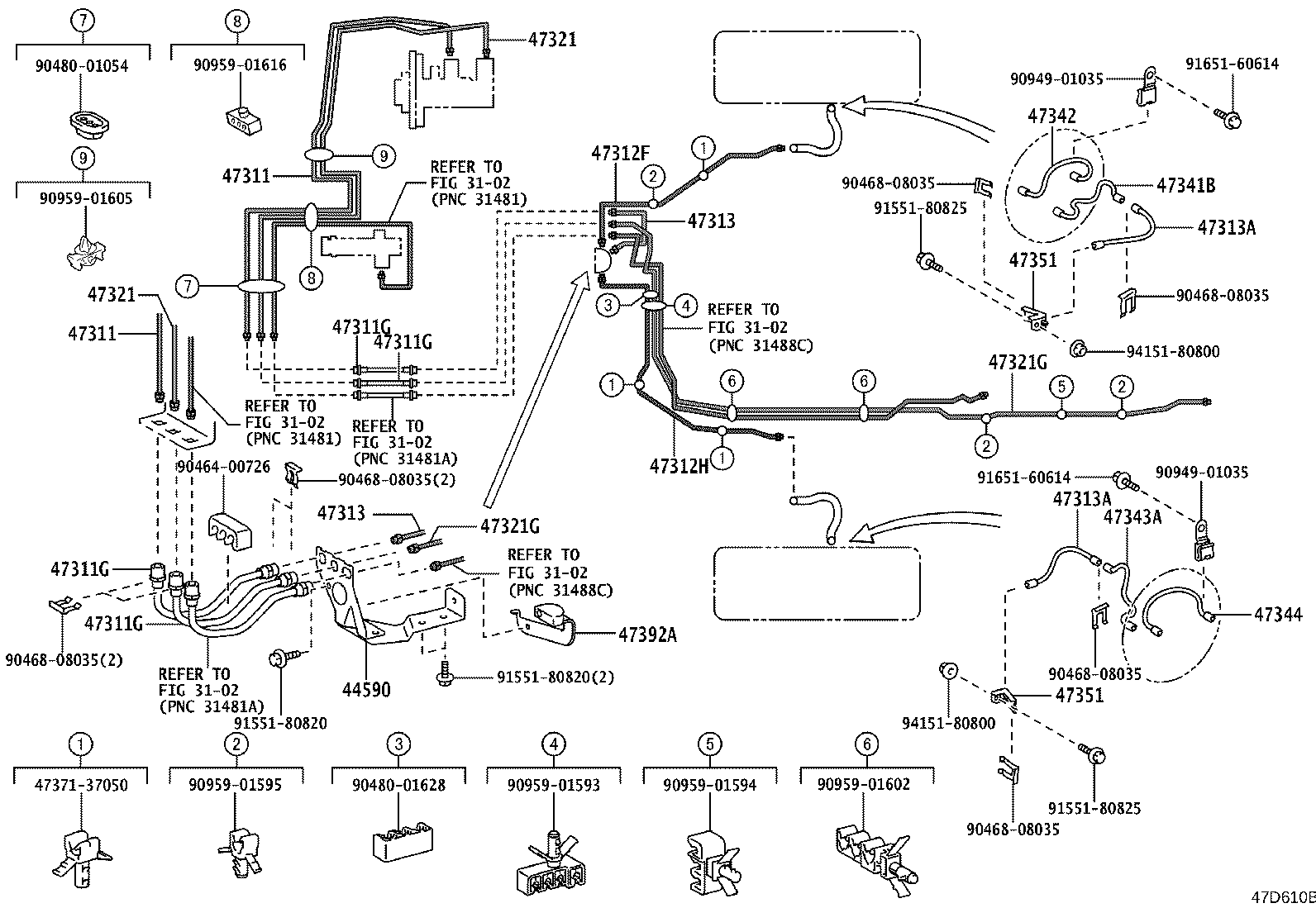

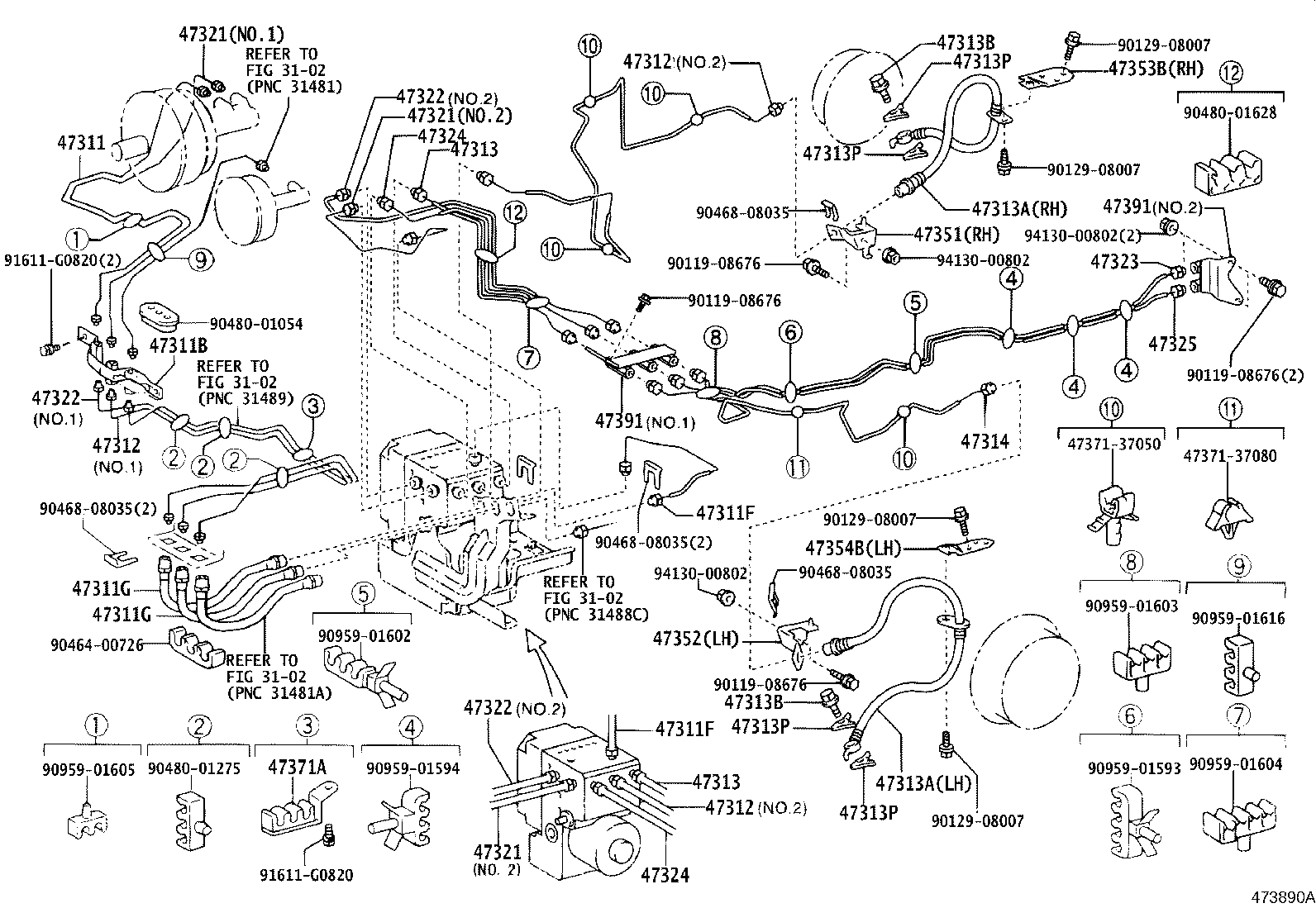

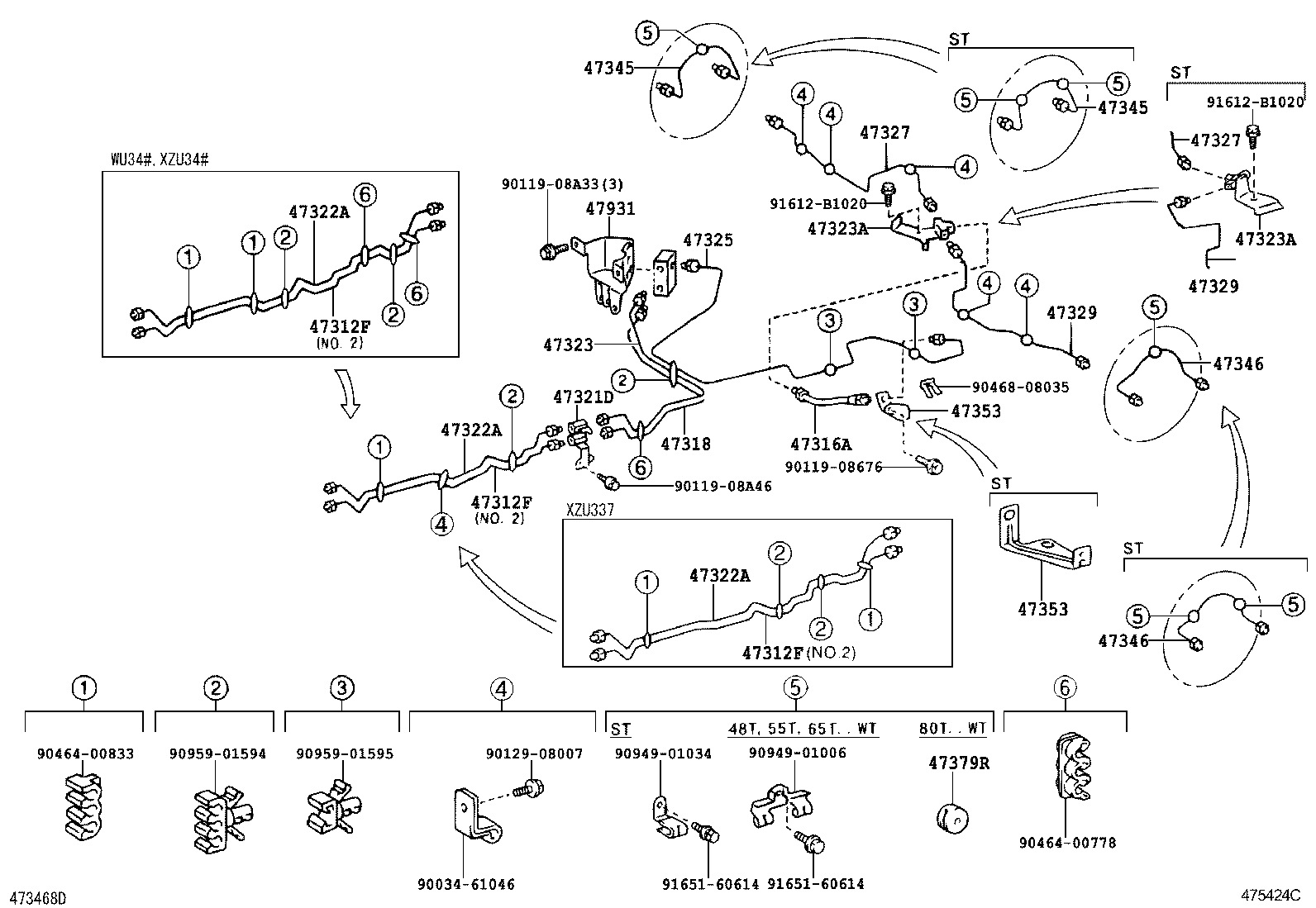

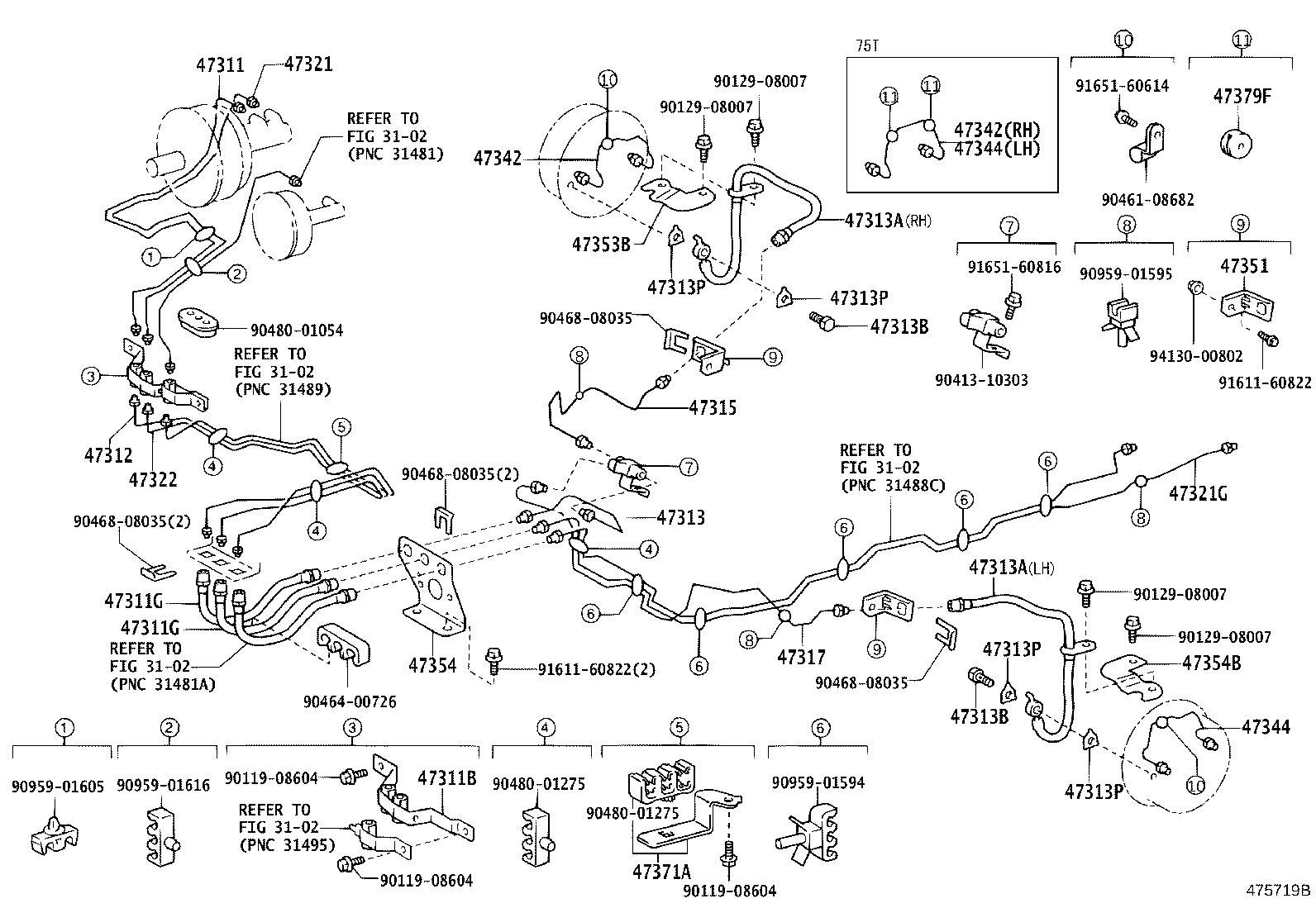

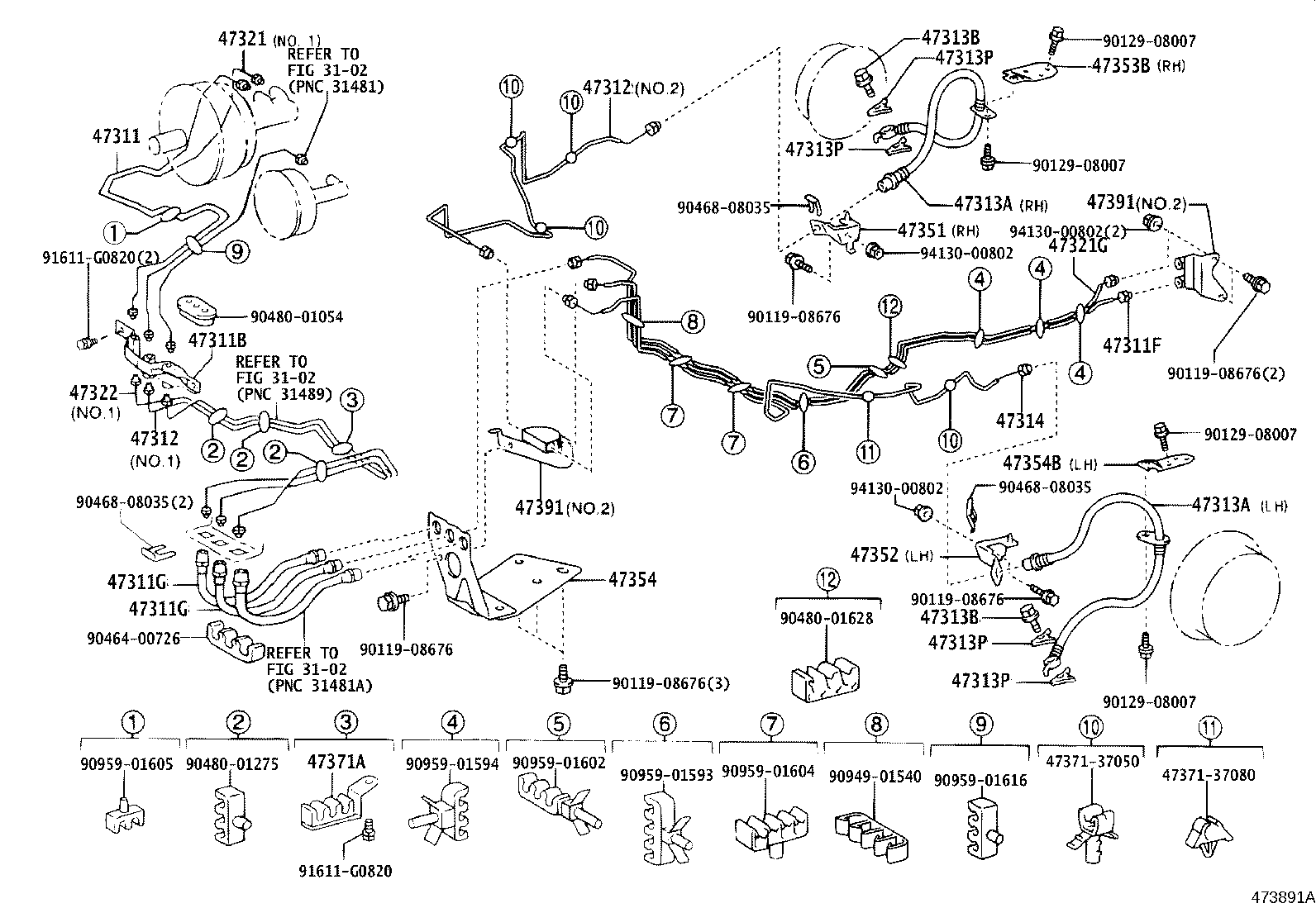

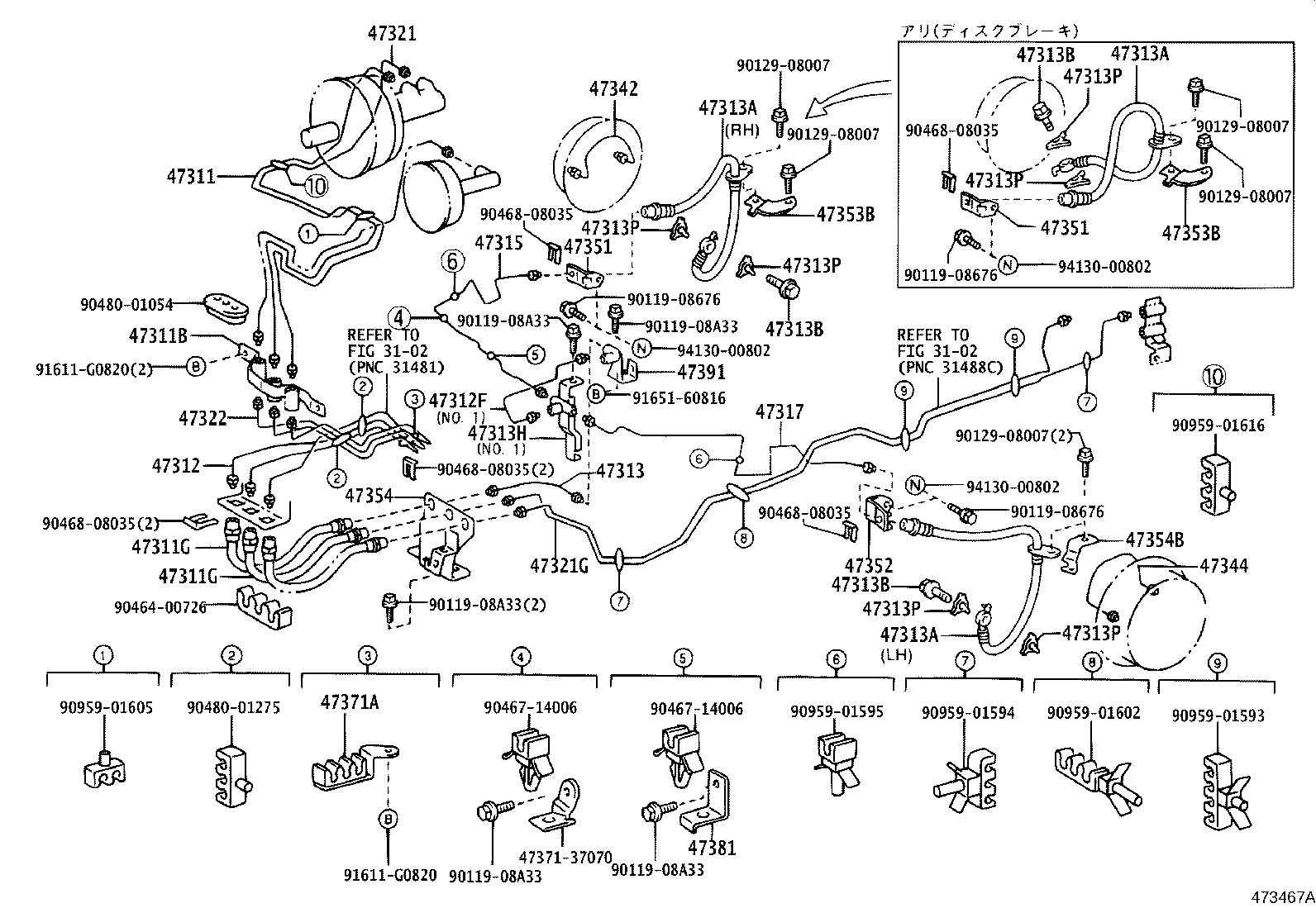

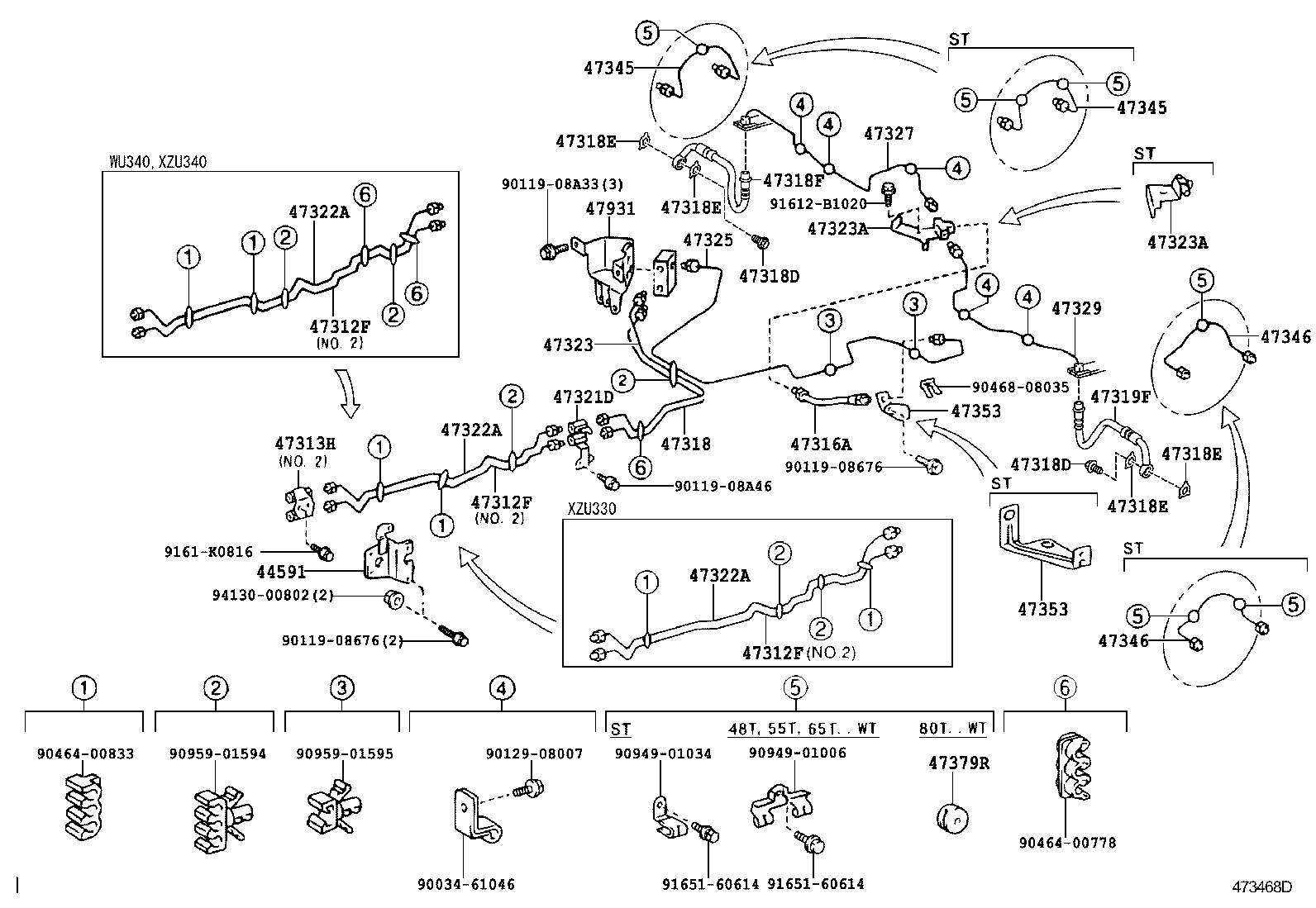

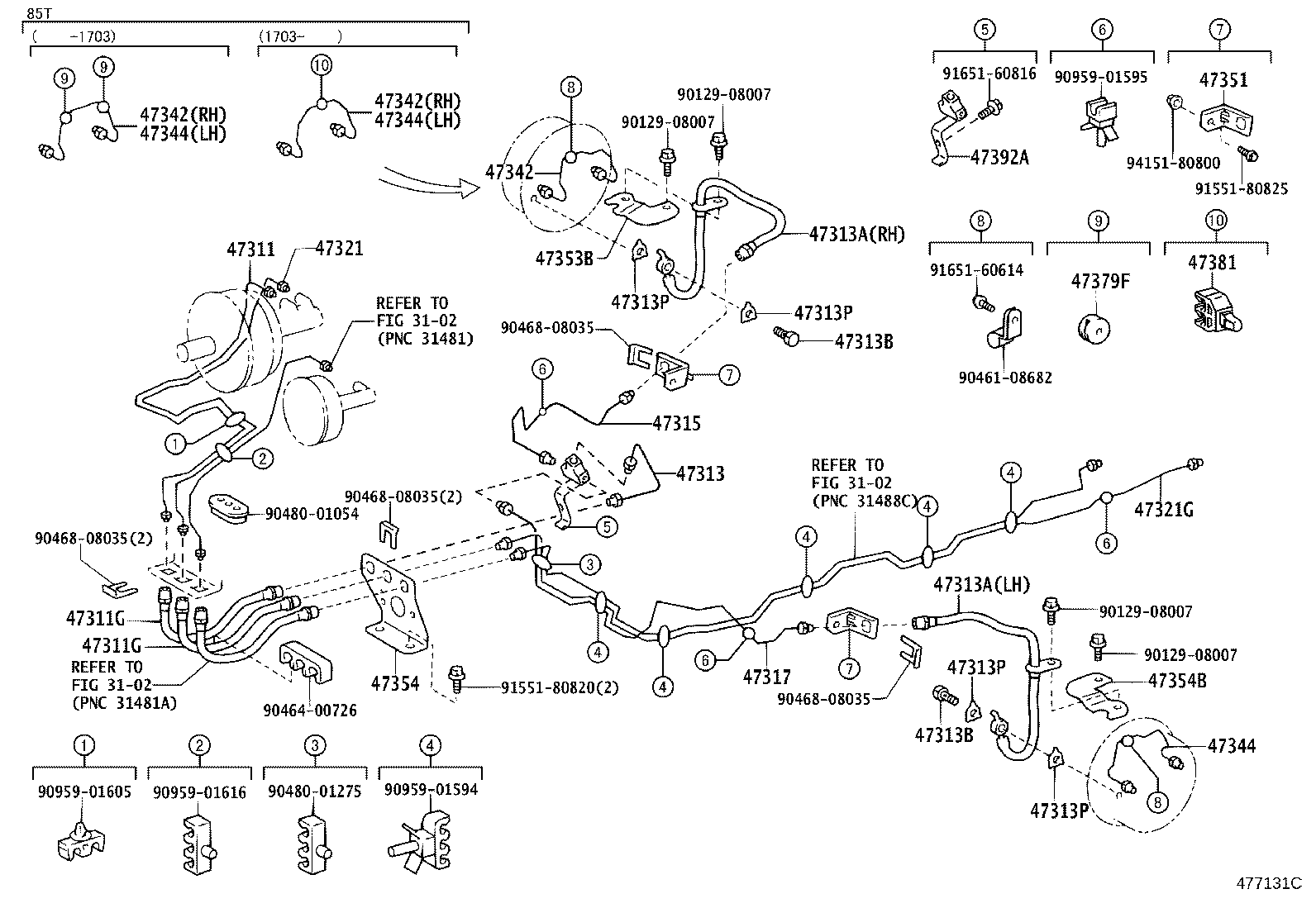

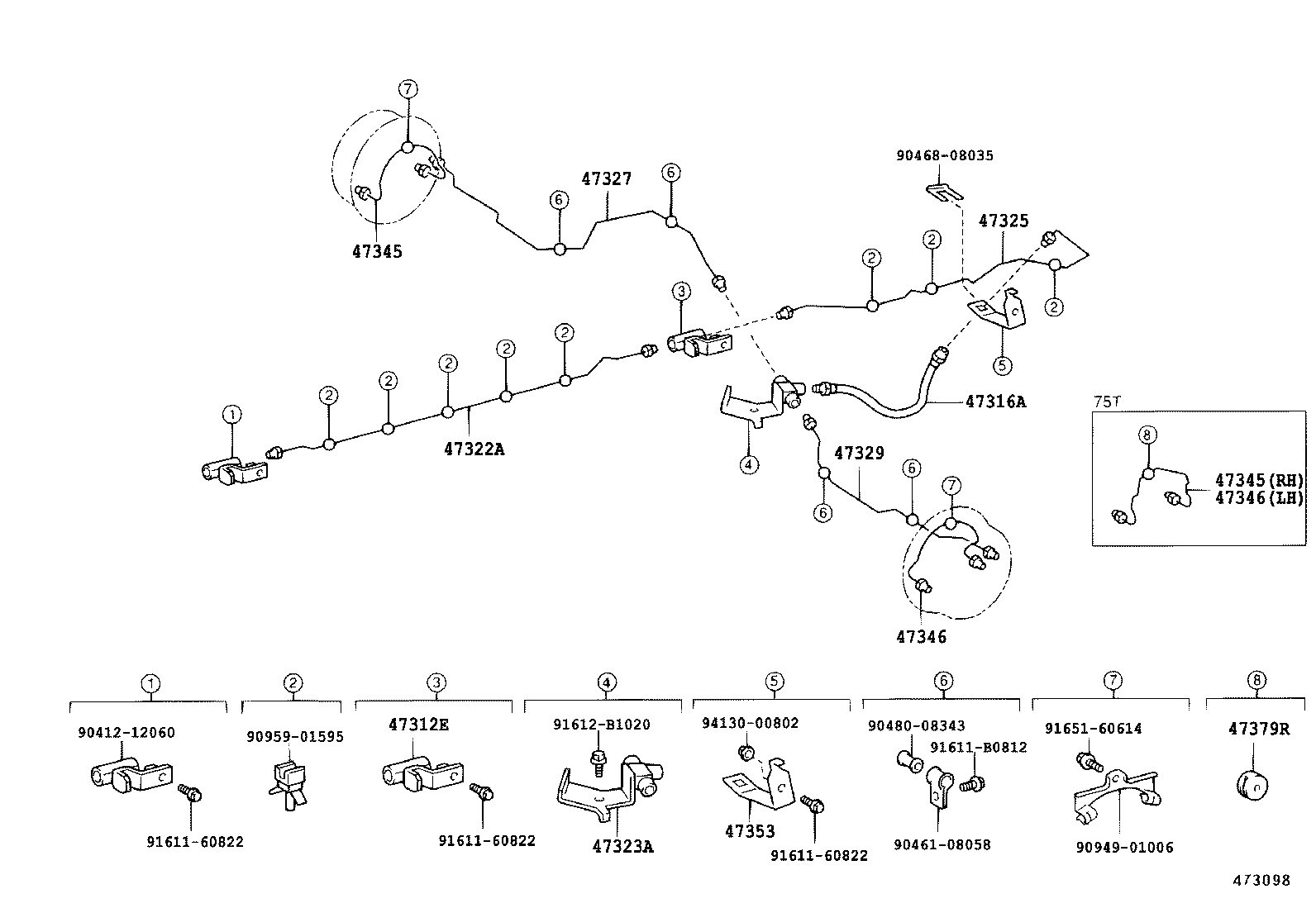

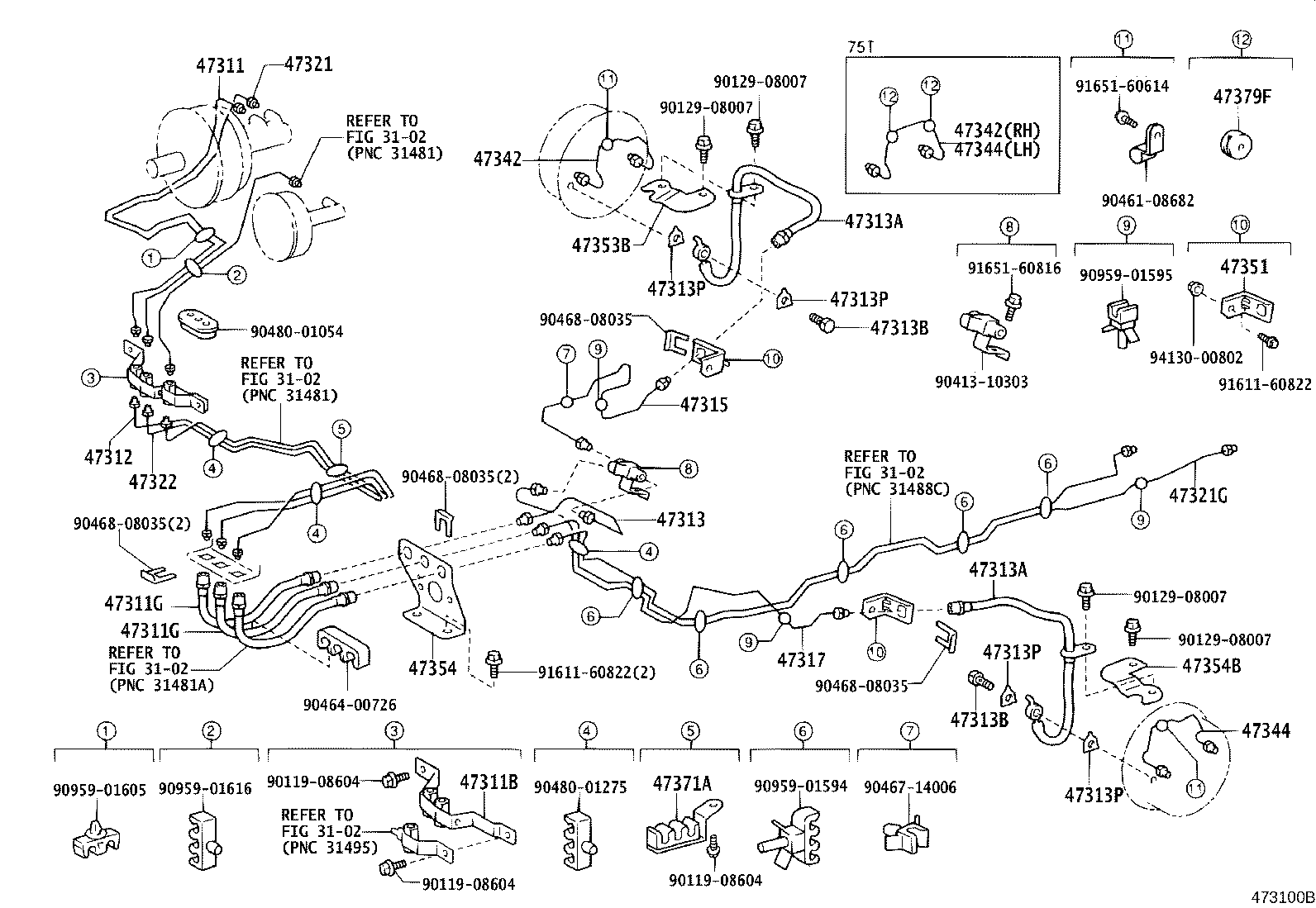

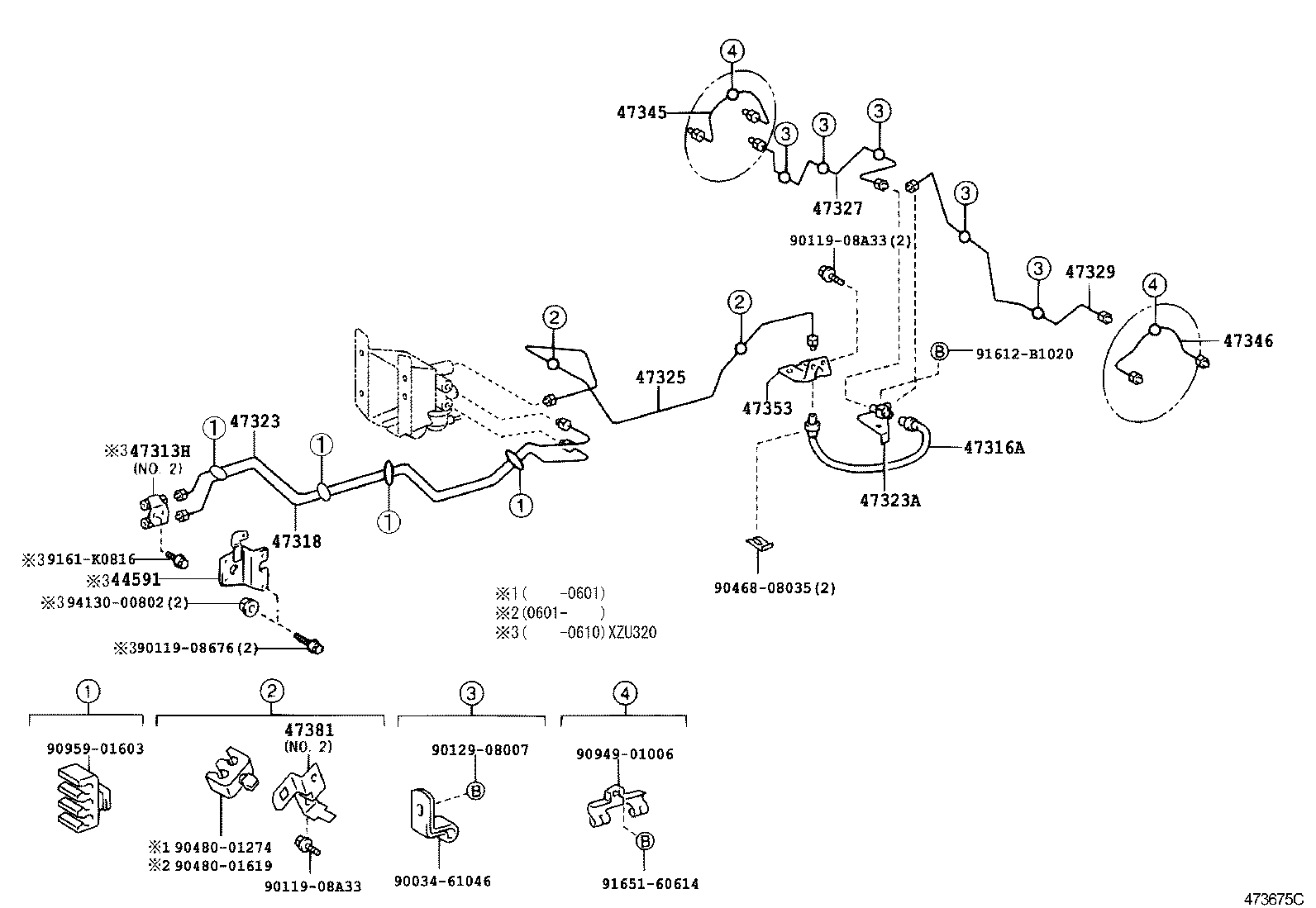

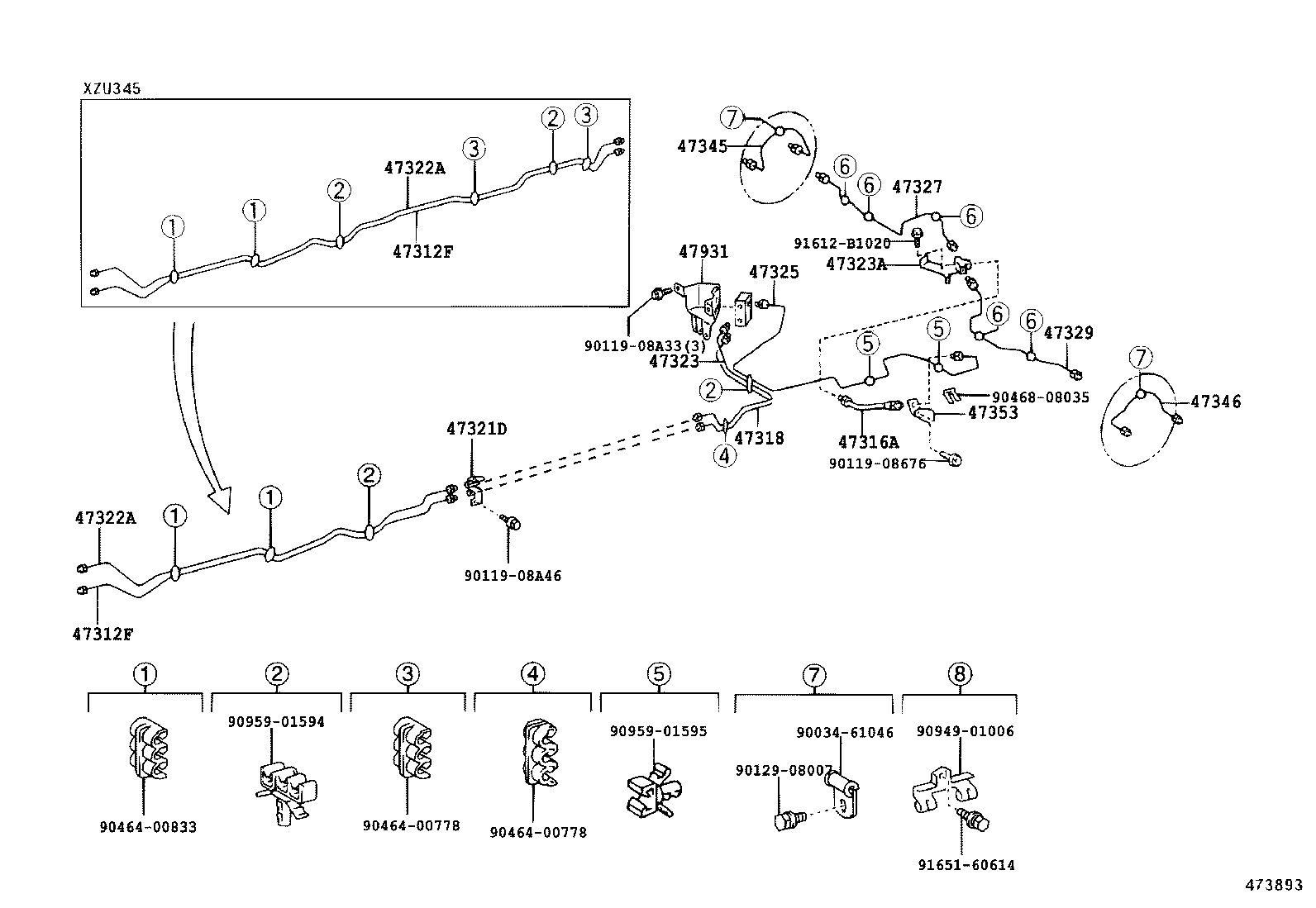

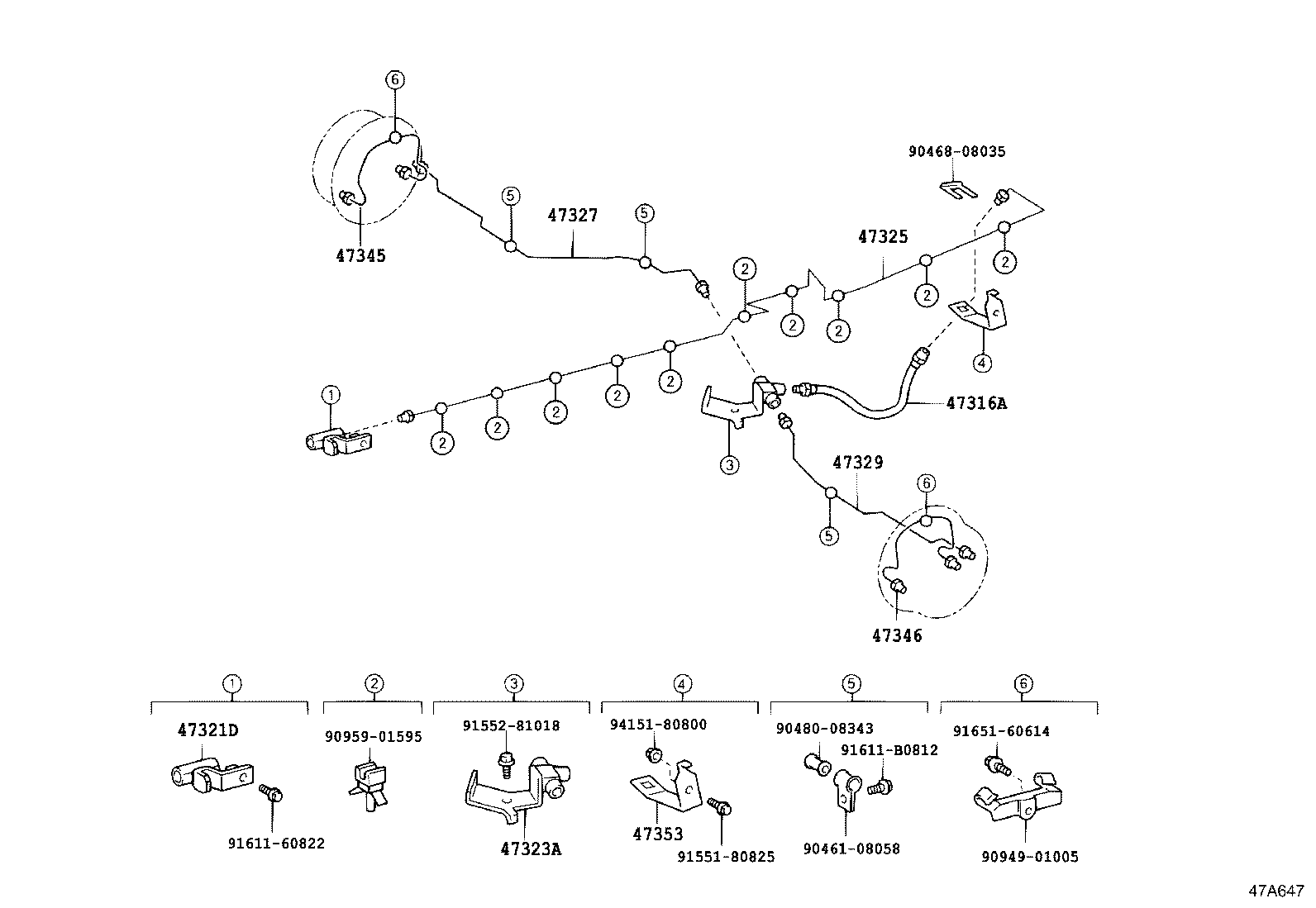

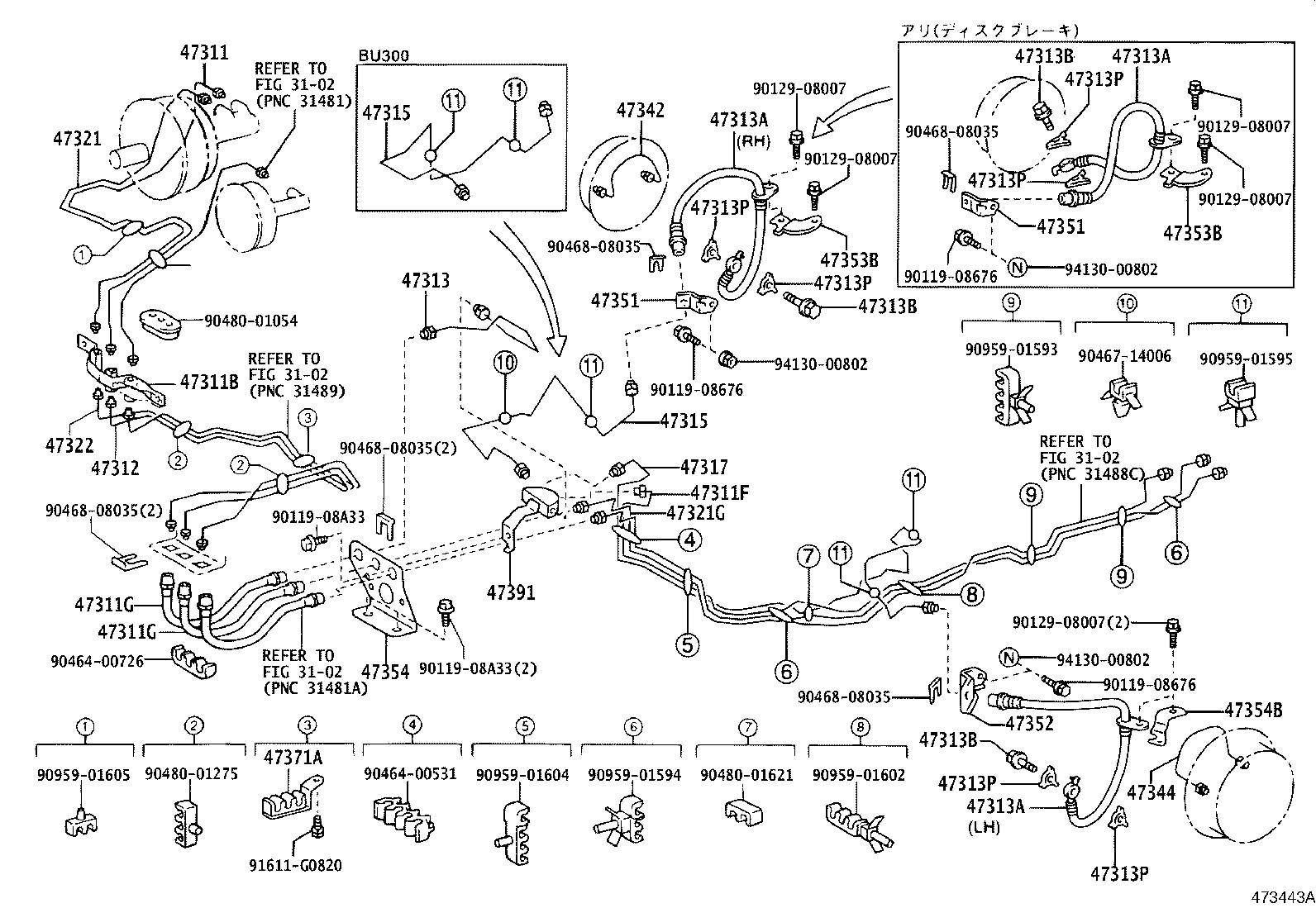

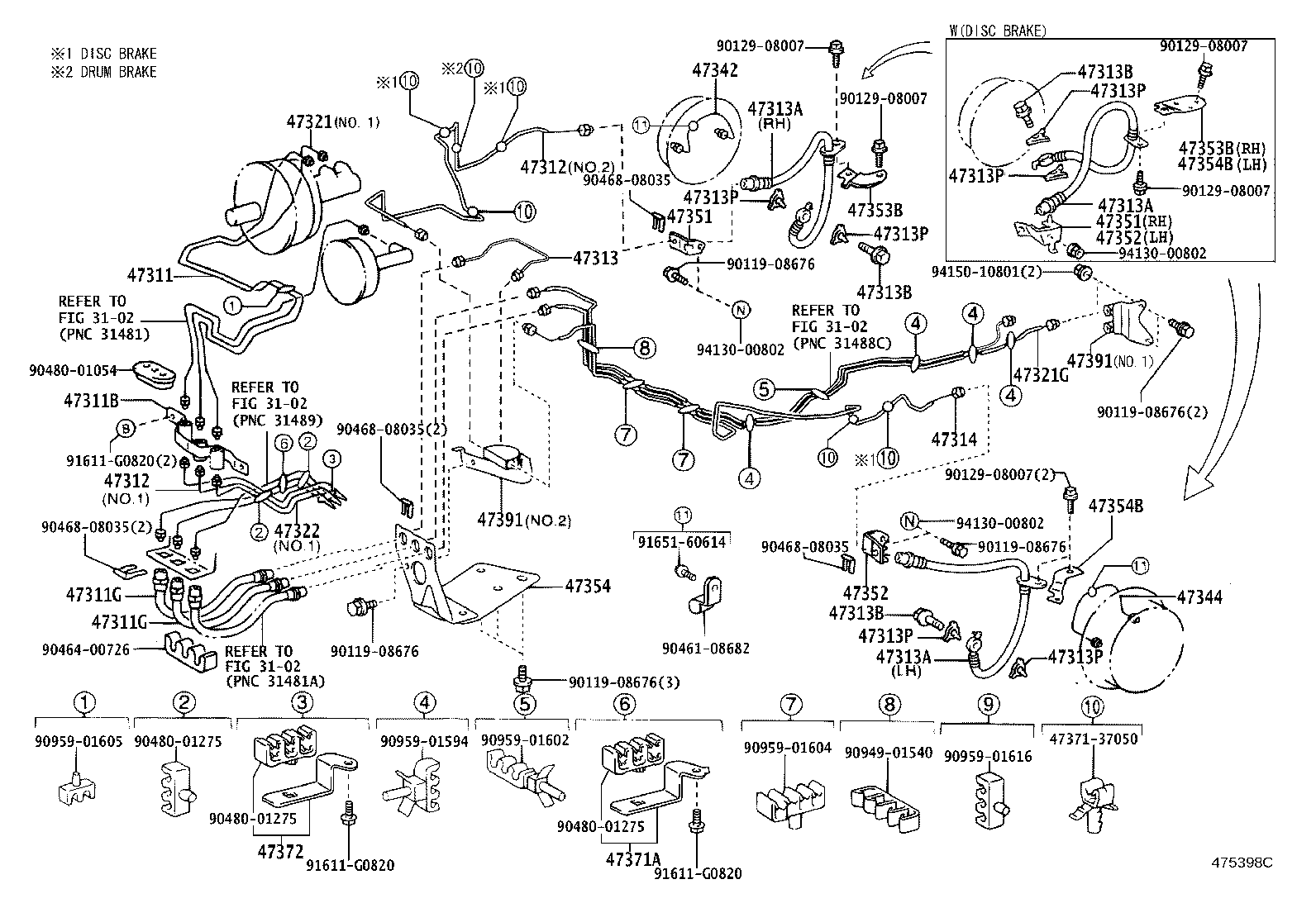

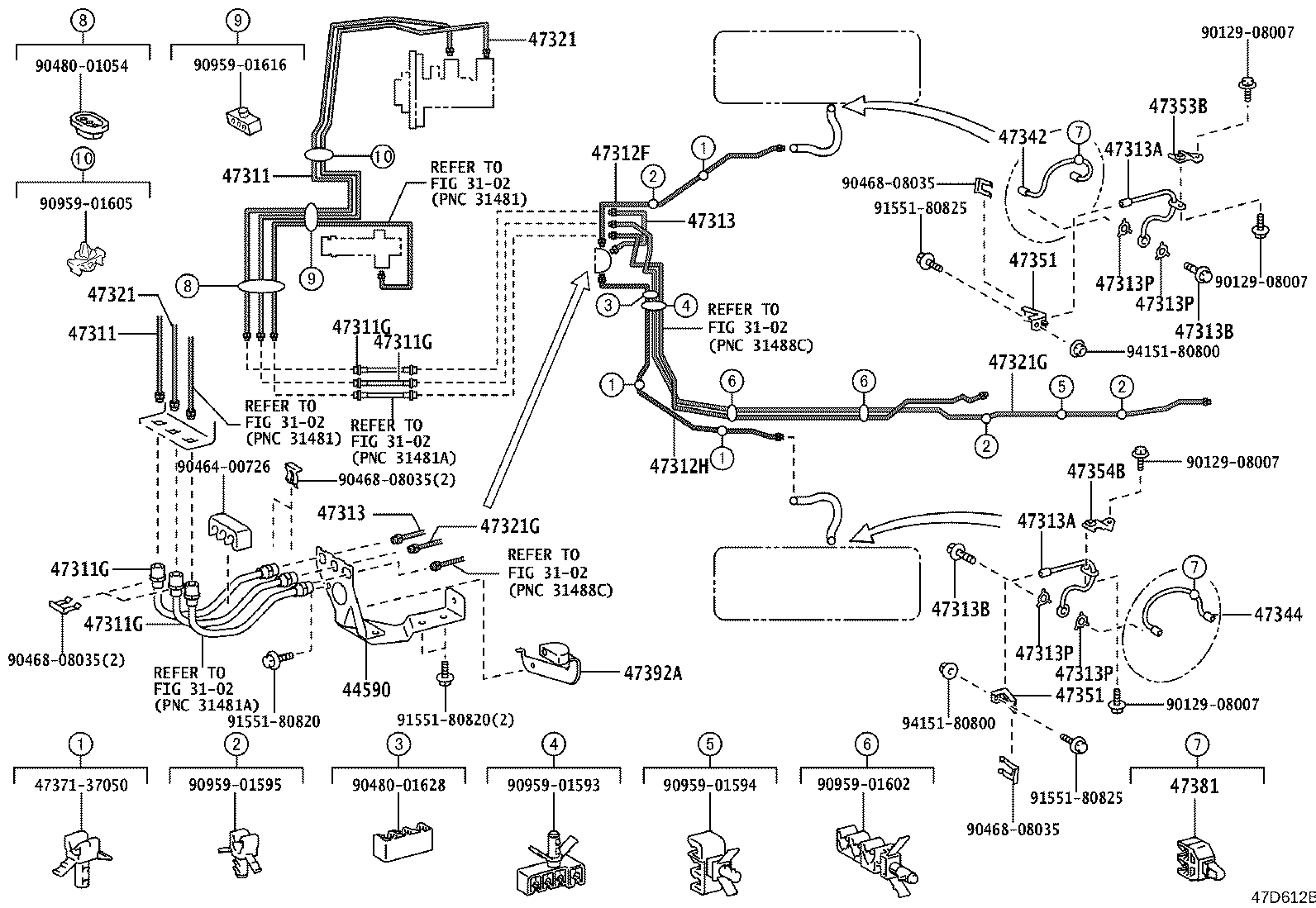

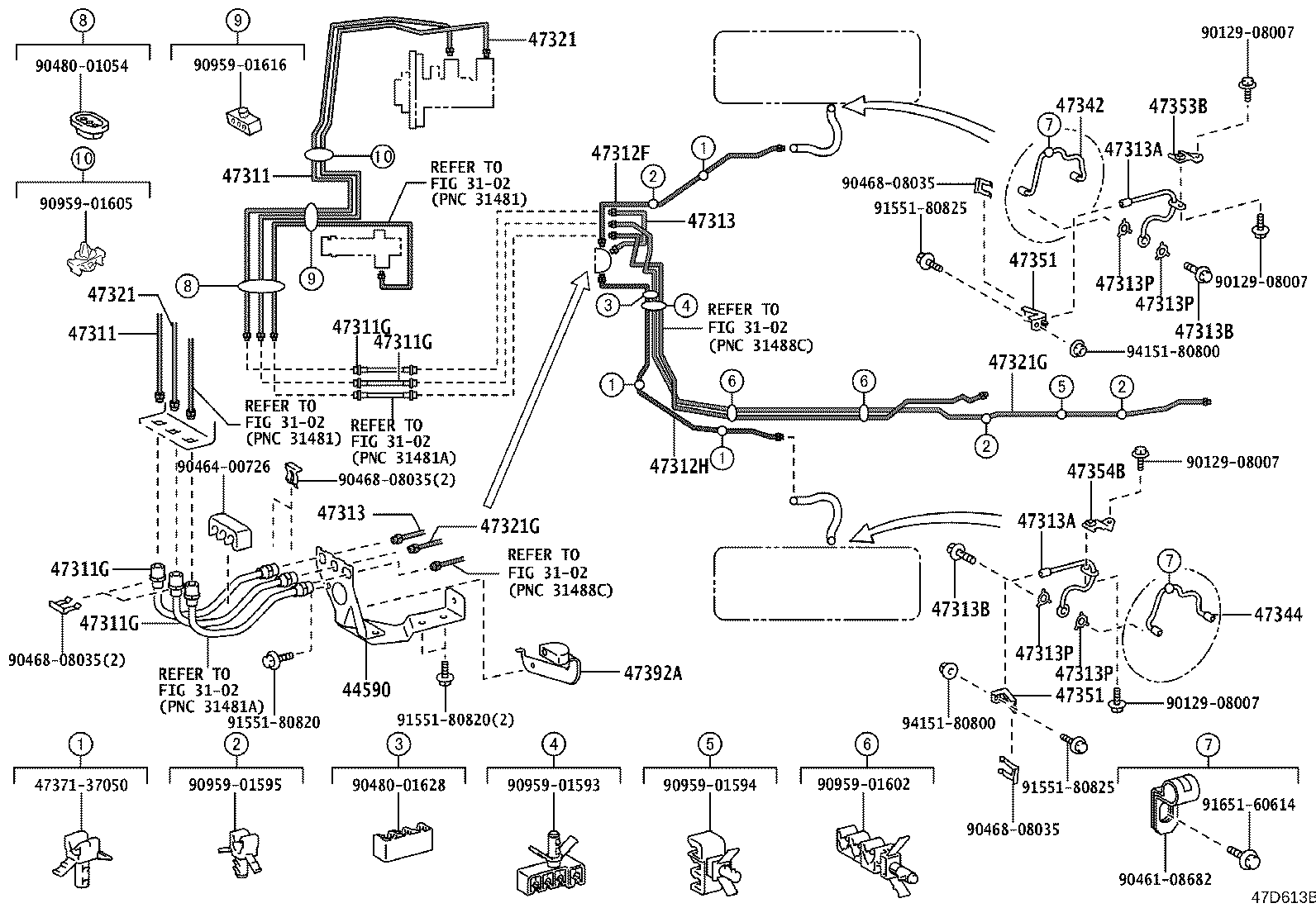

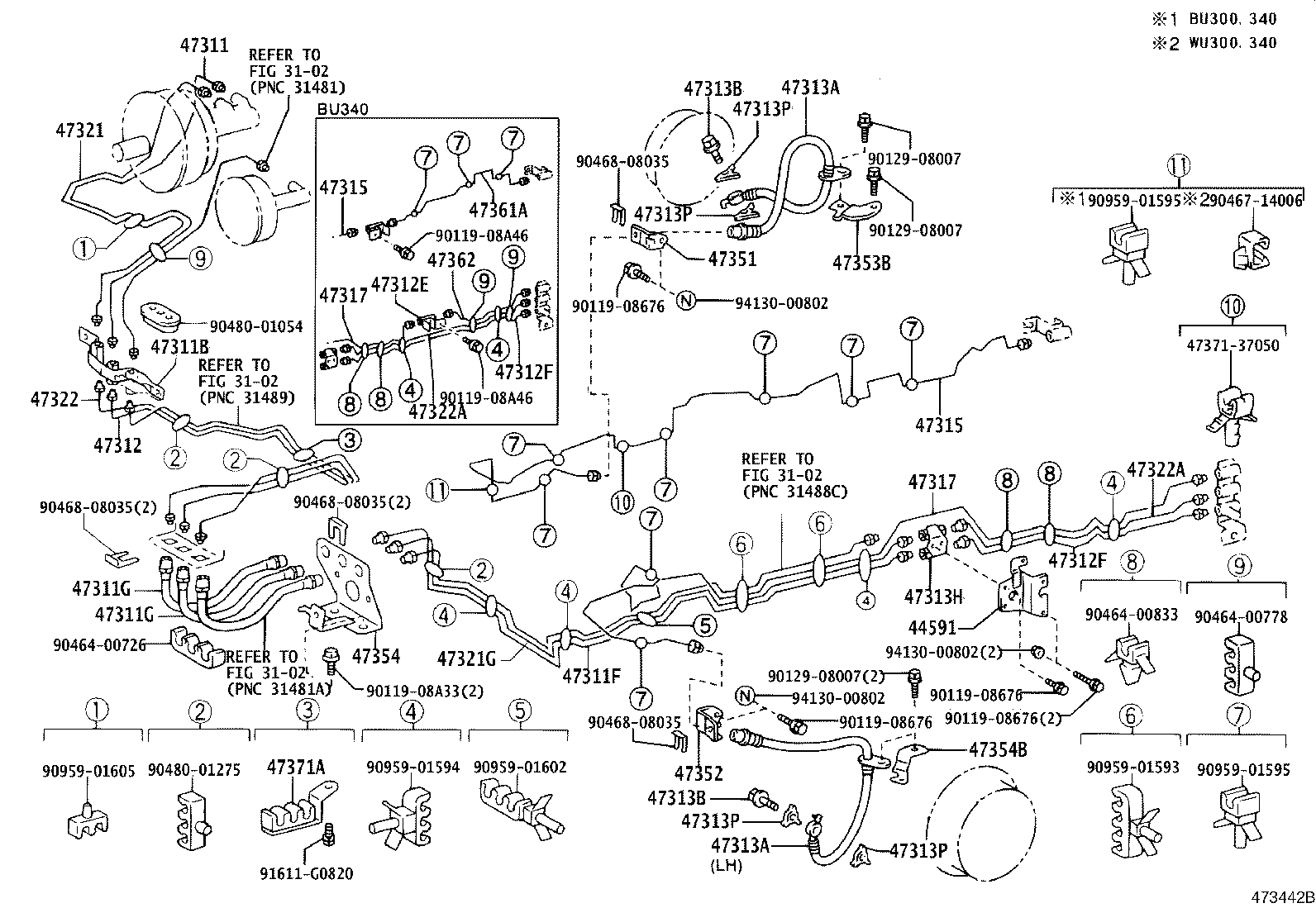

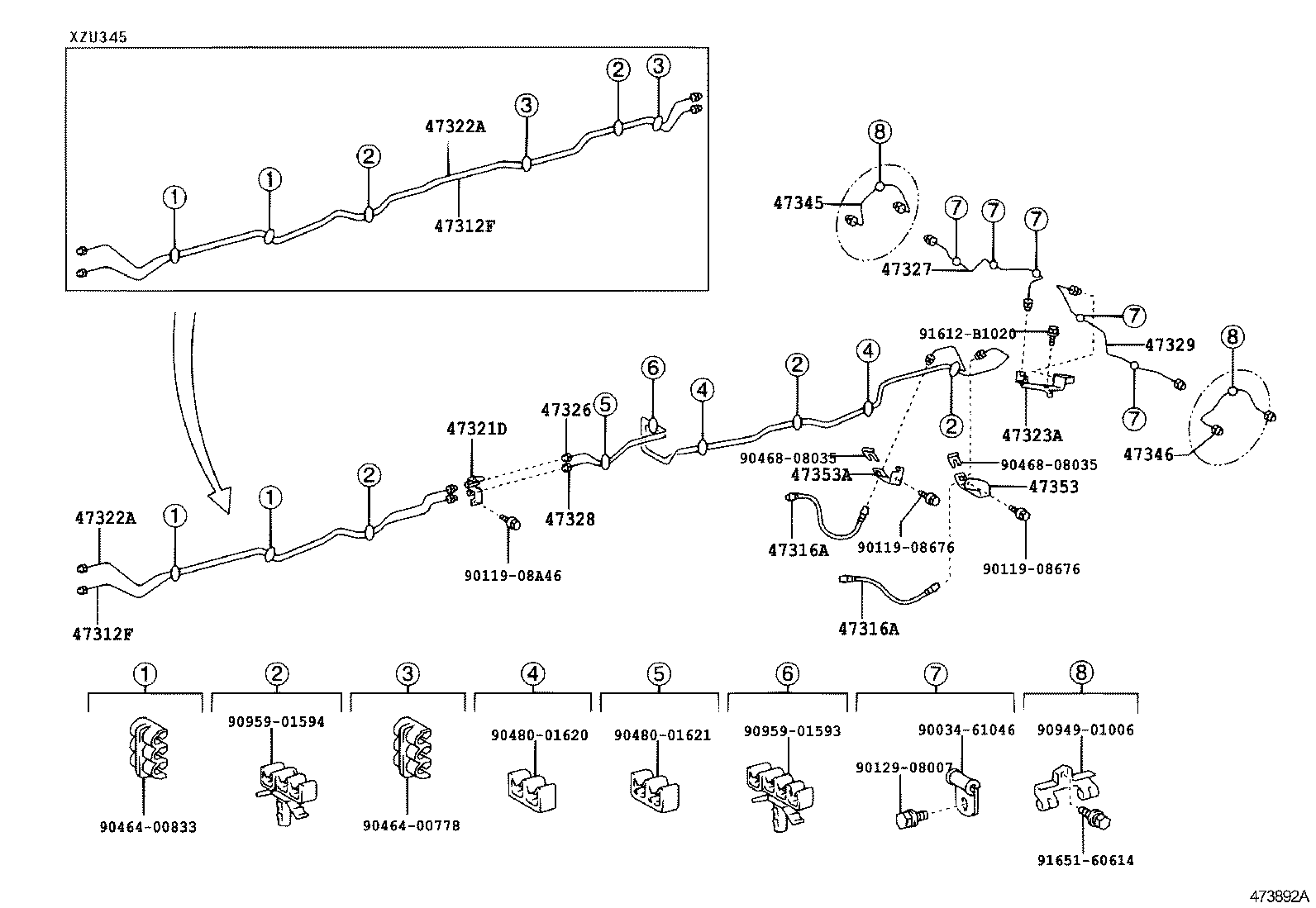

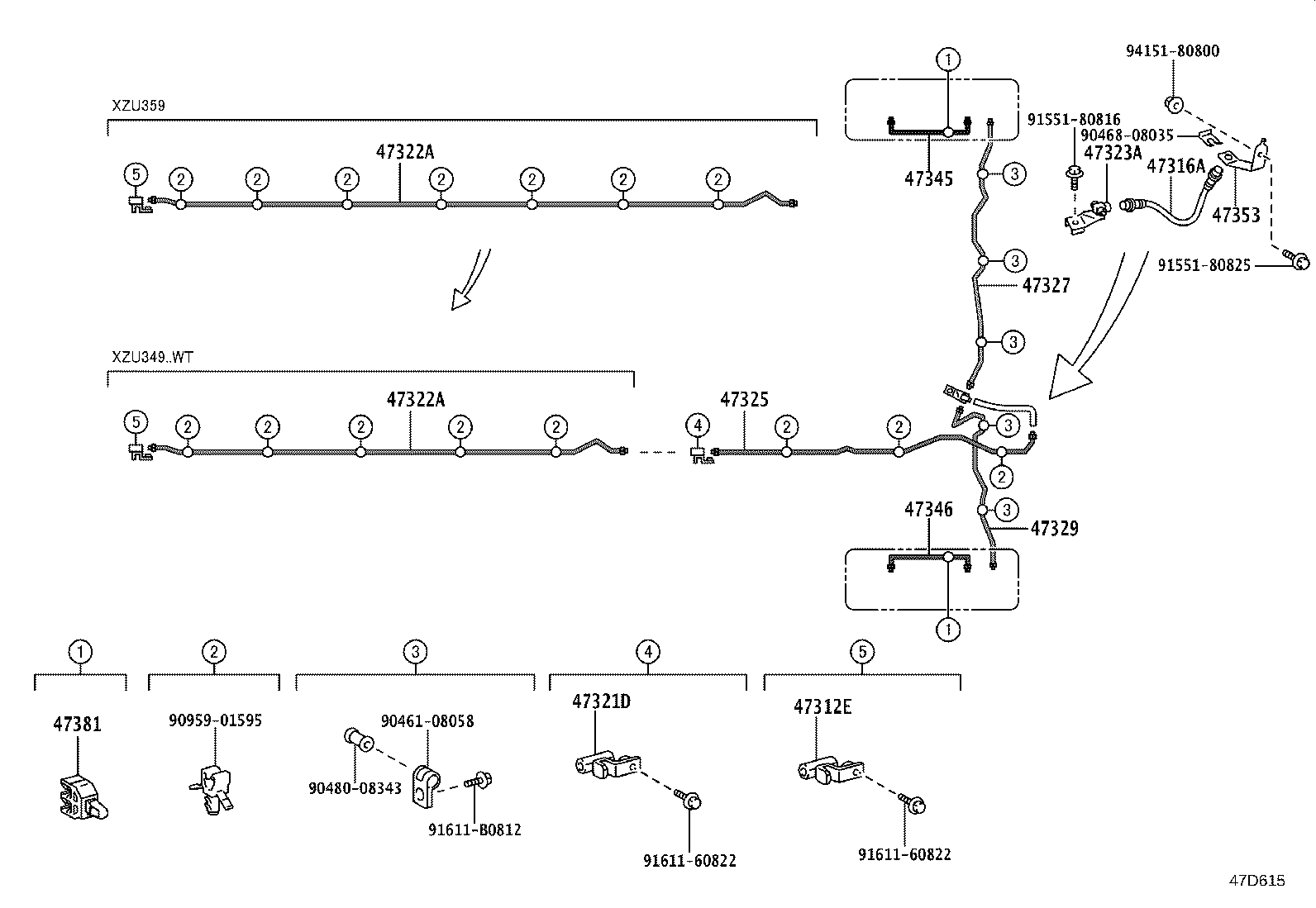

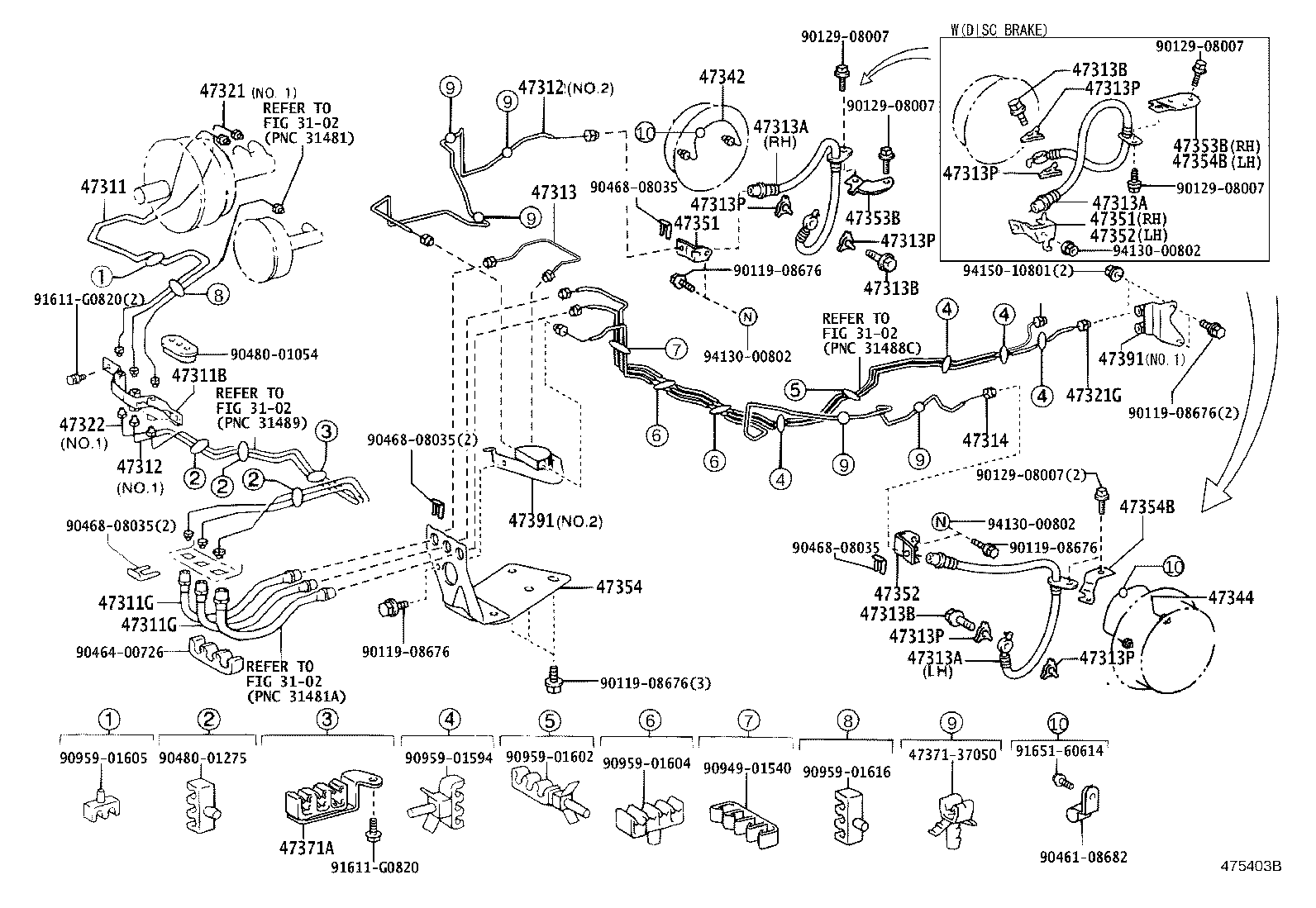

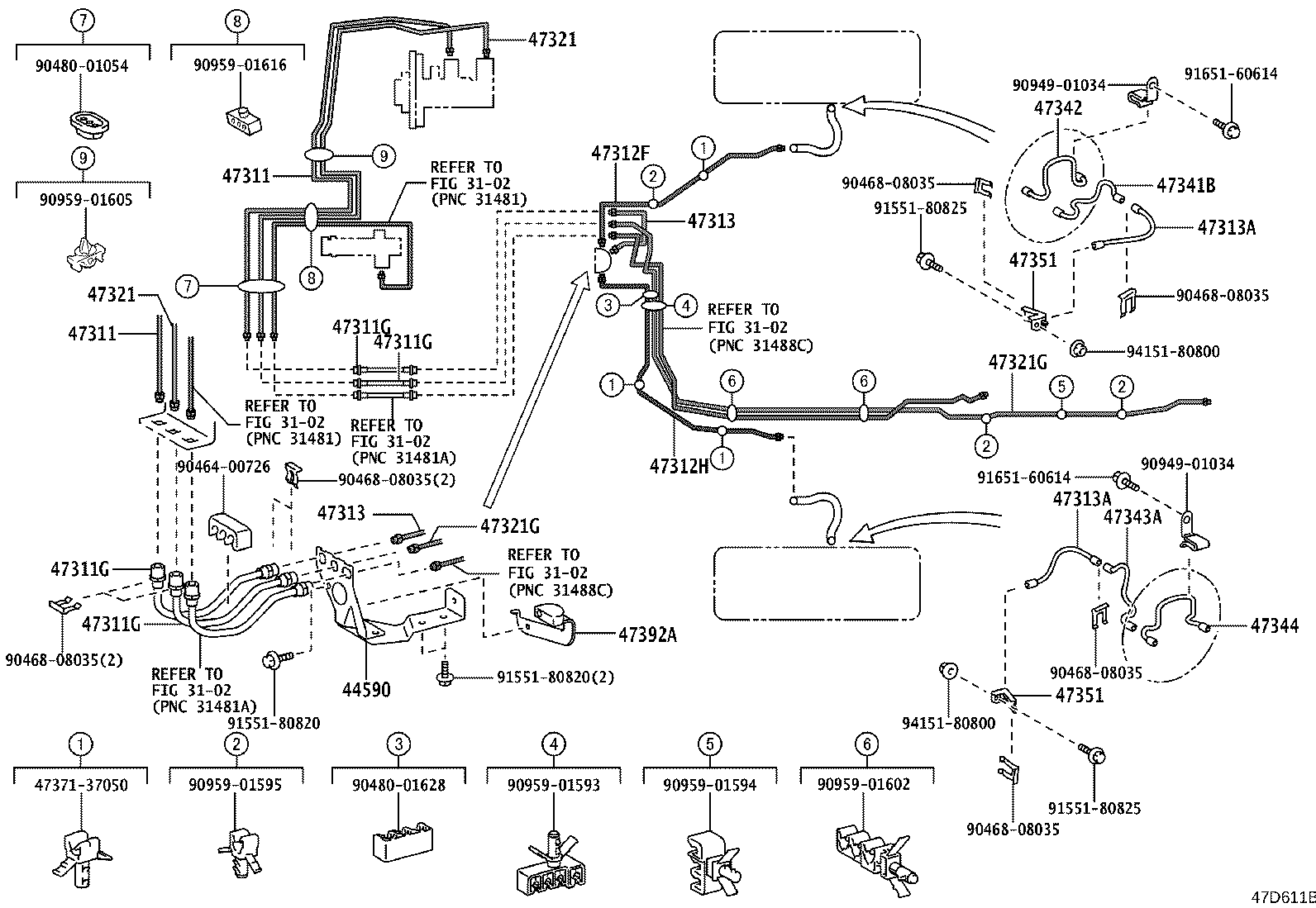

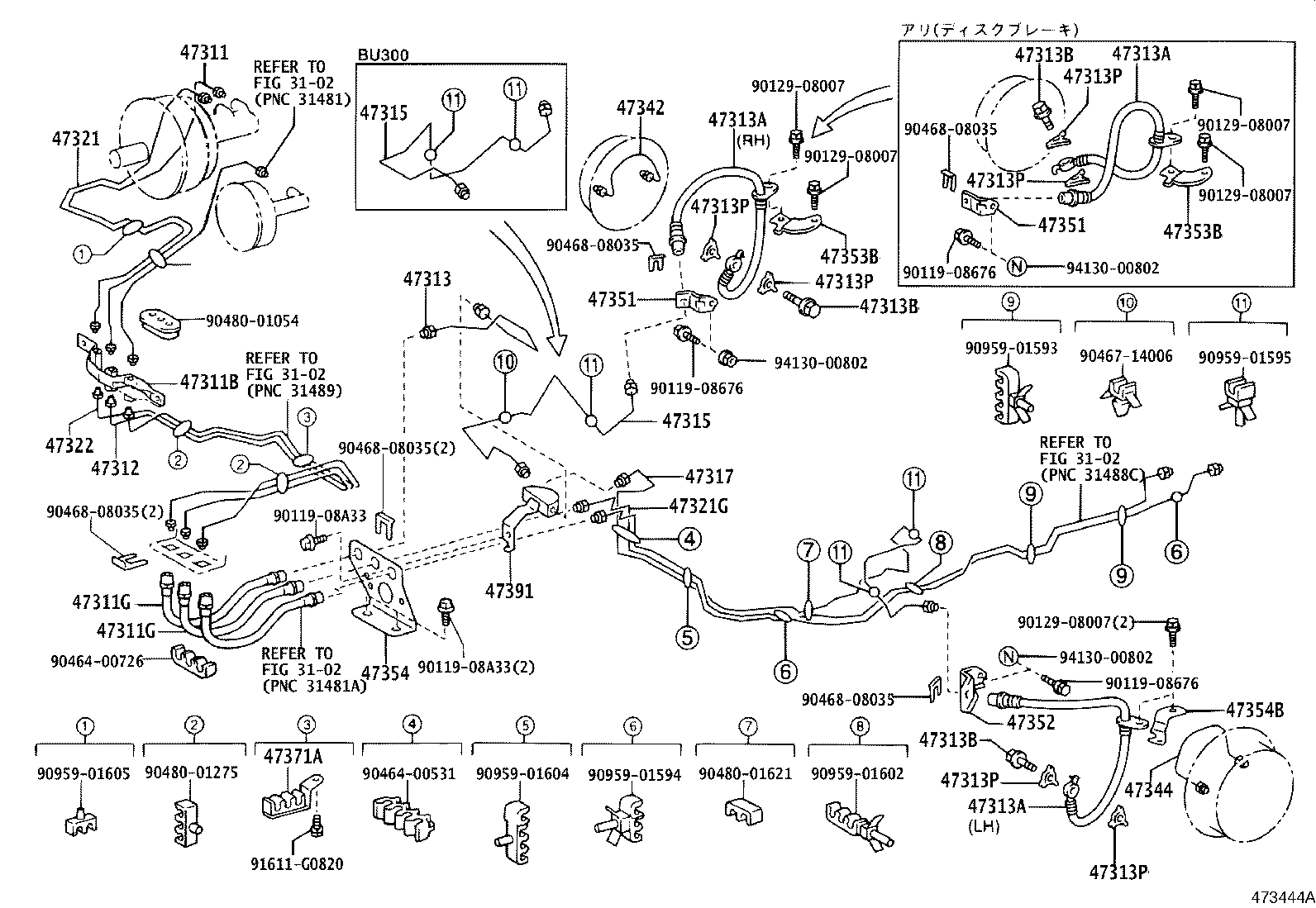

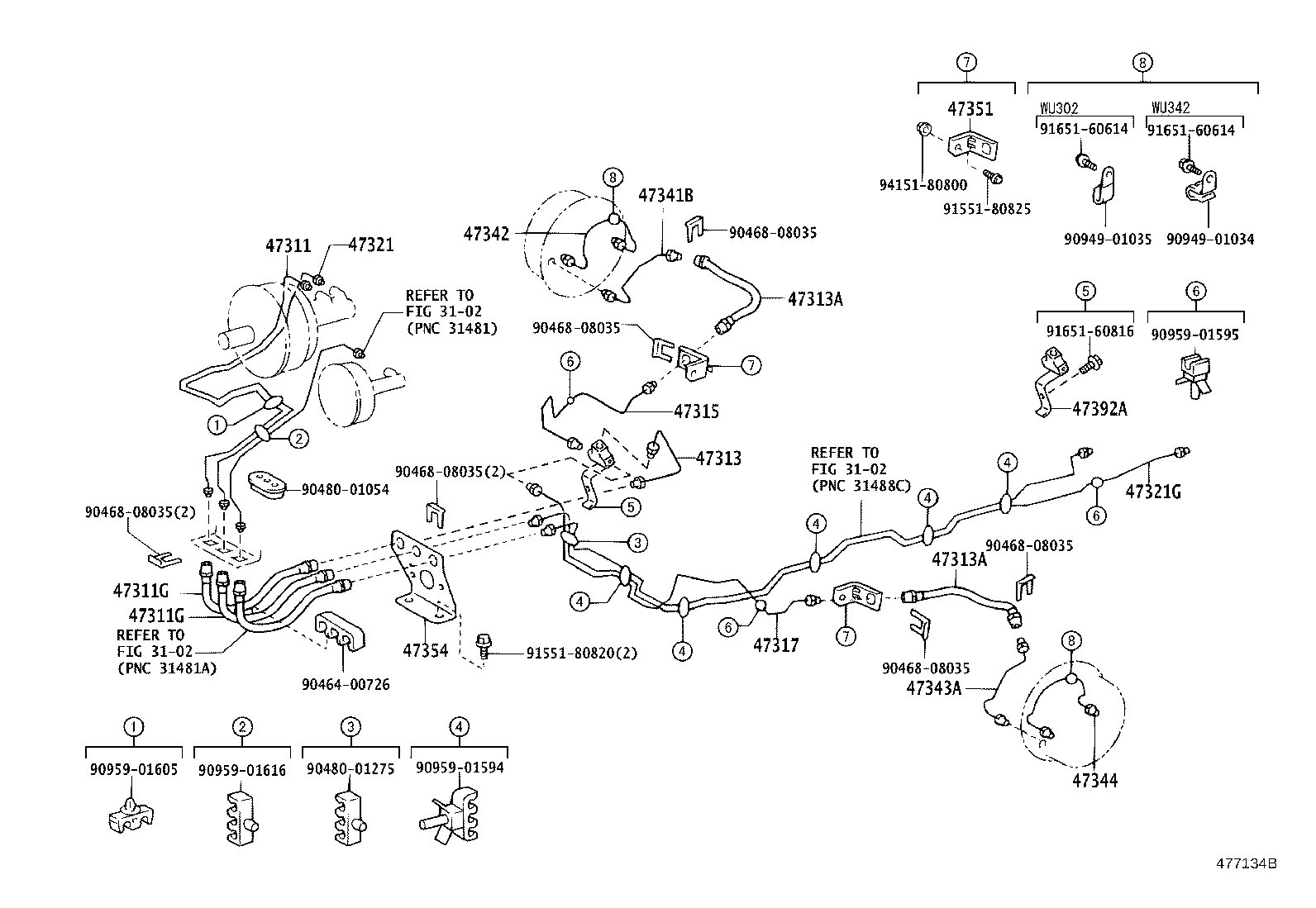

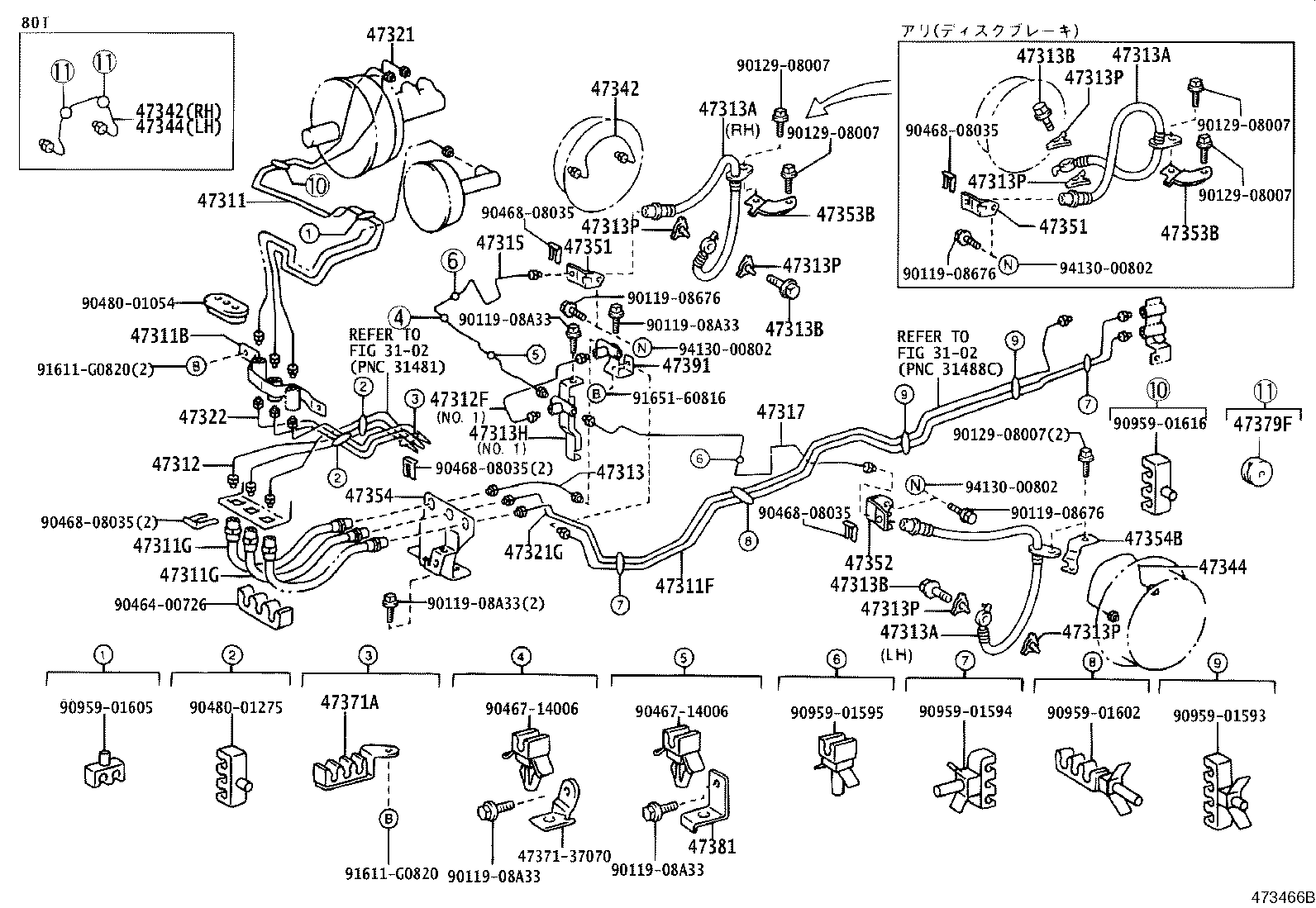

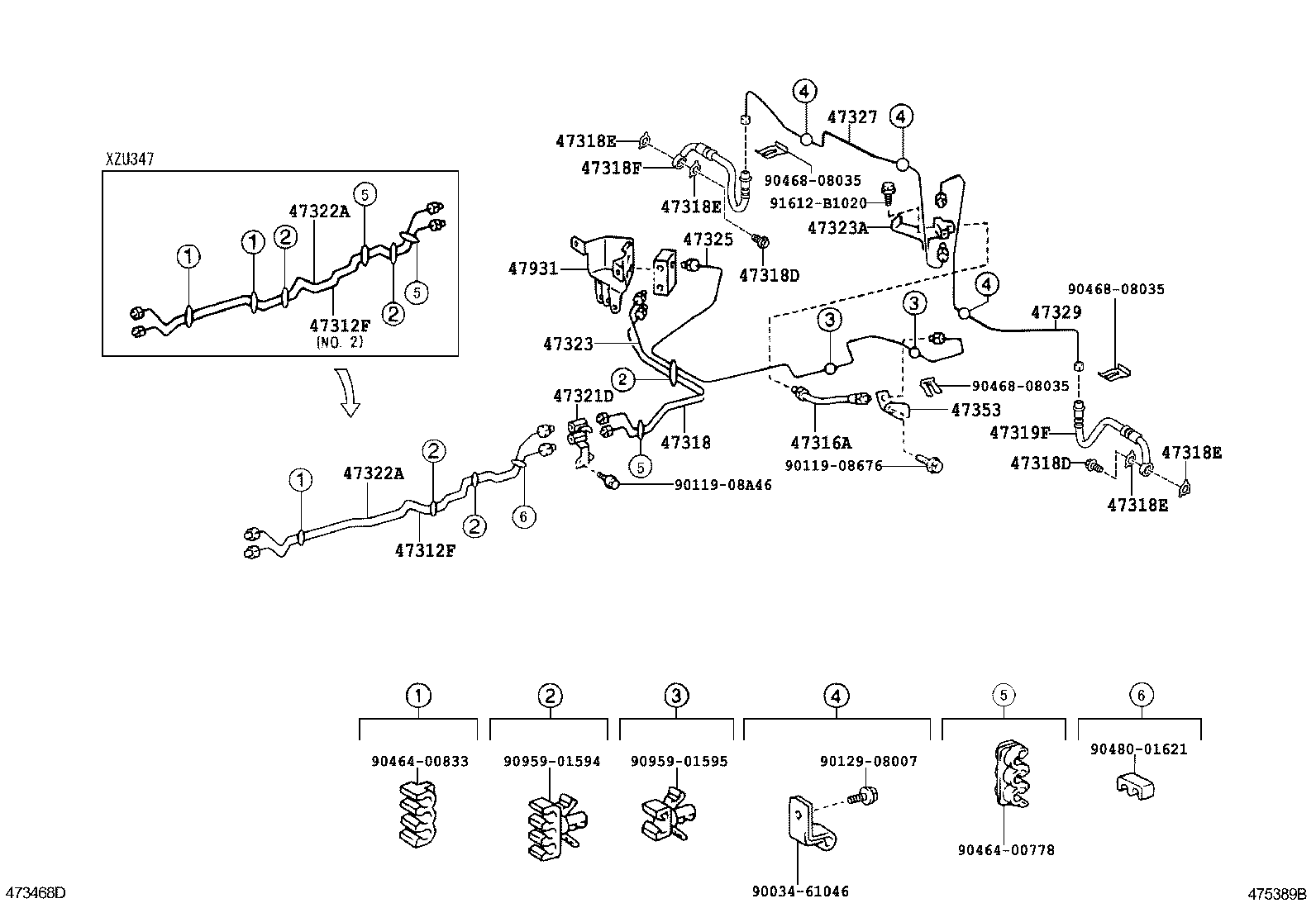

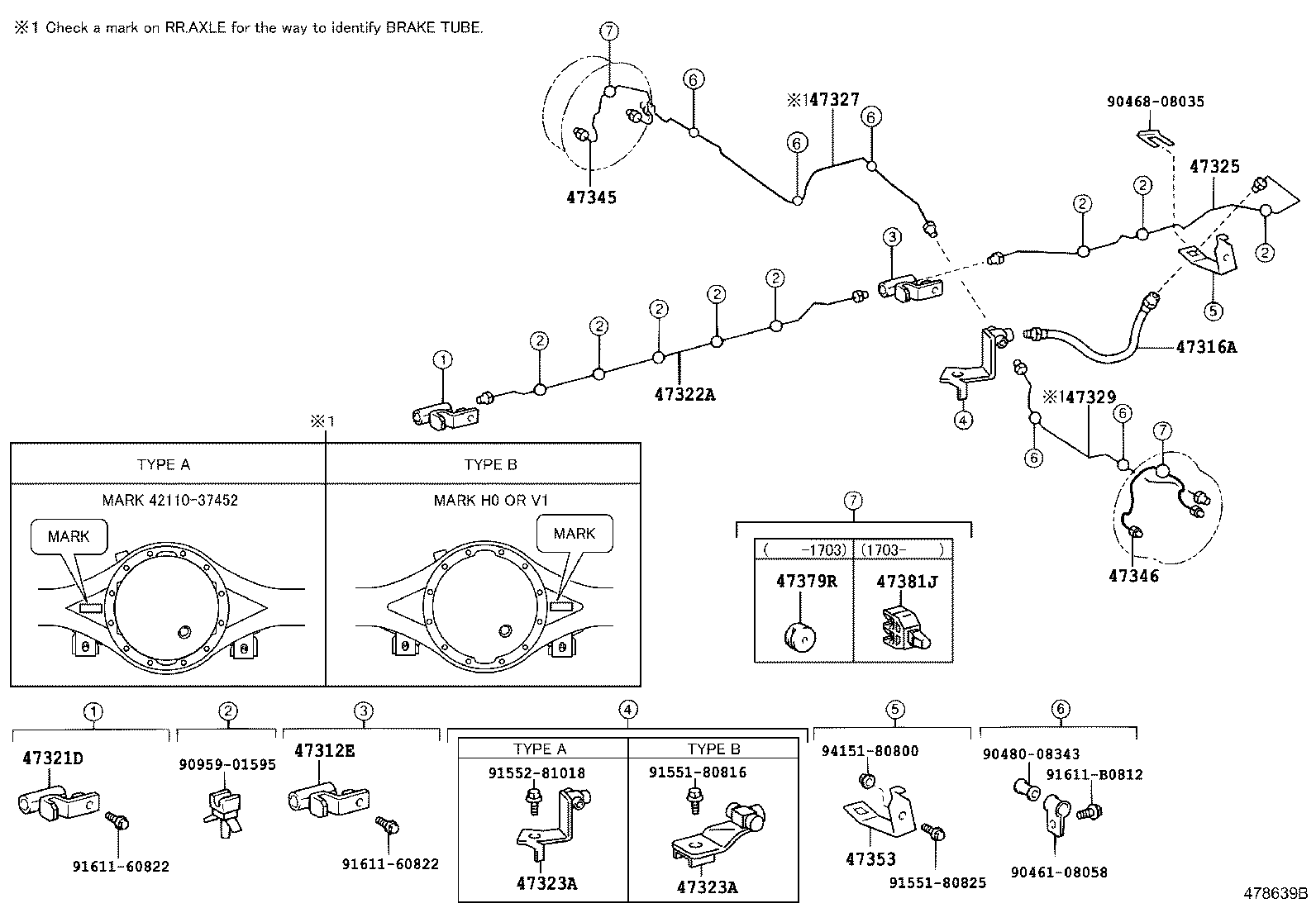

Figure 473212A 473212A 2002-09 → 2006-12 Figure 473100B 473100B 2002-09 → 2006-12 Figure 473466B 473466B 2002-12 → 2006-10 Figure 473674B 473674B 2002-12 → 2006-10 Figure 473467A 473467A 2002-12 → 2006-10 Figure 473442B 473442B 2002-12 → 2006-10 Figure 473442B 473442B 2002-12 → 2007-12 Figure 473443A 473443A 2002-12 → 2006-10 Figure 473890A 473890A 2003-12 → 2006-10 Figure 473891A 473891A 2003-12 → 2006-10 Figure 473444A 473444A 2002-12 → 2006-10 Figure 475398C 475398C 2006-10 → — Figure 475403B 475403B 2006-10 → — Figure 475400B 475400B 2006-10 → — Figure 475404B 475404B 2006-10 → — Figure 475405C 475405C 2006-10 → — Figure 475406B 475406B 2006-10 → — Figure 475716B 475716B 2006-12 → — Figure 475719B 475719B 2006-12 → — Figure 476300C 476300C 2008-02 → — Figure 477131C 477131C 2009-12 → — Figure 477134B 477134B 2009-12 → — Figure 47D610B 47D610B 2022-03 → — Figure 47D611B 47D611B 2022-03 → — Figure 47D612B 47D612B 2022-03 → — Figure 47D613B 47D613B 2022-03 → — Figure 473099 473099 2002-09 → 2006-12 Figure 473098 473098 2002-09 → 2006-12 Figure 473445D 473445D 2002-12 → 2008-02 Figure 473468E 473468E 2002-12 → 2006-10 Figure 473675C 473675C 2002-12 → — Figure 473469C 473469C 2002-12 → — Figure 473893 473893 2003-12 → 2006-10 Figure 473892A 473892A 2003-12 → 2006-10 Figure 475424C 475424C 2006-10 → — Figure 475389B 475389B 2006-10 → — Figure 475722B 475722B 2006-12 → — Figure 475723C 475723C 2006-12 → — Figure 476301 476301 2008-02 → — Figure 478639B 478639B 2009-12 → — Figure 47A647 47A647 2016-12 → — Figure 47D614 47D614 2022-03 → — Figure 47D615 47D615 2022-03 → — Figure 47D616 47D616 2022-03 → — Figure 472409 472409 2002-12 → — Figure 473799A 473799A 2003-12 → — Figure 473799A 473799A 2007-12 → — Figure 473372A 473372A 2002-12 → — Figure 473676 473676 2002-12 → —

Part groups

PNCDescription
04477 Bush & Boot Kit, Load Sensing Spring
44540 Actuator Assy, Abs & Traction
44545D Holder, Brake Actuator Bolt
44590 Bracket Assy, Brake Actuator
44591 Bracket, Brake Actuator, NO.1

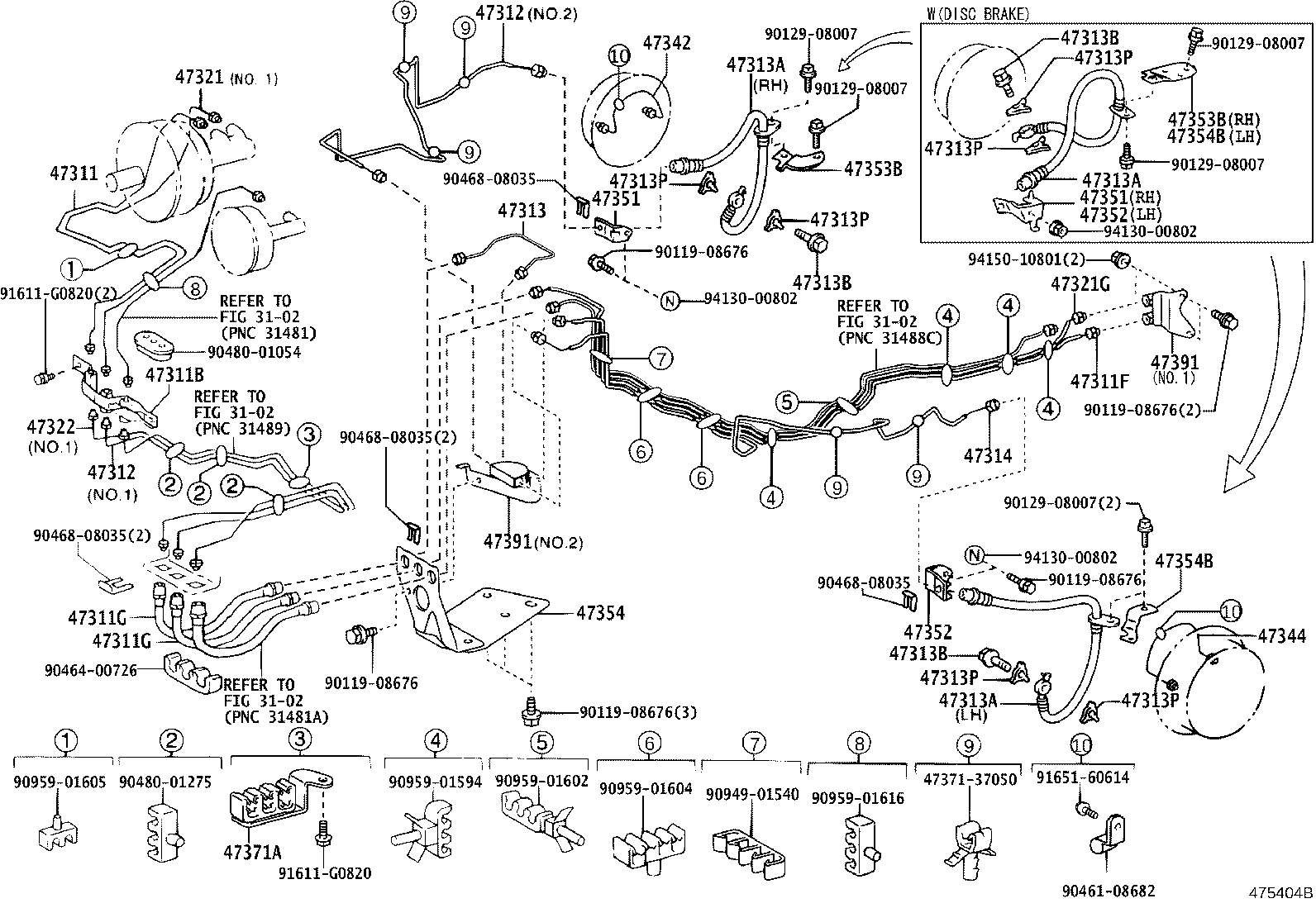

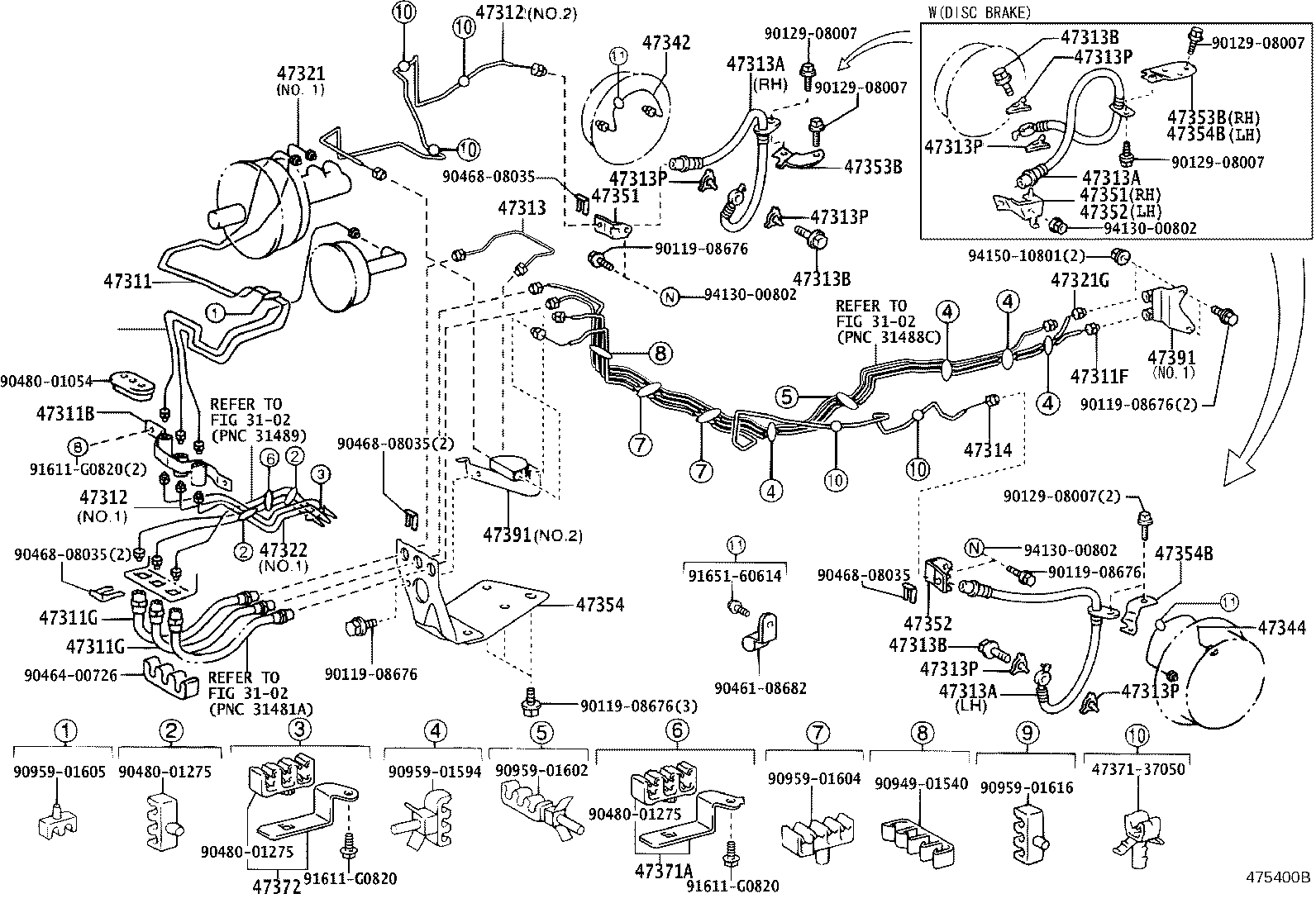

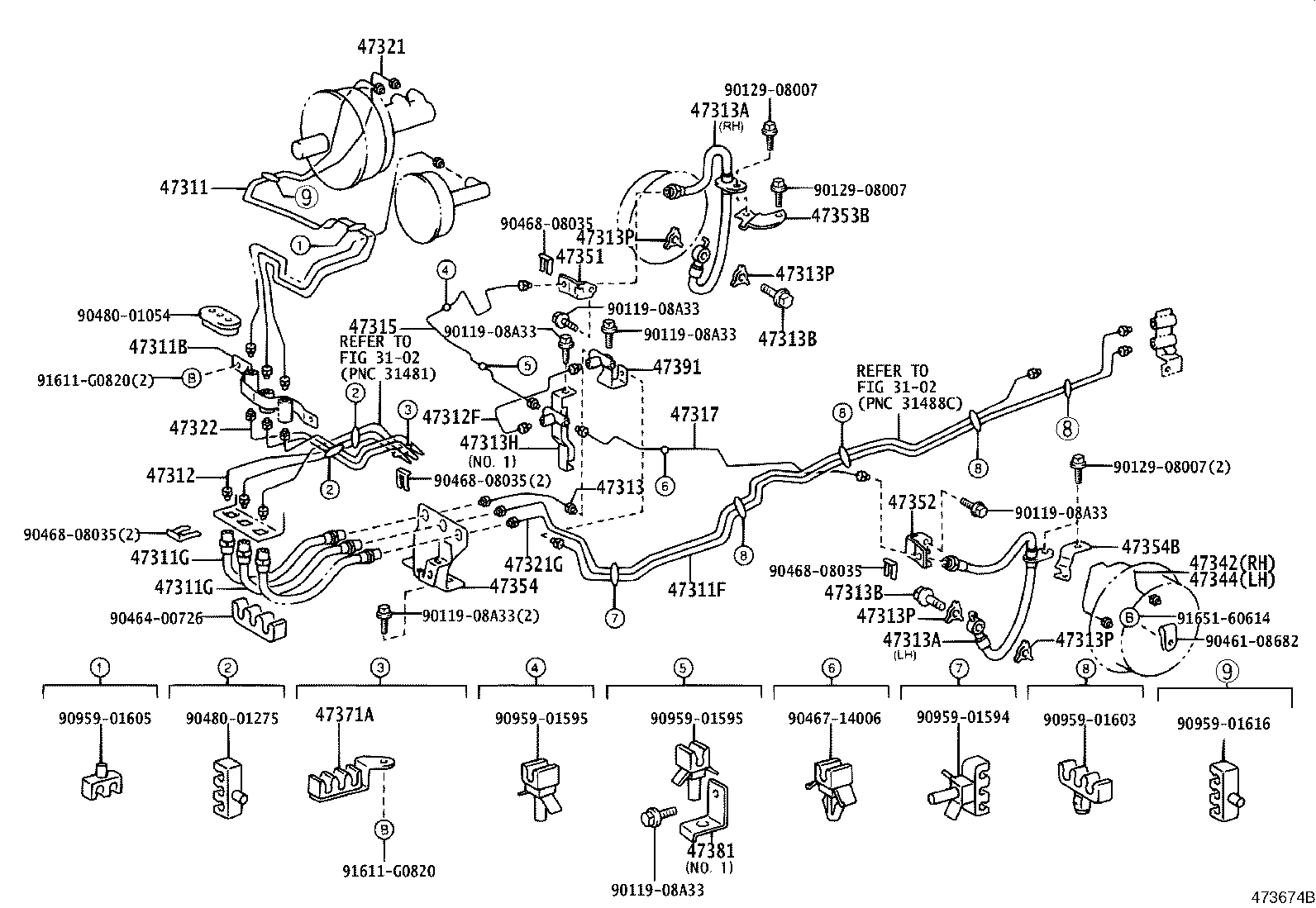

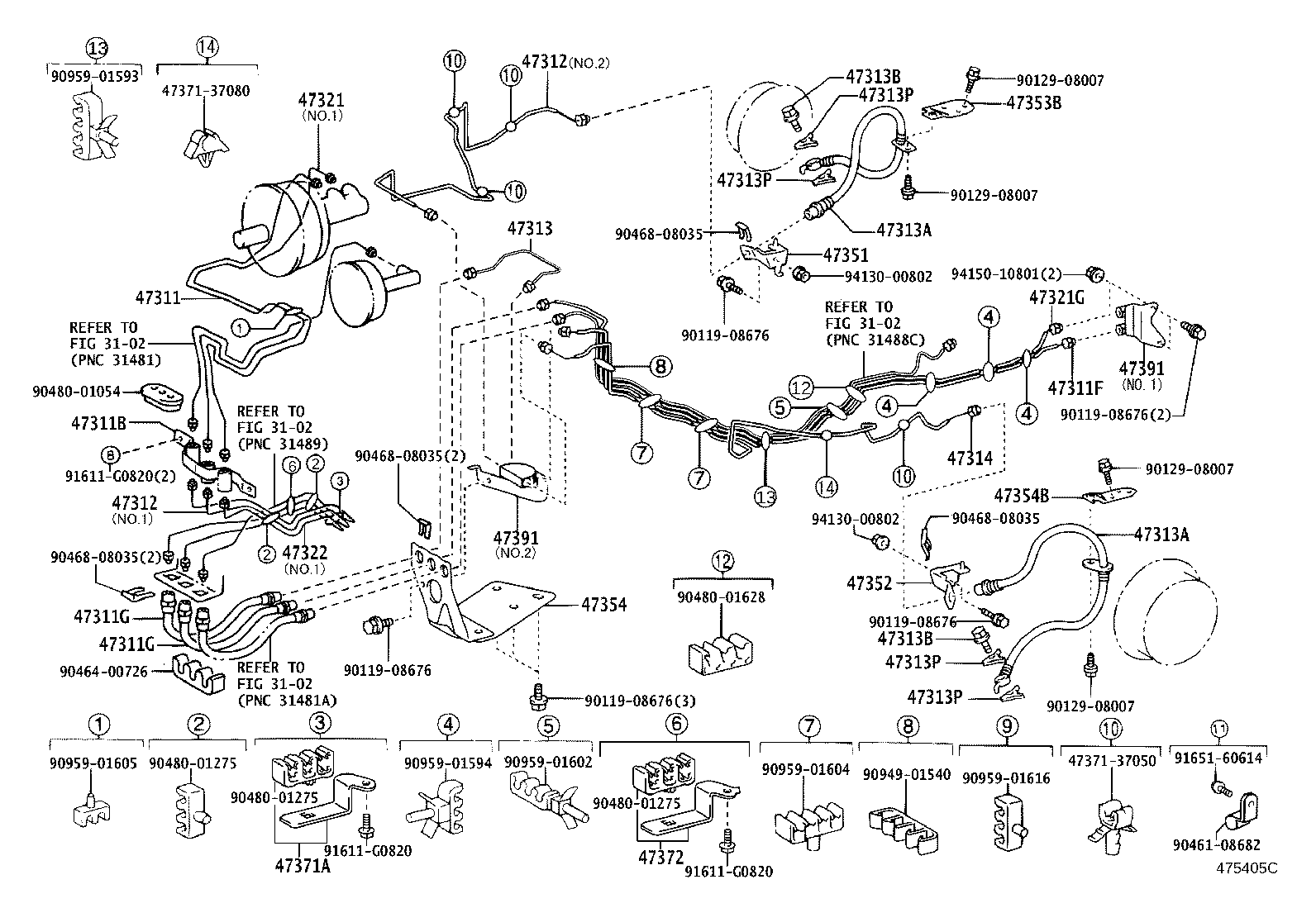

47311 Tube, Front Brake, NO.1
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47311F Tube, Front Brake, Frame NO.1
47311G Hose, Flexible(FOR BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47312E Way, NO.2(FOR FRONT BRAKE TUBE)
47312F Tube, Front Brake, Frame, NO.2
47312H Tube, Front Brake, NO.3
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313H Way, NO.3(FOR FRONT BRAKE TUBE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47317 Tube, Front Brake, NO.7
47318 Tube, Front Brake, NO.8
47318D Bolt, Union(FOR REAR FLEXIBLE HOSE)
47318E Gasket(FOR REAR FLEXIBLE HOSE)
47318F Hose, Flexible(FOR REAR RH)
47319F Hose, Flexible(FOR REAR LH)

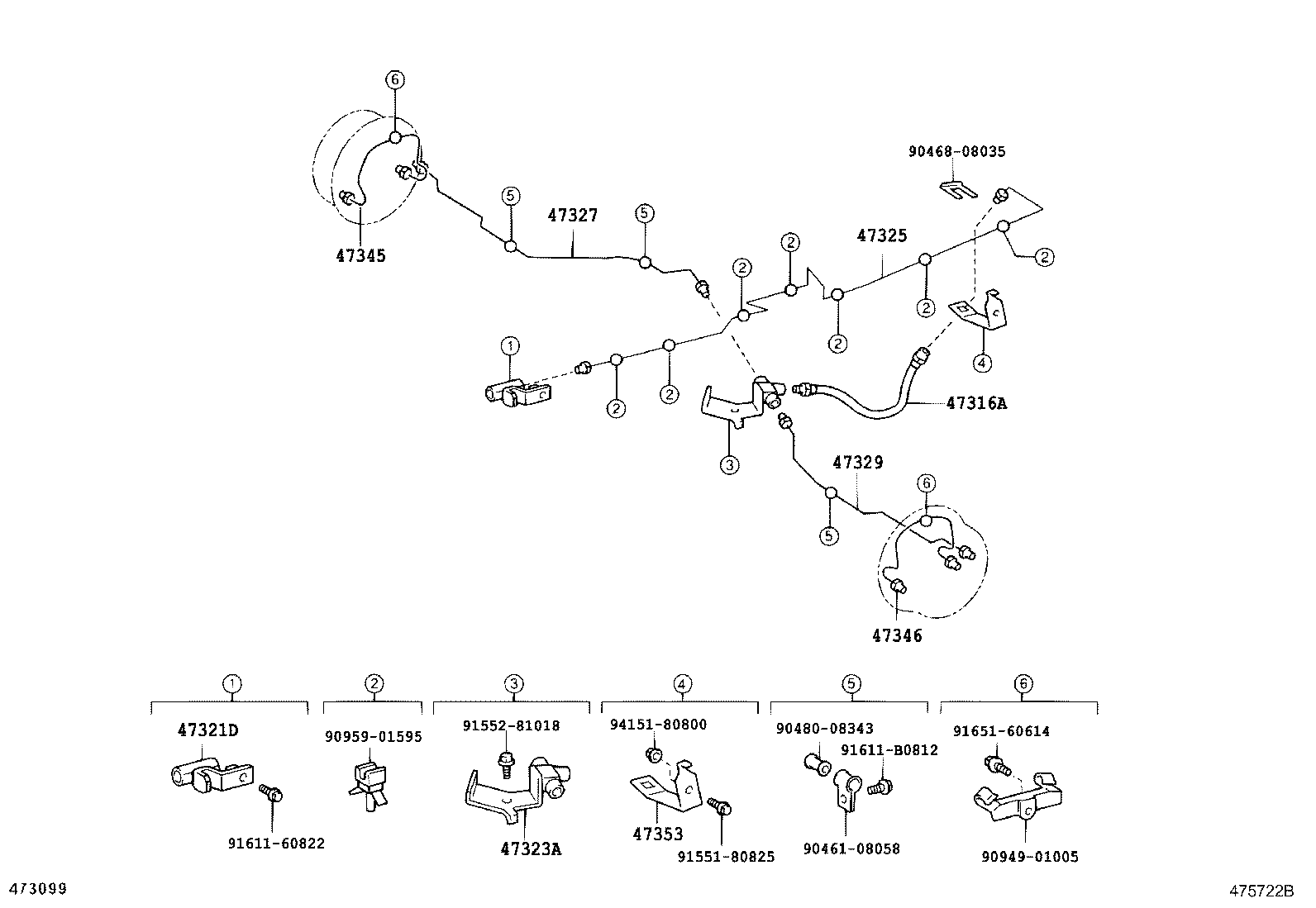

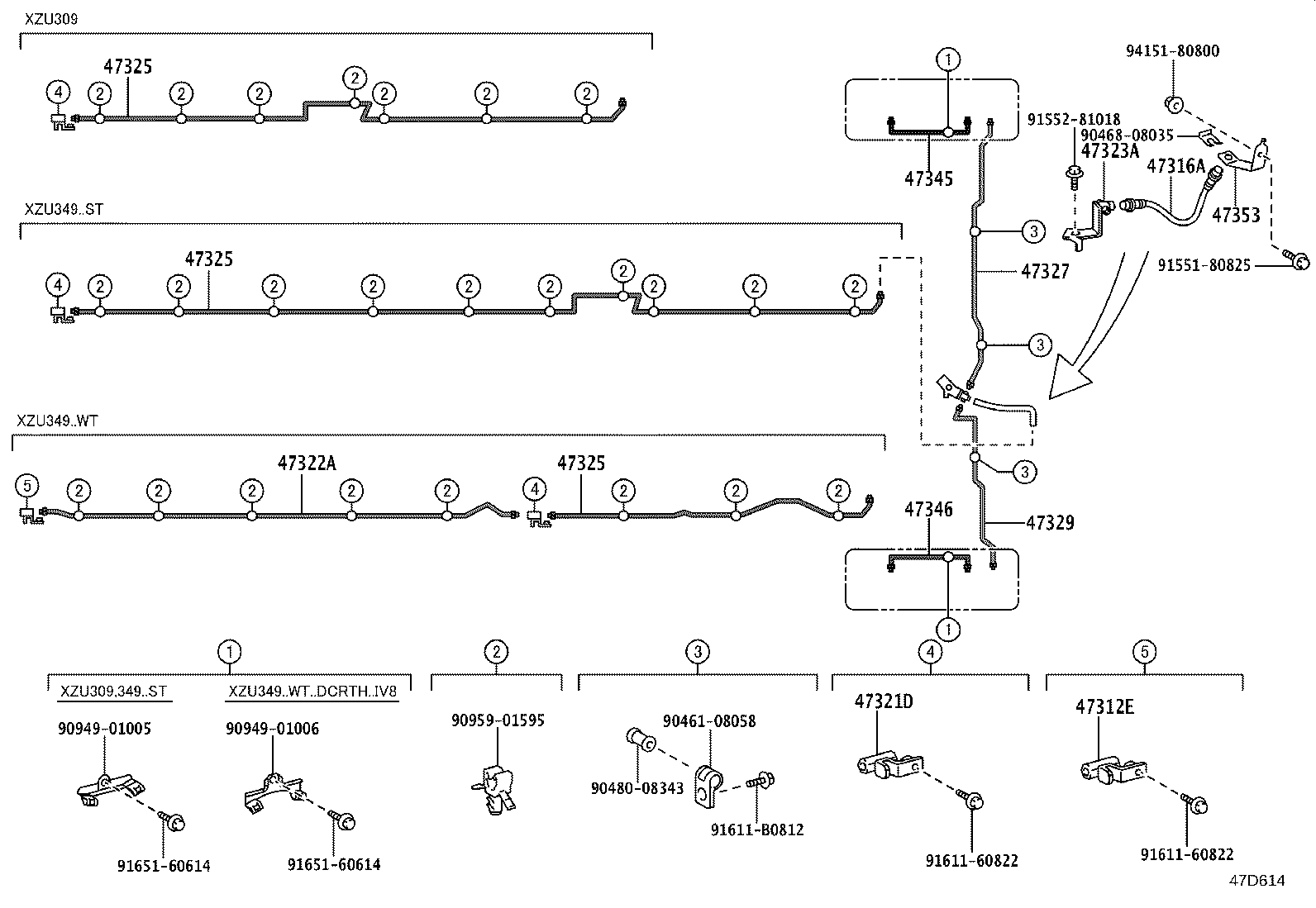

47321 Tube, Rear Brake, NO.1
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47321G Tube, Rear Brake, Frame NO.1
47322 Tube, Rear Brake, NO.2
47322A Tube, Rear Brake, Frame NO.2
47323 Tube, Rear Brake, NO.3
47323A Way, NO.3(FOR REAR BRAKE TUBE)
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47327 Tube, Rear Brake, NO.7
47328 Tube, Rear Brake, NO.8
47329 Tube, Rear Brake, NO.9
47341B Tube, Wheel Cylinder, Front RH NO.1
47342 Tube, Wheel Cylinder, Front RH NO.2
47343A Tube, Wheel Cylinder, Front LH NO.1
47344 Tube, Wheel Cylinder, Front LH NO.2
47345 Tube, Wheel Cylinder, Rear RH
47346 Tube, Wheel Cylinder, Rear LH
47351 Bracket, Flexible Hose(FOR FRONT RH)
47352 Bracket, Flexible Hose(FOR FRONT LH)
47353 Bracket, Flexible Hose(FOR REAR)
47353A Bracket, Flexible Hose, Front RH NO.2
47353B Bracket, Flexible Hose, NO.3
47354 Bracket, Front Flexible Hose
47354B Bracket, Flexible Hose, NO.4
47361A Tube, Front Brake, NO.10
47362 Tube, Front Brake, NO.11
47371A Clamp, Brake Tube, NO.1
47372 Clamp, Brake Tube, NO.2
47379F Damper, Tube(FOR FRONT)
47379R Damper, Tube(FOR REAR)
47381 Bracket, Brake Tube Clamp NO.1
47381J Bracket, Brake Tube Clamp, NO.2
47391 Way, Brake Tube
47392A Way, Brake Tube, NO.2

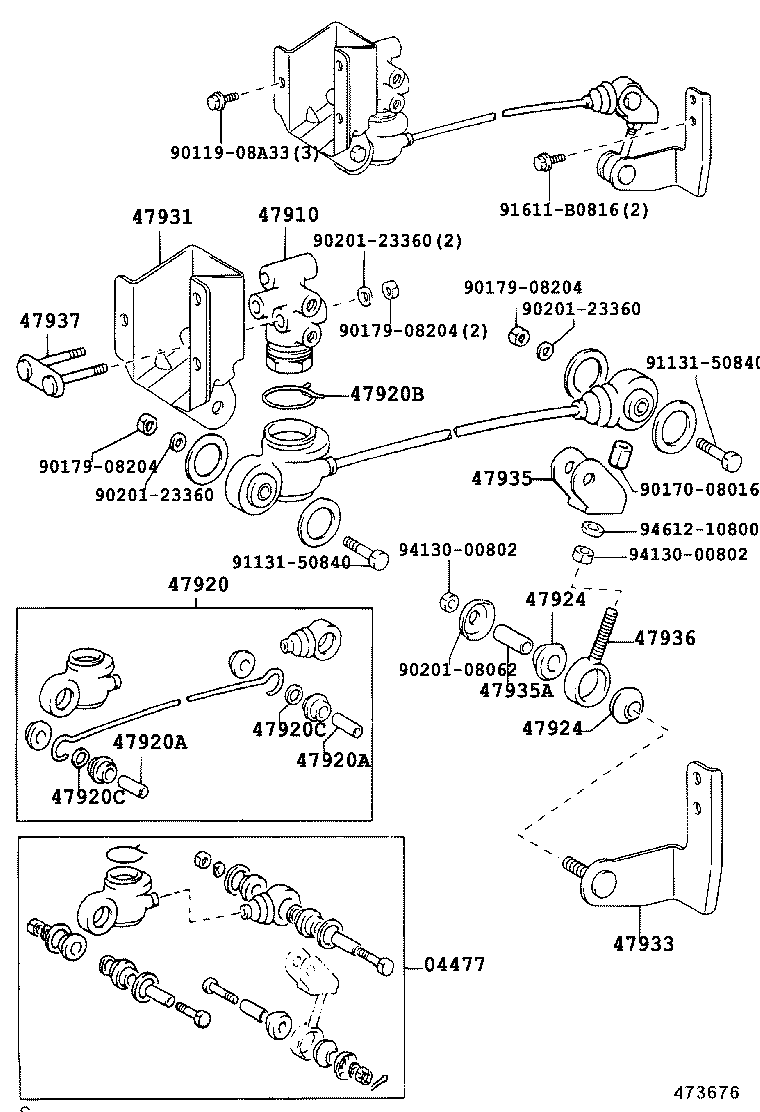

47910 Valve Assy, Load Sensing Proportioning
47920 Spring Assy, Load Sensing
47920A Collar(FOR LOAD SENSING SPRING)
47920B Clip(FOR LOAD SENSING VALVE BOOT)
47920C Washer(FOR LOAD SENSING SPRING)
47924 Bush, Load Sensing Valve
47931 Bracket, Load Sensing Valve

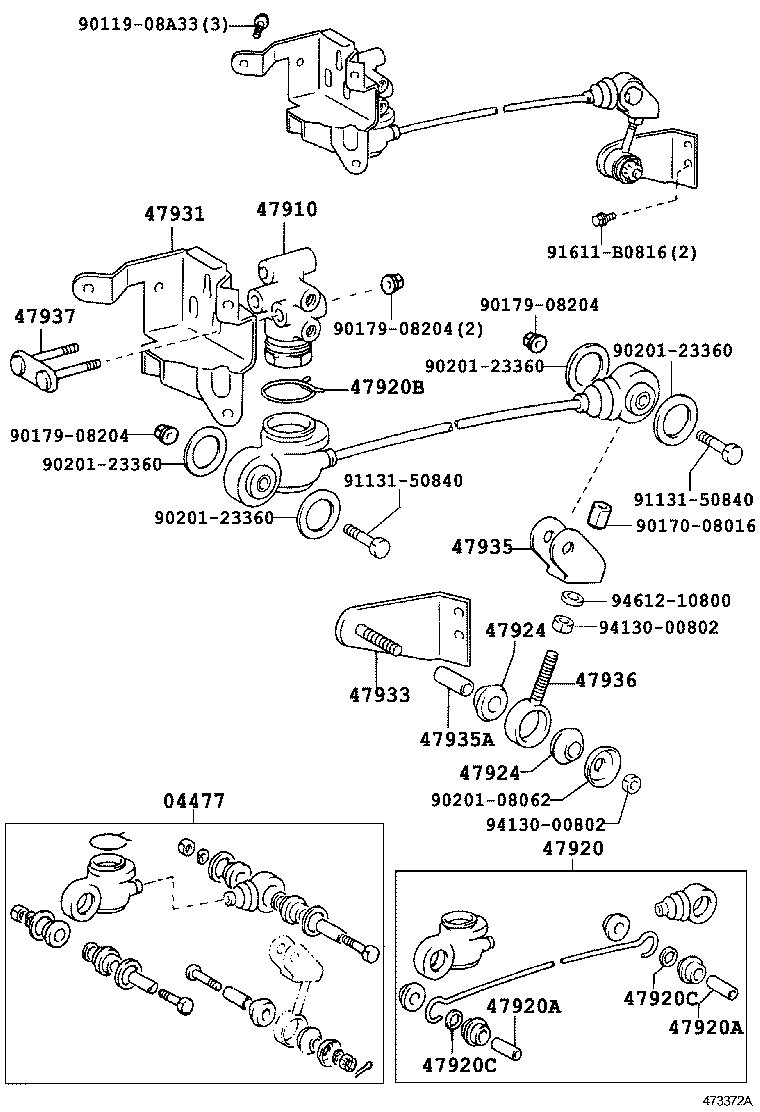

47933 Bracket, Load Sensing Shackle, NO.1
47935 Shackle, Load Sensing Spring, NO.1
47935A Collar(FOR LOAD SENSING SPRING SHACKLE)
47936 Shackle, Load Sensing Spring, NO.2
47937 Plate, Load Sensing Valve Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
