Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

22 part groups · 13 illustrations

Illustrations

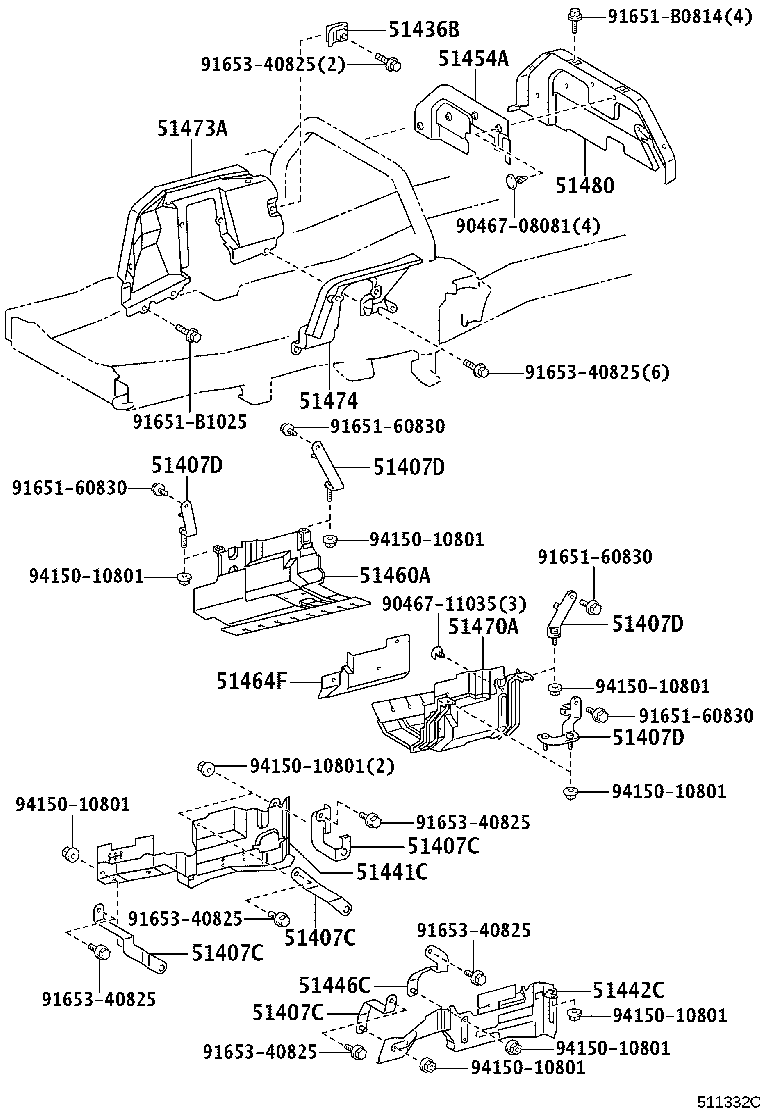

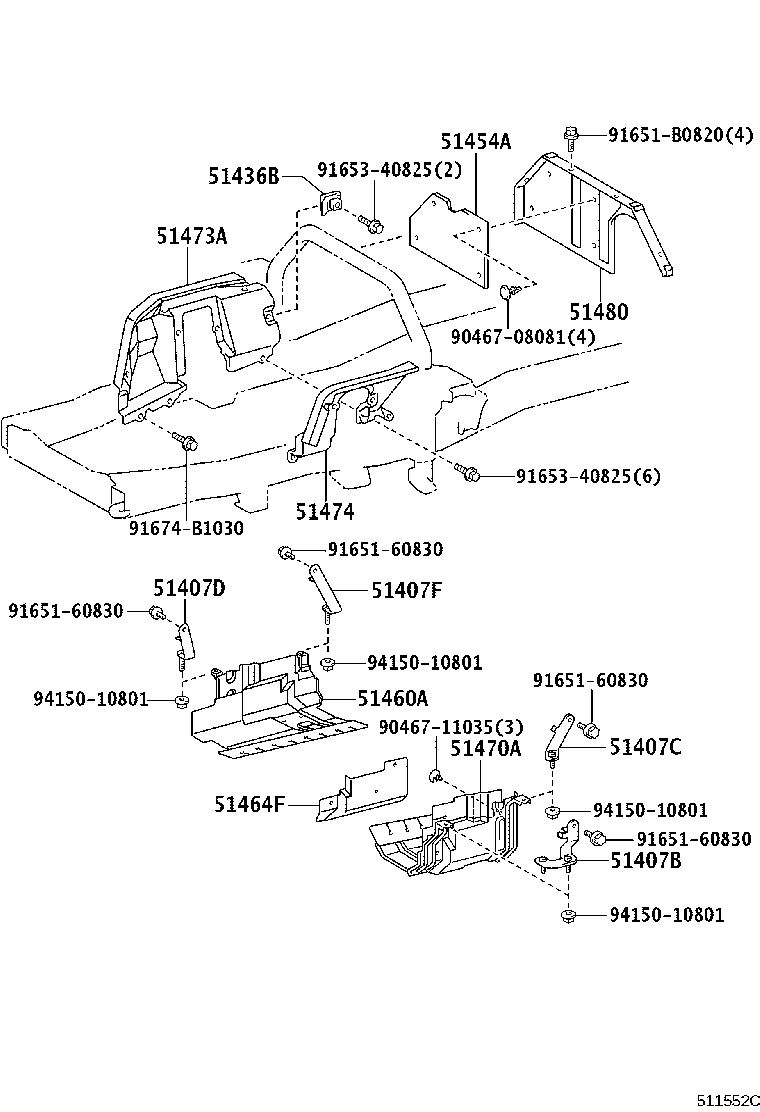

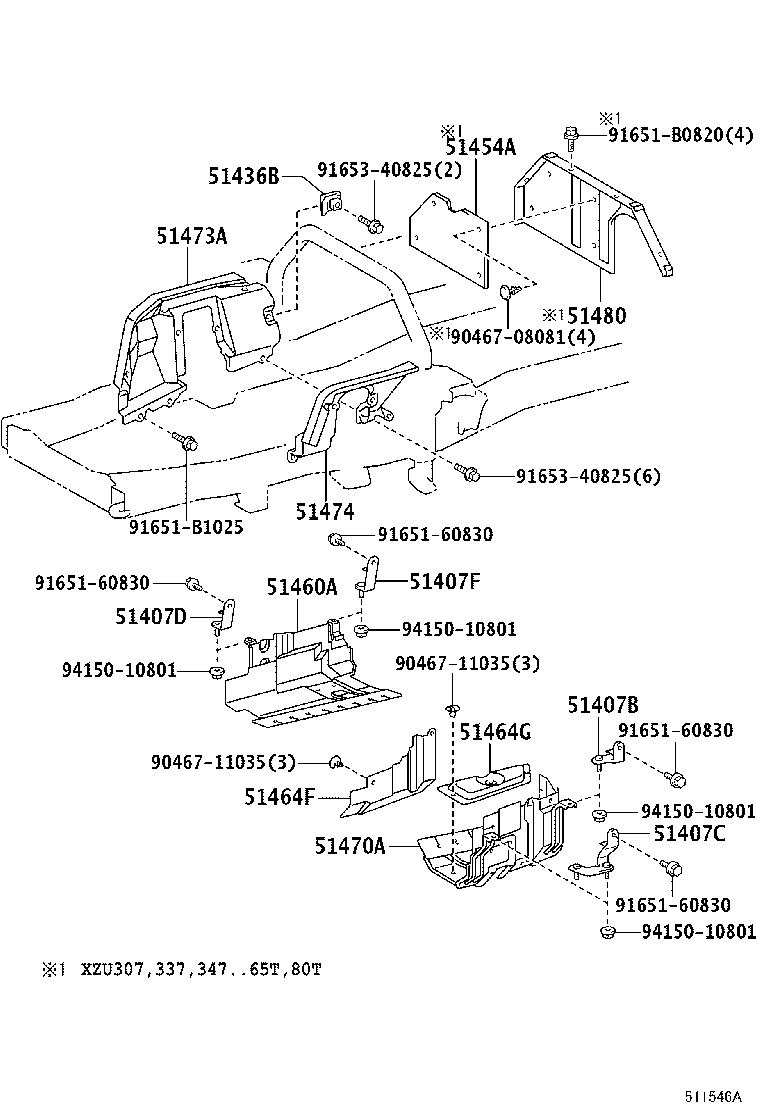

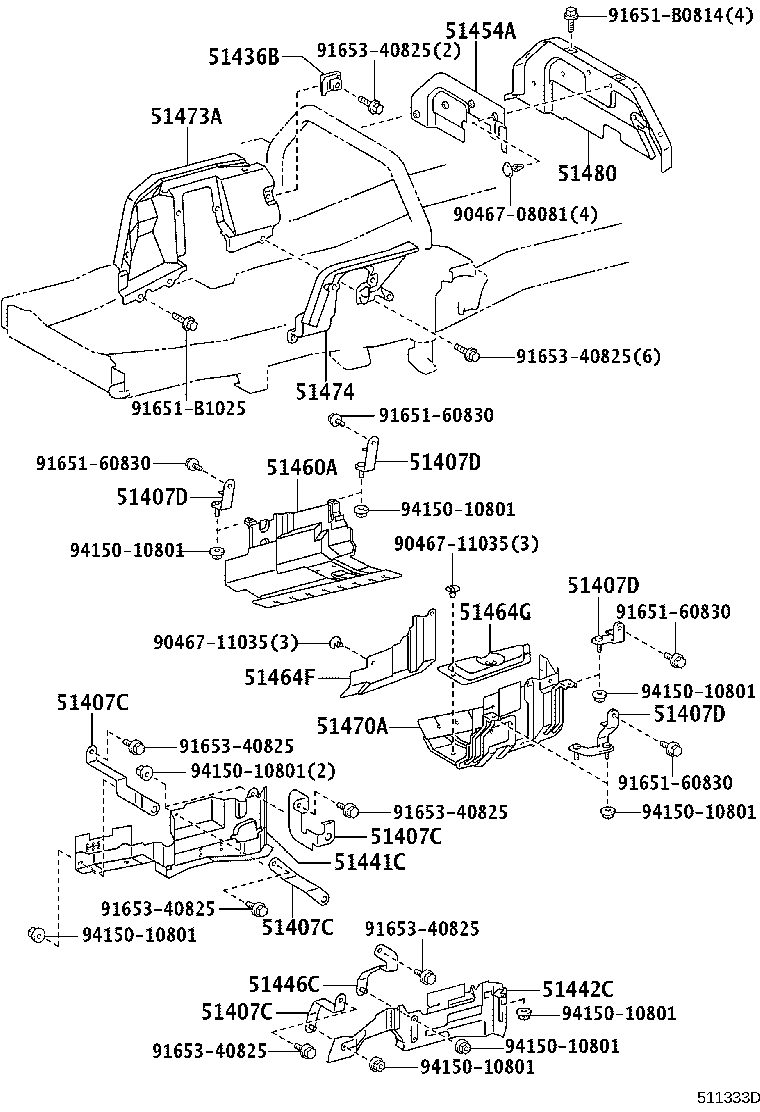

Figure 510808I 510808I 2002-09 → — Figure 510910C 510910C 2002-12 → 2005-06 Figure 510910C 510910C 2002-12 → 2006-10 Figure 510957B 510957B 2002-12 → 2005-06 Figure 511332C 511332C 2005-06 → 2006-10 Figure 511333D 511333D 2005-06 → 2006-10 Figure 511029B 511029B 2003-12 → — Figure 511546A 511546A 2006-10 → — Figure 511552C 511552C 2006-10 → — Figure 510809I 510809I 2002-09 → 2006-12 Figure 510809I 510809I 2006-12 → — Figure 510958C 510958C 2002-12 → 2006-10 Figure 510909E 510909E 2002-12 → —

Part groups

PNCDescription
51407B Bracket Sub-assy, Engine Under Cover
51407C Bracket Sub-assy, Engine Under Cover
51407D Bracket Sub-assy, Engine Under Cover
51407F Bracket Sub-assy, Engine Under Cover
51436B Bracket, Engine Side Cover, NO.1 RH
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51446C Bracket, Engine Under Cover, LH
51454A Silencer, Engine Rear Cover
51460A Cover Assy, Transmission Under, RH
51464D Silencer, Transmission Under
51464F Silencer, Transmission Under
51464G Silencer, Transmission Under
51470 Cover Assy, Transmission Under
51470A Cover Assy, Transmission Under, LH
51473A Cover Sub-assy, Engine Side, RH
51474 Cover Sub-assy, Engine Side, LH
51480 Shutter Assy, Engine Rear Side, RH
51961C Hook, Front
51962 Hook, NO.2
51963B Hook, Transport, Front RH
51964B Hook, Transport, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
