Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

4 part groups · 11 illustrations

Illustrations

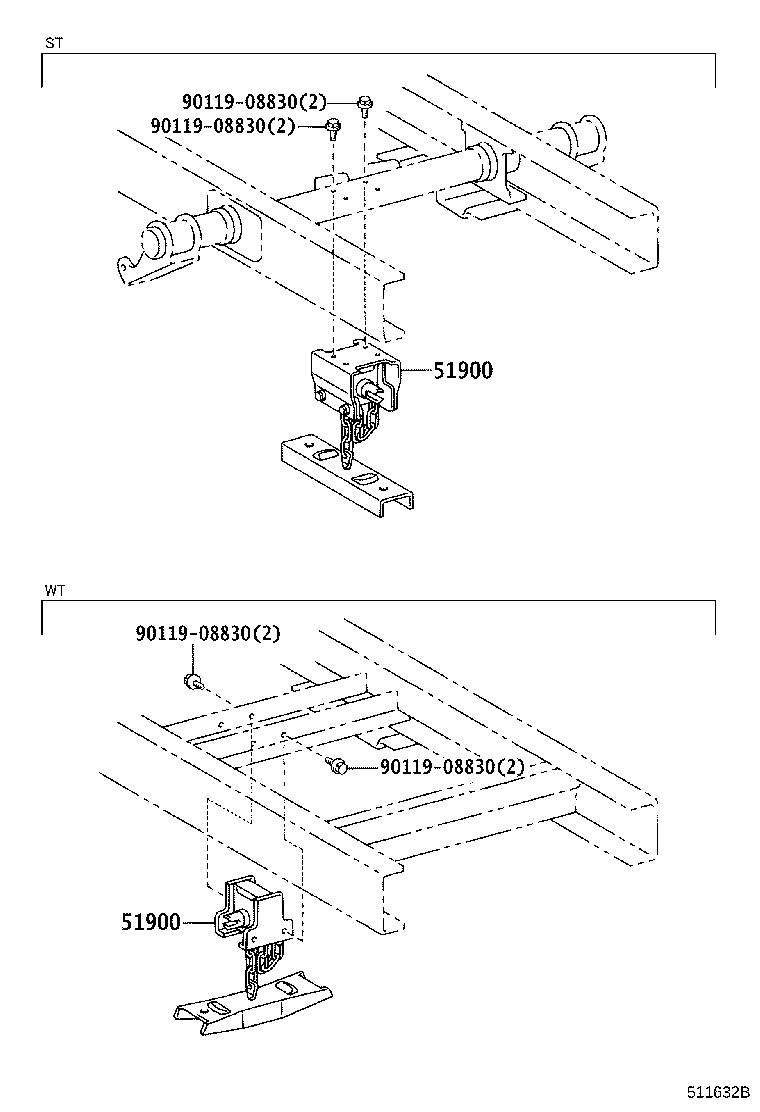

Figure 510829 510829 2002-09 → 2006-12 Figure 510882A 510882A 2002-12 → — Figure 510883 510883 2002-12 → 2005-10 Figure 510883 510883 2002-12 → 2006-10 Figure 510883 510883 2003-08 → 2006-10 Figure 510884B 510884B 2002-12 → 2006-10 Figure 510884B 510884B 2003-08 → 2006-10 Figure 510884B 510884B 2005-10 → — Figure 511322A 511322A 2005-01 → 2006-10 Figure 511549 511549 2006-10 → — Figure 511632B 511632B 2006-12 → —

Part groups

PNCDescription
51208A Member Sub-assy, Spare Wheel Set
51900 Carrier Assy, Spare Wheel
51908A Bracket Sub-assy, Spare Wheel Mounting
51933A Stopper, Spare Wheel, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
