Toyota Dyna
2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General
Discontinued model
Data version 2022-03

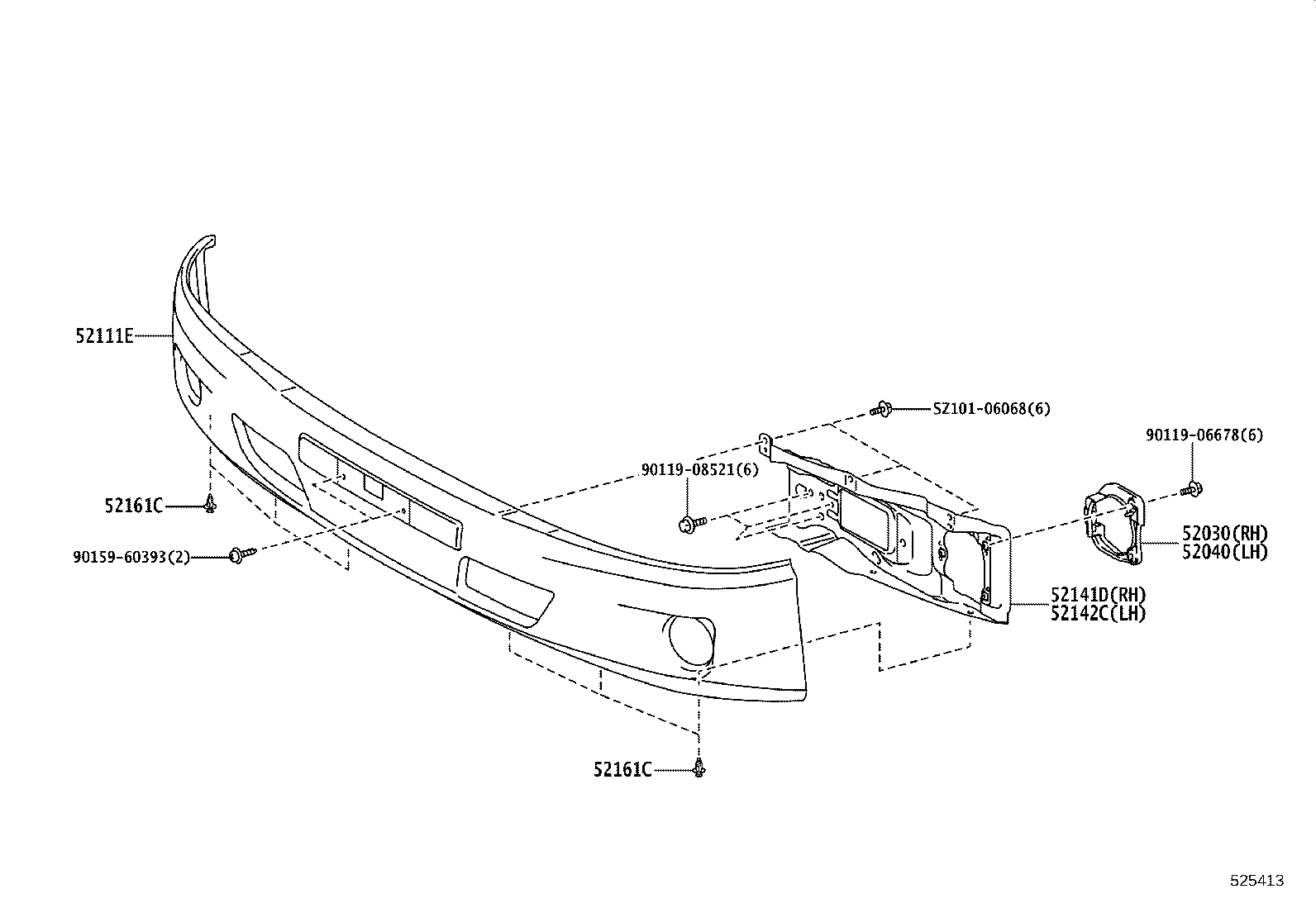

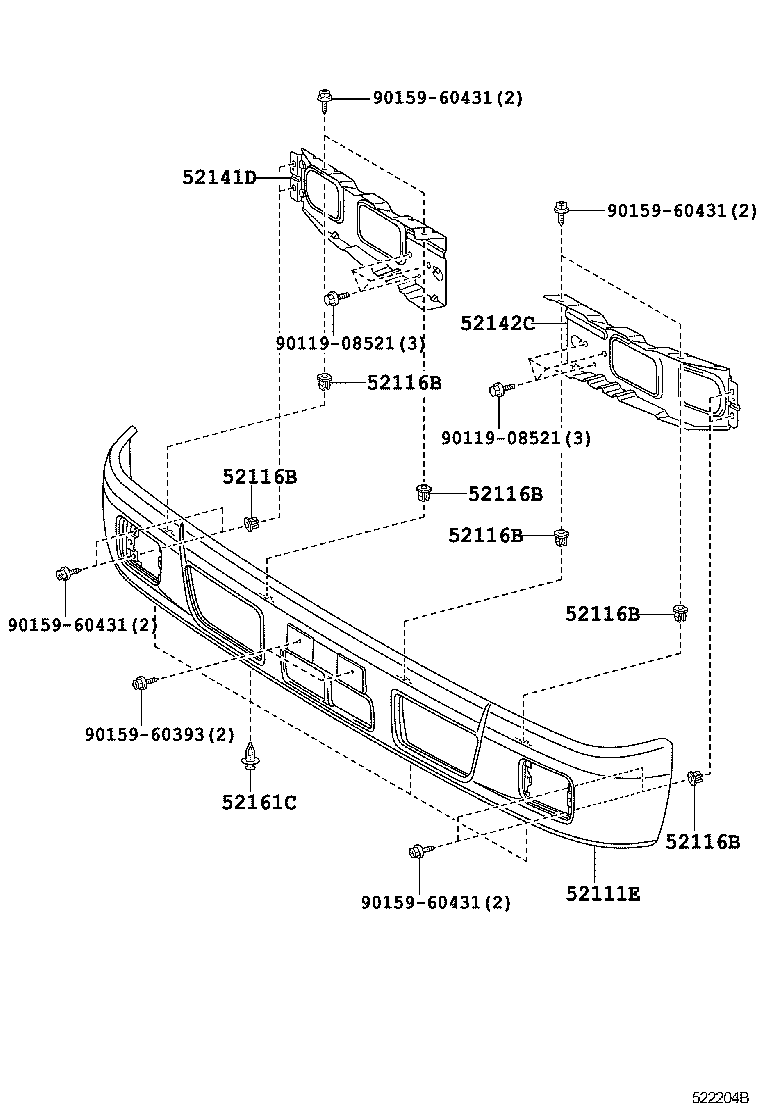

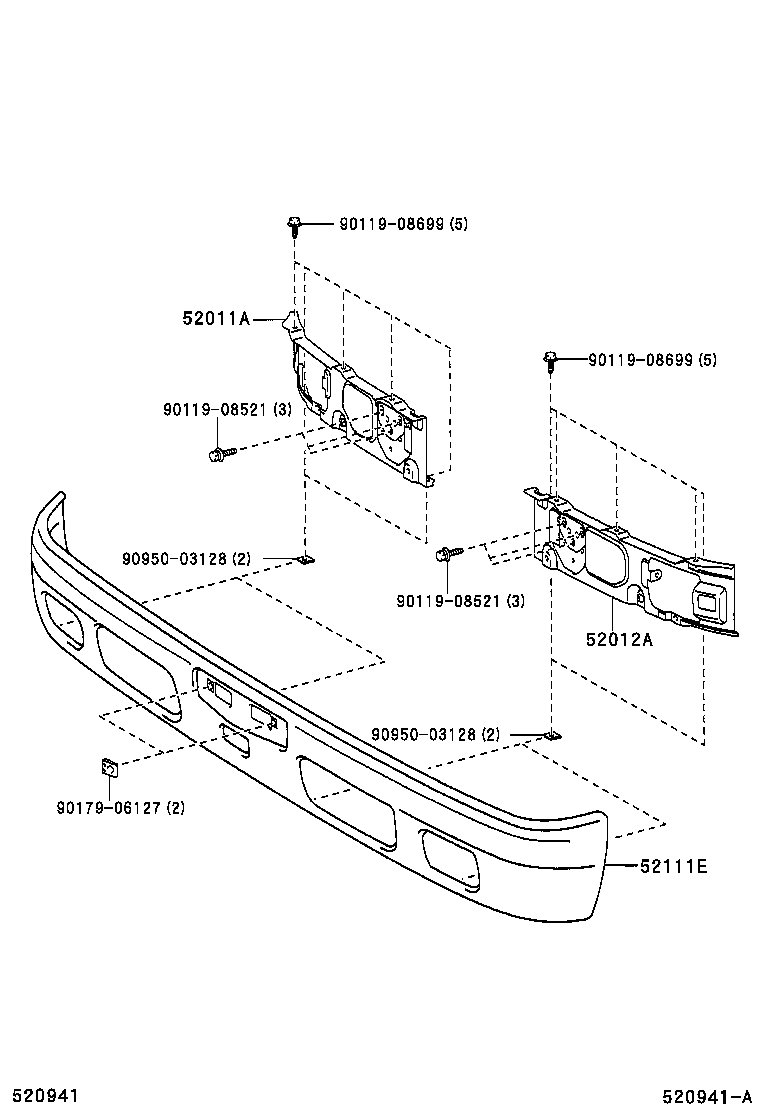

Front Bumper & Bumper Stay
14 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 52011A | Arm Sub-assy, Front Bumper, RH |
| 52012A | Arm Sub-assy, Front Bumper, LH |
| 52030 | Cover Assy, Front Bumper Hole, RH |
| 52040 | Cover Assy, Front Bumper Hole, LH |
| 52111E | Bar, Front Bumper |
| 52112D | Extension, Front Bumper, RH |
| 52113D | Extension, Front Bumper, LH |
| 52116B | Retainer, Front Bumper |
| 52141D | Stay, Front Bumper, RH |
| 52142C | Stay, Front Bumper, LH |
| 52161C | Piece, Front Bumper |
| 52543B | Seal, Front Bumper |
| 52544 | Seal, Front Bumper Side, LH |
| 52545A | Seal, Front Bumper Side, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
