Toyota Dyna
2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General
Discontinued model
Data version 2022-03
Instrument Panel & Glove Compartment
59 part groups · 16 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 45288C | Plate, Steering Column Cover |

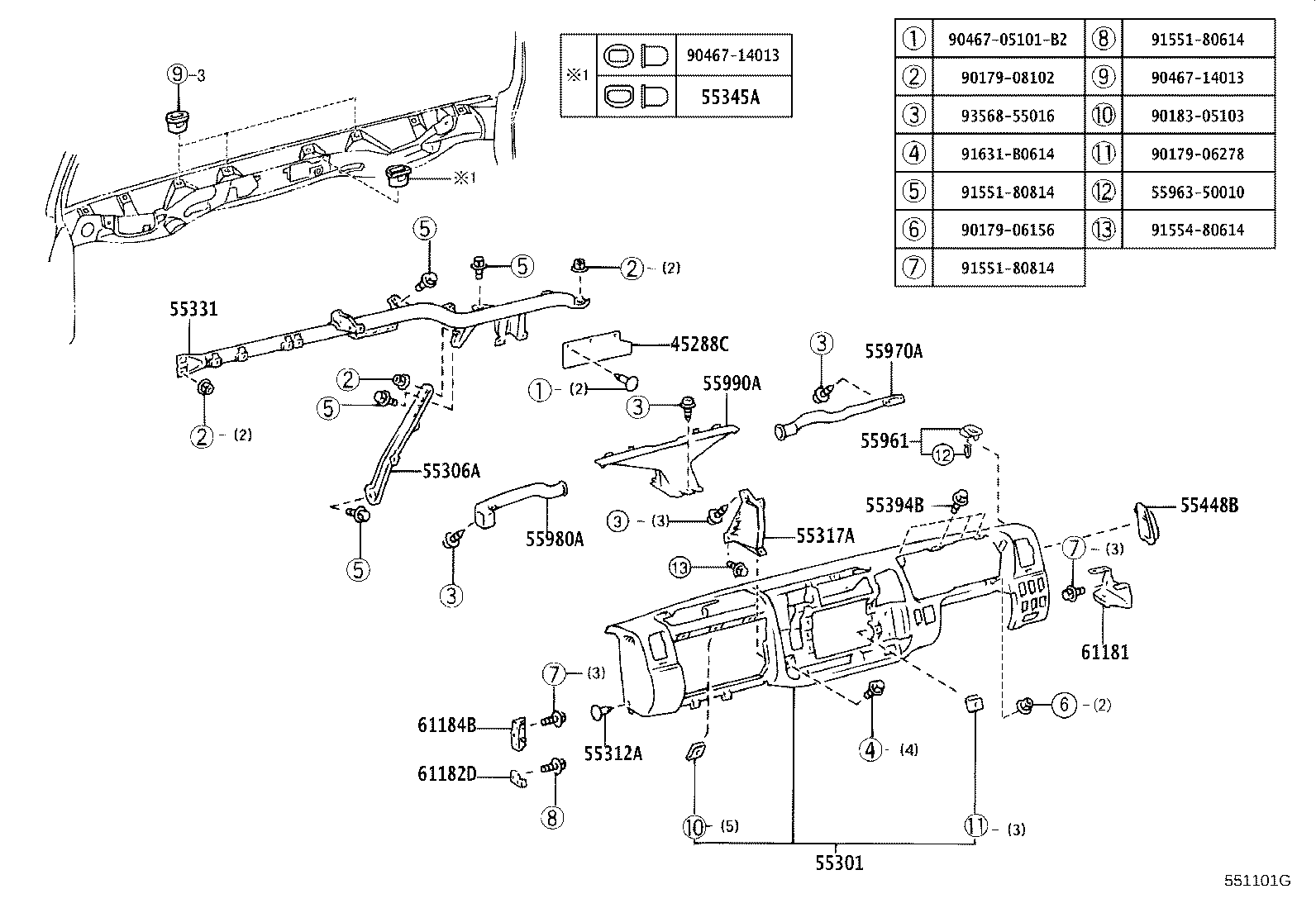

| 55301 | Panel Sub-assy, Instrument |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55312A | Clip, Instrument Panel |
| 55317A | Panel, Instrument Side, RH |

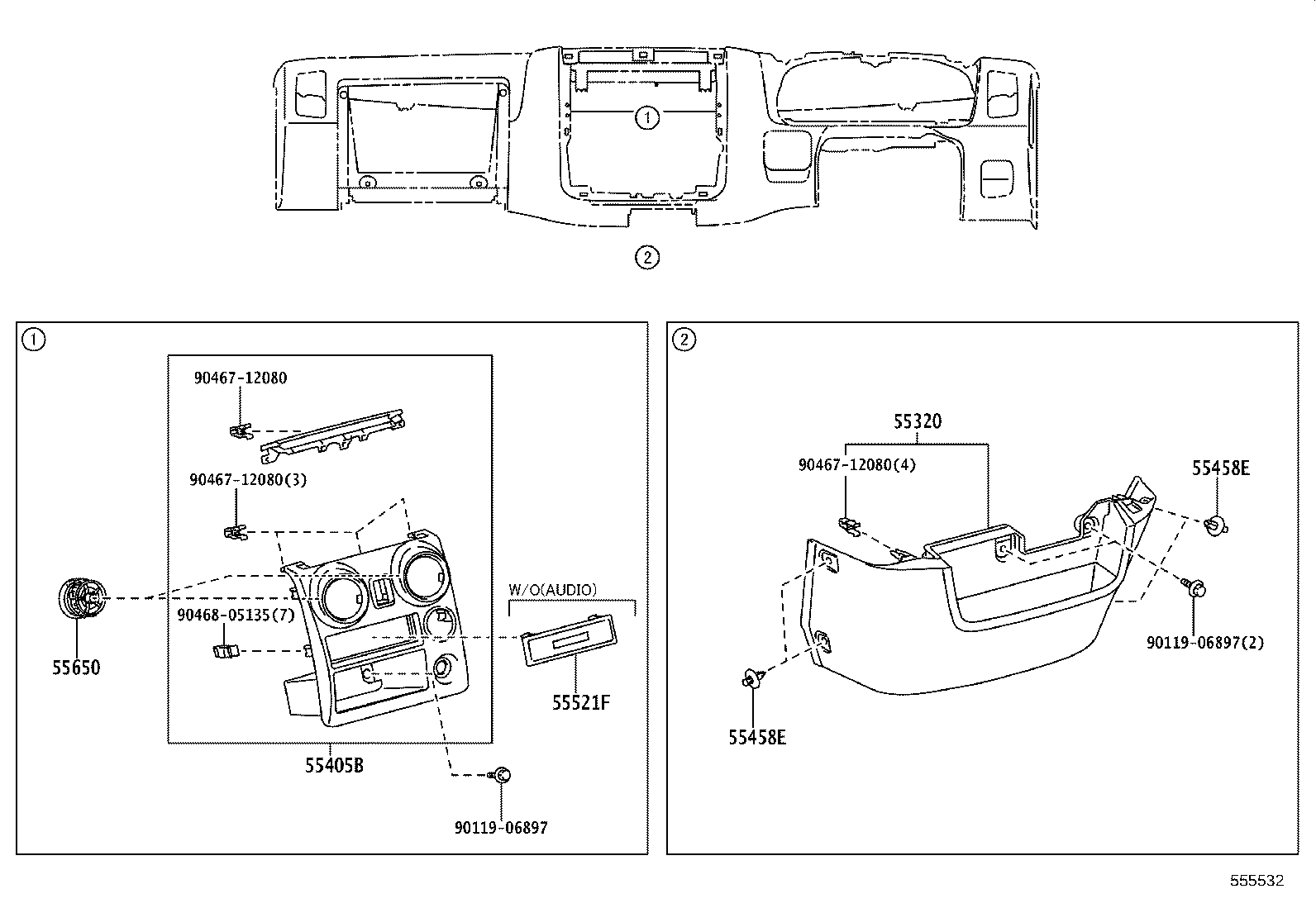

| 55320 | Panel Assy, Instrument, Lower NO.2 |
| 55326A | Stay, Instrument Panel, NO.1 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55331 | Reinforcement, Instrument Panel |
| 55345A | Clip, Instrument Panel, NO.1 |
| 55394B | Bolt, Instrument Panel |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |

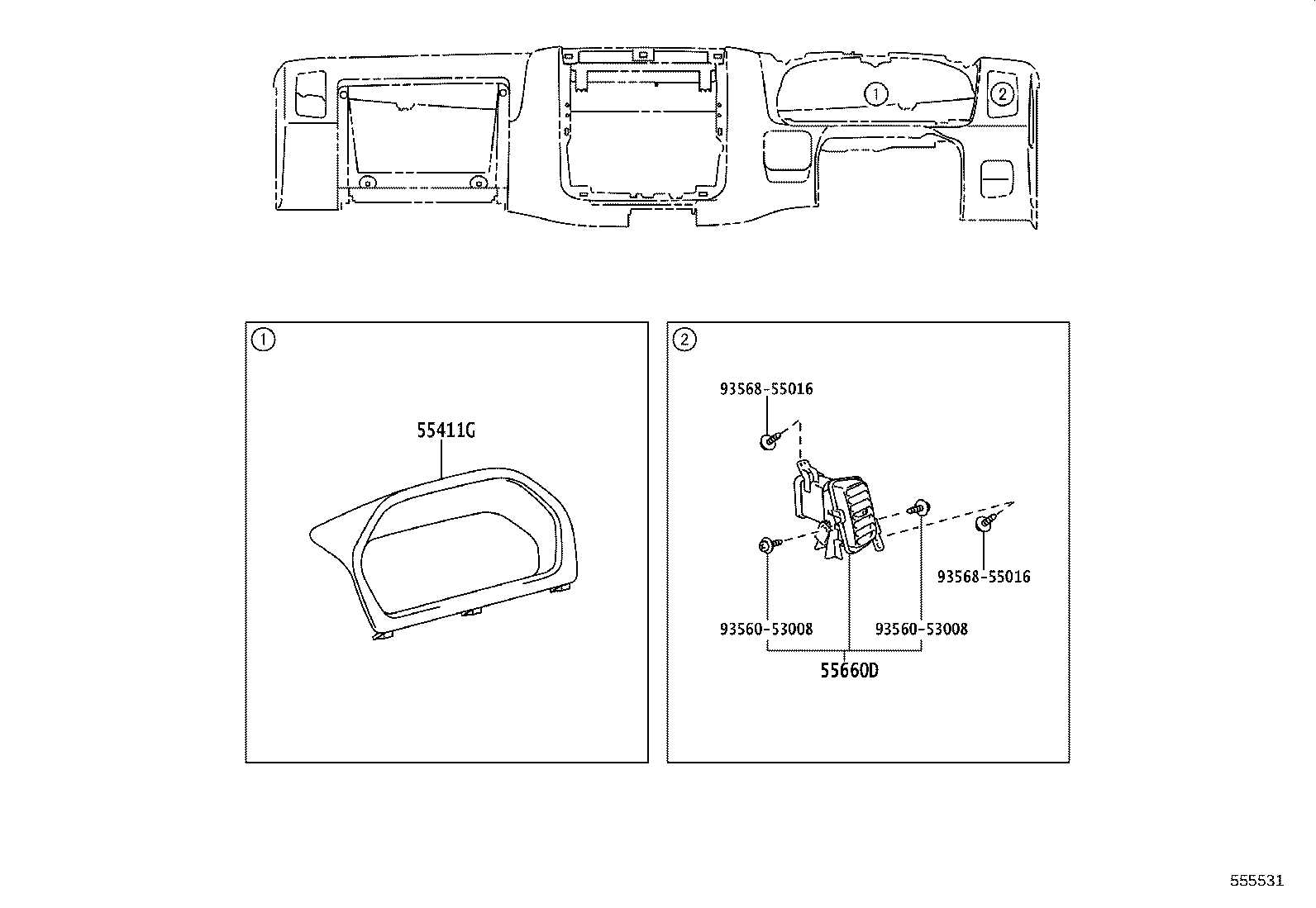

| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55414 | Bezel, Cigar Lighter Hole |
| 55441C | Box, Instrument Panel Coin |
| 55448B | Cover, Oil Reservoir Tank, RH |
| 55449B | Cover, Oil Reservoir Tank, LH |
| 55458B | Cover, Instrument, Lwr |
| 55458E | Clip(FOR INSTRUMENT LOWER COVER) |
| 55477A | Bezel, Cigarette Lighter Hole |
| 55479B | Cover, Instrument, Lower Center |
| 55479C | Clip(FOR INSTRUMENT LOWER COVER) |

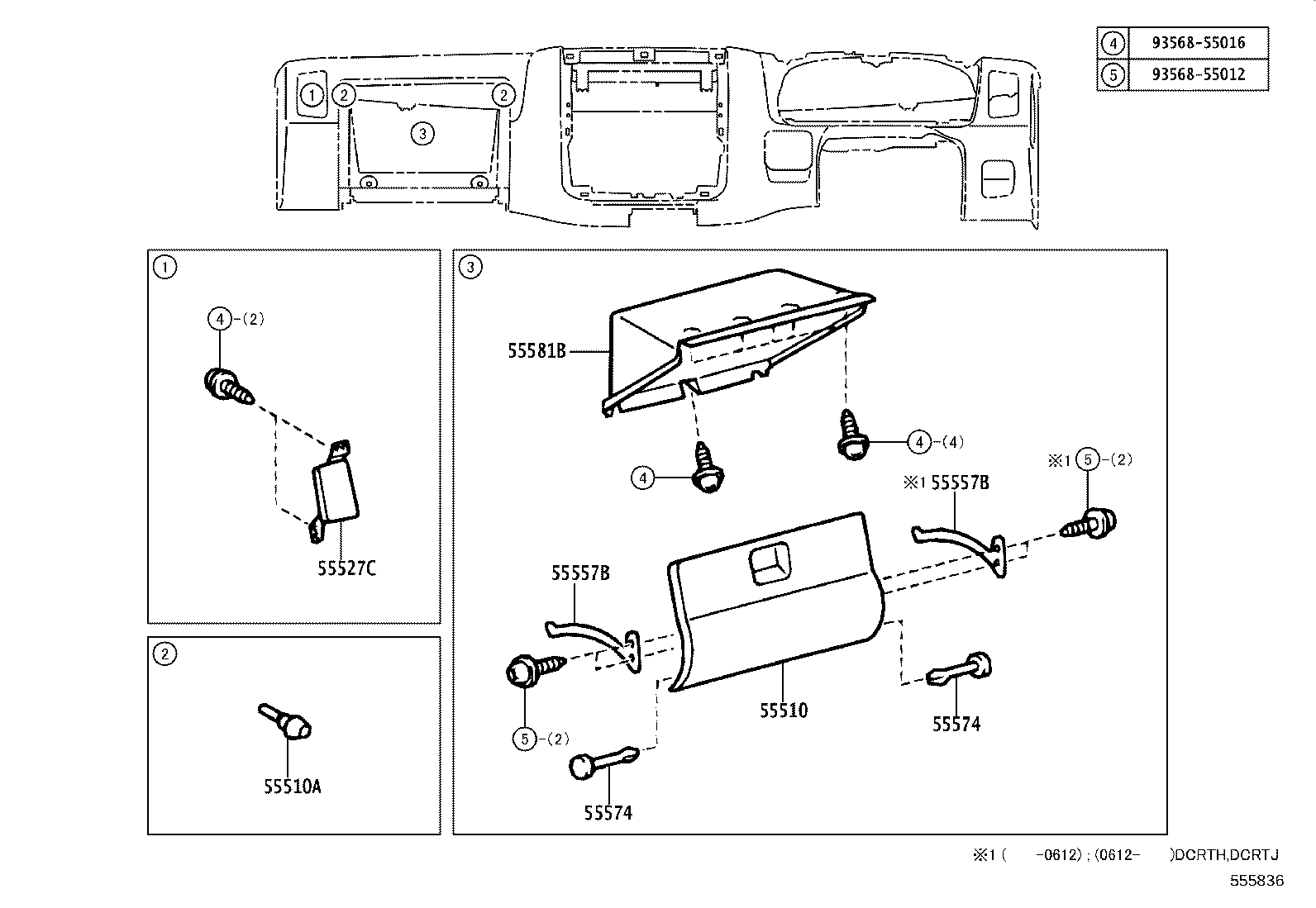

| 55510 | Door Assy, Glove Compartment |
| 55510A | Cushion(FOR GLOVE COMPARTMENT DOOR) |
| 55511 | Door, Glove Compartment |
| 55521C | Cover, Stereo Opening |
| 55521F | Cover, Stereo Opening, NO.2 |
| 55526 | Cover, Instrument Panel Register Opening |
| 55527C | Cover, Instrument Panel Register Opening, NO.2 |
| 55531B | Cover, Choke Knob Hole |
| 55532C | Stopper, Glove Door |
| 55537A | Cover, Throttle Knob Hole |

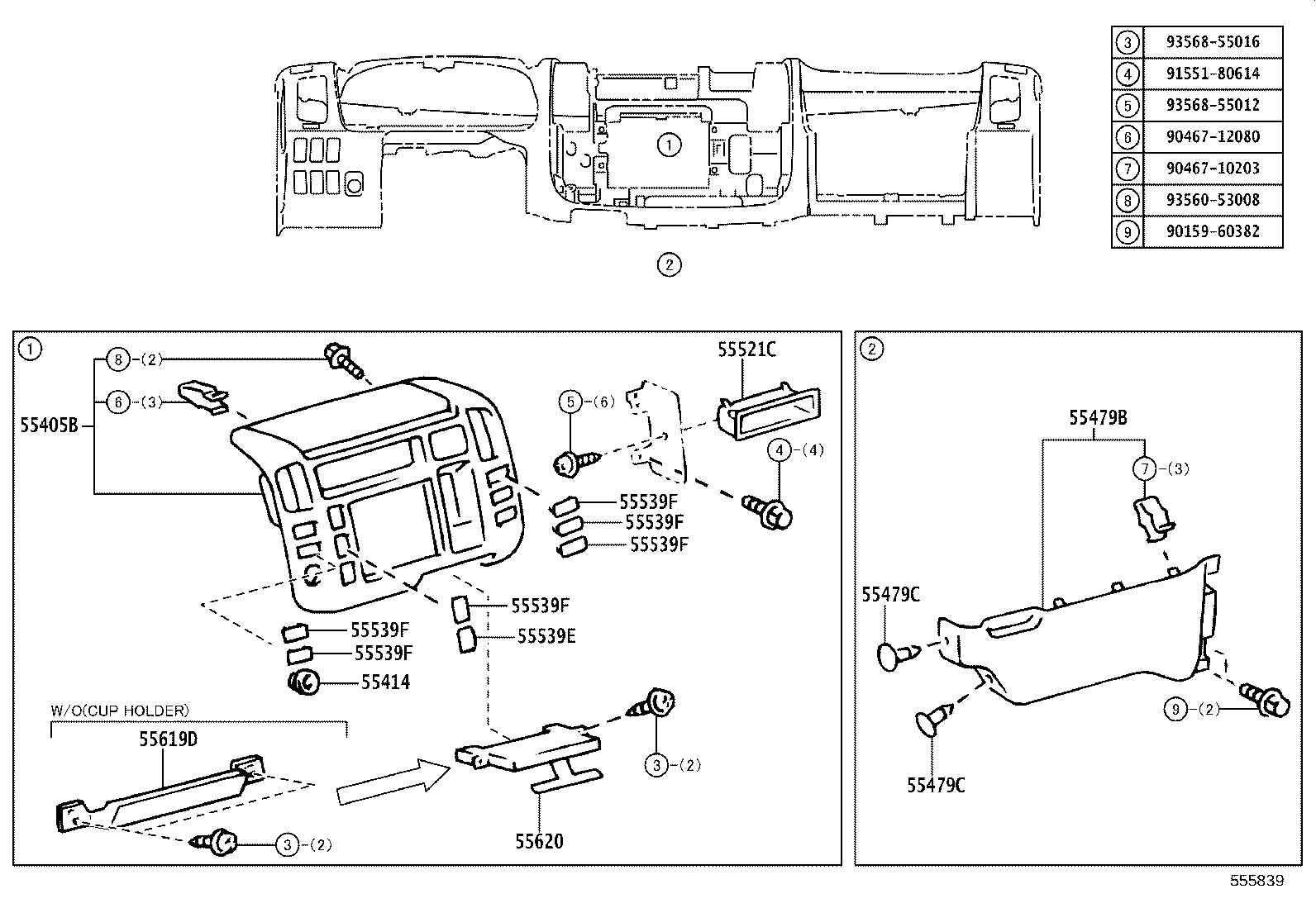

| 55539C | Cover, Spare Switch Hole |
| 55539D | Cover, Spare Switch Hole |
| 55539E | Cover, Spare Switch Hole |
| 55539F | Cover, Spare Switch Hole |
| 55545 | Cover, Fuse Box Opening |
| 55547 | Cover, Remote Control Mirror Hole |

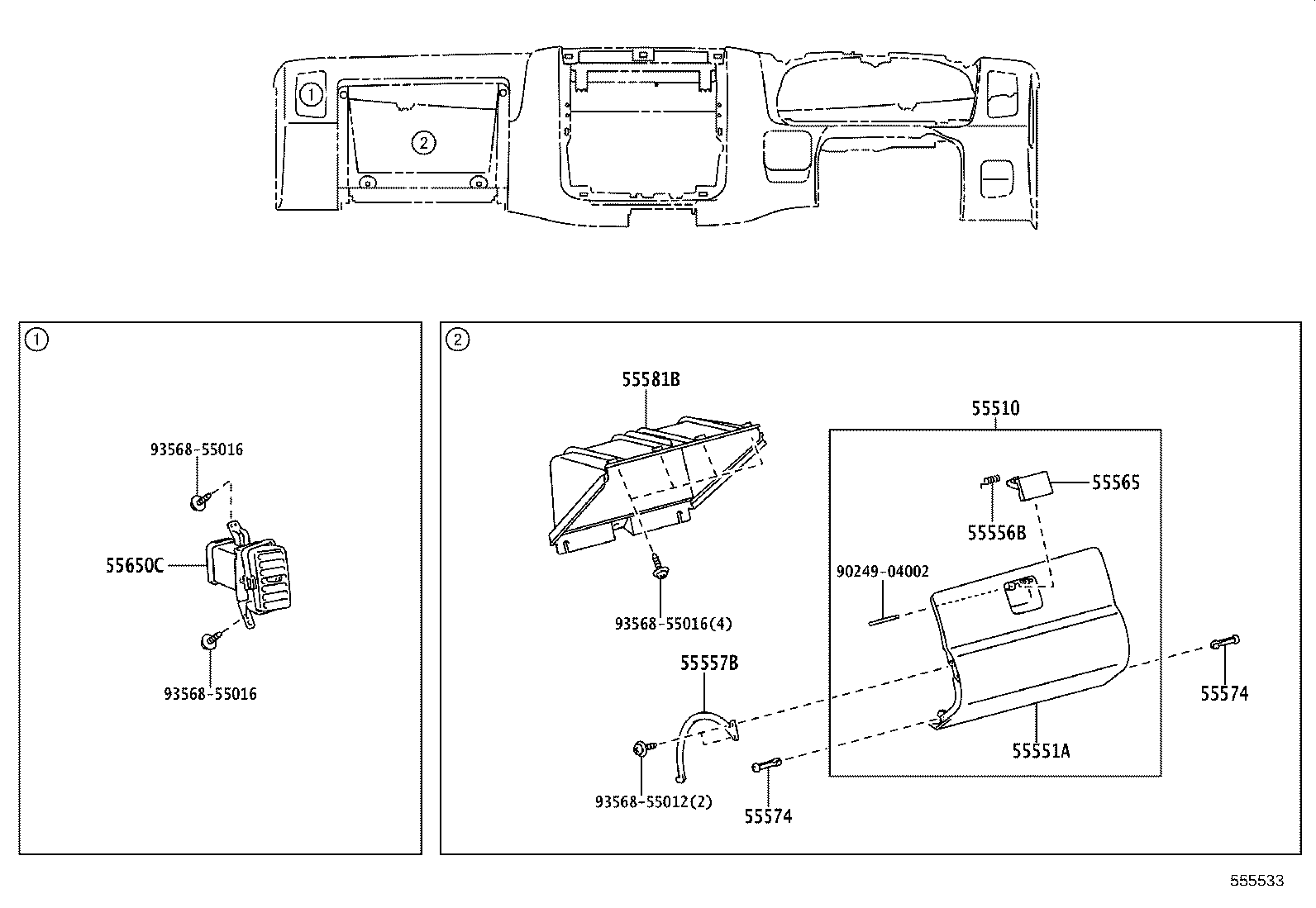

| 55551A | Door, Glove Compartment, Outer |
| 55556B | Spring, Glove Compartment Door Check |
| 55557B | Stopper, Glove Compertment Door Check |
| 55565 | Handle, Glove Compartment Door Lock |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55581B | Box, Seal, Upper |
| 55619D | Cover, Cup Holder Hole |
| 55620 | Holder Assy, Instrument Panel Cup |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55650C | Register Assy, Instrument Panel, NO.1 |
| 55660D | Register Assy, Instrument Panel, NO.1 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55970A | Duct Assy, Side Defroster, RH |
| 55980A | Duct Assy, Side Defroster, LH |
| 55990A | Nozzle Assy, Defroster, Lower |
| 61181 | Bracket, Instrument Panel Side |
| 61182D | Bracket, Instrument Panel Side |
| 61183C | Bracket, Instrument Panel TO Cowl |
| 61184B | Bracket, Instrument Panel Side, NO.2 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
