Toyota Dyna
2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General
Discontinued model
Data version 2022-03

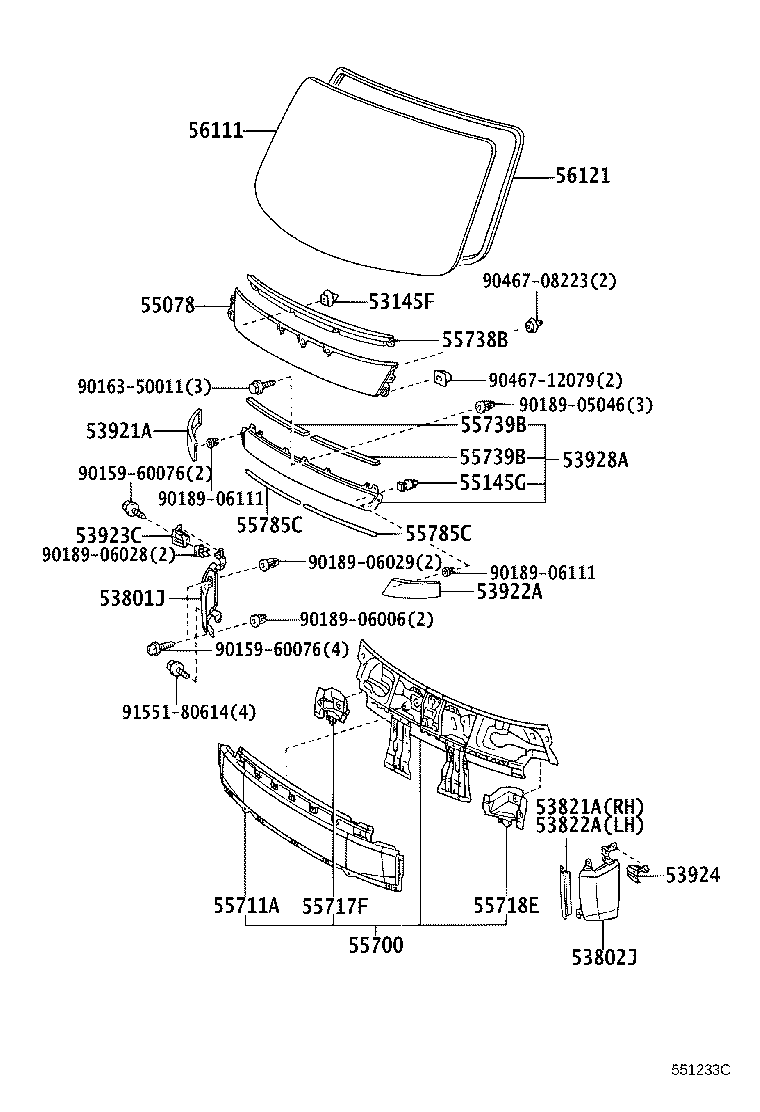

Front Panel & Windshield Glass
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53145F | Clip, Radiator Grille Garnish |
| 53801J | Panel Sub-assy, Front Side, RH |
| 53802J | Panel Sub-assy, Front Side, LH |
| 53821A | Protector, Front Side Panel, NO.1 RH |
| 53821L | Protector, Front Side Panel, NO.1 RH |
| 53822A | Protector, Front Side Panel, NO.1 LH |
| 53822H | Protector, Front Side Panel, NO.1 LH |
| 53921A | Panel, Front Valance, RH |
| 53922A | Panel, Front Valance, LH |
| 53923C | Support, Front Side Garnish, RH |
| 53924 | Plate, Noise Shutter Support, NO.2 |
| 53928A | Garnish, Front Panel, Center |
| 55078 | Cover Sub-assy, Front Panel |
| 55145G | Clip, Radiator Grille Garnish |
| 55700 | Panel Assy, Front |
| 55711A | Panel, Front, Lower |
| 55717F | Extension, Front Panel Reinforcement, RH |
| 55718E | Extension, Front Panel Reinforcement, LH |
| 55738B | Protector, Front Panel Cover, NO.1 |
| 55739B | Protector, Front Panel Cover, NO.2 |
| 55785C | Pad, Front Panel Cover |
| 56111 | Glass, Windshield |
| 56121 | Weatherstrip, Windshield |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
