Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Panel

20 part groups · 3 illustrations

Illustrations

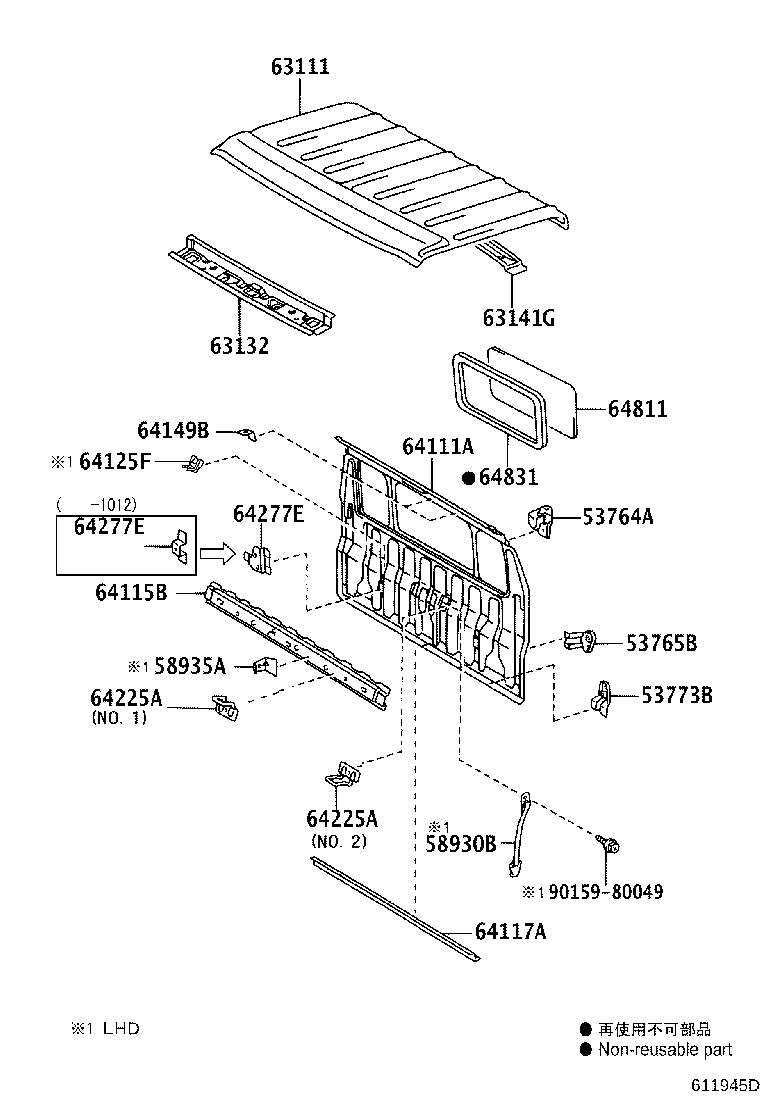

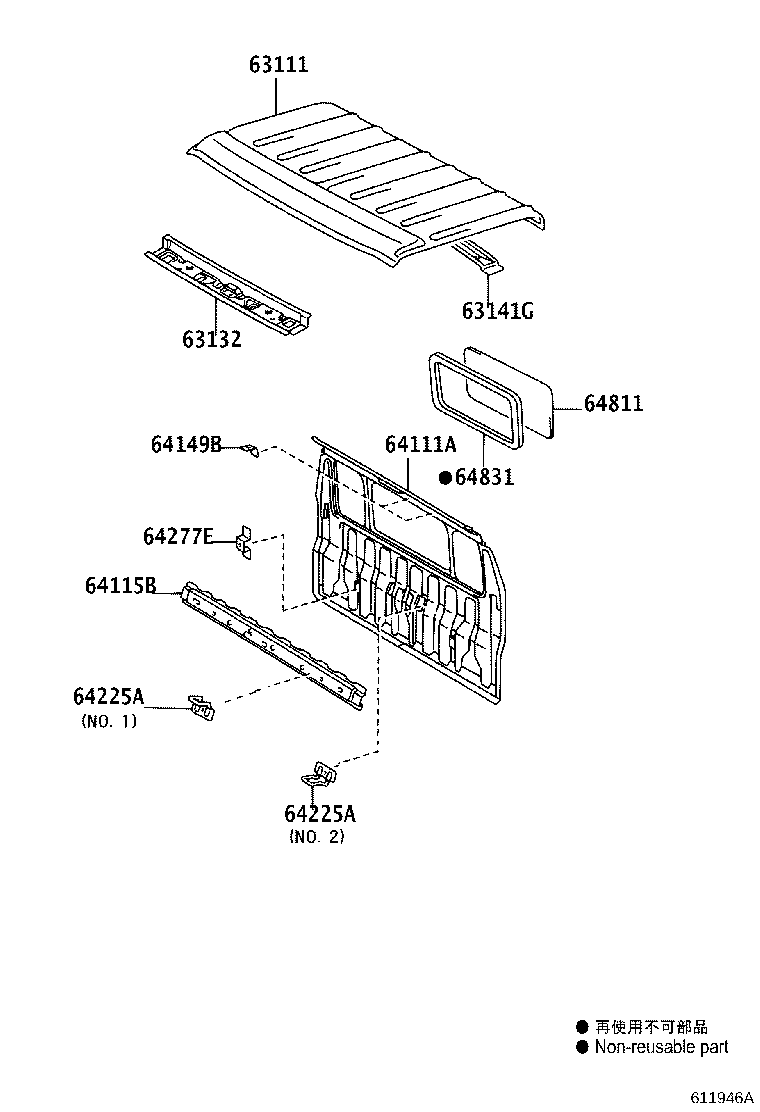

Figure 615638C 615638C 2002-09 → — Figure 611945D 611945D 2002-12 → 2011-06 Figure 611946A 611946A 2003-12 → 2006-10

Part groups

PNCDescription
53764A Bracket, Air Cleaner Inlet, NO.1
53765B Bracket, Air Cleaner Inlet, NO.2
53773B Bracket, Air Cleaner Inlet, NO.2
58930B Band Assy, Engine Service Hole Cover Support
58935A Bracket, Engine Service Hole Cover Support Band
63111 Panel, Roof
63132 Panel, Windshield Header, Inner
63141G Reinforcement, Roof Panel, NO.1
64107A Frame Sub-assy, Back
64111A Panel, Back
64115B Reinforcement, Back Panel
64117A Reinforcement, Cab Back, Lower
64125F Bracket, Upper Back Panel
64145E Bracket, Rear Seatback Set
64149B Retainer, Back Panel Headrest
64225A Hanger, Rear Seat Cushion Support
64277E Bracket, Back Panel Trim, Lower
64811 Glass, Back Window
64831 Weatherstrip, Back Window Glass
64832 Key, Back Window Weatherstrip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
