Toyota Dyna
2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General
Discontinued model
Data version 2022-03

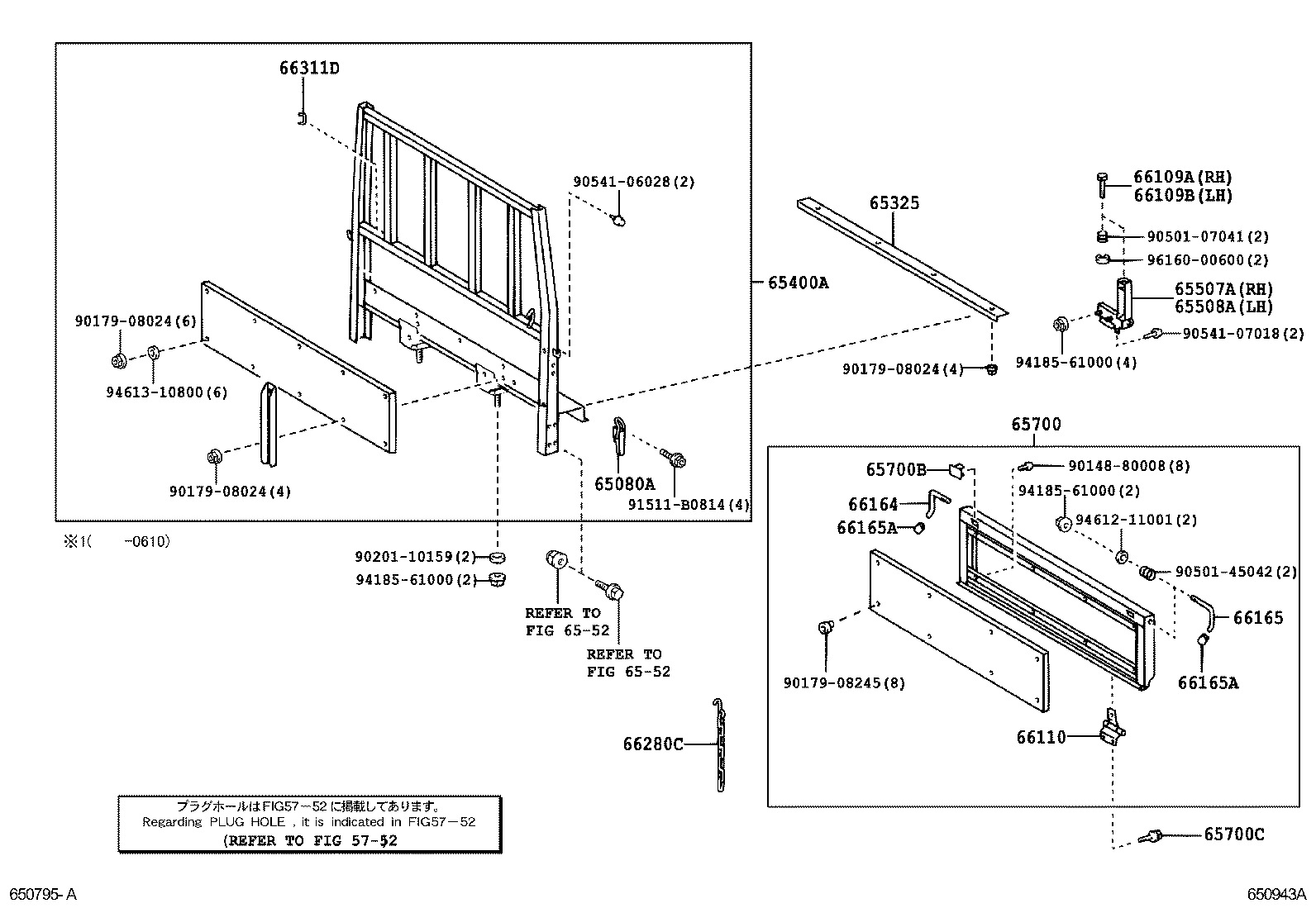

Rear Body Guard Frame & Tail Gate
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 65080A | Handle Assy, Side Gate Latch |
| 65325 | Plate, Floor Board, Front |
| 65400A | Guard Assy, Rear Body |
| 65507A | Support Sub-assy, Corner, RH |
| 65508A | Support Sub-assy, Corner, LH |
| 65700 | Gate Assy, Rear Body Tail |
| 65700B | Plug, Hole(FOR TAIL GATE) |
| 65700C | Bolt, W/Washer(FOR TAIL GATE) |
| 66107 | Bracket Sub-assy, Tail Gate, RH |
| 66108 | Bracket Sub-assy, Tail Gate, LH |
| 66109A | Handle, Side Gate Support Corner, RH |
| 66109B | Handle, Side Gate Support Corner, LH |
| 66110 | Hinge Assy, Tail Gate |
| 66161 | Handle, Side Gate Latch, RH |
| 66162 | Handle, Side Gate Latch, LH |
| 66164 | Handle, Tail Gate Latch, RH |
| 66165 | Handle, Tail Gate Latch, LH |
| 66165A | Cap, Gate Latch Handle |
| 66280C | Chain Assy, Tail Gate |
| 66311D | Hook, Rope |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
