Toyota Dyna
2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General
Discontinued model
Data version 2022-03

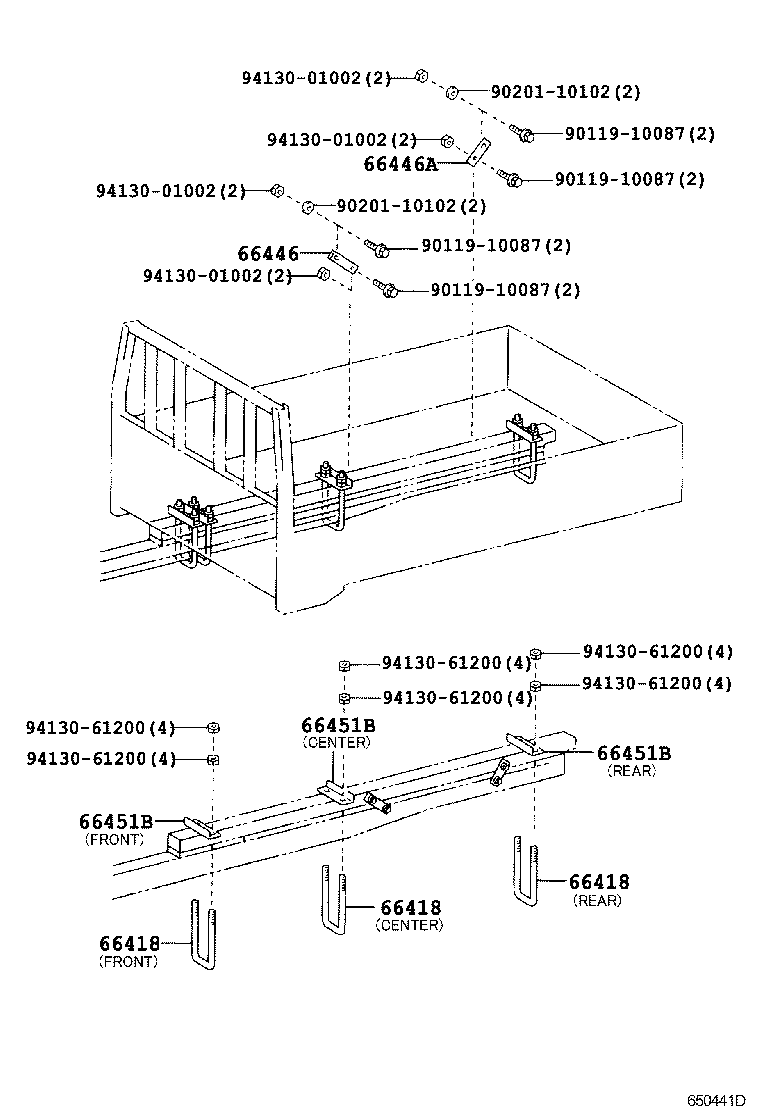

Rear Body Mounting
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 66418 | Bolt, Mounting |
| 66441 | Shim, Mounting, NO.1 |
| 66442 | Shim, Mounting, NO.2 |
| 66446 | Brace, Frame Floor |
| 66446A | Brace, Frame TO Rear Body Floor |
| 66448 | Plate, Rear Body Mounting Guide |
| 66451B | Plate, U Bolt |
| 75105 | Support Sub-assy, Main Sill, RH |
| 75106 | Support Sub-assy, Main Sill, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
