Seat & Seat Track

51 part groups · 14 illustrations

Illustrations

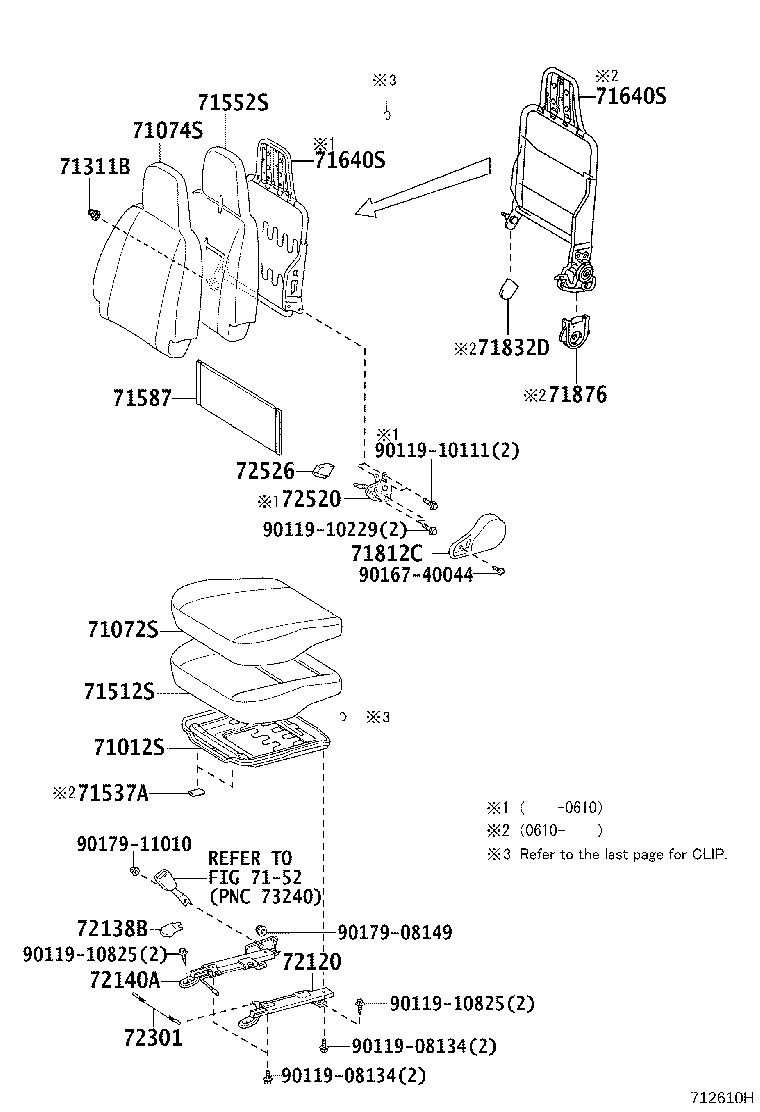

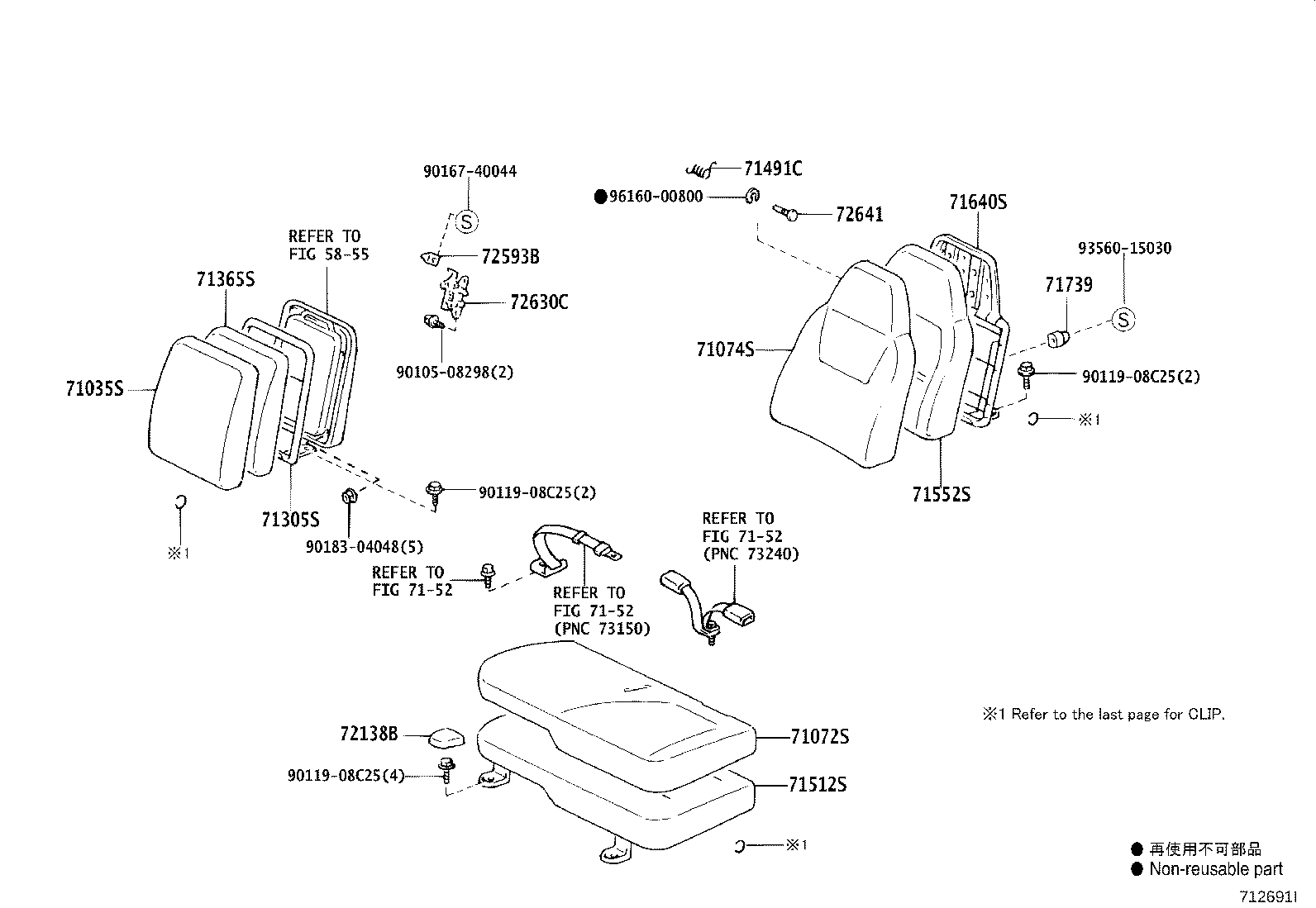

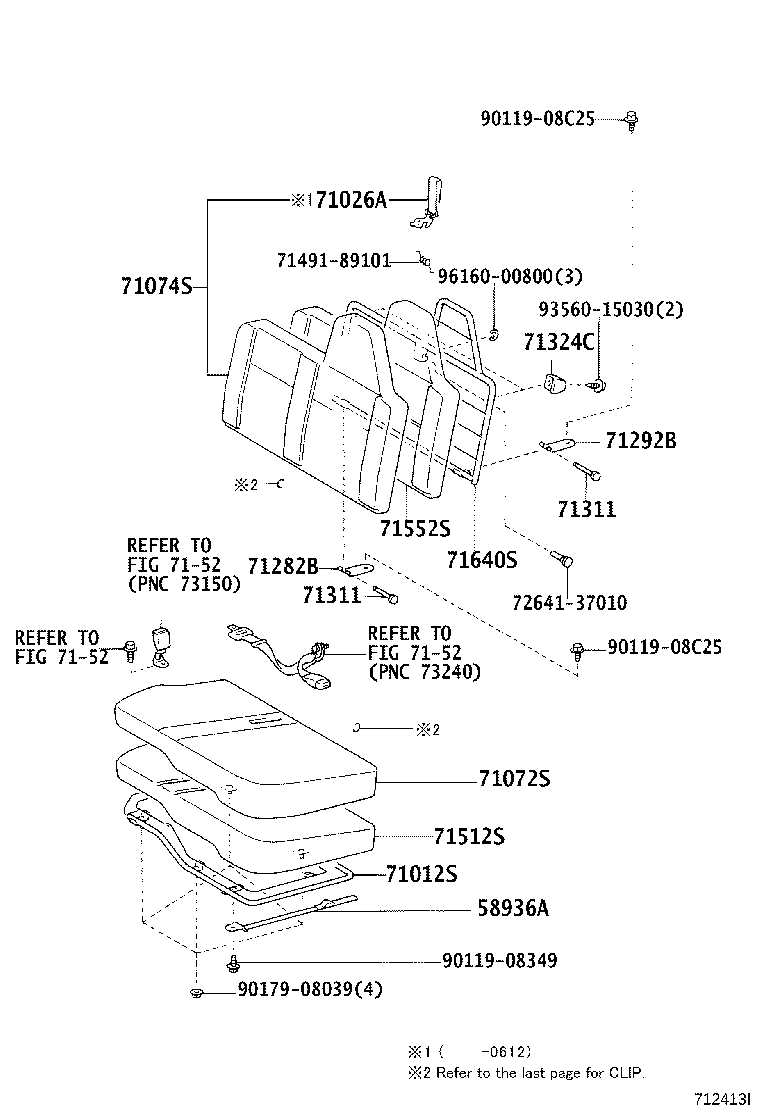

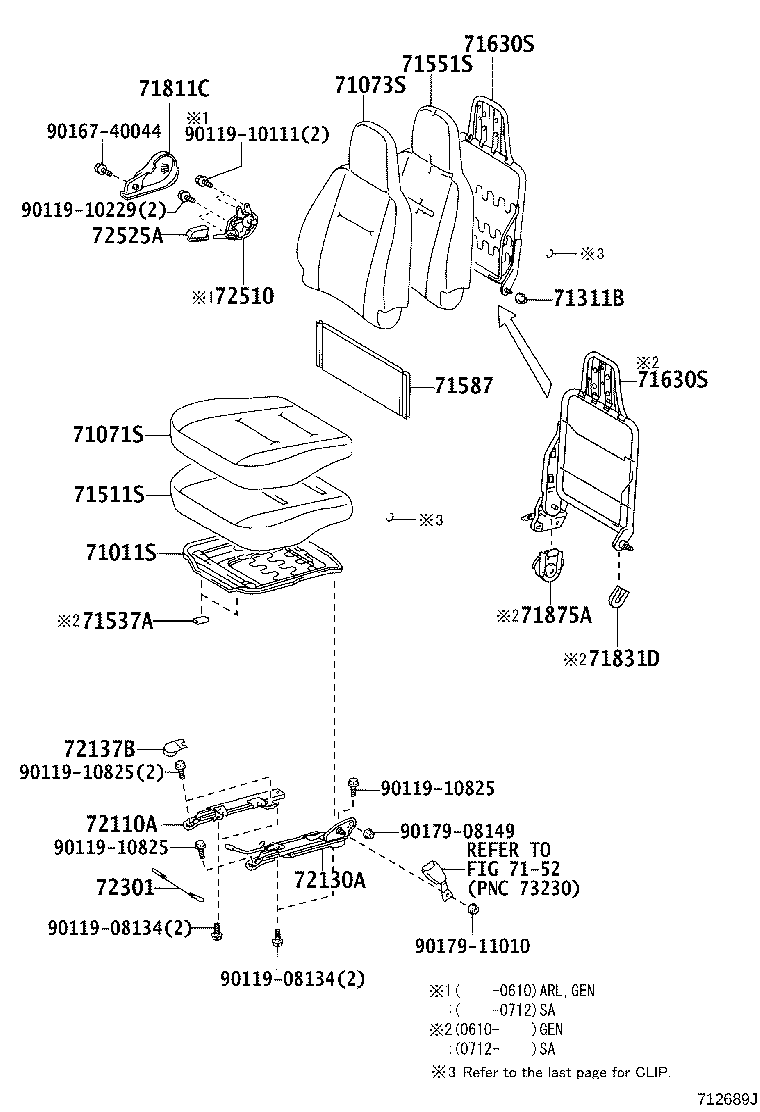

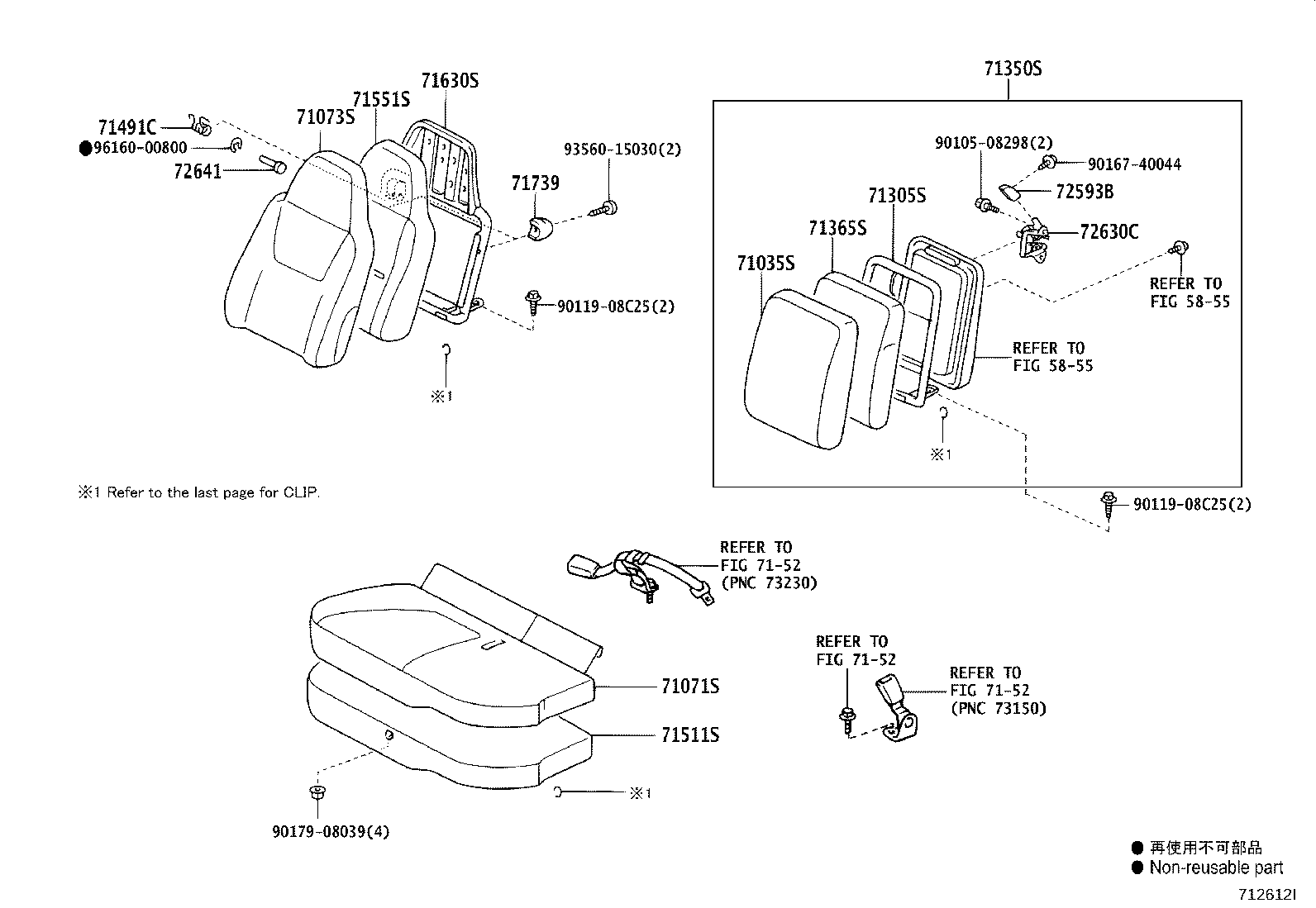

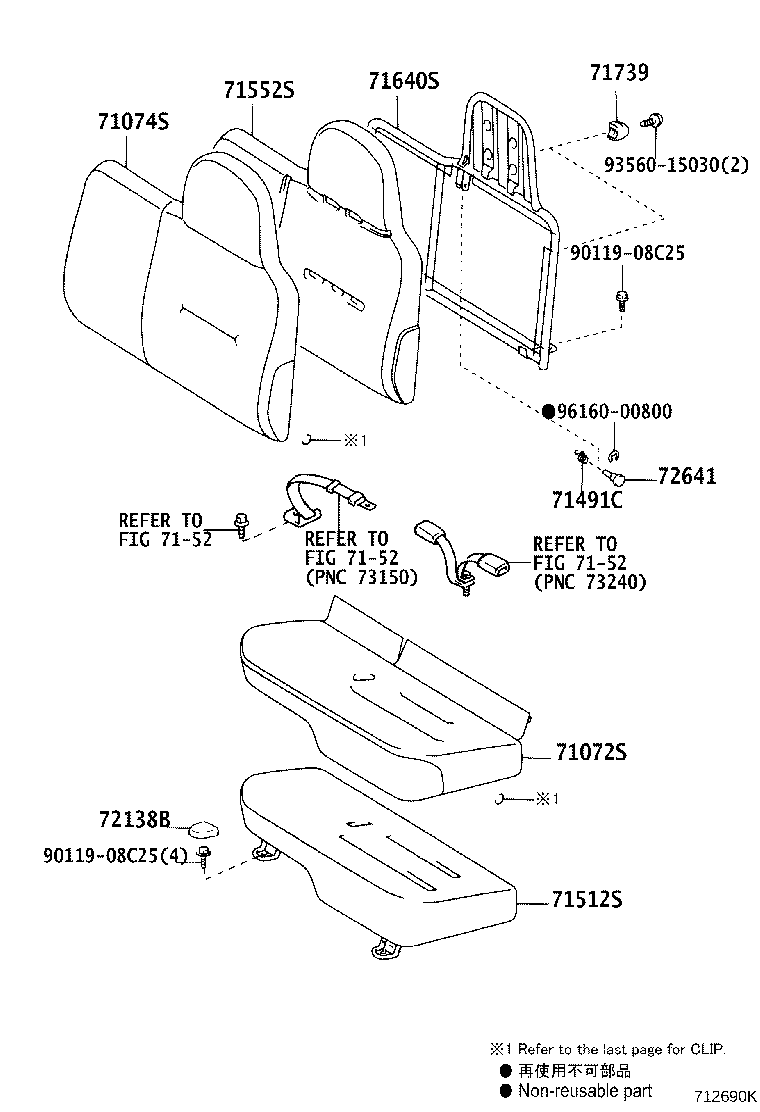

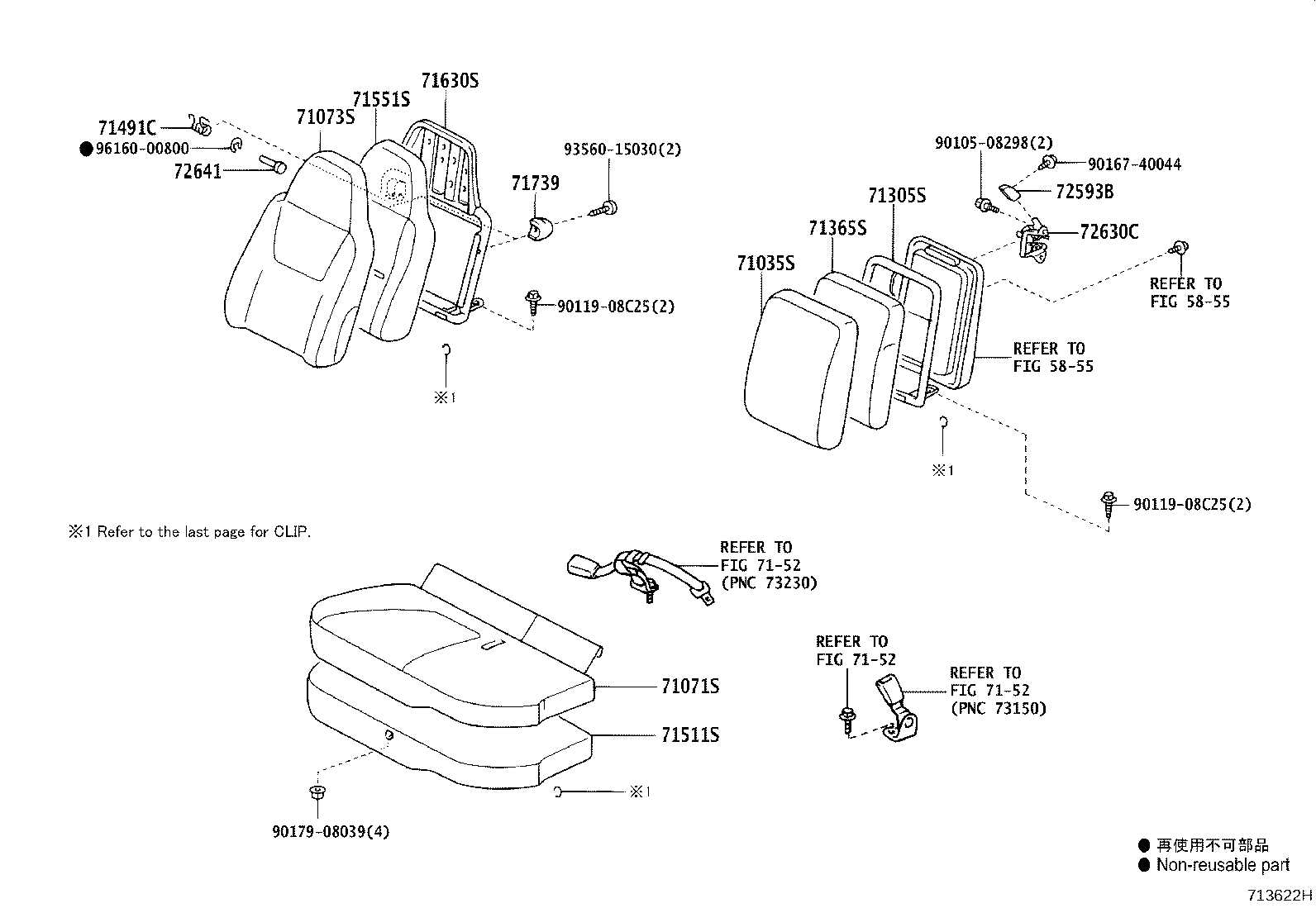

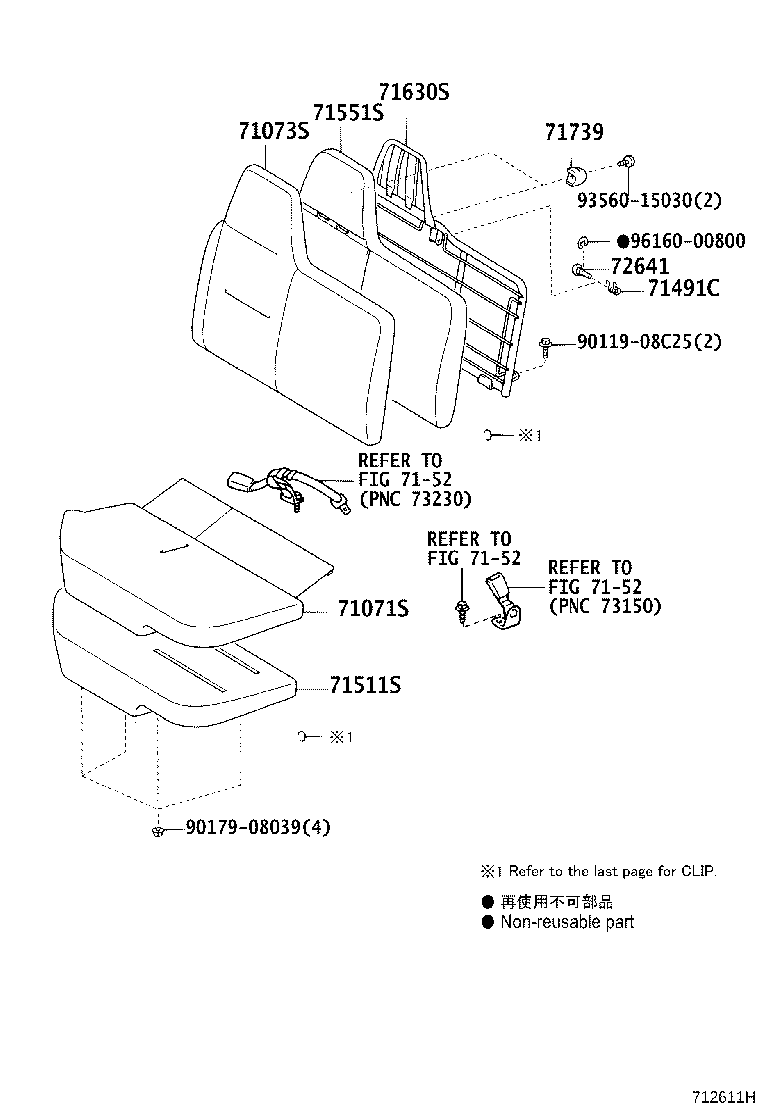

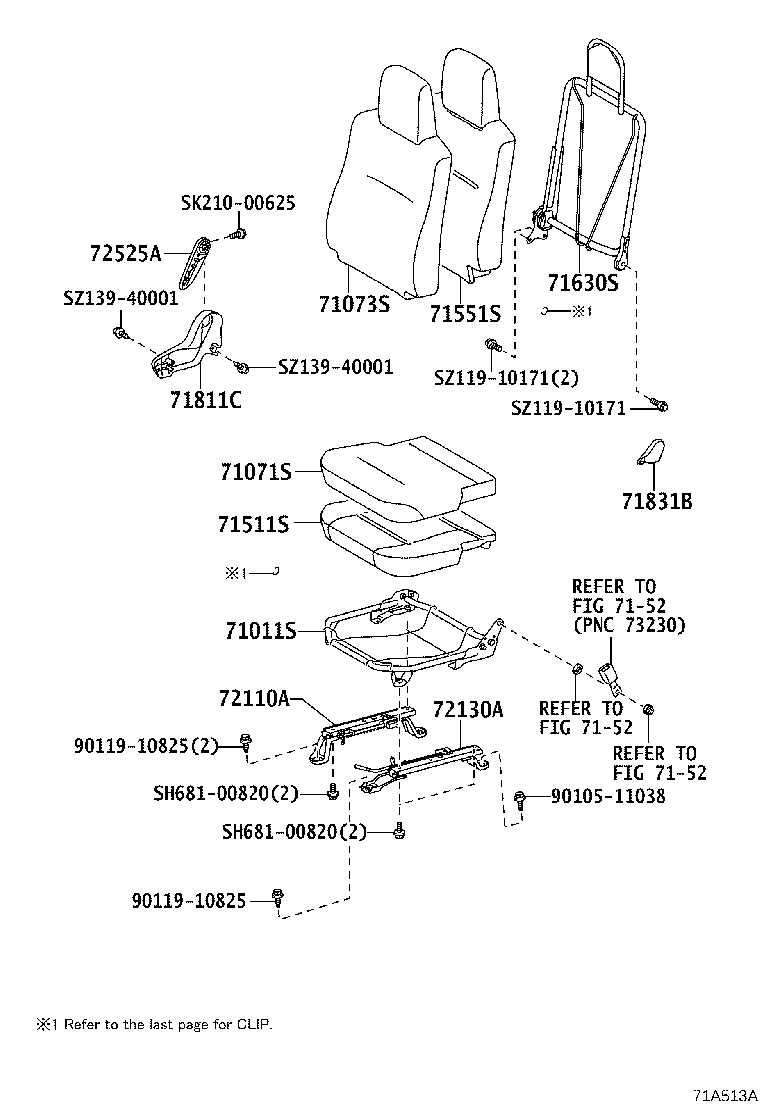

Figure 712412K 712412K 2002-09 → 2015-01 Figure 71A513A 71A513A 2015-01 → — Figure 71A513A 71A513A 2022-03 → — Figure 712610H 712610H 2002-12 → — Figure 712689J 712689J 2002-12 → — Figure 712413I 712413I 2002-09 → — Figure 712611H 712611H 2002-12 → — Figure 712612I 712612I 2002-12 → 2004-06 Figure 713622H 713622H 2004-06 → — Figure 712690K 712690K 2002-12 → — Figure 712691I 712691I 2002-12 → — Figure 716579F 716579F 2009-12 → — Figure 716579F 716579F 2022-03 → — Figure 71D199 71D199 2002-09 → —

Part groups

PNCDescription
58936A Band, Engine Service Hole Cover Support
71011S Frame Sub-assy, Front Seat Cushion, RH
71012S Frame Sub-assy, Front Seat Cushion, LH
71026A Support, Front Seatback, LH
71035S Cover, Front Seatback, Center
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71162A Bracket, Front Seatback, Lower
71282B Hinge, Front Seatback, Lower RH
71292B Hinge, Front Seatback, Lower LH
71305S Frame Sub-assy, Center Seatback
71311 Pin, Front Seat Hinge
71311B Bush (FOR FRONT SEAT HINGE PIN)
71324C Cushion, Front Seat
71350S Back Assy, Front Seat, Center
71365S Pad, Center Seatback
71491C Spring, Rear Seat Set
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A Protector, Front Seat Cushion
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587 Protector, Front Seatback Edge
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71739 Cushion, Seat Support
71811C Cover, Reclining Adjuster, RH
71812C Cover, Reclining Adjuster, LH
71831B Cover, Front Seat Hinge, RH
71831D Cover, Front Seat Hinge, RH
71832D Cover, Front Seat Hinge, LH
71875A Cover, Reclining Adjuster Inside, RH
71876 Cover, Reclining Adjuster Inside, LH
72104A Rail Sub-assy, Front Inner Seat Track, Lower
72110A Track Assy, Front Seat, Outer RH
72111A Rail, Front Inner Seat Track, Upper
72120 Track Assy, Front Seat, Outer LH
72130A Track Assy, Front Seat, Inner RH
72137B Cover, Seat Track, RH
72138B Cover, Seat Track, LH
72140A Track Assy, Front Seat,Inner LH
72301 Wire Sub-assy, Seat Track Equalizing
72510 Adjuster Assy, Reclining Seatback, RH
72520 Adjuster Assy, Reclining Seatback, LH
72525A Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72593B Knob, Reclining Remote Control Lever, RH
72630C Lock Assy, Rear Seatback, RH
72641 Pin, Rear Seatback Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
