Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

10 part groups · 5 illustrations

Illustrations

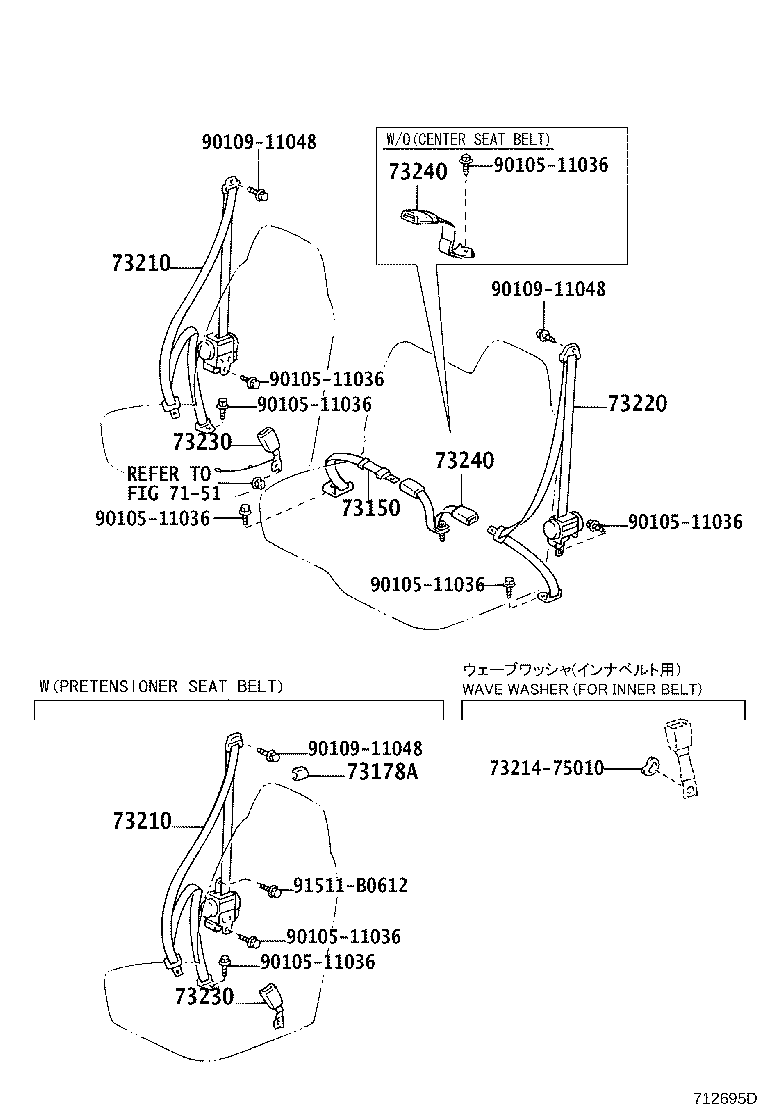

Figure 716578D 716578D 2002-09 → — Figure 712694H 712694H 2002-12 → — Figure 712695D 712695D 2002-12 → — Figure 712696A 712696A 2002-12 → — Figure 712697B 712697B 2002-12 → —

Part groups

PNCDescription
73150 Belt Assy, Front Seat Lap Type, Center
73173 Cover, Front Seat Belt Hole, RH
73173E Clip, Front Seat Belt Hole Cover, RH
73174 Cover, Front Seat Belt Hole, LH
73174B Clip, Front Seat Belt Hole Cover, LH
73178A Cap, Seat Belt Anchor Cover
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
