Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate

9 part groups · 3 illustrations

Illustrations

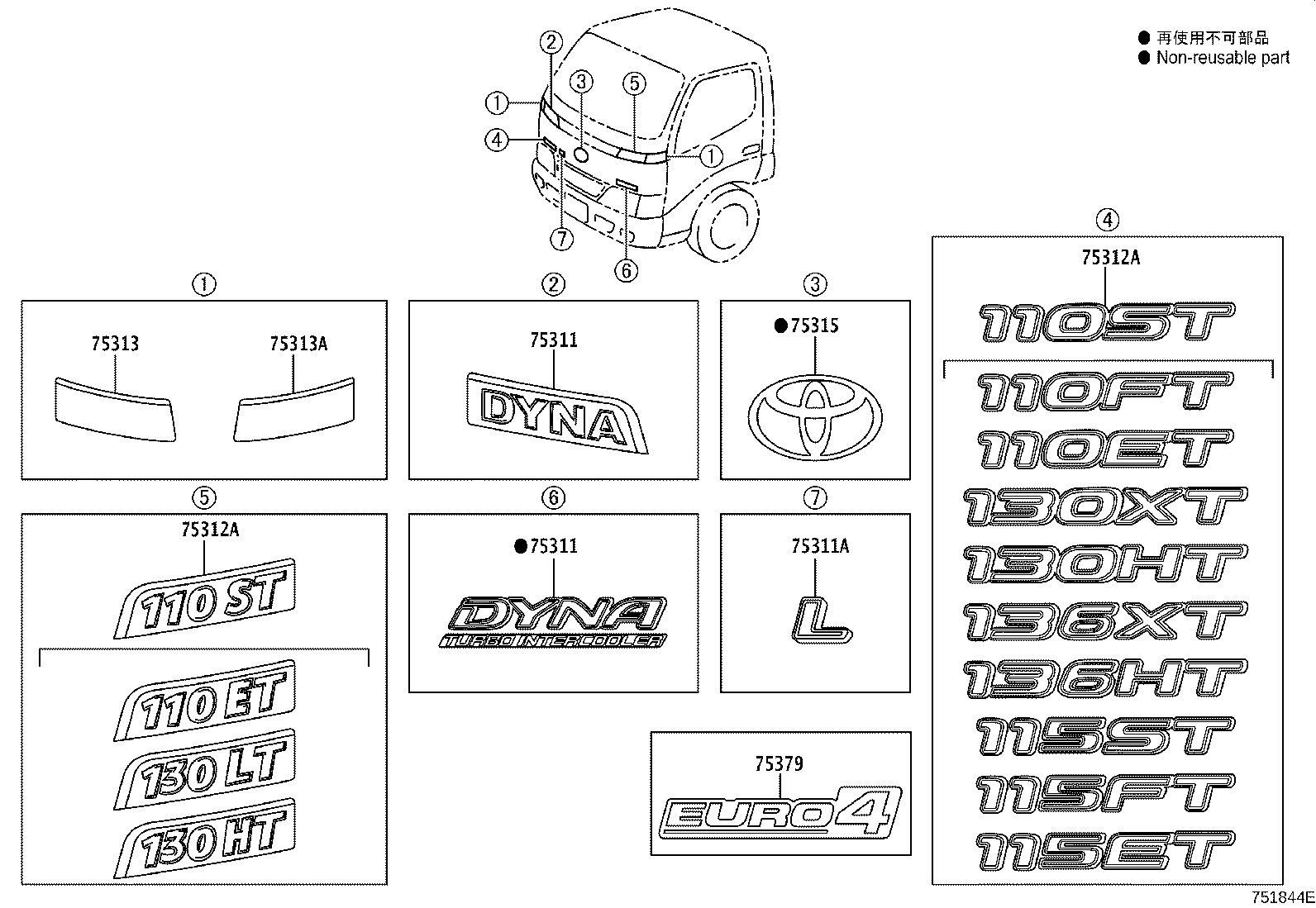

Figure 751117A 751117A 2002-09 → 2006-12 Figure 751117A 751117A 2002-12 → — Figure 751844E 751844E 2006-12 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75311A Plate, Front Name, NO.1
75312A Plate, Front Name, NO.2
75313 Plate, Front Name, NO.3
75313A Plate, Front Name, NO.4
75315 Ornament, Radiator Grille
75379 Mark, Side Panel
75471B Plate, Rear Body Name, NO.1
75472A Plate, Rear Body Name, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
