Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Tool Box & License Plate Bracket

13 part groups · 7 illustrations

Illustrations

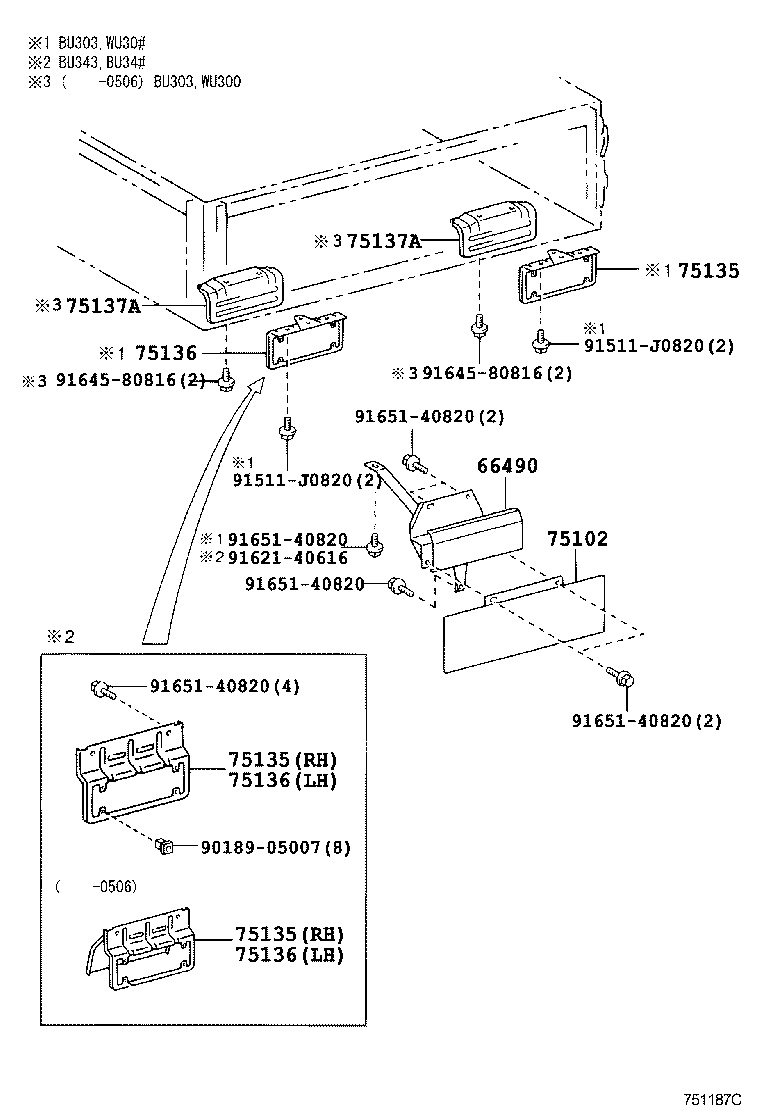

Figure 751186F 751186F 2002-09 → 2006-10 Figure 751186F 751186F 2006-10 → — Figure 752181 752181 2006-10 → — Figure 751090A 751090A 2002-09 → — Figure 751187C 751187C 2002-12 → — Figure 751789E 751789E 2002-12 → — Figure 751188B 751188B 2002-12 → —

Part groups

PNCDescription
47379A Spacer, Brake Tube, NO.2
58794B Support, Jack Handle
58797B Band, Jack Clamp
66490 Hanger Assy, License Plate Bracket
75102 Bracket Sub-assy, Rear License Plate
75135 Bracket, Combination Rear Lamp, RH
75135A Stay, Combination Rear Lamp Bracket
75136 Bracket, Combination Rear Lamp, LH
75137A Cover Combination
75201 Box Sub-assy, Tool W/Stay
75297 Retainer, Jack Base
75298 Plate, Jack Holder
75299 Base, Jack Holder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
