Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

58 part groups · 32 illustrations

Illustrations

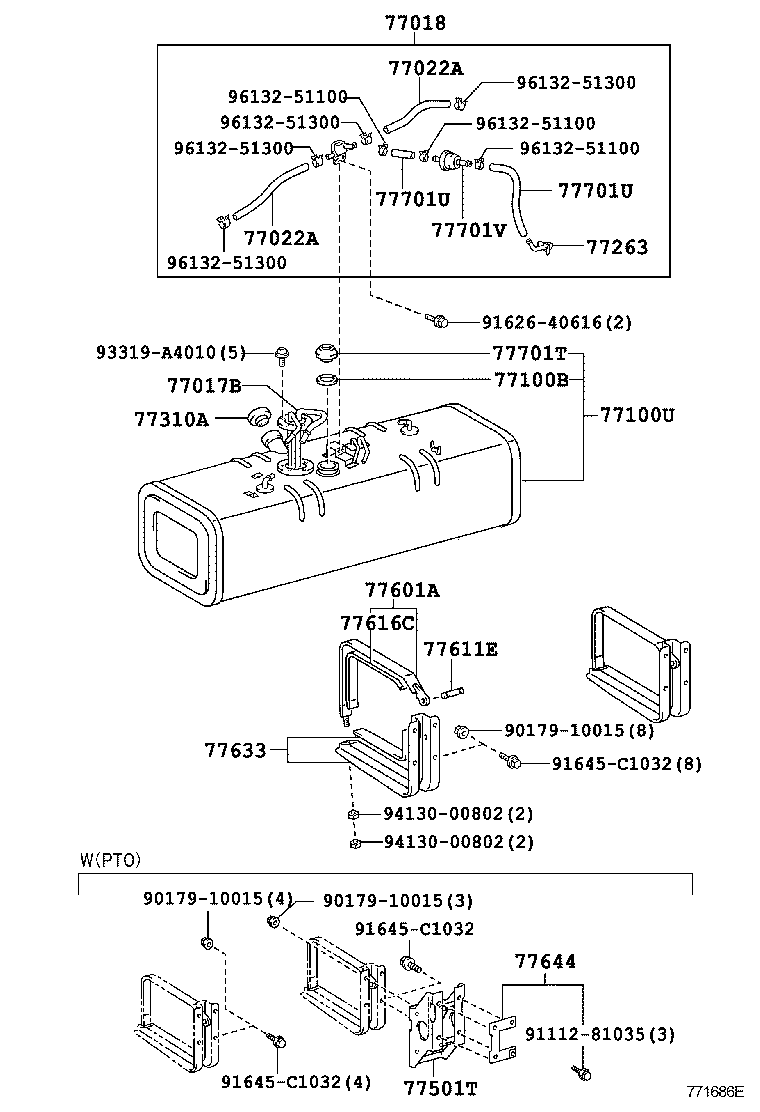

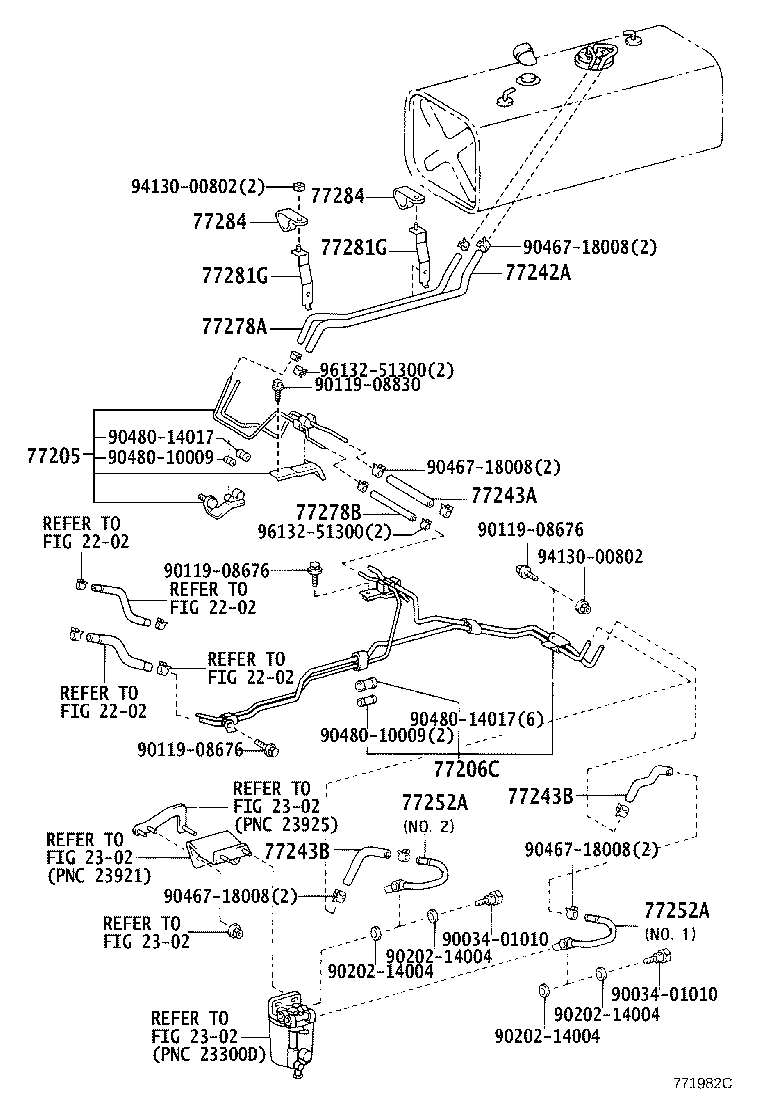

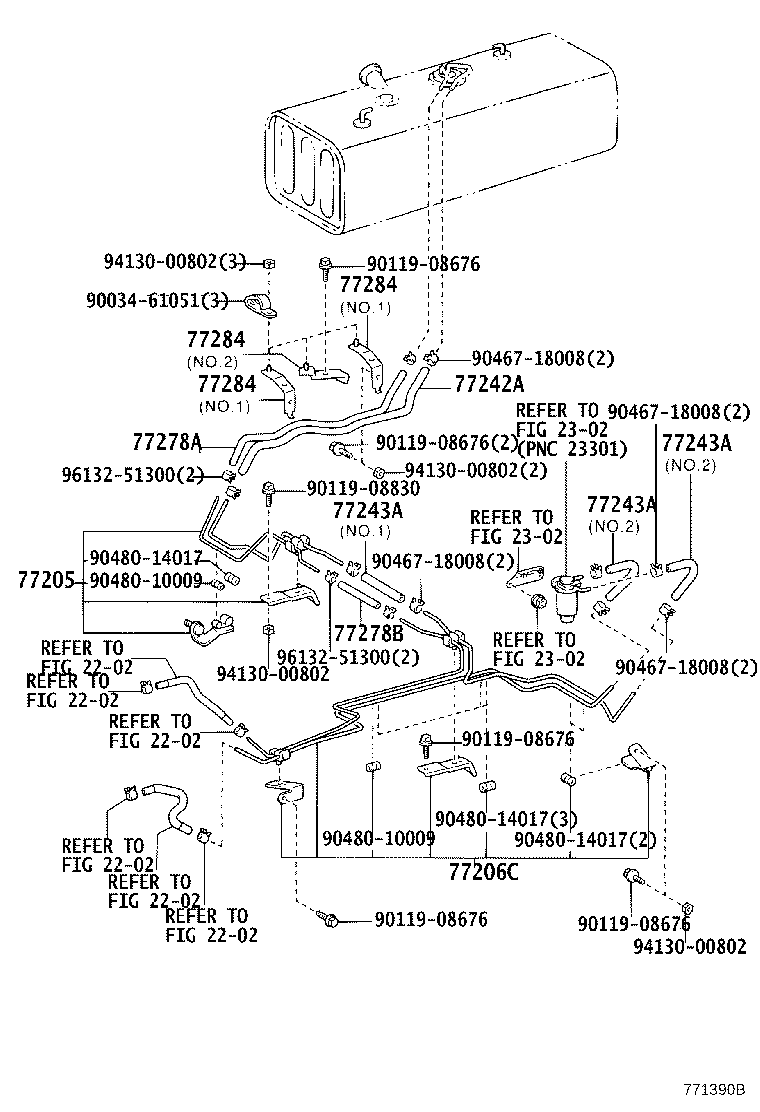

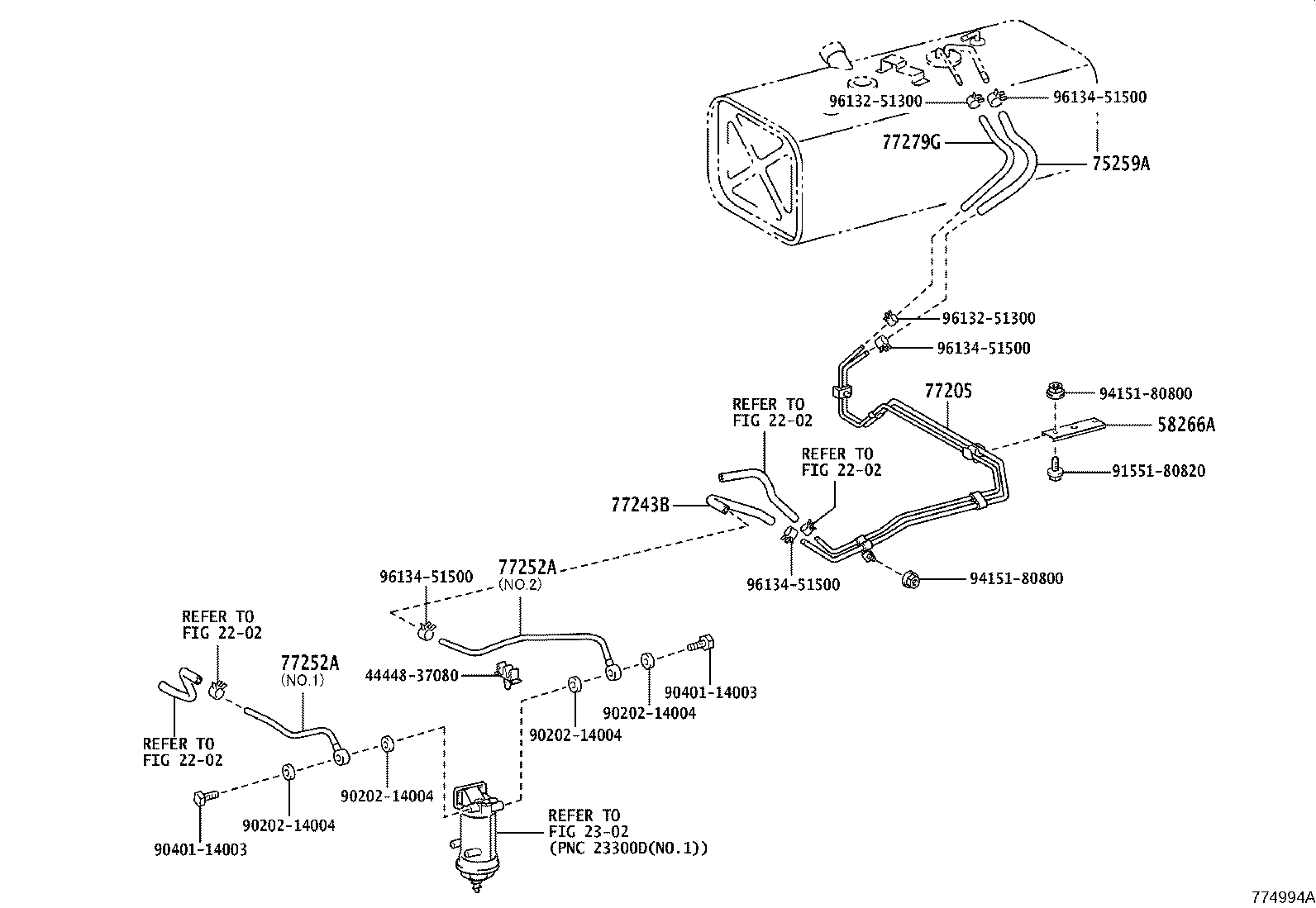

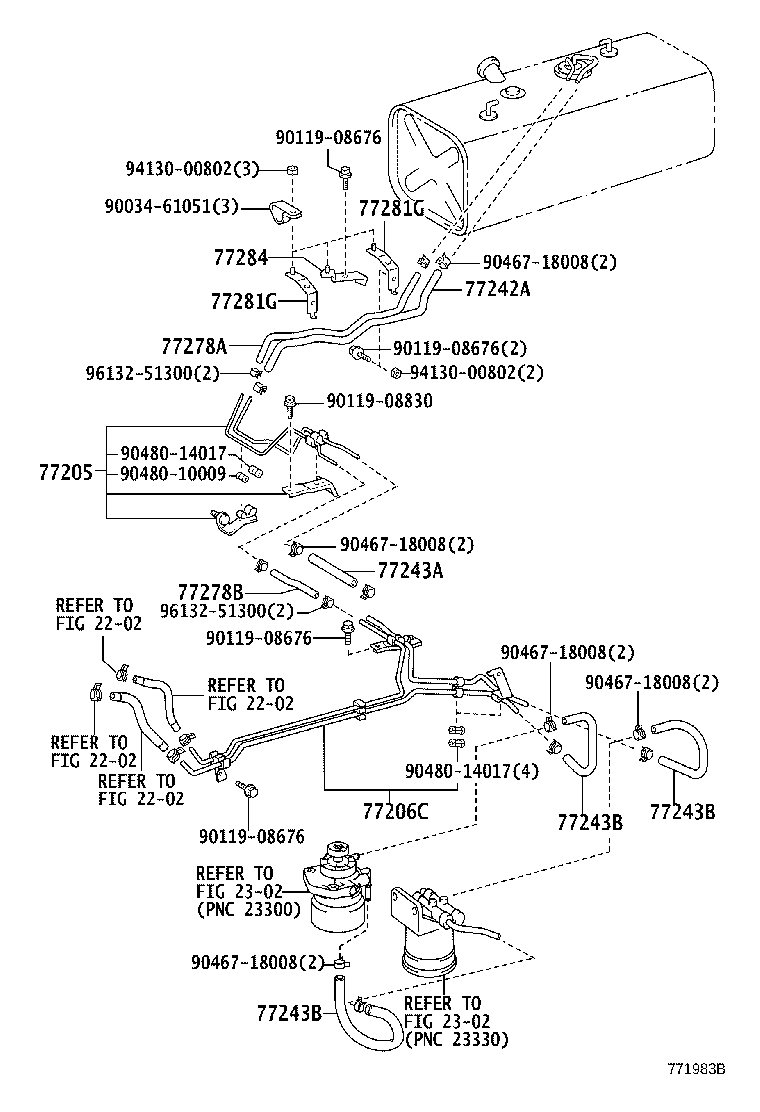

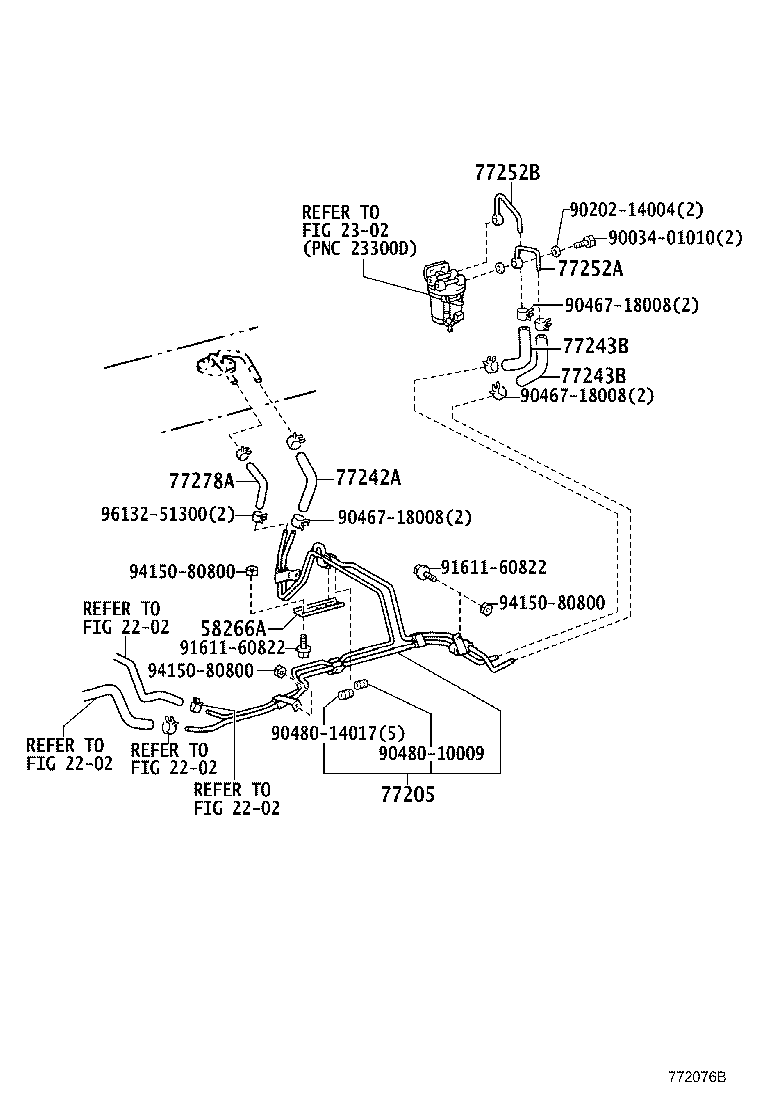

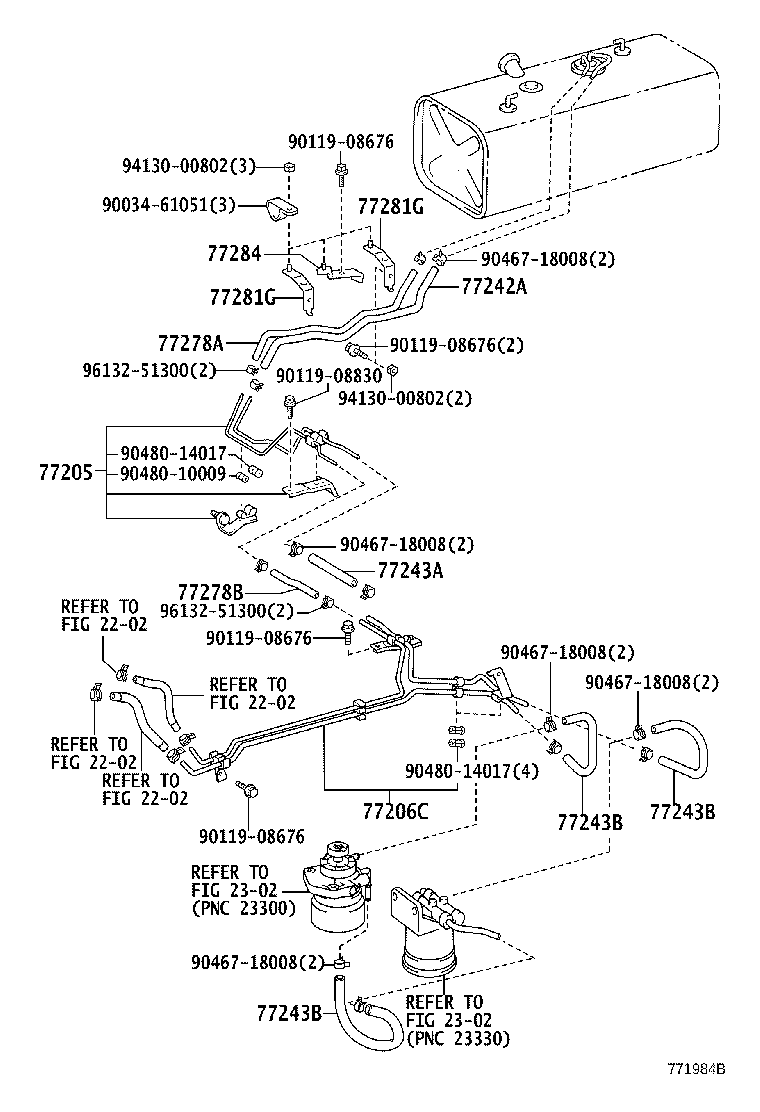

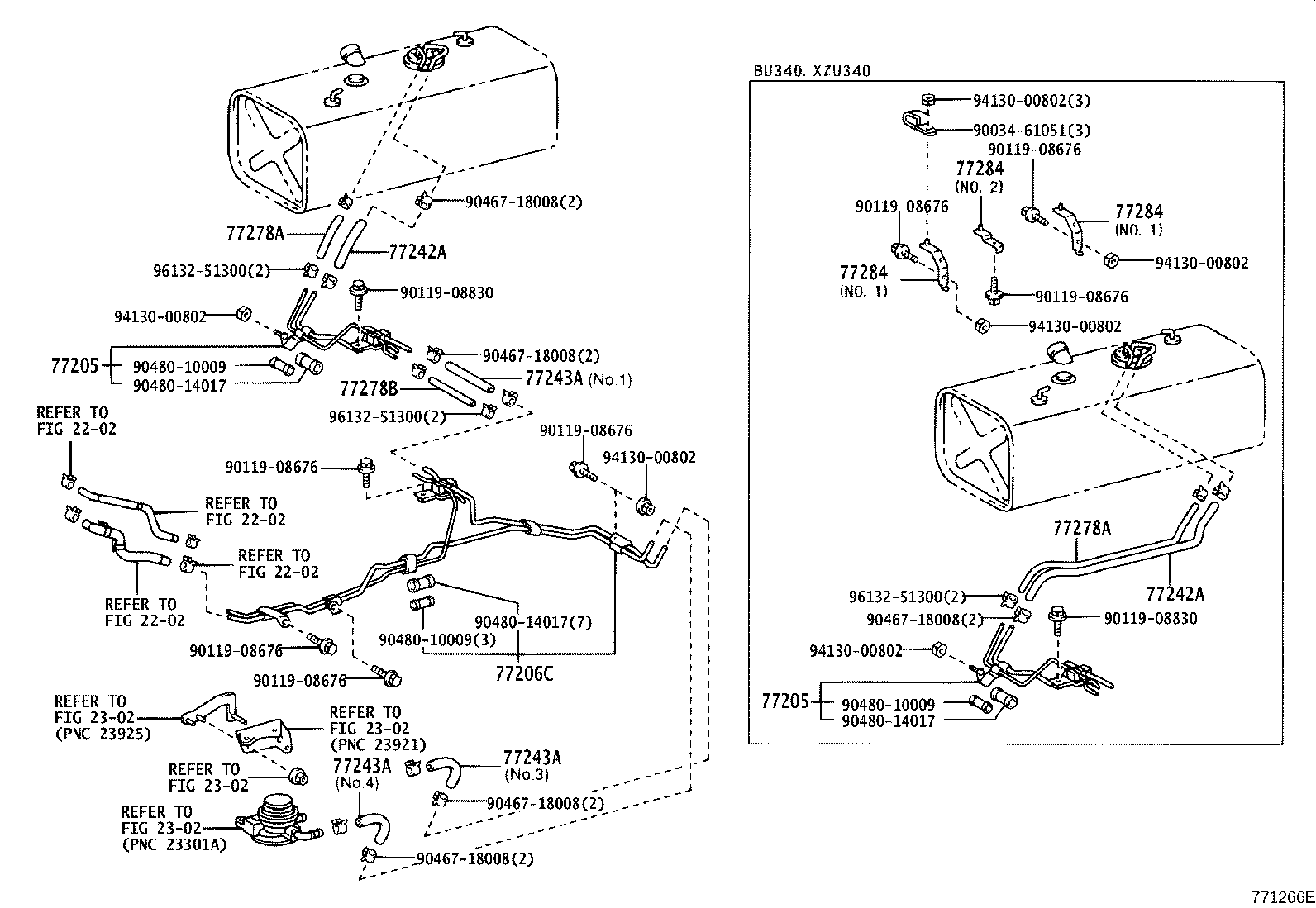

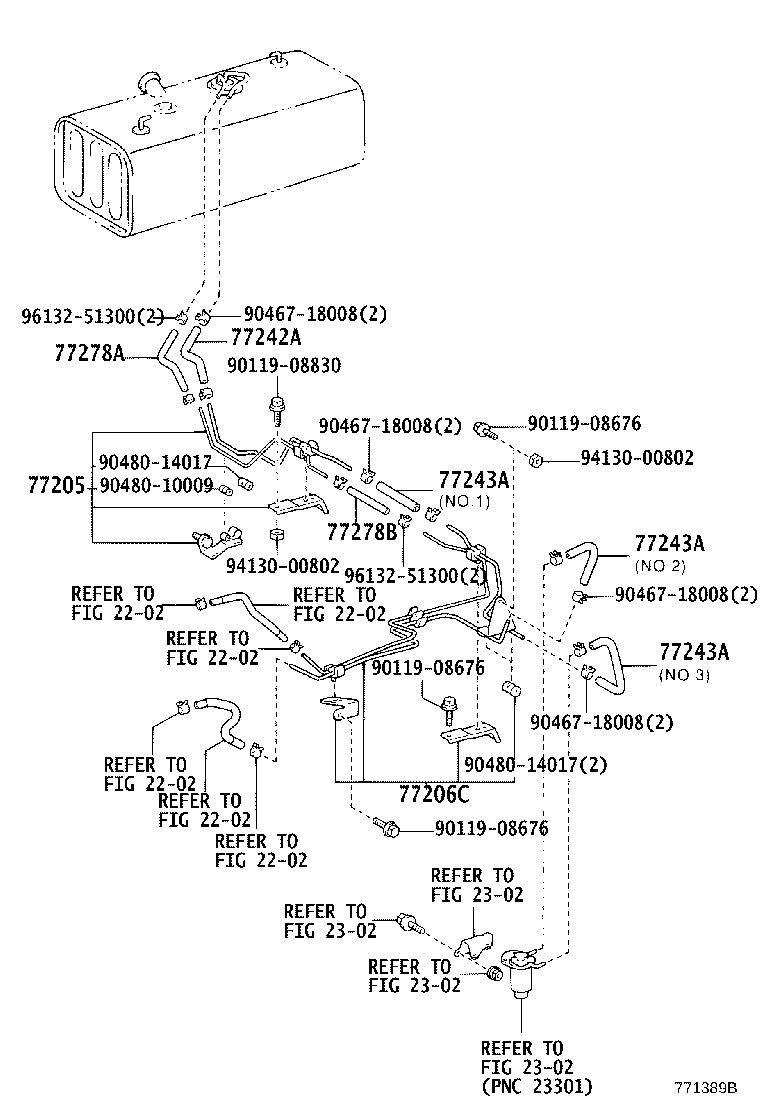

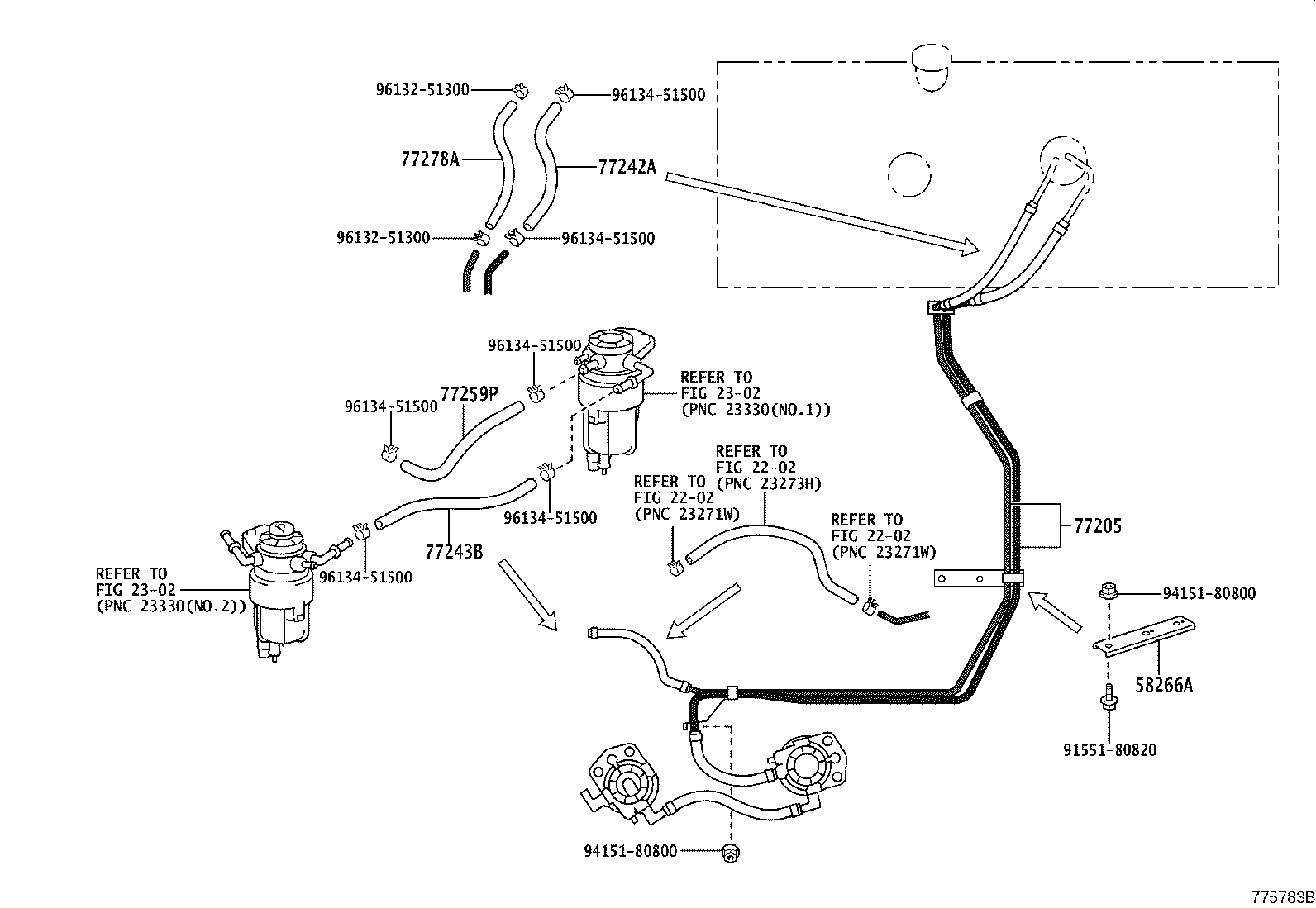

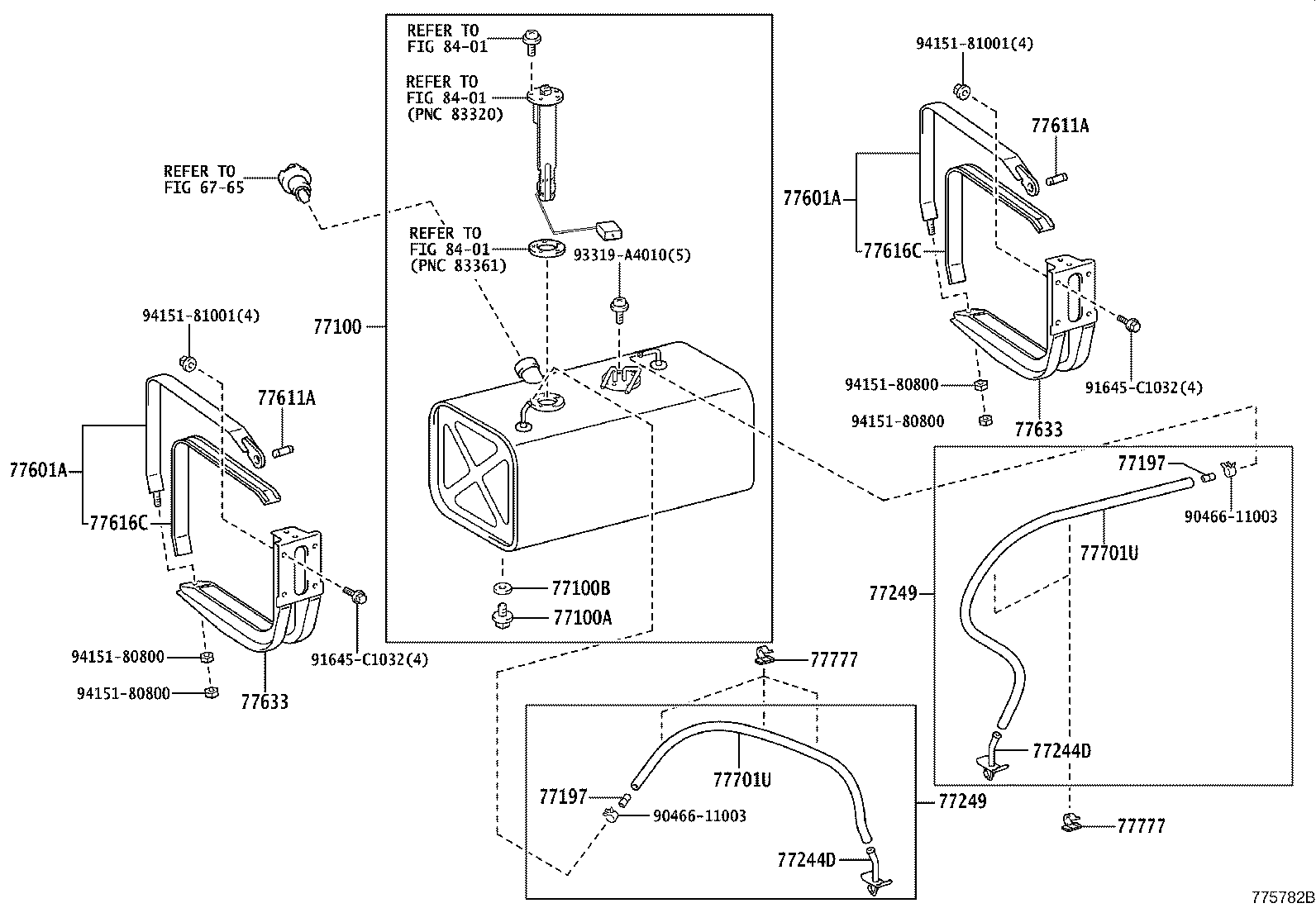

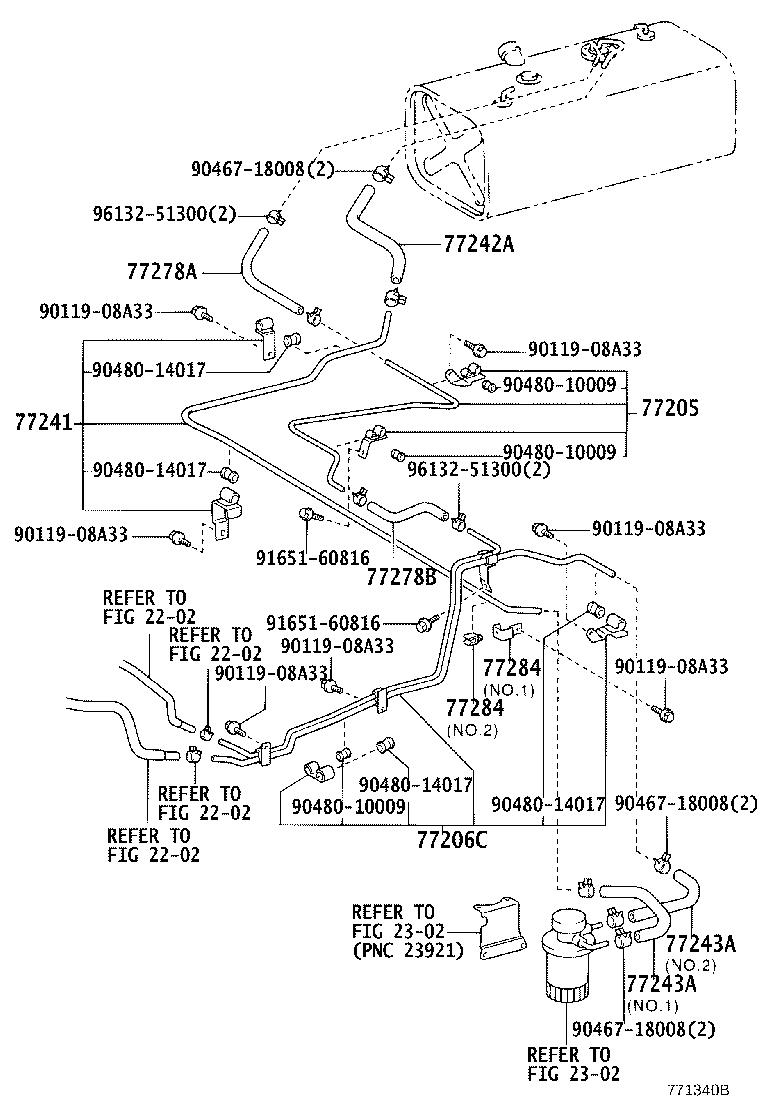

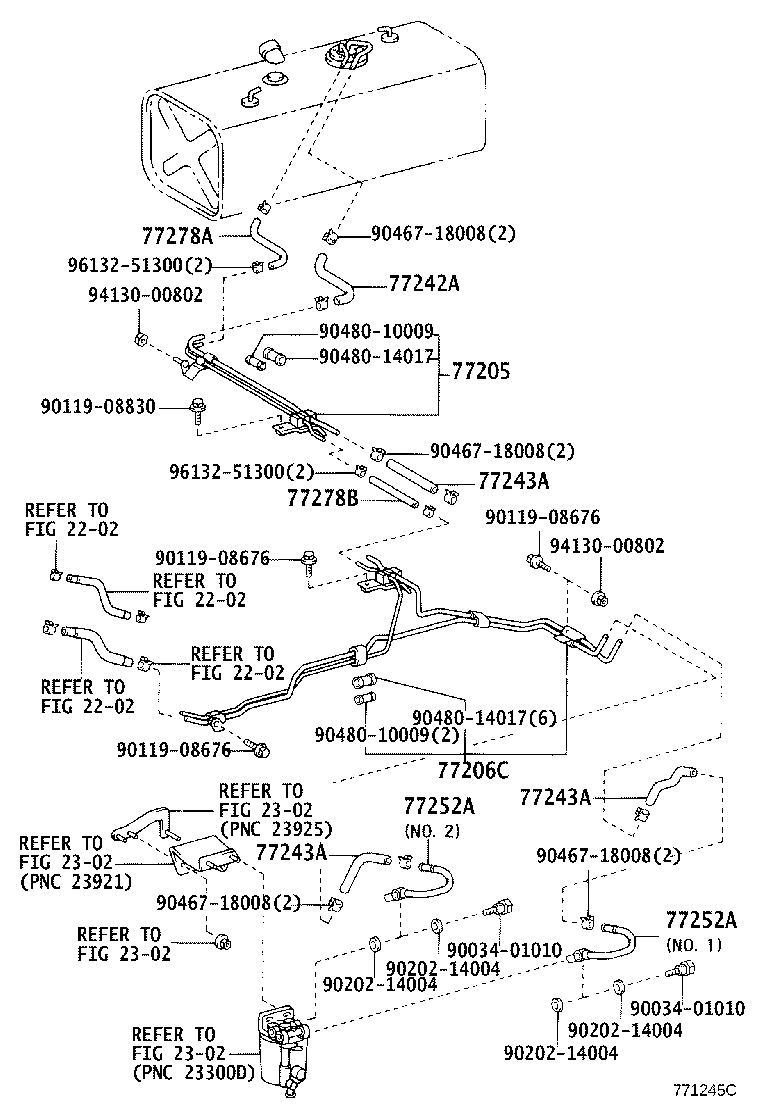

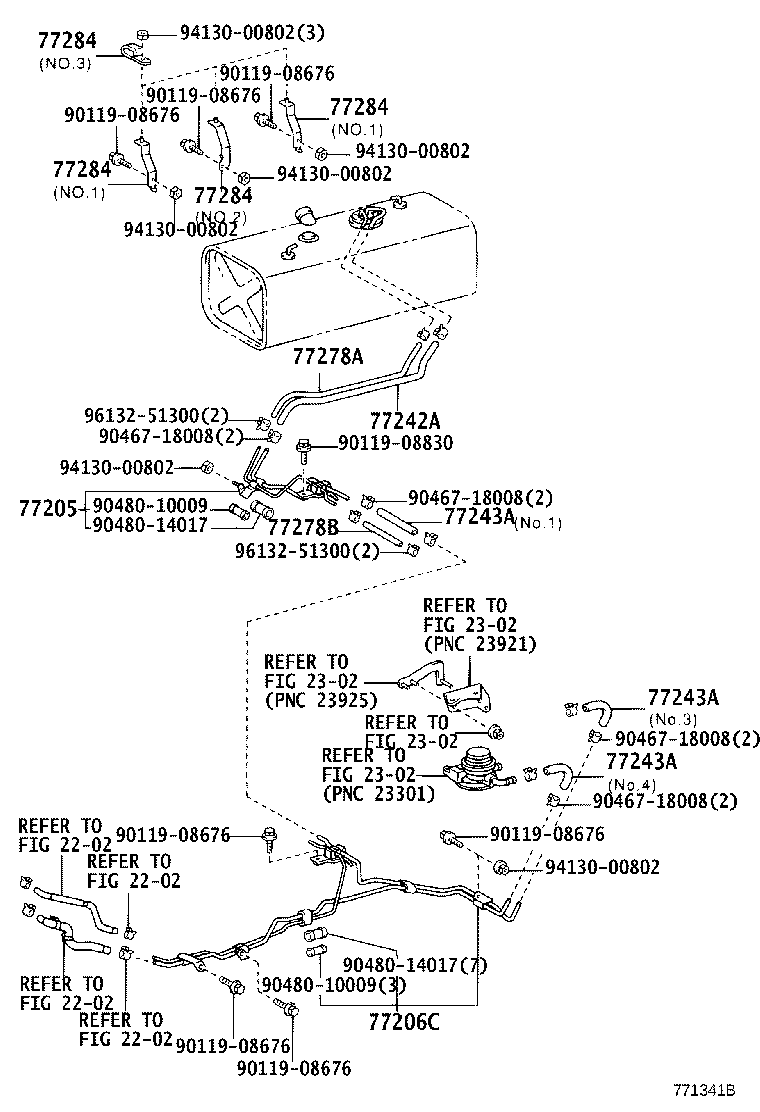

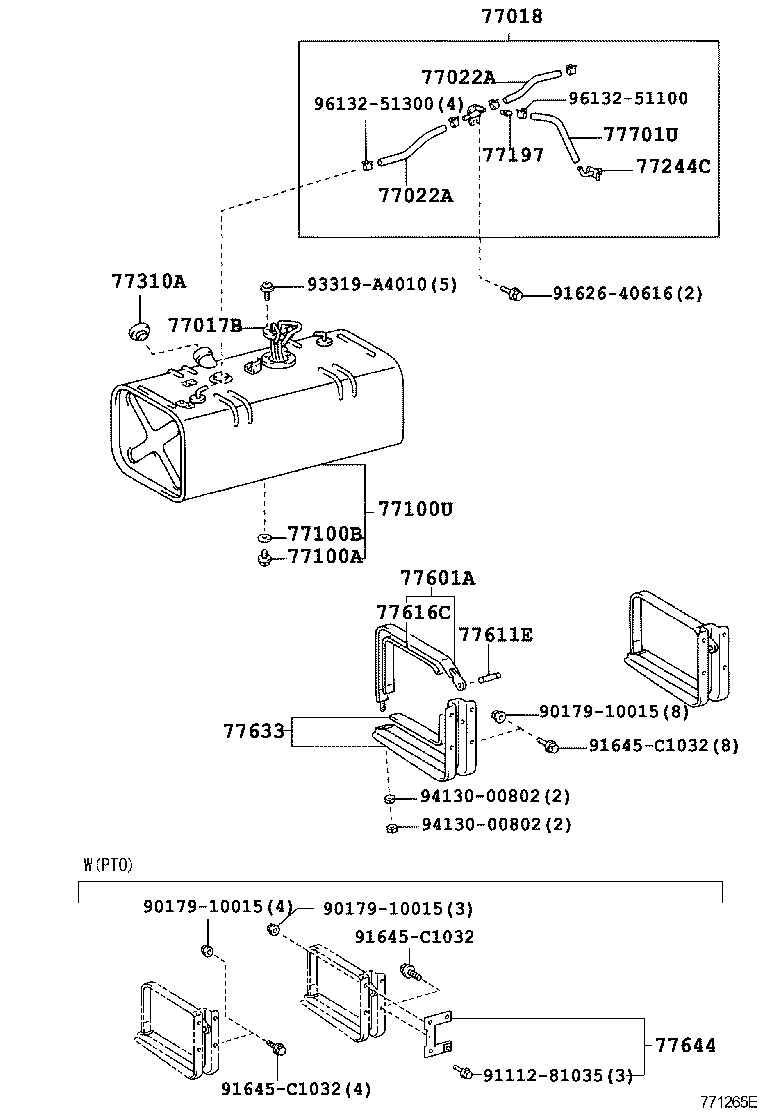

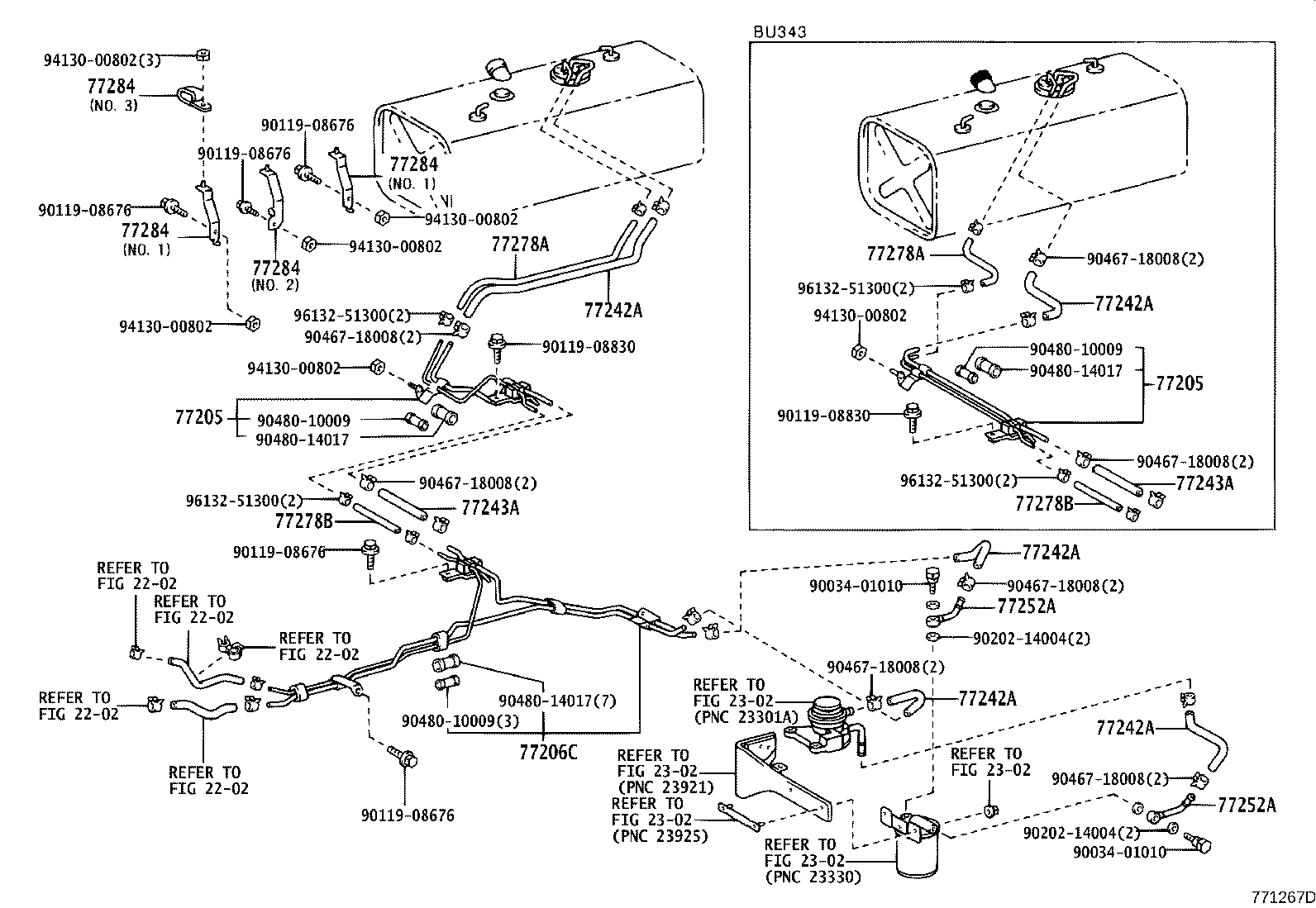

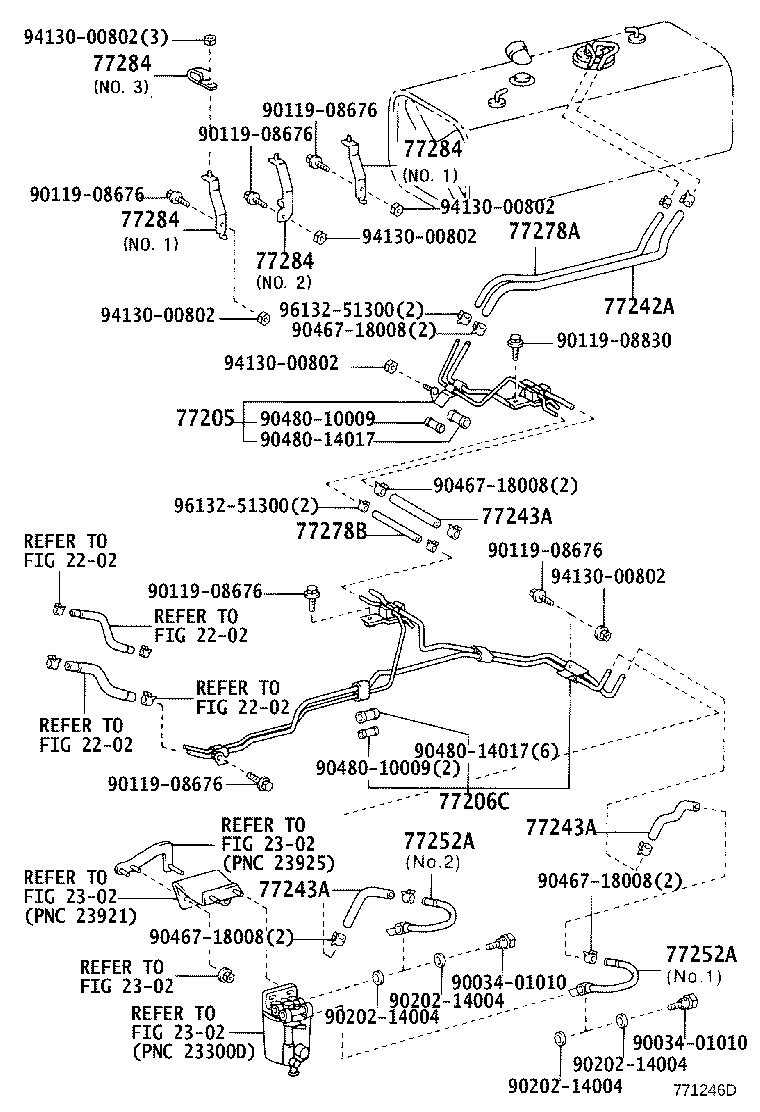

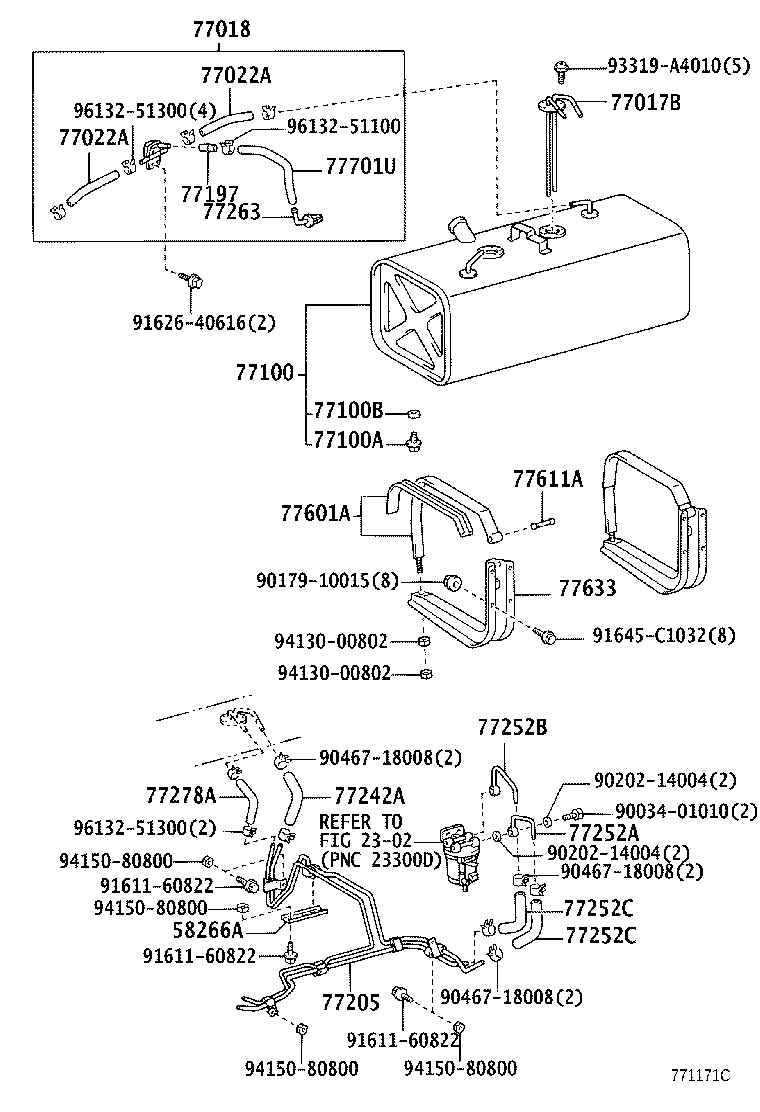

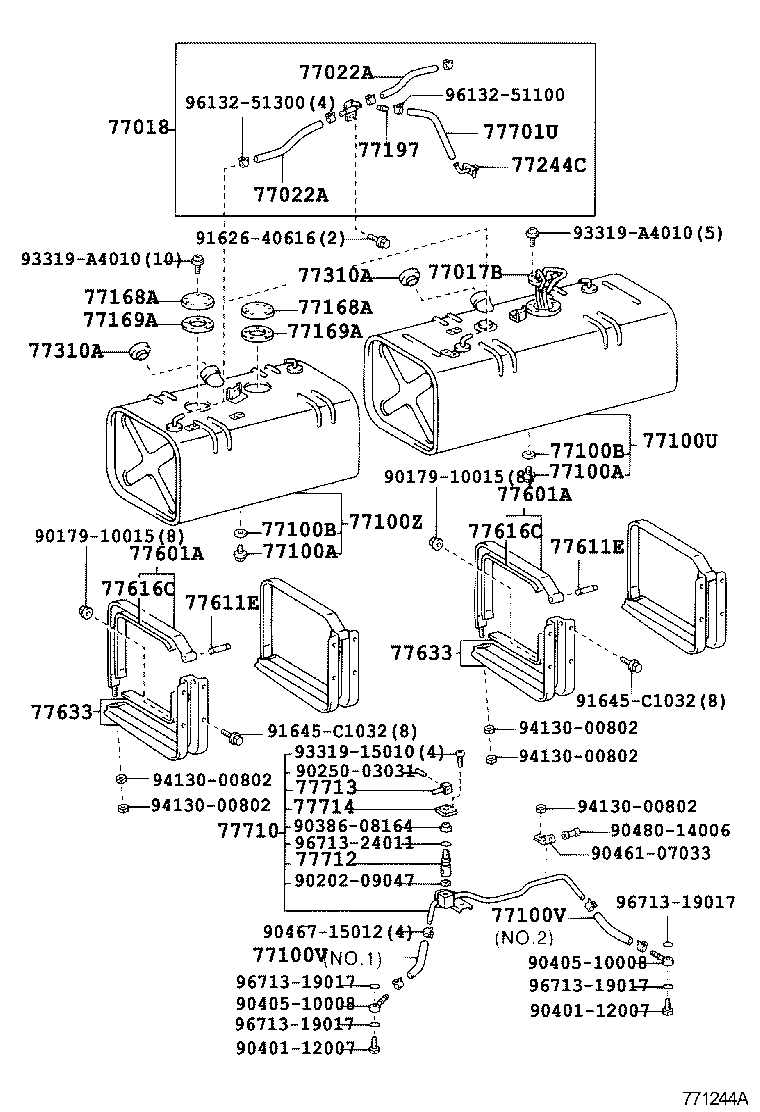

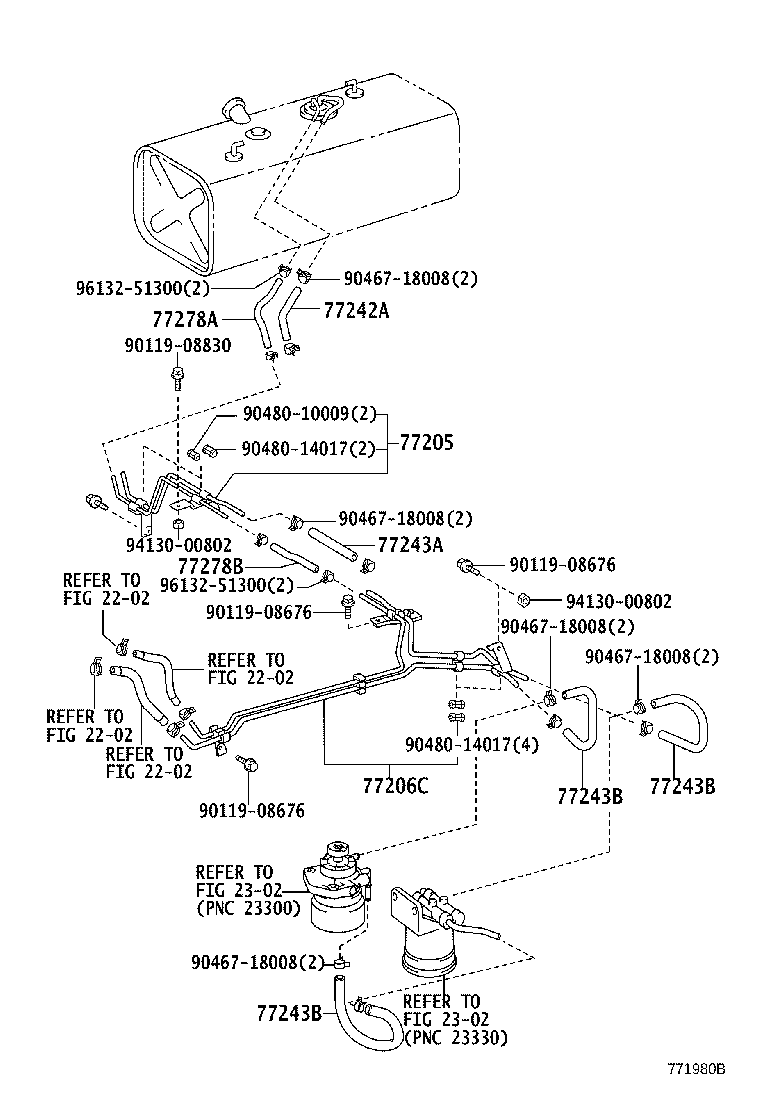

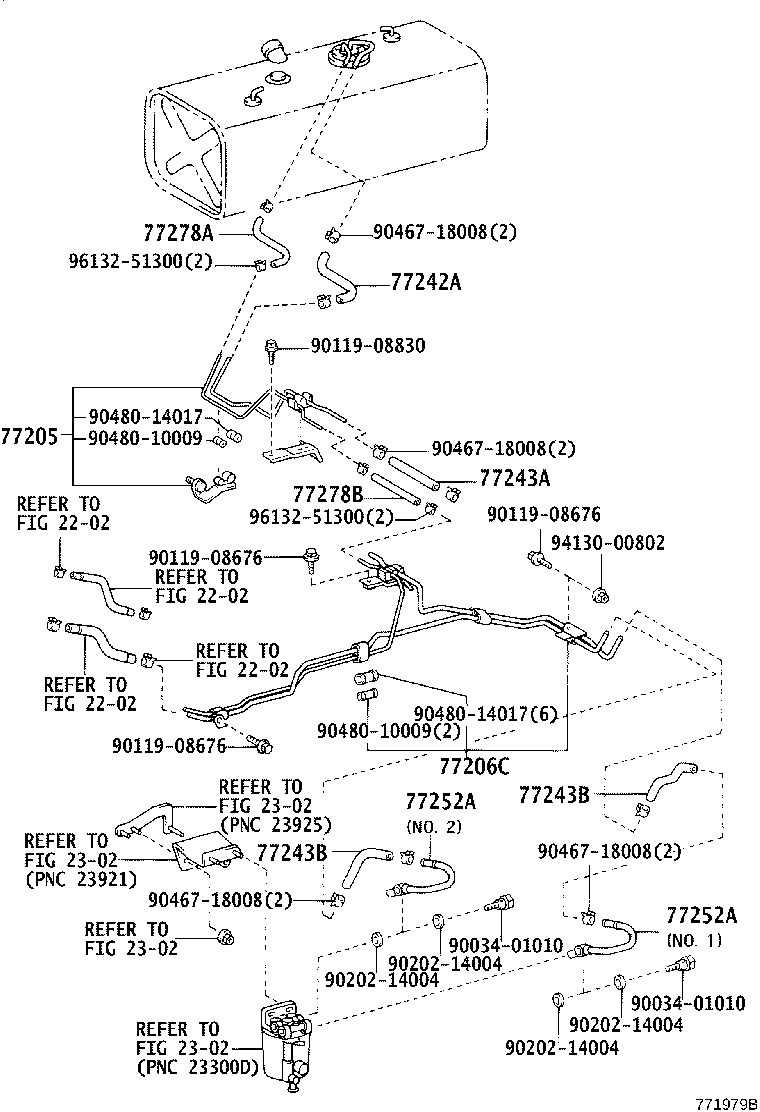

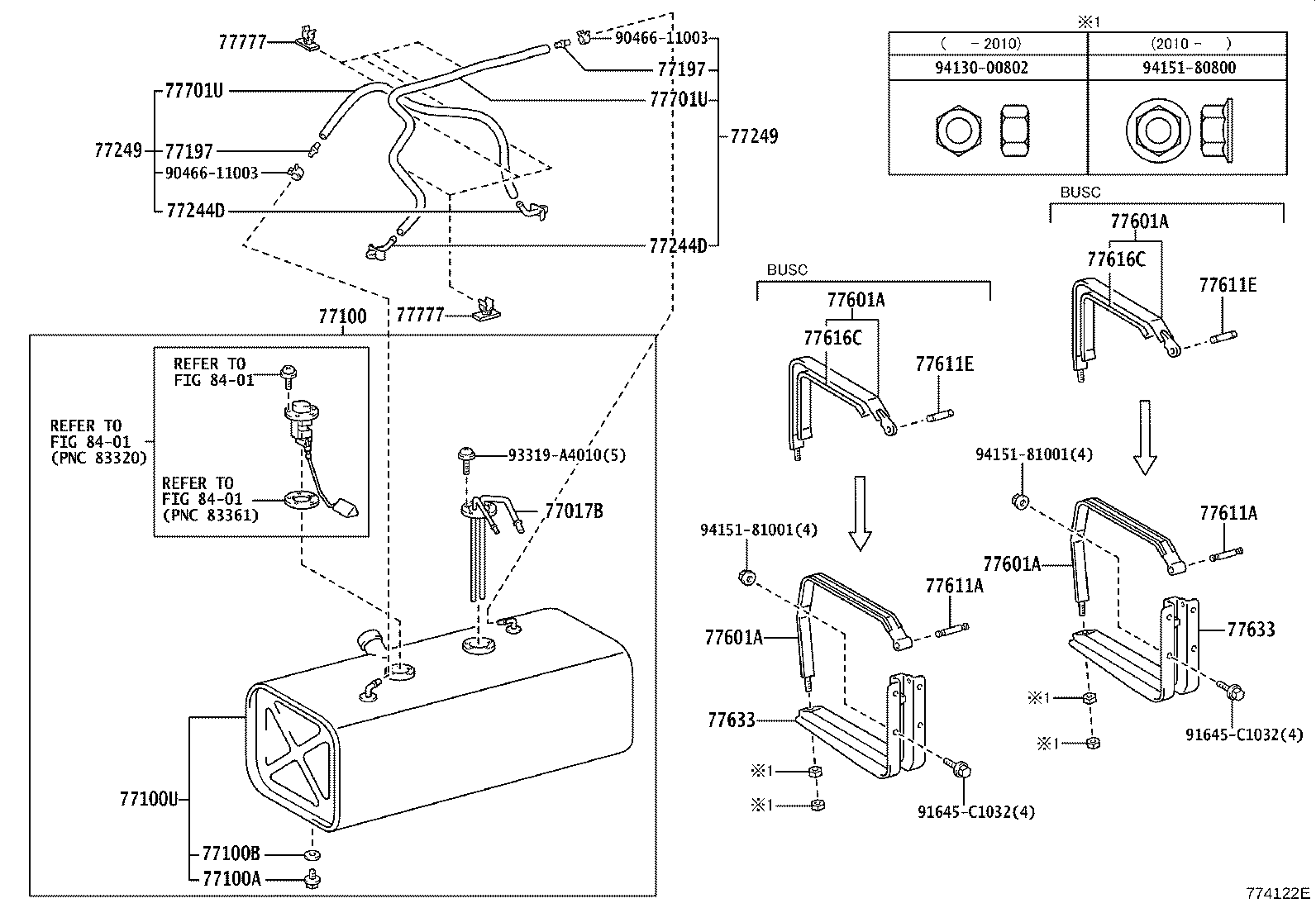

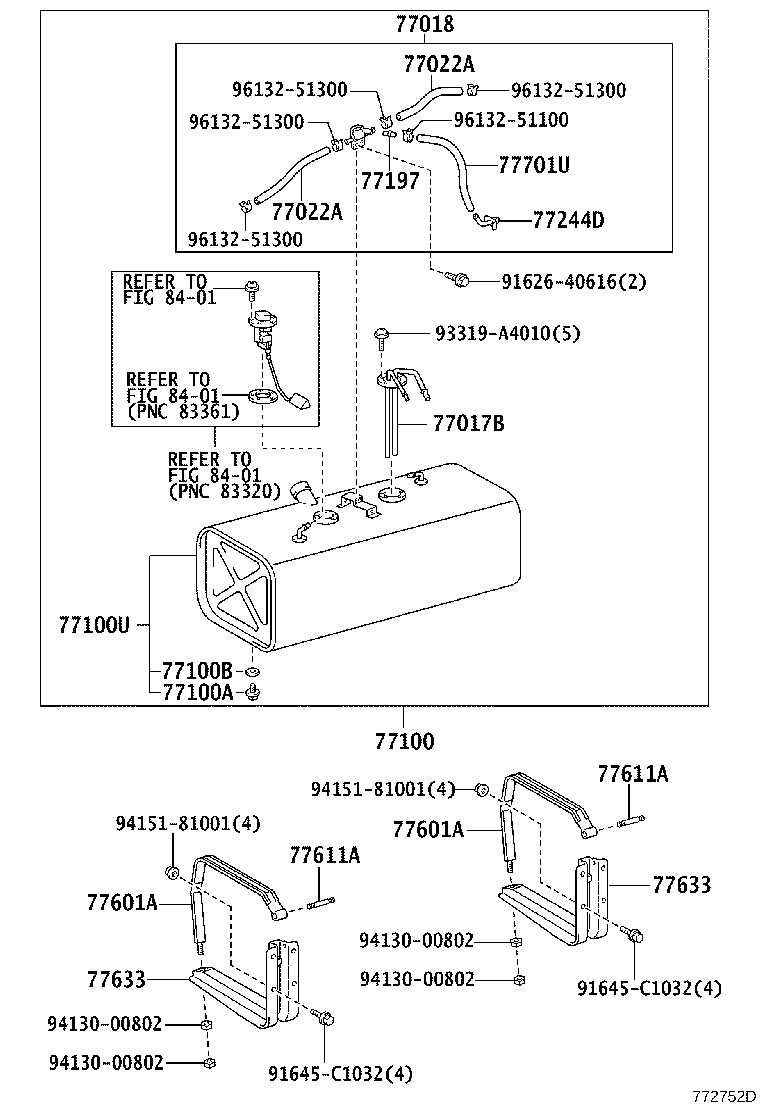

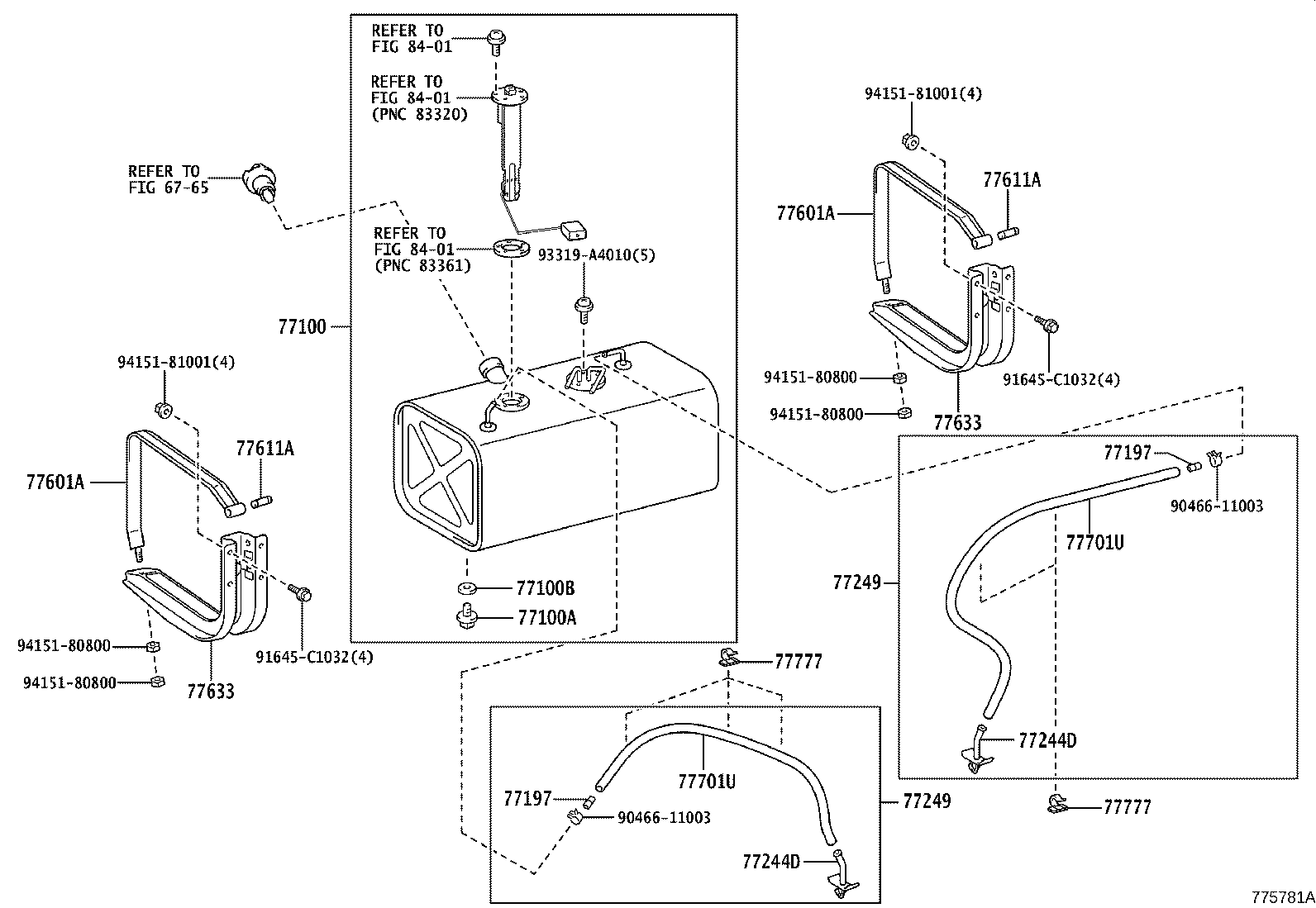

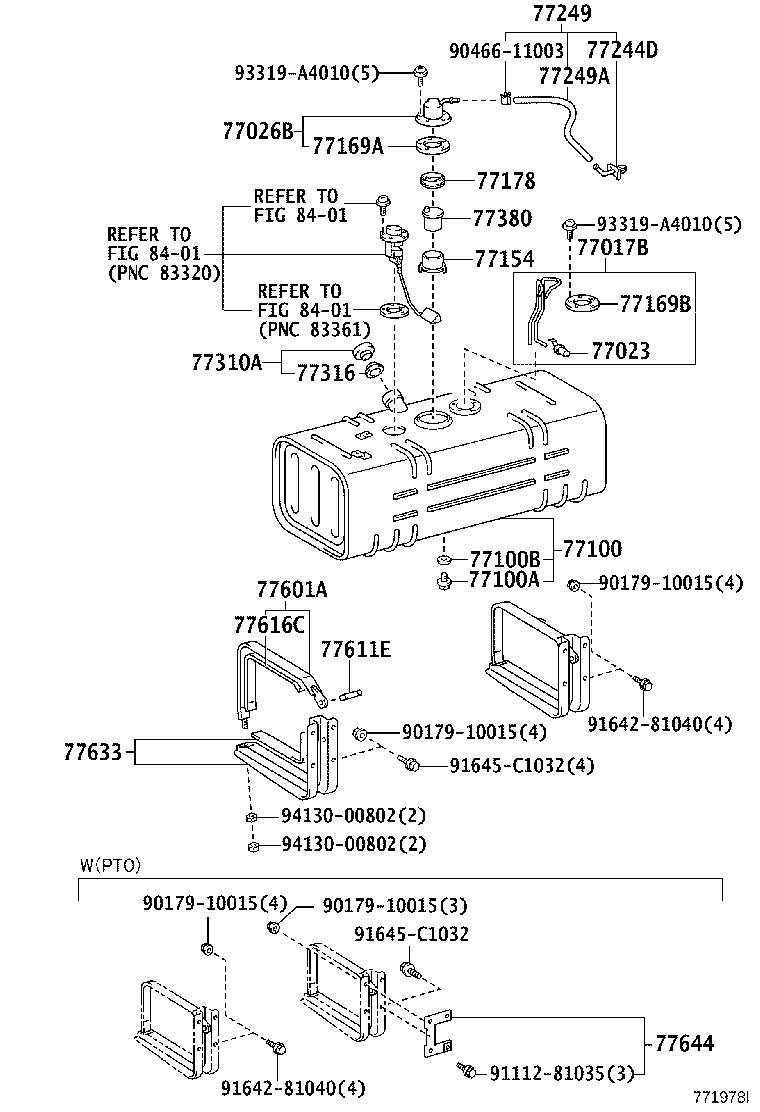

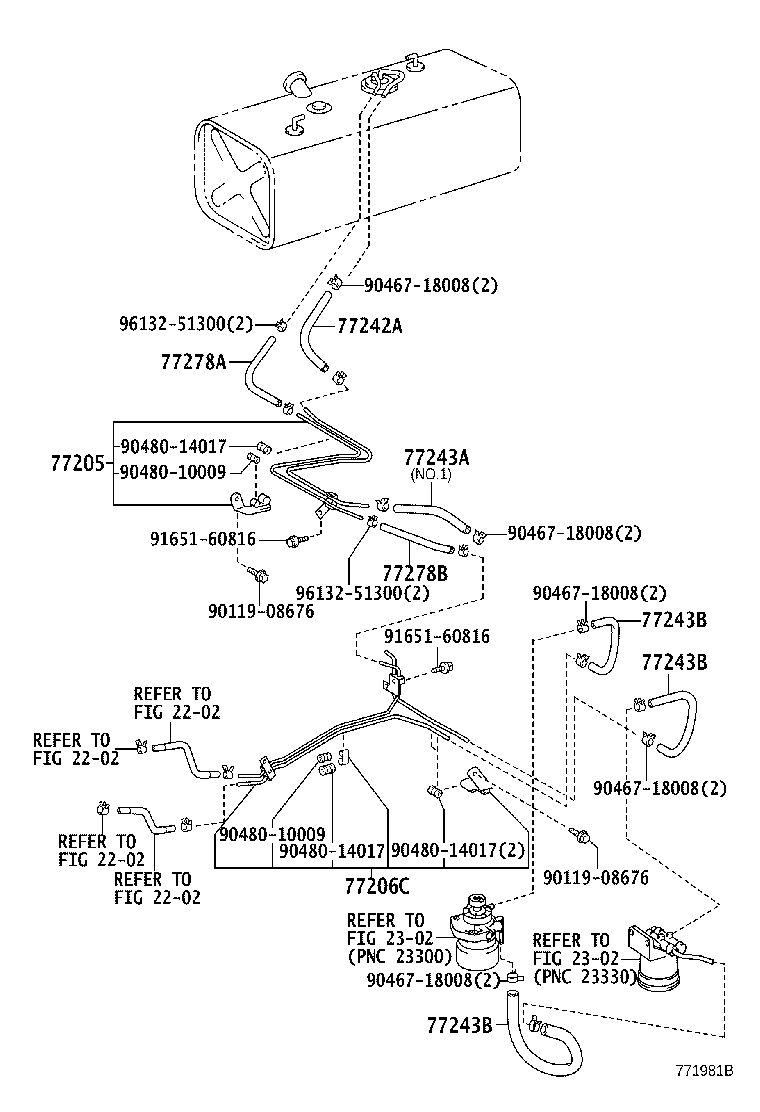

Figure 771170C 771170C 2002-09 → 2006-12 Figure 771171C 771171C 2002-09 → 2006-12 Figure 771265E 771265E 2002-12 → 2006-12 Figure 773090 773090 2002-12 → 2006-10 Figure 773090 773090 2003-04 → — Figure 771244A 771244A 2002-12 → 2006-10 Figure 771686E 771686E 2005-01 → 2006-10 Figure 771978I 771978I 2006-10 → — Figure 772075A 772075A 2006-12 → — Figure 772752D 772752D 2009-12 → 2017-08 Figure 774122E 774122E 2017-08 → — Figure 775781A 775781A 2022-03 → — Figure 775782B 775782B 2022-03 → — Figure 771266E 771266E 2002-12 → 2006-10 Figure 771245C 771245C 2002-12 → 2006-10 Figure 771246D 771246D 2002-12 → 2006-10 Figure 771246D 771246D 2003-04 → — Figure 771267D 771267D 2002-12 → 2006-10 Figure 771340B 771340B 2002-12 → 2006-10 Figure 771341B 771341B 2002-12 → 2006-10 Figure 771389B 771389B 2003-12 → 2006-10 Figure 771390B 771390B 2003-12 → 2006-10 Figure 771979B 771979B 2006-10 → — Figure 771980B 771980B 2006-10 → — Figure 771981B 771981B 2006-10 → — Figure 771982C 771982C 2006-10 → — Figure 771984B 771984B 2006-10 → — Figure 771983B 771983B 2006-10 → — Figure 772076B 772076B 2006-12 → — Figure 774995A 774995A 2009-12 → — Figure 774994A 774994A 2019-12 → — Figure 775783B 775783B 2022-03 → —

Part groups

PNCDescription
58266A Bracket, Fuel Tube Clamp
75259A Hose, Fuel
77017B Tube Sub-assy, Fuel Tank Vent
77018 Valve Sub-assy, Fuel Vapour Separate
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77023 Filter Sub-assy, Fuel Suction Tube
77026B Tube Sub-assy, Fuel Evaporation, NO.1
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77100U Tank Sub-assy, Fuel
77100V Hose, Fuel
77100Z Tank Sub-assy, Fuel Sub
77154 Plate, Fuel Tank Evap/Vent Tube Support
77168A Plate, Fuel Tank Vent Tube Set
77169A Gasket, Fuel Suction Tube Set
77169B Gasket, Fuel Suction Tube Set, NO.1
77178 Gasket, Fuel Tank Filler Pipe, Lower
77197 Orifice, Fuel Vapor
77205 Tube Sub-assy, Fuel Main
77206C Tube Sub-assy, Fuel Main, NO.2
77241 Tube, Fuel Main, NO.1
77242A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2)
77243A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.3)
77243B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.3)
77244C Joint, Fuel Tube, NO.2
77244D Tube, Fuel Evaporation Breather, NO.1
77249 Hose, Fuel Emission
77249A Hose, Fuel Emission
77252A Tube, Fuel Main, NO.2
77252B Hose, Fuel, NO.1 (FOR FUEL MAIN NO.2 TUBE)
77252C Hose, Fuel, NO.2(FOR FUEL MAIN NO.2 TUBE)
77259P Hose, Fuel, NO.3
77263 Tube, Fuel Tank TO Canister, NO.3
77278A Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2)
77278B Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.2)
77279G Hose, Fuel, NO.2
77281G Clamp, Fuel Hose
77284 Clamp, Fuel Tube
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77380 Valve Assy, Fuel Cut Off
77501T Bracket Sub-assy, Fuel Tank
77601A Band Sub-assy, Fuel Tank, NO.1
77611A Pin (FOR FUEL TANK BAND)
77611E Pin, Fuel Tank Band
77616C Seat, Fuel Tank Band
77633 Stay, Fuel Tank
77644 Bolt, Fuel Tank
77681A Seat, Fuel Tank Band
77701T Valve, Check (FOR MAIN FUEL TANK)
77701U Hose, Fuel (FOR CHECK VALVE)
77701V Valve, Check (FOR SUB-FUEL TANK)
77710 Cock Assy, Fuel Change
77712 Valve, Fuel Change Cock
77713 Lever, Fuel Change Cock
77714 Cap, Fuel Change Cock
77777 Bracket, Fuel Tube Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
