Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

30 part groups · 19 illustrations

Illustrations

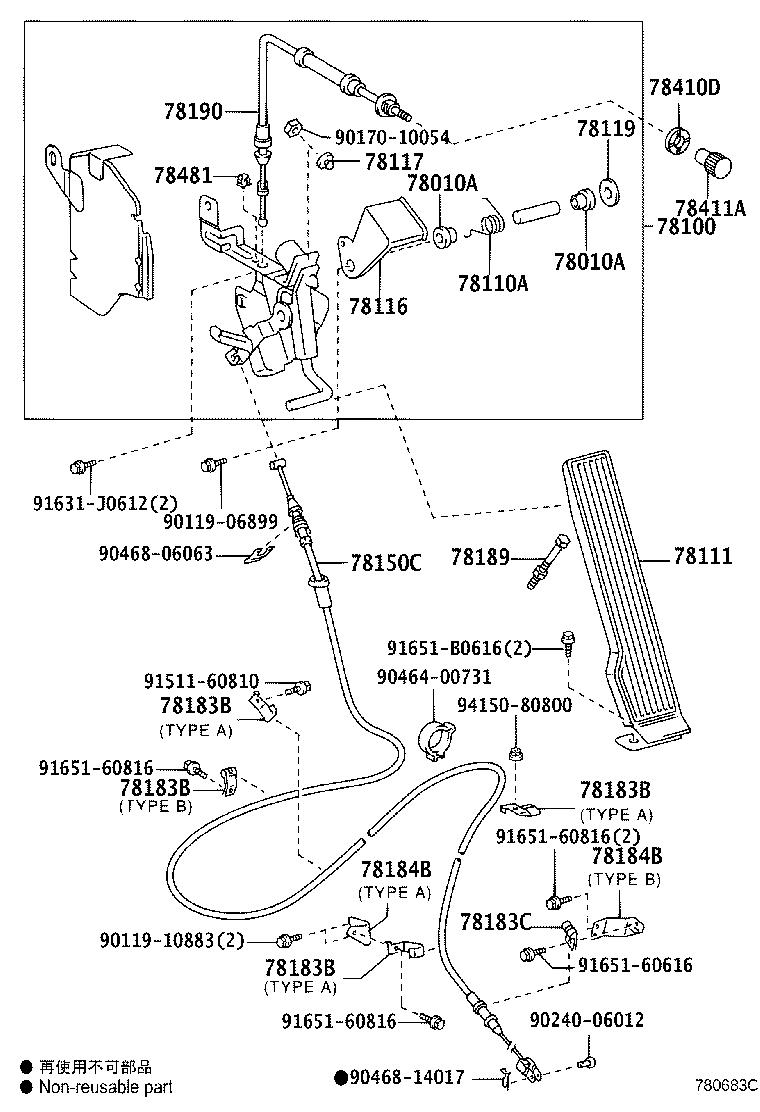

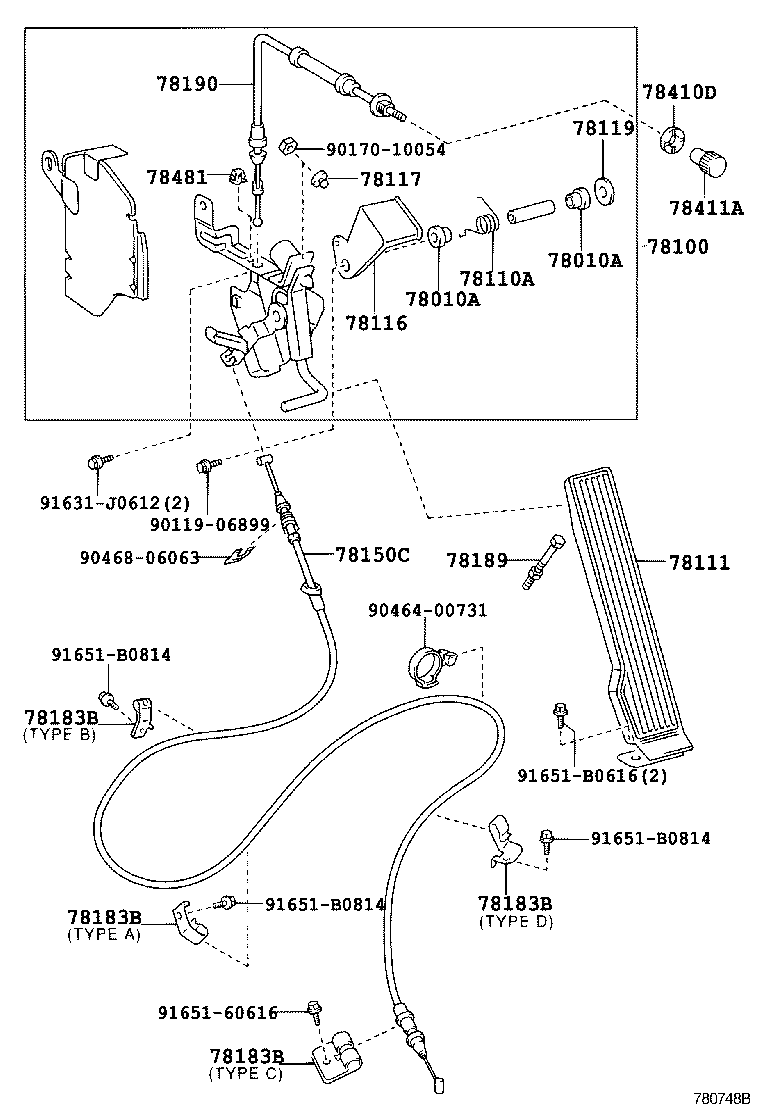

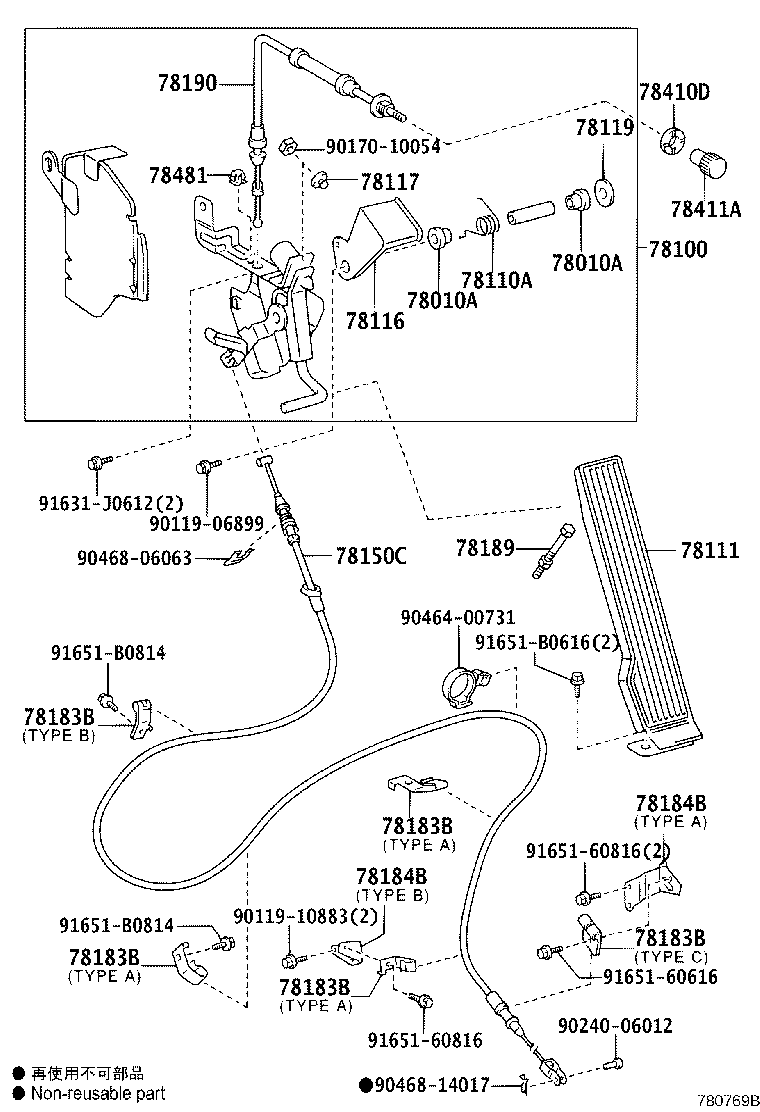

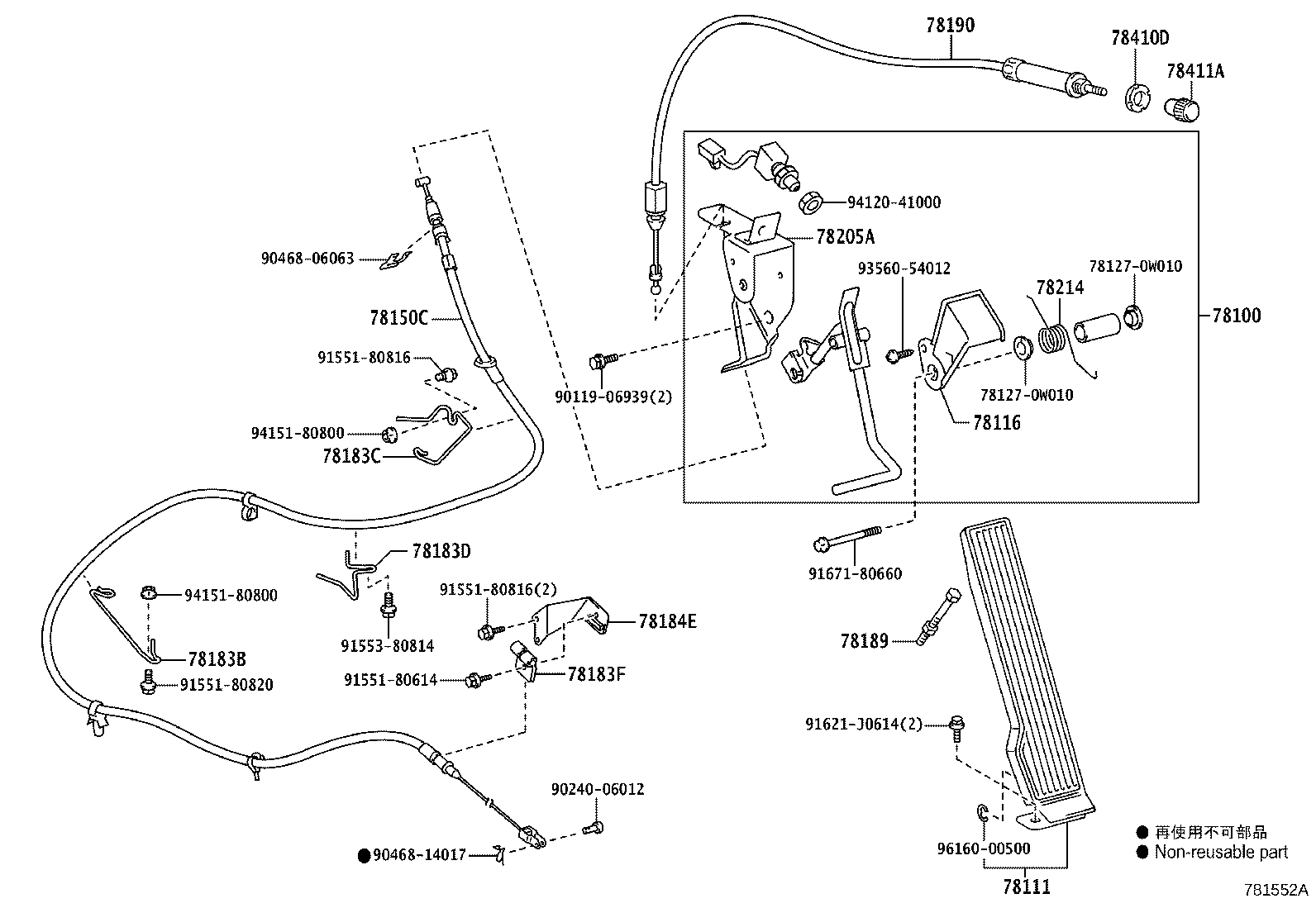

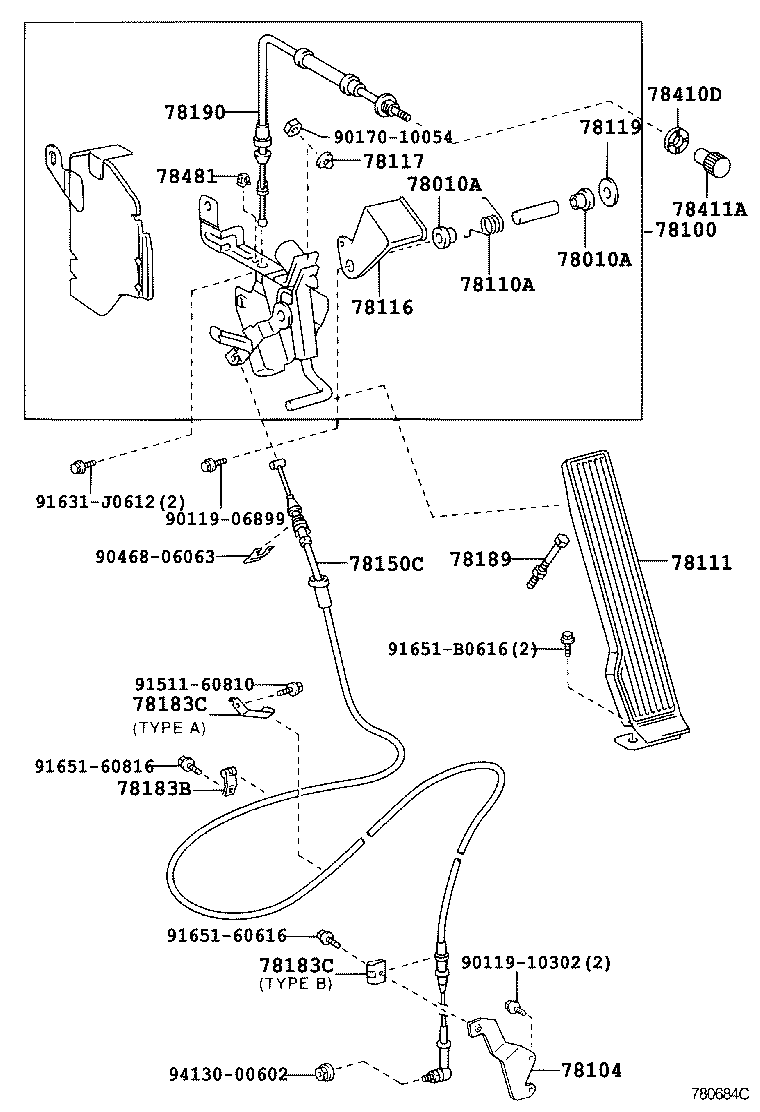

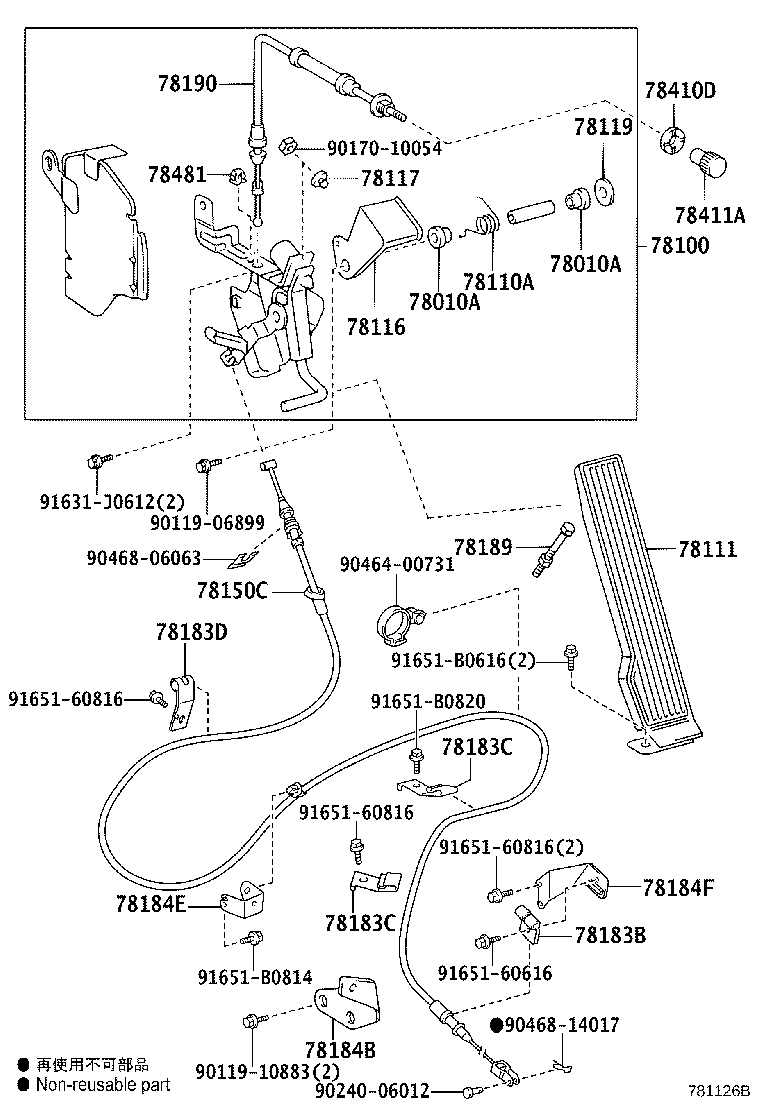

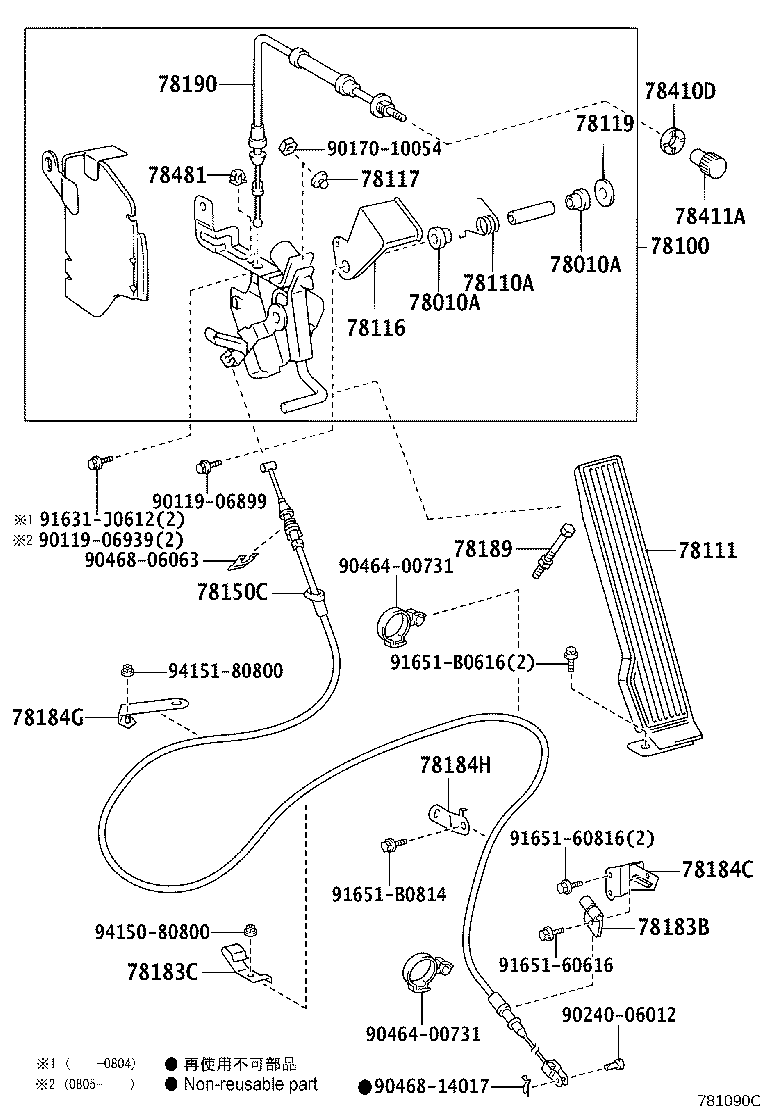

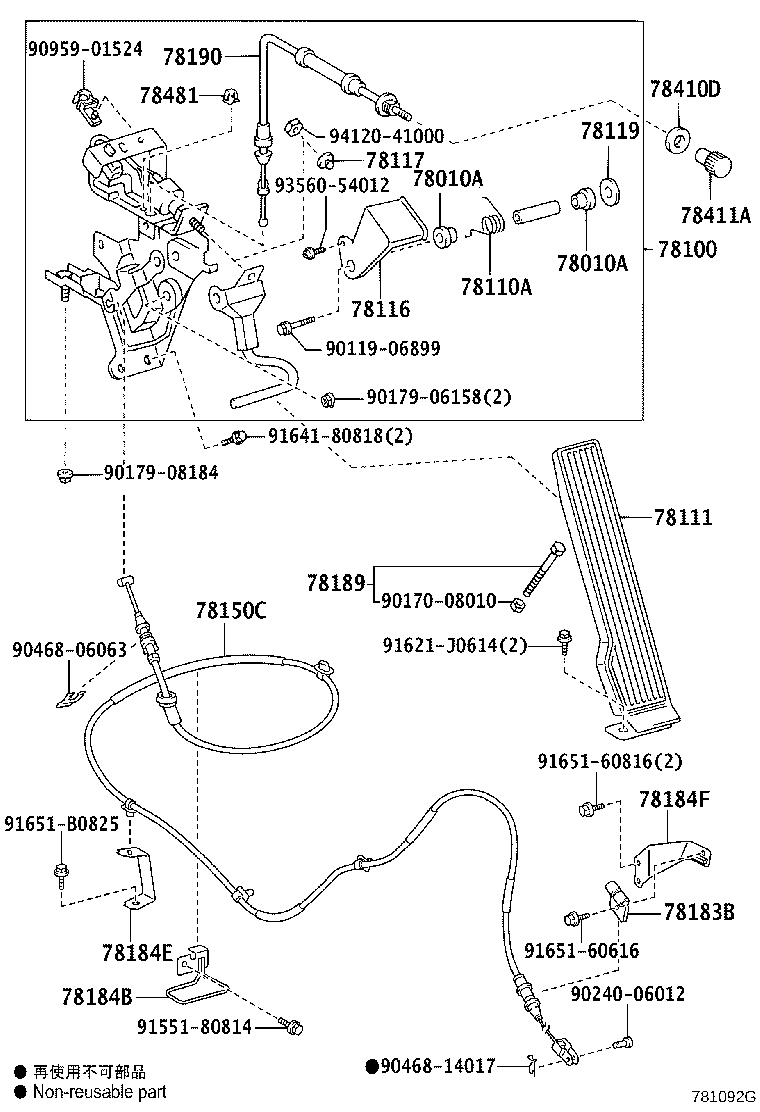

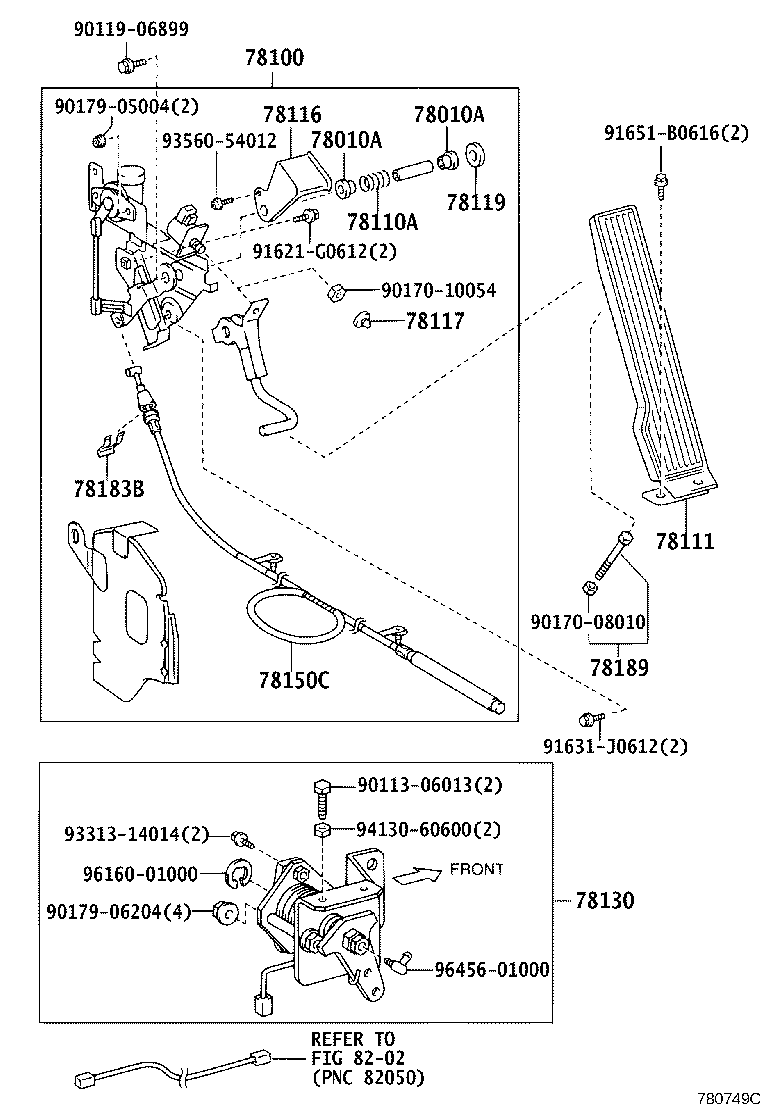

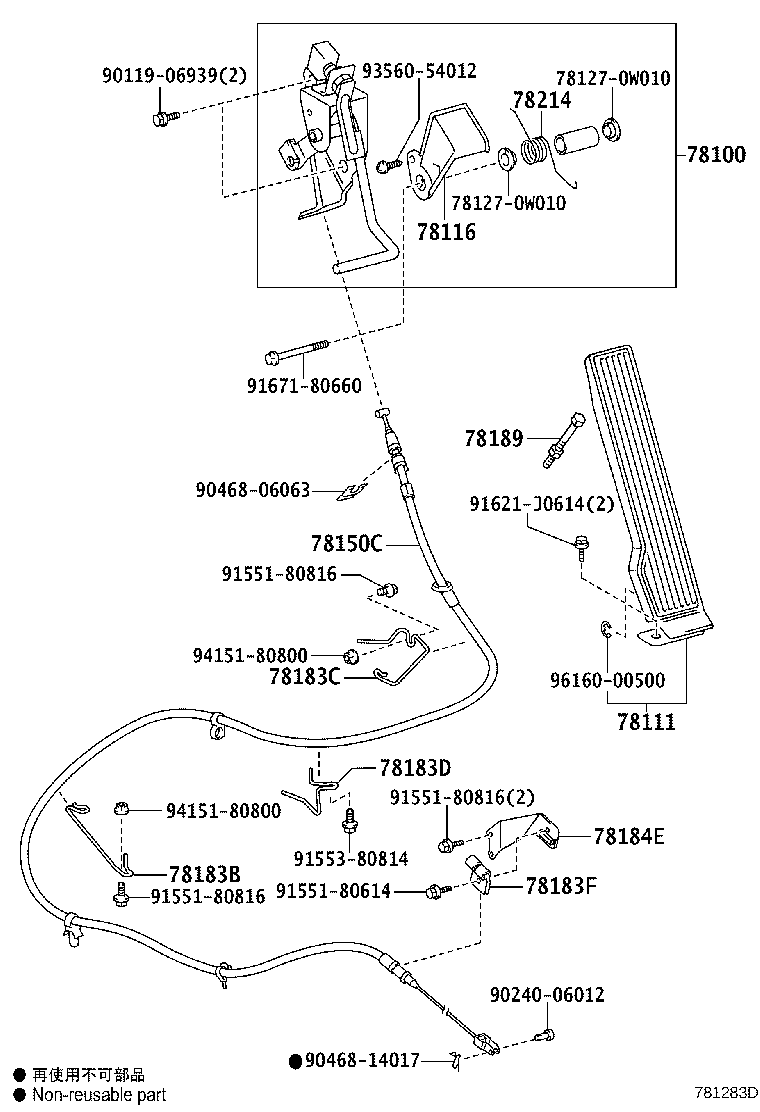

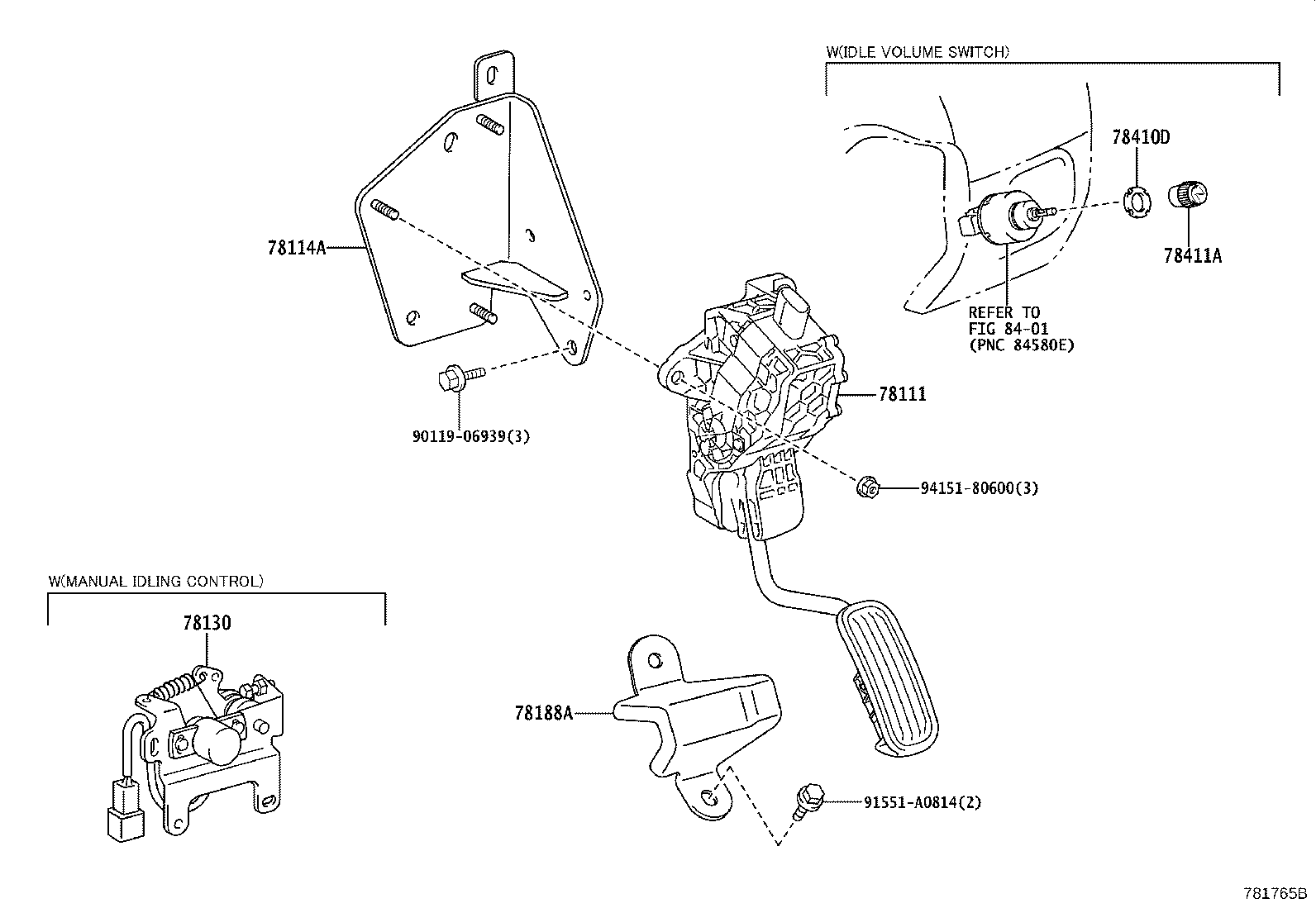

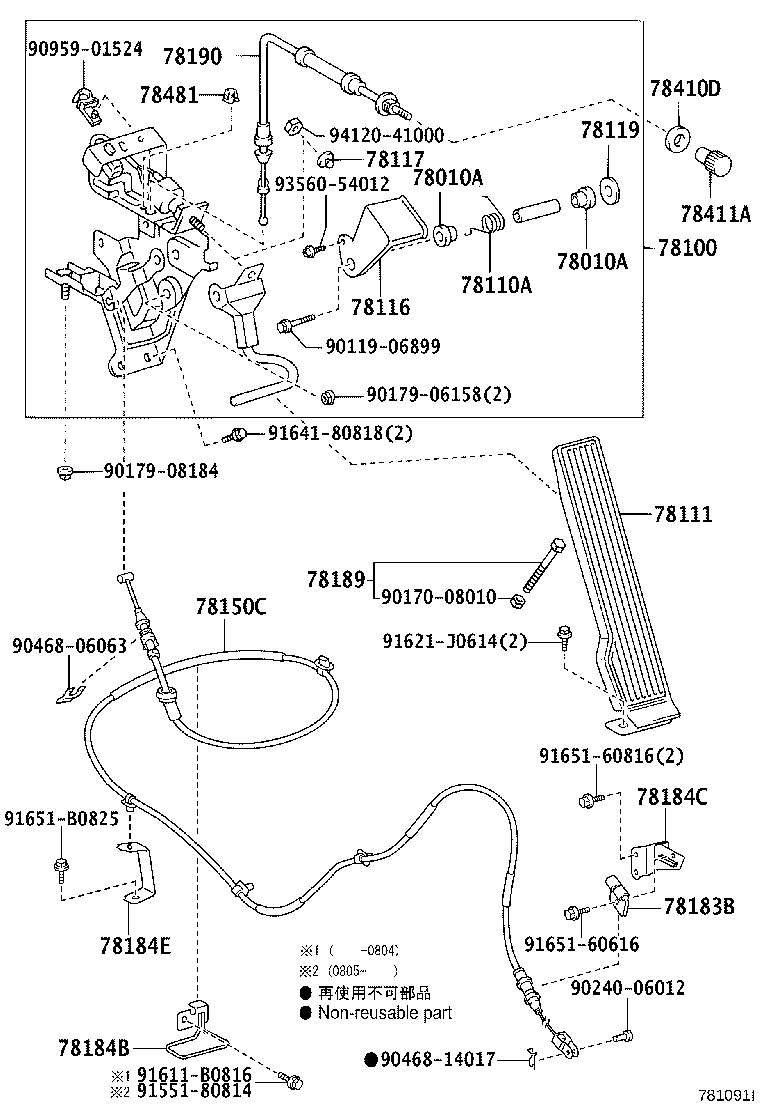

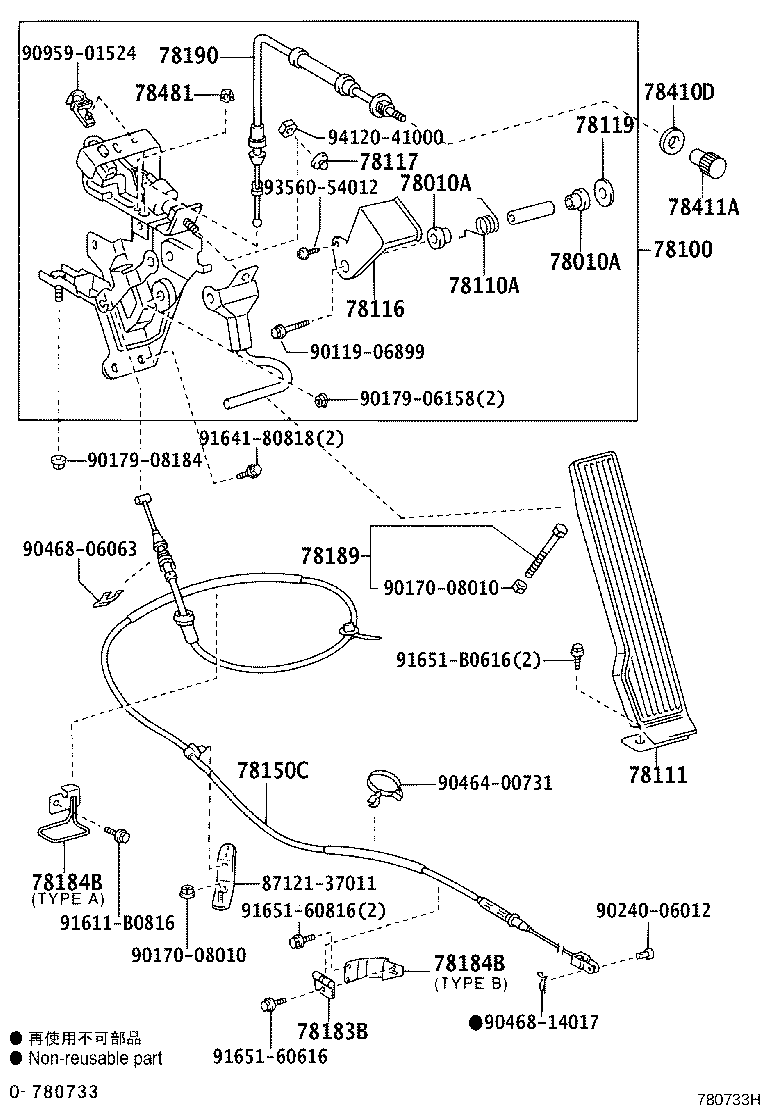

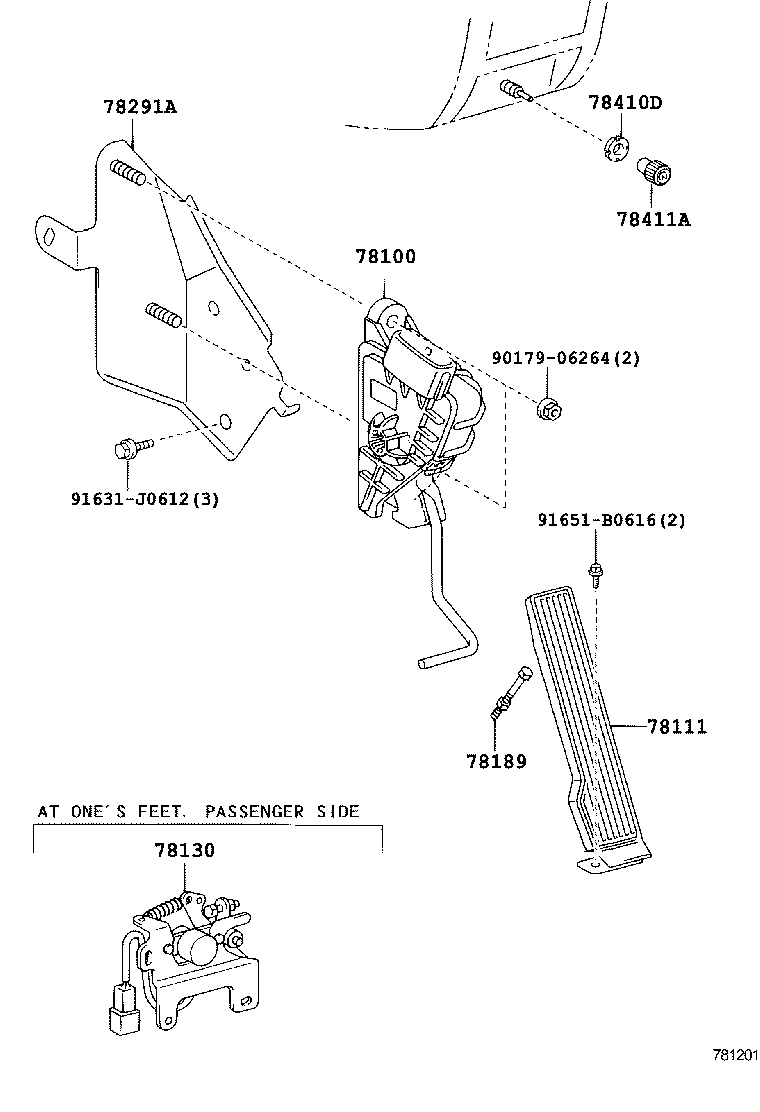

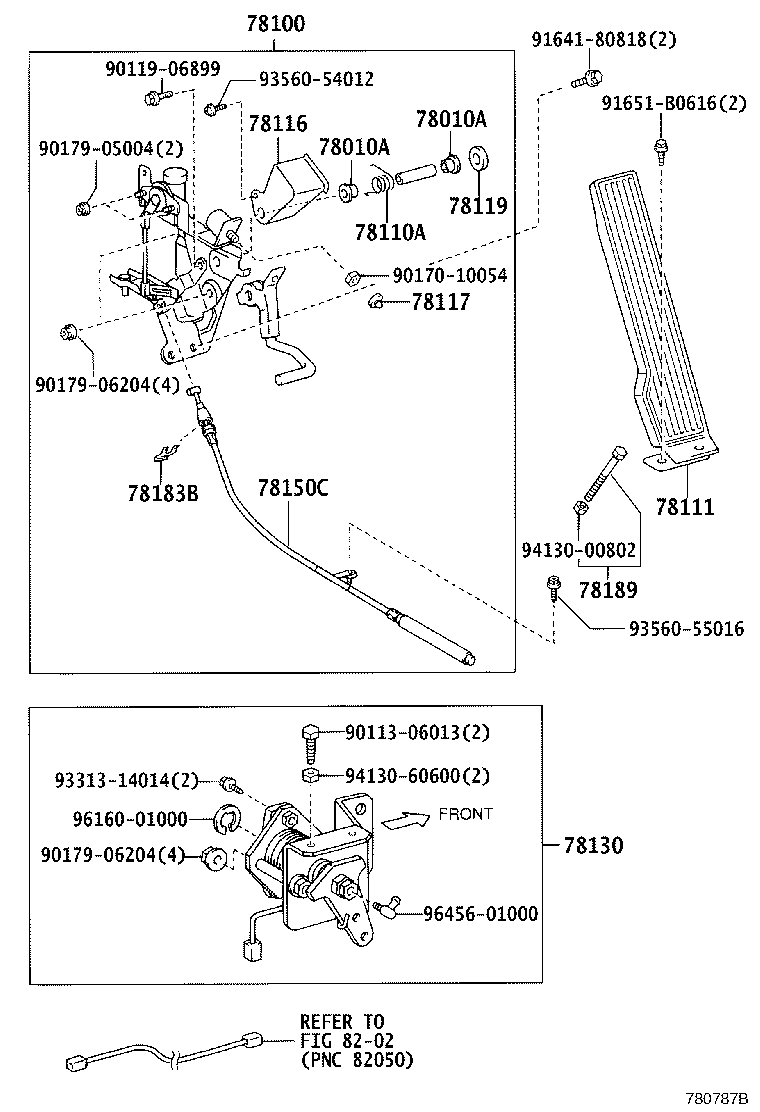

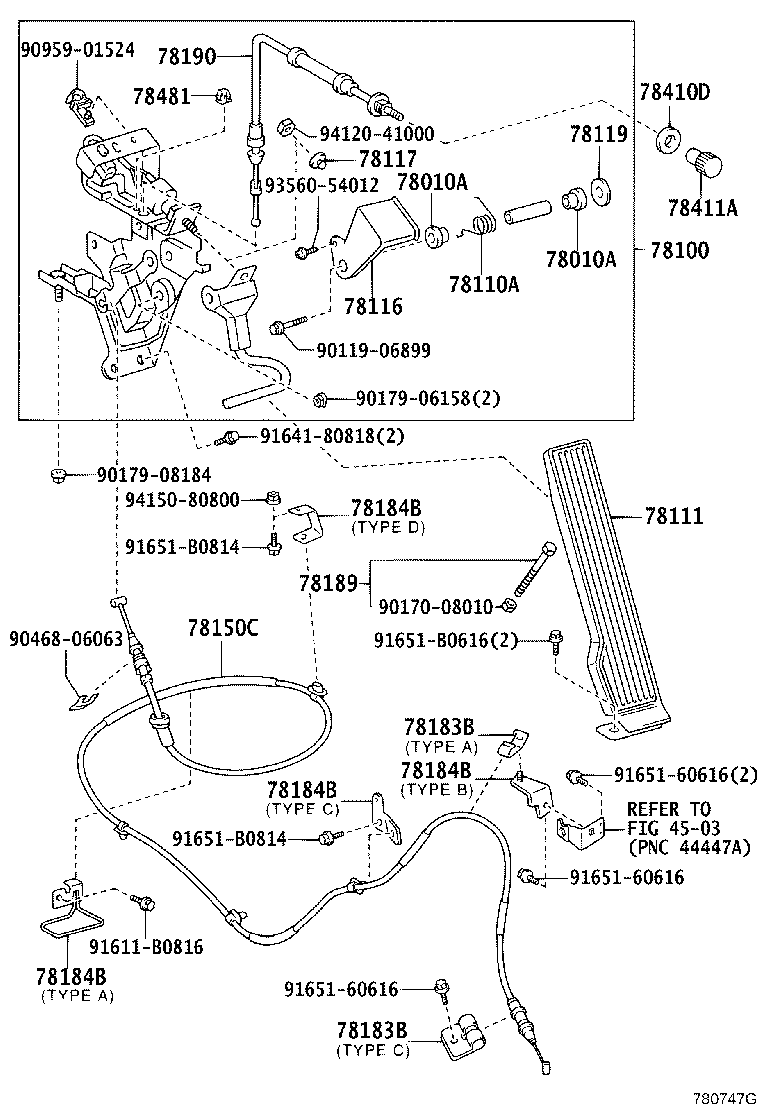

Figure 780700A 780700A 2002-09 → — Figure 780683C 780683C 2002-09 → — Figure 780684C 780684C 2002-09 → — Figure 780733H 780733H 2002-12 → — Figure 780747G 780747G 2002-12 → — Figure 780748B 780748B 2002-12 → — Figure 780749C 780749C 2002-12 → — Figure 780769B 780769B 2003-04 → 2007-12 Figure 780787B 780787B 2002-12 → 2006-10 Figure 781201 781201 2003-12 → — Figure 781090C 781090C 2006-10 → — Figure 781090C 781090C 2007-12 → — Figure 781091I 781091I 2006-10 → — Figure 781092G 781092G 2006-10 → — Figure 781095D 781095D 2006-10 → 2009-01 Figure 781126B 781126B 2006-12 → — Figure 781283D 781283D 2009-12 → 2016-12 Figure 781552A 781552A 2016-12 → — Figure 781765B 781765B 2022-03 → —

Part groups

PNCDescription
78010A Bush (FOR ACCELERATOR LINK)
78100 Link Assy, Accelerator
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78114A Bracket, Accelerator Pedal Support
78116 Cover, Accelerator Pedal Rod
78117 Cushion (FOR ACCELERATOR ROD)
78119 Stopper, Accelerator Pedal Rod
78130 Bellcrank Assy, Accelerator
78150C Wire Assy, Accelerator Flexible
78183B Clamp, Accelerator Control Cable
78183C Clamp, Accelerator Control Cable
78183D Clamp, Accelerator Control Cable
78183F Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78184C Bracket, Accelerator Control Cable
78184E Bracket, Accelerator Control Cable
78184F Bracket, Accelerator Control Cable
78184G Bracket, Accelerator Control Cable
78184H Bracket, Accelerator Control Cable
78188A Bush, Accelerator Link
78189 Bolt, Accelerator Pedal Stopper
78190 Cable Assy, Accel Control W/Throttle
78205A Case Sub-assy, Accelerator Link
78214 Spring, Accelerator Link Rod Return
78291A Bracket, Accelerator Link
78410D Nut, Throttle
78411A Knob, Throttle Control Cable
78481 Clamp, Throttle Wire
