Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

12 part groups · 5 illustrations

Illustrations

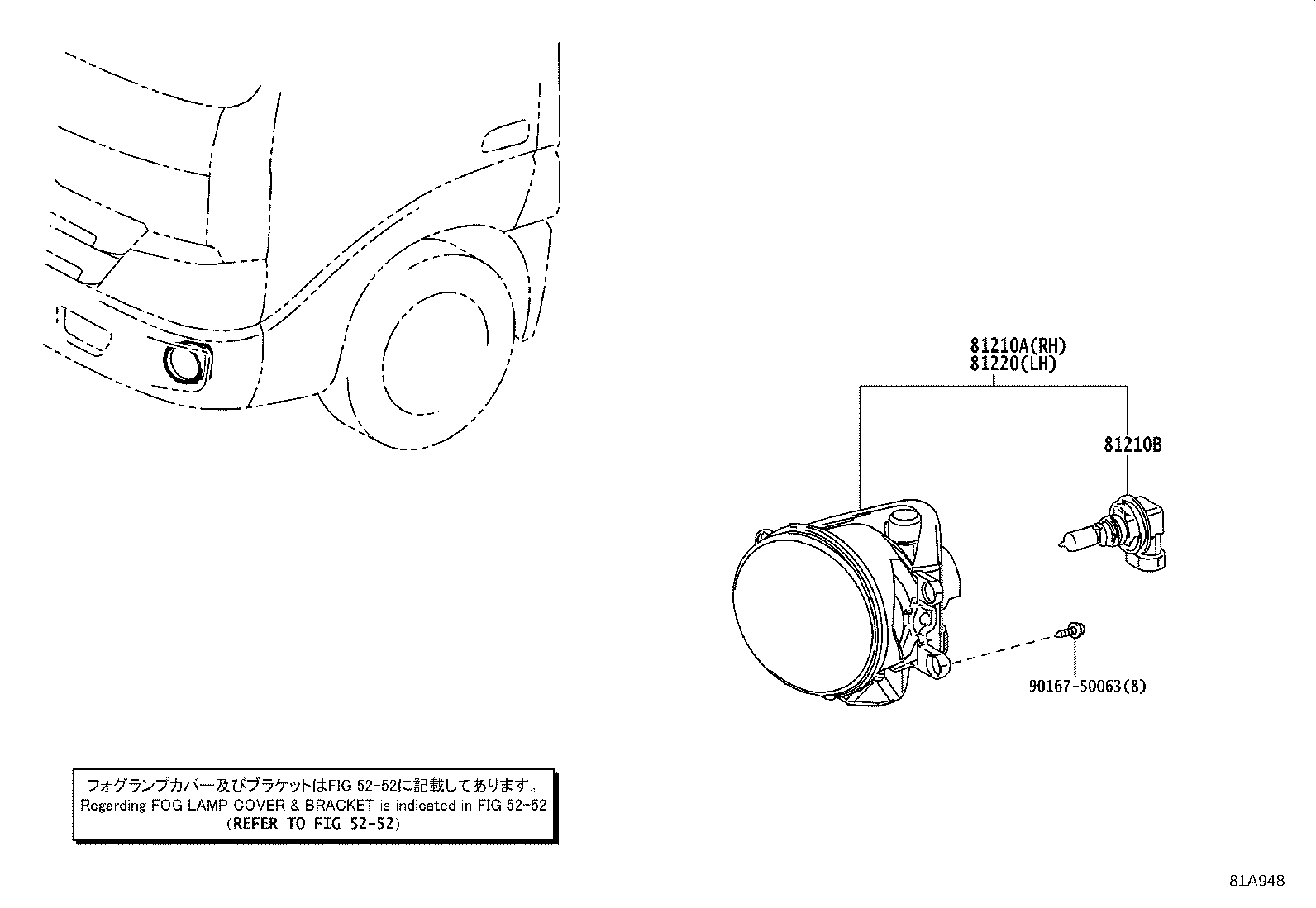

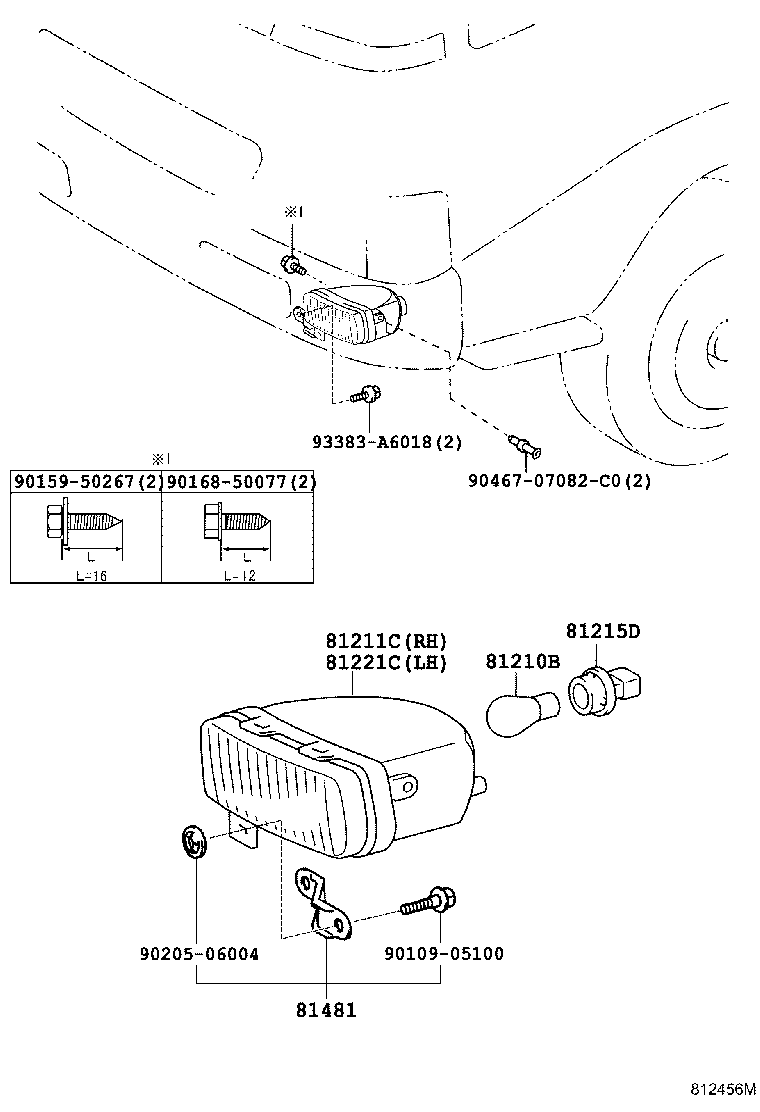

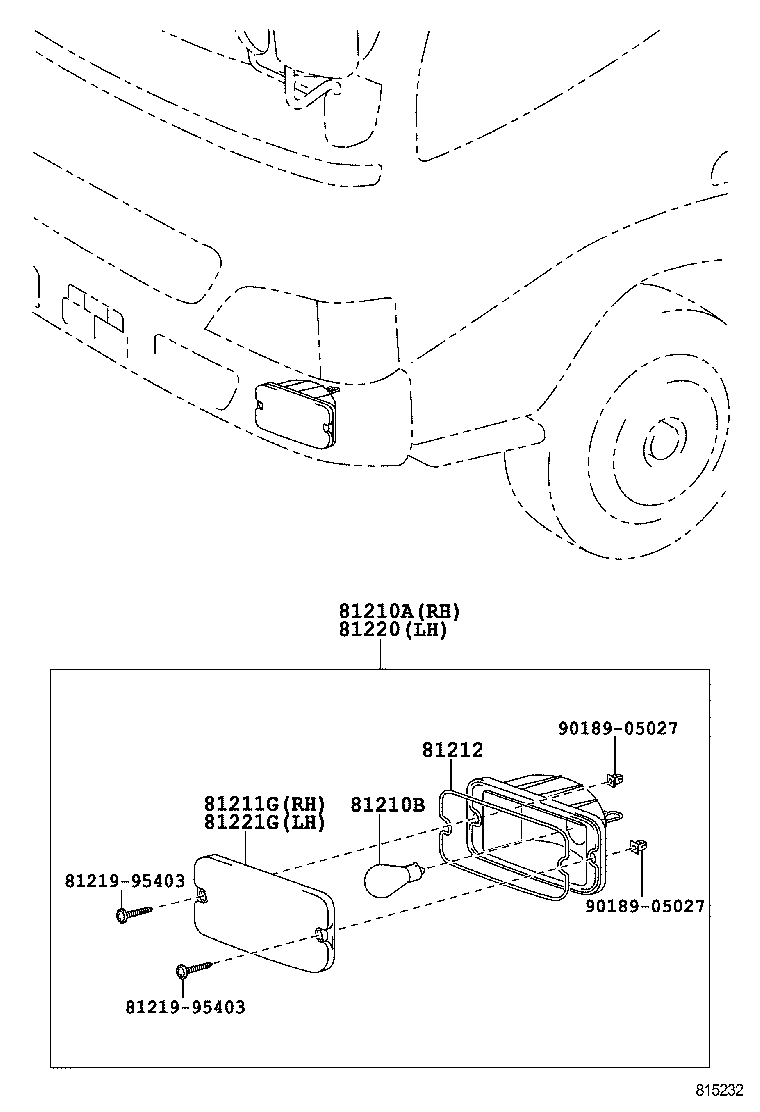

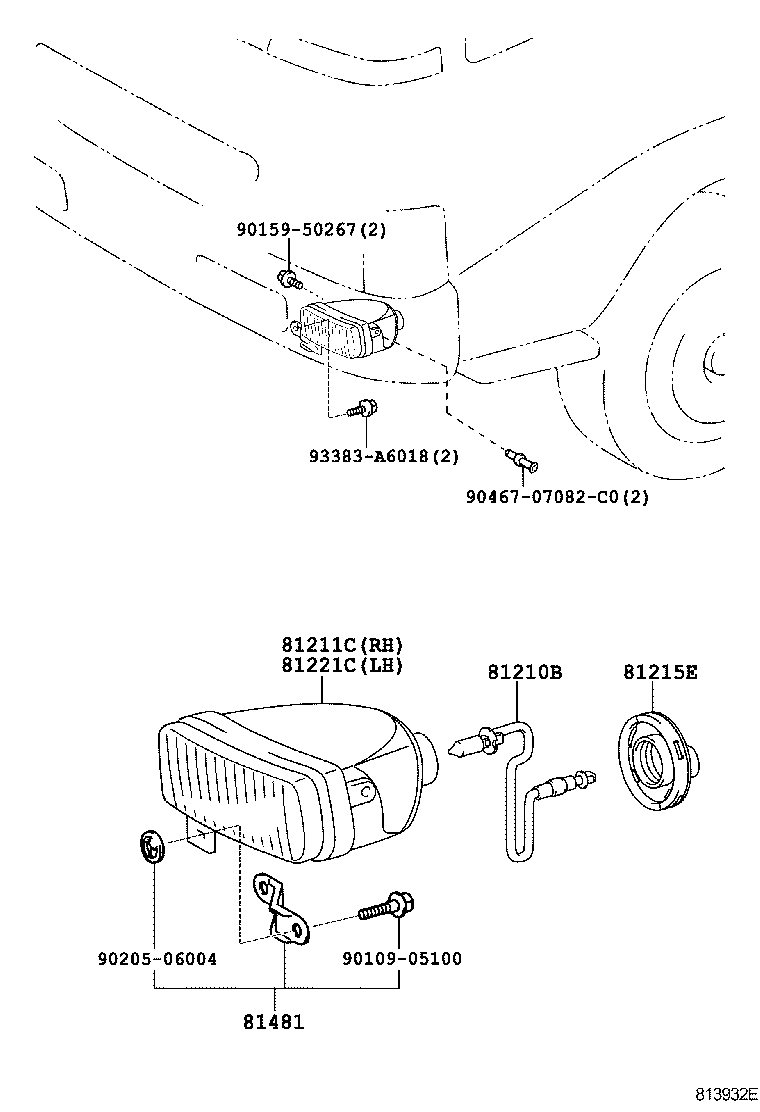

Figure 812203B 812203B 2002-09 → 2010-05 Figure 812456M 812456M 2002-12 → 2011-06 Figure 813932E 813932E 2006-10 → 2011-06 Figure 815232 815232 2009-12 → — Figure 81A948 81A948 2022-03 → —

Part groups

PNCDescription
81210 Lamp Assy, Fog
81210A Lamp Assy, Fog, RH
81210B Bulb, Fog Lamp
81211C Lamp Unit, Fog Lamp, RH
81211G Lens, Fog Lamp, RH
81212 Gasket, Fog Lamp Lens
81215D Fog Lamp Socket Plug Assy
81215E Cord, Fog Lamp
81220 Lamp Assy, Fog, LH
81221C Lamp Unit, Fog Lamp, LH
81221G Lens, Fog Lamp, LH
81481 Bracket, Fog Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
