Toyota Dyna
2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General
Discontinued model
Data version 2022-03

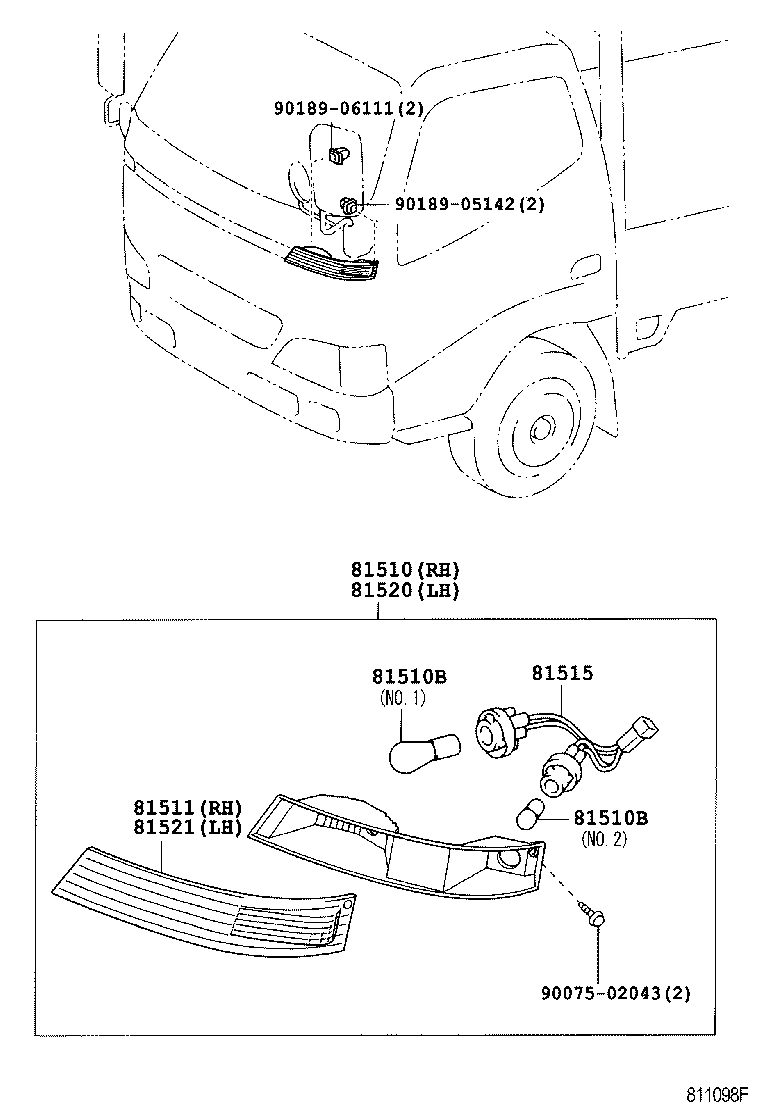

Front Turn Signal Lamp
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81510 | Lamp Assy, Front Turn Signal, RH |
| 81510B | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81511 | Lens, Front Turn Signal Lamp, RH |
| 81515 | Wire Sub-assy, Front Turn Signal Lamp Body |
| 81519 | Bracket, Front Turn Signal Lamp, RH |
| 81520 | Lamp Assy, Front Turn Signal, LH |
| 81521 | Lens, Front Turn Signal Lamp, LH |
| 81529B | Bracket, Front Turn Signal Lamp, LH |
| 81615G | Socket & Wire, Clearance Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
