Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Turn Signal Lamp & Outer Mirror Lamp

8 part groups · 3 illustrations

Illustrations

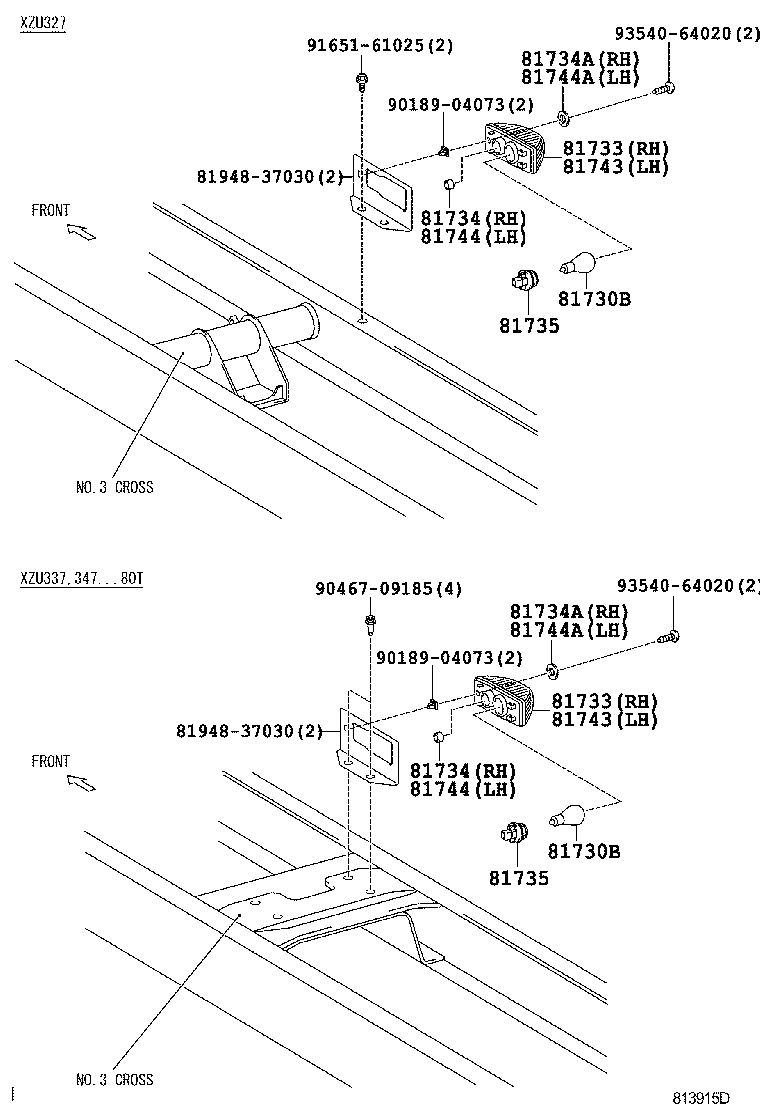

Figure 812453G 812453G 2002-12 → 2006-10 Figure 812453G 812453G 2006-10 → 2009-01 Figure 813915D 813915D 2006-10 → 2009-01

Part groups

PNCDescription
81730B Bulb (FOR SIDE TURN SIGNAL LAMP)
81733 Body, Side Turn Signal Lamp, RH
81734 Gasket, Side Turn Signal Lamp Body, RH
81734A Protector, Side Turn Signal Lamp, RH
81735 Socket And Wire, Side Turn Signal Lamp
81743 Body, Side Turn Signal Lamp, LH
81744 Gasket, Side Turn Signal Lamp Body, LH
81744A Protector, Side Turn Signal Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
