Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

28 part groups · 3 illustrations

Illustrations

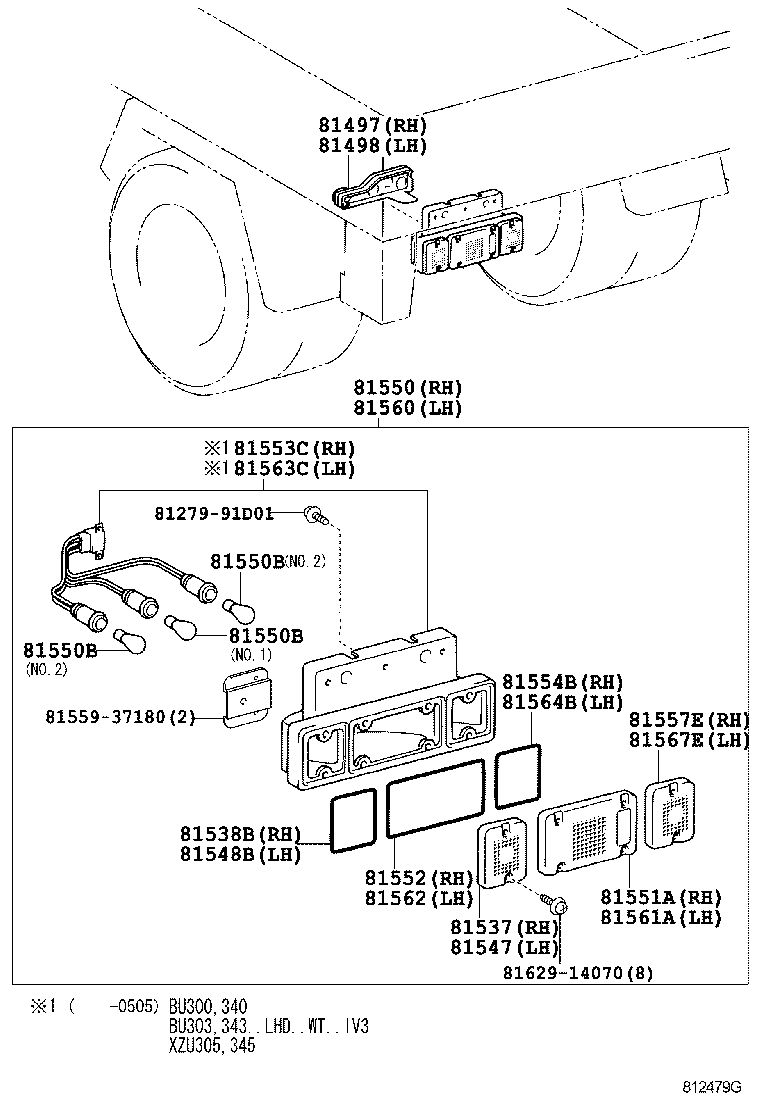

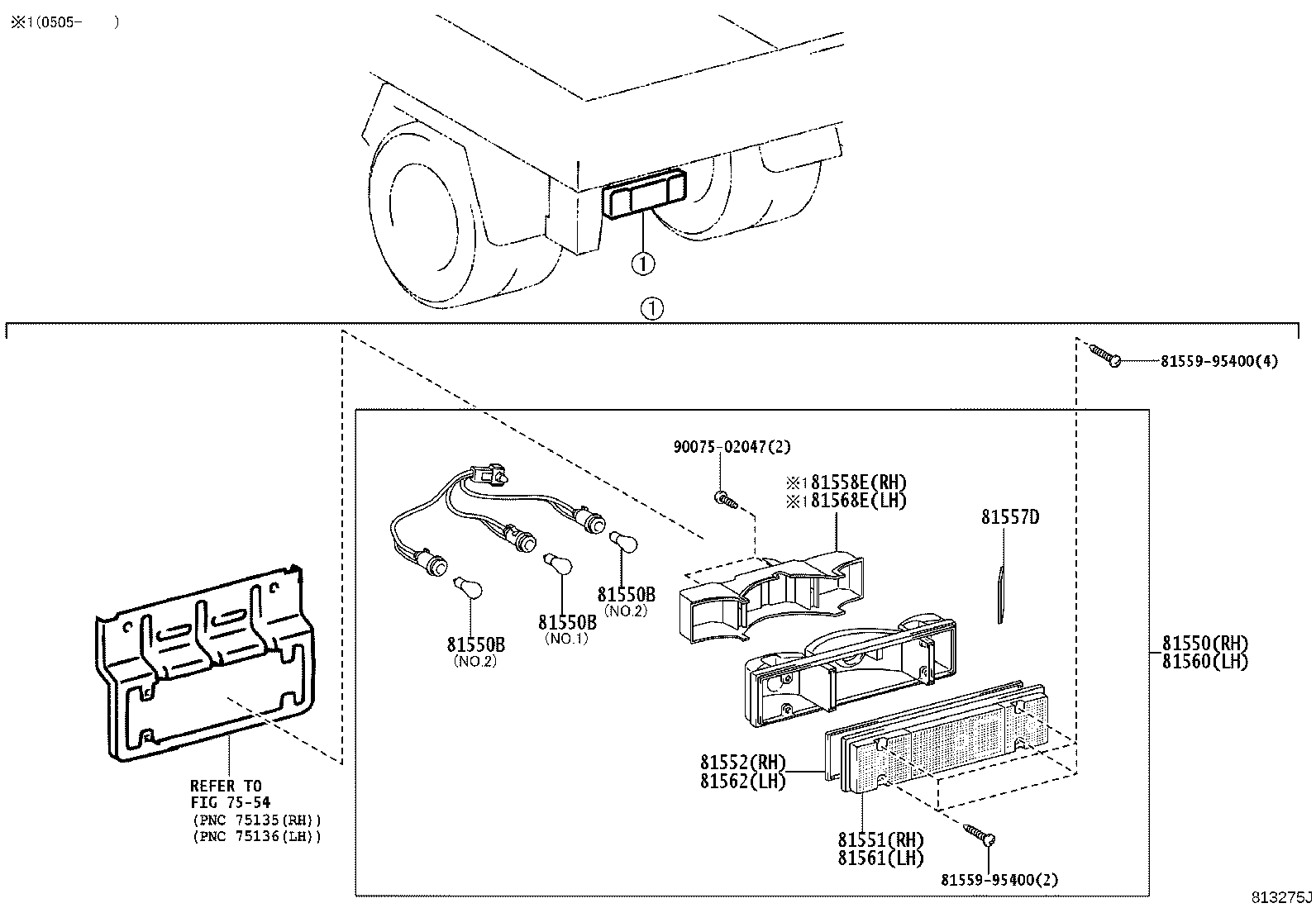

Figure 812205F 812205F 2002-09 → — Figure 813275J 813275J 2002-12 → 2011-06 Figure 812479G 812479G 2002-12 → 2011-06

Part groups

PNCDescription
81497 Cover, Rear Combination Lamp, RH
81498 Cover, Rear Combination Lamp, LH
81537 Lens, Rear Combination Lamp, NO.3 RH
81538B Gasket, Rear Combination Lamp, NO.3 RH
81547 Lens, Rear Combination Lamp, NO.3 LH
81548B Gasket, Rear Combination Lamp, NO.3 LH
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81551A Lens, Rear Combination Lamp, RH
81552 Gasket, Rear Combination Lamp Lens, RH
81553B Bracket Sub-assy, RR Comb Lamp, RH
81553C Body, Rear Combination Lamp, RH
81554B Gasket, Rear Combination Lamp Body, NO.2 RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81557D Reflector, Rear Combination Lamp
81557E Lens, Rear Combination Lamp, RH NO.2
81558E Cover, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81561A Lens, Rear Combination Lamp, LH
81562 Gasket, Rear Combination Lamp Lens, LH
81563B Bracket Sub-assy, RR Comb Lamp, LH
81563C Body, Rear Combination Lamp, LH
81564B Gasket, Rear Combination Lamp Body, NO.2 LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81567E Lens, Rear Combination Lamp, LH NO.2
81568E Cover, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
