Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

7 part groups · 8 illustrations

Illustrations

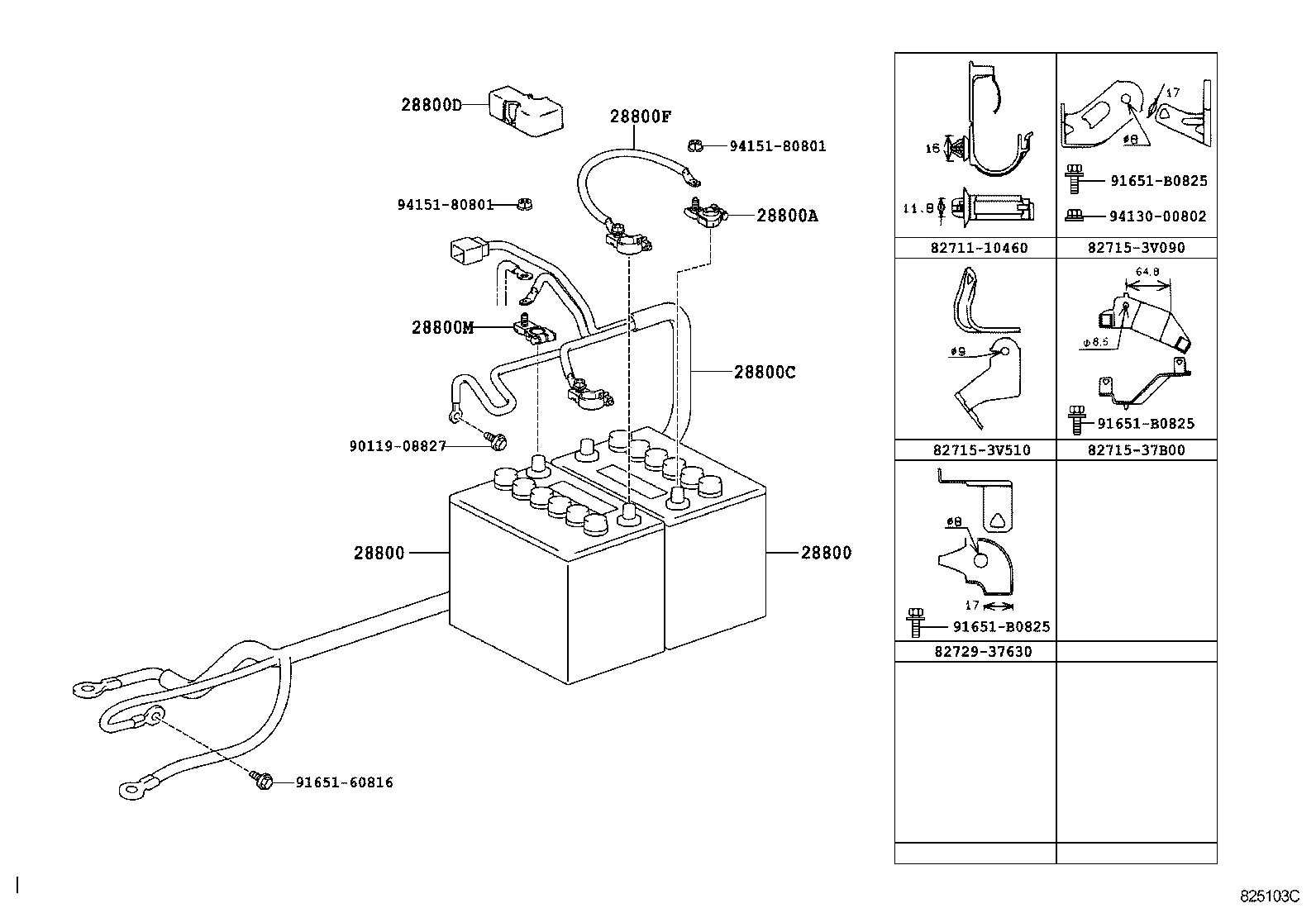

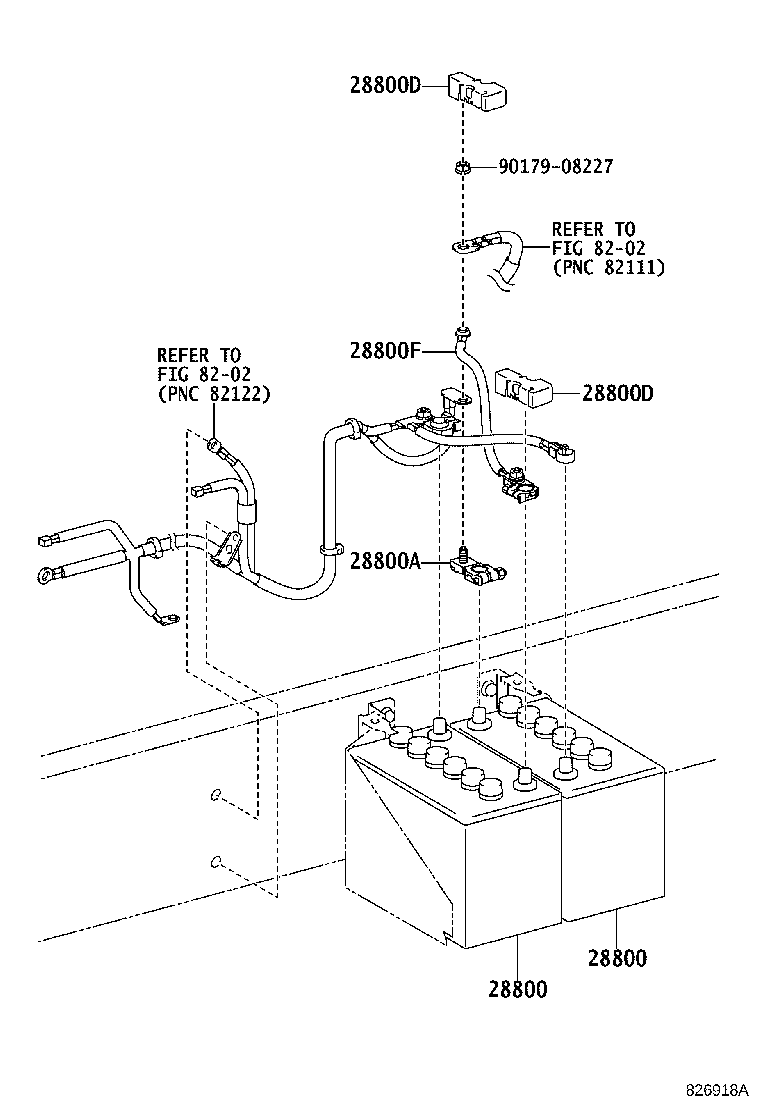

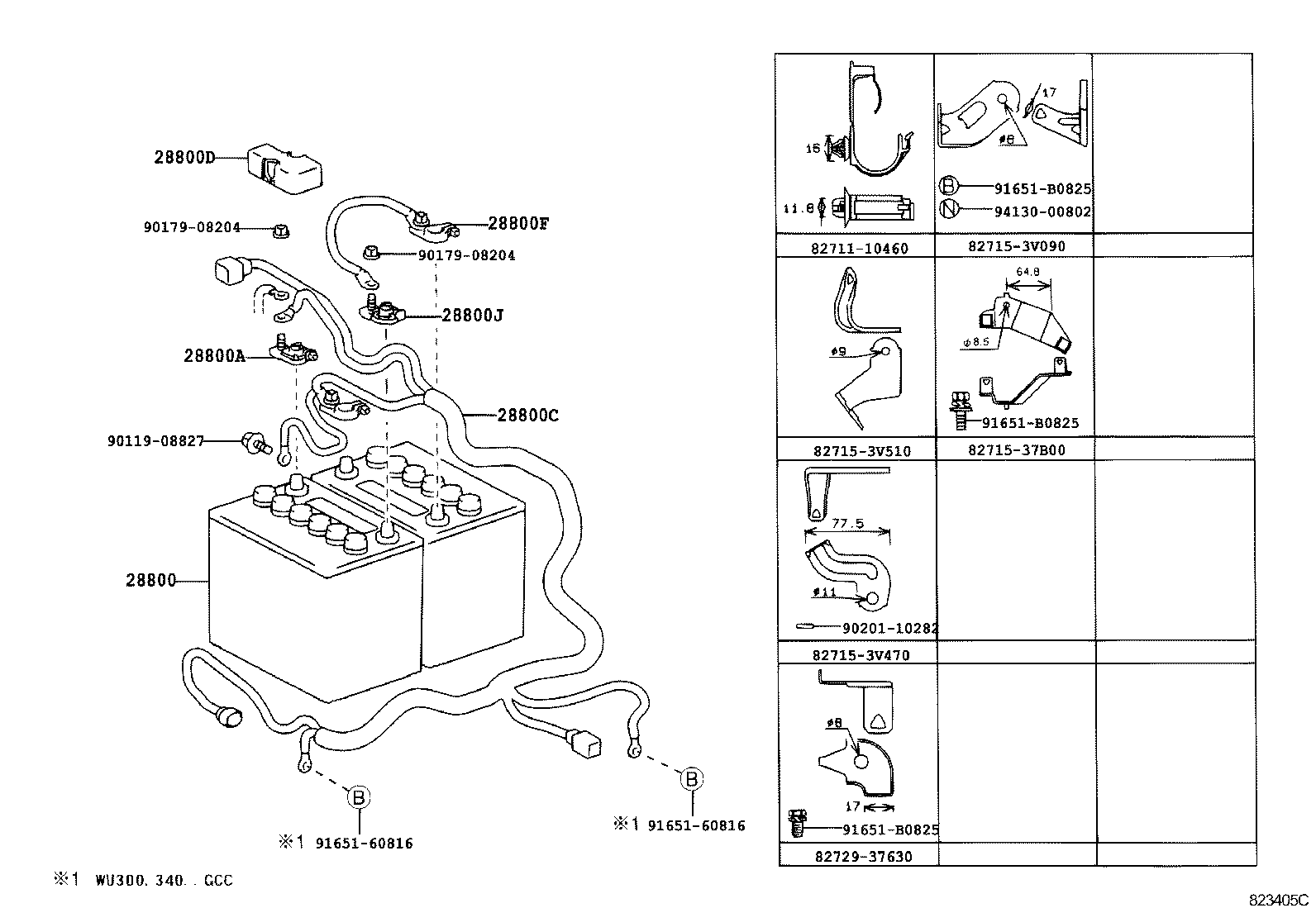

Figure 823183 823183 2002-09 → 2016-12 Figure 823405C 823405C 2002-12 → 2006-10 Figure 823405C 823405C 2003-04 → 2007-12 Figure 825103C 825103C 2006-10 → 2016-12 Figure 825103C 825103C 2007-12 → 2016-12 Figure 826918A 826918A 2009-12 → 2016-12 Figure 82B072A 82B072A 2016-12 → — Figure 82F536A 82F536A 2022-03 → —

Part groups

PNCDescription
28800 Battery
28800A Terminal, Battery Positive
28800C Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH)
28800D Cover, Connector(FOR BATTERY TERMINAL)
28800F Cable, Battery TO Battery
28800J Terminal, Battery Negative
28800M Terminal, Battery Positive
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
