Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

13 part groups · 13 illustrations

Illustrations

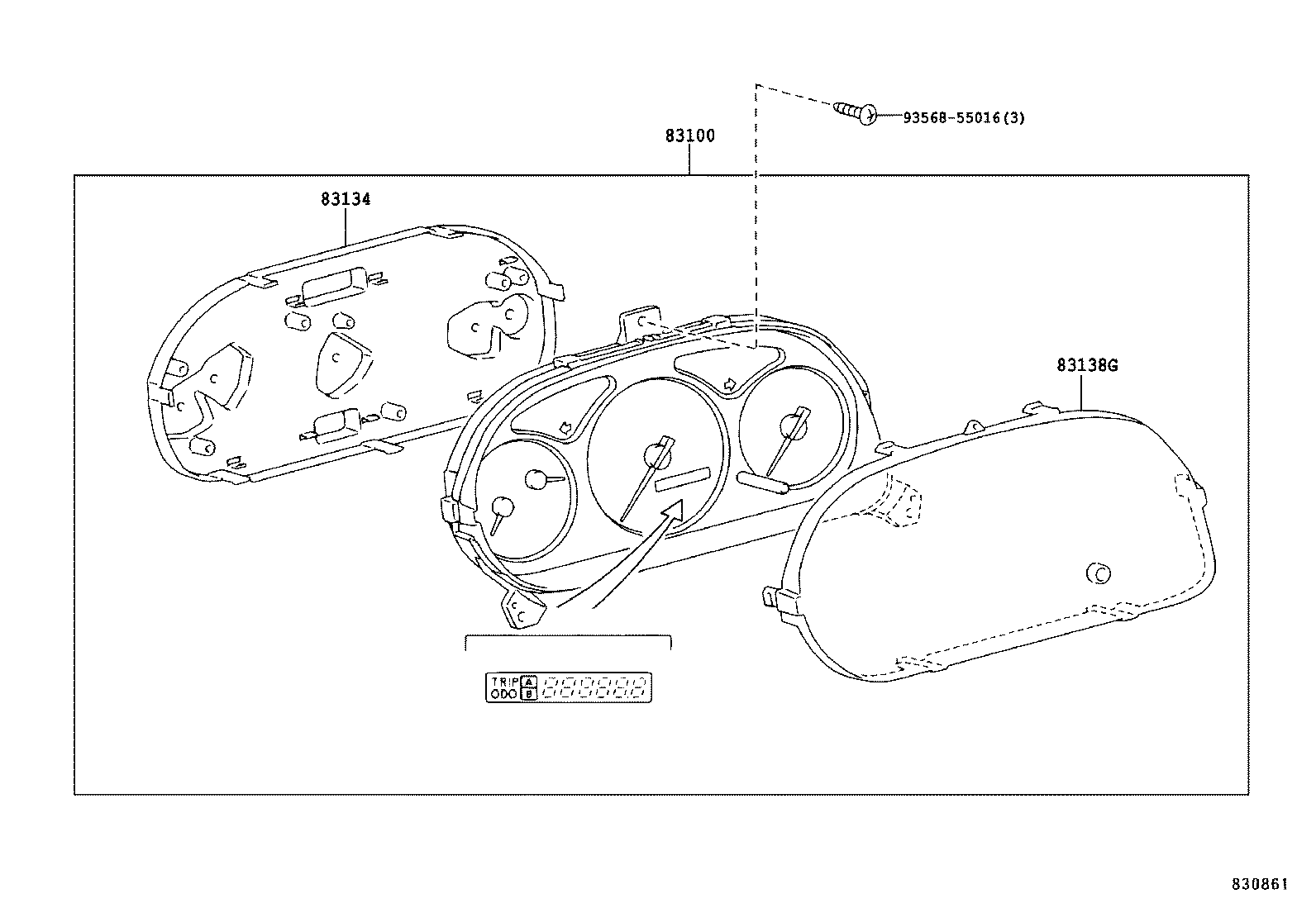

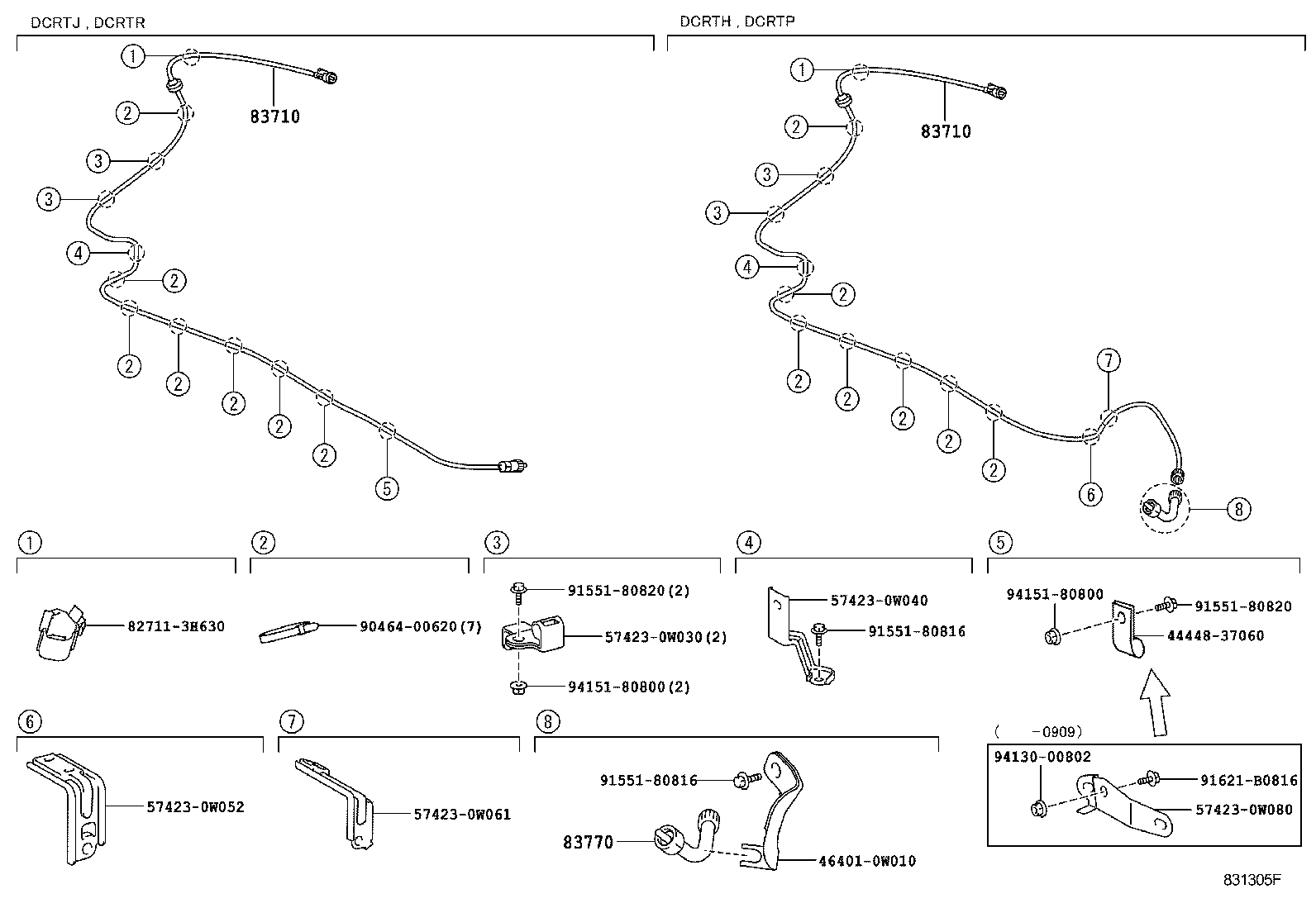

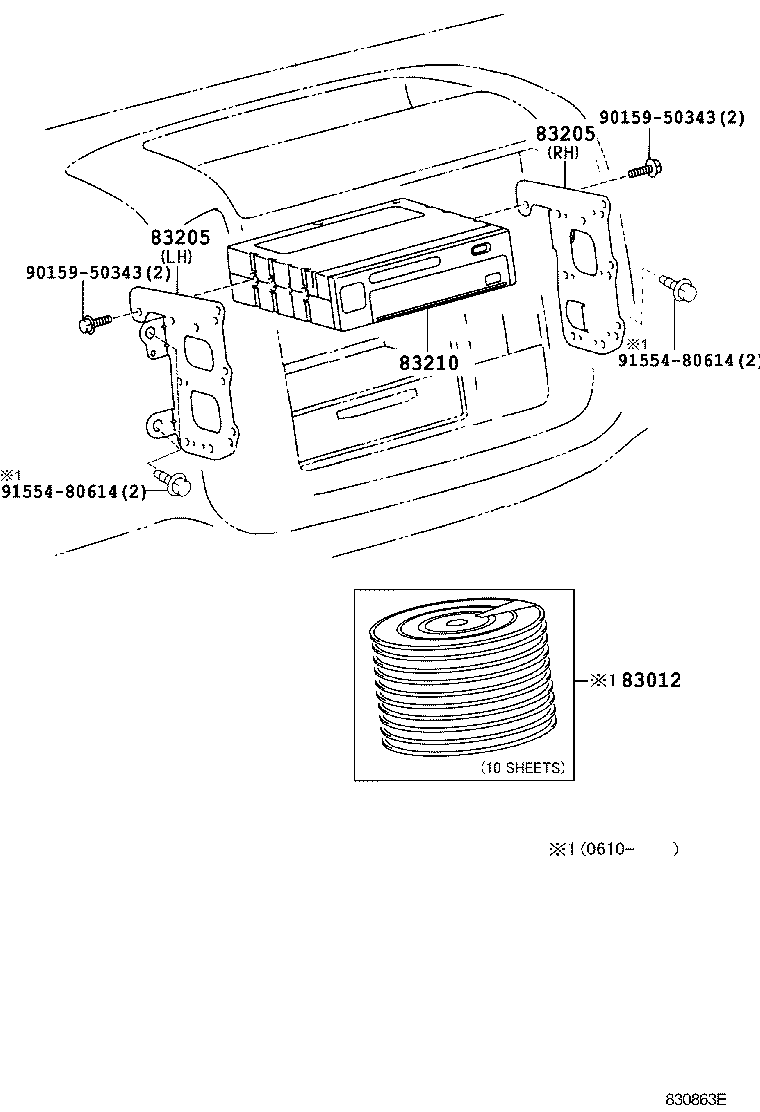

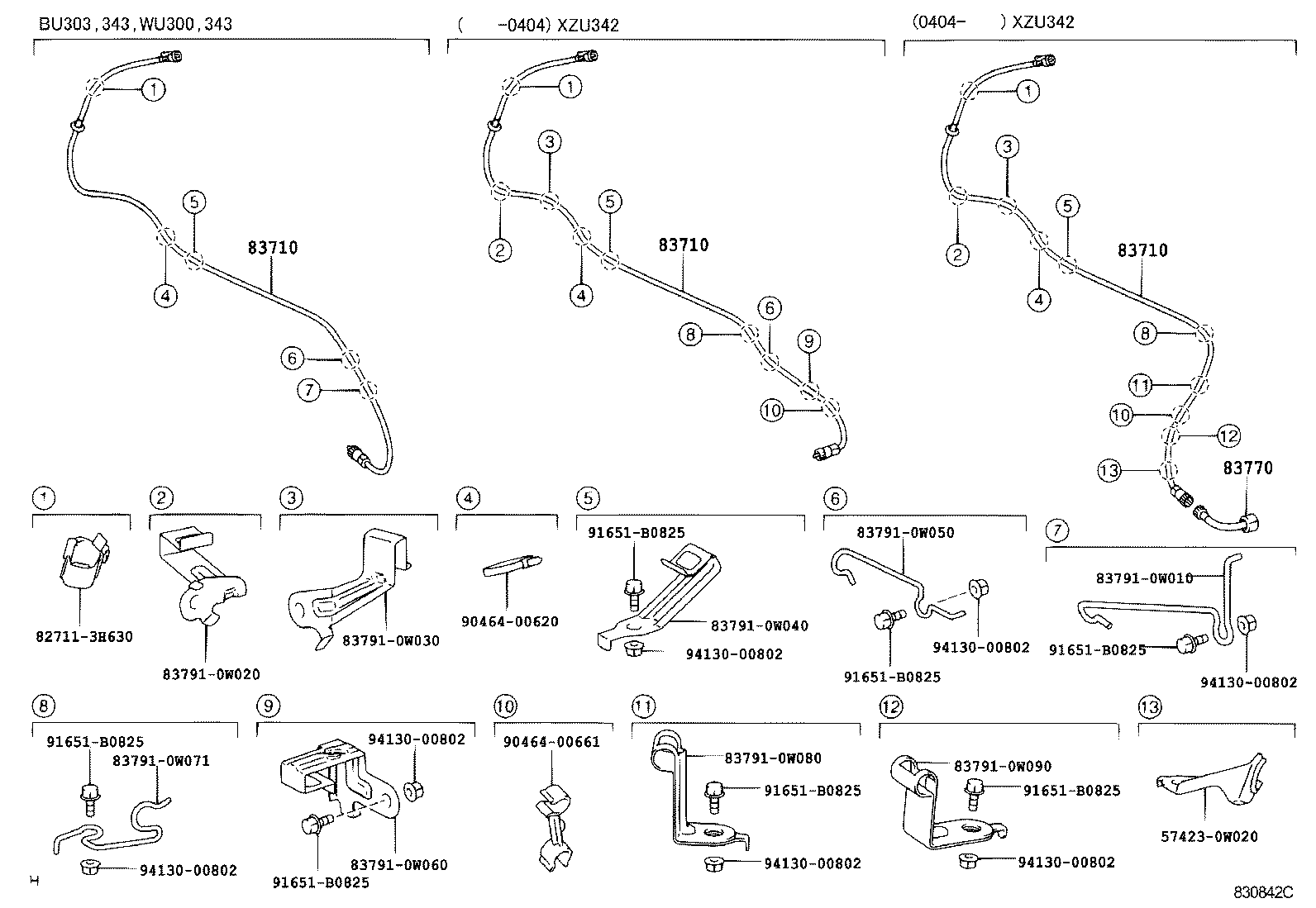

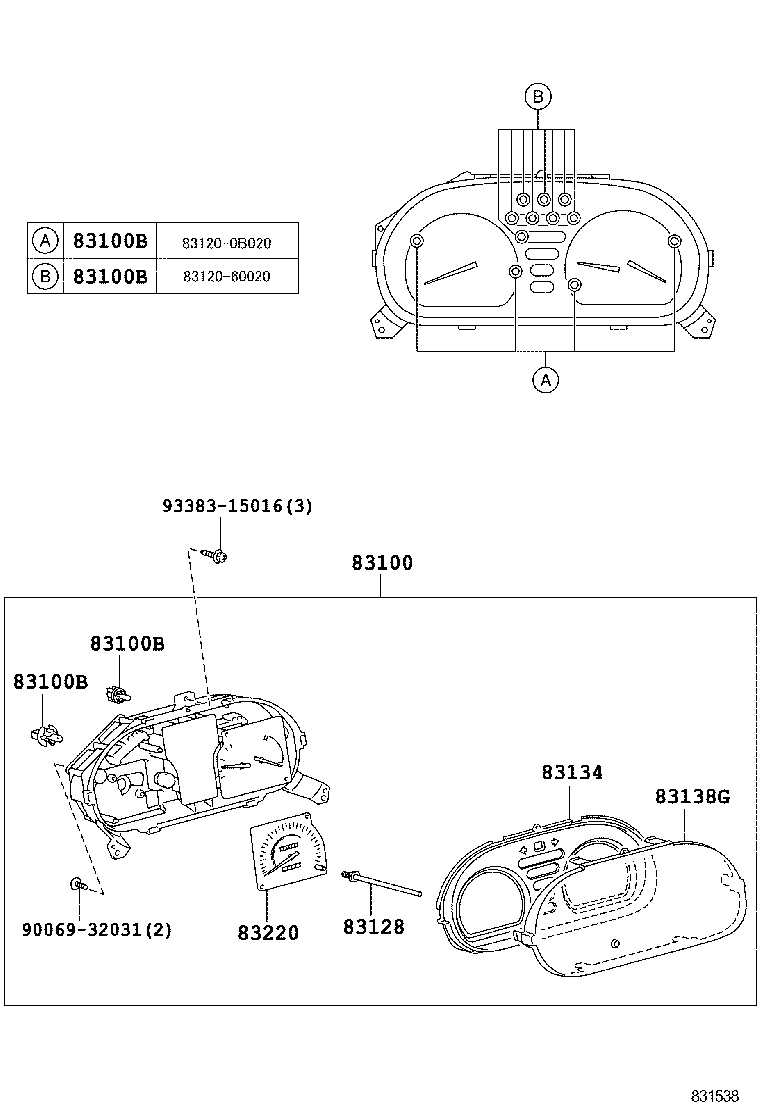

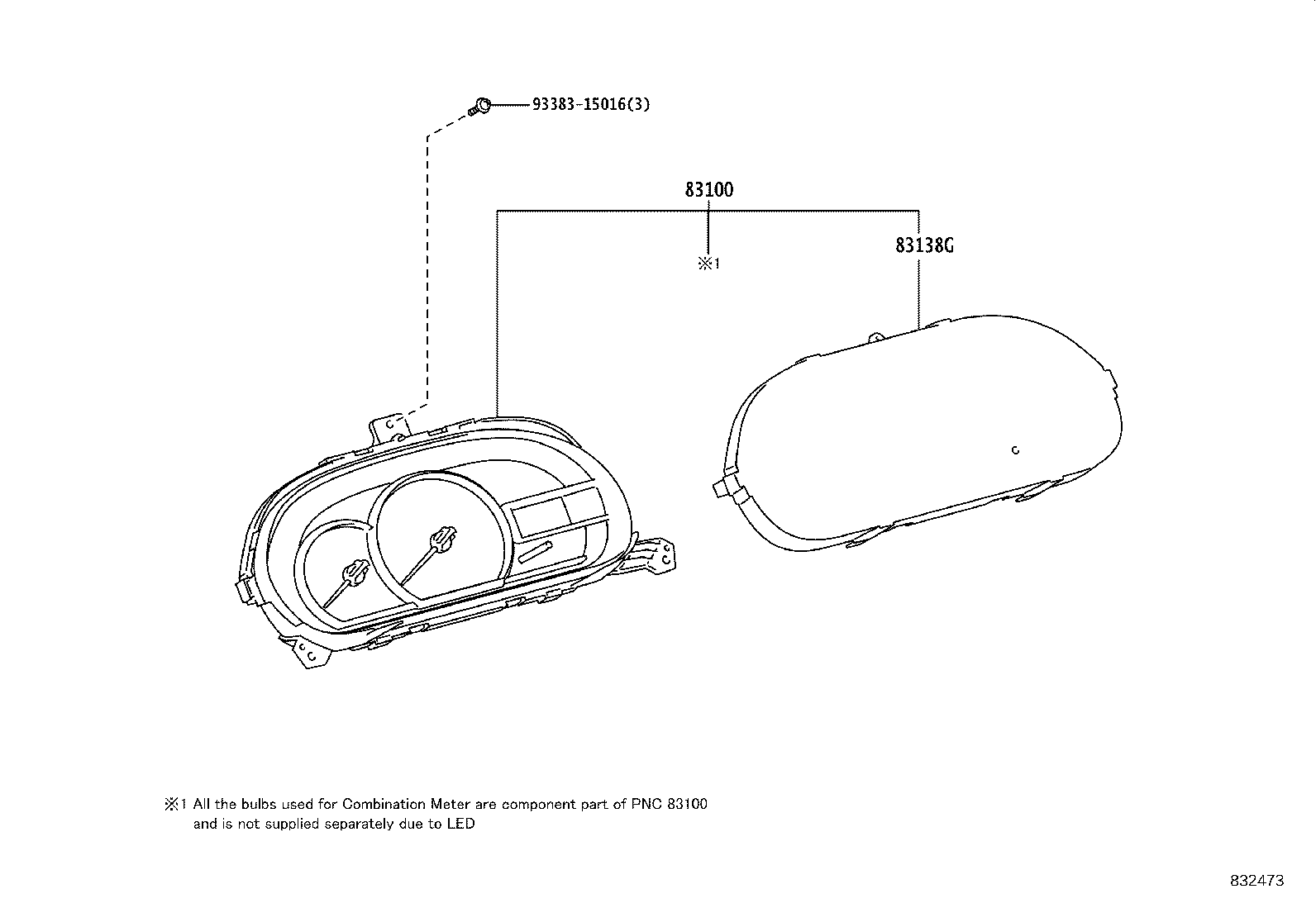

Figure 830815E 830815E 2002-09 → 2010-05 Figure 830861 830861 2002-12 → 2011-06 Figure 831538 831538 2009-12 → 2017-08 Figure 832166A 832166A 2017-08 → — Figure 832473 832473 2022-03 → — Figure 830842C 830842C 2002-09 → 2006-12 Figure 831305F 831305F 2006-12 → 2017-08 Figure 830863E 830863E 2002-12 → 2011-06 Figure 830874 830874 2002-12 → 2003-12 Figure 830874 830874 2002-12 → 2006-10 Figure 831268 831268 2006-10 → 2011-06 Figure 831267 831267 2006-10 → 2009-01 Figure 830125 830125 2002-12 → 2006-10

Part groups

PNCDescription
83012 Sheet Set, Tachograph Chart
83100 Meter Assy, Combination
83100B Bulb, Combination Meter, NO.1
83128 Knob, Trip Counter
83134 Cover, Combination Meter, NO.1
83138G Glass, Combination Meter
83180 Detector Assy, Revolution
83181A Sensor, Speedometer
83205 Bracket, Sub-assy, Tachograph
83210 Tachograph Assy
83220 Speedometer Assy
83710 Cable Assy, Speedometer Drive, NO.1
83770 Adapter Assy, Speedometer Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
