Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

96 part groups · 57 illustrations

Illustrations

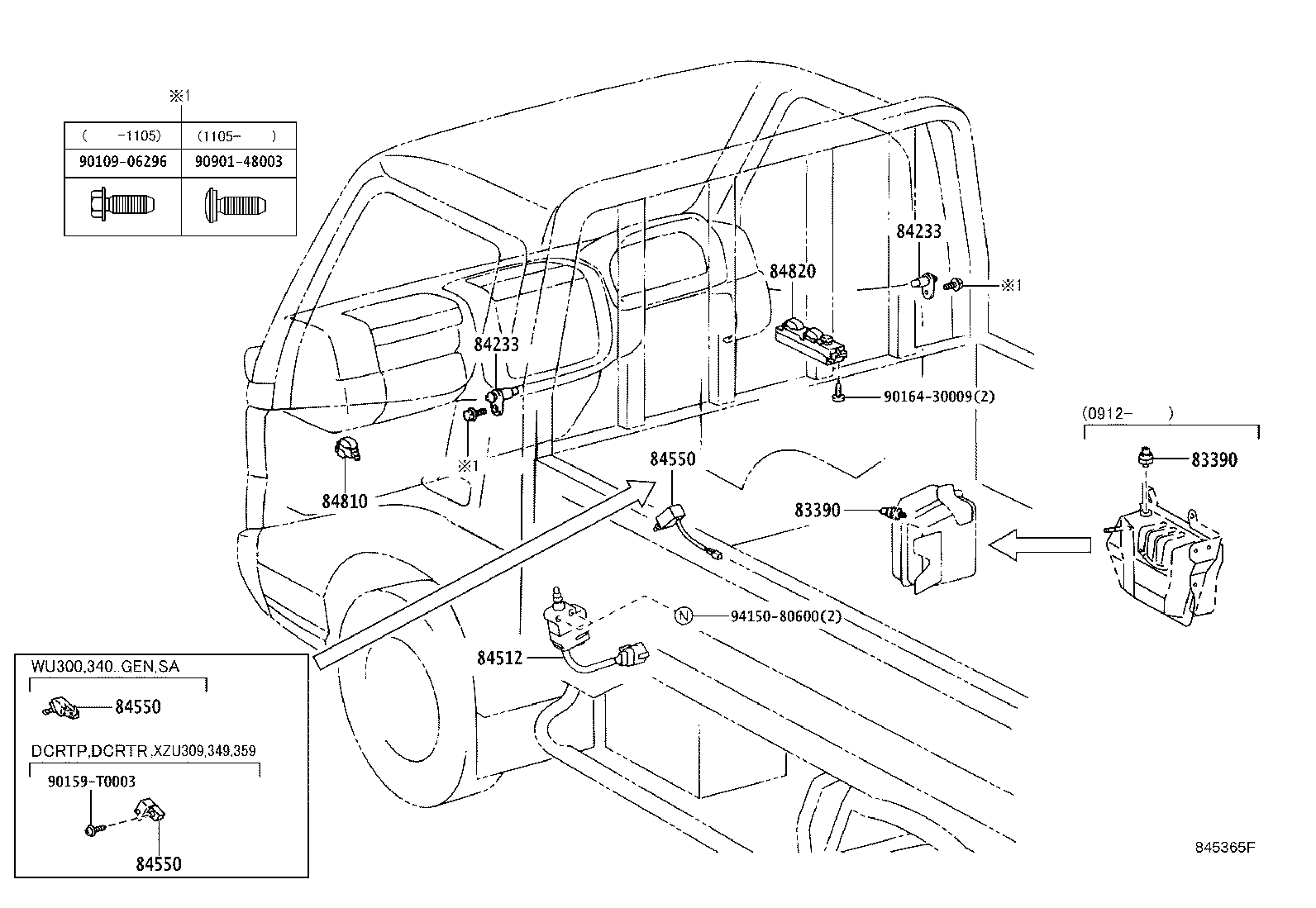

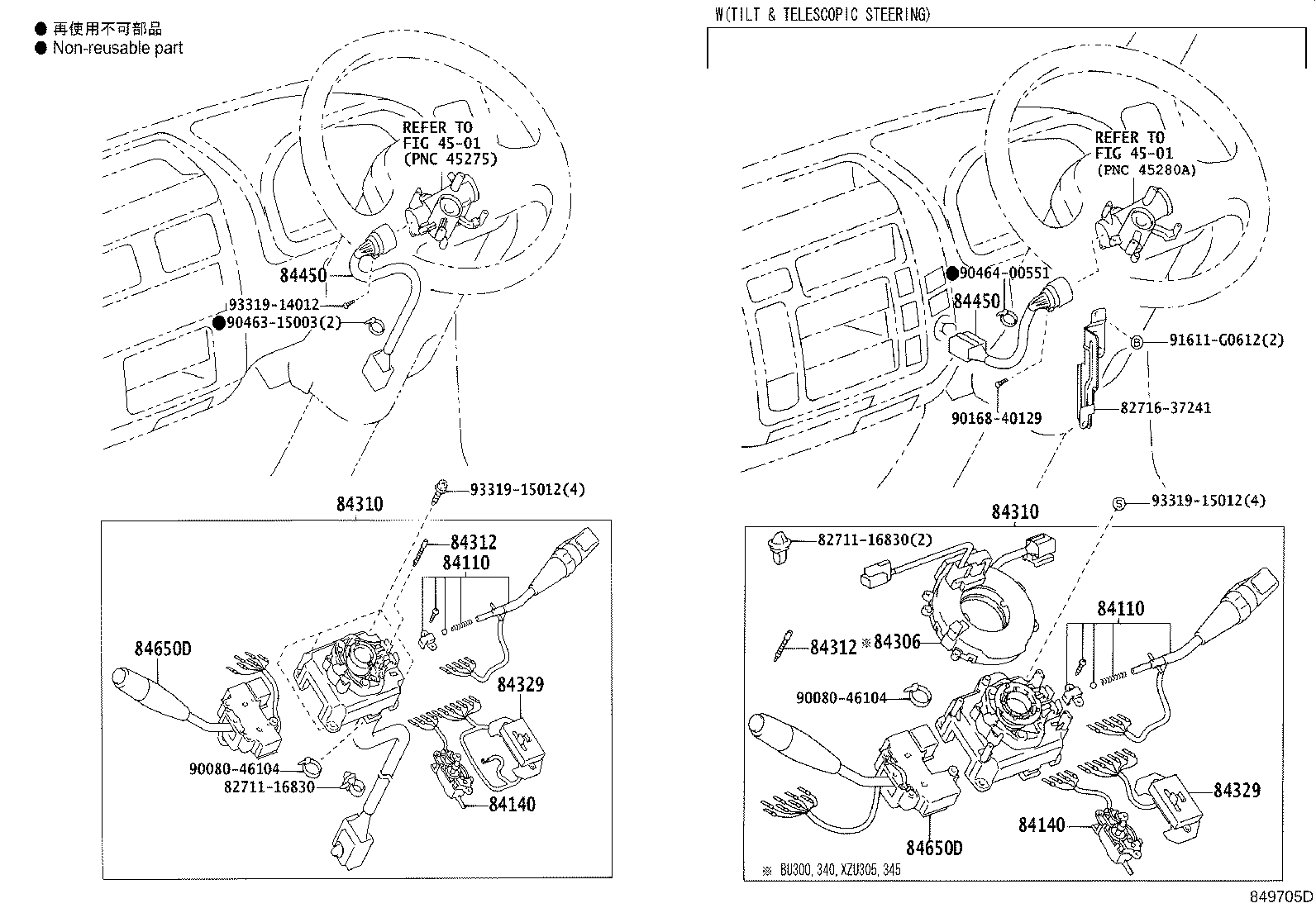

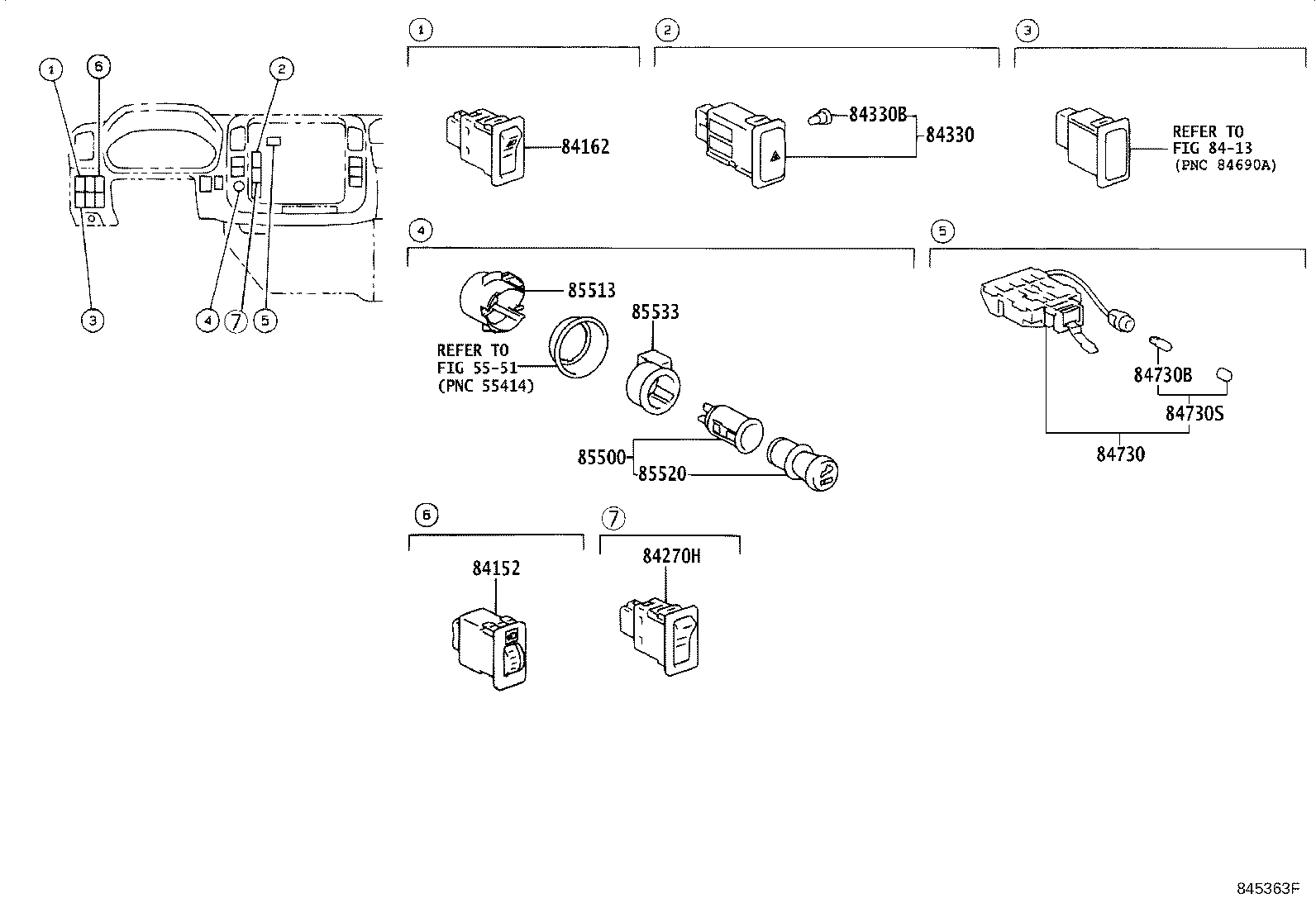

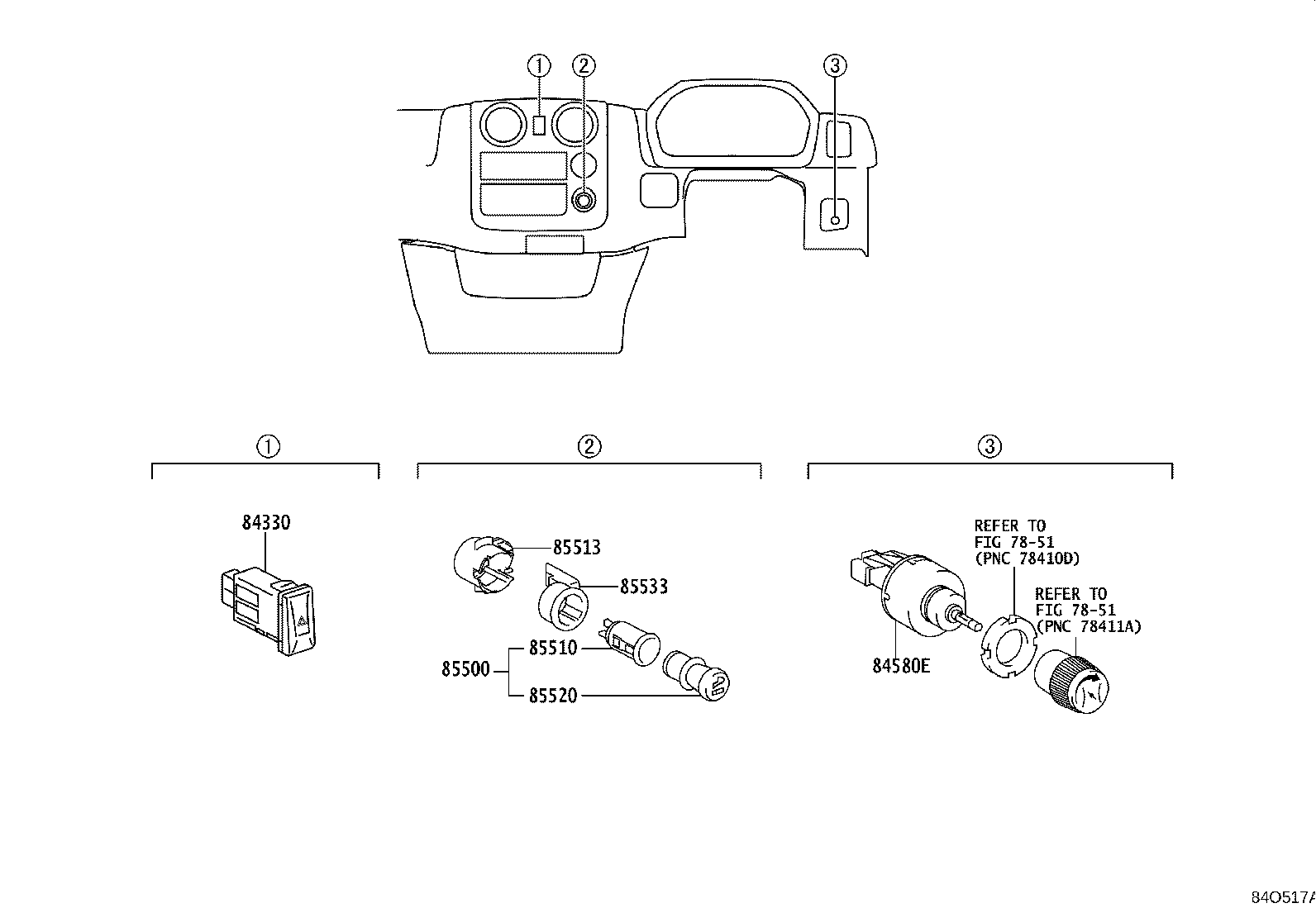

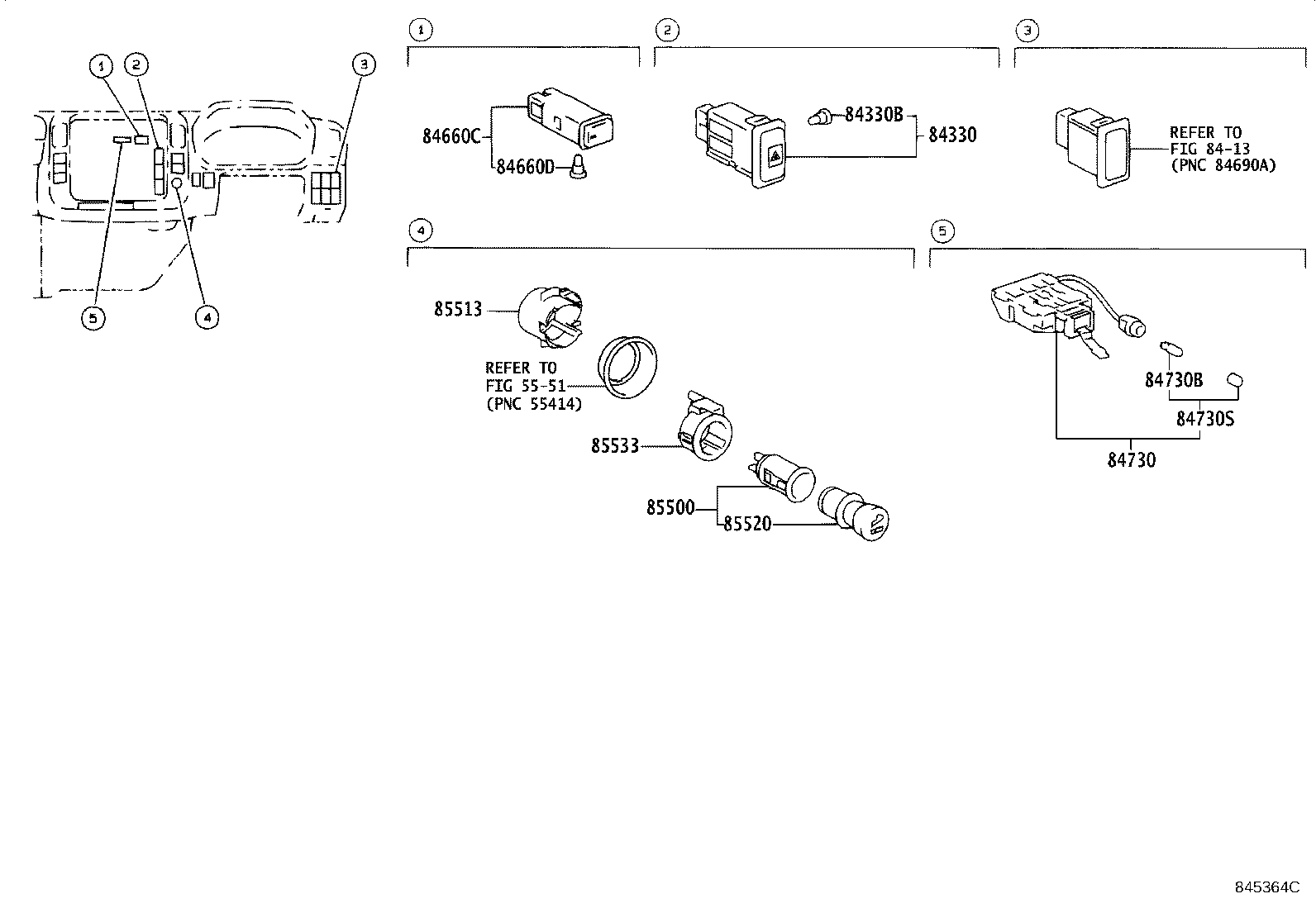

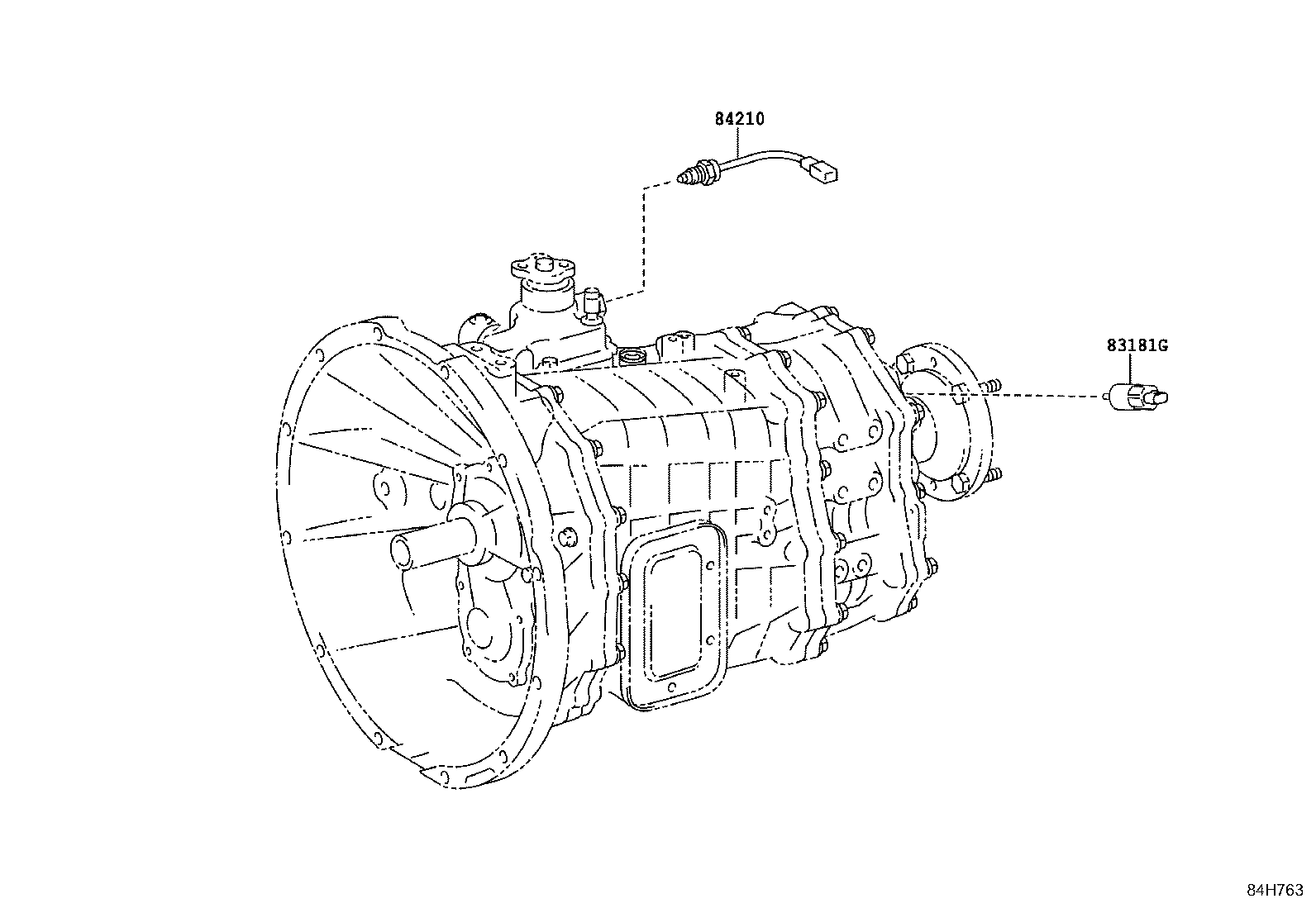

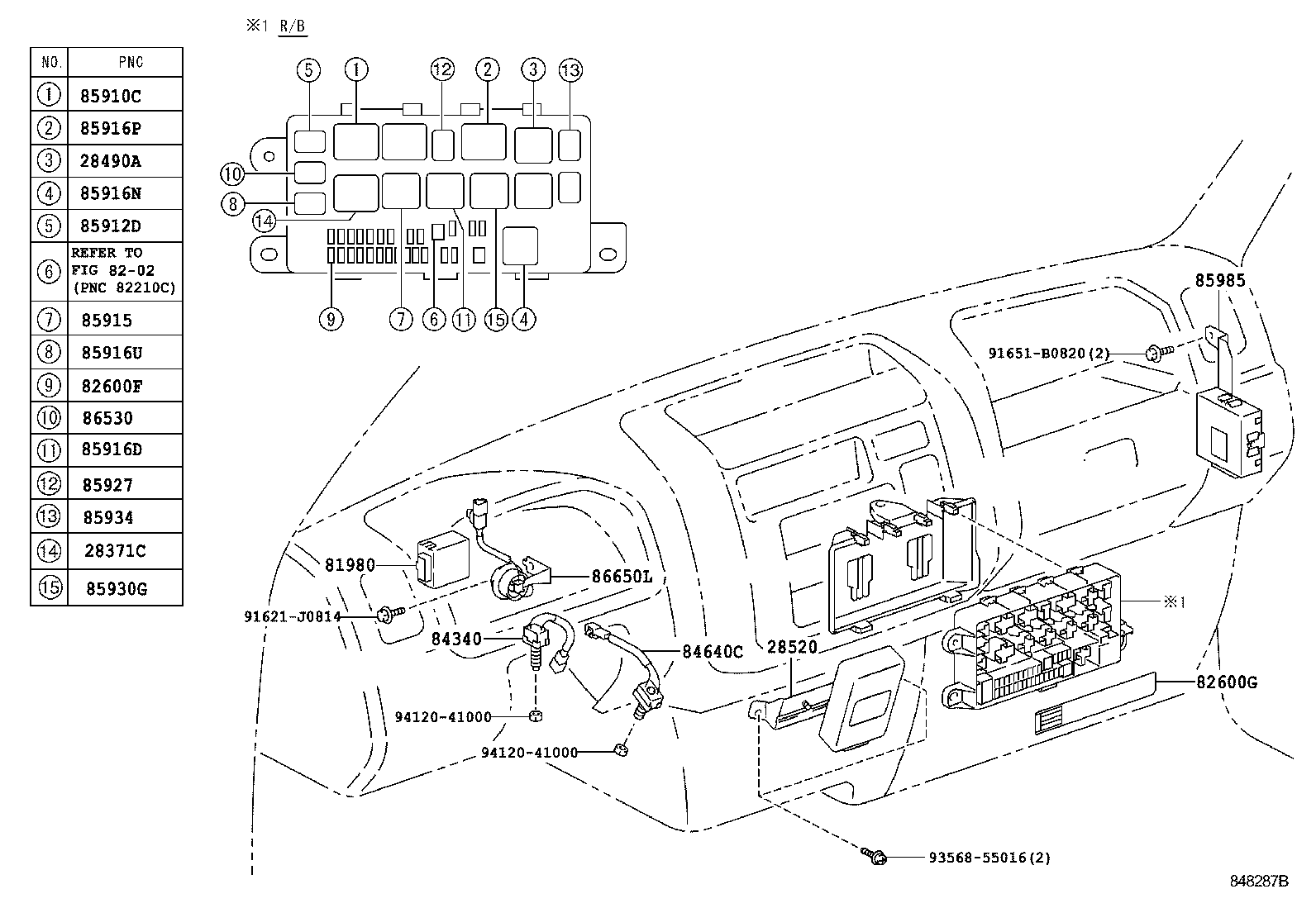

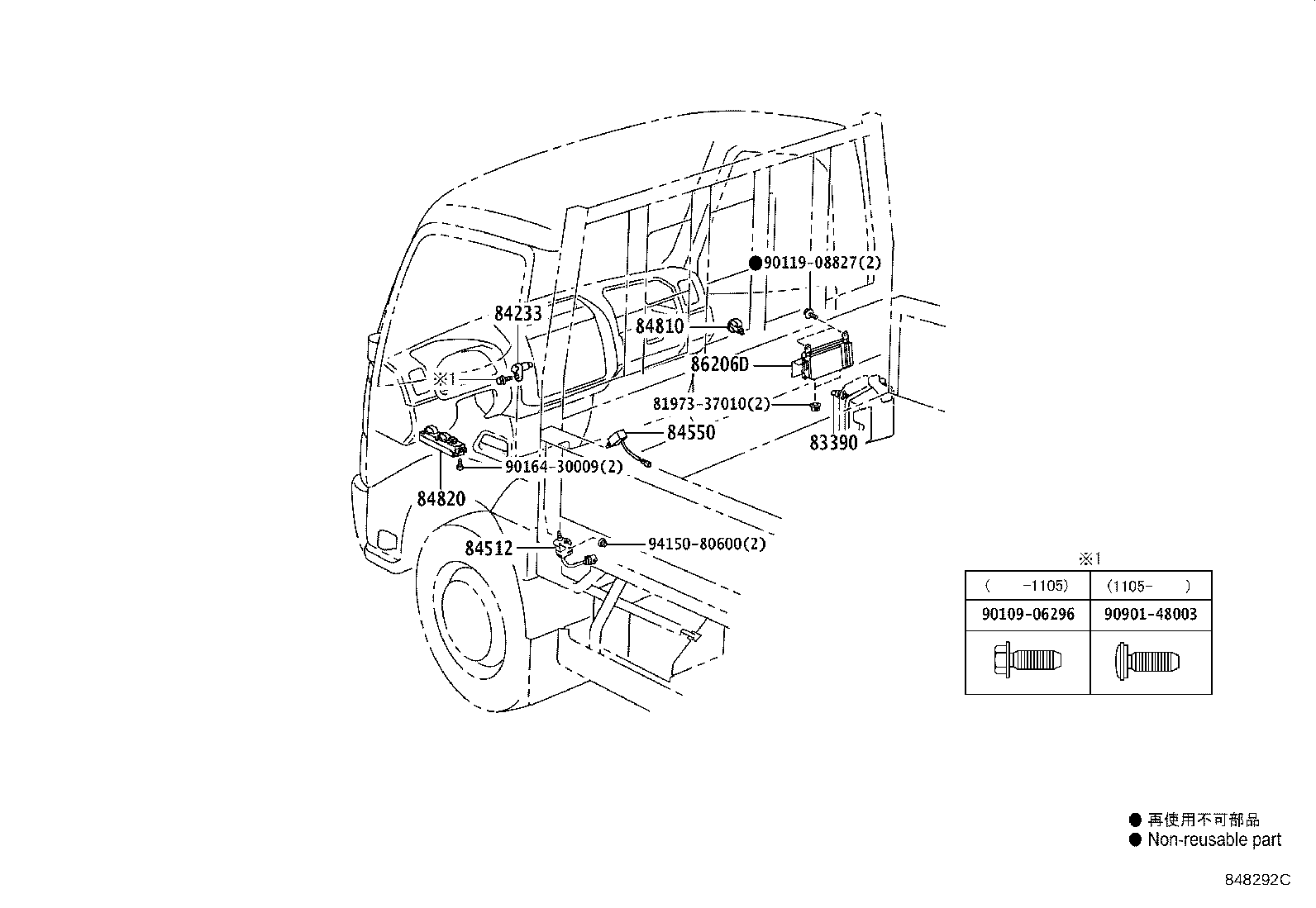

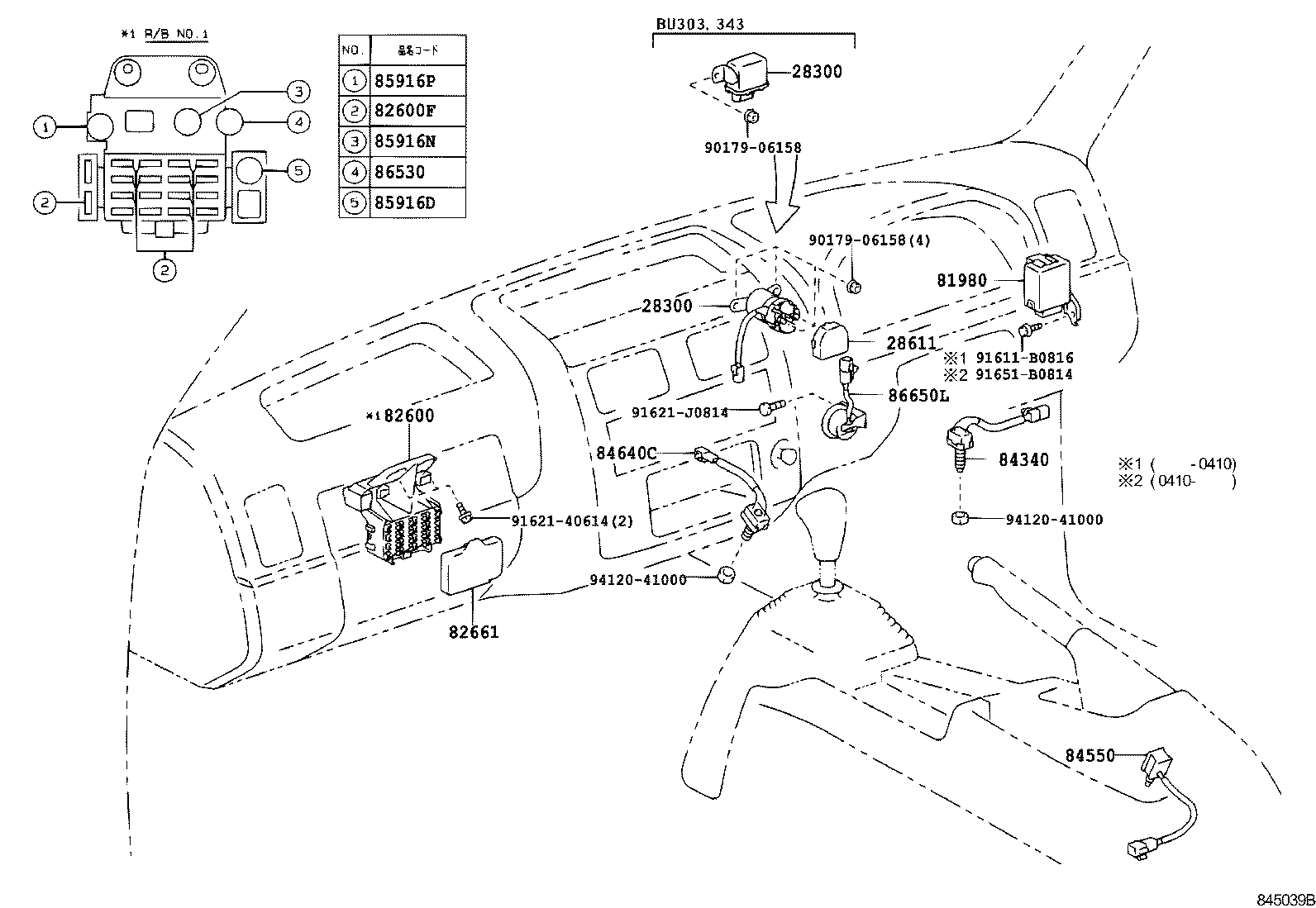

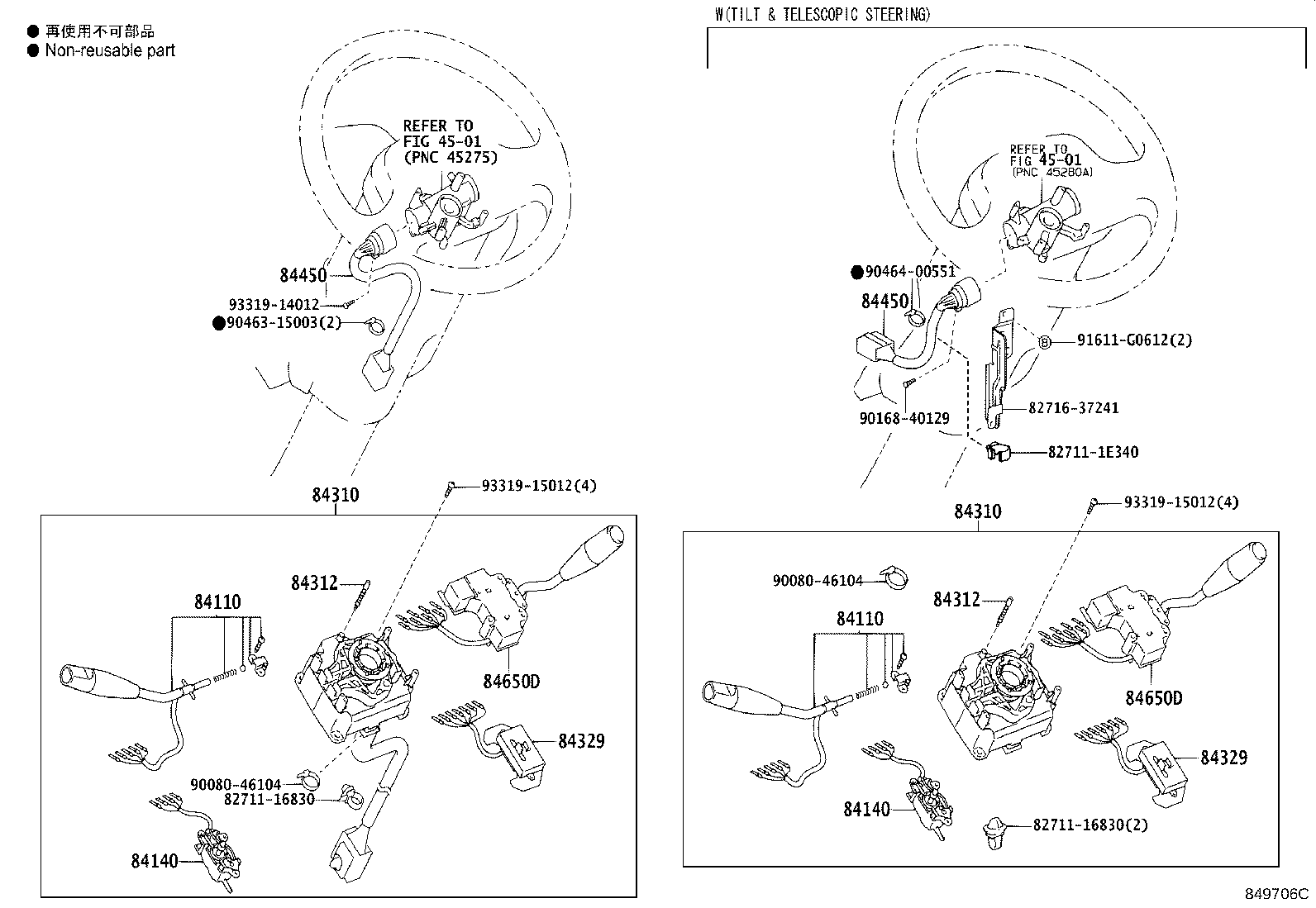

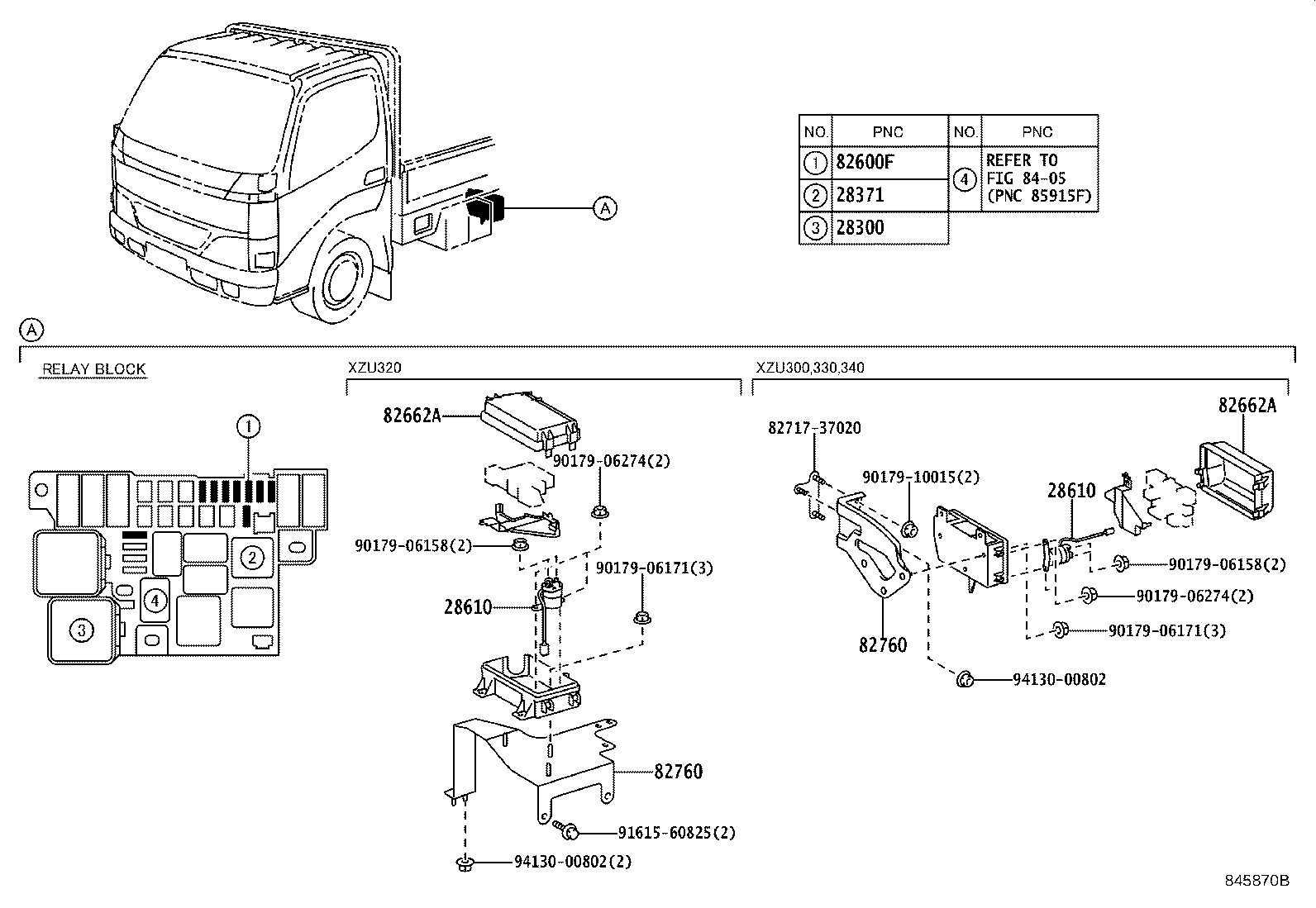

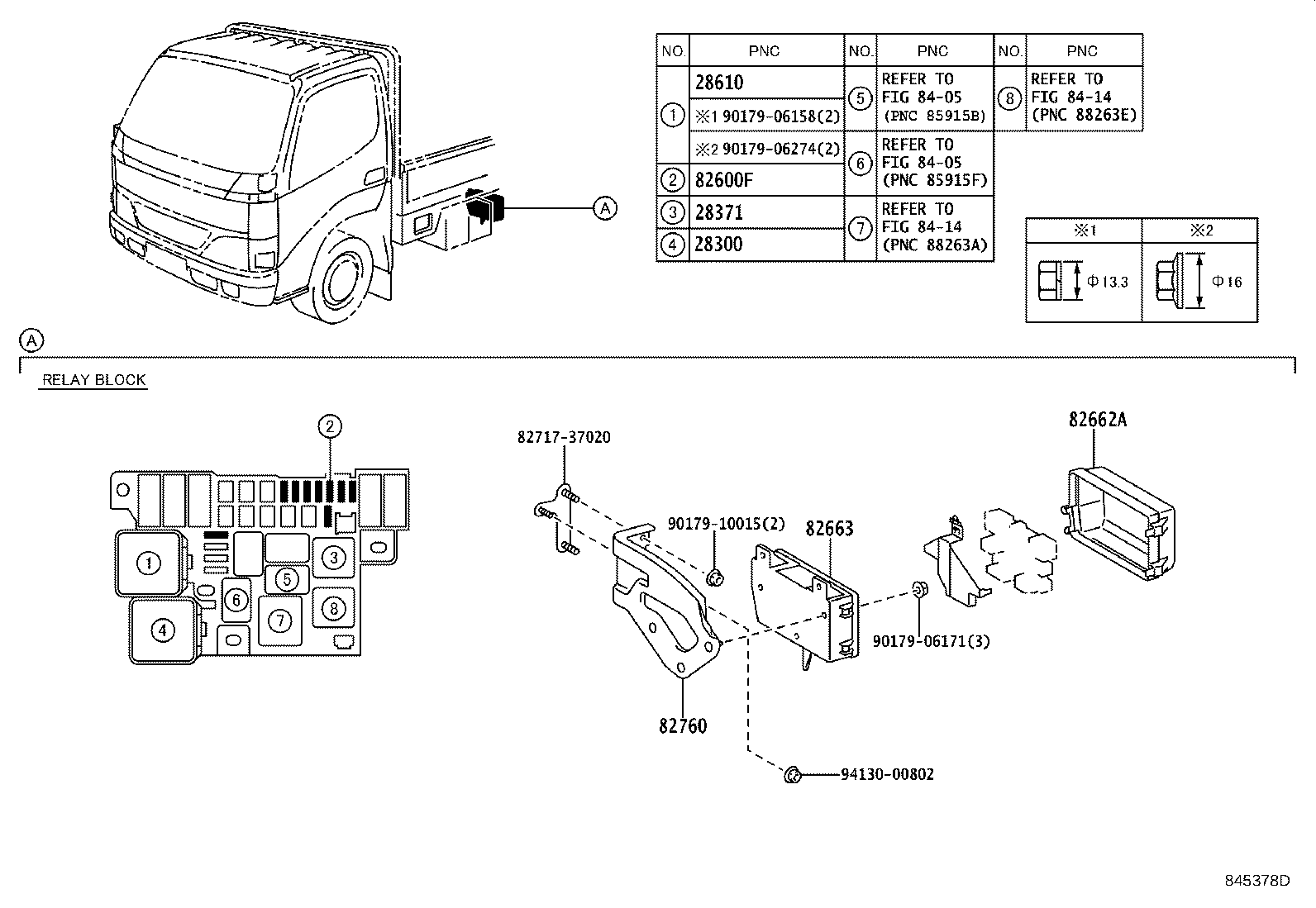

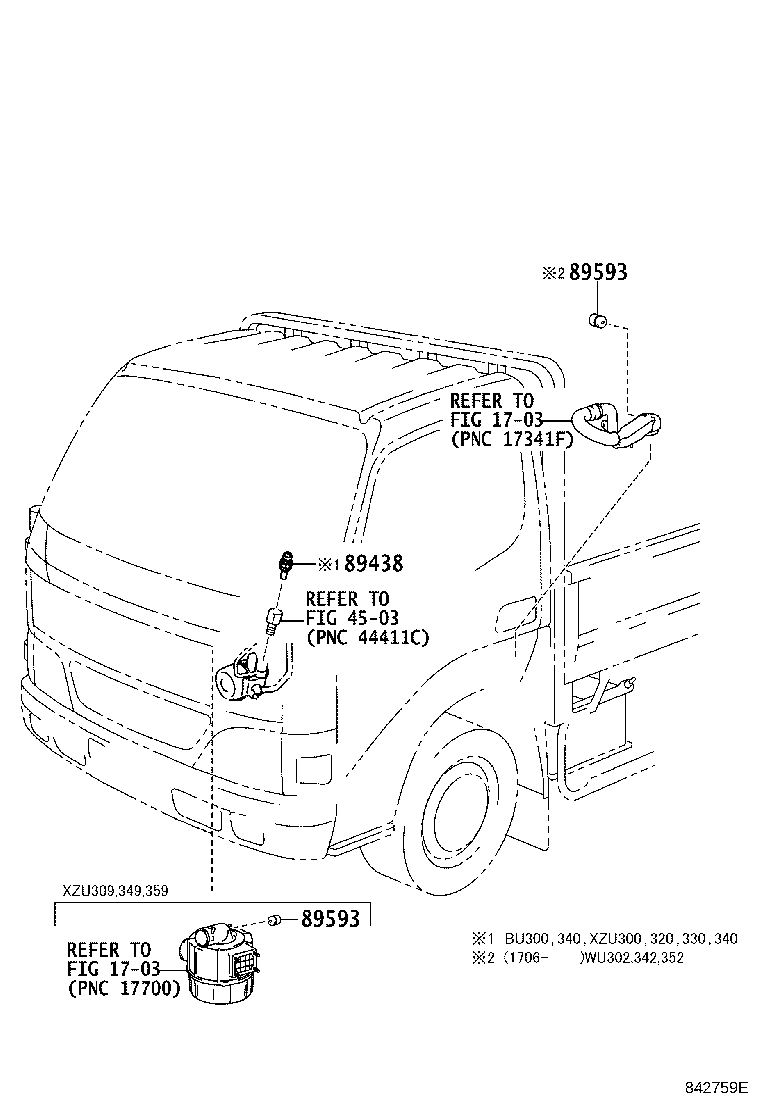

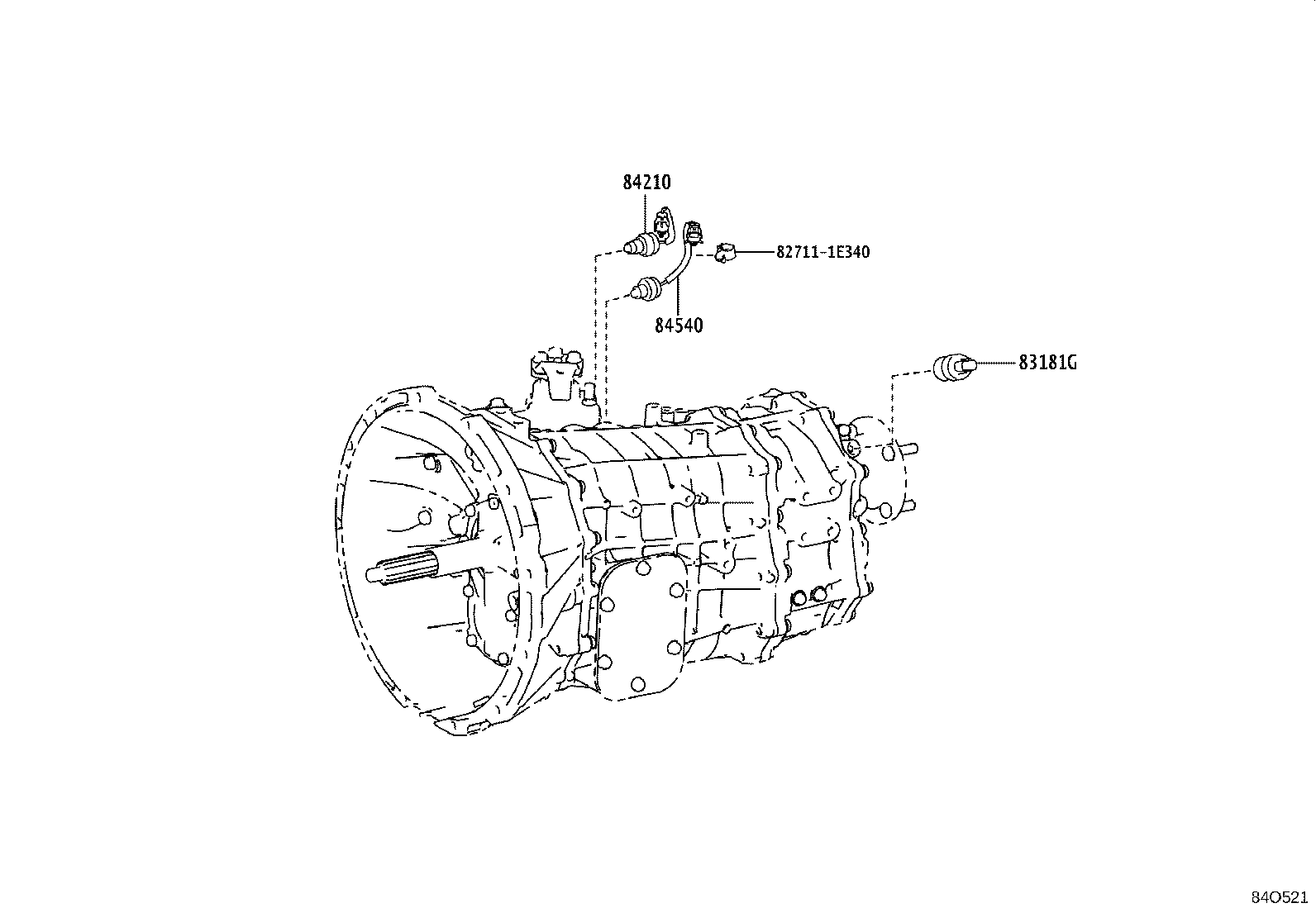

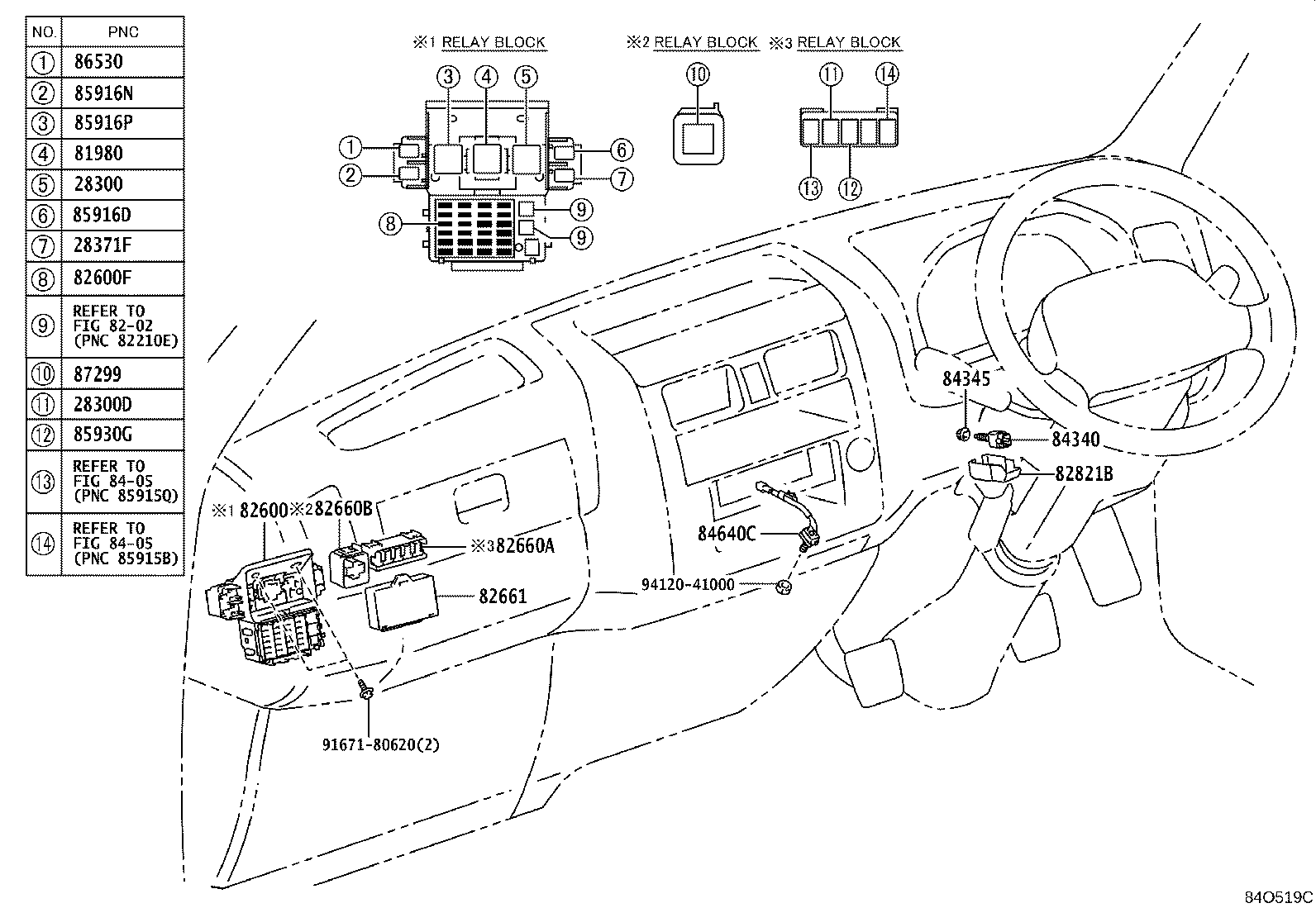

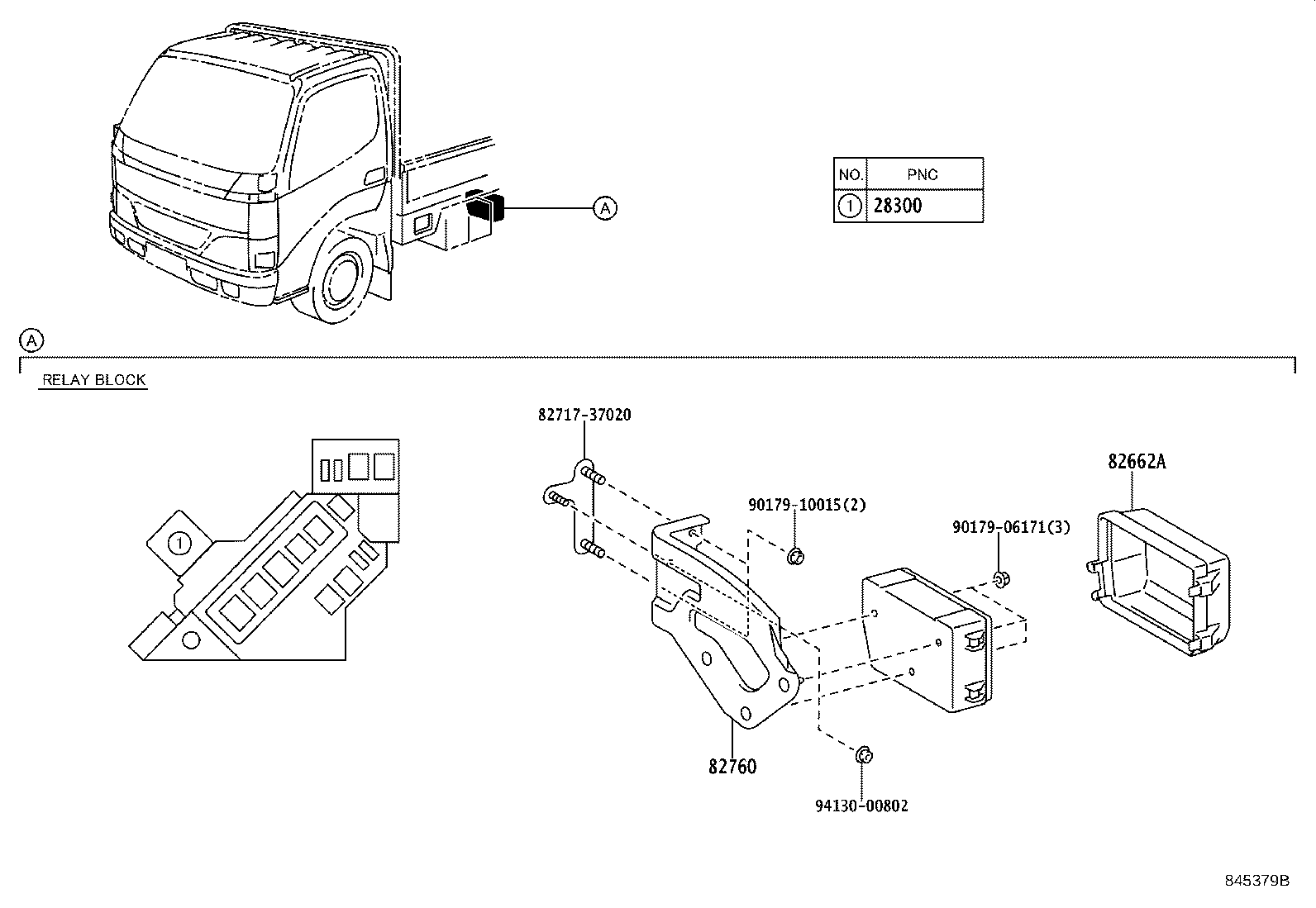

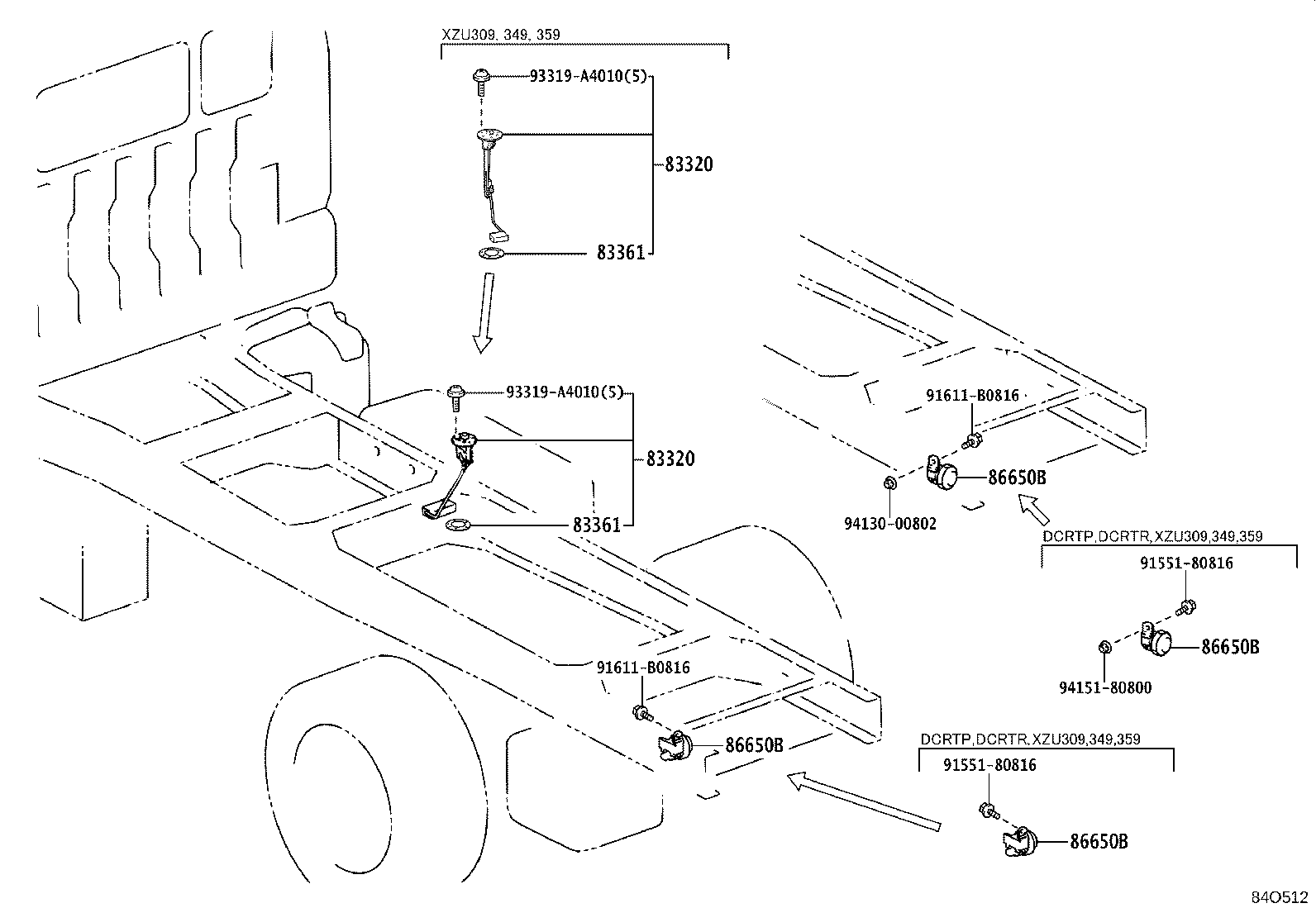

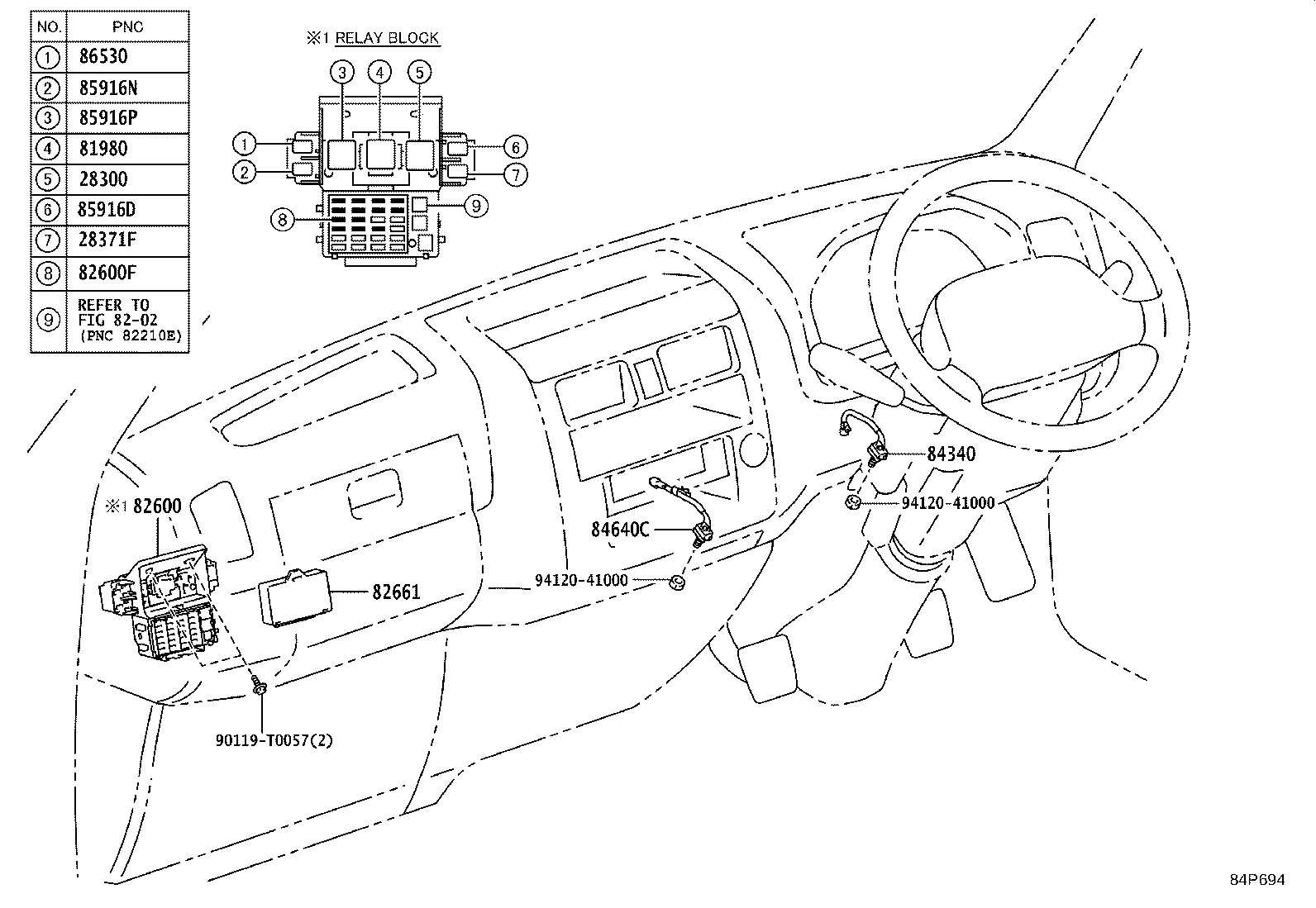

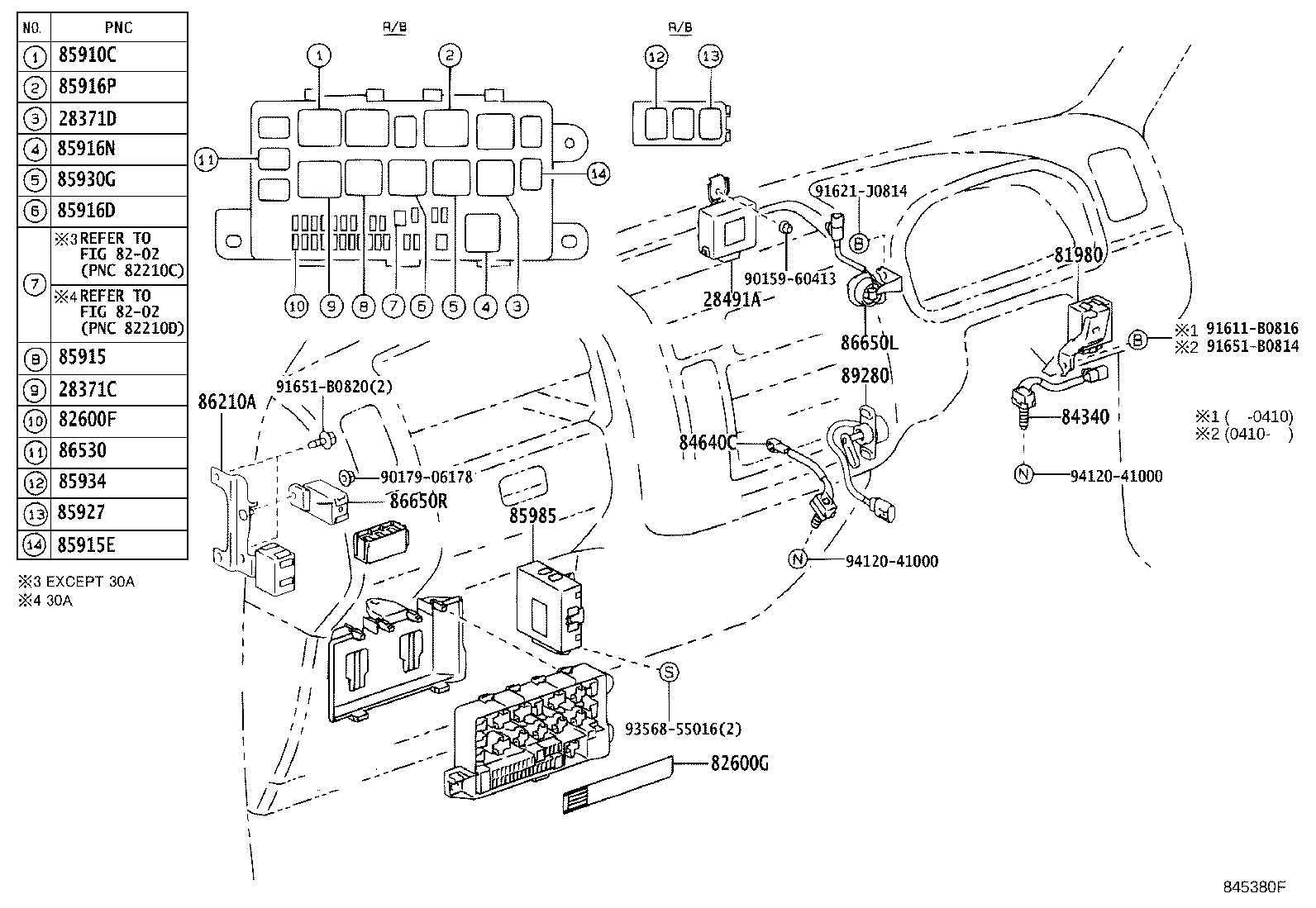

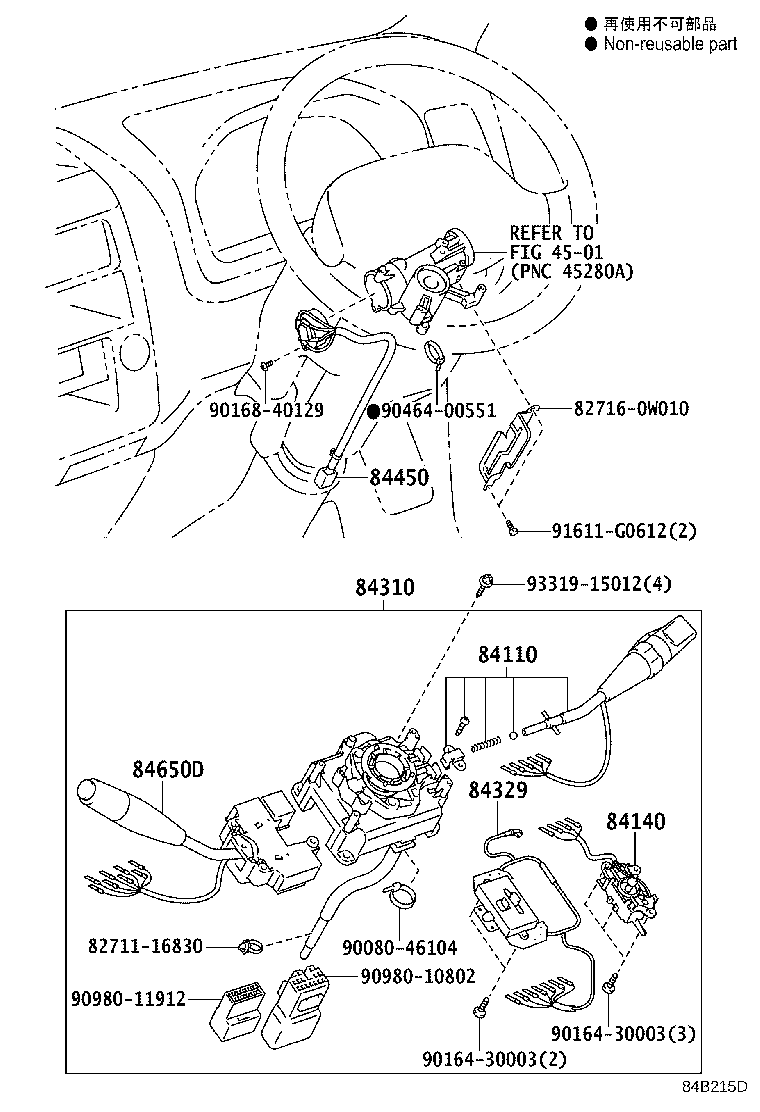

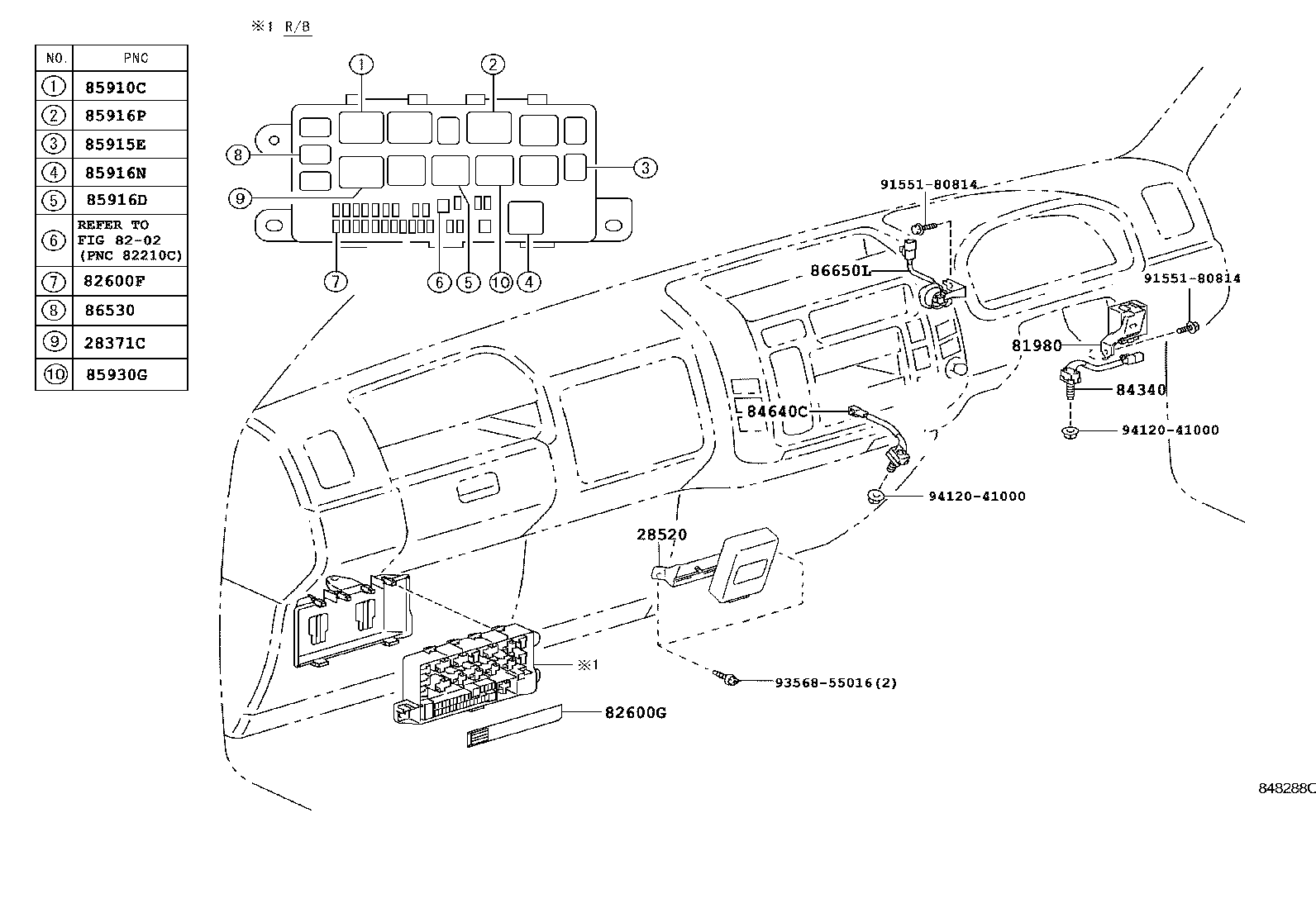

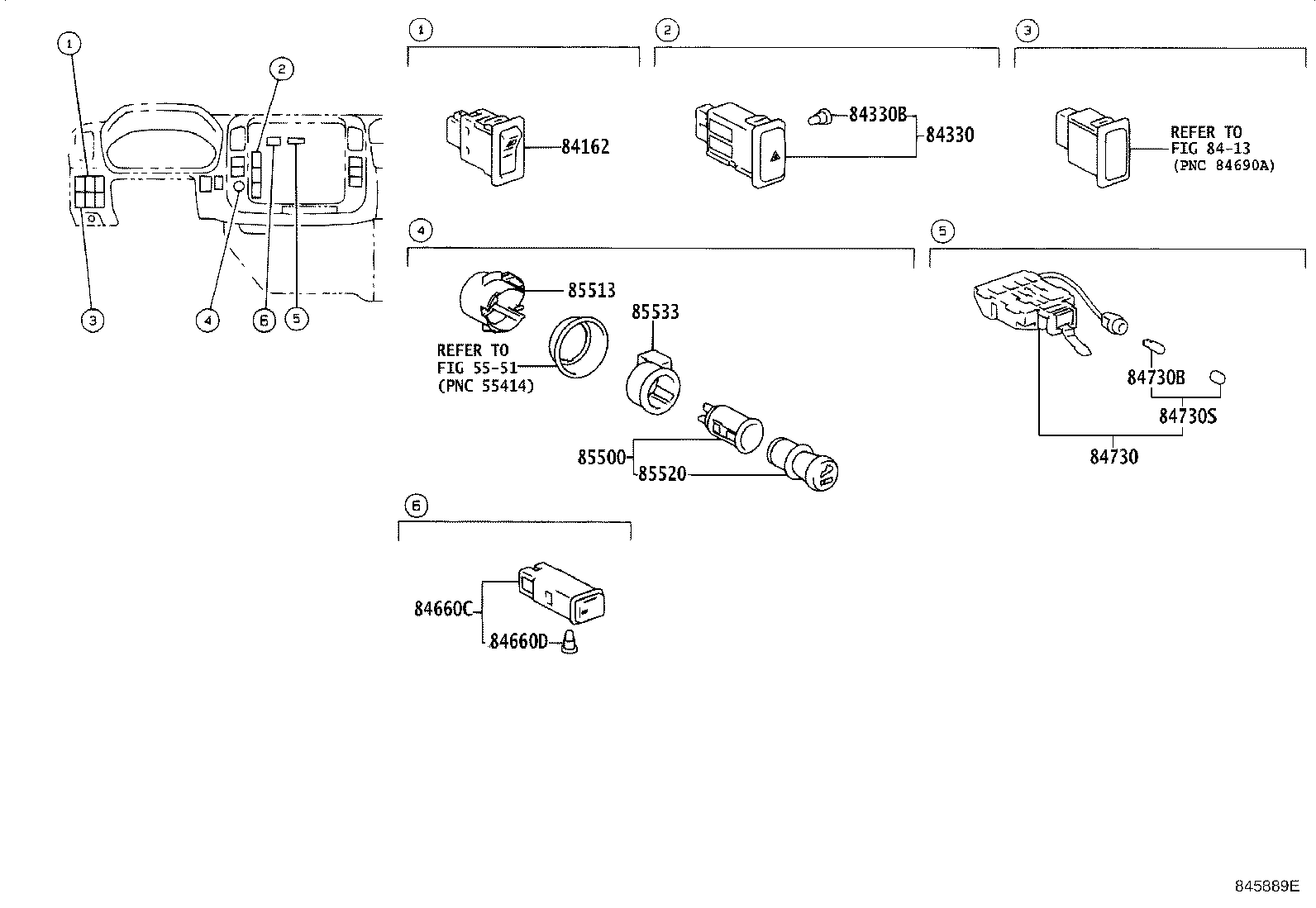

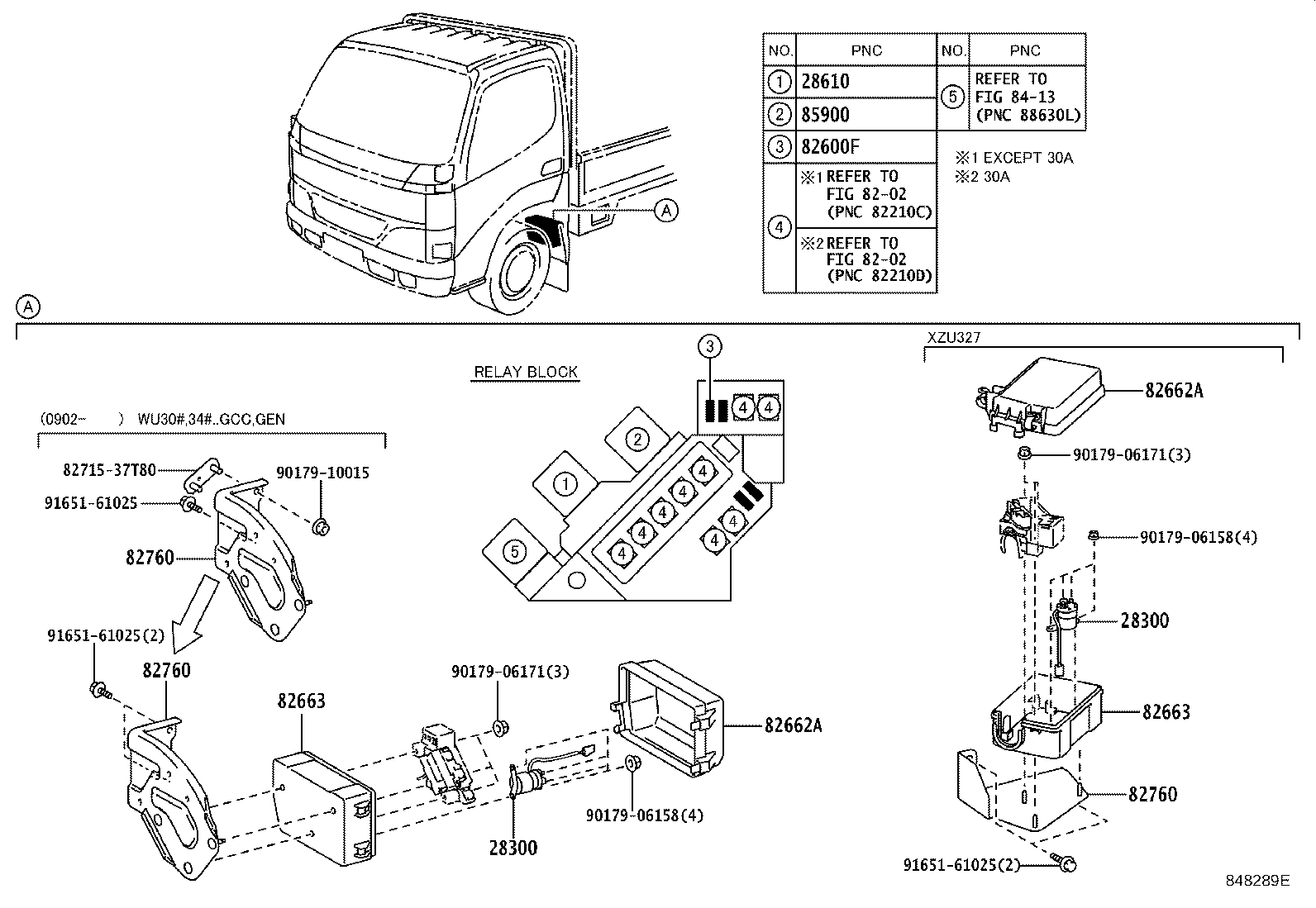

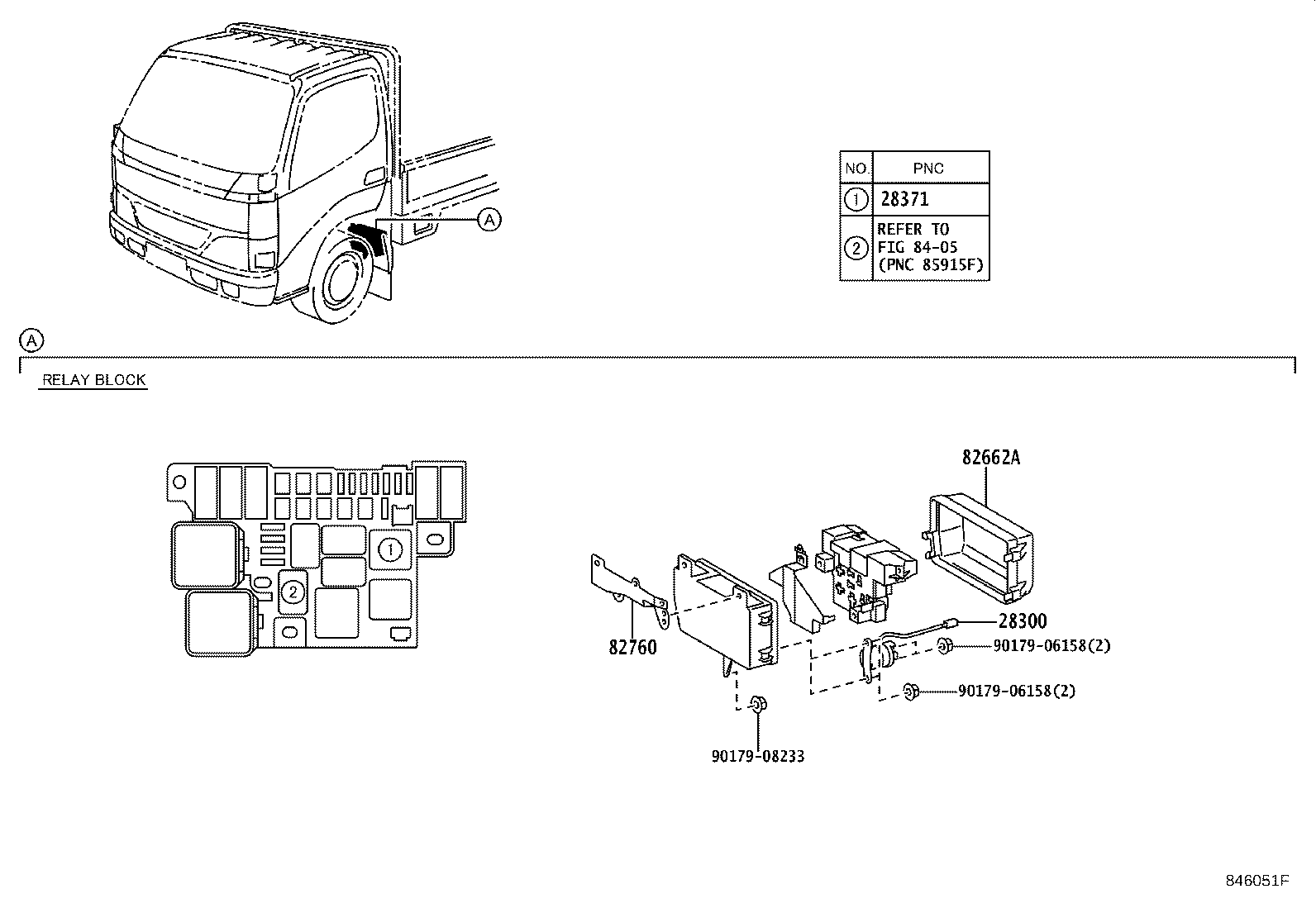

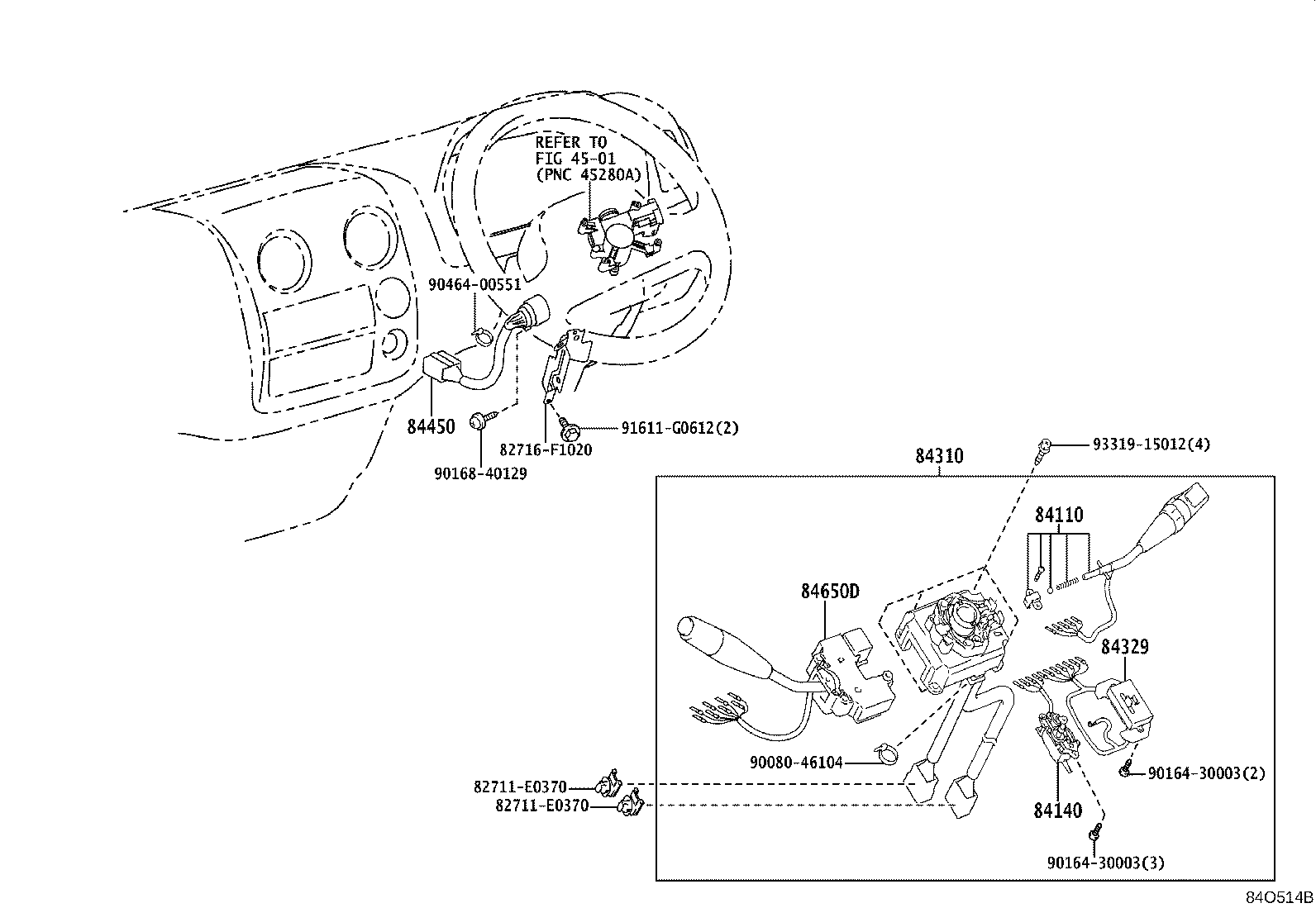

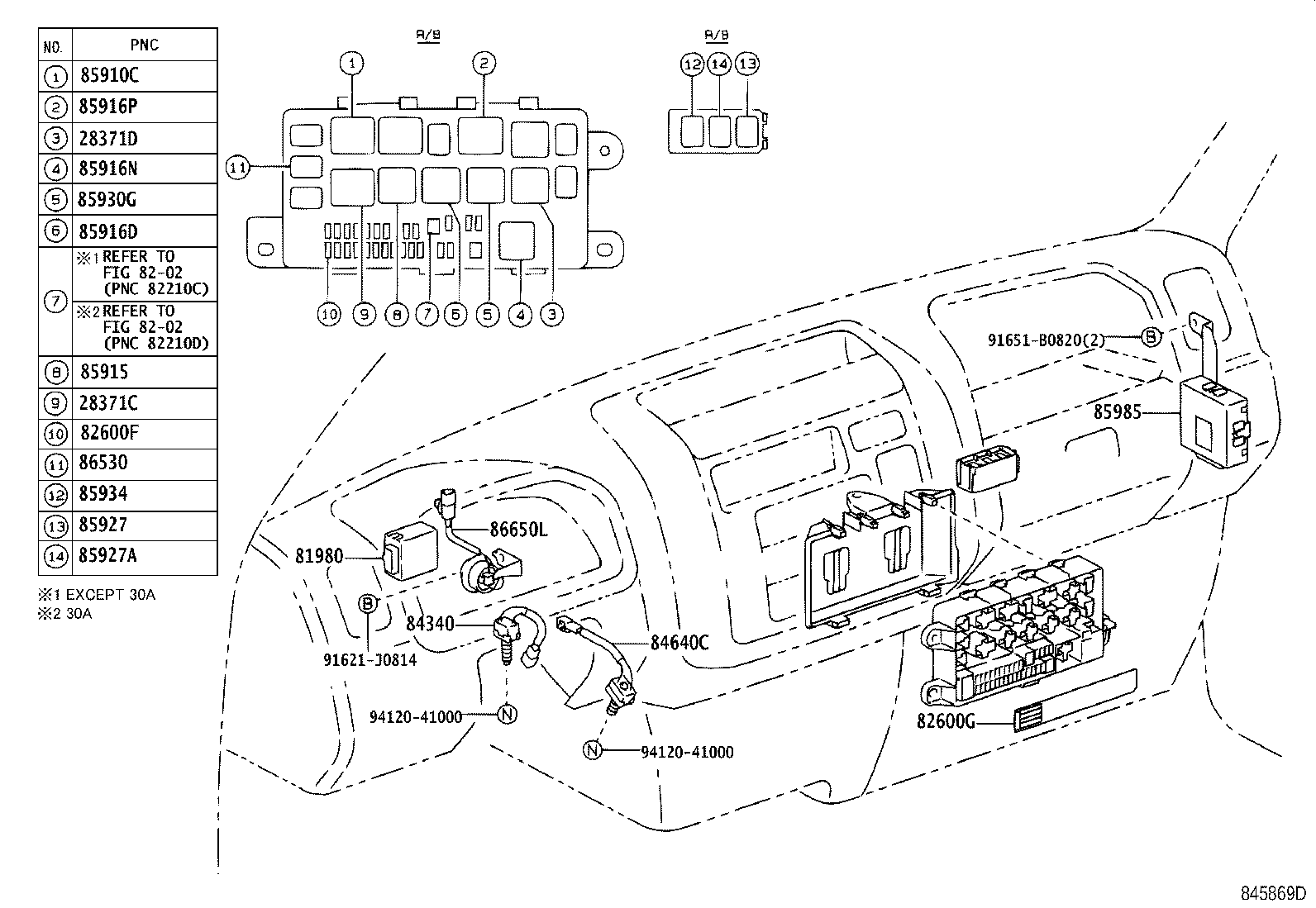

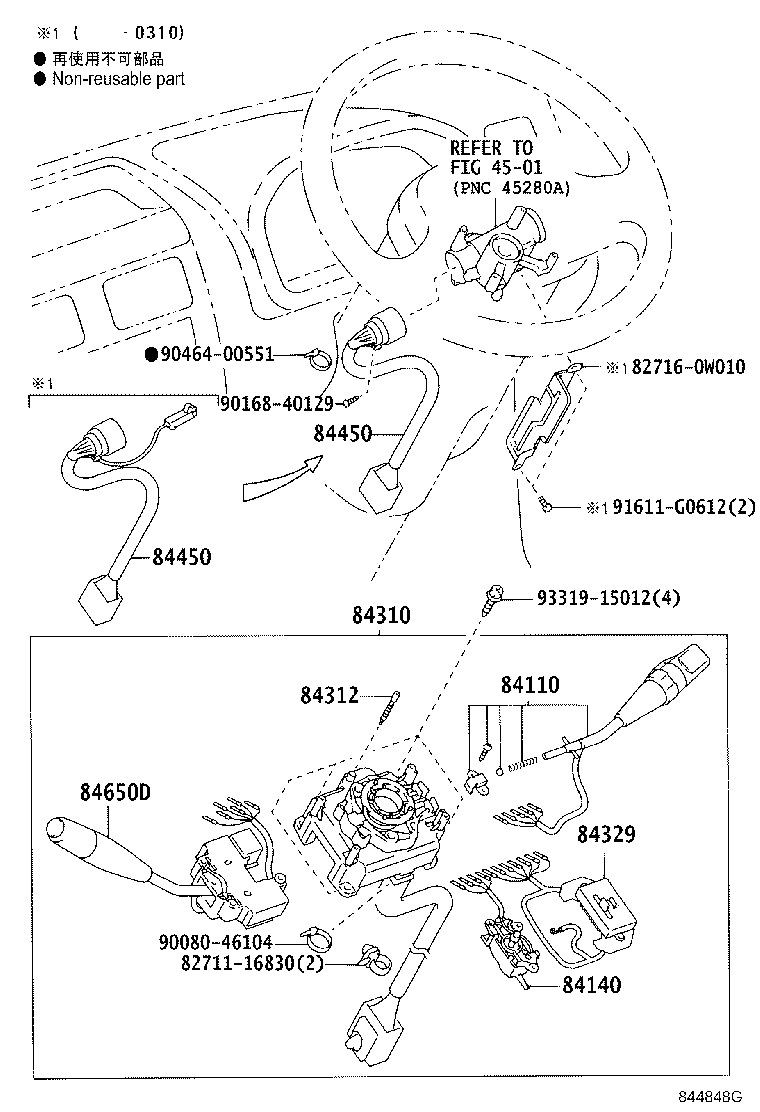

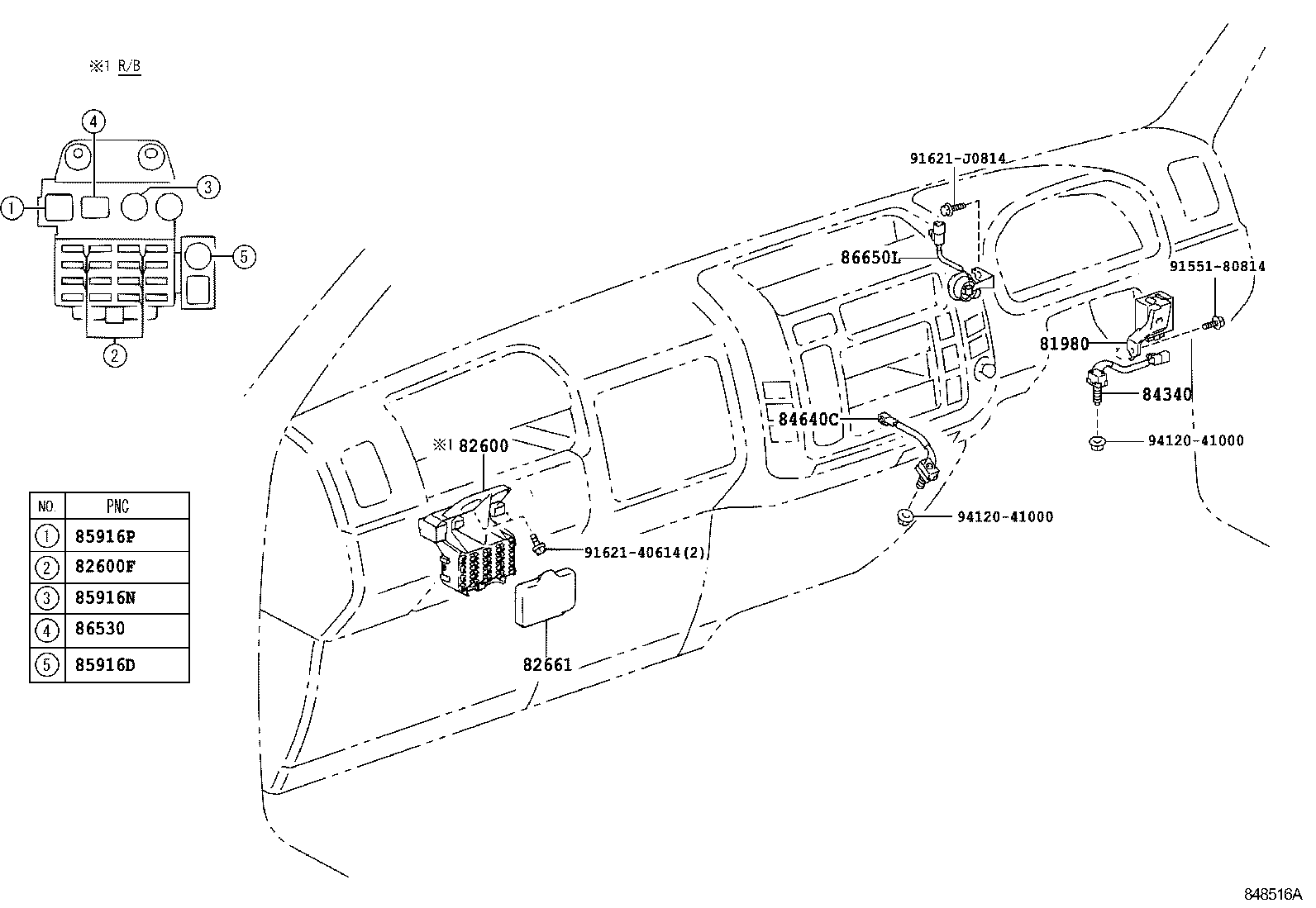

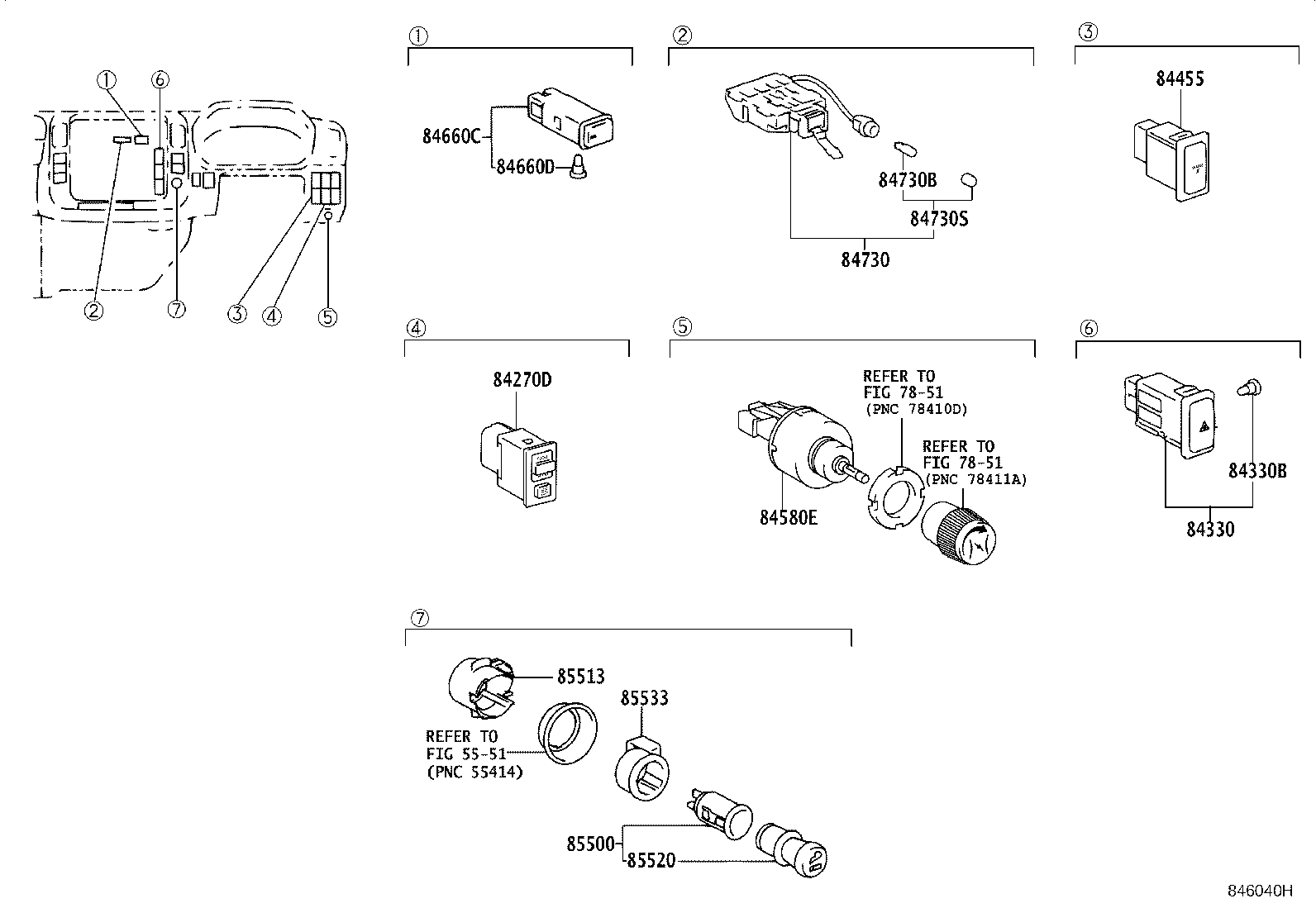

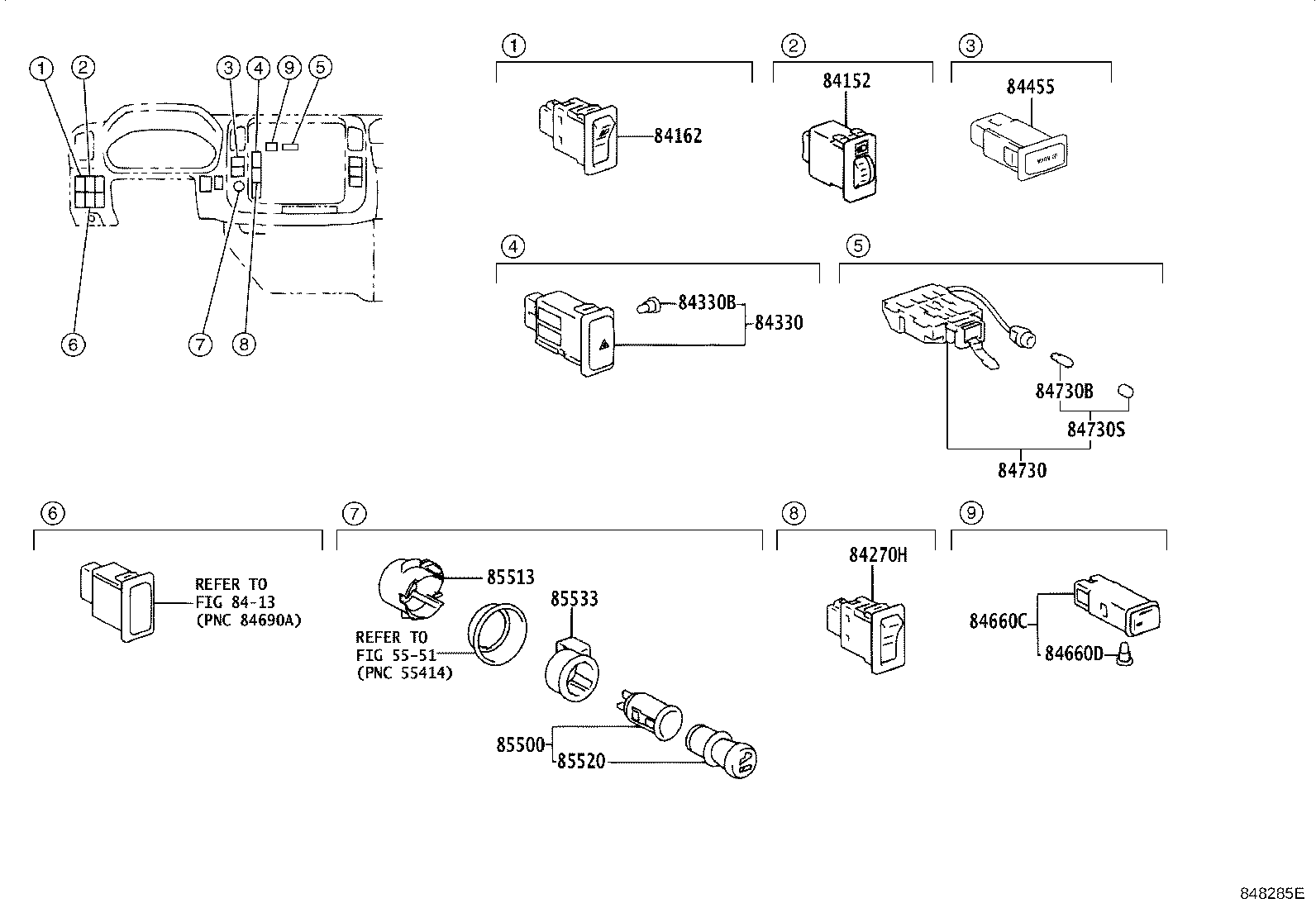

Figure 845362J 845362J 2002-09 → — Figure 845040C 845040C 2002-09 → 2006-12 Figure 84A641B 84A641B 2003-12 → 2006-10 Figure 84A641B 84A641B 2006-10 → 2009-01 Figure 84O524 84O524 2022-03 → — Figure 844837K 844837K 2002-09 → 2006-12 Figure 844837K 844837K 2002-09 → — Figure 845891A 845891A 2002-09 → 2006-12 Figure 845891A 845891A 2006-10 → 2009-01 Figure 845891A 845891A 2014-10 → — Figure 845376A 845376A 2002-12 → 2006-10 Figure 846052K 846052K 2003-12 → 2006-10 Figure 846052K 846052K 2006-10 → — Figure 84H763 84H763 2017-08 → — Figure 84O521 84O521 2022-03 → — Figure 845293 845293 2002-12 → 2006-10 Figure 845293 845293 2003-04 → 2008-12 Figure 845293 845293 2006-10 → 2011-06 Figure 842759E 842759E 2002-12 → 2006-10 Figure 842759E 842759E 2017-06 → — Figure 842759E 842759E 2022-03 → — Figure 845039B 845039B 2002-09 → 2006-12 Figure 845380F 845380F 2002-12 → 2006-10 Figure 845380F 845380F 2003-04 → 2008-12 Figure 845869D 845869D 2002-12 → 2006-10 Figure 848287B 848287B 2006-10 → 2011-06 Figure 848288C 848288C 2006-10 → 2011-06 Figure 848516A 848516A 2006-12 → 2010-05 Figure 84P694 84P694 2009-12 → — Figure 84O519C 84O519C 2022-03 → — Figure 845379B 845379B 2002-12 → 2006-10 Figure 845378D 845378D 2002-12 → 2003-12 Figure 845378D 845378D 2003-04 → 2008-12 Figure 845870B 845870B 2002-12 → 2006-10 Figure 846051F 846051F 2003-12 → 2006-10 Figure 848289E 848289E 2006-10 → — Figure 844839E 844839E 2002-09 → — Figure 845364C 845364C 2002-12 → 2006-10 Figure 845364C 845364C 2003-04 → 2008-12 Figure 845364C 845364C 2006-10 → 2011-06 Figure 845363F 845363F 2002-12 → 2006-10 Figure 845889E 845889E 2002-12 → 2006-10 Figure 846040H 846040H 2003-12 → 2006-10 Figure 848285E 848285E 2006-10 → 2011-06 Figure 84O517A 84O517A 2022-03 → — Figure 844848G 844848G 2002-09 → 2006-12 Figure 849705D 849705D 2002-09 → 2006-12 Figure 849705D 849705D 2002-12 → 2006-10 Figure 849705D 849705D 2003-04 → 2008-12 Figure 849705D 849705D 2006-10 → 2010-05 Figure 849705D 849705D 2006-10 → 2011-06 Figure 849706C 849706C 2002-12 → 2011-06 Figure 84B215D 84B215D 2009-12 → — Figure 84O514B 84O514B 2022-03 → — Figure 845365F 845365F 2002-09 → — Figure 848292C 848292C 2002-12 → 2011-06 Figure 84O512 84O512 2002-09 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28300D Relay, Starter Cut
28371 Relay, Ignition, NO.1
28371C Relay, Ignition, NO.2
28371D Relay, Ignition, NO.3
28371F Relay, Ignition, NO.5
28490A Relay Assy, Exhaust Retarder
28491A Computer, Exhaust Retarder
28520 Timer Assy, Preheating
28610 Relay Assy, Intake Heater OR Glow Plug
28611 Cover, Glow Plug Relay
81980 Flasher Assy, Turn Signal
82600 Block Assy, Fuse
82600F Fuse, Fuse Block
82600G Plate, Caution(FOR FUSE)
82660A Block Assy, Relay, Cowl Side
82660B Block Assy, Relay
82661 Cover, Relay Block, NO.1
82662A Cover, Relay Block, Upper, NO.1
82663 Cover, Relay Block, Lower
82760 Bracket Assy, Relay Block
82821B Cover, Connector
83180B Detector Assy, Revolution
83181G Sensor, Speedometer
83320 Gage Assy, Fuel Sender
83361 Gasket, Fuel Sender Gage
83390 Switch Assy, Vacuum Warning
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84110 Switch Assy, Light Control, NO.1
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84162 Switch, Front Fog Lamp
84210 Switch Assy, Back-up Lamp
84225A Switch, Shift Position
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84270D Switch Assy, ES Start Timing
84270H Switch Assy, Parking Lamp
84306 Cable Sub-assy, Spiral
84310 Switch Assy, Turn Signal
84312 Plate, Horn Contact
84329 Switch, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84455 Switch, Warm UP
84512 Switch, Tilt Cab Control
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84580E Switch Assy, Throttle Position
84640C Switch Assy, Exhaust Retarder
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84660C Switch, Cooler
84660D Bulb(FOR COOLER SWITCH)
84730 Switch Assy, Heater Blower
84730B Bulb, Heater Blower Switch
84730S Bulb, Heater Blower Switch
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
85500 Lighter Assy, Cigarette
85510 Socket & Retainer Assy, Cigarlighter
85513 Cover, Cigarette Lighter
85520 Knob And Element Assy, Cigarette Lighter
85533 Lens, Cigarette Lighter Indicator
85900 Relay Assy, Control Unit
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85912D Relay
85915 Relay, Main
85915E Relay
85916D Relay, Fog Lamp
85916N Relay, Taillamp
85916P Relay, Headlamp
85916U Relay, Headlamp, NO.2
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85930G Relay, Acc
85934 Relay, Magnet-clutch
85985 Relay, Key Reminder
86206D Converter Sub-assy, Voltage
86210A Inverter Assy, Voltage
86530 Relay Assy, Horn
86650B Buzzer Assy, Reverse Warning
86650L Buzzer Assy, Vacuum Warning
86650R Buzzer Assy, ES Start
87299 Relay, Heater
89280 Sensor Assy, Clutch Pedal Stroke
89420M Sensor Assy, Air Pressure
89422A Sensor, Water Temperature
89424B Switch, Inlet Air Temperature
89438 Switch, Power Steering Oil Pressure
89458D Sensor, Fuel Pressure
89491 Sensor, Engine Oil Level
89491A Gasket, Engine Oil Level Sensor
89593 Sensor, Air Cleaner Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
