Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Take-off Control

5 part groups · 6 illustrations

Illustrations

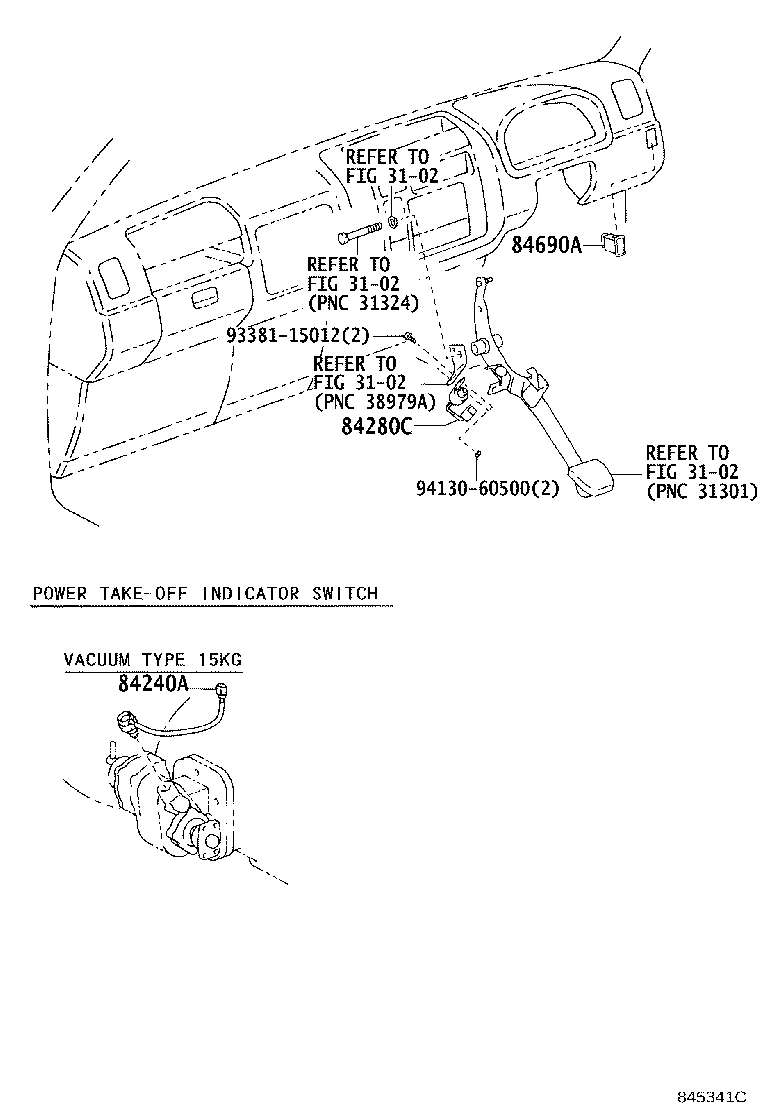

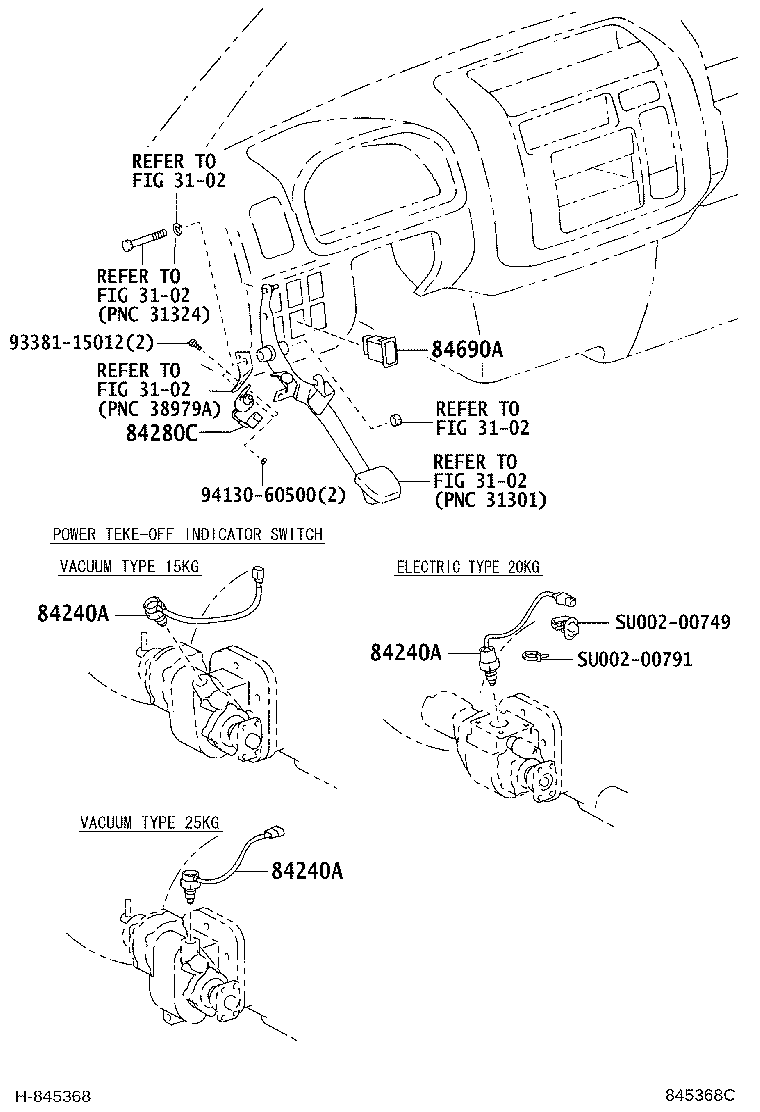

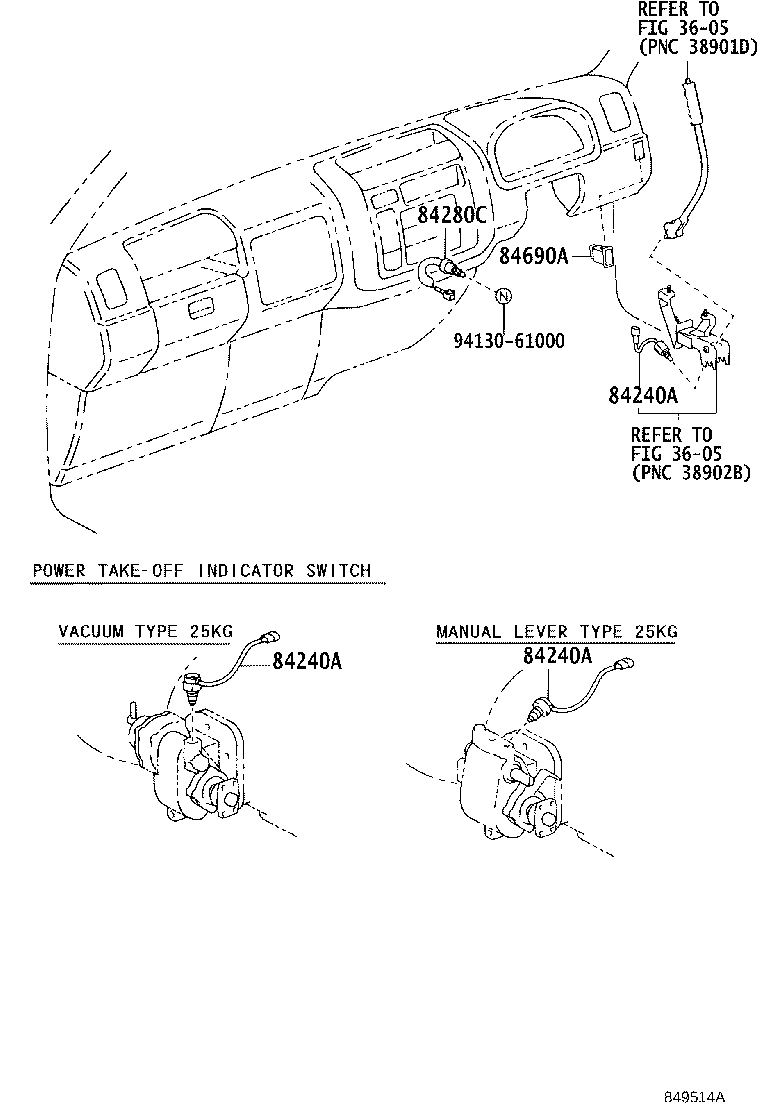

Figure 849515 849515 2002-11 → — Figure 849514A 849514A 2002-12 → — Figure 845341C 845341C 2002-12 → — Figure 845368C 845368C 2002-12 → — Figure 845368C 845368C 2002-12 → — Figure 848304B 848304B 2006-10 → —

Part groups

PNCDescription
84240A Switch Assy, Power Take-off Indicator
84280C Switch Assy, Power Take-off Clutch
84690A Switch Assy, Power Take-off Indicator
85900B Relay Assy, Control Unit
88630L Relay, Power Take-off Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
