Toyota Dyna
2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General
Discontinued model
Data version 2022-03

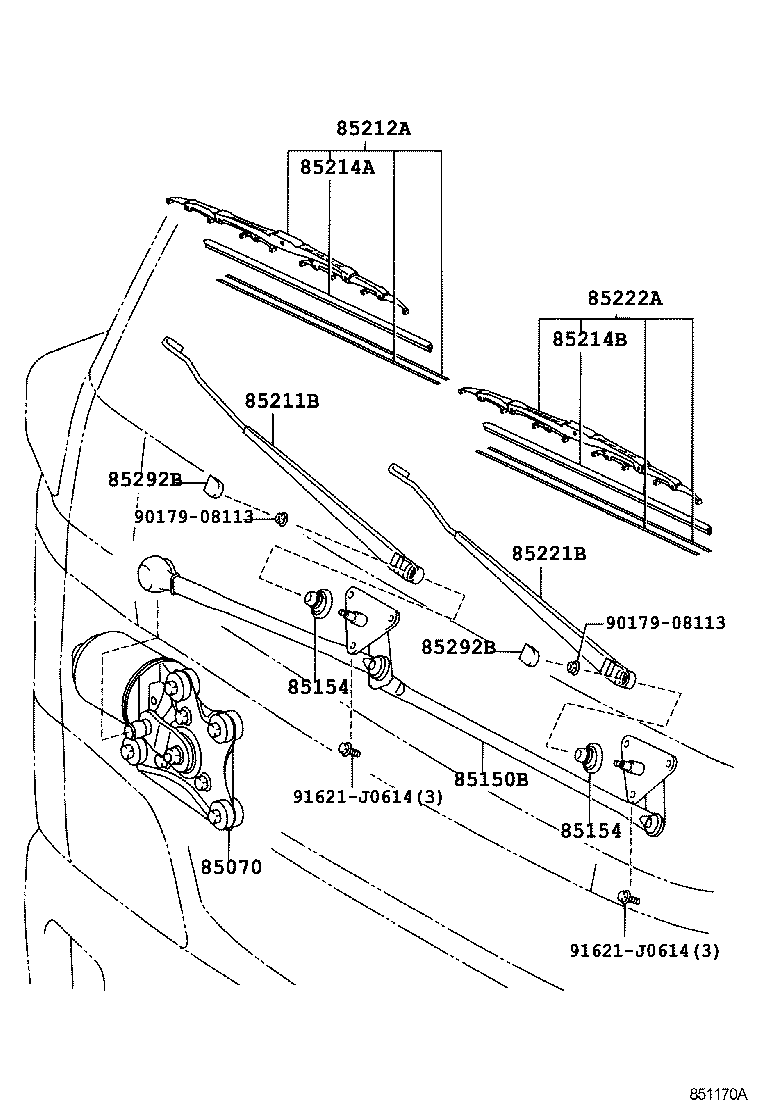

Windshield Wiper
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85070 | Motor & Bracket Assy, Front Wiper |
| 85150B | Link Assy, Wiper |
| 85154 | Packing, Front Wiper Shaft |
| 85211B | Arm, Front Wiper, RH |
| 85212A | Blade, FR Wiper, RH |
| 85214A | Rubber, Wiper, RH |
| 85214B | Rubber, Wiper, LH |
| 85221B | Arm, Front Wiper, LH |
| 85222A | Blade, FR Wiper, LH |
| 85292B | Cap, Front Wiper Arm Head |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
